Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
2 in stock

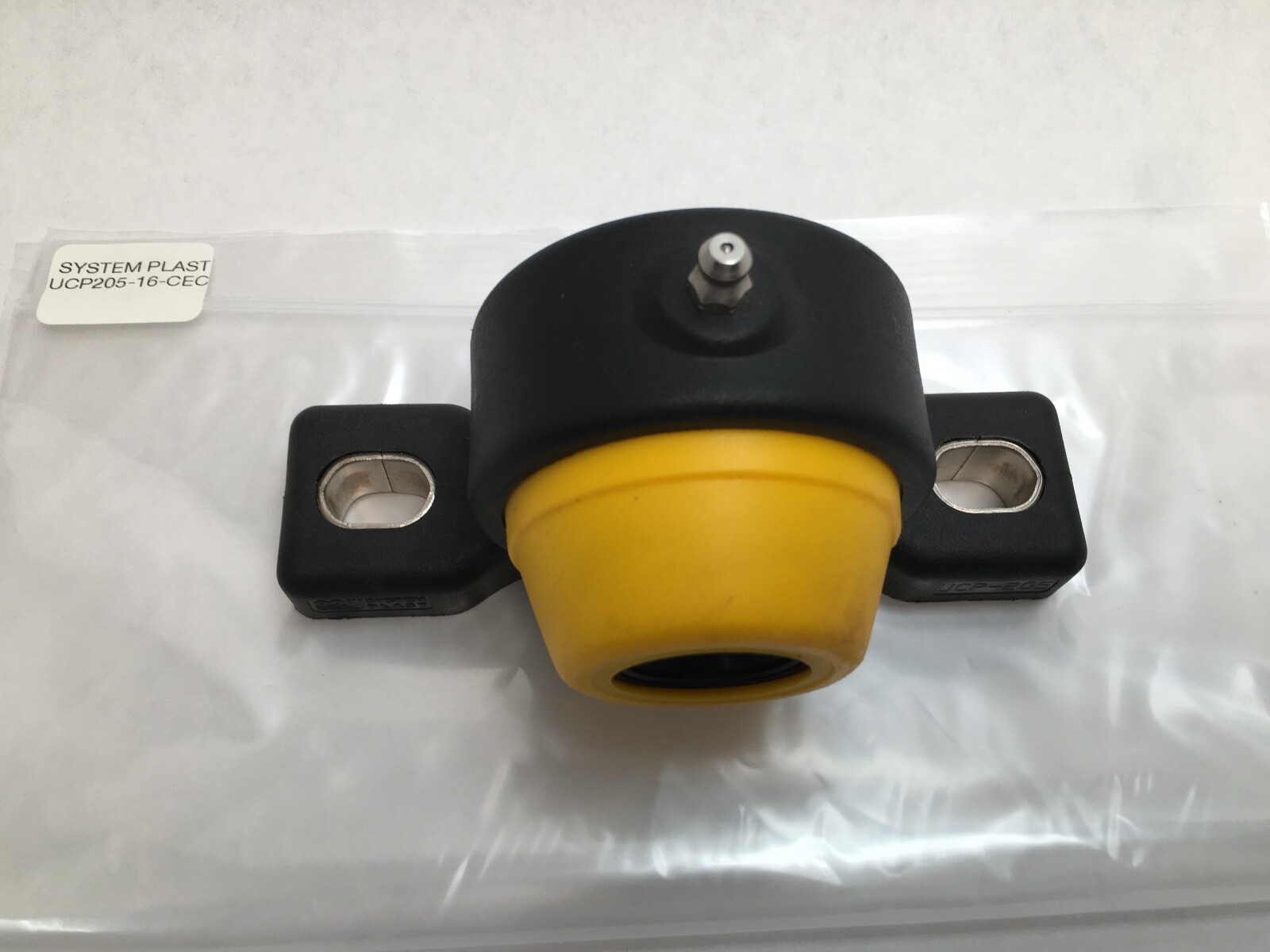

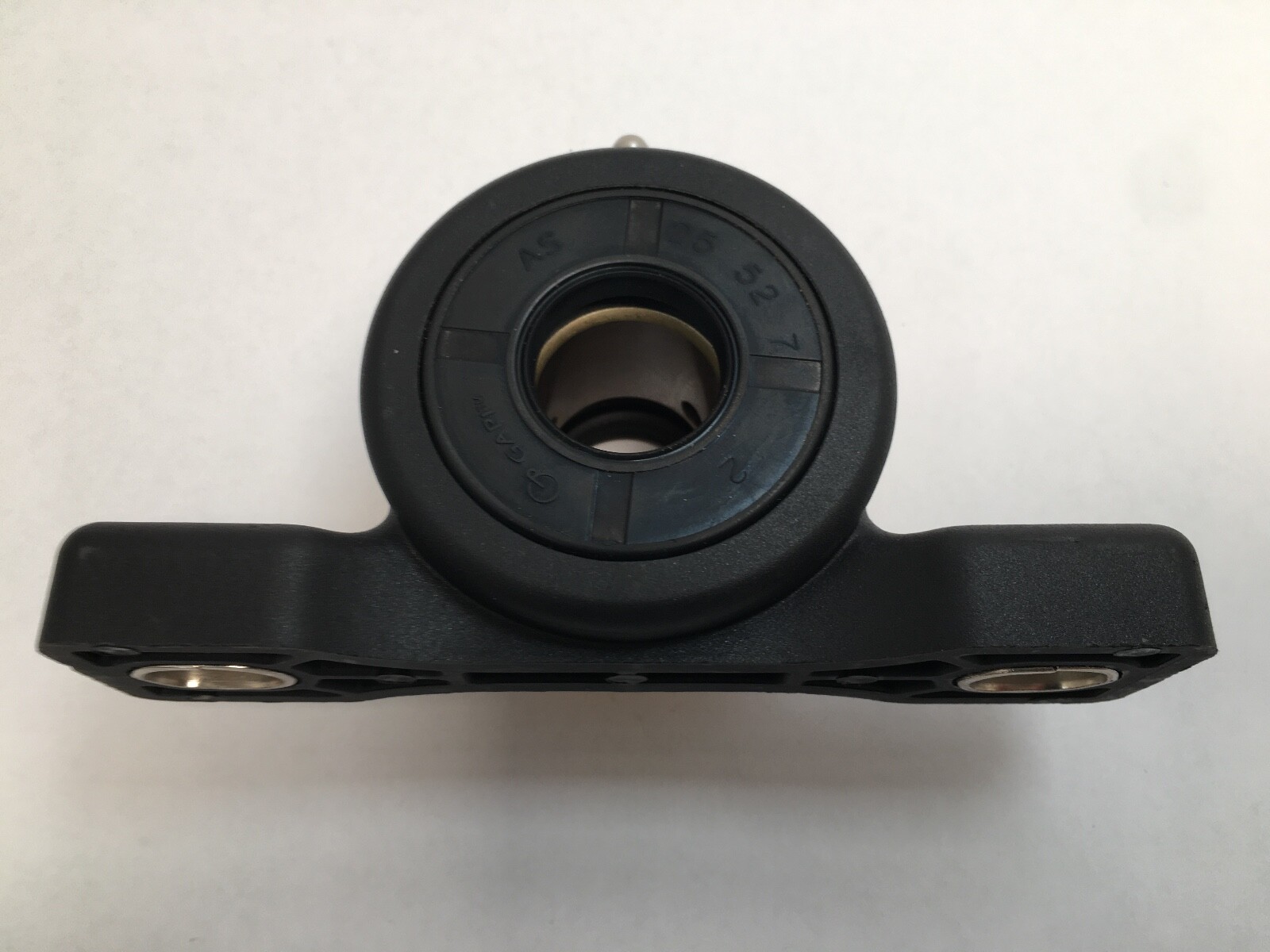

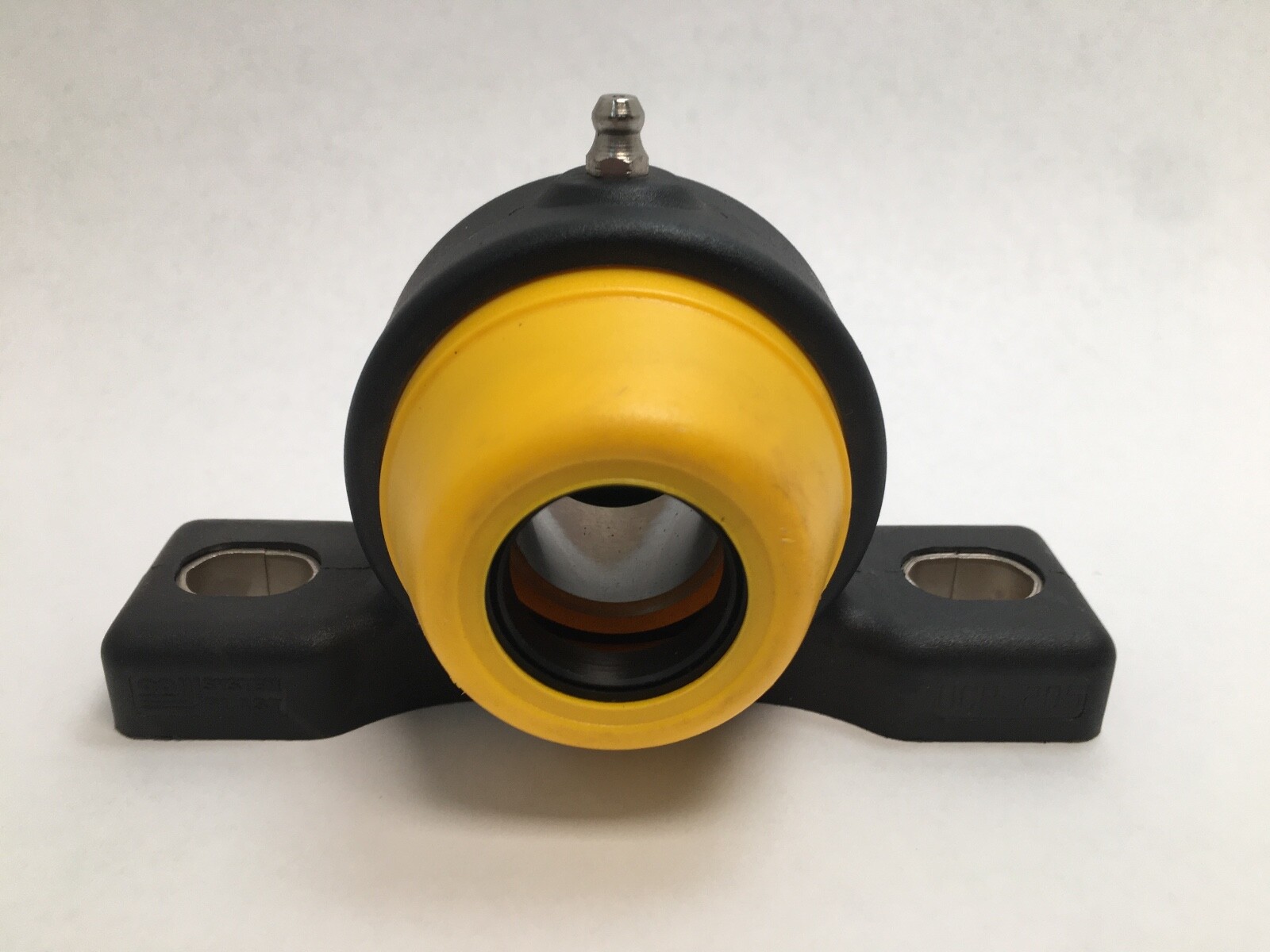

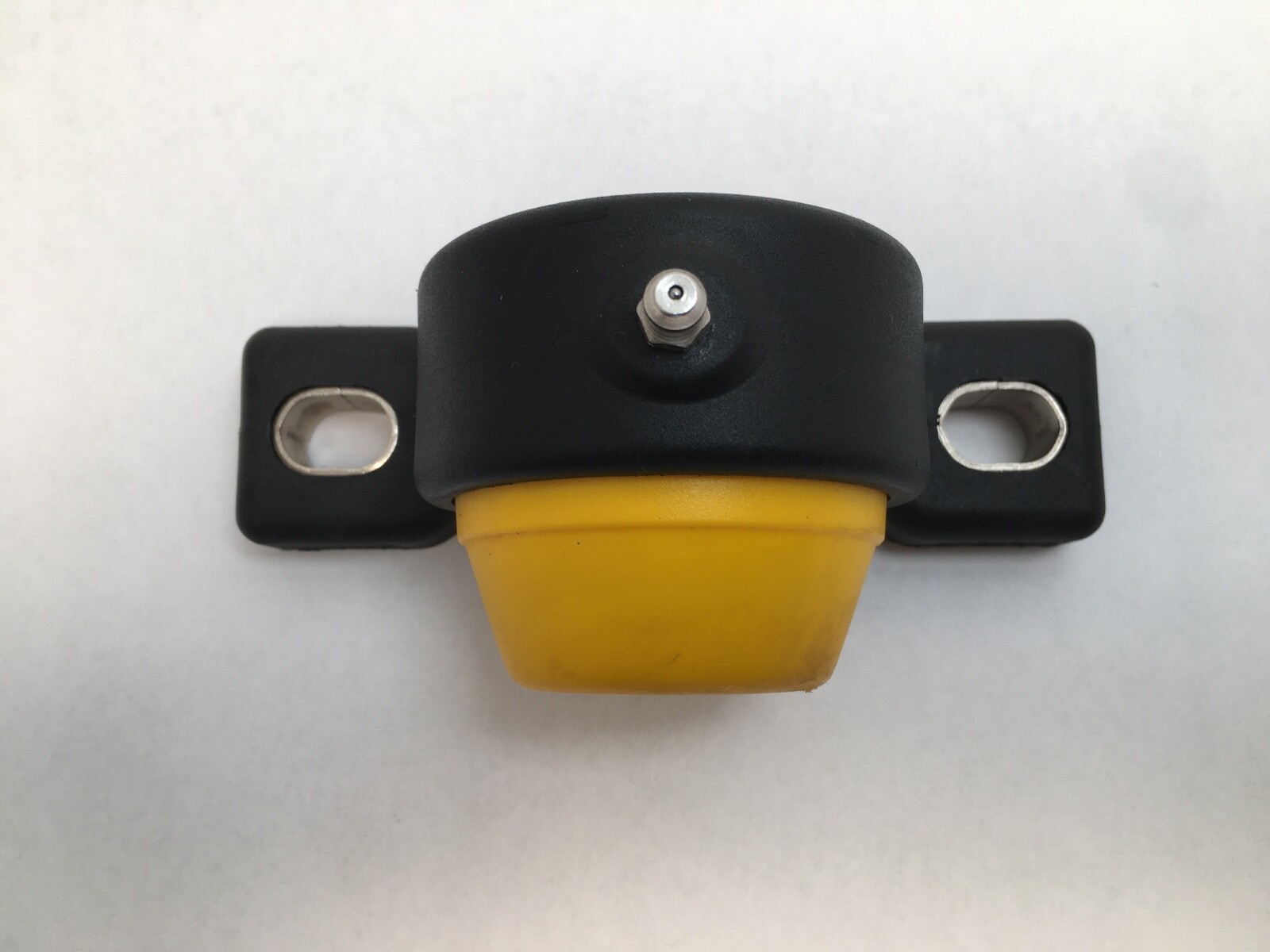

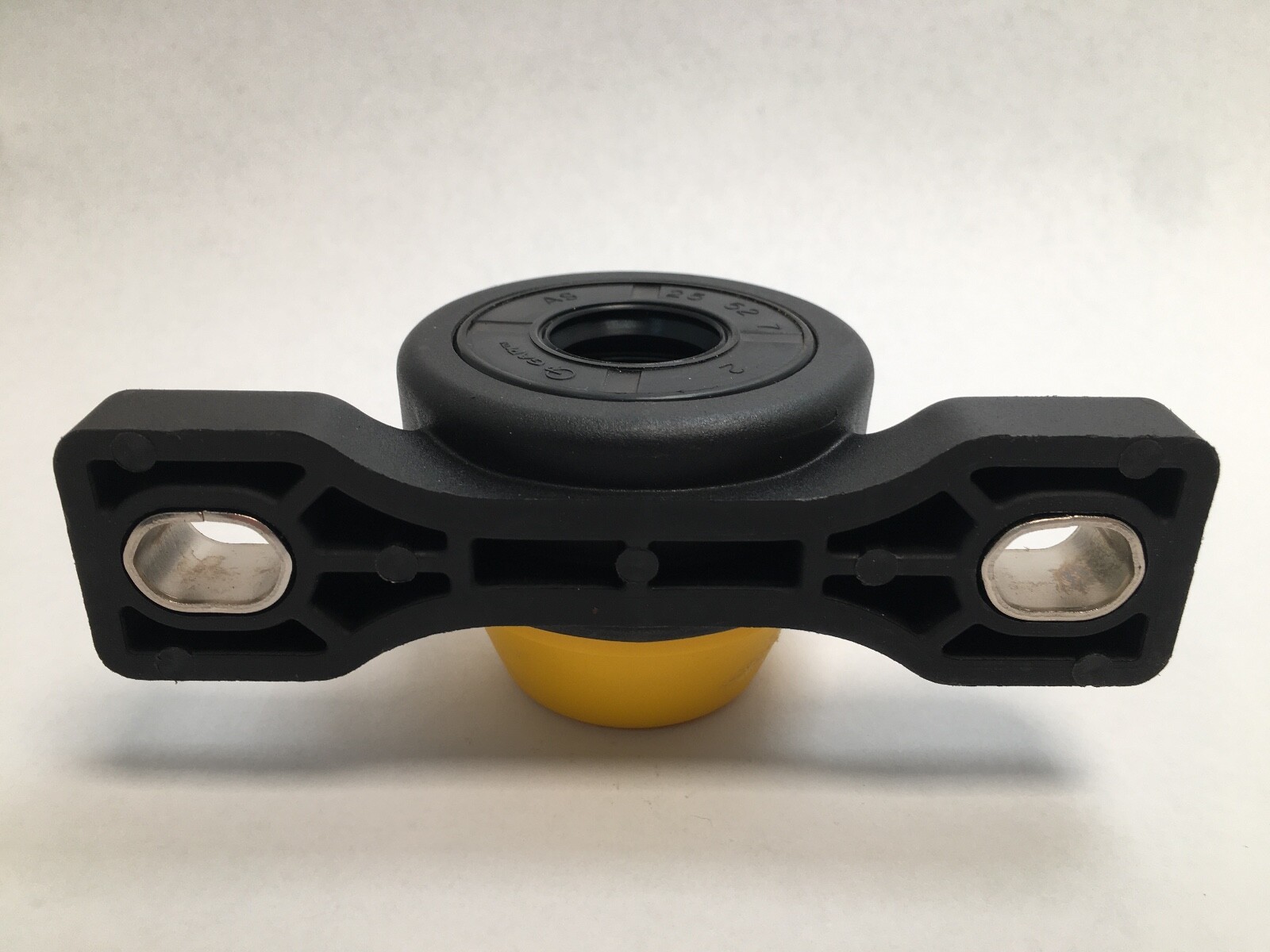

System Plast UCP205-16-OEC two-bolt pillow block ball bearing, 1 in bore, reinforced polyamide housing, setscrew lock, open end cap with seal. Regal 78205R.
List Price
$51.20
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | System Plast |
|---|---|
| GTIN | 787405287105 |
| Model | UCP205-16OEC |
| ID | 1 in |
| Material | Polyamide |
|---|---|
| Series | UCP |
| Type | Pillow Block Bearing |
| Lubricant | NSF H1 food grade grease |
| Centre Height Base To Bore Centerline | 1.4375 in |
| Bolt Center To Center | 3.812 in to 4.281 in |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Closure Type | Contact Seal |
| Min Temp | 30 °F |
| Rolling Elements | Ball |
| Max Temp | 180 °F |
| Bearing Type | Pillow Block Bearing |
| Item Weight | 0.86 lb |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Duty Type | Standard Duty |
| Locking Device | Set Screw |
| Insert Outer Ring | Spherical |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Polyamide |
| Expansion Type | Non-Expanding |
| Mpn Variants | UCP205-16-OEC, UCP205-16OEC, UCP 205-16 OEC, 78205R |
| Compatible With Replaces | Replacement insert SB205-16 RG |
| Cross Reference 1 | Regal Rexnord 78205R |
|---|
A System Plast UCP205-16-OEC two-bolt pillow block ball bearing unit with a reinforced black polyamide housing and a 52100 chrome steel setscrew-locking insert. Regal Rexnord part number 78205R.
UCP — pillow block housing with a UC-type setscrew insert.
205 — 205 insert size.
-16 — bore in sixteenths of an inch: 1 in.
OEC — open end cap, supplied with seal and O-ring.
Bore Diameter: 1 in. Housing Material: Reinforced polyamide. Insert Material: 52100 bearing steel. Locking Device: Set screw. Expansion Type: Non-expansion (fixed). Seal Type: Single lip contact seal. End Cap: Open end cap with seal and O-ring, plus back side housing seal. Lubricant: NSF H1 food grade grease. Misalignment: ±1.0° static. Operating Temperature: 30 °F to 180 °F. Item Weight: 0.86 lb. GTIN: 787405287105.
Mounting: 2-bolt base. Base To Bore Centerline: 1.4375 in. Bolt Center To Center: 3.812 in to 4.281 in (slotted). Bolt Size: 0.4375 in. Base Width: 1.3438 in. Length Through Bore: 1.5625 in.
Same part as Regal Rexnord 78205R. Replacement insert: SB205-16 RG. Fits a standard 1 in shaft on a UCP205-16 pillow block mounting footprint.
Is this a flange unit or a pillow block?
A two-bolt pillow block.
What is the housing made of?
Reinforced black polyamide.
What end cap is fitted?
An open end cap with seal and O-ring.
