Availability:
2 in stock
Two-bolt polyamide pillow block, 1-1/2 in bore, set-screw locking, single-lip contact seal, open end cap and back seal, washdown conveyor duty.
List Price
$51.54
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | System Plast |
|---|---|
| GTIN | 787405287365 |
| Model | UCP208-24OEC |
| ID | 1-1/2 in (38.1 mm) |
| Material | Polyamide Housing, AISI 52100 Bearing Steel Insert |
|---|---|
| Series | UCP |
| Type | Pillow Block Bearing |
| Lubricant | Grease |
| Base Number | UCP208 |
| Industry Terms | Pillow block, polymer pillow block, washdown bearing, food grade mounted unit, plastic housed bearing |
| Application Types | Washdown conveyors, food processing lines, packaging machinery, bottling |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Bore Shaft Size | 1-1/2 in (38.1 mm) |
| Housing Style | Two-Bolt Pillow Block |
| Locking Method | Set Screws |
| Mpn Variants | UCP208-24-OEC, UCP 208-24 OEC, UCP208-24OEC, UCP208-24 |
| Rolling Elements | Balls |
| Bearing Type | Pillow Block Bearing |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Duty Type | Standard Duty |
| Locking Device | Set Screw |
| Insert Outer Ring | Spherical |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Polyamide |
| Expansion Type | Non-Expansion |
| Part Number | UCP208-24-OEC |
| Mounting Type | Two-Bolt Base Mount |

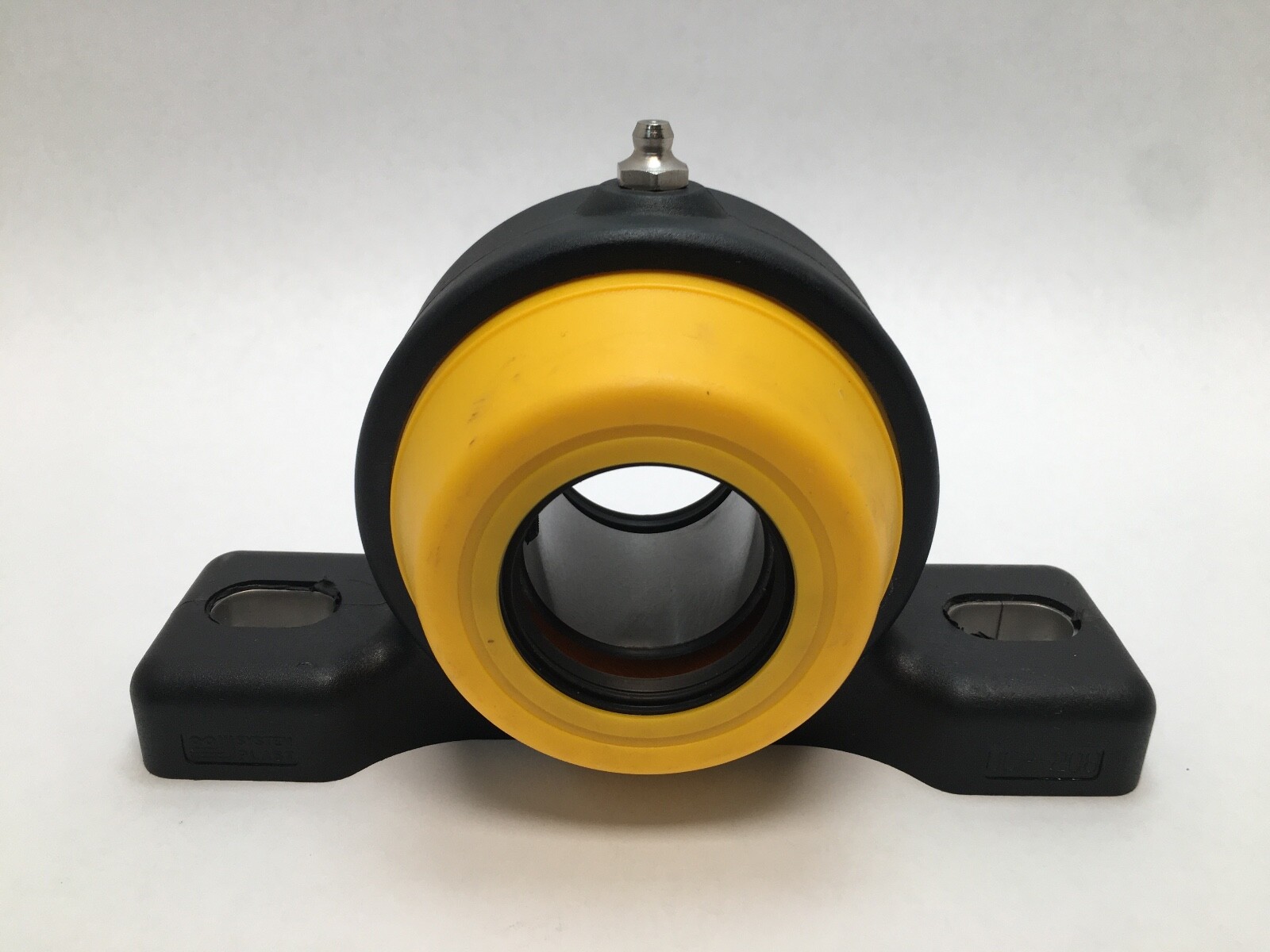

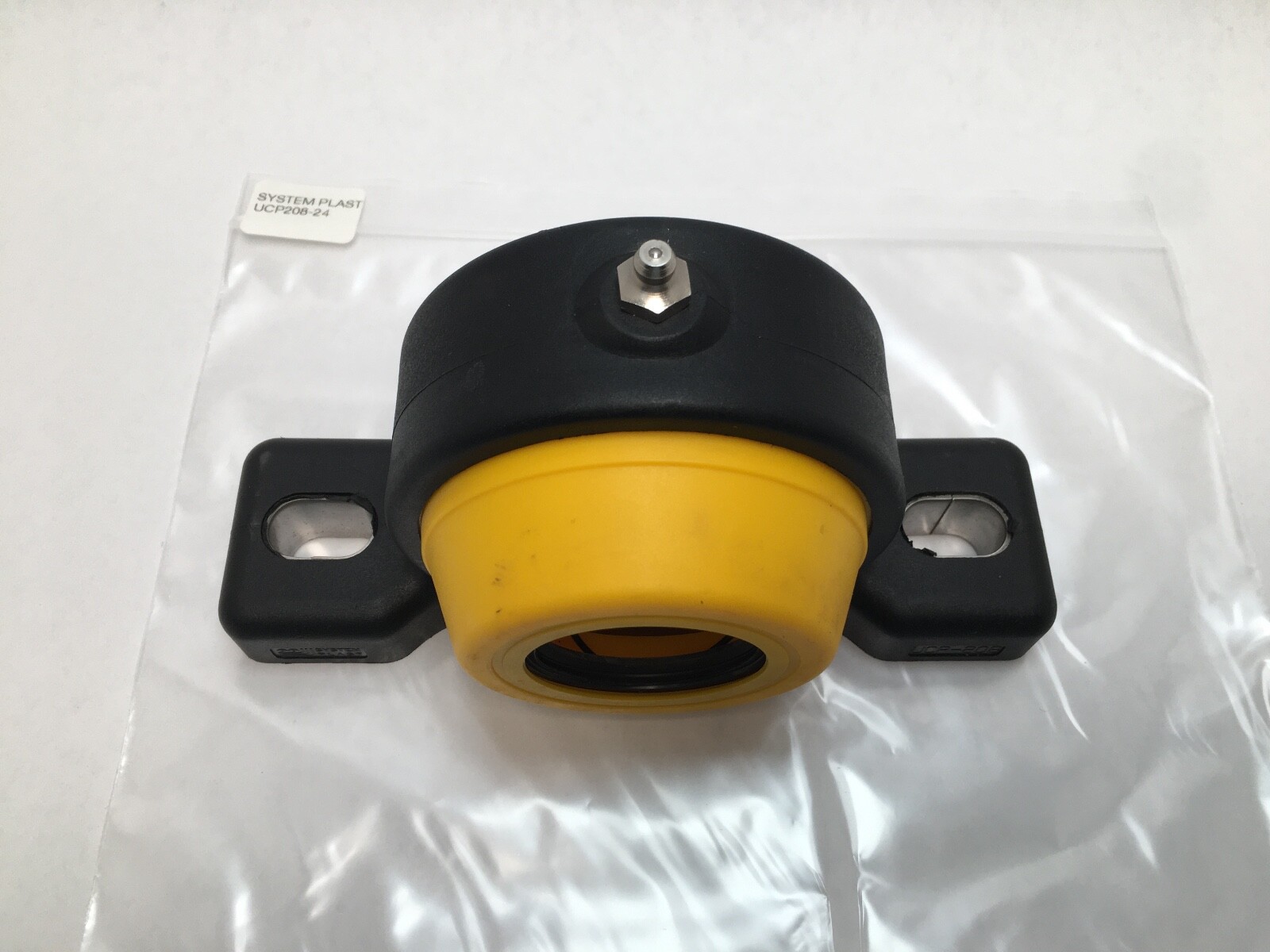

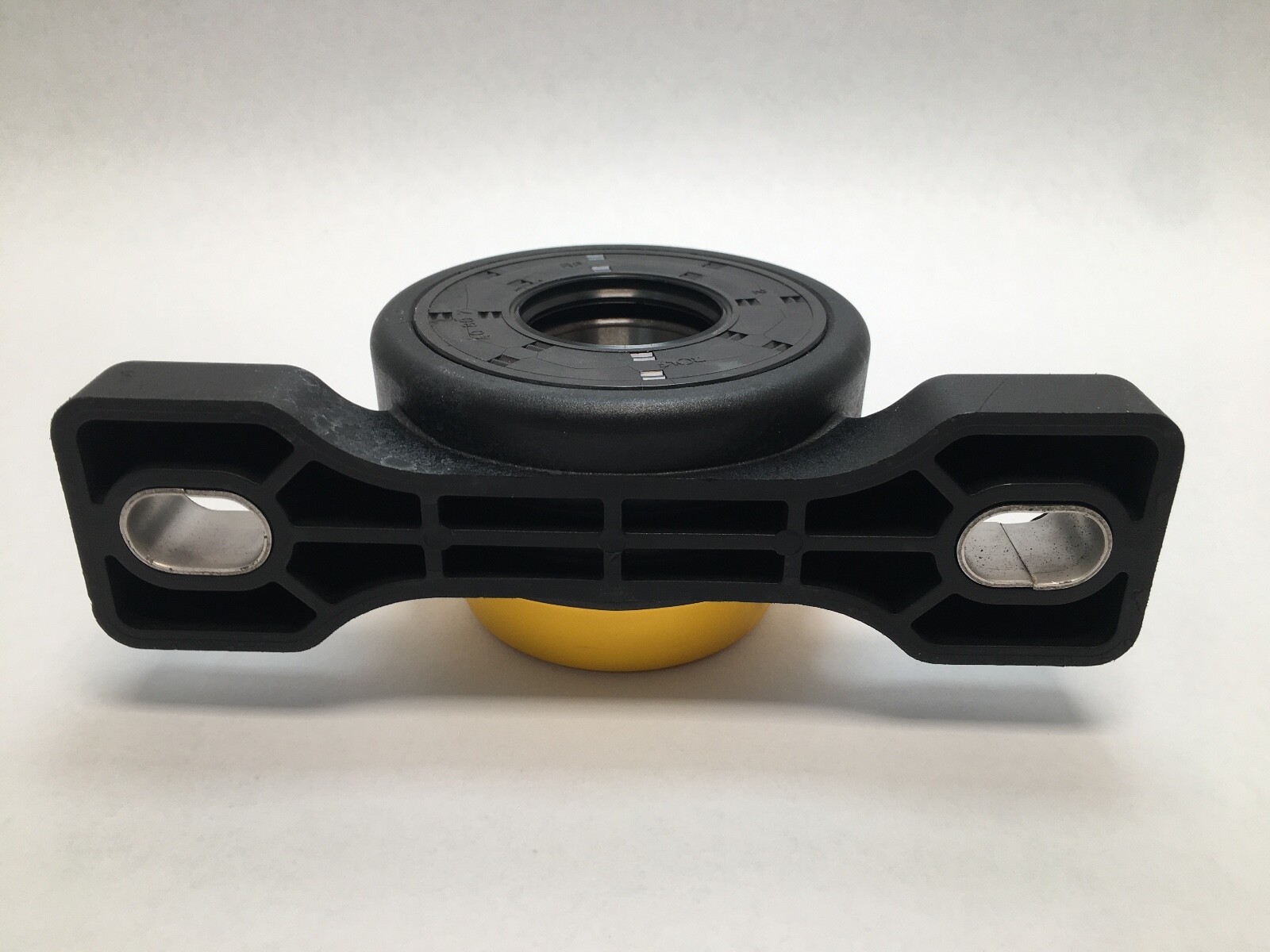

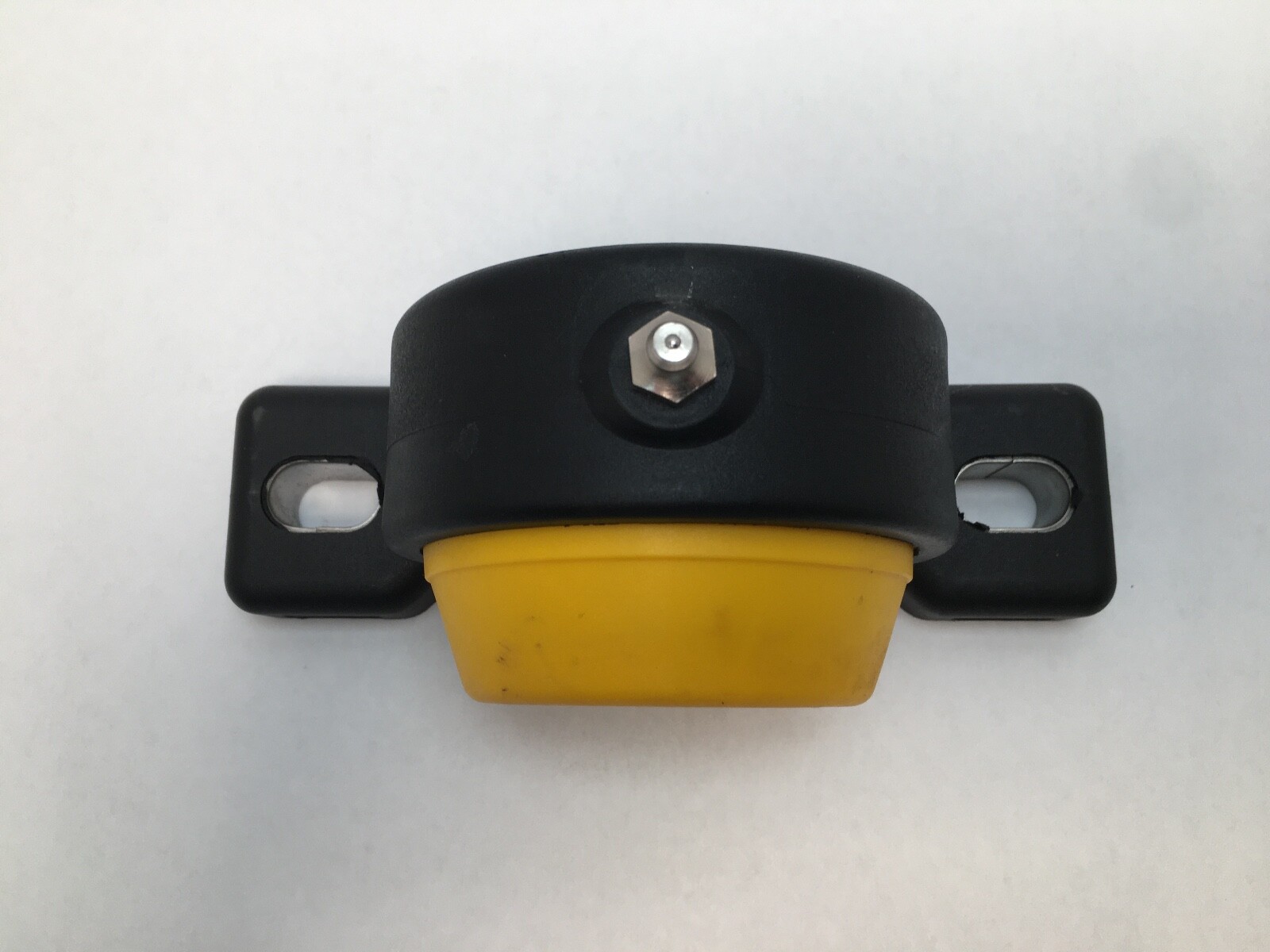

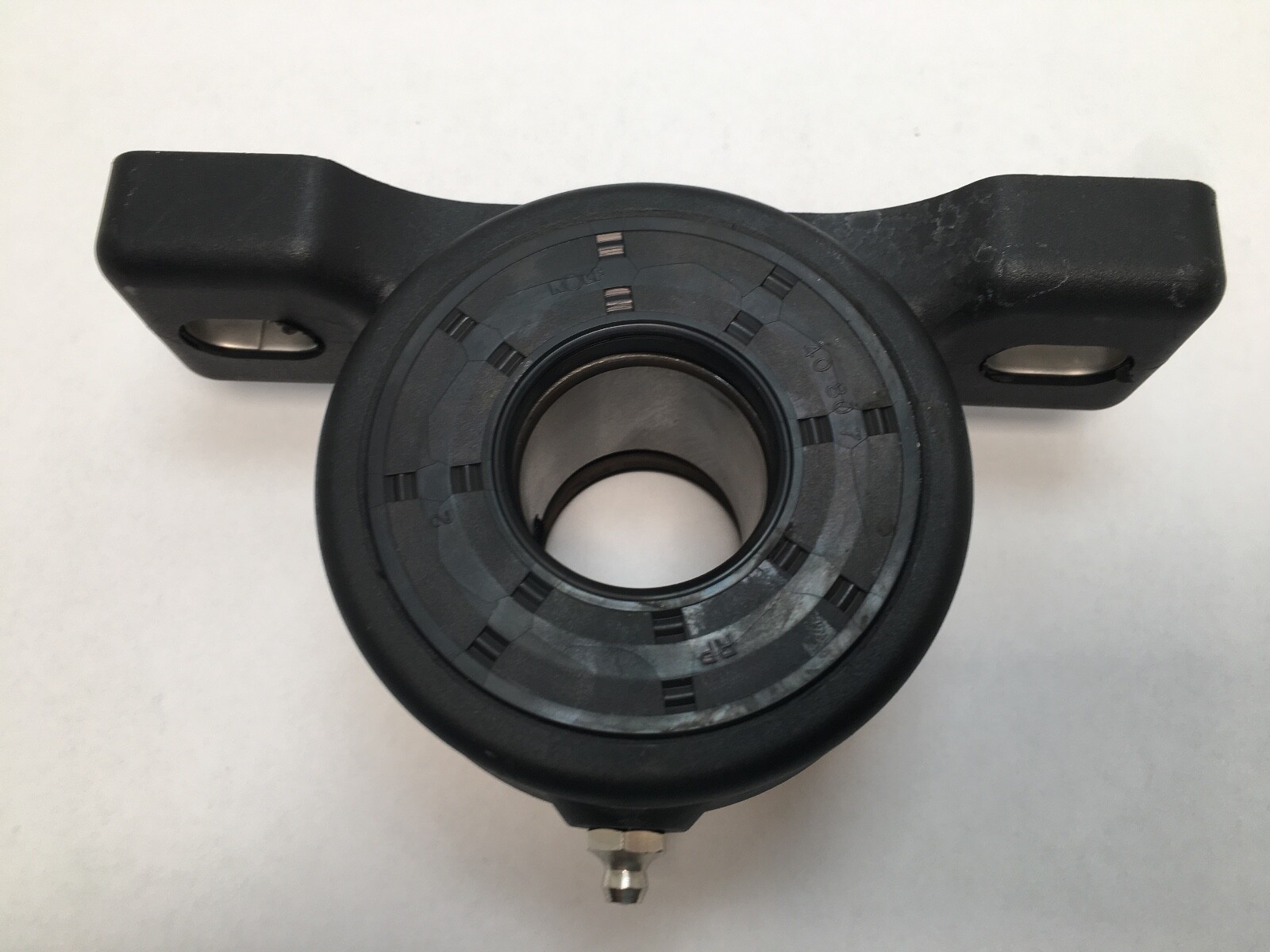

System Plast UCP208-24-OEC mounted ball bearing unit, a two-bolt polyamide pillow block with a 1-1/2 in bore and set-screw locking. Unit Quantity: 1 Pc.
UCP — two-bolt pillow block housing with a wide-inner-ring setscrew insert.
208 — 208 outer ring size.
24 — bore in sixteenths of an inch, 24/16 in = 1-1/2 in.
OEC — open end cap with back seal included.
Housing Style: Two-Bolt Pillow Block. Number Of Bolt Holes: 2. Bore / Shaft Size: 1-1/2 in (38.1 mm). Bore Type: Straight. Design Units: Inch. Housing Material: Polyamide. Bearing Material: AISI 52100 bearing steel. Locking Method: Set Screws. Series: UCP. Base Number: UCP208. Duty Type: Standard Duty. Expansion Type: Non-Expansion. Insert Outer Ring: Spherical. Rolling Elements: Balls. Number Of Rows: 1. Seal Type: Single Lip Contact Seal, Open End Cap and Back Seal Included. Lubricant: Grease. Relubrication: Relubricatable through Housing Grease Fitting. Dynamic Load Rating: 29.6 kN. Static Load Rating: 18.2 kN. Item Weight: 2.50 lb (1.13 kg). GTIN: 787405287365. Unit Quantity: 1 Pc.
Two-bolt base mount. Bore / Shaft Size: 1-1/2 in (38.1 mm).
Related part: UCP208-24-SS-OEC, the stainless-insert execution of the same unit. Searchable forms: UCP208-24-OEC, UCP 208-24 OEC, UCP208-24OEC, UCP208-24.
What housing style is the UCP208-24-OEC?
Housing Style: Two-Bolt Pillow Block. Housing Material: Polyamide.
What does OEC mean?
OEC is an open end cap with back seal included.
How is it locked to the shaft?
Locking Method: Set Screws. Bore / Shaft Size: 1-1/2 in (38.1 mm).
