Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
2 in stock

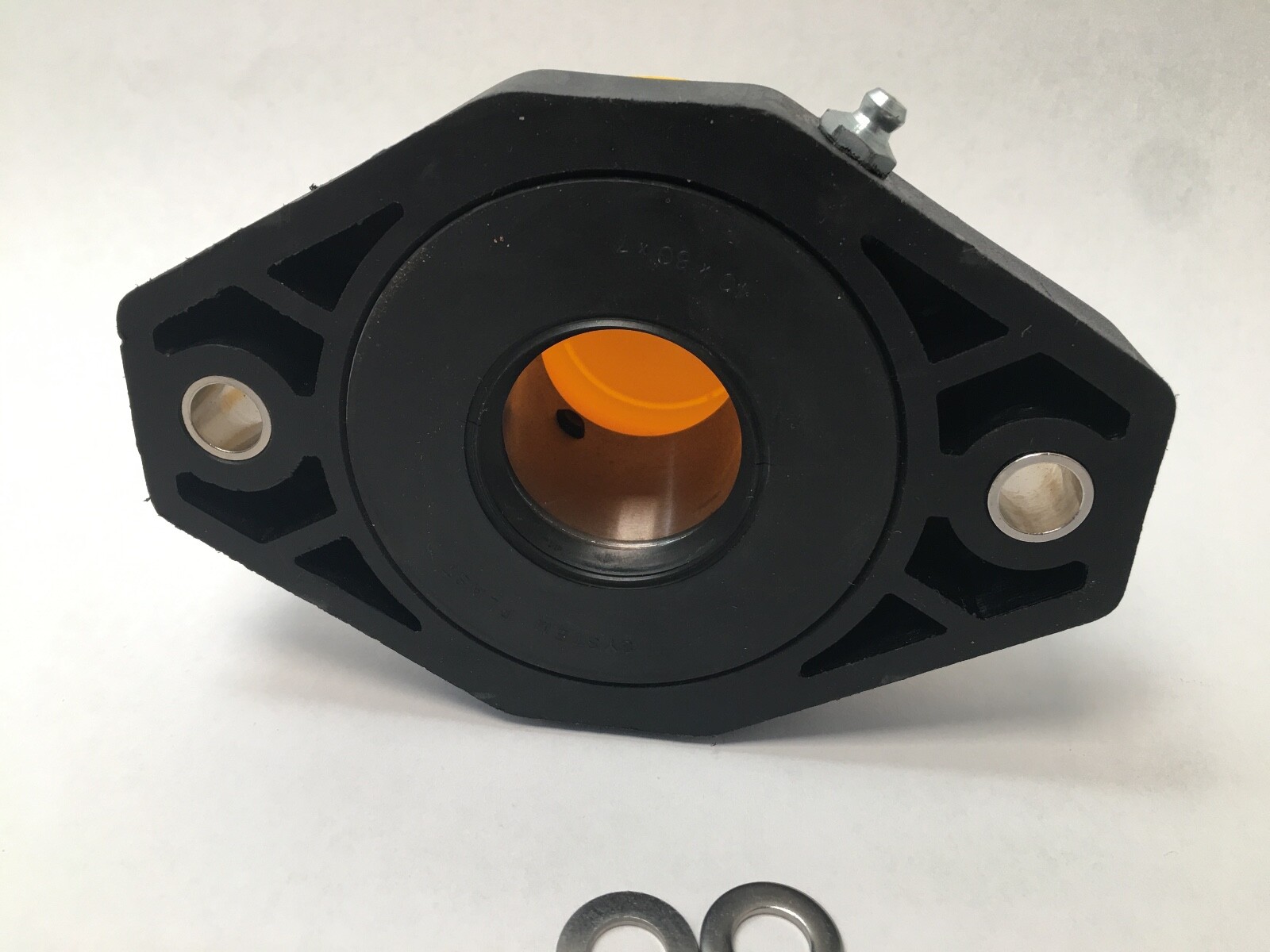

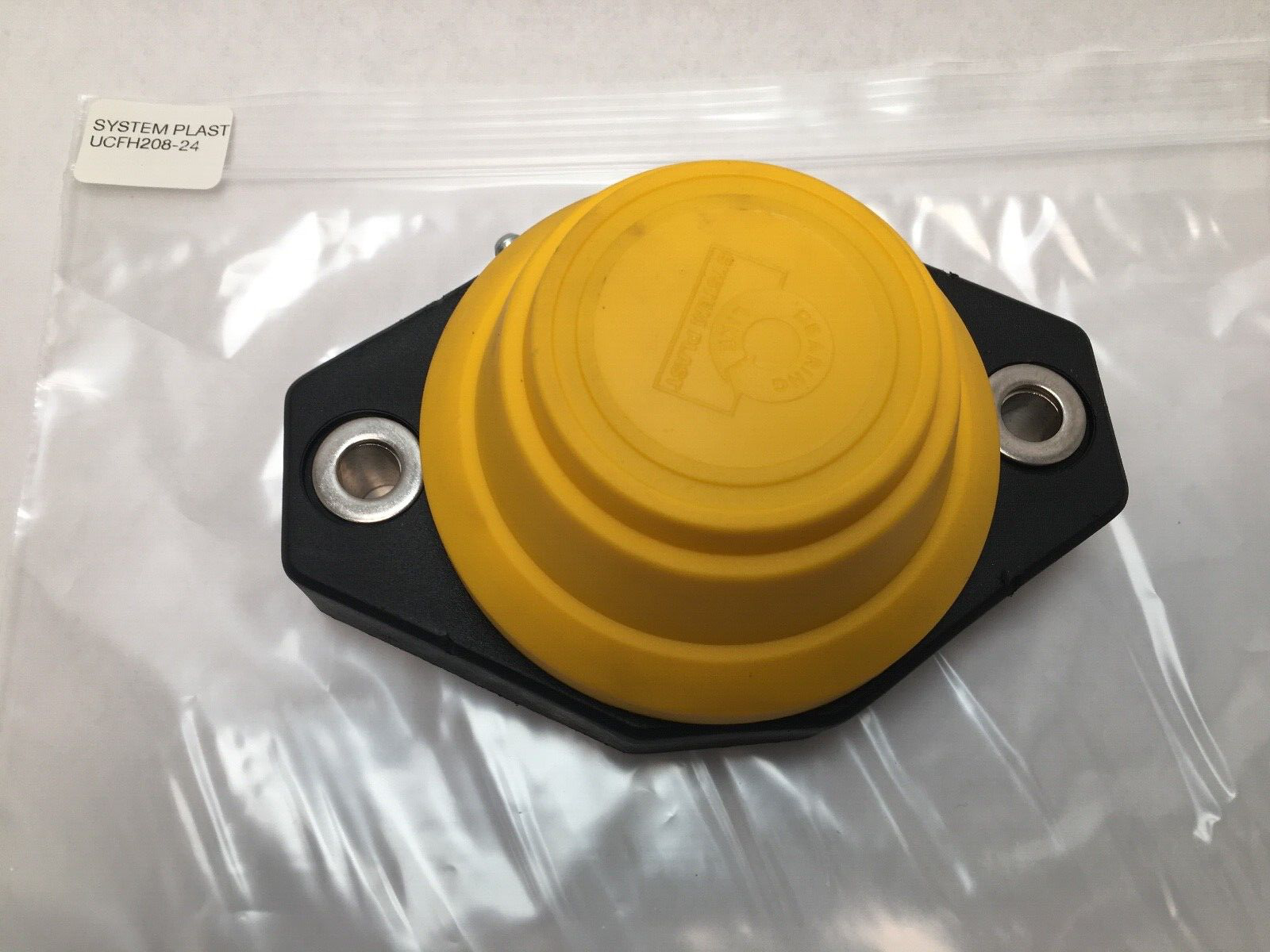

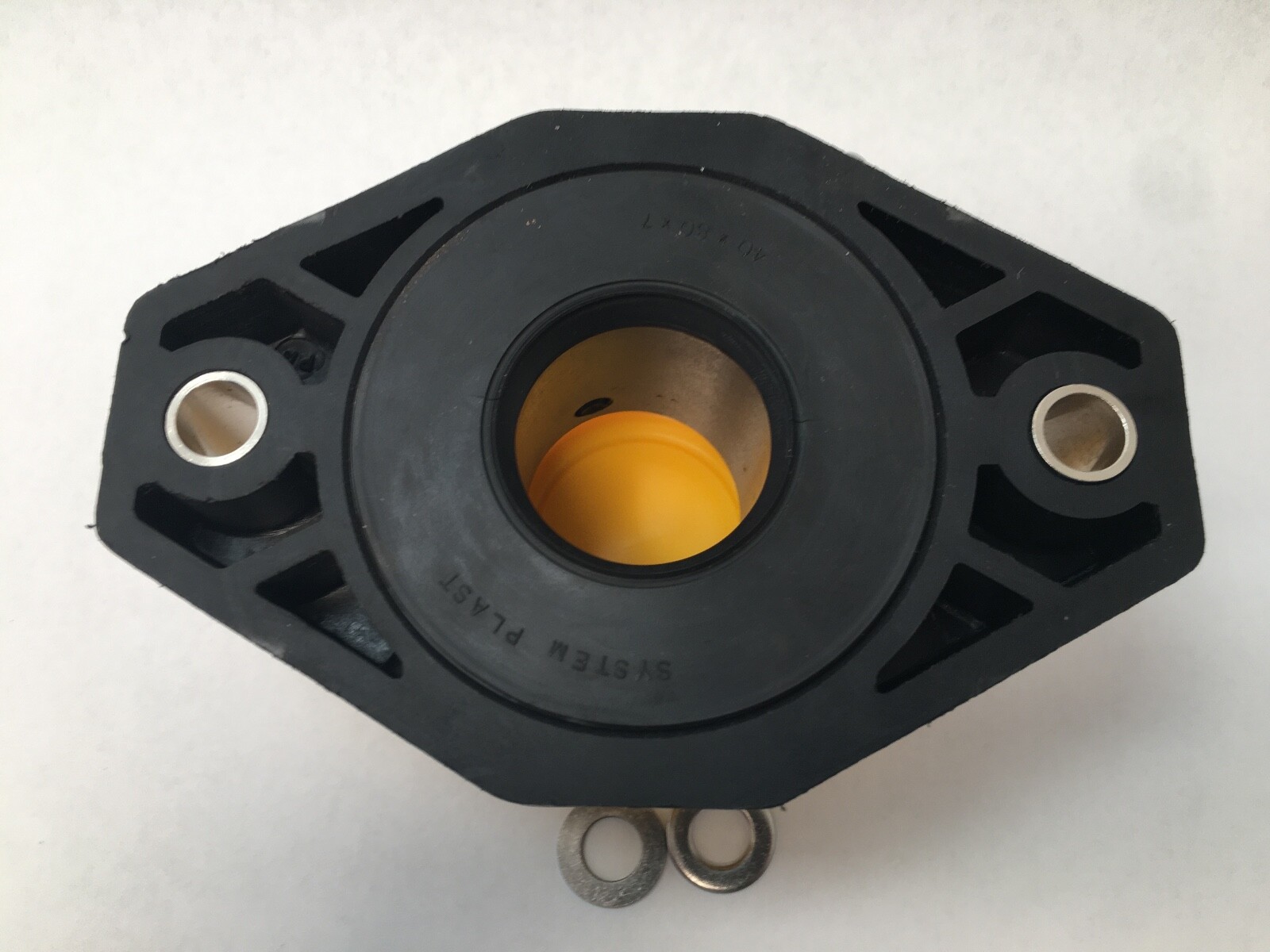

System Plast two-bolt polyamide flange bearing unit, 1-1/2 in bore, setscrew lock, closed end cap with O-ring. Contact seal, 2.5° misalignment, 29.6 kN dynamic.
List Price
$66.98
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | System Plast |
|---|---|
| MPN | UCFH208-24-CEC |
| Model | UCFH20824CEC |
| ID | 1.5 in |
| Material | Reinforced polyamide housing, 52100 bearing steel insert |
|---|---|
| Series | UCFH |
| Type | Flanged Mount Bearing |
| Lubricant | Grease, pre-lubricated |
| Base Number | UCFH208 |
| Industry Terms | Two-bolt flange unit, polyamide flange bearing, plastic housed bearing unit, washdown flange bearing, composite flange block, food-grade mounted bearing, end cap flange unit |
| Common Misspellings | UCFH 208 24 CEC, UCHF208-24-CEC, UCFH208-24-CED, System-Plast, Systemplast, System Plas |
| Application Types | Food and beverage conveyors, packaging lines, washdown environments, bottling and canning lines, modular belt conveyor shafts |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Bore Shaft Size | 1-1/2 in (1.500 in) |
| Housing Style | Two-bolt flange unit |
| Locking Method | Setscrew |
| Mpn Variants | UCFH208-24-CEC, UCFH 208-24 CEC, UCFH20824CEC, UCFH208-24, UCFH208-24CEC |
| Min Temp | -20 °C |
| Dynamic Load Rating | 29.6 kN (6,655 lbf) |
| Static Load Rating | 18.2 kN (4,092 lbf) |
| Rolling Elements | Balls |
| Max Temp | 100 °C |
| Bearing Type | Two-bolt flange mount ball bearing unit |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Duty Type | Standard duty |
| Locking Device | Setscrew |
| Insert Outer Ring | Spherical |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Reinforced black polyamide |
| Expansion Type | Non-expanding |
| Part Number | UCFH208-24-CEC |
System Plast UCFH208-24-CEC, a mounted two-bolt flange ball bearing unit in a solid reinforced polyamide housing with a setscrew-locked spherical-OD steel insert and a closed end cap. Unit Quantity: 1 Pc.
UCFH — two-bolt flange housing in solid reinforced polyamide.
208 — insert size, the 200-series 8 bore step.
24 — shaft size in sixteenths of an inch, 24/16 = 1-1/2 in.

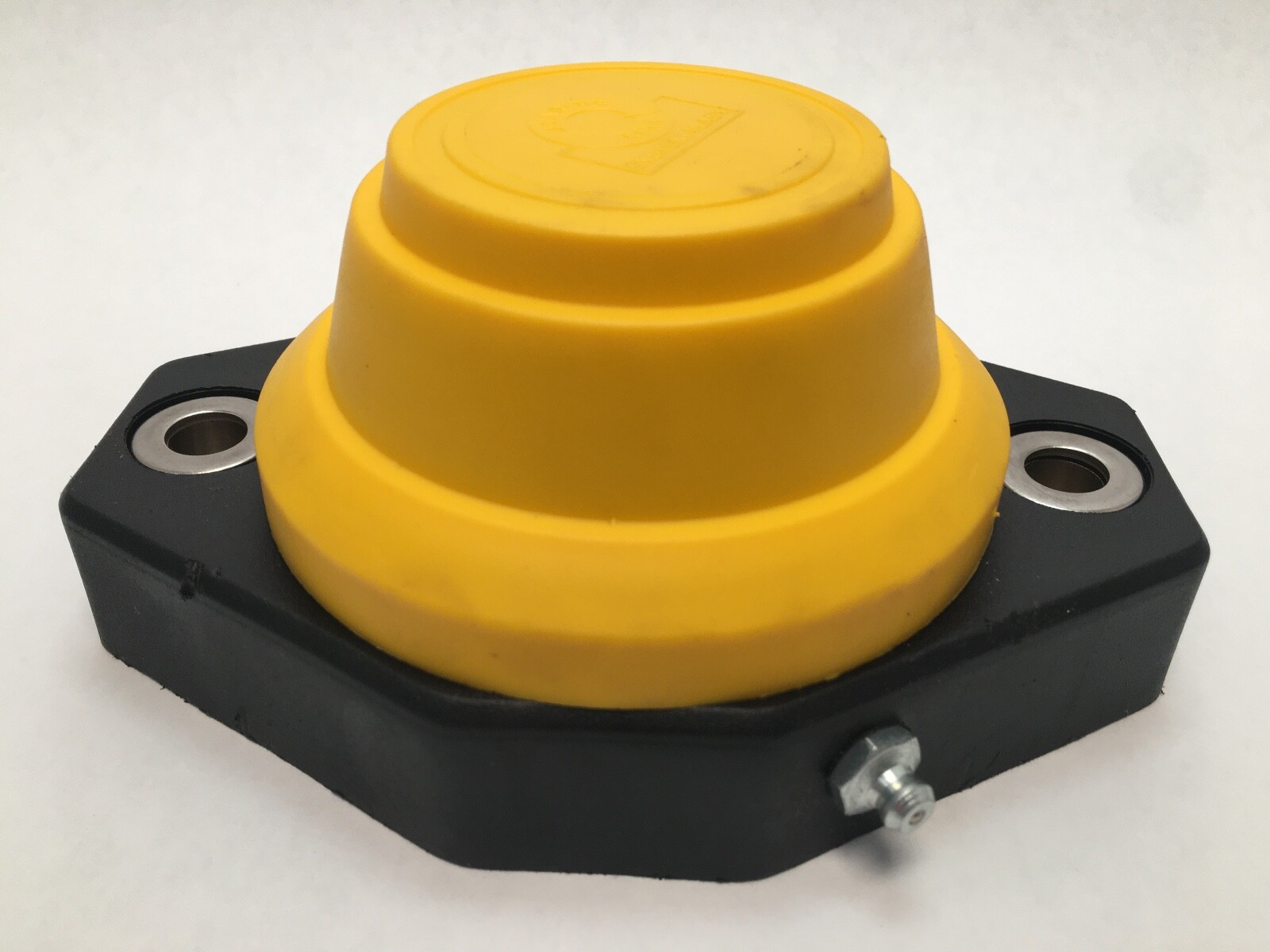

CEC — closed end cap, supplied with its seal and O-ring, with the back-side housing seal fitted.
Series: UCFH. Housing Style: Two-bolt flange unit. Housing Material: Reinforced black polyamide. Bore / Shaft Size: 1-1/2 in (1.500 in). Bore Type: Straight. Locking Method: Setscrew. Number Of Bolt Holes For Fasteners: 2. Insert Outer Ring: Spherical. Rolling Elements: Balls. Number Of Rows: 1. Bearing Material: 52100 bearing steel insert. Closure Type: Single lip contact seal. Seal Material: NBR. End Cap: Closed end cap with seal and O-ring, back-side housing seal fitted. Expansion Type: Non-expanding. Maximum Misalignment: 2.5°. Duty Type: Standard duty. Lubricant: Grease, pre-lubricated. Relubrication: through a nickel-plated brass grease nipple. Grease Fitting And Spacers: Nickel-plated brass.
Dynamic Load Rating: 29.6 kN (6,655 lbf). Static Load Rating: 18.2 kN (4,092 lbf). Precision Rating: ABEC 1 / P0. Internal Clearance: CN. Minimum Temperature: -20 °C (-4 °F). Maximum Temperature: 100 °C (212 °F). Item Weight: 2.80 lbs. Harmonization Code: 8483.20.40.40.
Housing Style: Two-bolt flange unit. Mounting Arrangement: Flange mount. The two bolts sit on a single centre line either side of the shaft. The spherical insert outer ring in the matching polyamide seat takes up to 2.5° of shaft-to-housing misalignment.
The stainless-insert execution of the same housing is UCFH208-24-SS-CEC and the open-end-cap execution is UCFH208-24-OEC; the insert material and end-cap type differ. Searchable forms of the designation: UCFH208-24-CEC, UCFH 208-24 CEC, UCFH20824CEC, UCFH208-24, UCFH208-24CEC.
What bore does the UCFH208-24-CEC have?1-1/2 in (24 sixteenths), straight bore with setscrew locking.
How many mounting bolts does it use?Two; it is a two-bolt flange unit in a reinforced polyamide housing.
What does CEC mean?Closed end cap, supplied with its seal and O-ring, with the back-side housing seal fitted.
