Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
RBC SJ7214 Pitchlign heavy-duty needle roller bearing, 1-1/8 in bore, 1-5/8 in OD, 1 in wide. Caged rollers, no inner ring, 7,600 lbf dynamic rating.
List Price
$95.63
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RBC |
|---|---|
| MPN | SJ7214 |
| Model | SJ-7214 |
| Bearing Type | Needle Roller Bearing |
| ID | 1.1250 in |
| OD | 1.6250 in |
| Width | 1.0000 in |
| Material | 52100 bearing steel |
|---|---|
| Dynamic Load Rating | 7,600 lbf |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482 10 00 |
| Mpn Variants | SJ7214, SJ-7214, SJ 7214 |
| Min Temp | -40 °F |
| Static Load Rating | 13,200 lbf |
| Series | Pitchlign SJ |
| Rolling Elements | Needle Roller |
| Max Temp | 300 °F |
| Cage Material | Steel |
| Limiting Speed | 12,000 rpm |
| Bearing Material | 52100 bearing steel |

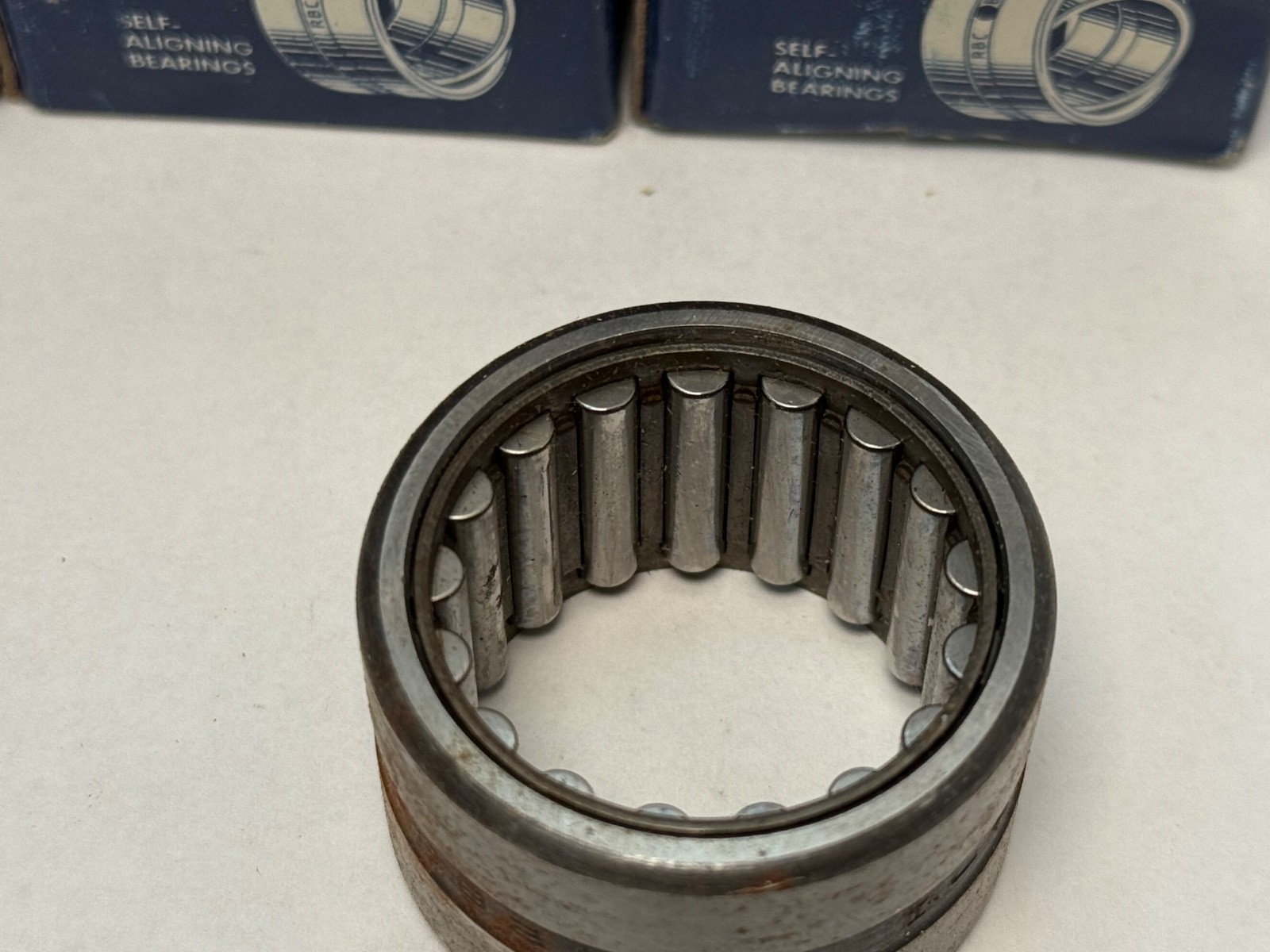

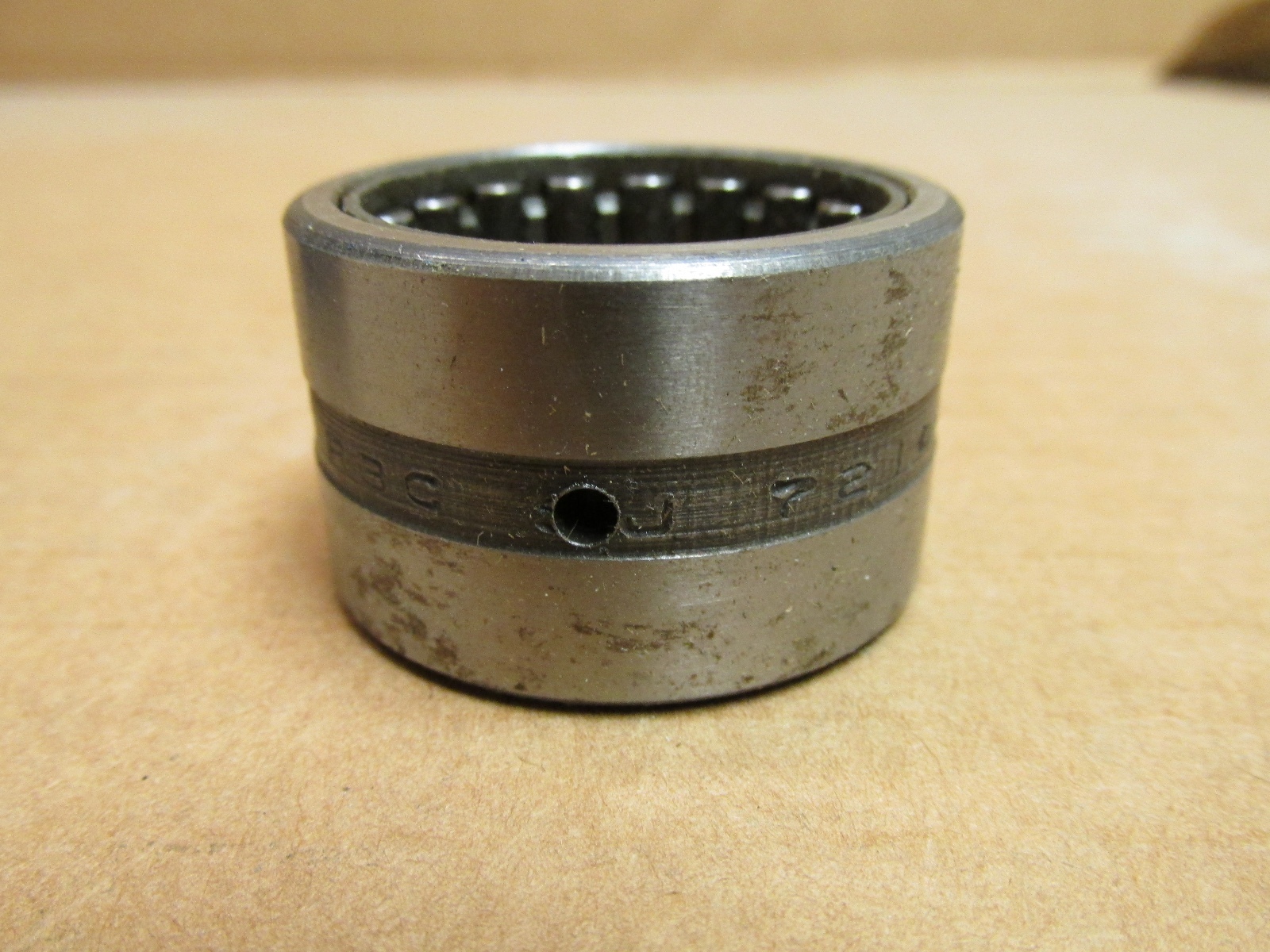

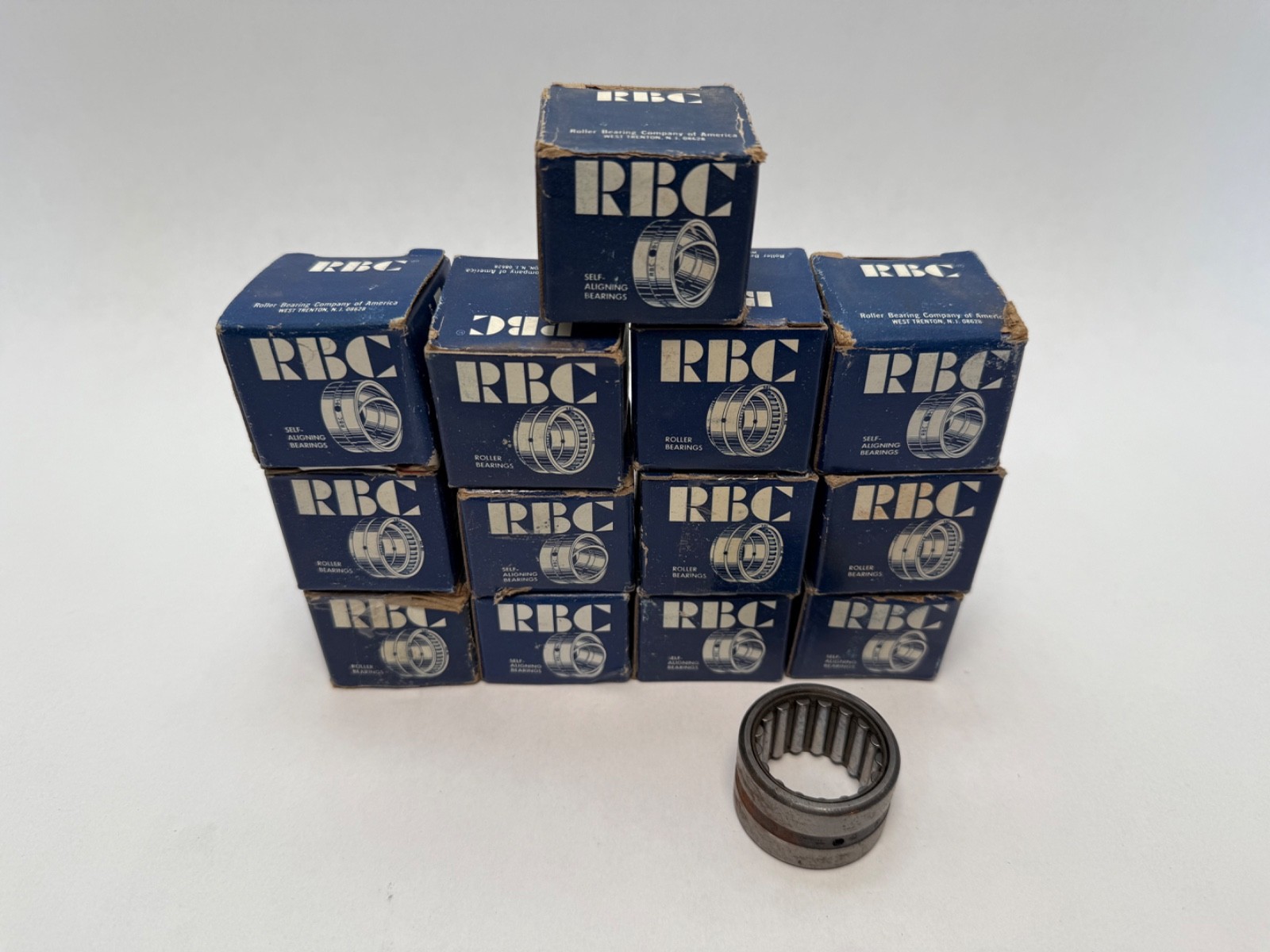

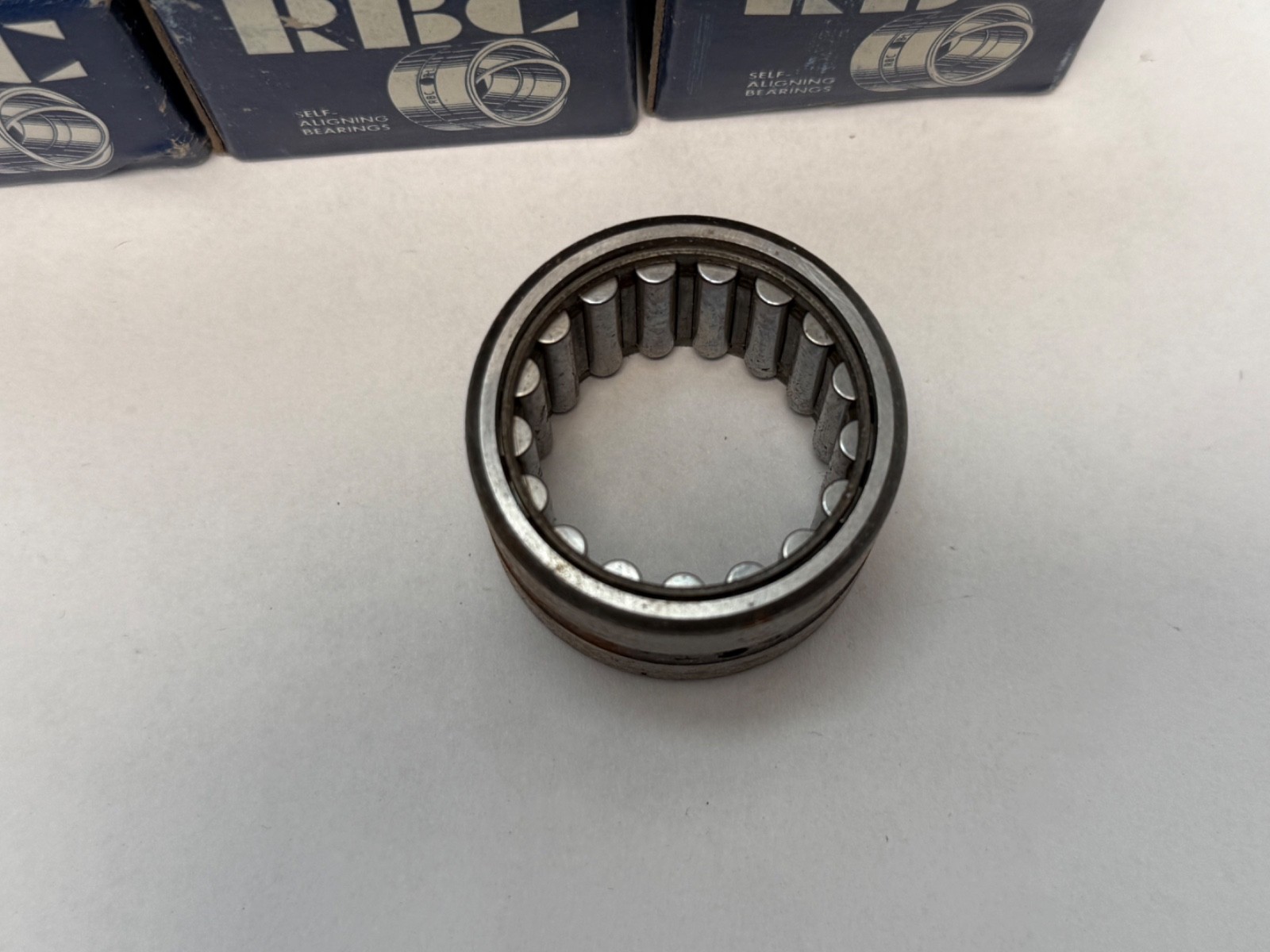

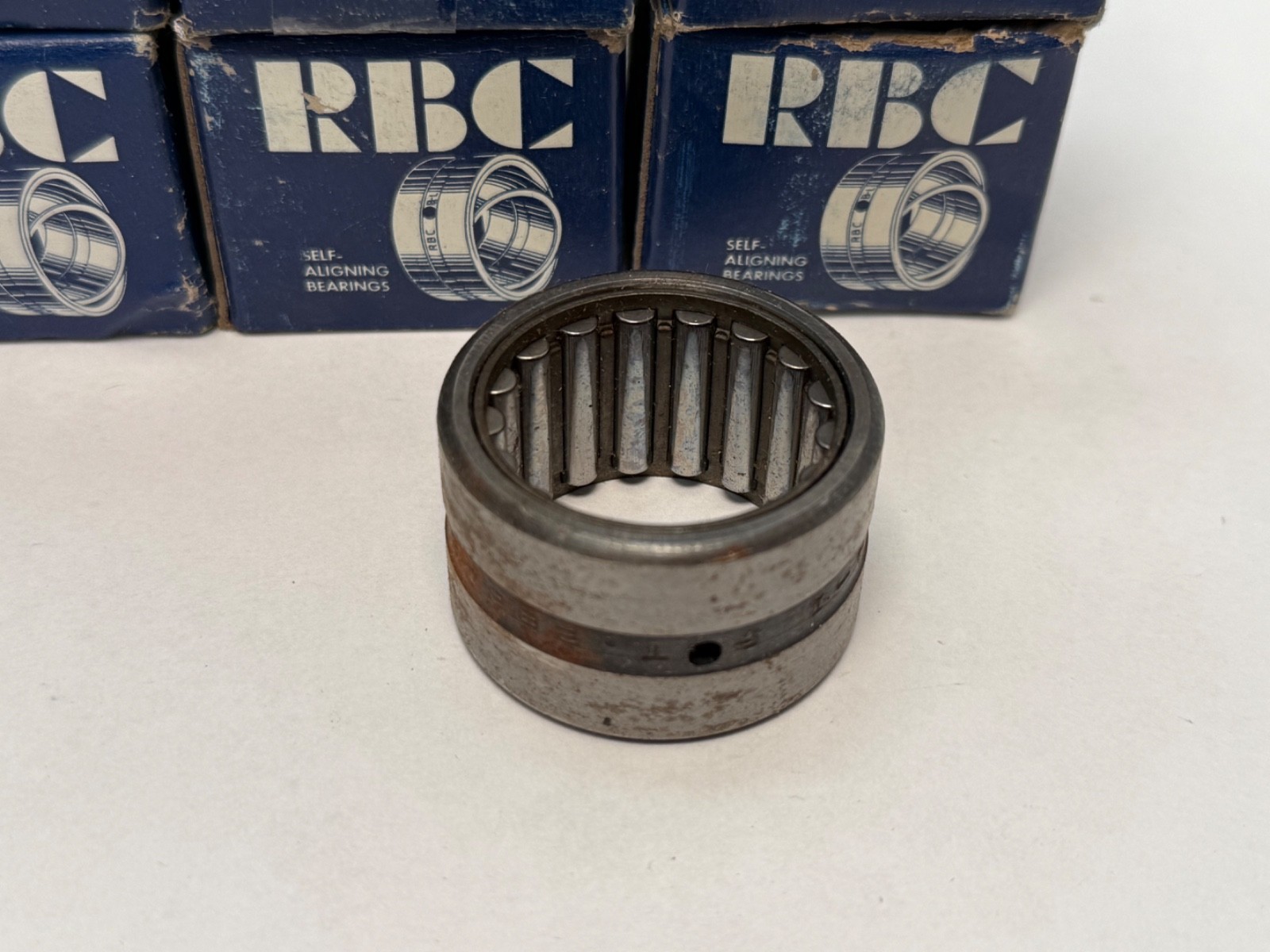

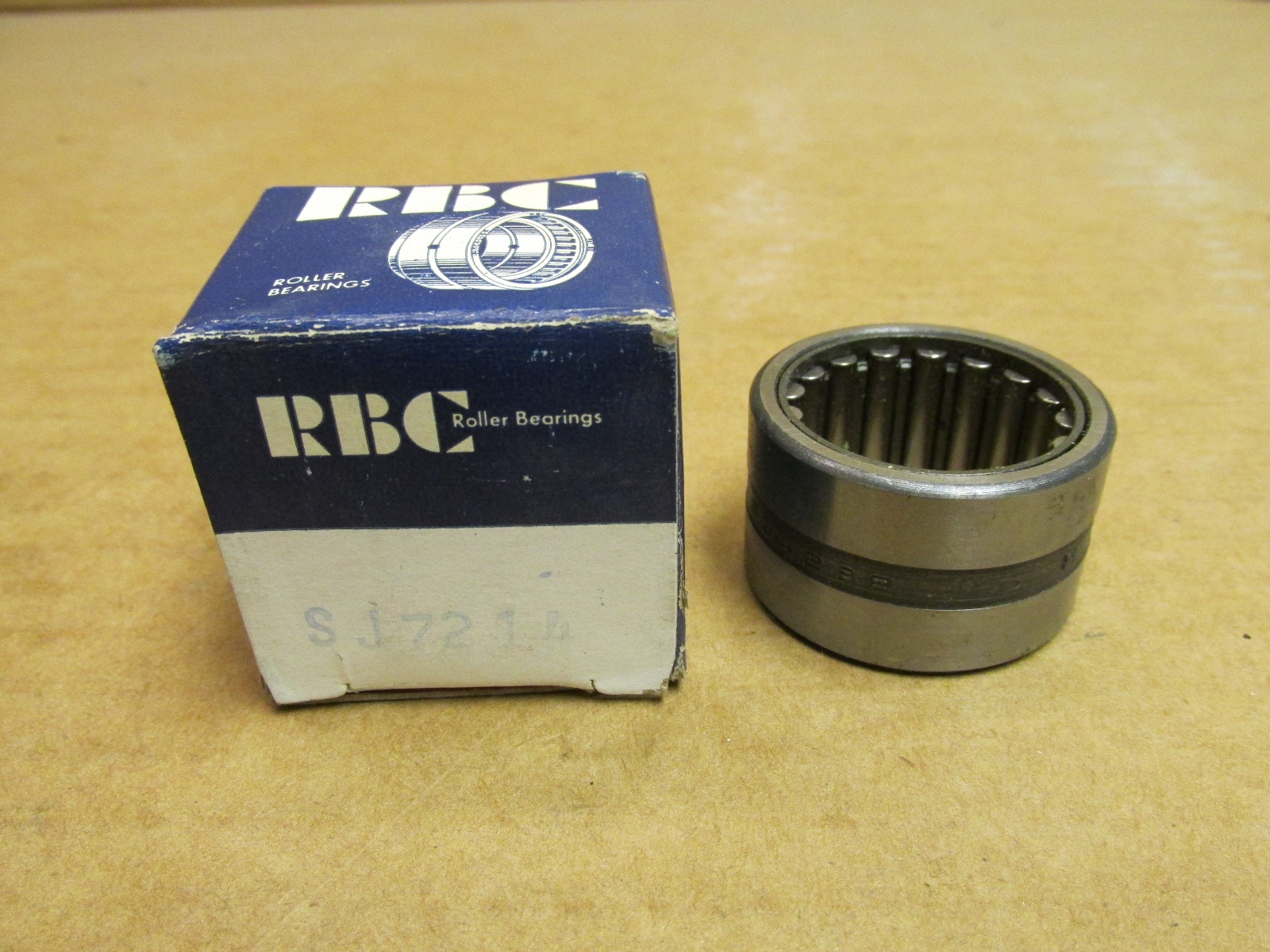

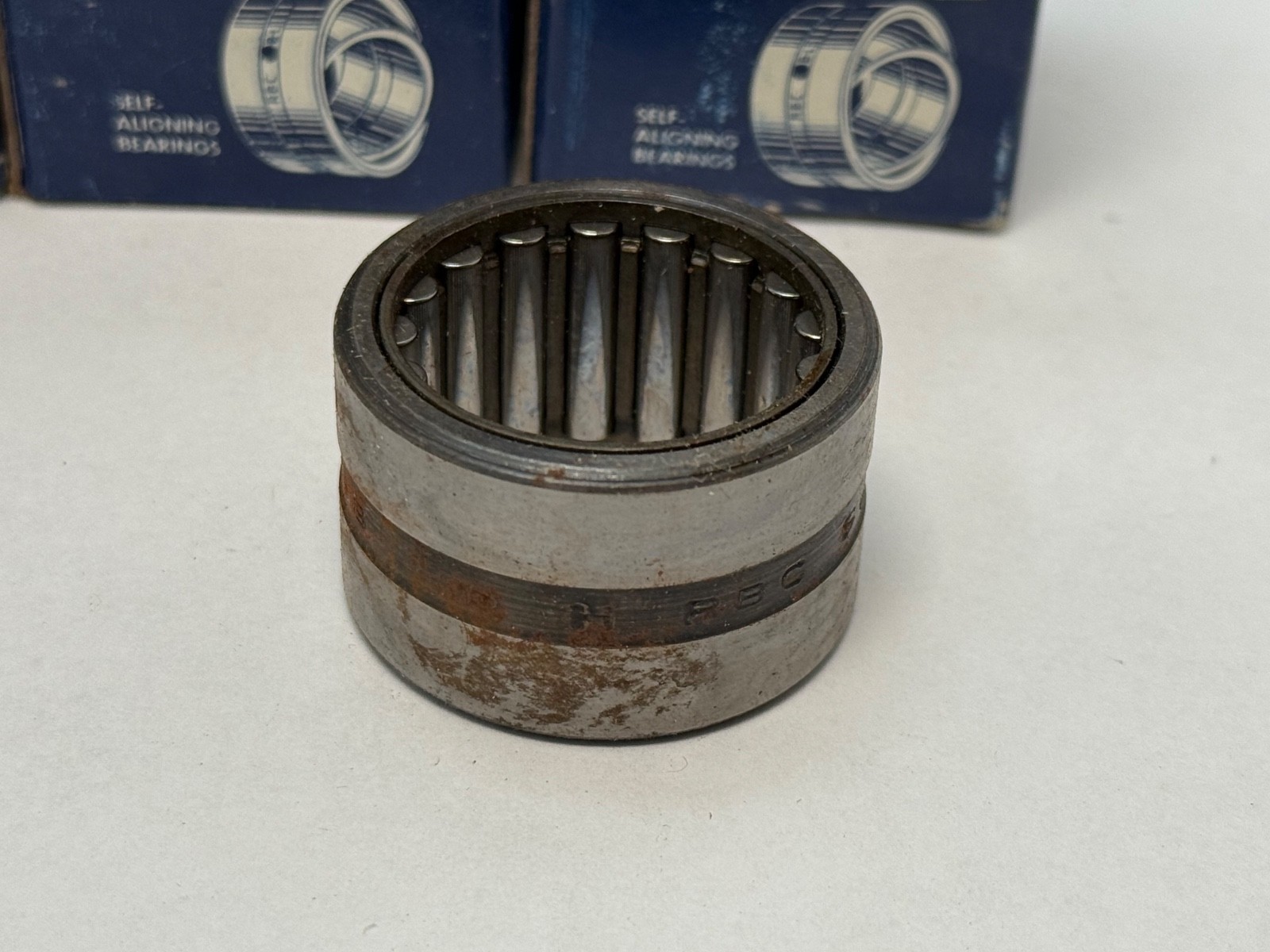

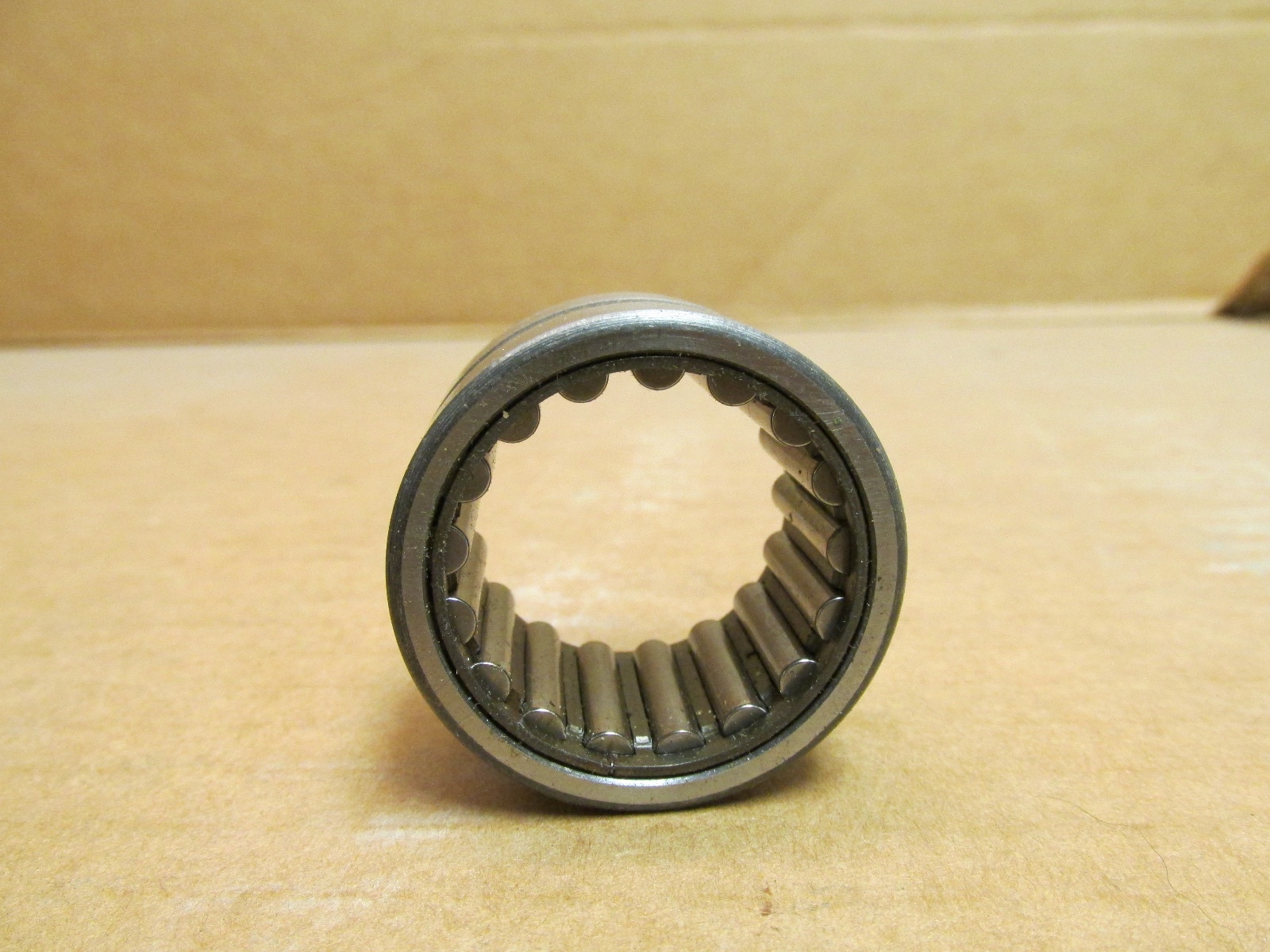

RBC SJ7214 is a Pitchlign heavy-duty needle roller bearing from RBC Bearings. It is a precision-ground, caged needle roller bearing with a machined outer ring and no inner ring. The rollers run directly on a hardened shaft or on a separate inner ring. Surplus, new old stock in open packaging.
SJ — RBC Pitchlign SJ series, heavy-duty caged needle roller bearing.
7214 — the size number within the SJ series, 1-1/8 in bore by 1-5/8 in outside diameter by 1 in wide.
Bearing Type: Needle Roller Bearing. Series: Pitchlign SJ. Rolling Elements: Needle Roller. Number Of Rows: 1. Bore Diameter: 1.1250 in. Outside Diameter: 1.6250 in. Overall Width: 1.0000 in. Closure Type: Open. Dynamic Load Rating: 7,600 lbf. Static Load Rating: 13,200 lbf. Limiting Speed: 12,000 rpm. Bearing Material: 52100 bearing steel. Cage Material: Steel. Operating Temperature: -40 to 300 °F.
Bore Diameter: 1-1/8 in. Outside Diameter: 1-5/8 in. Width: 1 in. Bore Type: Straight. The outer ring is precision ground on all surfaces and the cage guides the rollers to reduce skewing and friction. The unsealed design gives the full roller length to load capacity.
Direct replacement for RBC SJ7214 and SJ-7214. Used in gearboxes, pumps, machine tools, textile machinery, paper converting machines and sheave blocks.
Does the RBC SJ7214 include an inner ring?
No. The SJ7214 is a roller assembly with an outer ring. The rollers run on a hardened shaft or a separate inner ring.
What size is the SJ7214?
1-1/8 in bore, 1-5/8 in outside diameter and 1 in width.
What are the load ratings of the SJ7214?
Dynamic Load Rating: 7,600 lbf. Static Load Rating: 13,200 lbf.
