Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
2 in stock

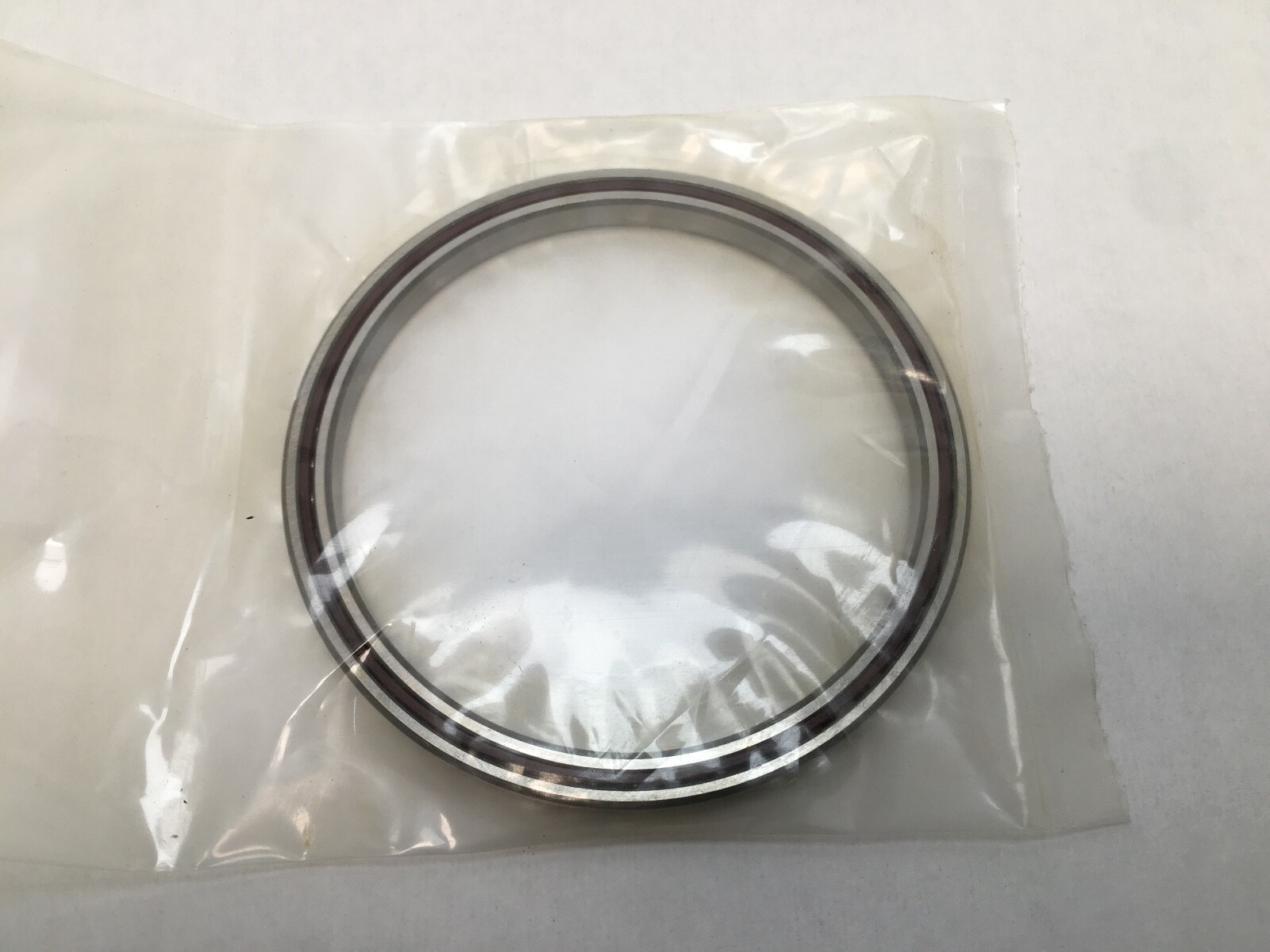

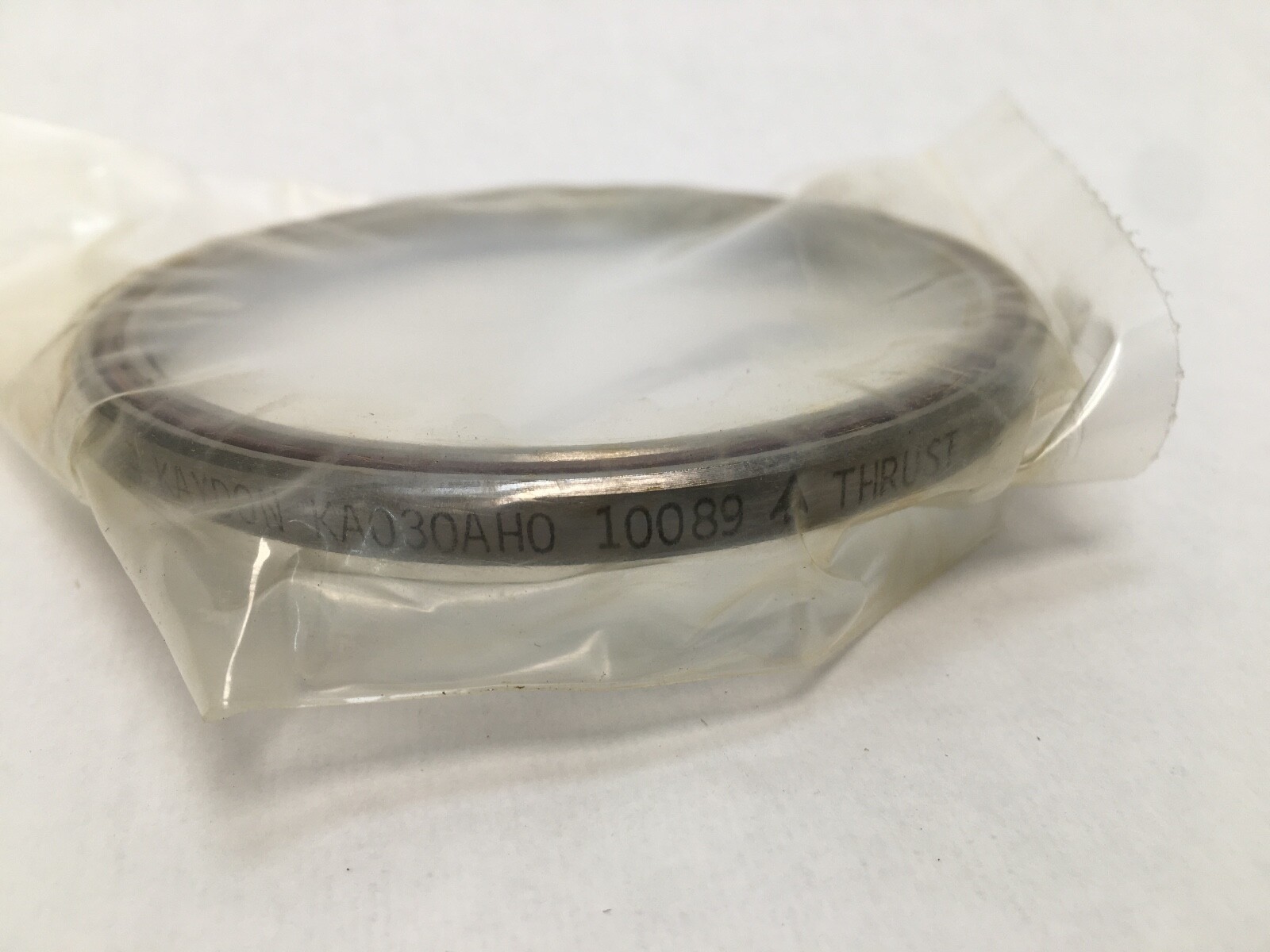

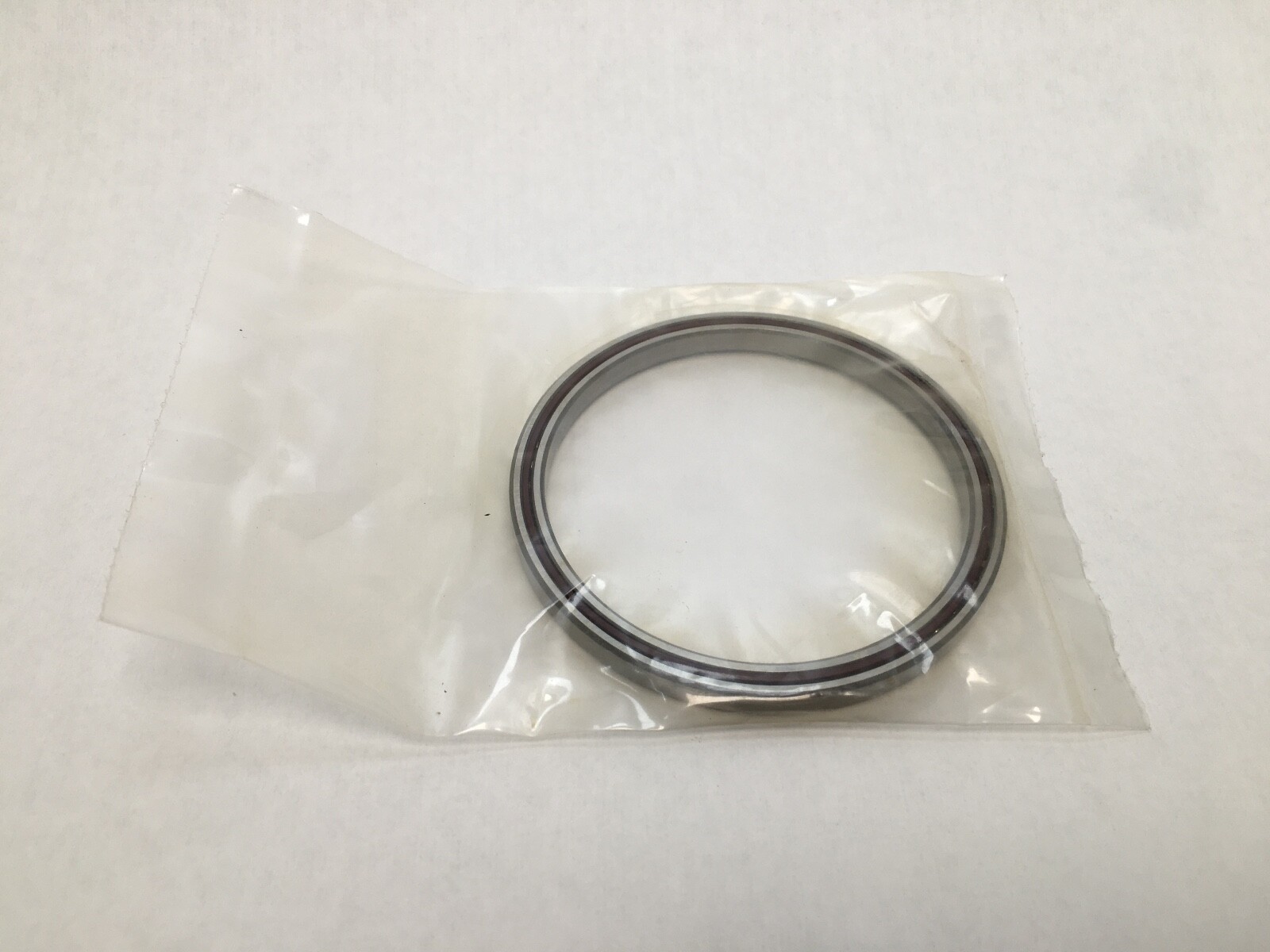

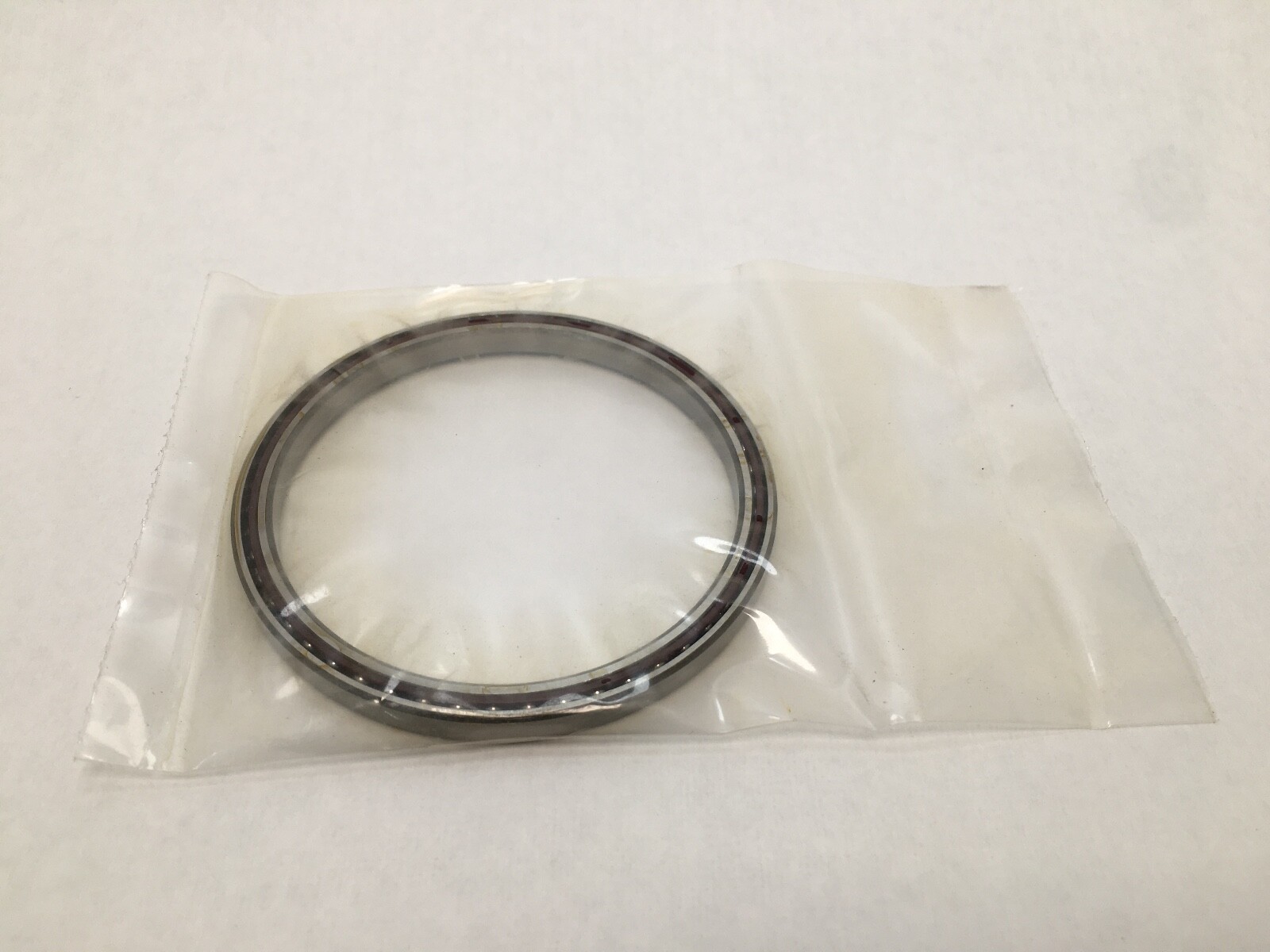

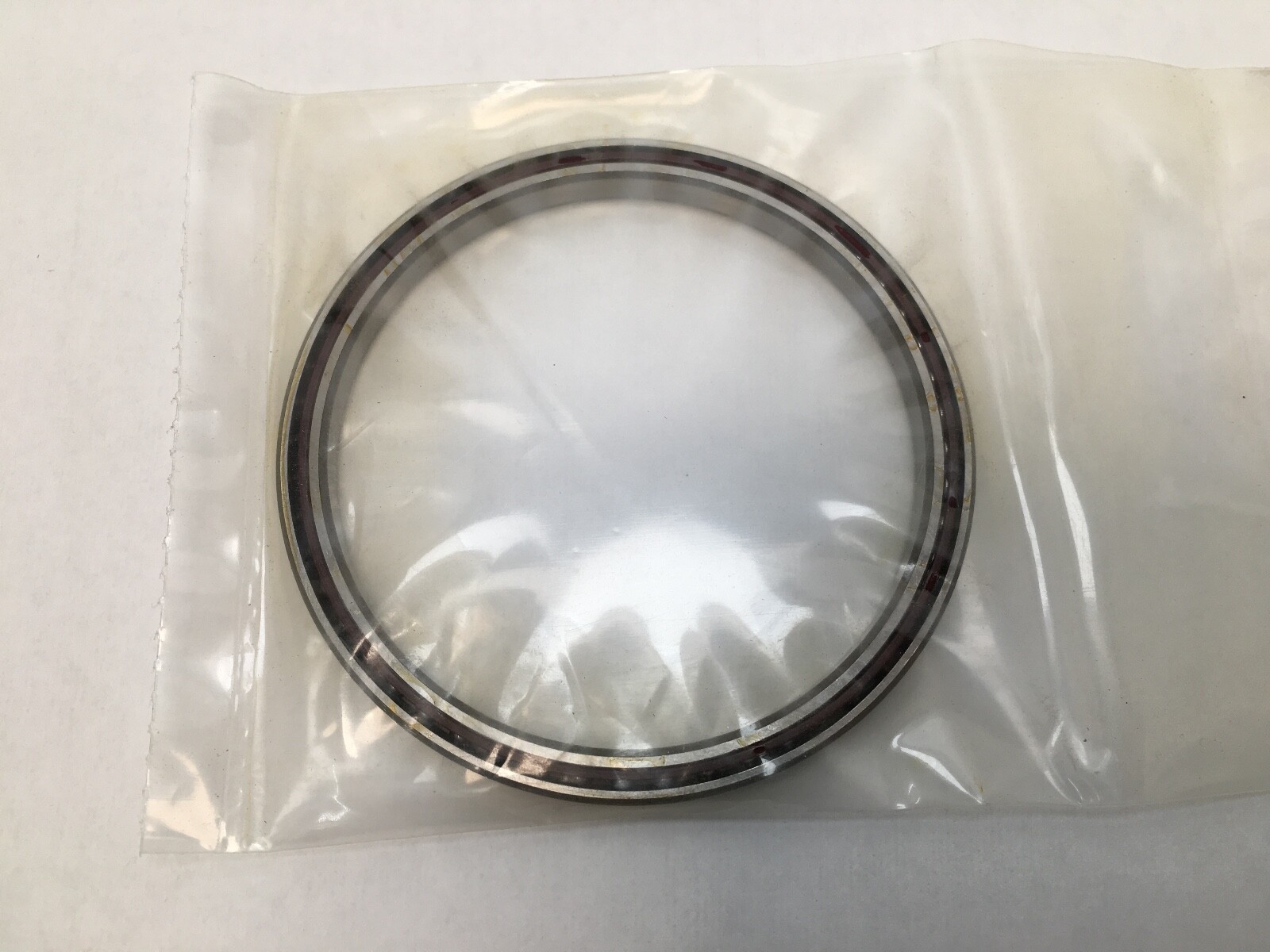

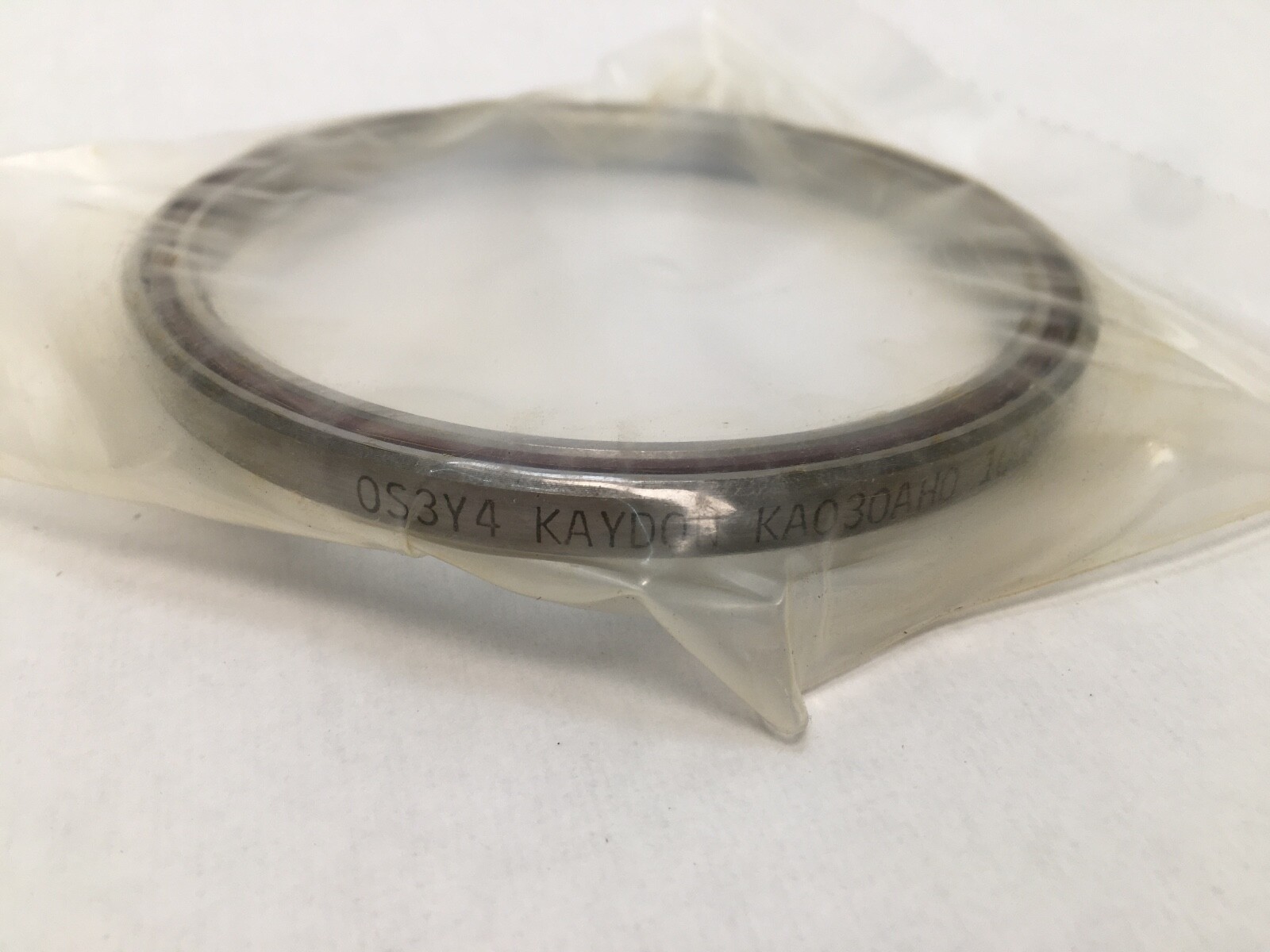

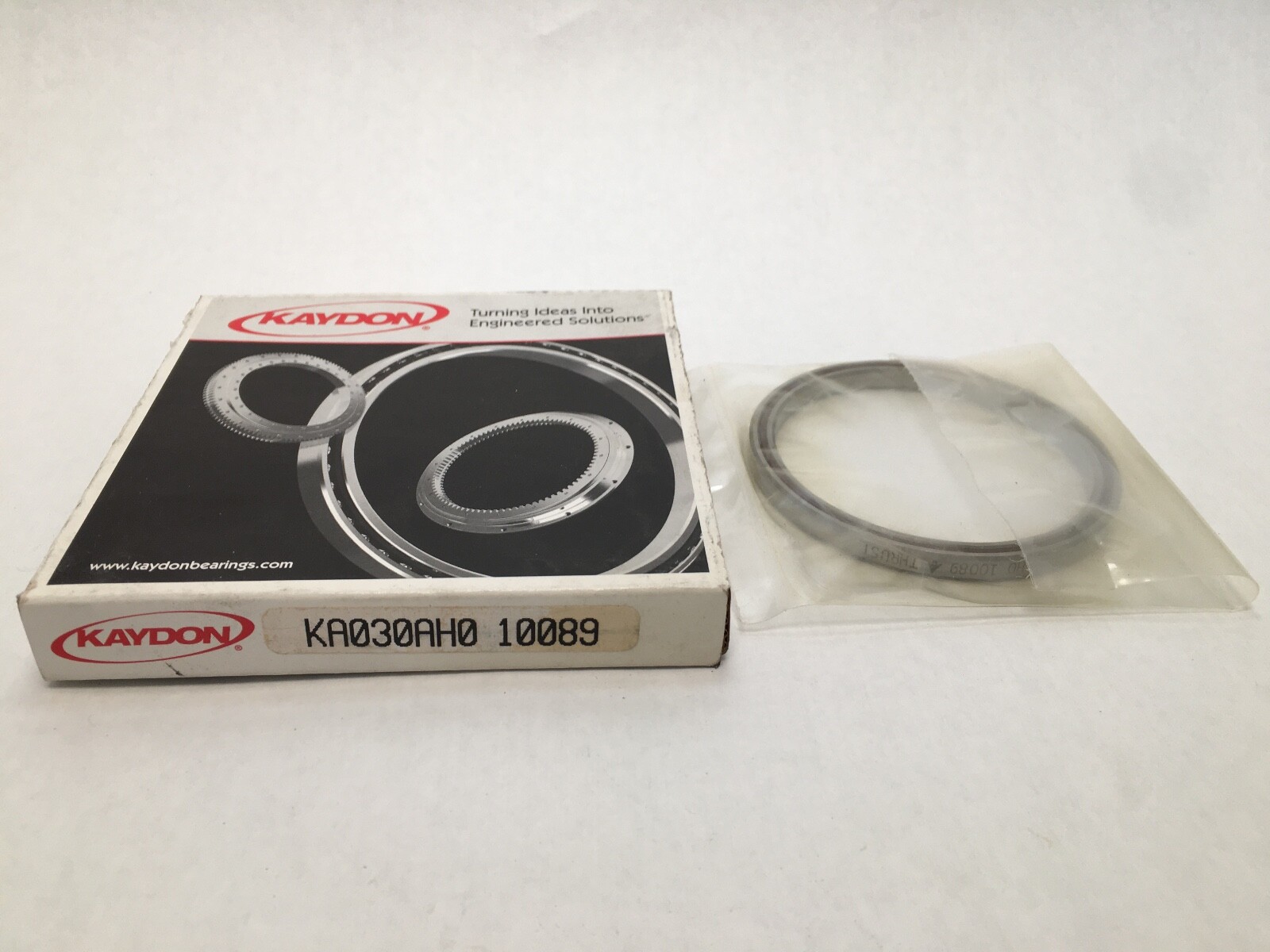

Thin section angular contact ball bearing, 3 x 3-1/2 x 1/4 in (76.2 x 88.9 x 6.35 mm), KA series type A, phenolic separator, open, ABEC 1F. Kaydon Reali-Slim.
List Price
$228.69
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Kaydon |
|---|---|
| MPN | KA030AH0 |
| Model | KA 030 AH0 10089 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 3.0000 in (76.200 mm) |
| OD | 3.5000 in (88.900 mm) |
| Width | 0.2500 in (6.350 mm) |
| Material | Bearing Steel |
|---|---|
| Series | Reali-Slim KA (0.250 in section) |
| Mpn Variants | KA030AH0, KA-030-AH0, KA 030 AH0, KA030AHO |
| Precision Class | ABEC 1F (Kaydon Class 1) |
| Closure Type | Open |
| Cage Type | One-piece ring, circular pocket |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Mounting Arrangement | Single, not universally ground |
| Cross Reference 1 | RBC KA030AH0 |
|---|
Kaydon KA030AH0 is a Reali-Slim thin section angular contact ball bearing, KA series, type A, open, with a one-piece phenolic separator. Bore Diameter: 3.000 in (76.20 mm). Outside Diameter: 3.500 in (88.90 mm). Width: 0.250 in (6.35 mm). Radial Section: 0.250 in. It carries radial load plus thrust in one direction and is normally mounted opposed to a second type A bearing.
K — AISI 52100 bearing steel rings and balls, no seals or shields.
A — 0.250 x 0.250 in cross-section series.
030 — 3.0 in nominal bore.
A — angular contact single bearing, not ground for universal duplexing.
H — phenolic laminate one-piece ring separator with circular pockets.
0 — Kaydon precision class 1, per ABEC 1F.
The phenolic laminate separator is light and runs quietly at speed. The type A reduced shoulder allows a larger ball complement for higher thrust capacity than a radial contact bearing of the same section. Rolling Elements: 1/8 in balls.
Maximum Shaft or Housing Fillet Radius: 0.025 in. Closure Type: Open. Bore Type: Straight.
Unit Quantity: 1 Pc. Mounting Arrangement: Single angular contact bearing, mounted opposed to a second type A bearing.
Kaydon Reali-Slim is an SKF Group brand. The standard formed-ring separator version of the same envelope is Kaydon KA030AR0. RBC thin section numbering for the same bearing: RBC KA030AH0.
