Availability:
1 in stock

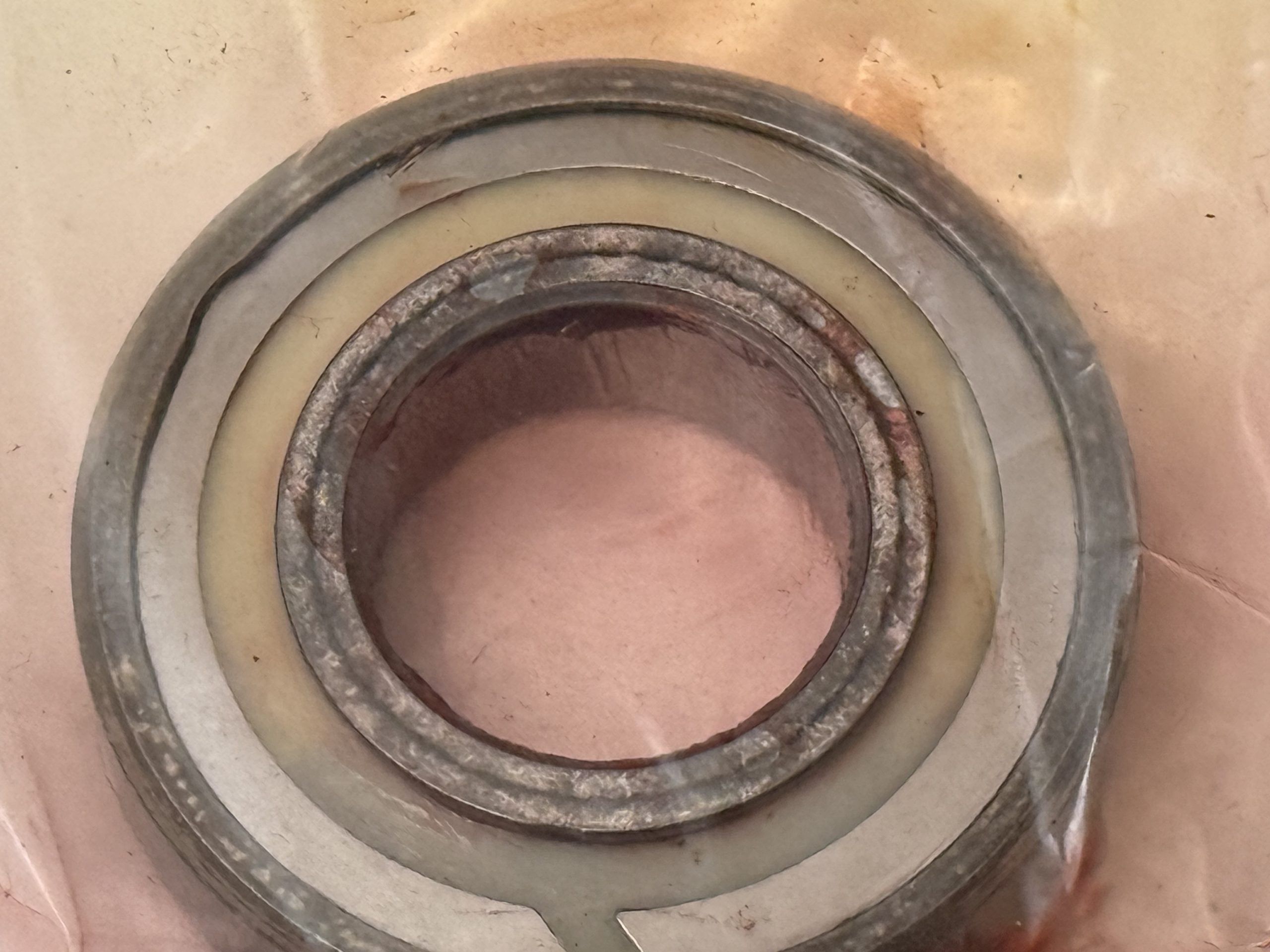

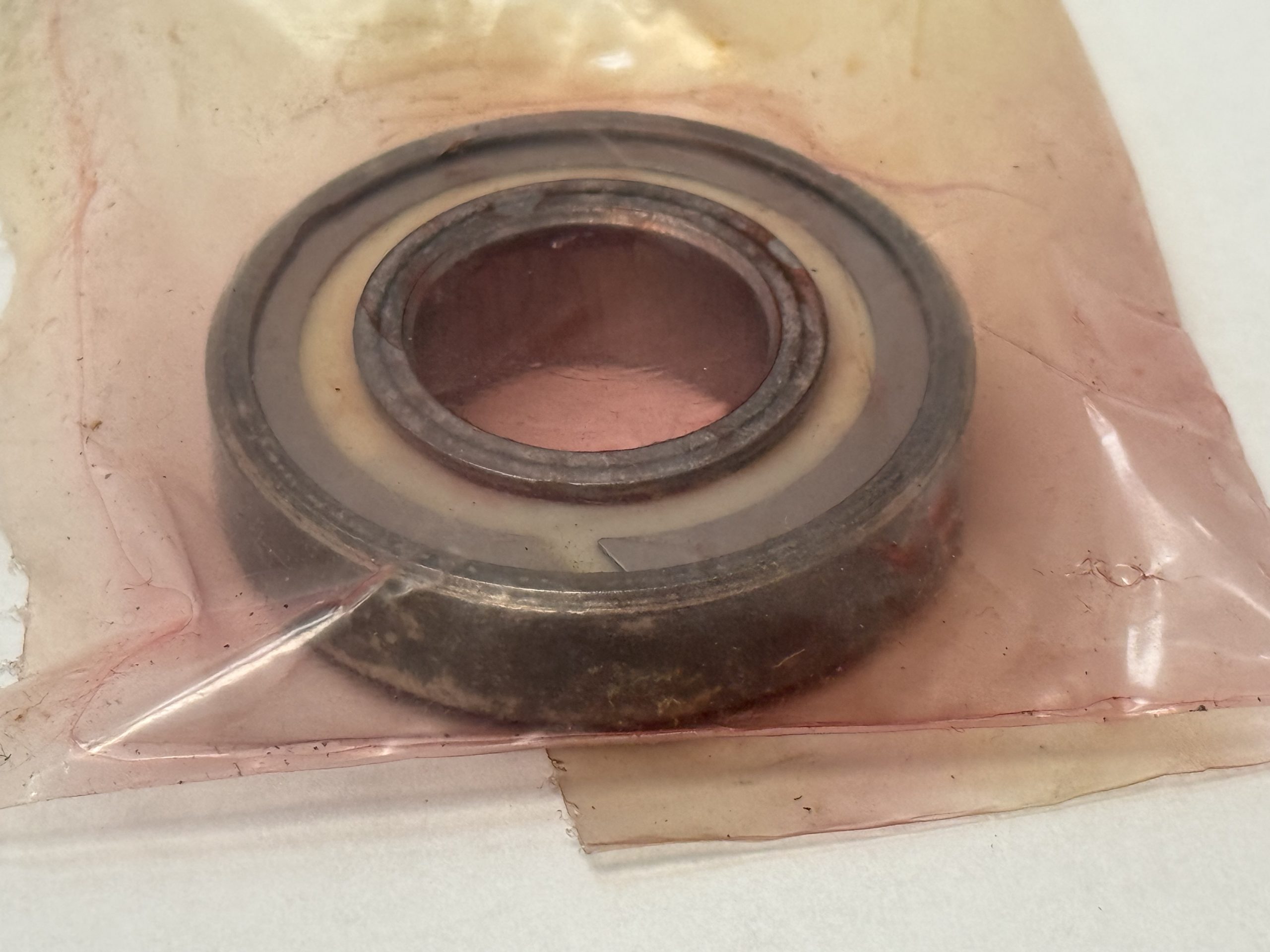

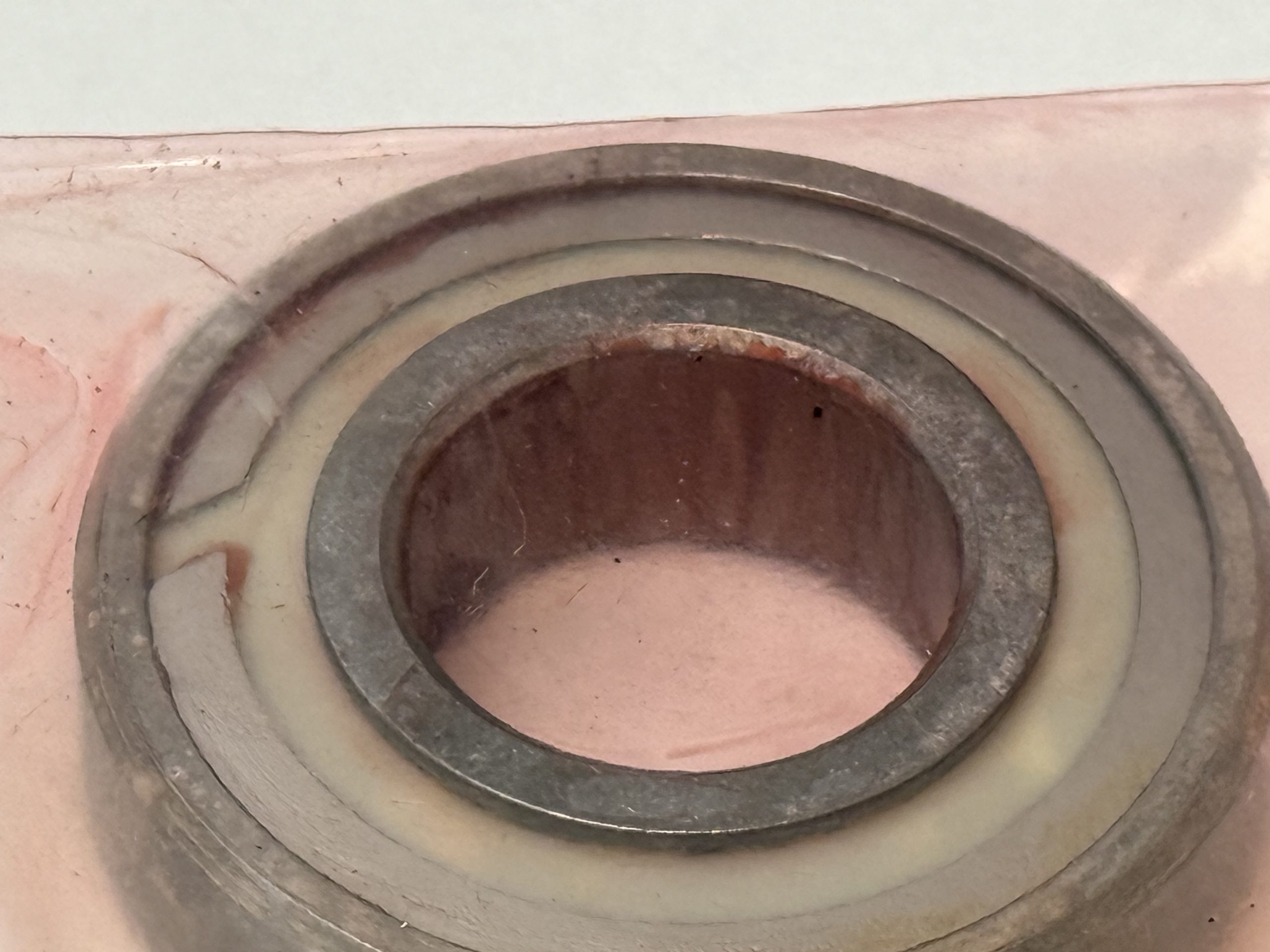

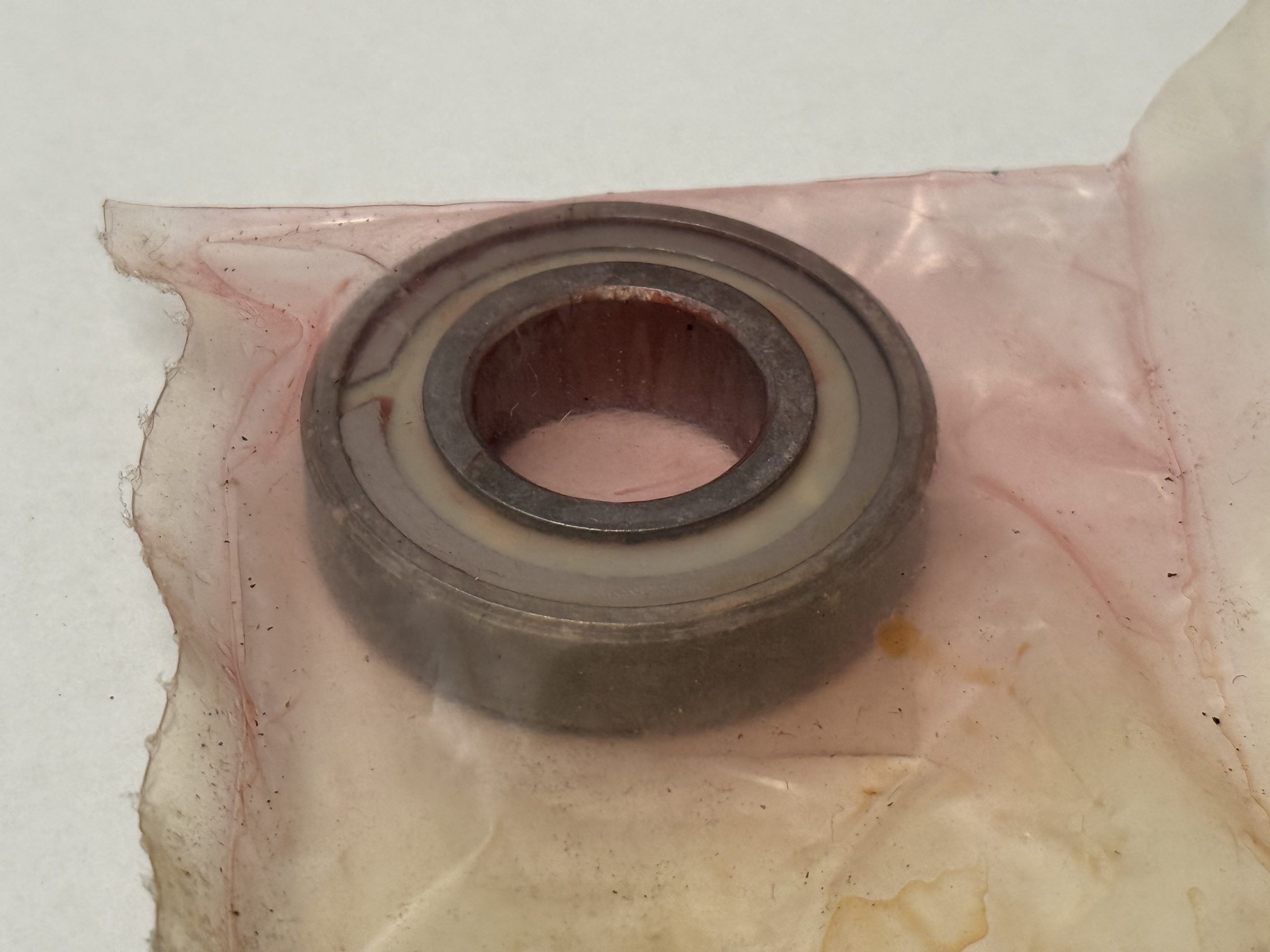

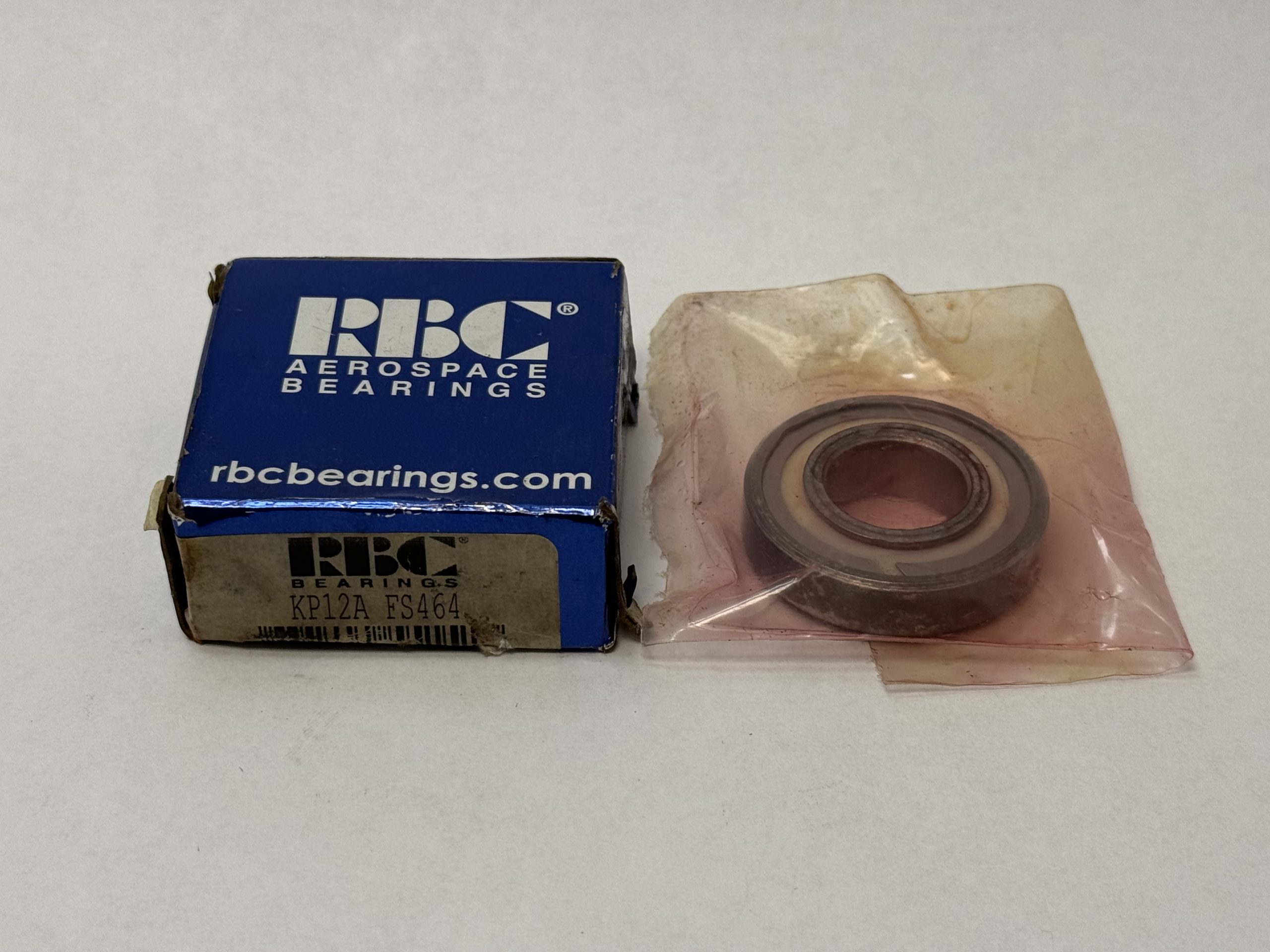

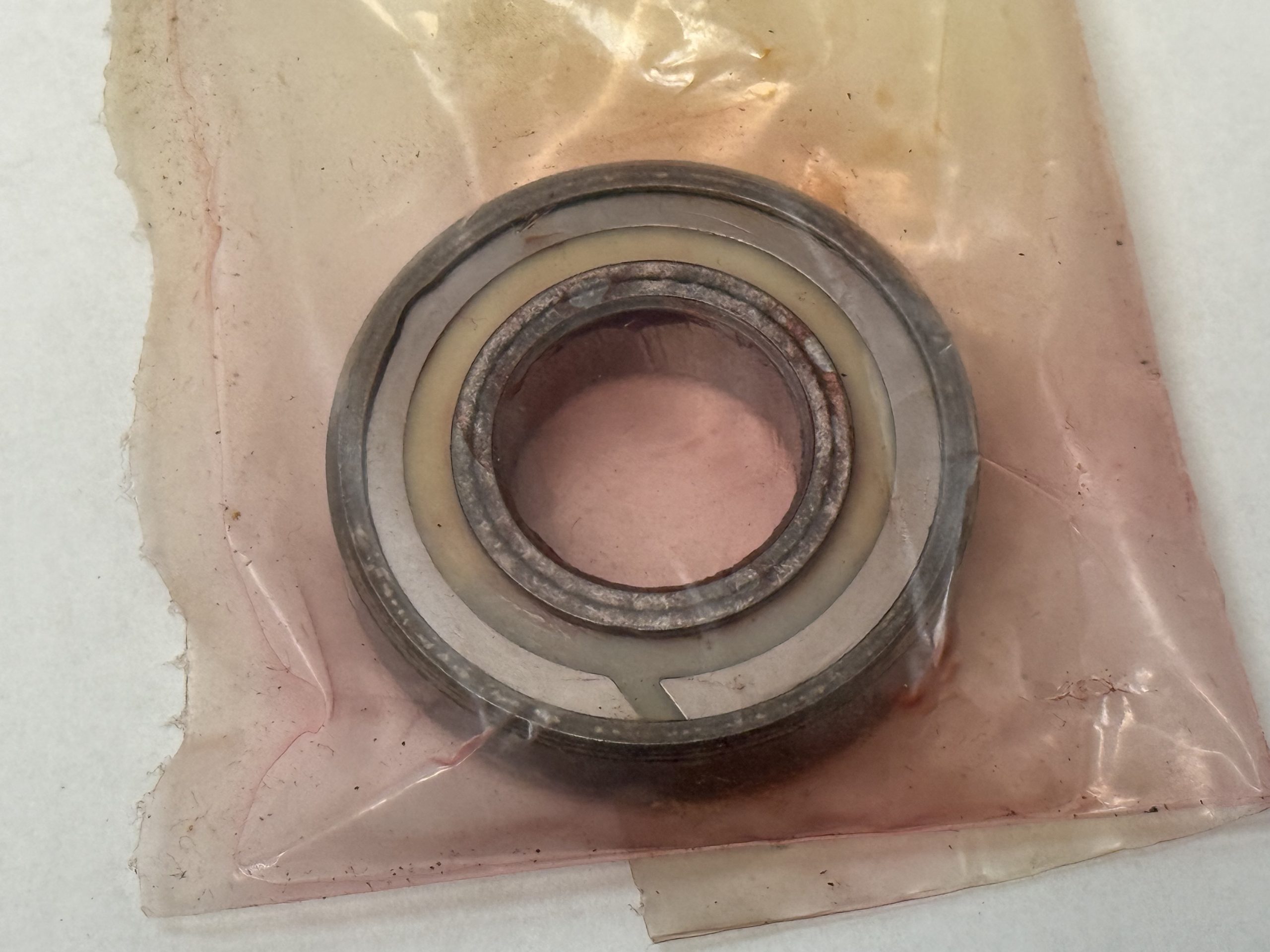

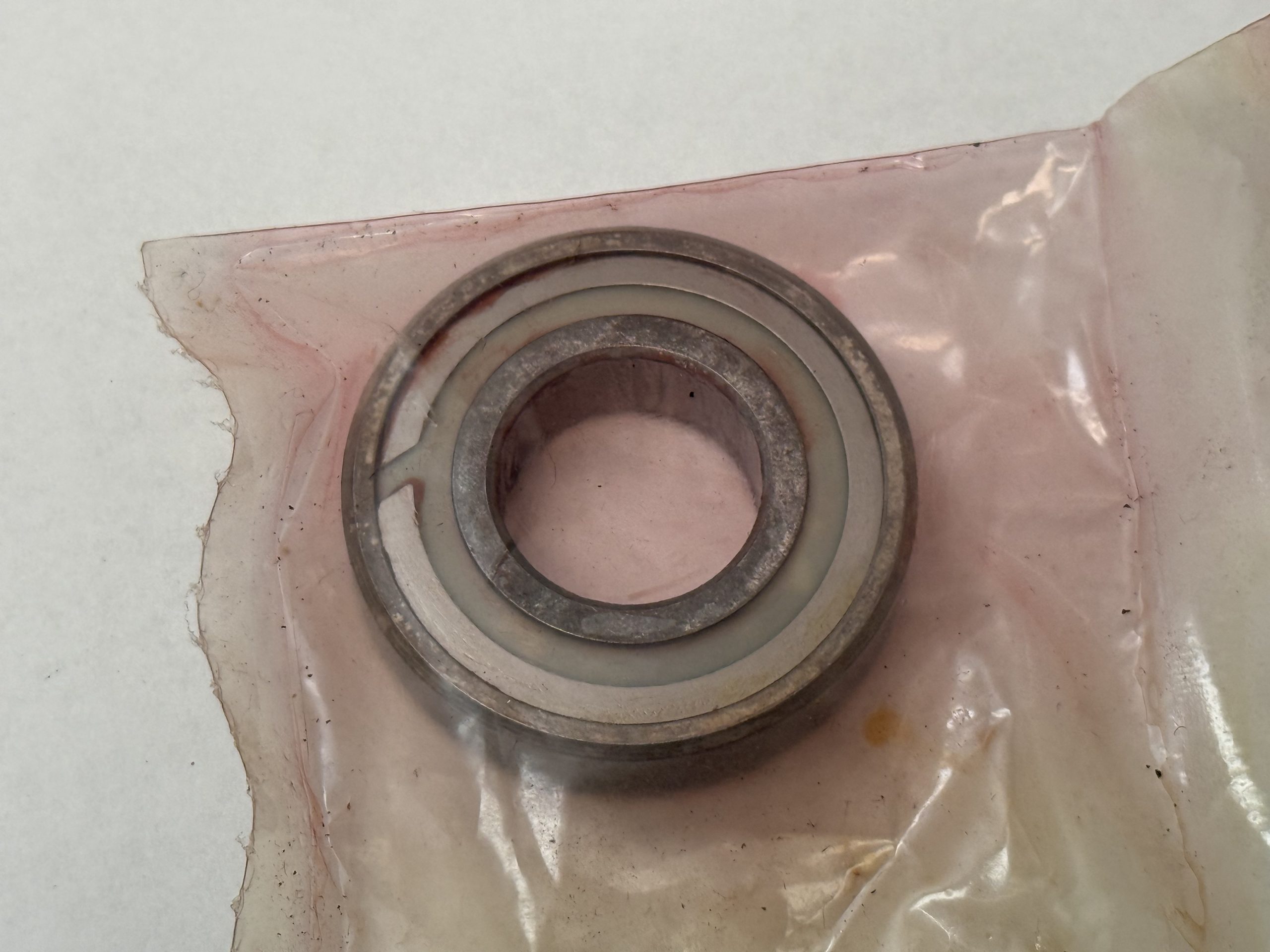

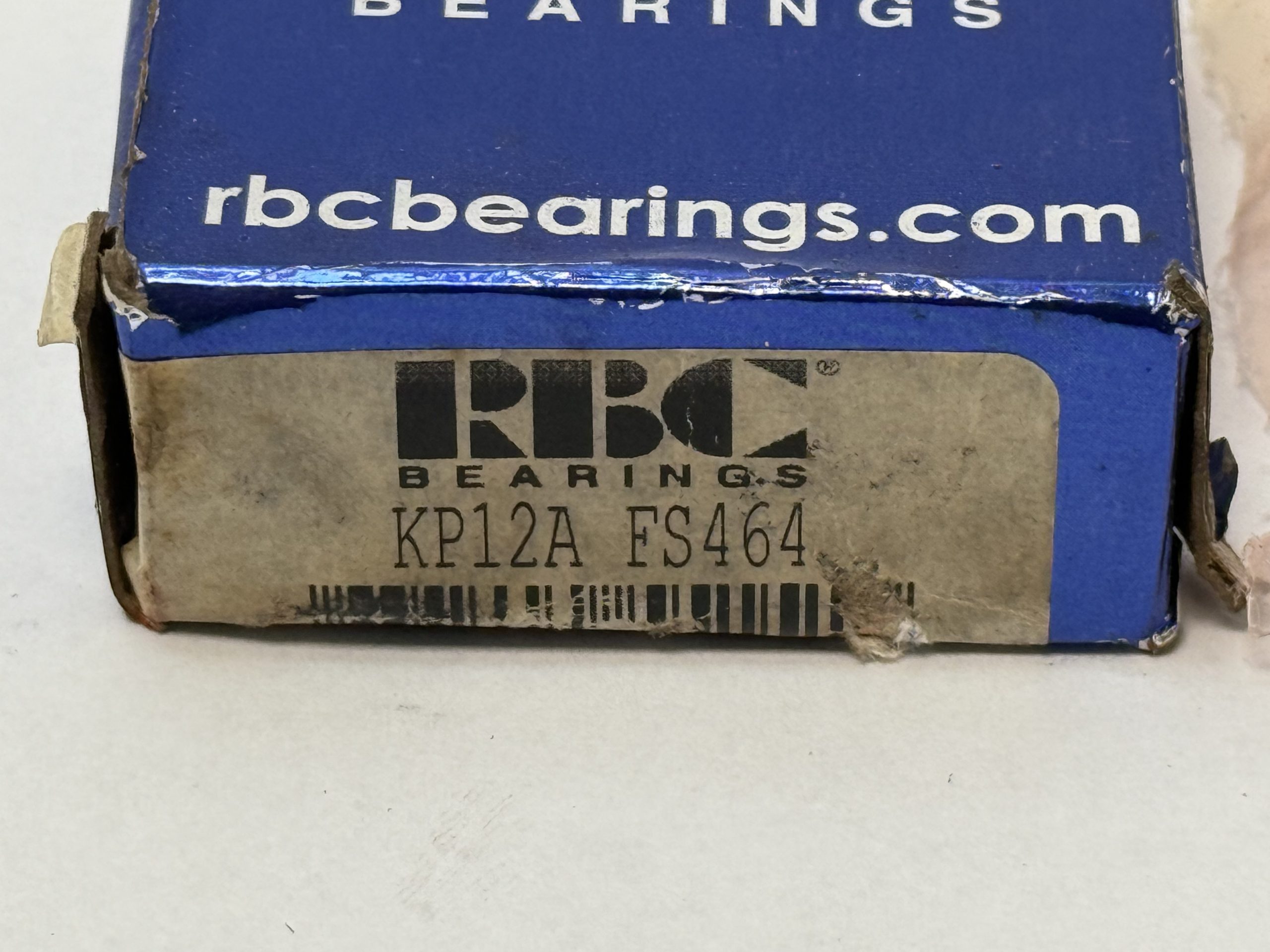

RBC KP12A-FS464 sealed control ball bearing, 0.750 in bore, 1.625 in OD, 0.4375 in wide. Full-complement, 52100 steel rings, cadmium plated, PTFE seals.
List Price
$63.74
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RBC |
|---|---|
| MPN | KP12A-FS464 |
| GTIN | 637400551513 |
| Model | KP12AFS464 |
| Bearing Type | Ball Bearing |
| ID | 0.7500 in (19.050 mm) |
| OD | 1.6250 in (41.275 mm) |
| Width | 0.4375 in (11.113 mm) |
| Material | SAE 52100 steel, cadmium plated |
|---|---|
| Series | KP |
| Internal Clearance | C0 |
| Number Of Rows | 1 |
| Base Number | KP12A |
| Closure Type | Sealed |
| Mpn Variants | KP12A-FS464, KP12AFS464, KP12A FS464, KP12A |
| Cage Type | None, full complement |
| Static Load Rating | 8,790 lbf (static radial limit load) |
| Rolling Elements | Ball |
| Limiting Speed | 500 rpm |
| Bearing Material | SAE 52100 steel, cadmium plated |
An RBC KP12A-FS464 sealed, self-contained control ball bearing from RBC’s KP series. Bore Diameter: 0.7500 in. Outside Diameter: 1.6250 in. Inner Ring Width: 0.4375 in. The design is full complement, with no cage.
KP — RBC sealed control ball bearing series.
12 — bore size in sixteenths of an inch: 12/16 = 0.750 in.
A — design variant within the KP series.
FS464 — RBC suffix for the seal and plating package: PTFE seals with CRES sealcaps over a cadmium-plated ring set.
Bore Diameter: 0.7500 in (19.050 mm). Outside Diameter: 1.6250 in (41.275 mm). Overall Width: 0.4375 in (11.113 mm). Static Radial Limit Load: 8,790 lbf. Maximum Speed: 500 rpm. Bearing Material: SAE 52100 through-hardened steel, cadmium plated. Seals: PTFE with CRES sealcaps. Cage Type: None, full complement. Rolling Elements: Ball. Closure Type: Sealed. Unit Quantity: 1 Pc.
Direct replacement for RBC KP12A-FS464, also written KP12AFS464. Base Number: KP12A.
What are the dimensions of the KP12A-FS464?
0.7500 in bore, 1.6250 in OD, 0.4375 in inner ring width.
Does it have a cage?
No. It is a full-complement ball bearing.
What does FS464 mean?
RBC’s suffix for PTFE seals with CRES sealcaps over cadmium-plated 52100 steel rings.
