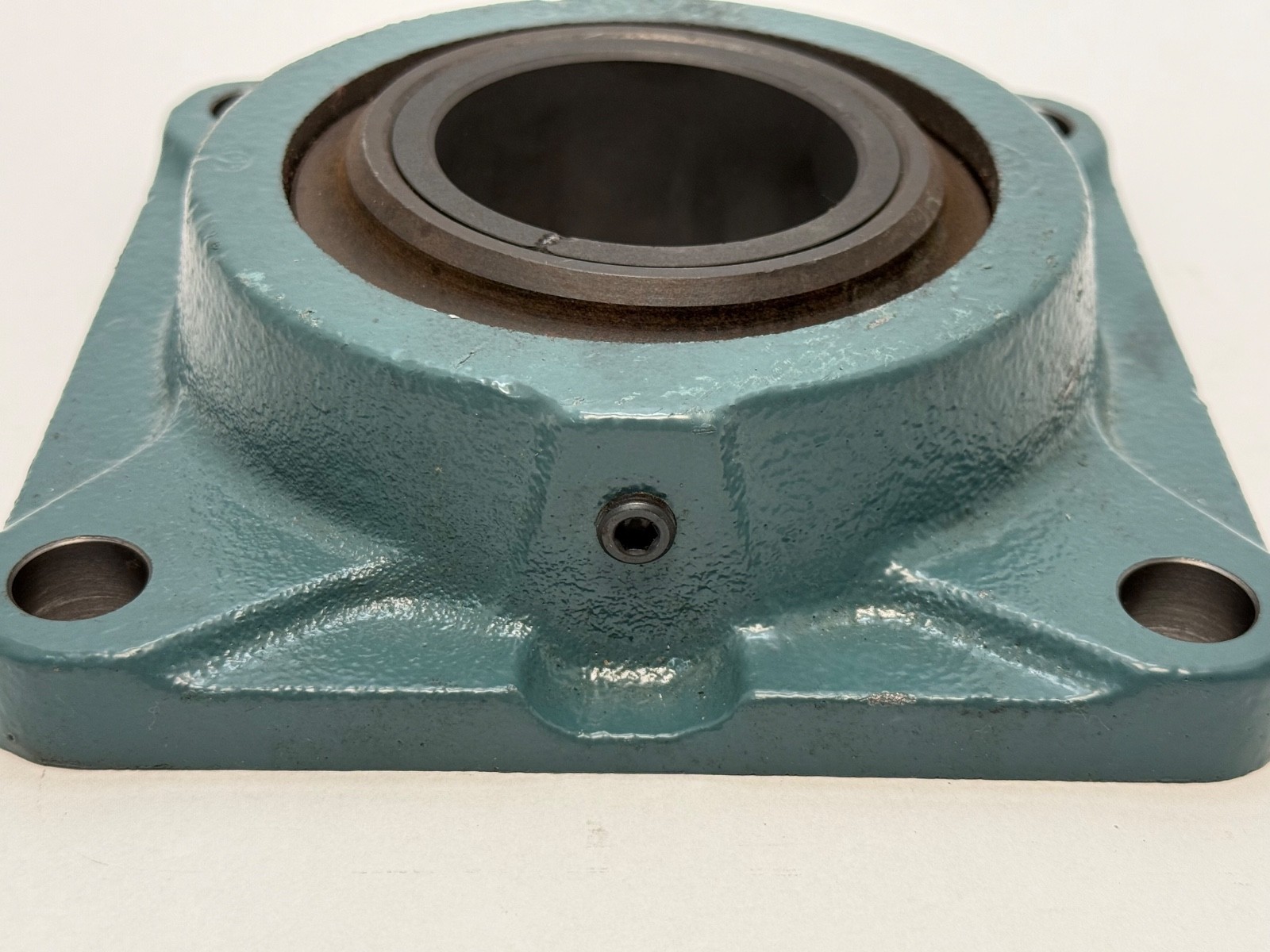

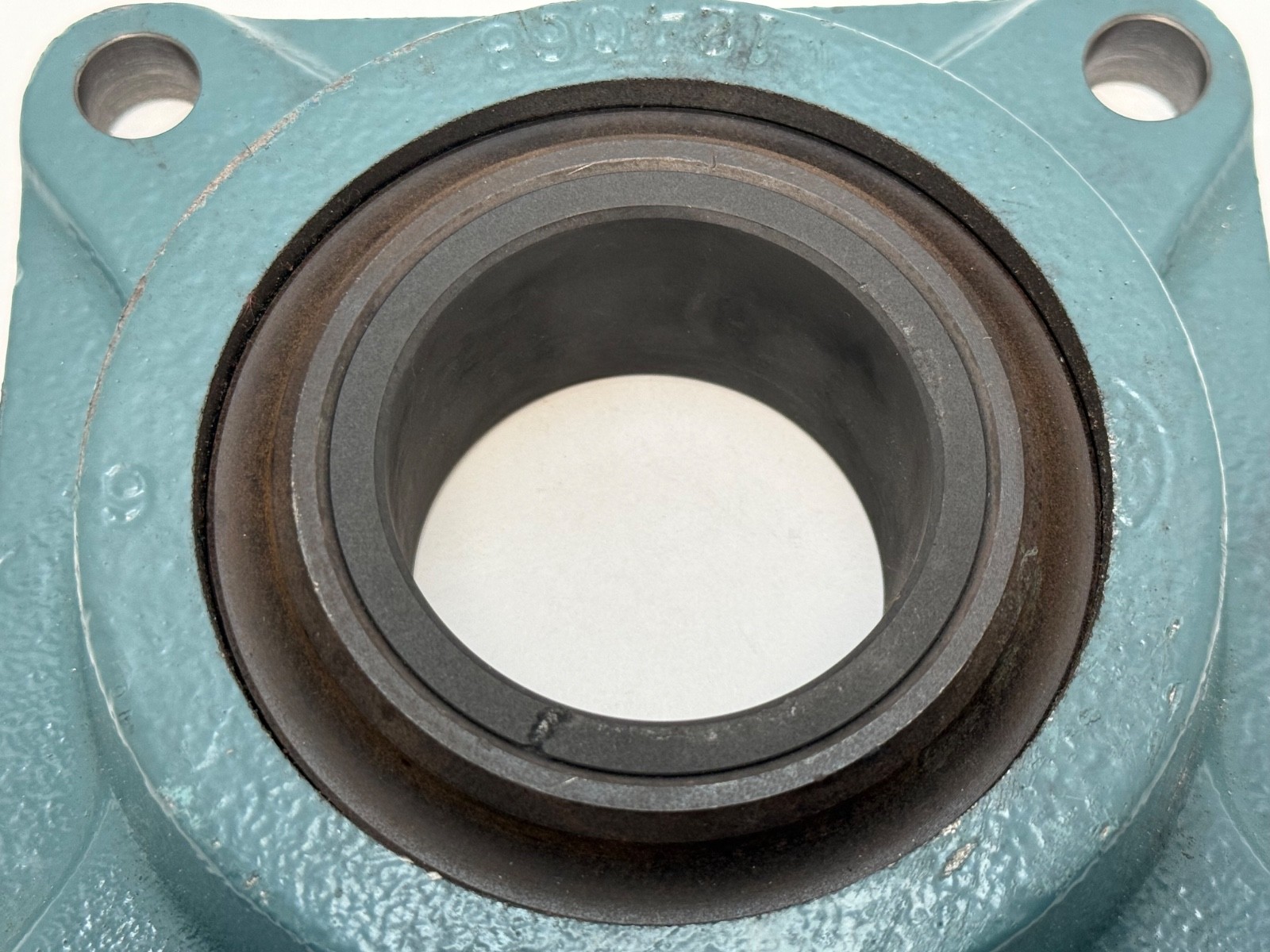

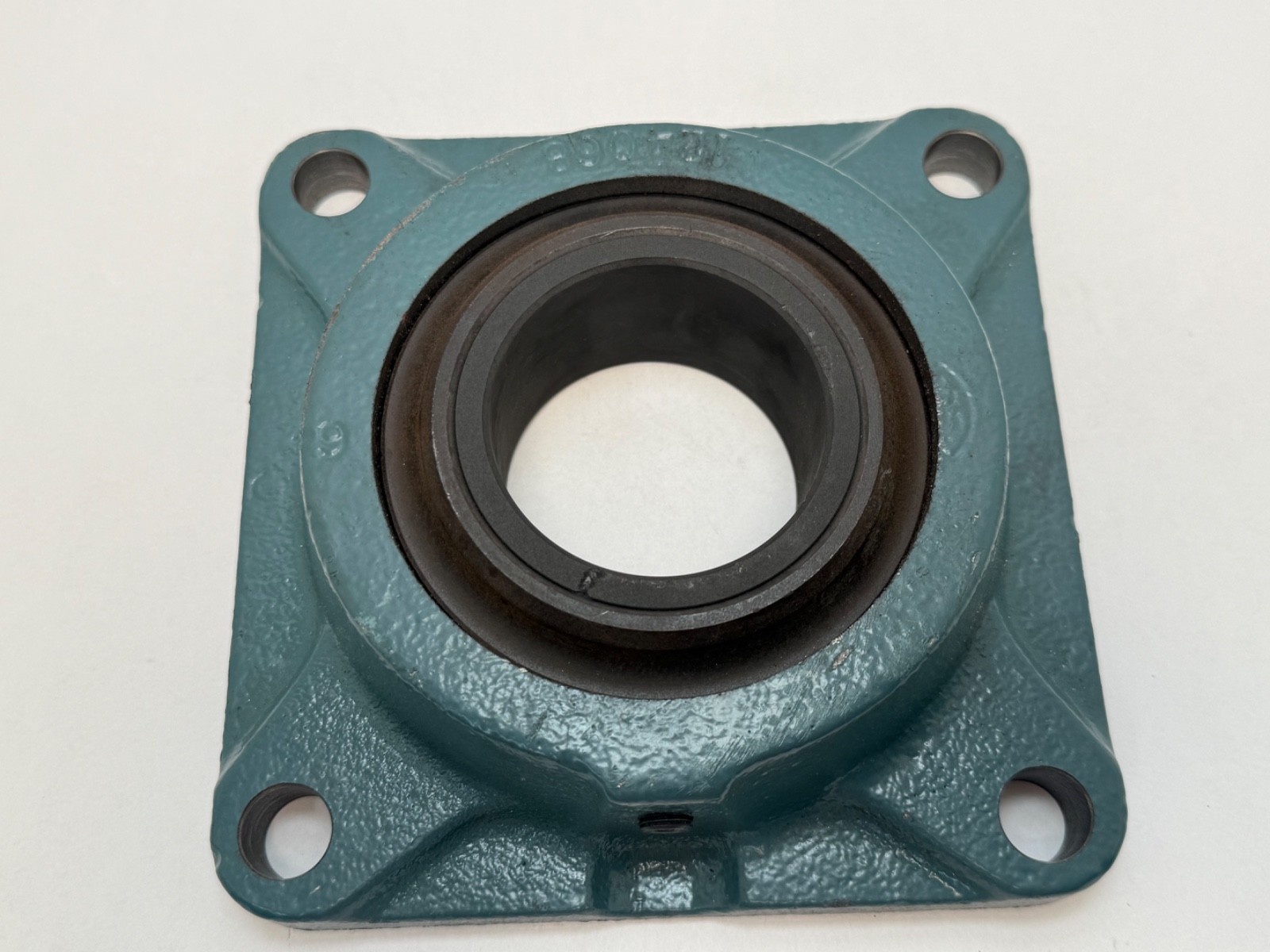

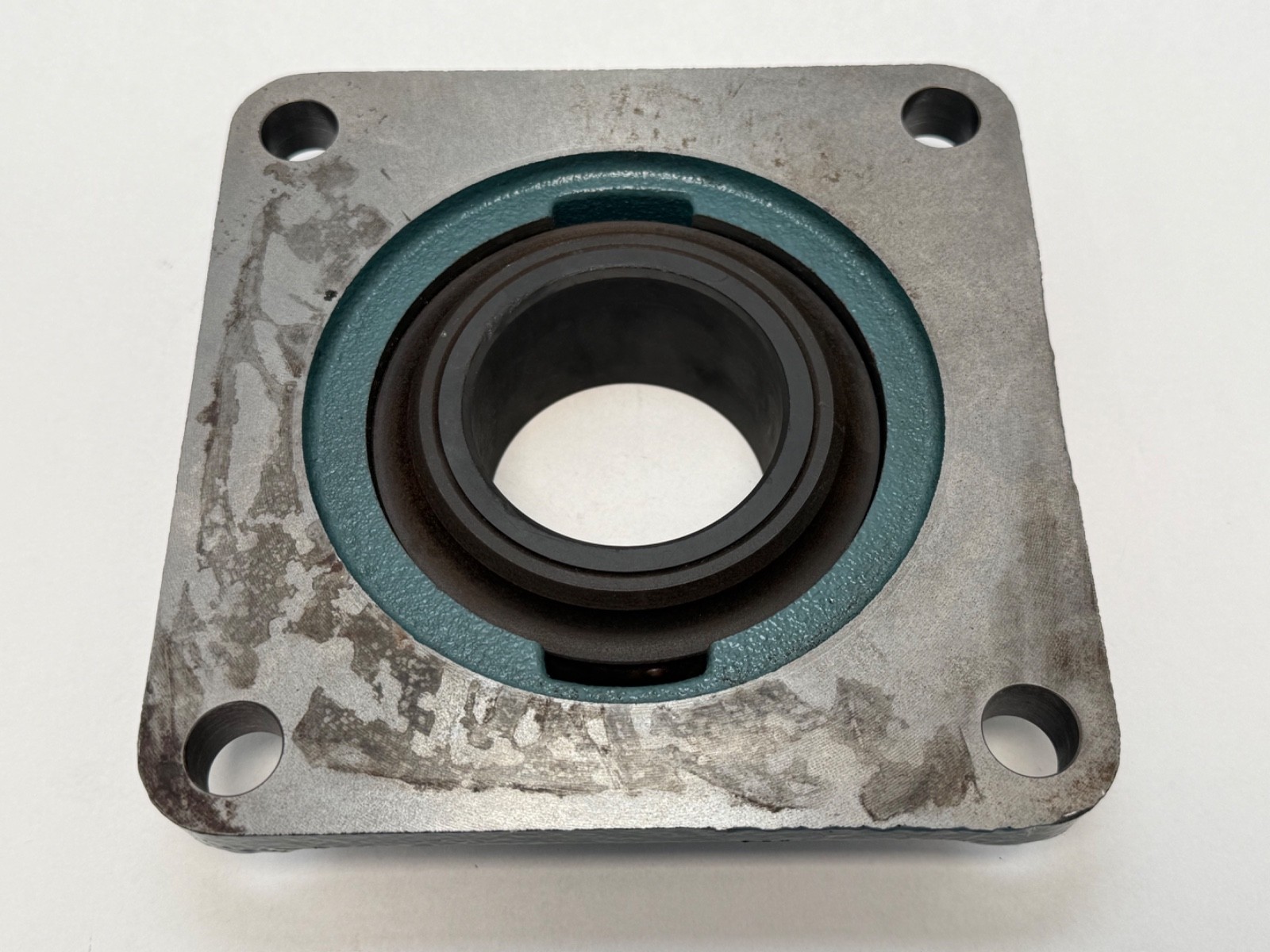

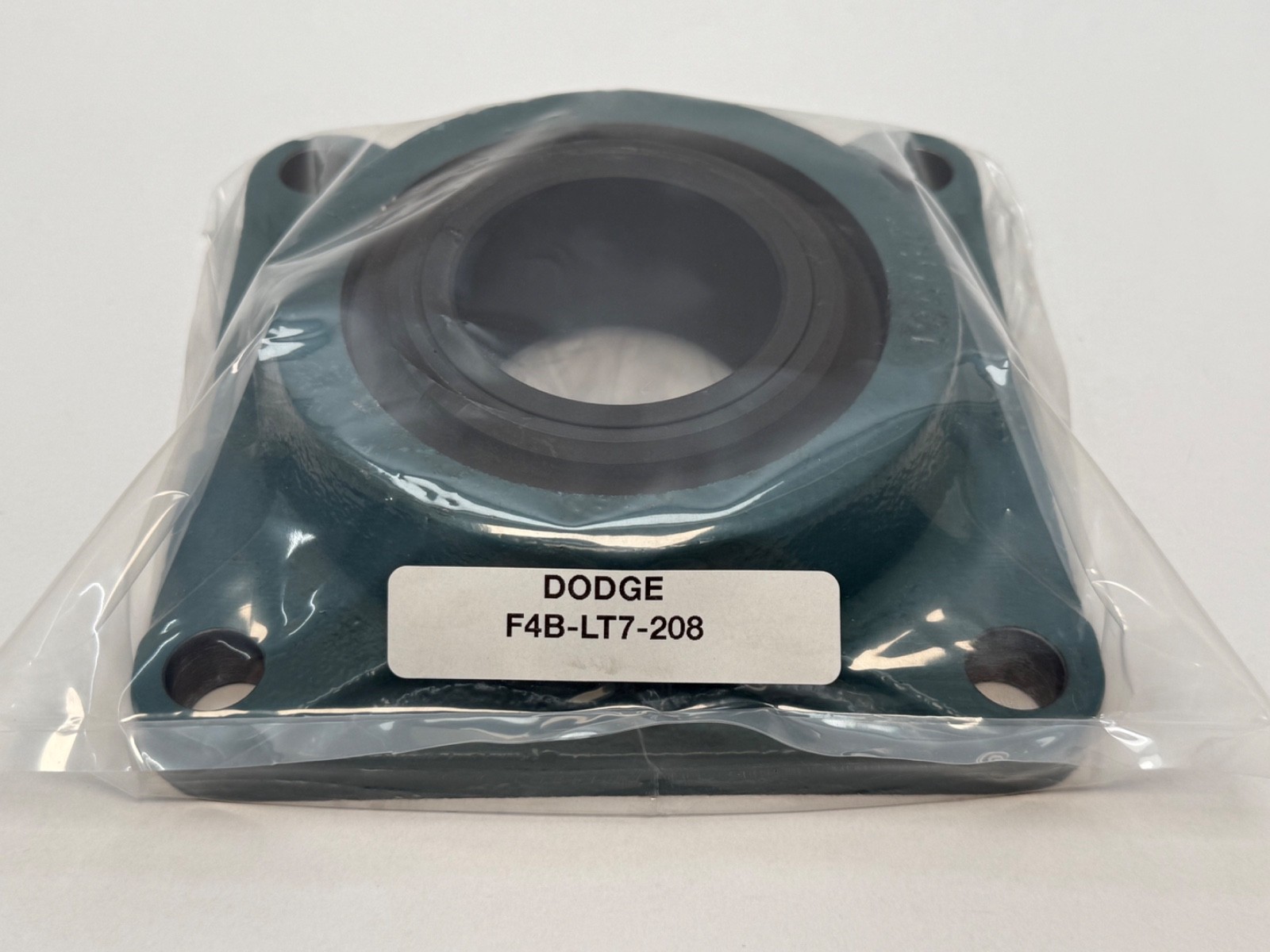

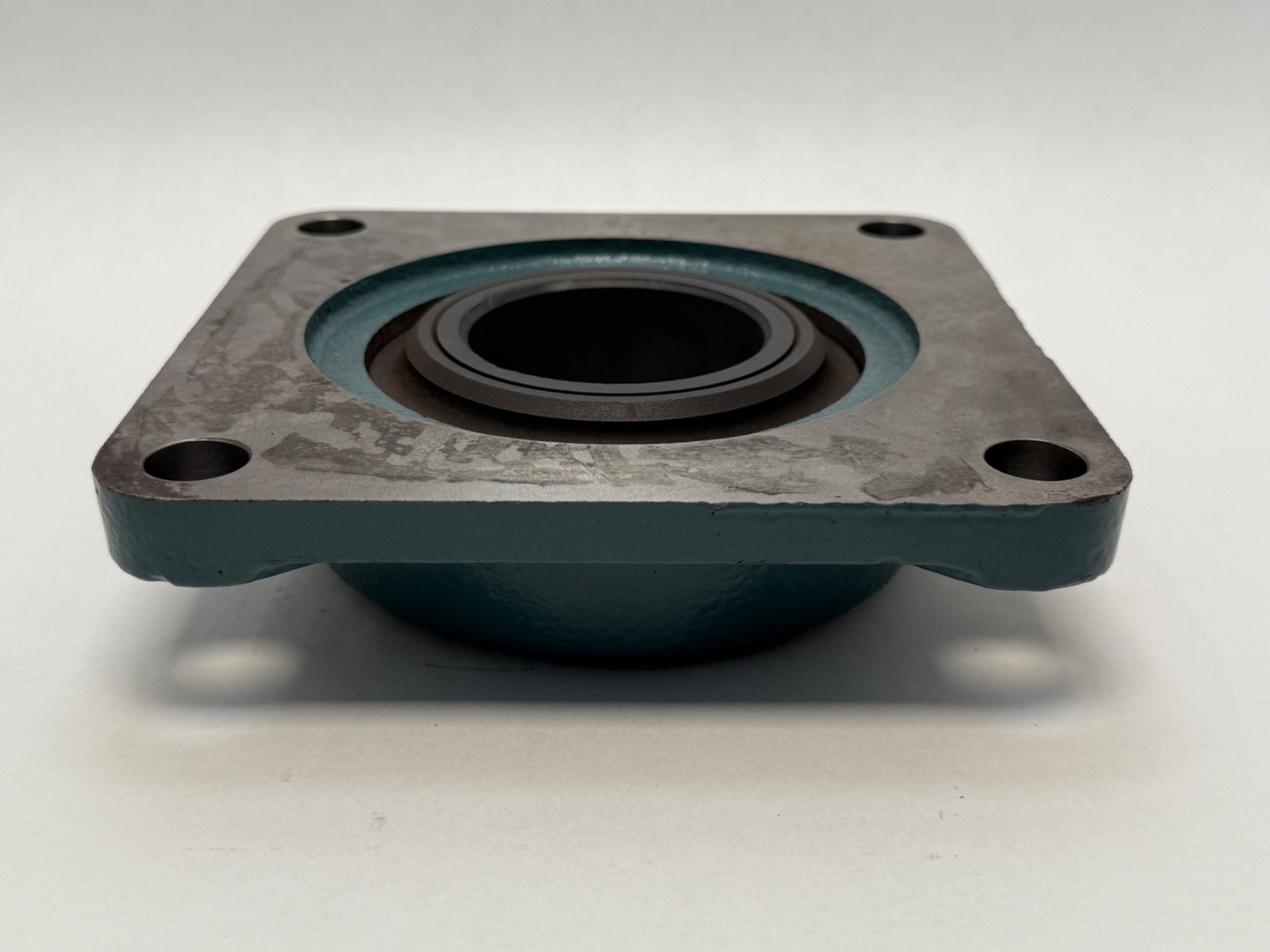

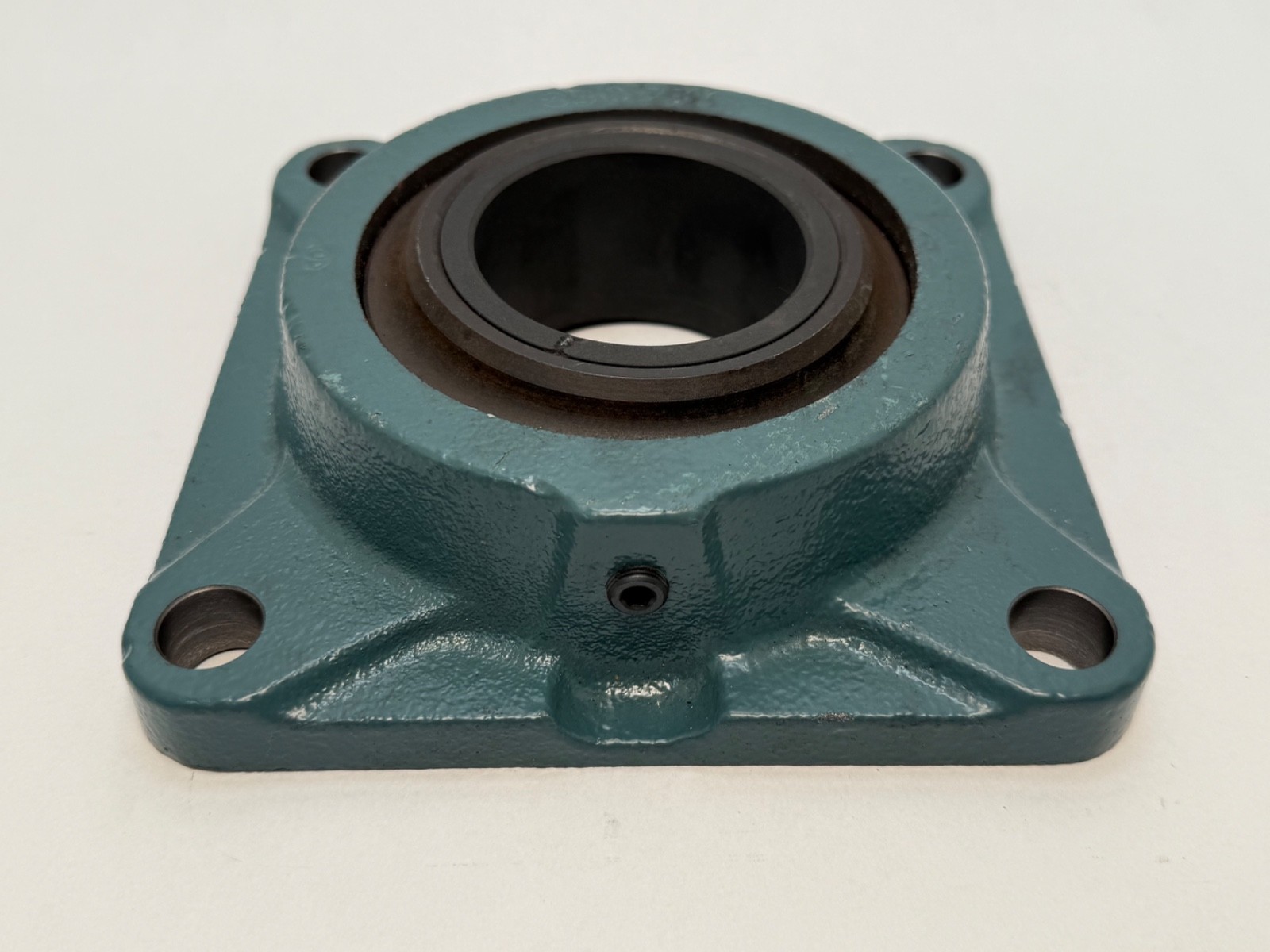

Dodge F4B-LT7-208 four-bolt flange Solidlube sleeve bearing, 2-1/2 in bore, self-lubricating graphite insert, 700 rpm, -40 to 700 °F. Part 033276.
List Price
$79.65
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | F4B-LT7-208 |
| GTIN | 782475016648 |
| Model | F4B-LT7-208 |
| ID | 2.50 in |
| Material | Cast Iron |
|---|---|
| Series | LT700 |
| Type | Flanged Mount Sleeve Bearing |
| Base Number | F4B-LT7 |
| Industry Terms | Solidlube bearing; graphite bearing; sleeve bearing; journal bearing; high temperature flange bearing; 4-bolt flange |
| Common Misspellings | F4BLT7208; F4B-LT7208; F4B LT7-208; Solid Lube |
| Application Types | Ovens; kilns; dryers; high-temperature conveyors |
| Number Of Bolt Holes | 4 |
| Bolt Center To Center Length | 5-5/8 in |
| Number Of Bolt Holes For Fasteners | 4 |
| Bore Shaft Size | 2-1/2 in (63.5 mm) |
| Housing Style | Four-bolt flange |
| Relubrication | Self-lubricated |
| Mpn Variants | F4B-LT7-208; F4BLT7208; F4B LT7 208; 033276 |
| Compatible With Replaces | Dodge 033276 |
| Additional Attributes | Dodge Part Number: 033276; Insert: Solidlube graphite; Temperature Range: -40 to 700 F; Overall Length: 7 in; Overall Height: 7 in; Overall Depth: 1-31/32 in; Bore Length: 2.38 in; Bolt Diameter: 5/8 in; Finish: Powder coated; Take-Up Frame Size: LD-40 |
| Dynamic Load Rating | 7,500 lb base load; 2,360 lb side load |
| Bearing Type | Flange Mount Sleeve Bearing (Solidlube) |
| Bore Type | Straight |
| Limiting Speed | 700 rpm |
| Duty Type | Medium |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Cast Iron |
Dodge F4B-LT7-208, Dodge part number 033276. Four-bolt flange sleeve bearing with a Solidlube self-lubricating graphite insert, LT700 series, medium duty. Bore / Shaft Size: 2-1/2 in (63.5 mm). Housing Material: Cast iron. Bearing Type: Plain sleeve (journal) bearing, no rolling elements.
F4B — four-bolt flange housing.
LT7 — Dodge Solidlube LT700 sleeve bearing insert.
208 — shaft size 2-1/2 in.
Base Load Rating: 7,500 lb. Side Load Rating: 2,360 lb. Limiting Speed: 700 rpm. Temperature Range: -40 to 700 °F. Relubrication: Self-lubricated. The graphite Solidlube insert runs without grease in high-temperature service such as ovens, kilns and dryers.
Bolt Center To Center Length: 5-5/8 in. Number Of Bolt Holes For Fasteners: 4. Bolt Diameter: 5/8 in. Overall Length: 7 in. Overall Height: 7 in. Overall Depth: 1-31/32 in. Bore Length: 2.38 in. Finish: Powder coated. Take-Up Frame Size: LD-40.
Dodge catalogue number 033276 and engineering number F4B-LT7-208 identify the same unit. The 2-7/16 in bore sibling on the same frame is the F4B-LT7-207 (033275).
