Pillow Block Bearing - 1 in Bore, 2 bolt, Polymer, Standard Duty, Non-Expanding$51.20| MFR / Brand | System Plast |
|---|---|
| MPN | UCFH205-16-CEC |
| Model | UCFH20516CEC |
| ID | 1.0 in |
| Material | Polyamide |
|---|---|
| Series | UCFH Series |
| Condition | New – Open box |
| Type | Flanged Mount Bearing |
| Lubricant | Food Grade |
| Condition Note | New, No Box |
| Bolt Center To Center | 3.906 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 3.906 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Min Temp | -34°C |
| Dynamic Load Rating | 10.8 kN / 2428 lbf |
| Static Load Rating | 7.8 kN / 1754 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 82°C |
| Bearing Type | 2-Bolt Flange |
| Item Weight | 0.85 lbs |
| Limiting Speed | 3500 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Duty Type | Standard |
| Locking Device | Set Screw |
| Insert Outer Ring | Spherical |
| Relubrication Feature | Yes |
| Harmonization Code | 8483.20.40 |
| Housing Material | Polymer |
| Expansion Type | Non-Expanding |
| Cross Reference 1 | Dodge F2B-PS-100 |
|---|---|
| Cross Reference 2 | SKF P2B 100-TF |

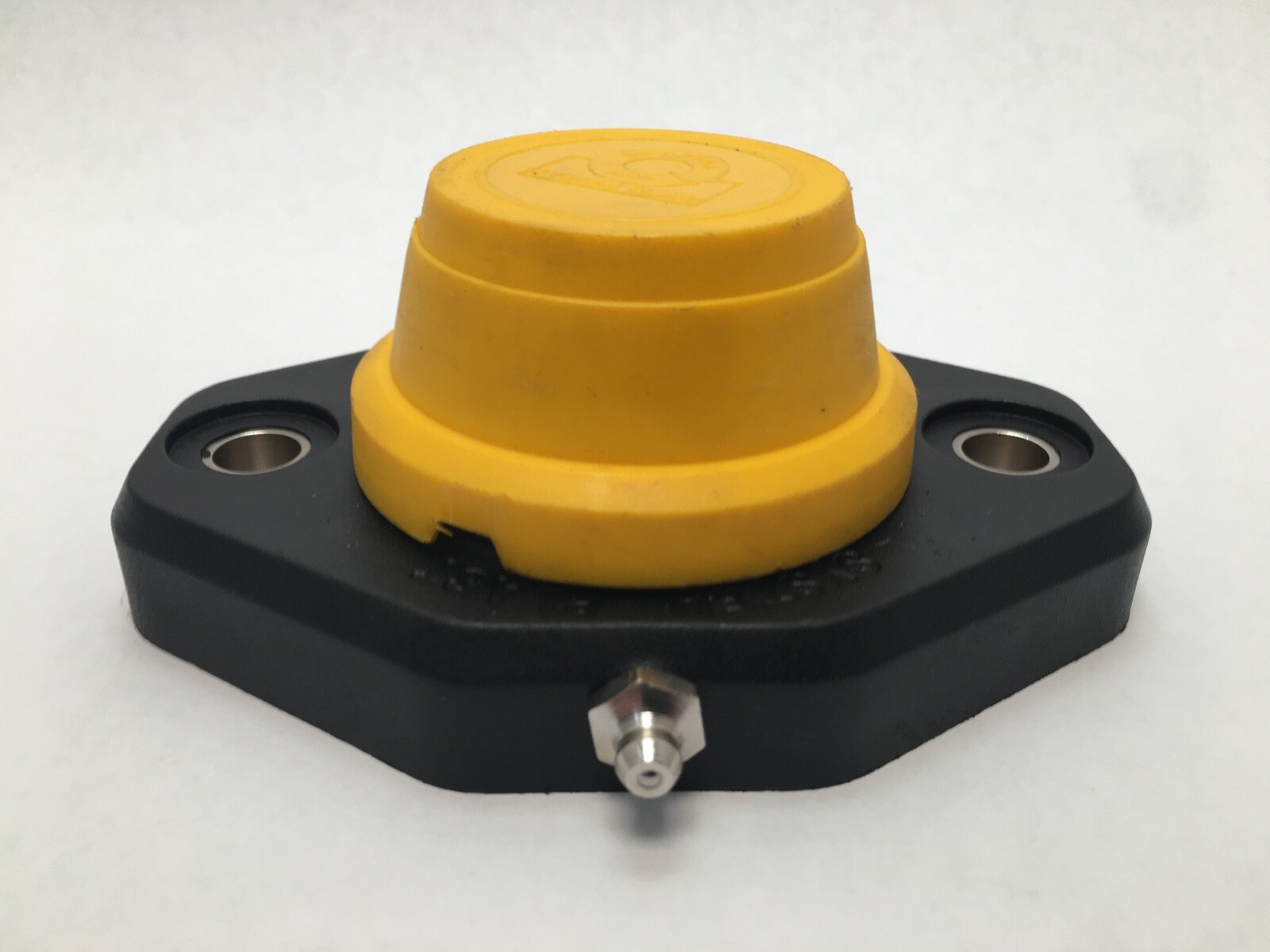

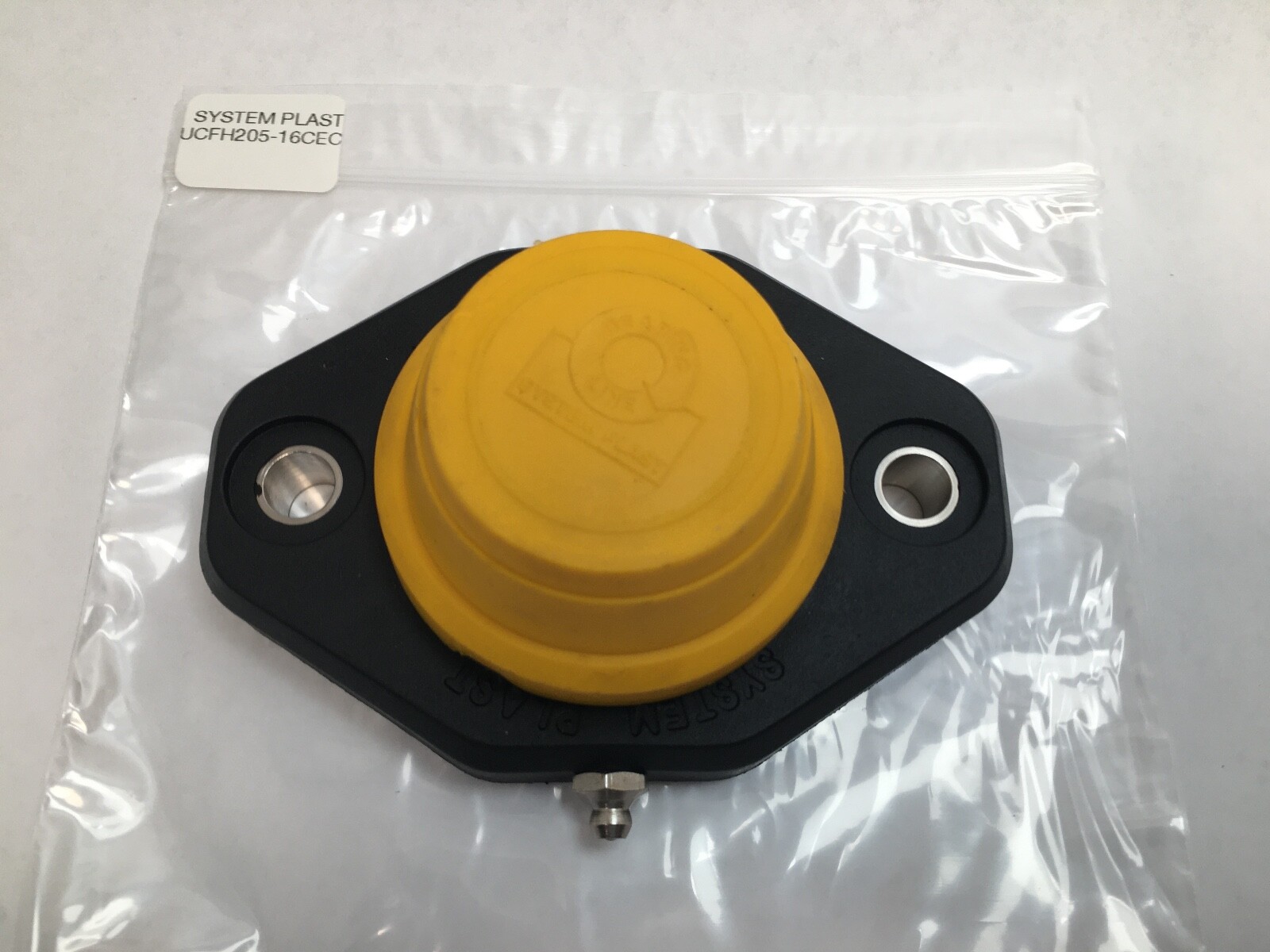

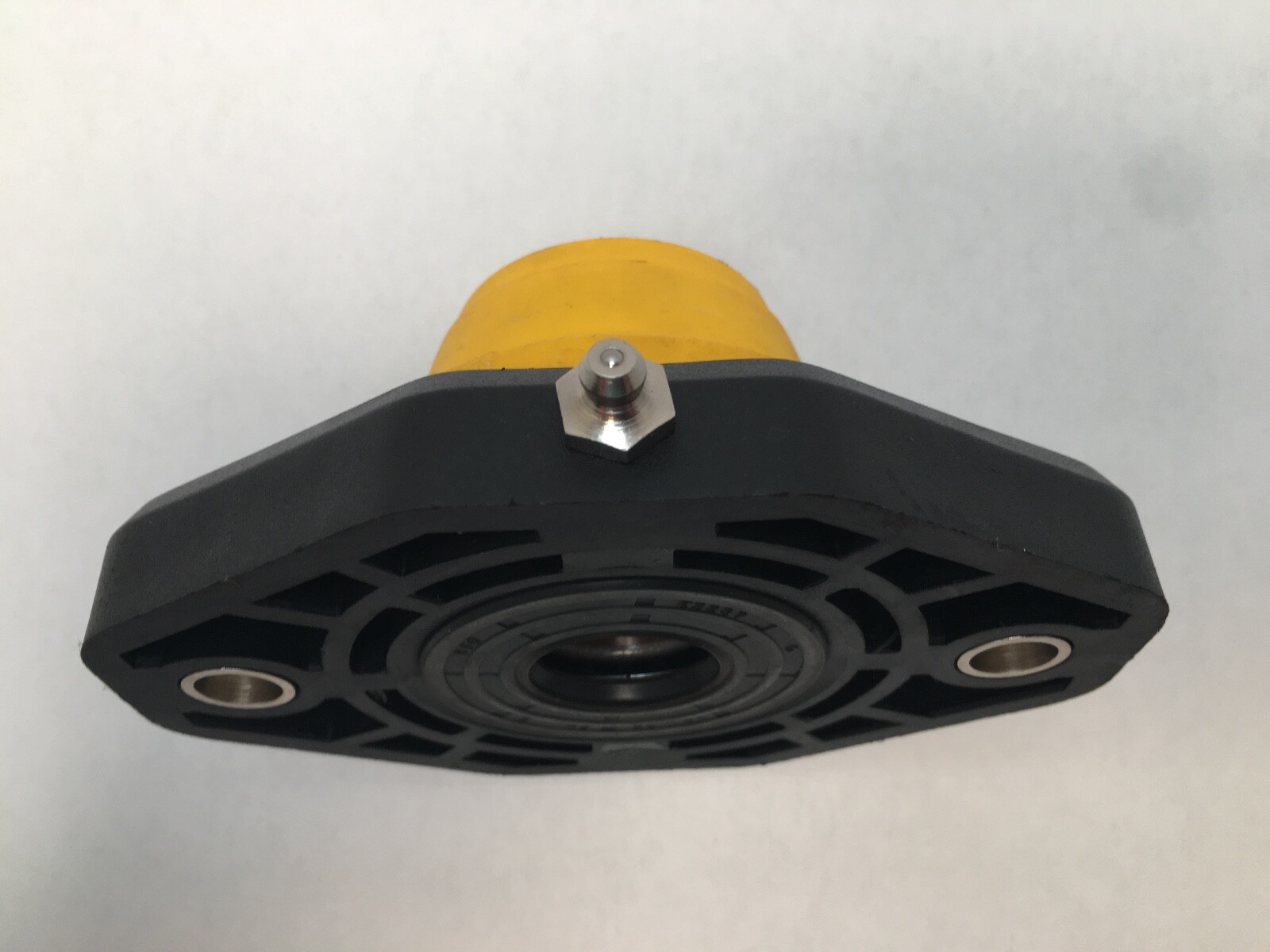

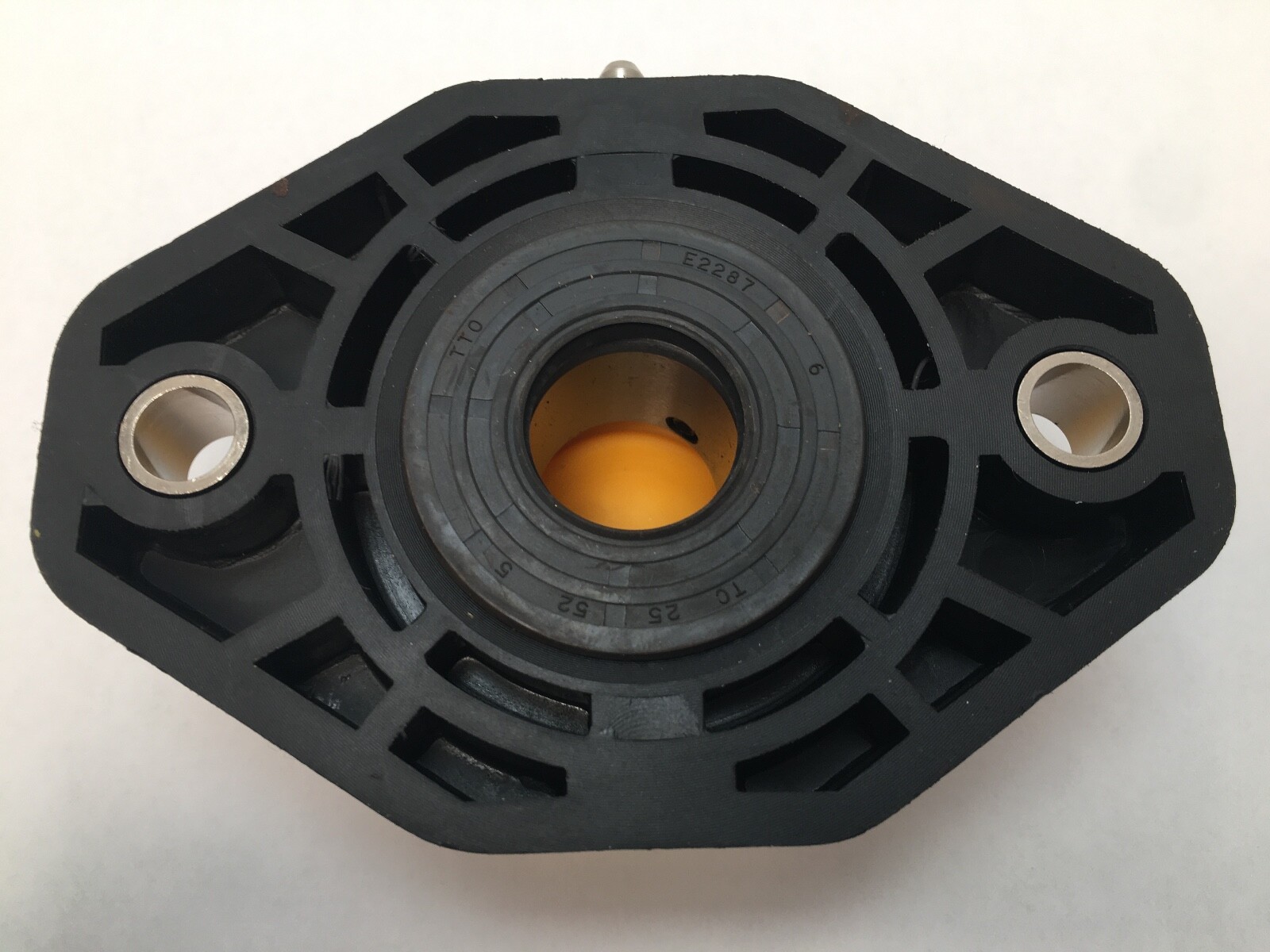

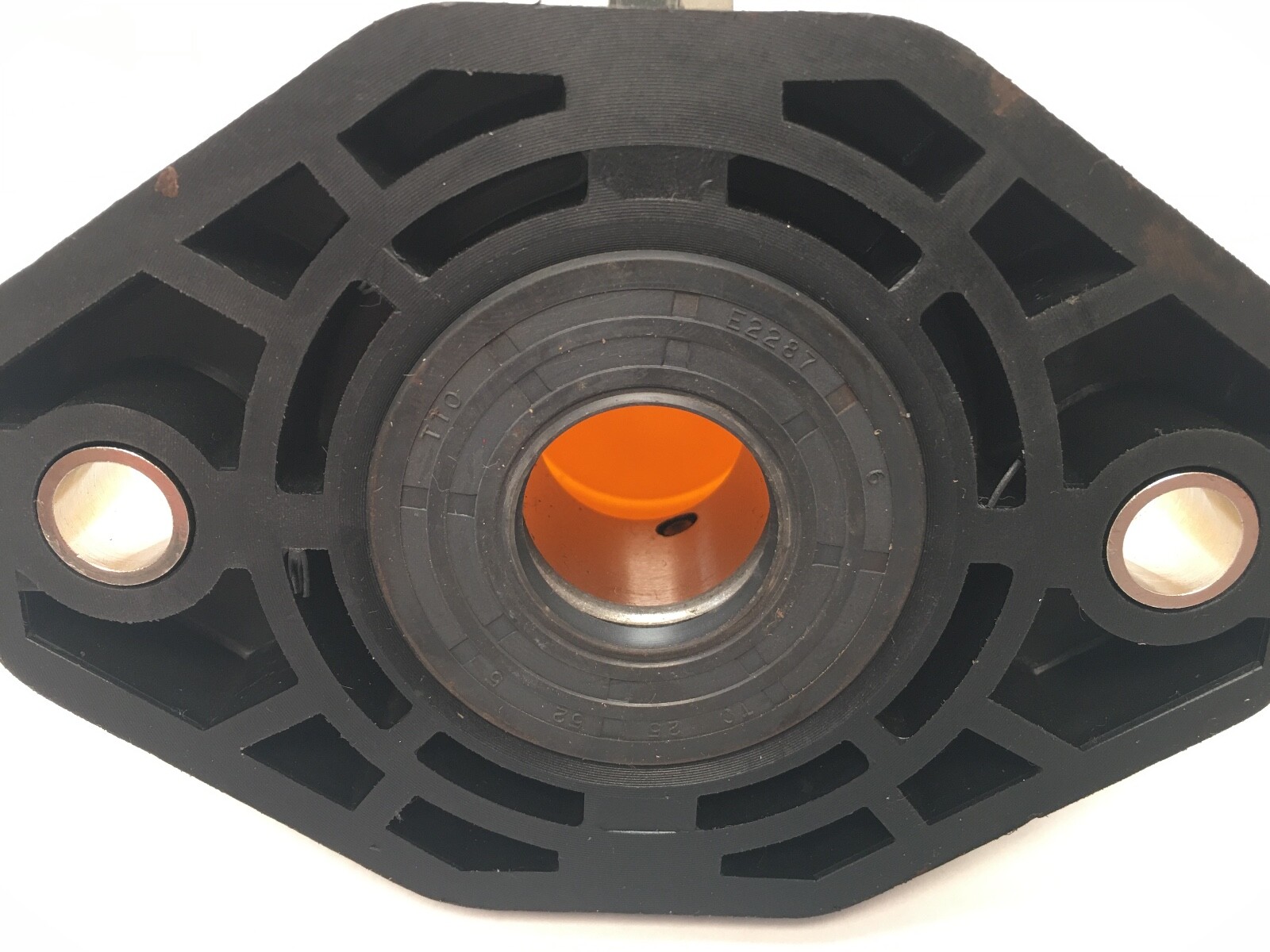

The System-Plast UCFH205-16-CEC Flange Mount Bearing Unit is a high-quality mechanical power transmission component designed for industrial automation and motion control applications. This bearing unit features a 1″ ID bore diameter, a dynamic load rating of 10.8 kN, and a precision rating of ABEC 1. Made with durable polymer housing material and featuring a set screw locking device, this flanged mount bearing offers reliability and long-lasting performance. With a temperature range of -34°C to 82°C and lubricant suitable for food grade applications, this bearing unit is suitable for a variety of demanding industrial environments.
