Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Torrington LCJT1 2-Bolt Flange Bearing Unit. 1.000 in Bore. Cast iron housing. Eccentric locking collar. Standard industrial duty.$38.44
System-Plast UCFH204-12-CEC Flange Mount Bearing Unit 3/4" ID UCFH 204-12 CEC$41.10
Pillow Block Bearing - 1 in Bore, 2 bolt, Polymer, Standard Duty, Non-Expanding$51.20
Two-Bolt Pillow Block Unit – 1-1/2 in Bore, Polyamide Housing, Set-Screw Locking, Open End Cap$51.54| MFR / Brand | System Plast |
|---|---|
| MPN | UCFB205-16 |
| Model | UCFB20516 |
| ID | 1.000 in |
| Material | Reinforced Polyamide |
|---|---|
| Series | UCFB |
| Condition | New – Open box |
| Type | Flanged Mount Bearing |
| Lubricant | Grease |
| Condition Note | New Old Stock |
| Number Of Bolt Holes | 3 |
| Number Of Bolt Holes For Fasteners | 3 |
| Min Temp | -20 °C |
| Dynamic Load Rating | 14 kN / 3147 lbf |
| Static Load Rating | 7.8 kN / 1754 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Bearing Type | Flange Unit |
| Item Weight | 1.10 lbs |
| Limiting Speed | 5000 rpm |
| Bore Type | Straight |
| Snap Ring Included | No |
| Duty Type | Standard Duty |
| Locking Device | Set Screw |
| Insert Outer Ring | Spherical |
| Relubrication Feature | Yes |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Polyamide |
| Expansion Type | Non-Expanding |

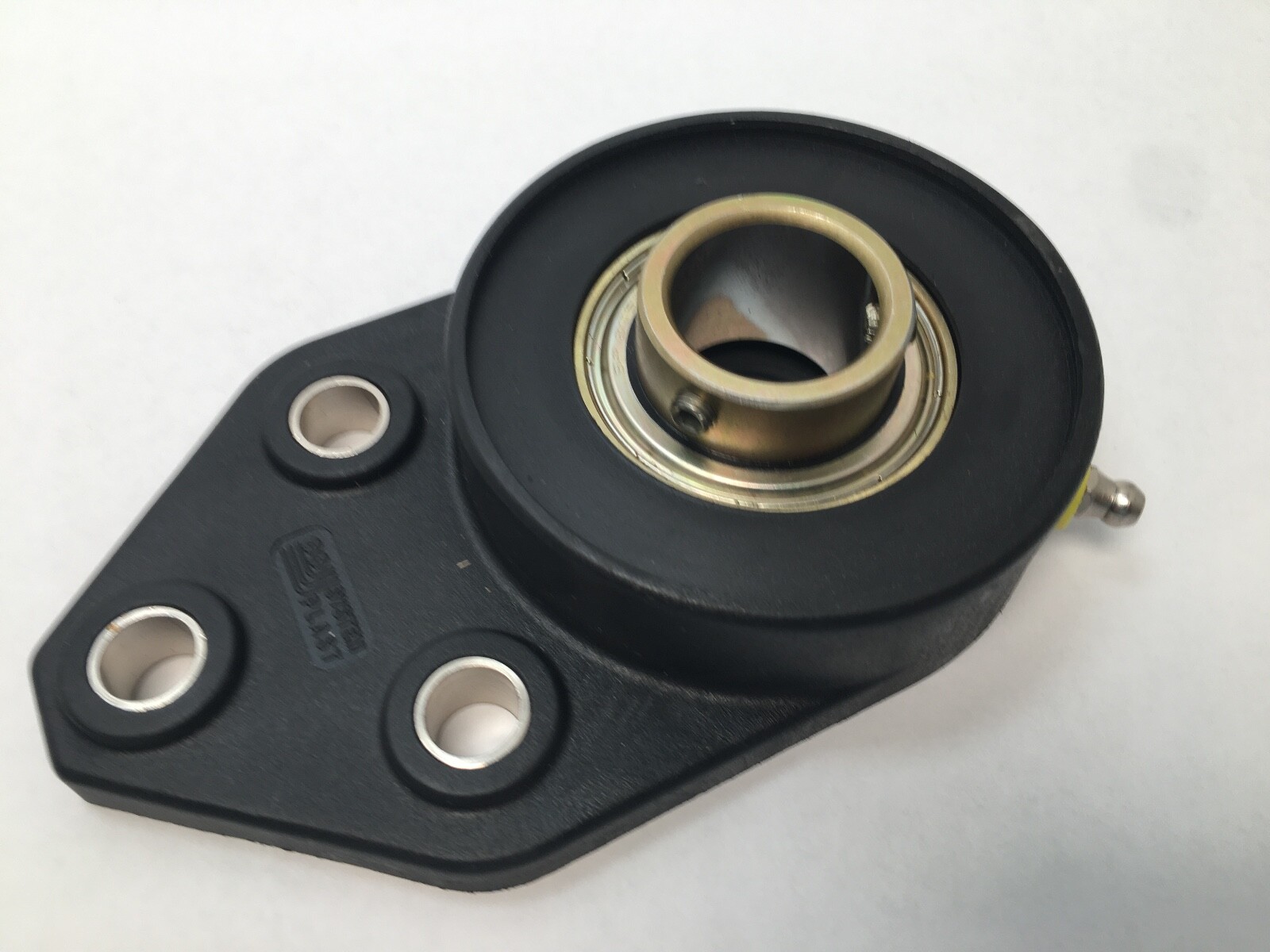

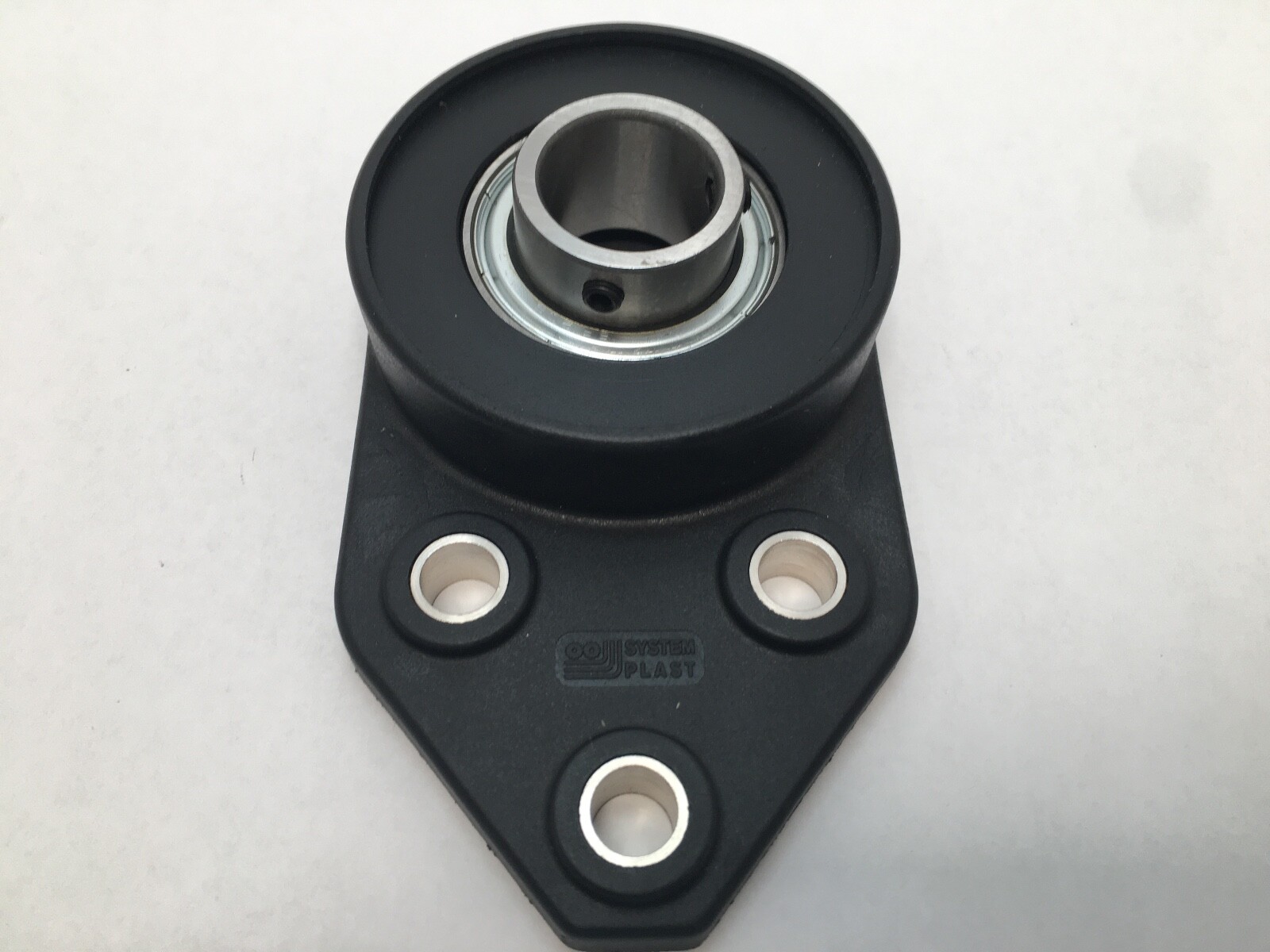

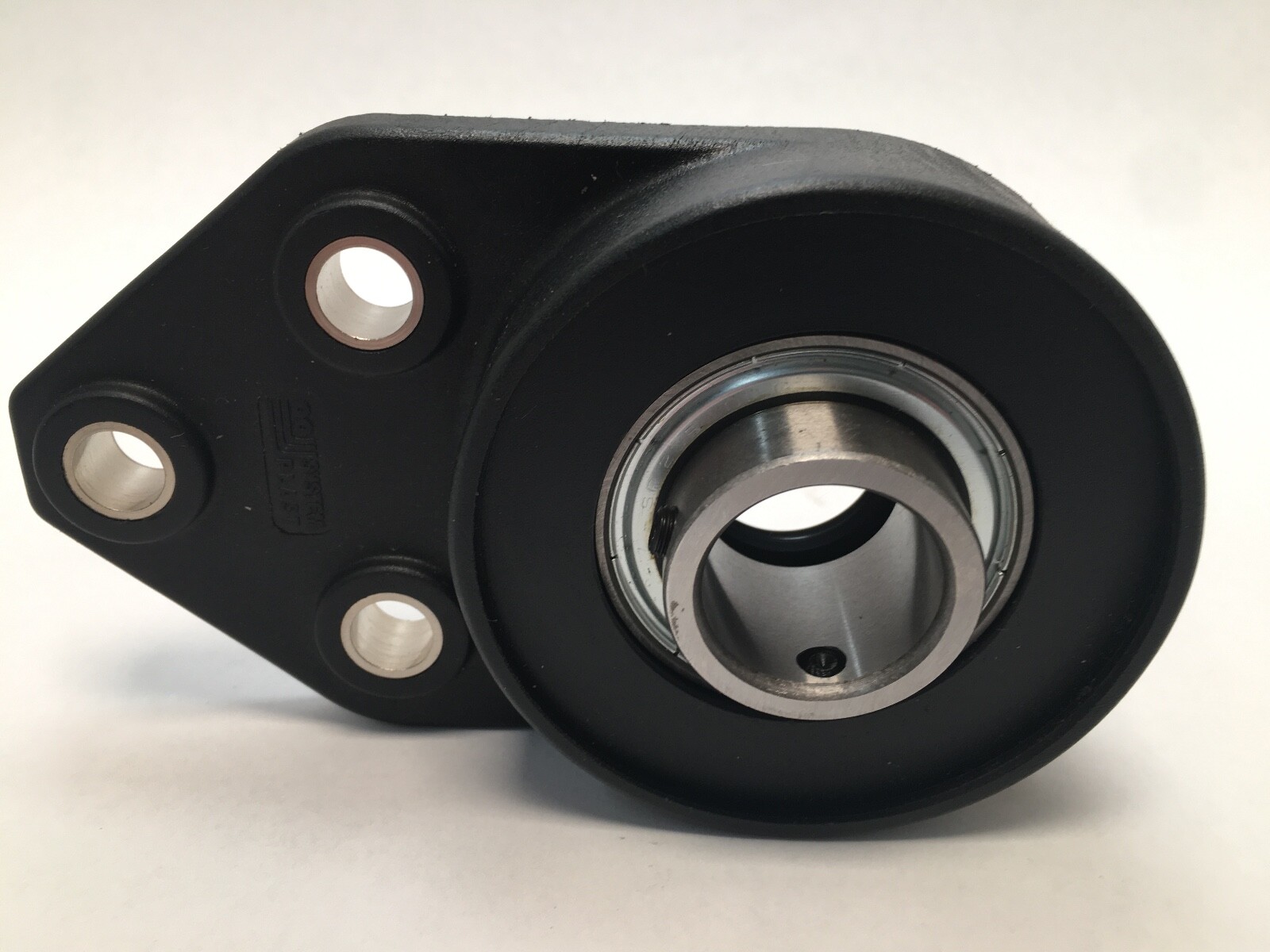

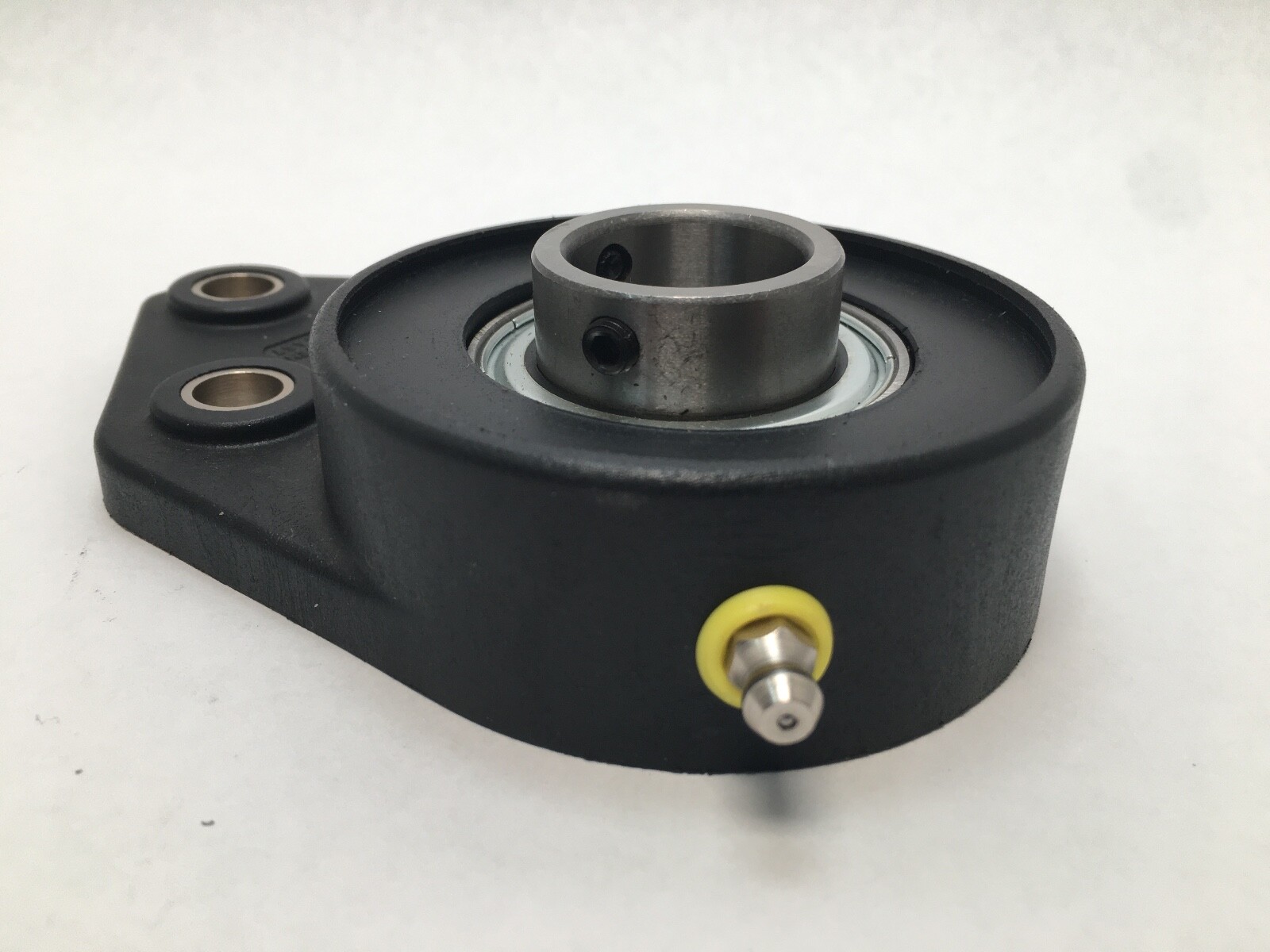

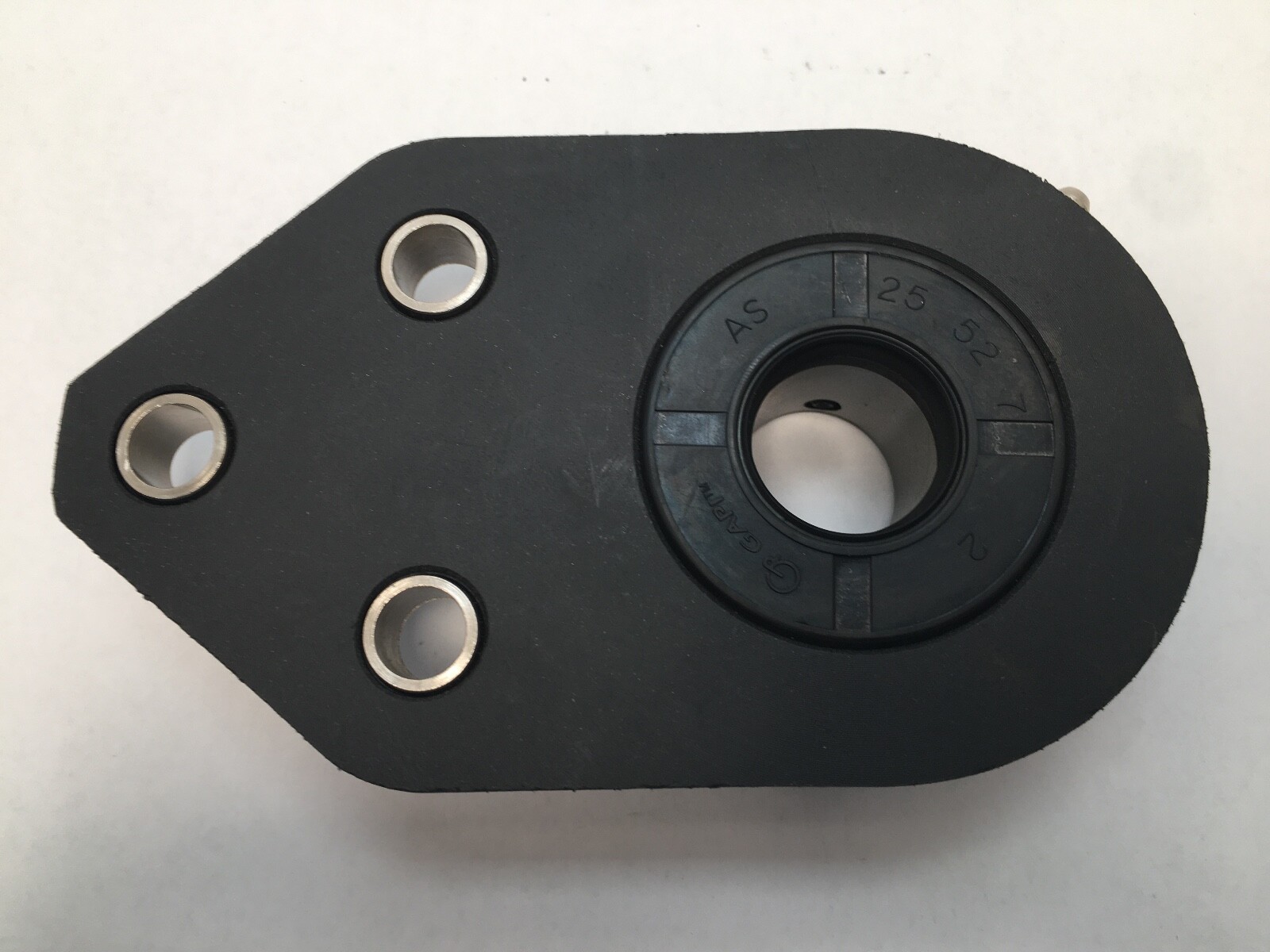

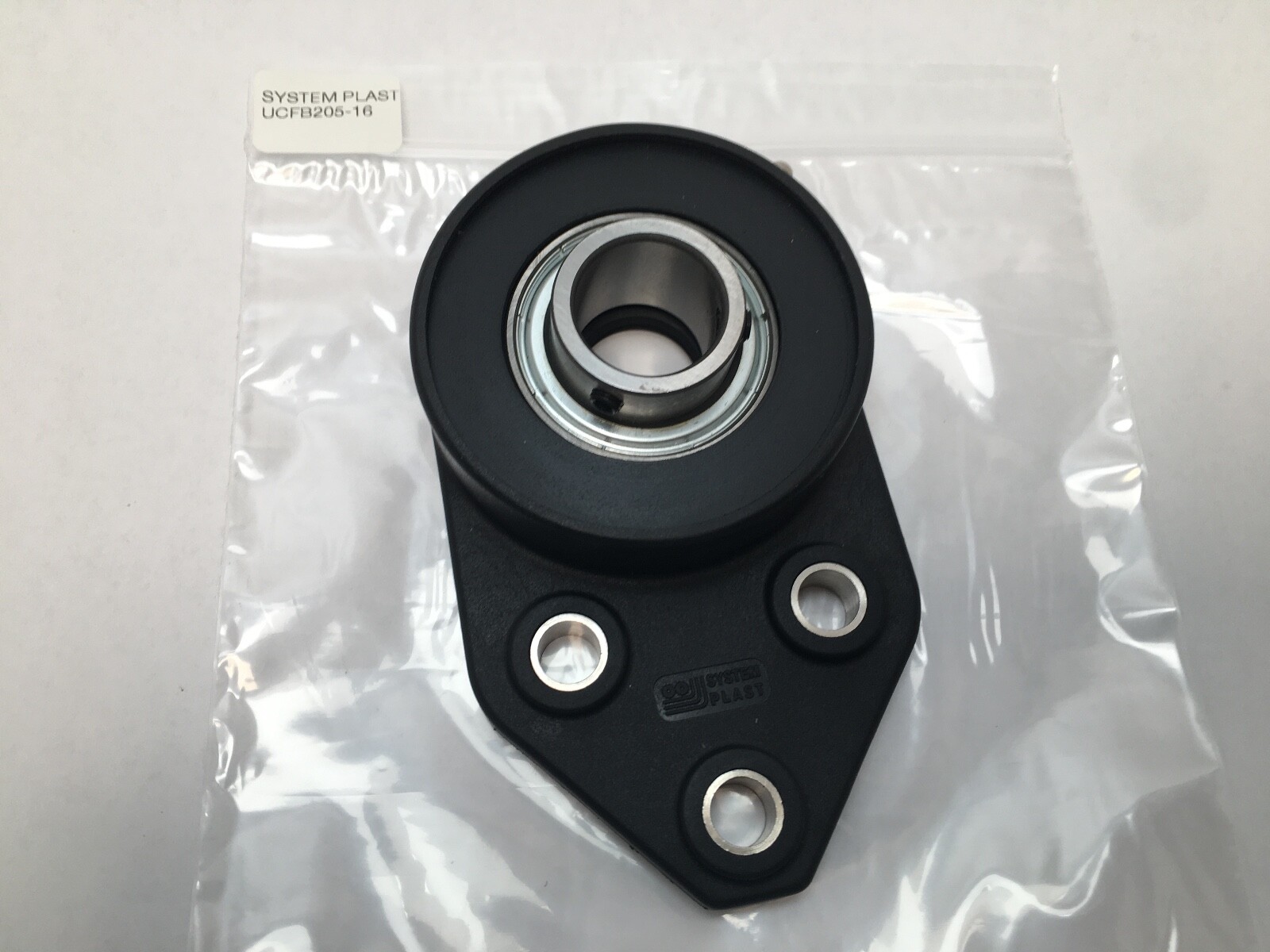

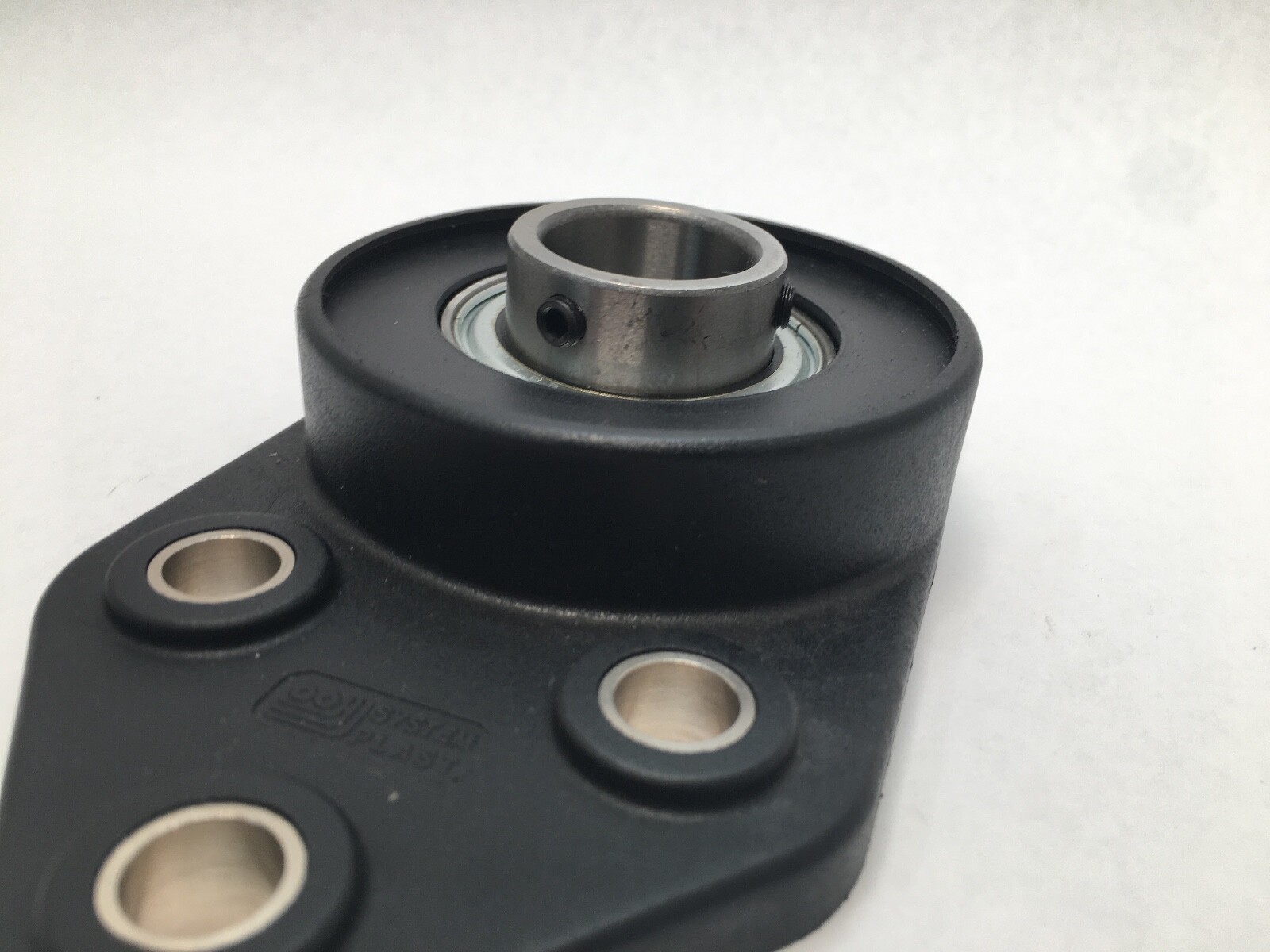

Flange Unit – 1.000 Bore, 3 bolt, Polyamide, Standard Duty, Non-Expanding.
$21.23
88 in stock
$61.18
97 in stock
