Cast iron two-bolt pillow block unit, 1-3/16 in shaft, RHP Self-Lube 1035 series set screw insert. Dynamic Load Rating 25,700 N, 4,500 rpm, 1.7 kg.
List Price
$44.32
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | MP1.3/16 |
| Model | MP-1.3/16 |
| ID | 1.1875 in |
| Series | MP |
|---|---|
| Type | Pillow Block |
| Lubricant | Grease |
| Material | Cast Iron |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Mpn Variants | MP1-3/16, MP1.3/16, MP-1.3/16, MP 1-3/16 |
| Dynamic Load Rating | 25,700 N |
| Static Load Rating | 15,300 N |
| Rolling Elements | Ball |
| Bearing Type | Pillow Block Unit |
| Item Weight | 1.7 kg (3.75 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 4,500 rpm grease |
| Duty Type | Medium Duty |
| Locking Device | Set Screw |
| Harmonization Code | 84832040 |
| Housing Material | Cast Iron |
| Expansion Type | Non-expansion |
| Industry Terms | self-lube pillow block; two-bolt pillow block unit; cast iron pillow block bearing; set screw pillow block; 1-3/16 inch pillow block |
| Common Misspellings | RHP MP 1.3/16; RHP MP1 3/16; RHP MPI.3/16; MP1-3/16 RHP; RHP MP1.3/16 pillow |
| Application Types | Conveyors; fans and blowers; agricultural machinery; light industrial drives; material handling |
| Centre Height Pillow Block | 47.6 mm |
| Centre Height | 47.6 mm |

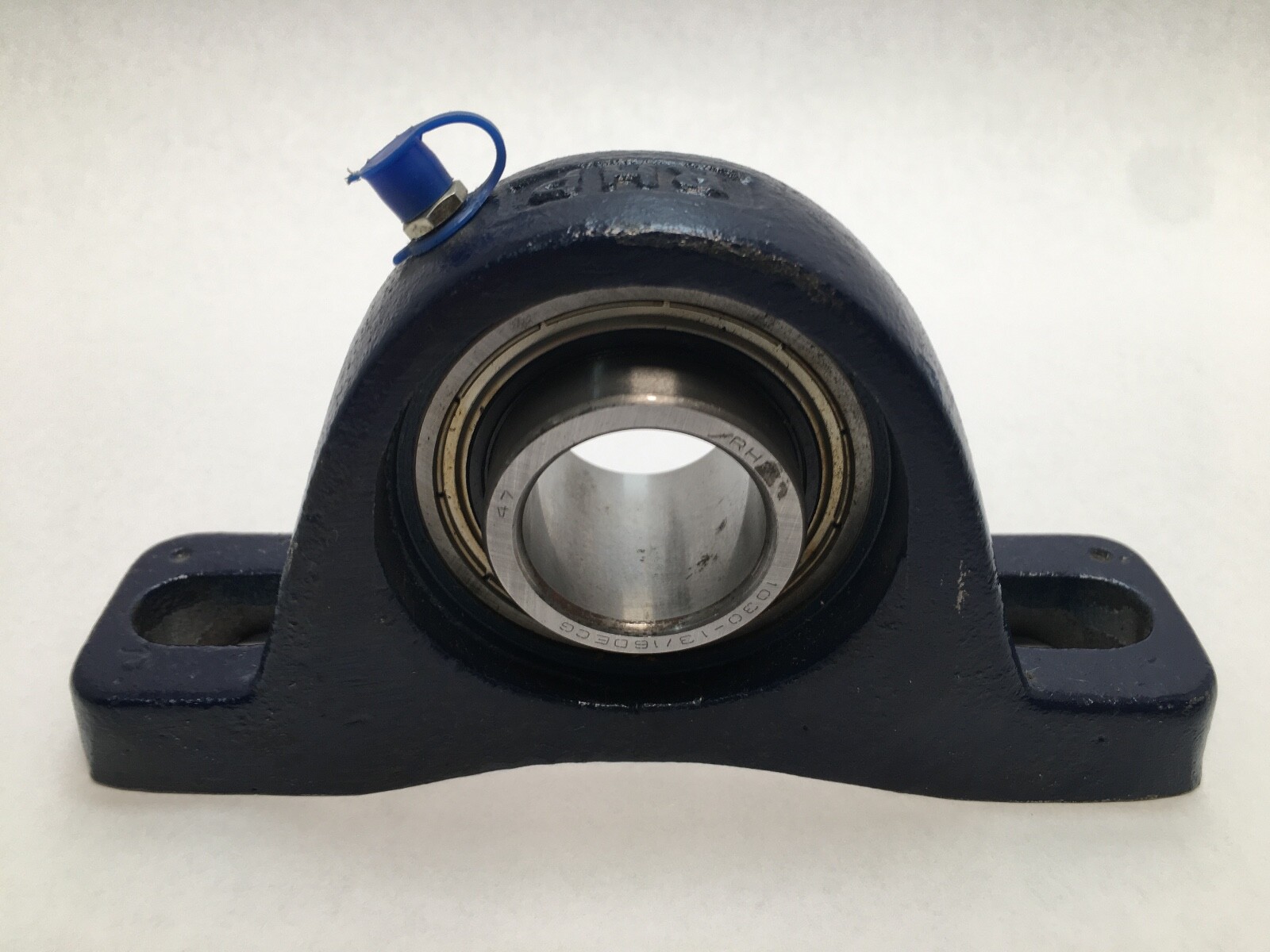

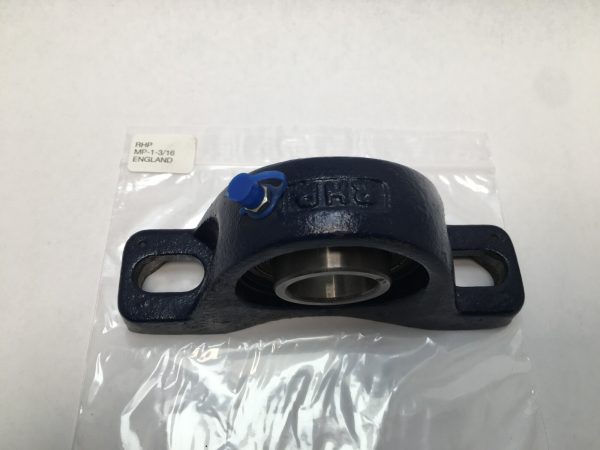

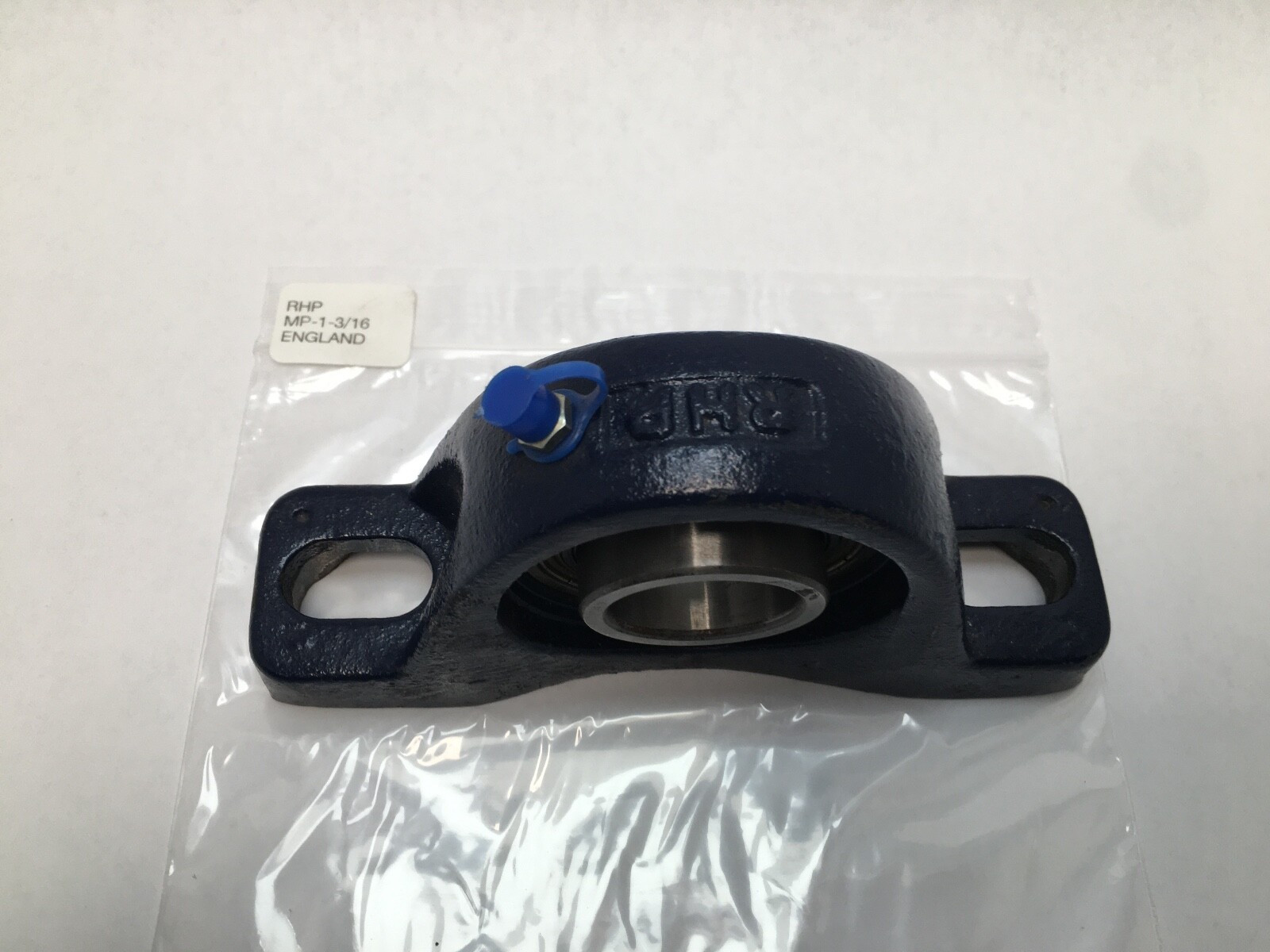

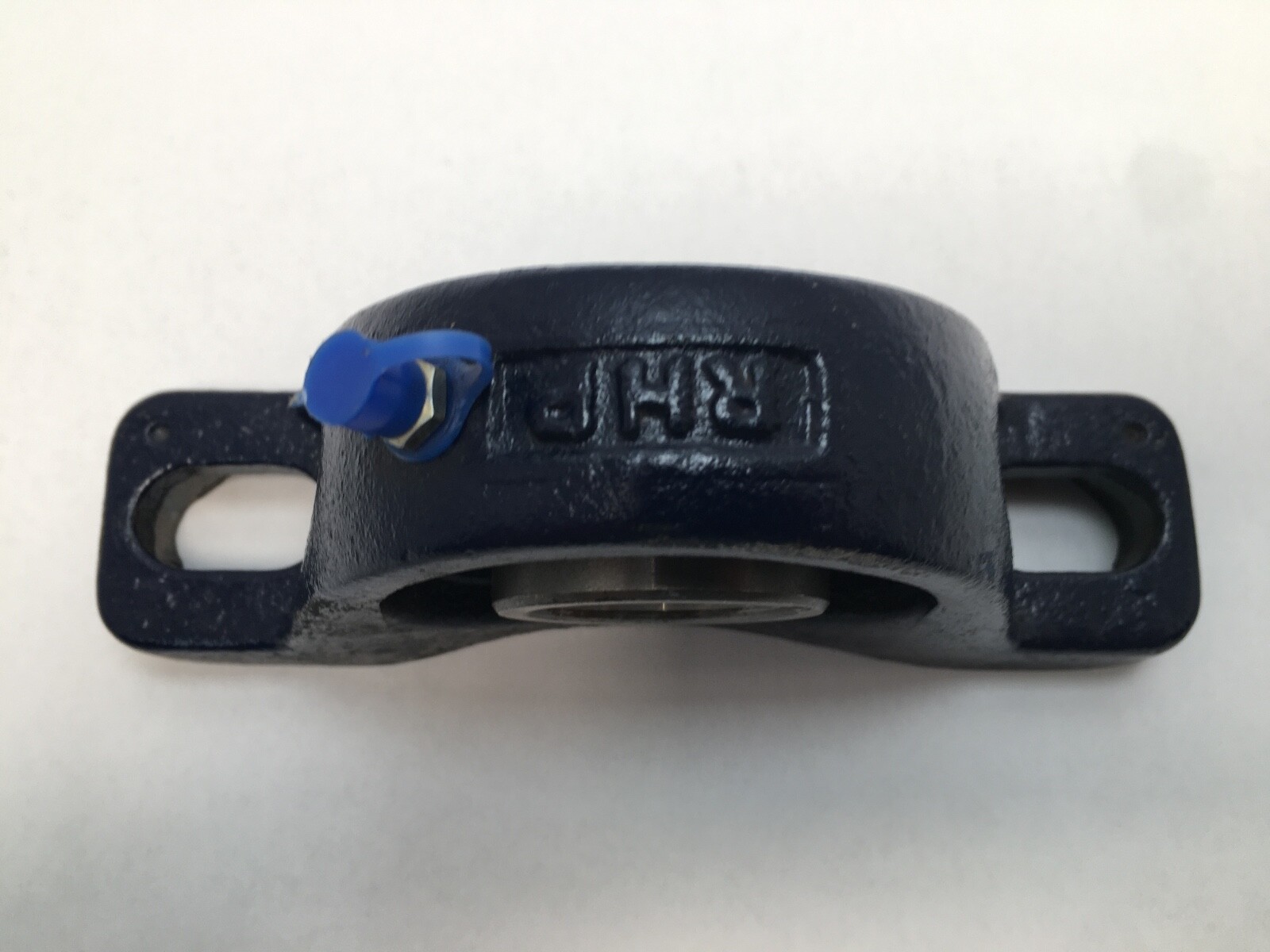

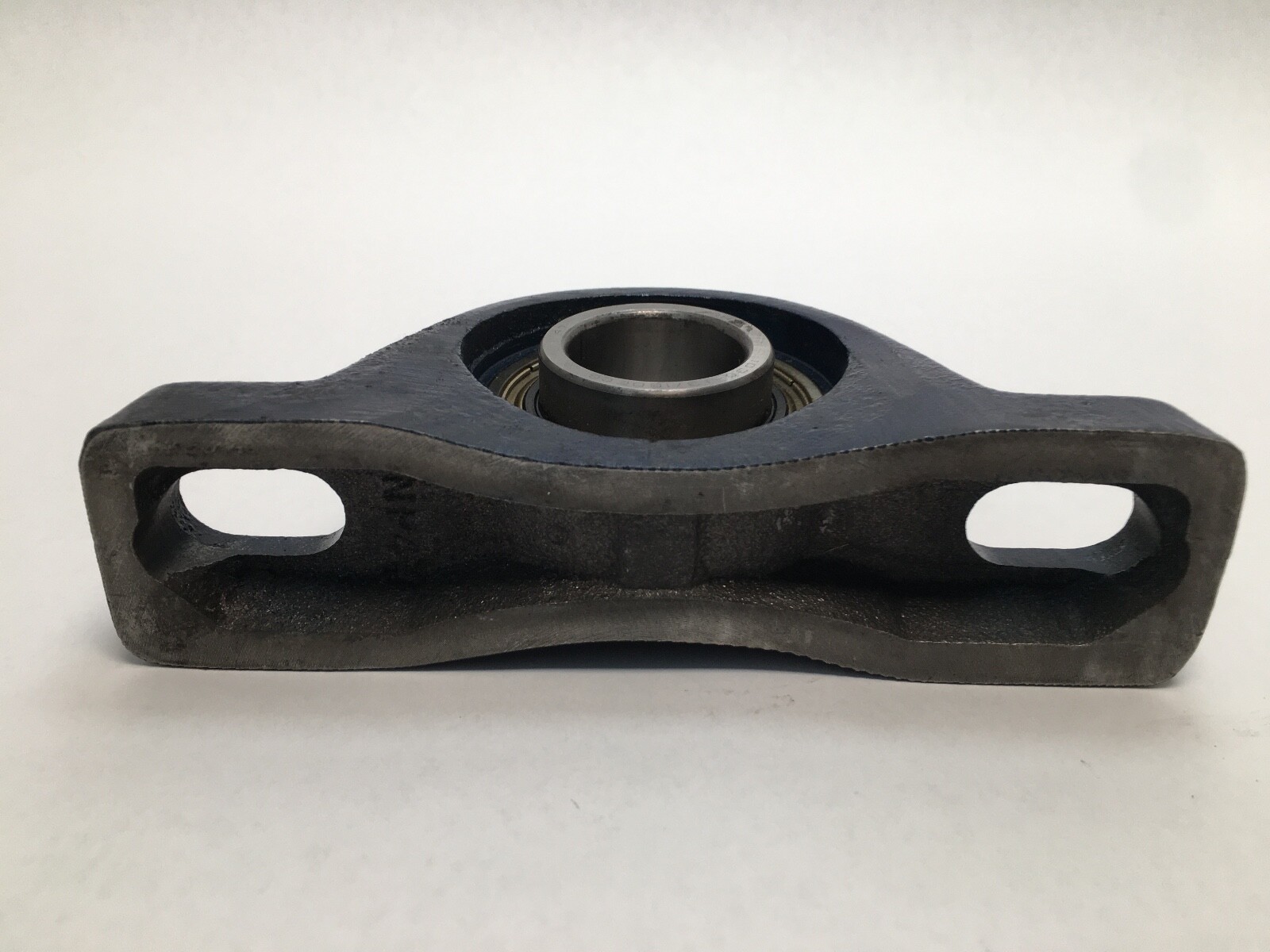

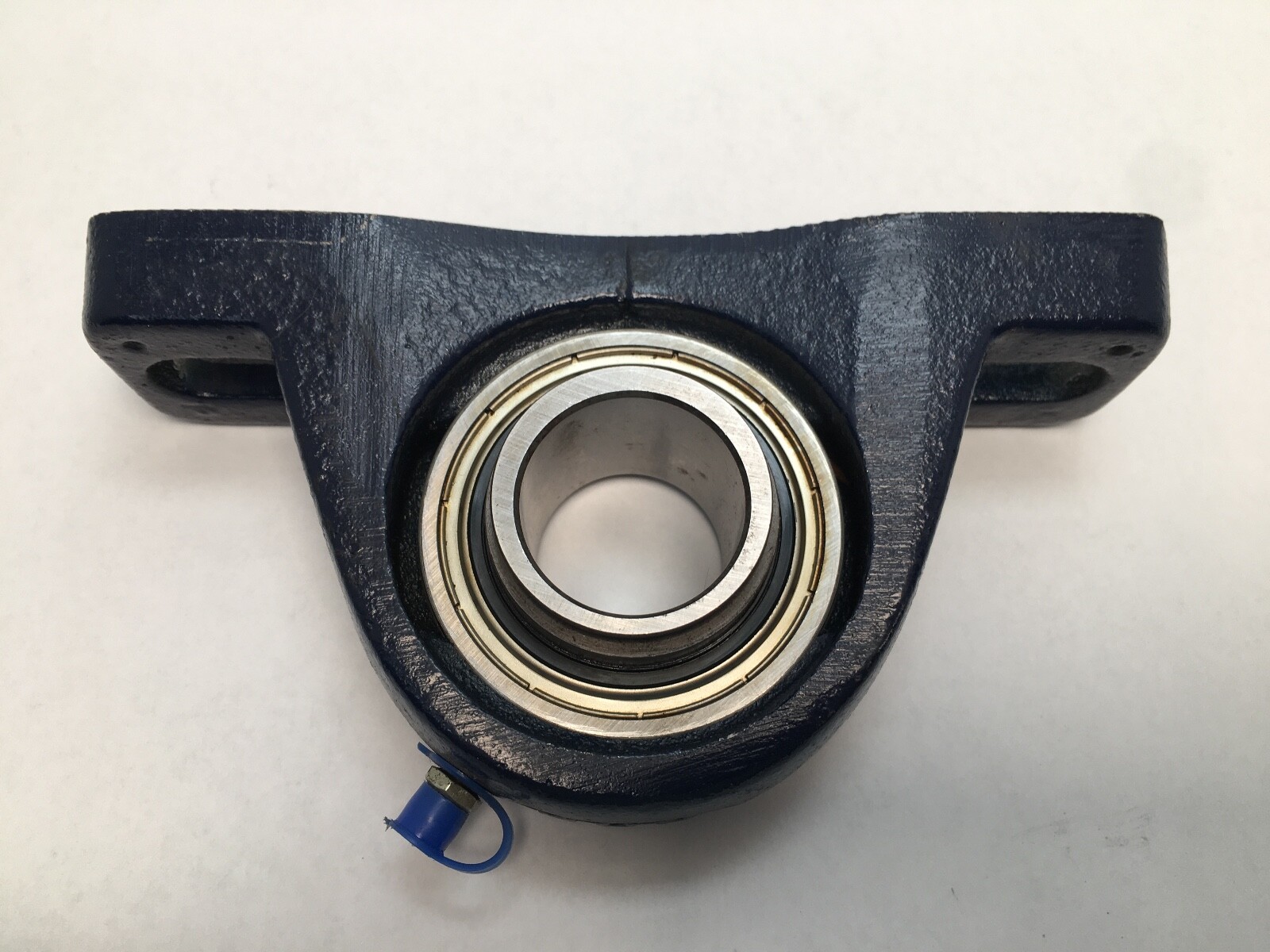

RHP MP1.3/16 (MP1-3/16) is a Self-Lube two-bolt cast iron pillow block unit for a 1-3/16 in shaft. The housing carries an RHP 1035-series ball bearing insert with set screw locking and a single lip seal. Unit Quantity: 1 Pc, one housing with insert fitted.
MP — RHP Self-Lube cast iron pillow block housing.
1.3/16 — 1-3/16 in shaft diameter, written MP1.3/16 by RHP and MP1-3/16 on cartons.
Bore Diameter: 1.1875 in (30.163 mm). Housing Material: Cast iron. Number Of Bolt Holes: 2. Locking Device: Set screw. Seal Type: Single lip seal. Rolling Elements: Ball. Expansion Type: Non-expansion.
Dynamic Load Rating: 25,700 N. Static Load Rating: 15,300 N. Limiting Speed: 4,500 rpm grease. Item Weight: 1.7 kg (3.75 lb). Lubricant: Grease.
Shaft Centre Height: 47.6 mm.
Also written MP1-3/16, MP-1.3/16 and MP 1-3/16.
A 1-3/16 in shaft (1.1875 in bore, 30.163 mm).
Two bolts, in a cast iron pillow block housing.
Dynamic 25,700 N and static 15,300 N, with a limiting speed of 4,500 rpm on grease.
