Availability:
1 in stock
Pillow block ball bearing unit, 7/8 in bore, 1.4375 in centre height, cast iron 2-bolt housing, eccentric locking collar, contact seals, 14.0 kN dynamic rating.
List Price
$38.00
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | AELPL205-014D1 |
| Model | AELPL205-014 D1 |
| ID | 0.875 in (22.225 mm) |
| Series | AELPL |
|---|---|
| Type | Flanged Mount Bearing |
| Lubricant | Grease |
| Material | Pressed Steel |
| Bolt Center To Center | 4.125 in (105 mm) |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Centre Height Pillow Block | 1.4375 in (36.5 mm) |
| Centre Height | 1.4375 in (36.5 mm) |
| Mpn Variants | AELPL205-014D1, AELPL205-014 D1, AELPL 205-014 D1, AEL205-014D1, PL205D1 |
| Min Temp | -40 °C |
| Dynamic Load Rating | 14,000 N |
| Static Load Rating | 7,850 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Bearing Type | 2-Bolt Pillow Block Unit |
| Item Weight | 0.800 kg (1.76 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 5,900 rpm grease |
| Internal Clearance | CN |
| Duty Type | Light |

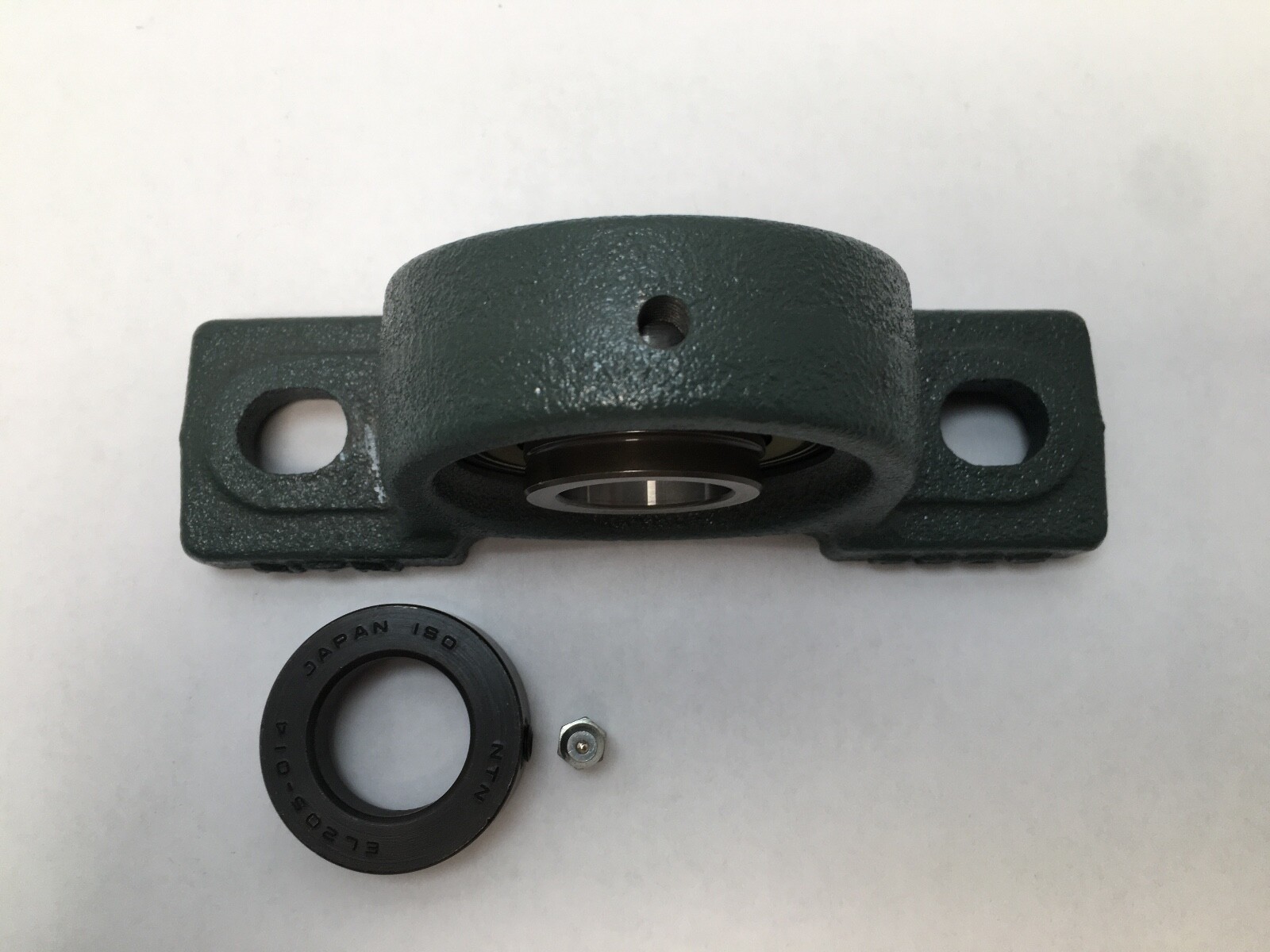

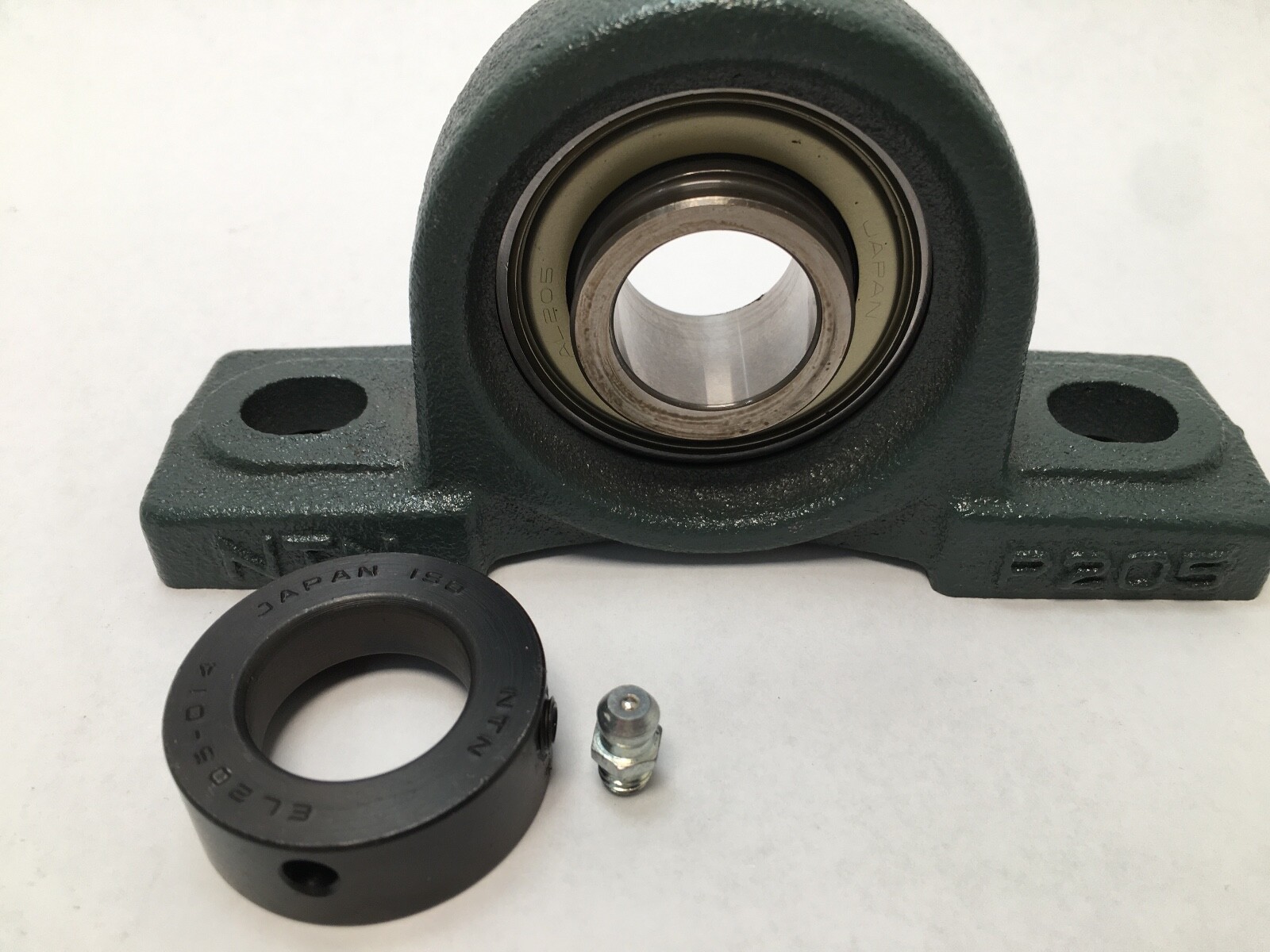

| Locking Device | Eccentric locking collar |
| Relubrication Feature | Yes |
| Housing Material | Cast iron |
| Expansion Type | Non-Expansion |

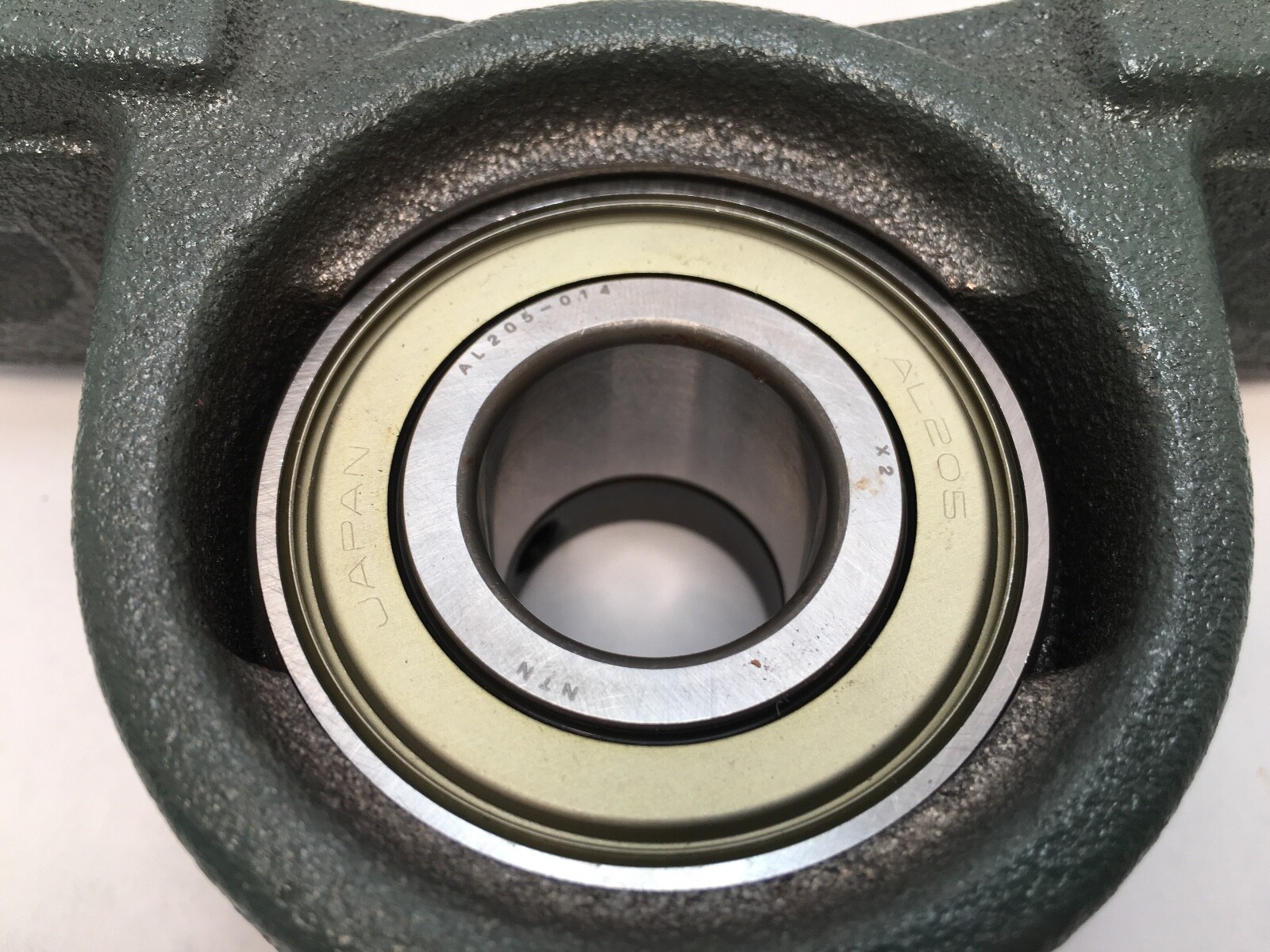

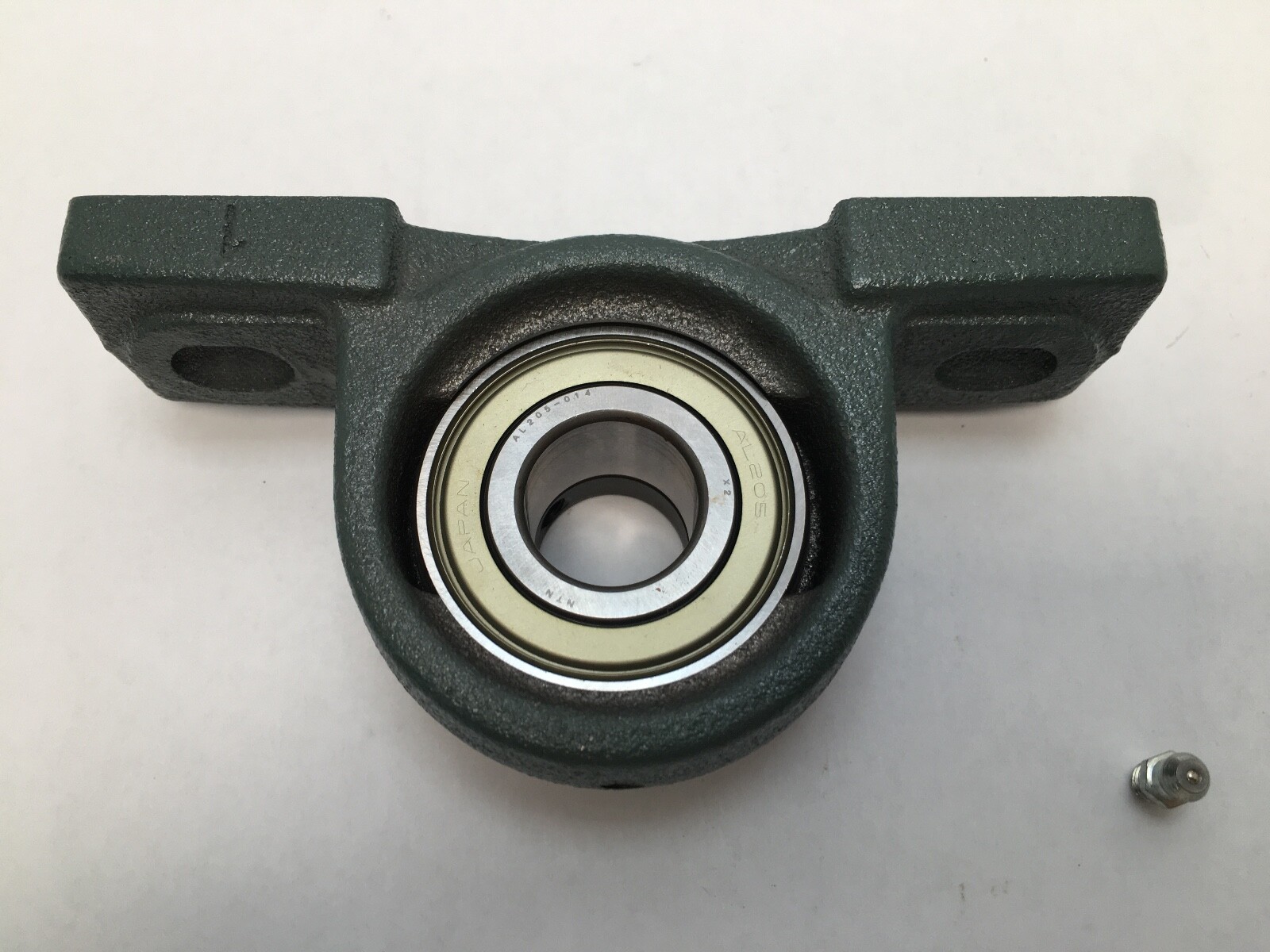

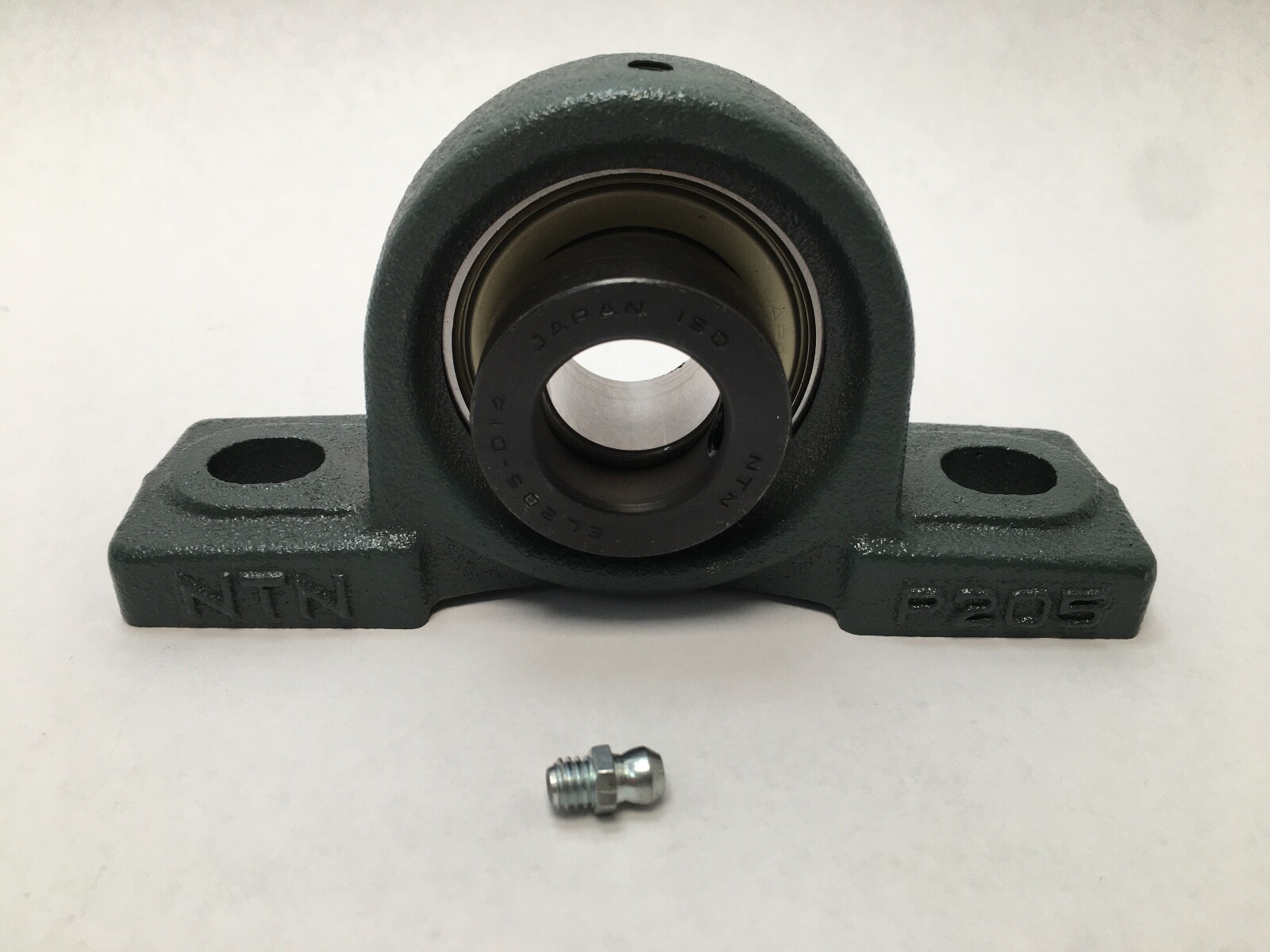

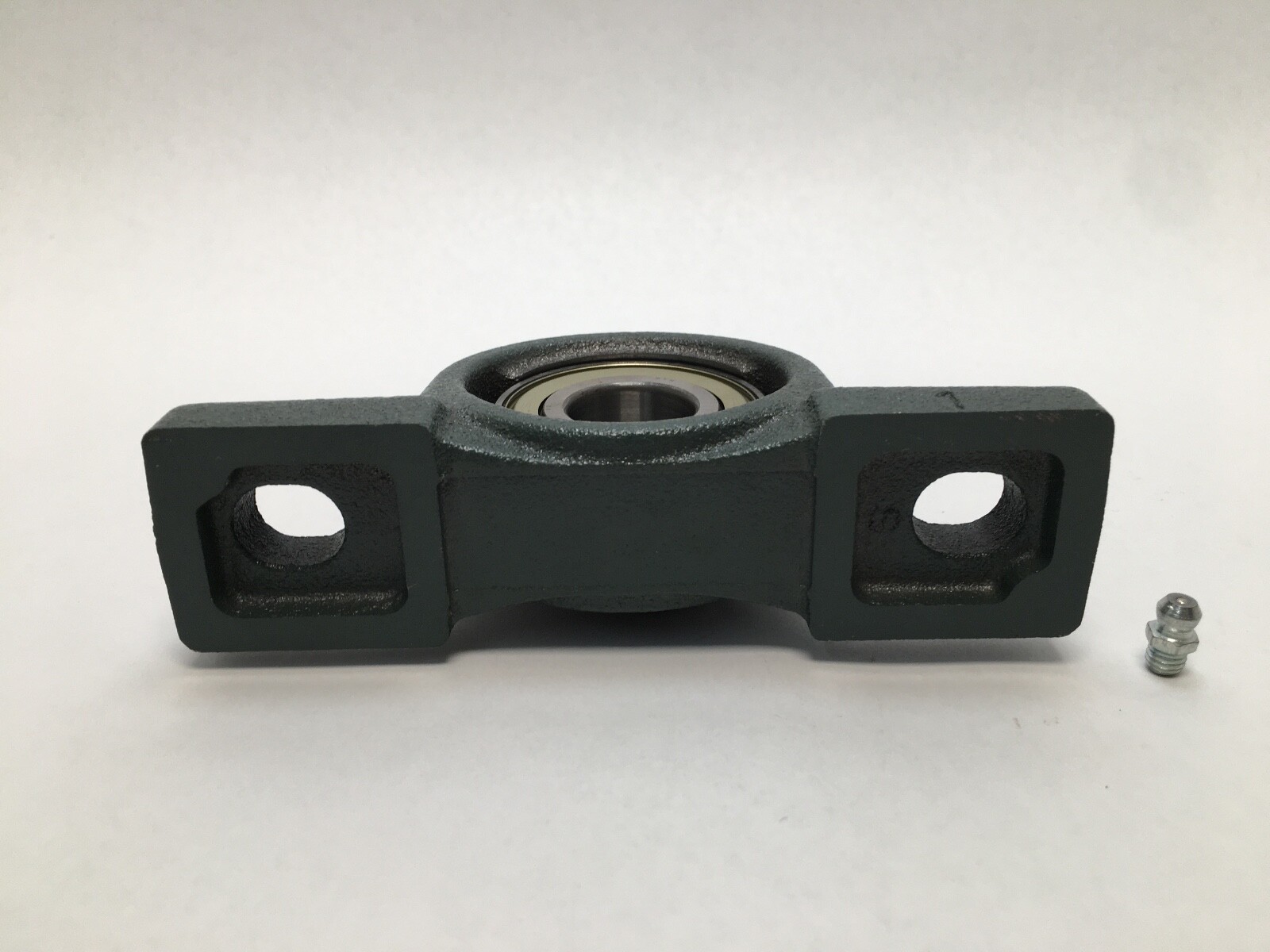

NTN AELPL205-014D1 is a two-bolt pillow block ball bearing unit with a low centre height cast iron housing and an eccentric locking collar insert. Bore Diameter: 7/8 in (22.225 mm). Housing Material: Cast iron, one-piece. Housing Number: PL205D1. Insert Number: AEL205-014D1.
AEL — narrow inner ring insert with eccentric locking collar.
PL — pillow block housing, low centre height.
205 — 2 light series, size 05, 52 mm insert OD.
014 — inch bore, 0 in plus 14/16 in = 7/8 in.
D1 — relubricatable execution.
Dynamic Load Rating: 14,000 N. Static Load Rating: 7,850 N. Limiting Speed: 5,900 rpm grease. Seal Type: Contact seals both sides, nitrile rubber. Locking Device: Eccentric locking collar. Cage Material: Pressed steel. Internal Clearance: CN. Operating Temperature Range: -40 to 120 °C. Item Weight: 0.800 kg (1.76 lb).
Centre Height (H): 1.4375 in (36.5 mm). Bolt Center To Center (J): 4.125 in (105 mm). Overall Length (L): 5.5 in (140 mm). Base Width (A): 1.5 in (38 mm). Overall Height (H2): 2.7812 in (71 mm). Base Thickness (H1): 0.5937 in (15 mm). Bolt Hole Width (N): 0.5 in. Bolt Hole Length (N1): 0.625 in. Number Of Bolt Holes: 2. Insert Inner Ring Width (B1): 31 mm.

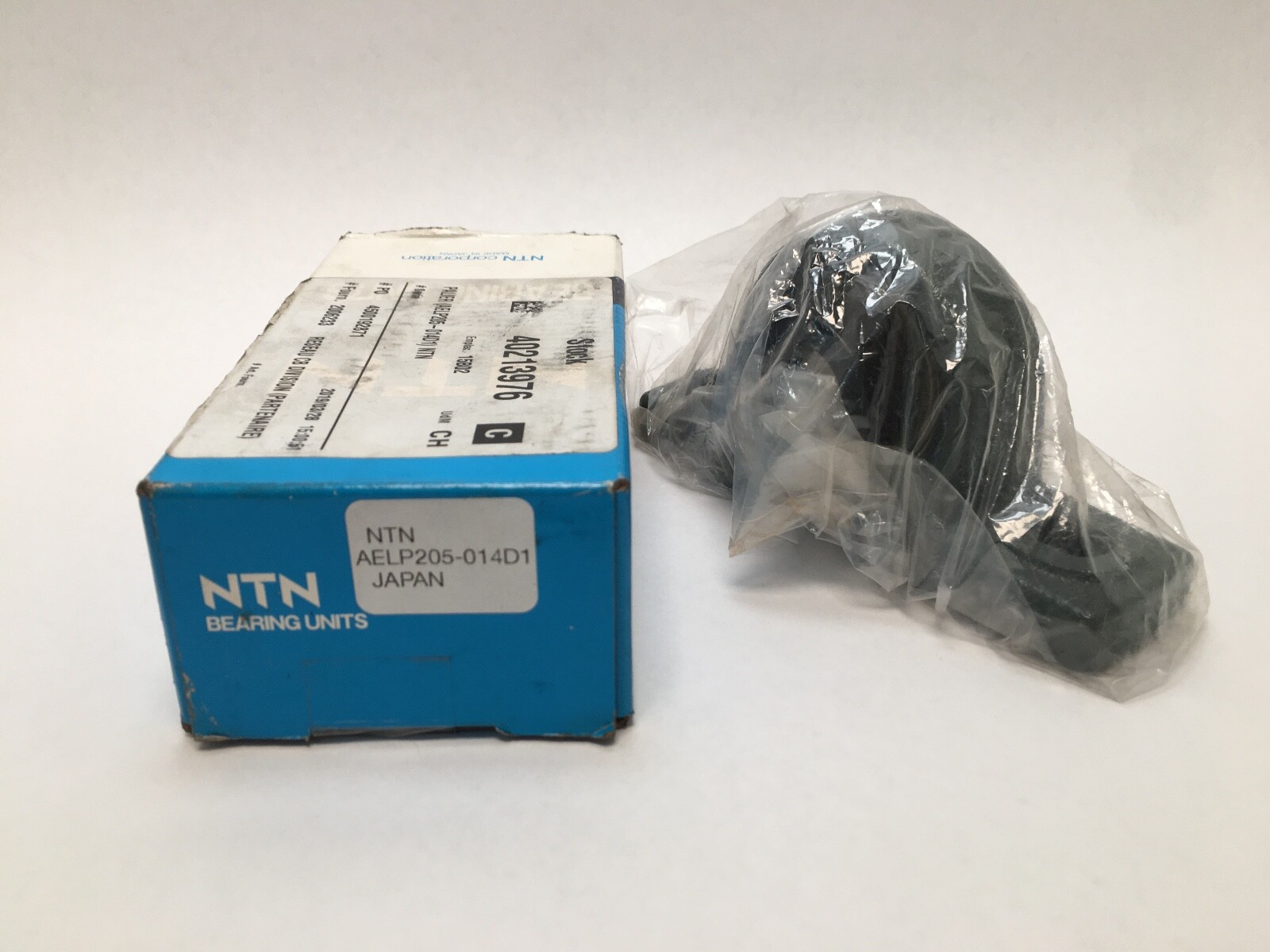

Unit Quantity: 1 Pc. One complete unit: housing with insert bearing fitted.
