NTNUKP207D1Pillow Block Ball Bearing Unit — 35 mm Tapered Bore Insert, H2307 Sleeve, 30 mm Shaft, Relubricatable

Product Description

What this part is:

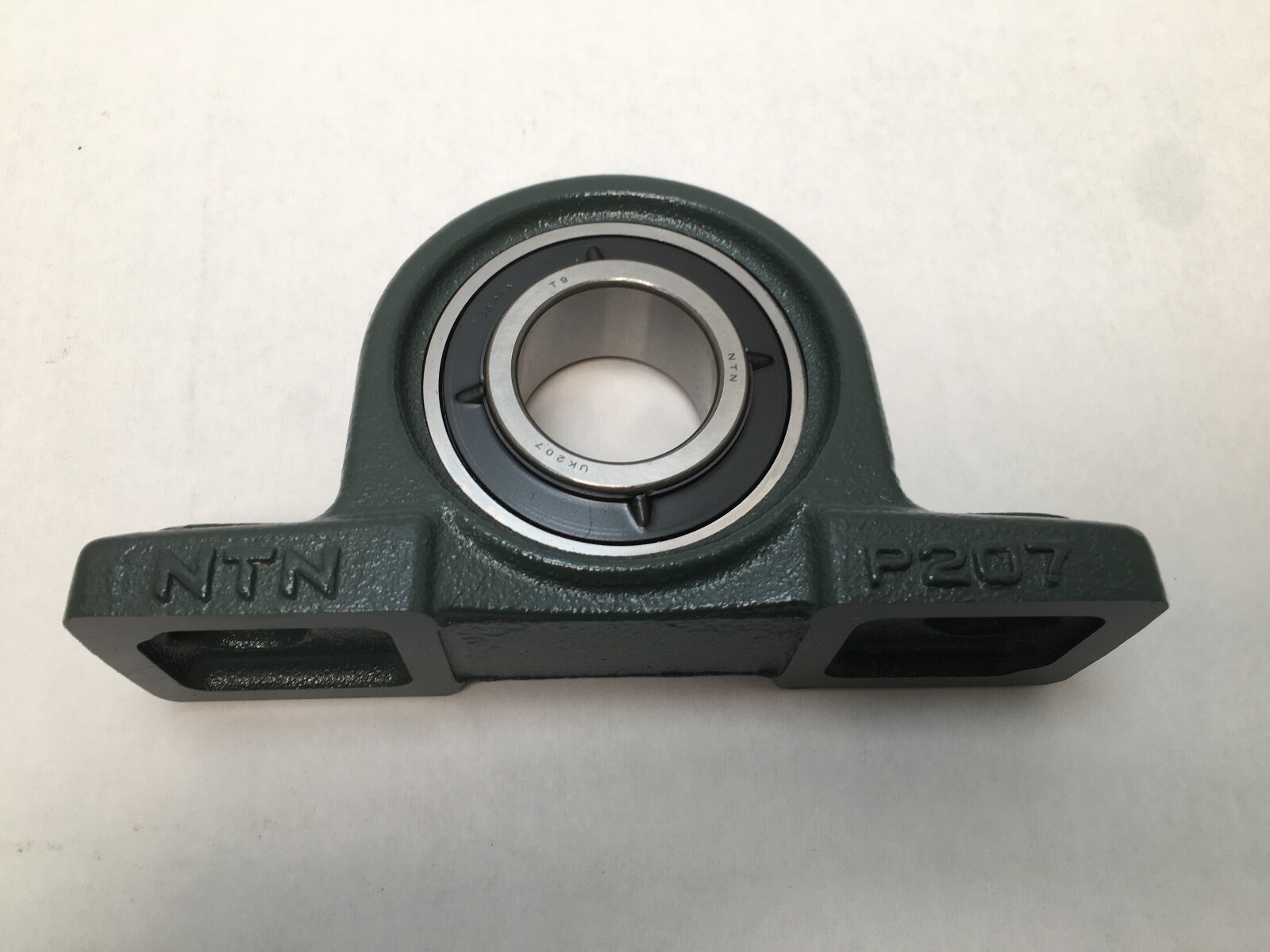

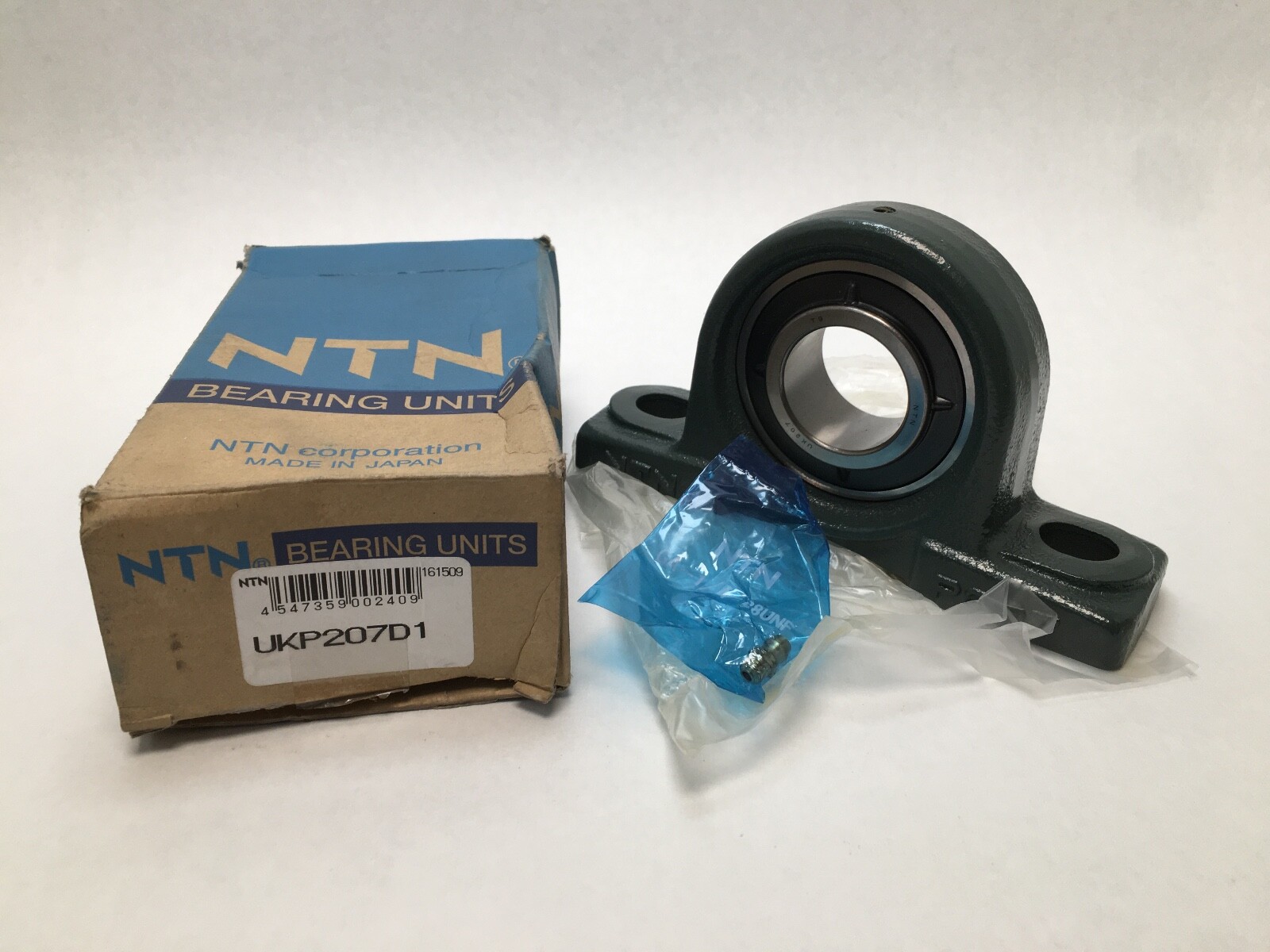

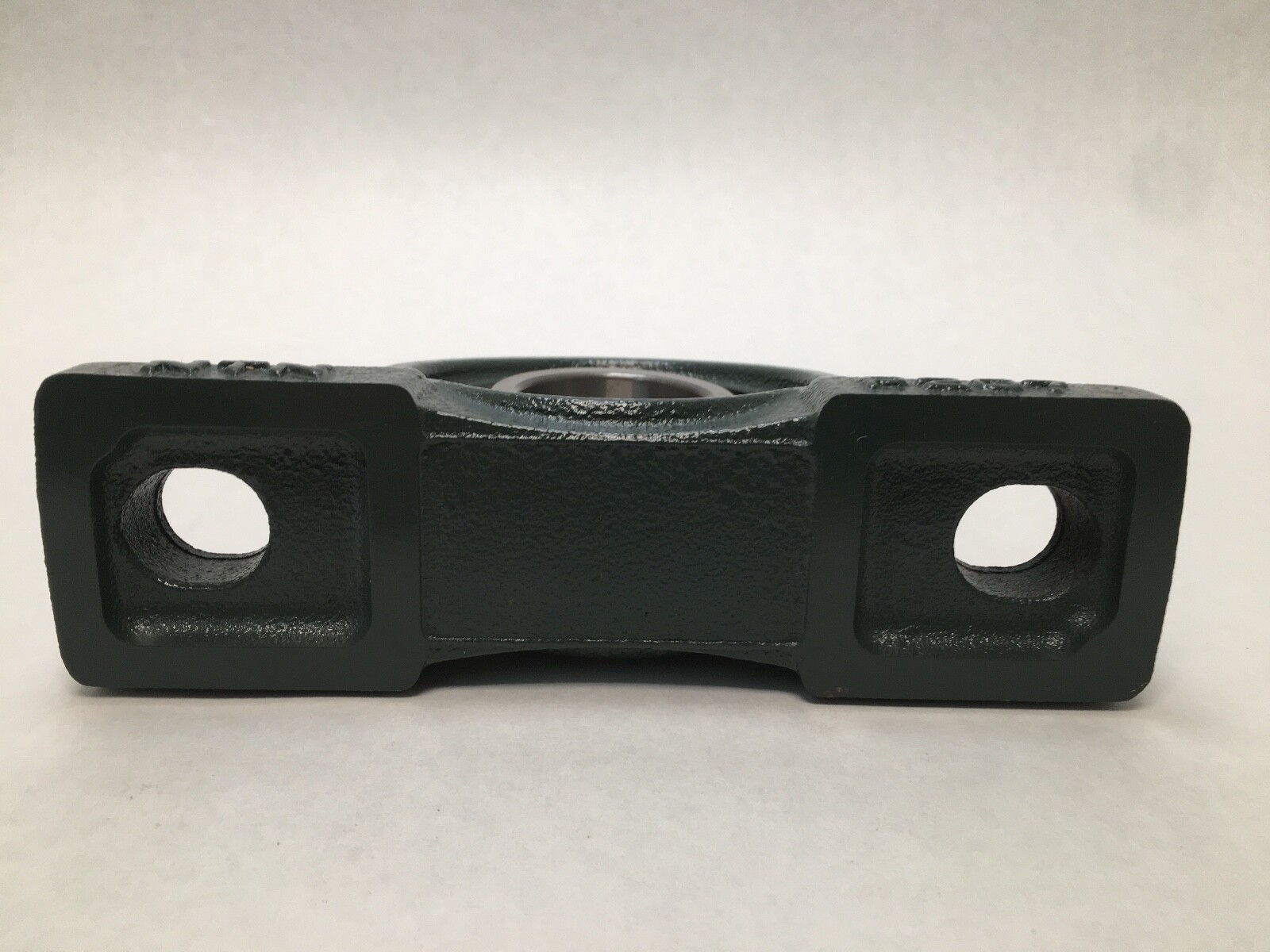

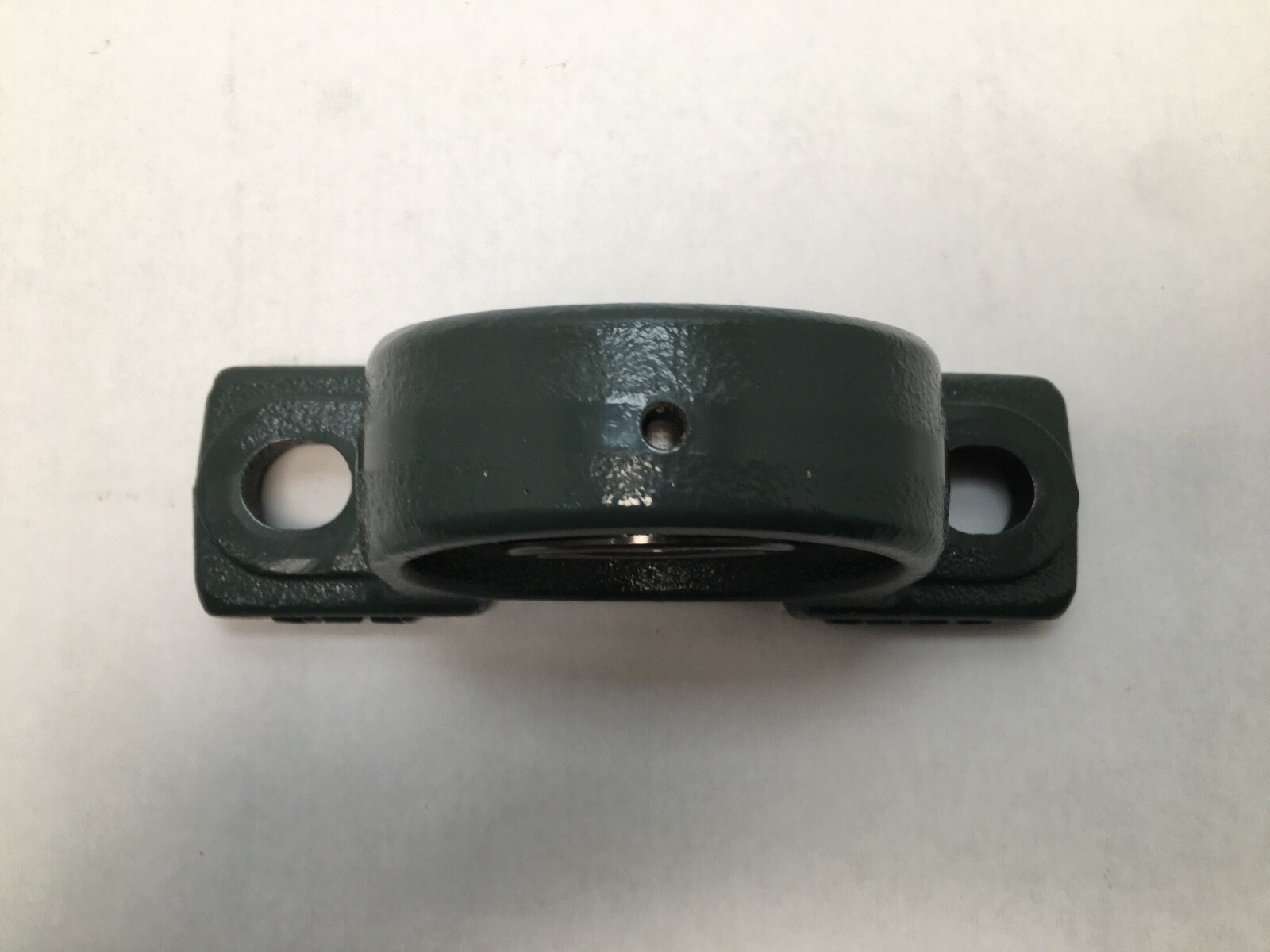

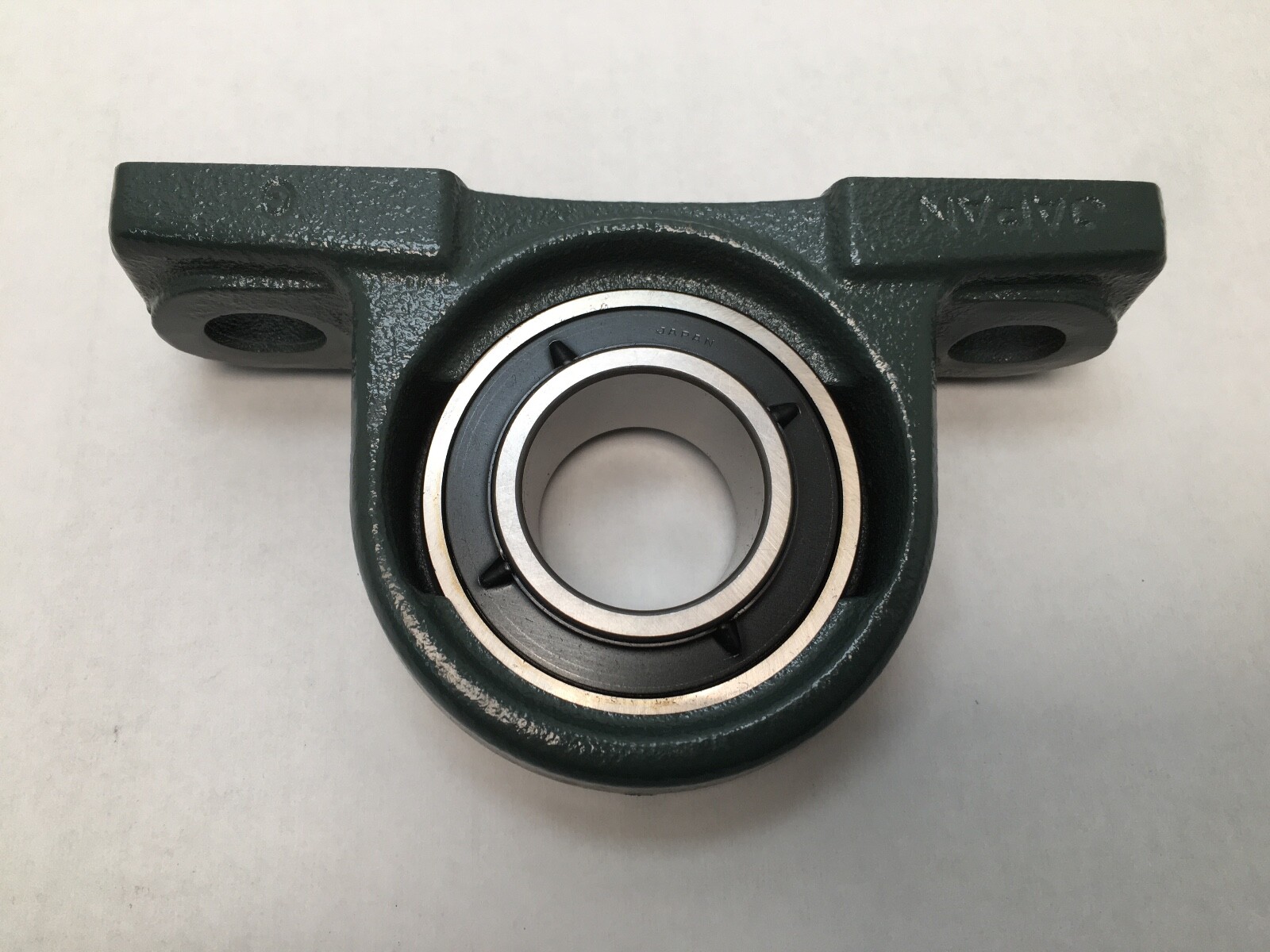

NTN UKP207D1 is a pillow block ball bearing unit: a UK207D1 adapter-type insert bearing in a cast pillow block housing. Insert bore: 35 mm, 1:12 taper. Shaft size: 30 mm with an H2307 adapter sleeve; 1-1/8 in with an HS2307 sleeve. Unit Quantity: 1 Pc.

Decoding the designation:

UK — insert bearing with a 1:12 tapered bore and flinger, mounted on an adapter sleeve.

P — pillow block housing.

2 — light series.

07 — size code for the 35 mm insert bore.

D1 — relubricatable type.

Specifications:

Insert Bore Diameter: 35 mm, 1:12 taper. Housing Style: Pillow block. Locking Method: Adapter sleeve. Seal Type: Contact seals both sides, nitrile rubber. Relubrication: Relubricatable.

Dynamic Load Rating (UK207D1 insert): 25,700 N. Static Load Rating (UK207D1 insert): 15,300 N.

Dimensions and mounting:

Insert Outside Diameter: 72 mm. Insert Inner Ring Width: 29 mm. Insert Outer Ring Width: 20 mm. Adapter sleeves: NTN H2307 for a 30 mm shaft, NTN HS2307 for a 1-1/8 in shaft.

Compatibility and replacement:

Insert: NTN UK207D1. Sleeve: NTN H2307 (30 mm shaft) or HS2307 (1-1/8 in shaft). Also written UKP207 D1 and UKP207.

Frequently asked questions:

What shaft size does the NTN UKP207D1 fit?

A 30 mm shaft with the H2307 adapter sleeve, or a 1-1/8 in shaft with the HS2307 sleeve.

What insert is in the NTN UKP207D1?

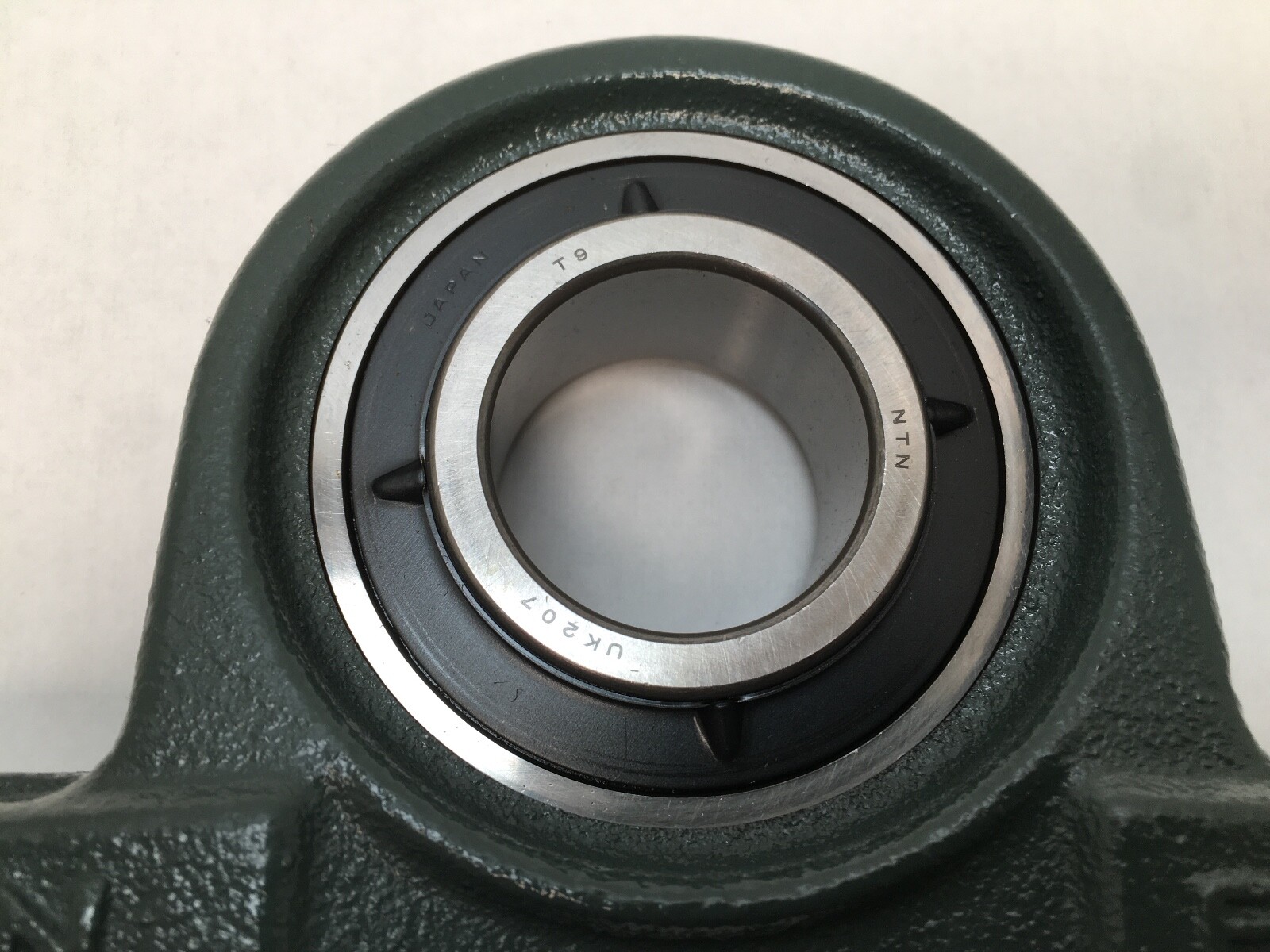

The NTN UK207D1, a 35 mm 1:12 tapered bore ball bearing insert with contact seals both sides.

What are the load ratings of the UK207D1 insert?

Dynamic 25,700 N and static 15,300 N, per the NTN Bearing Finder insert page.
