Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
2 in stock

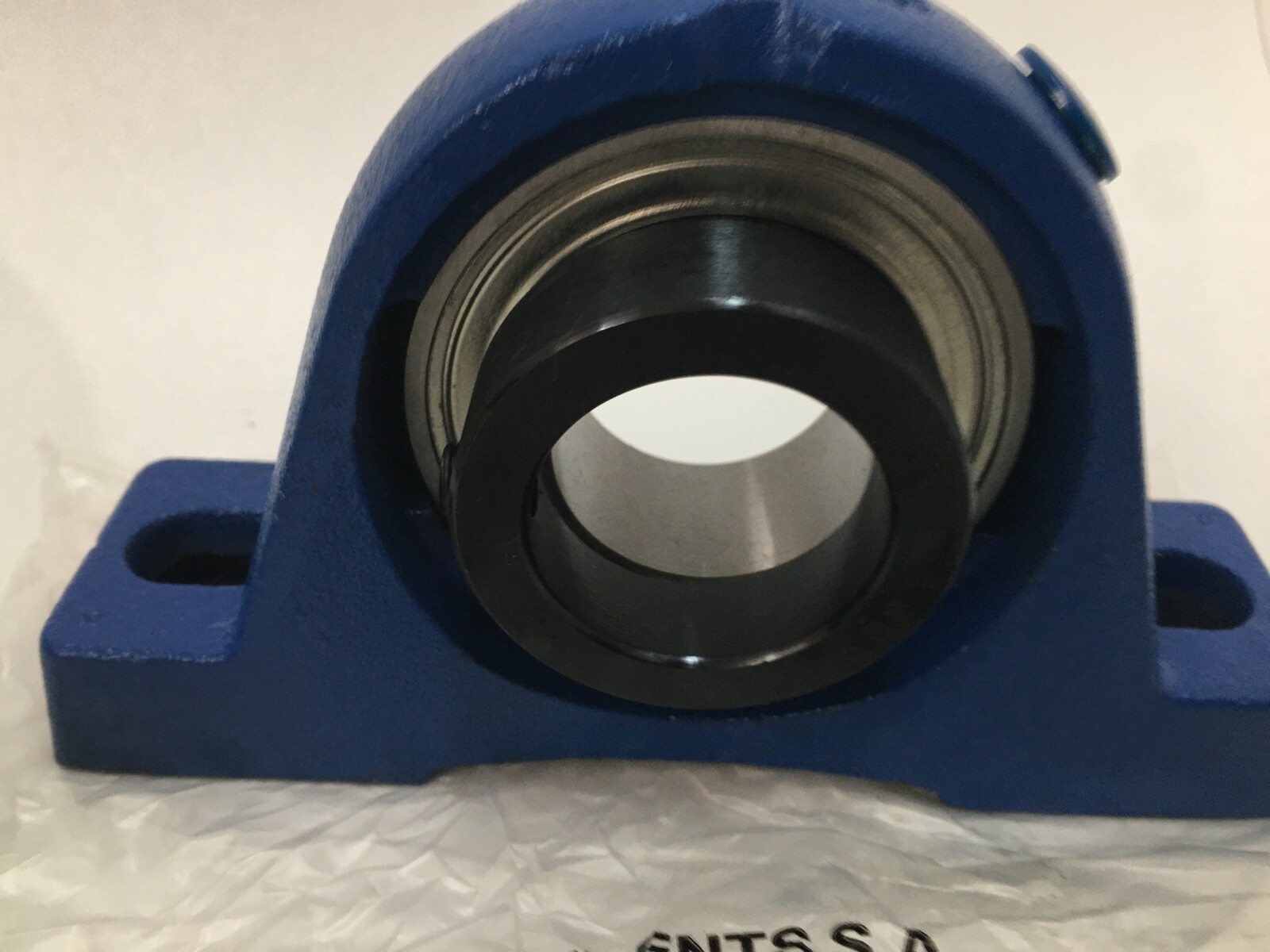

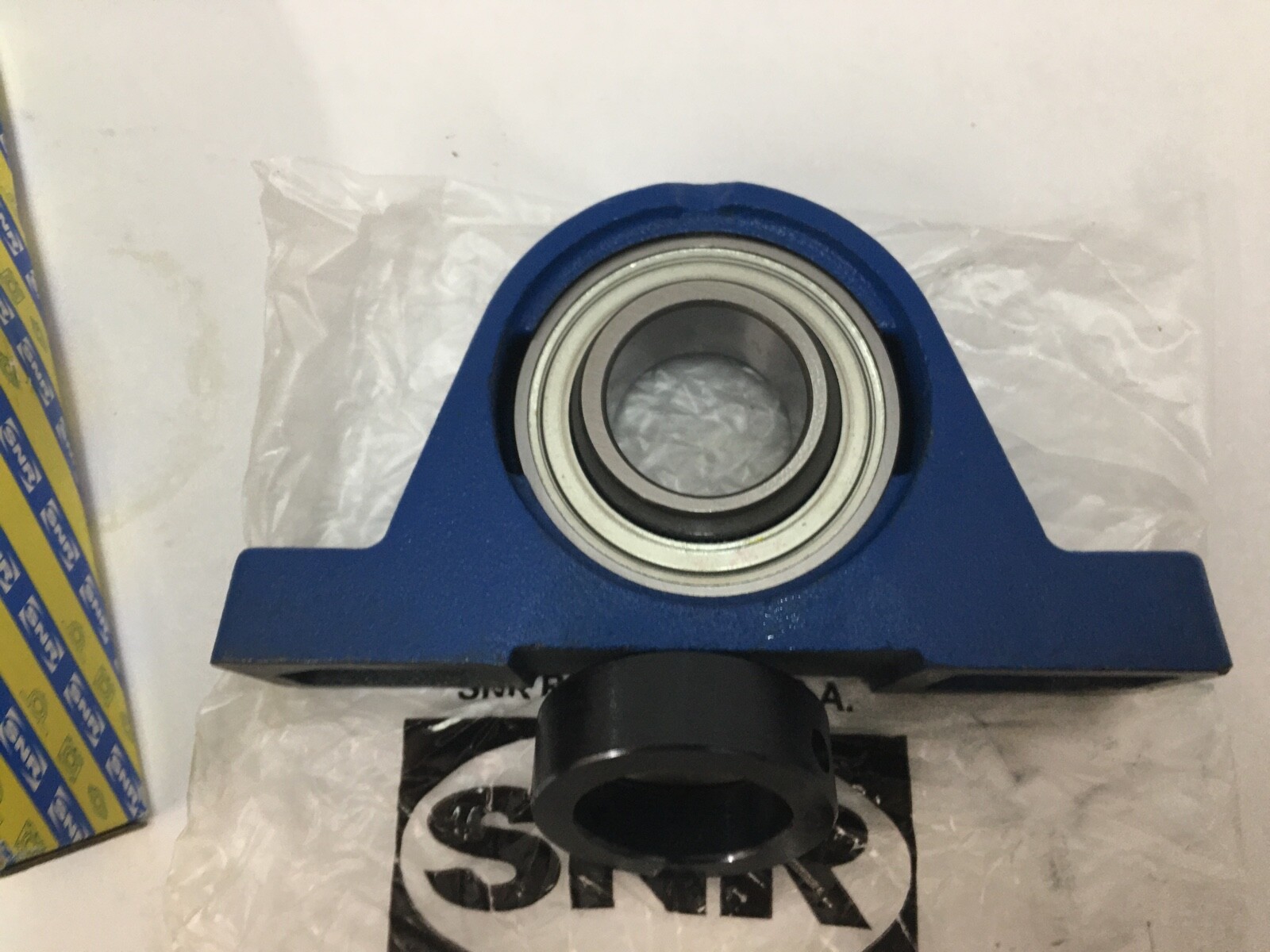

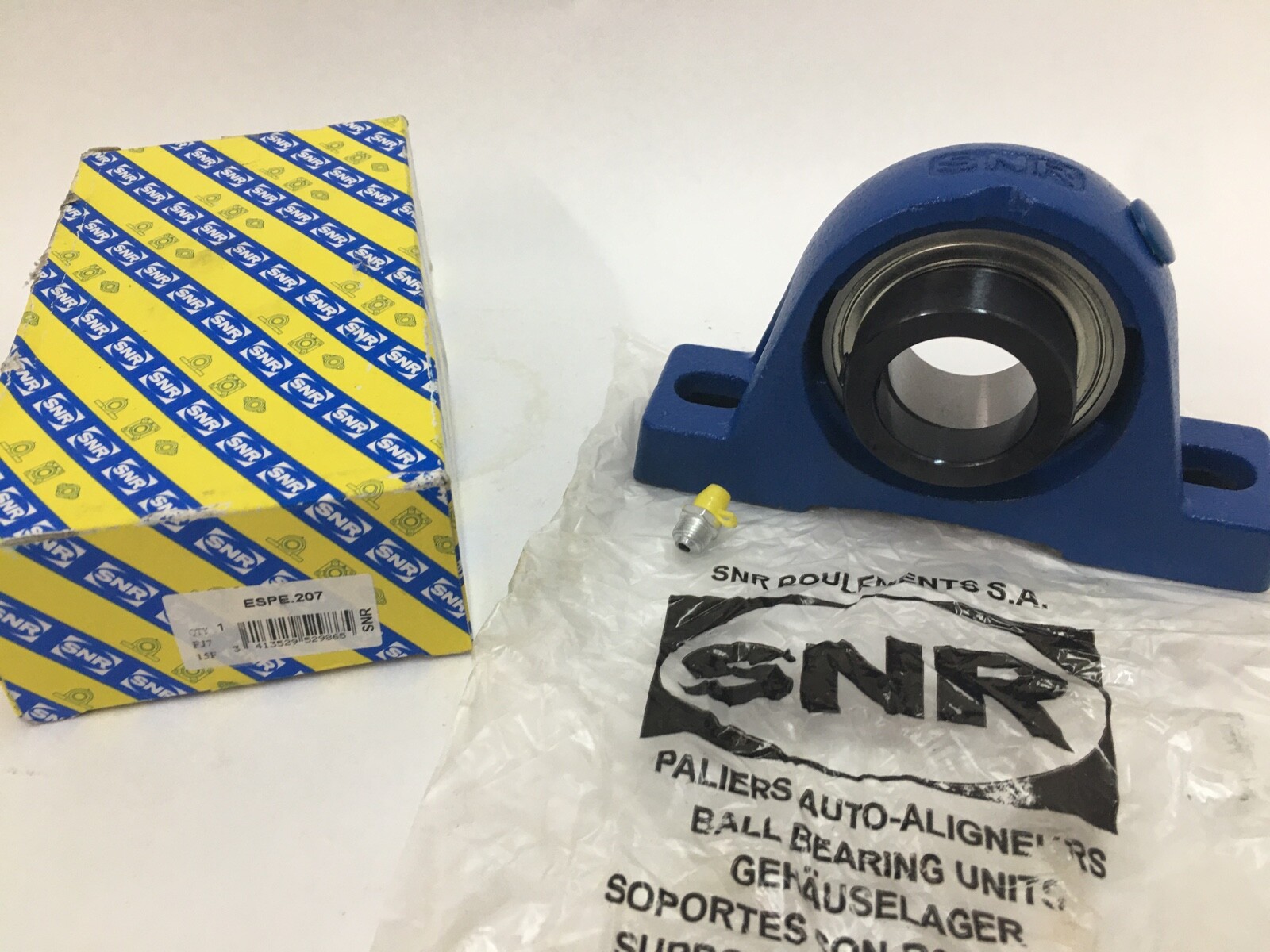

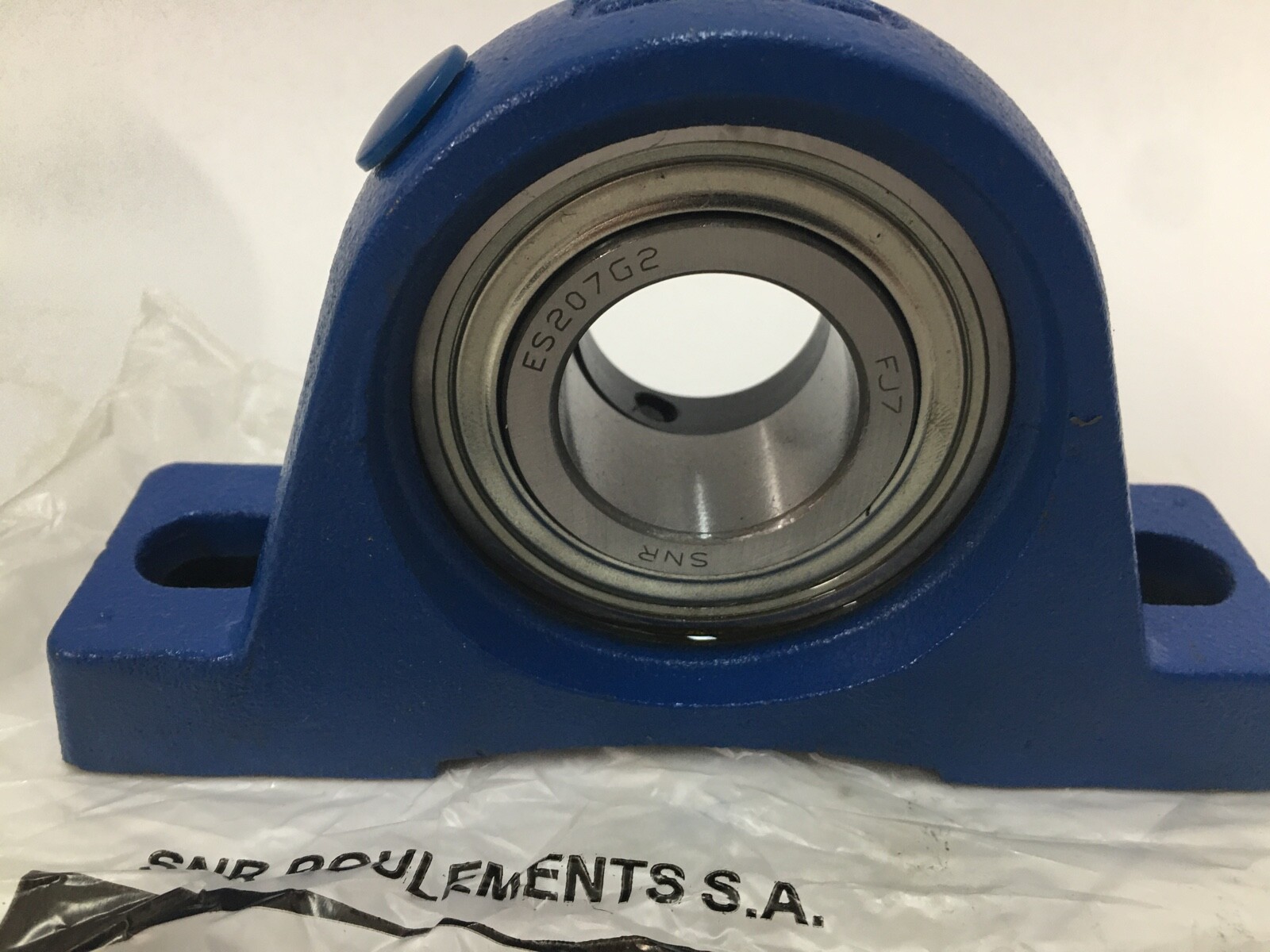

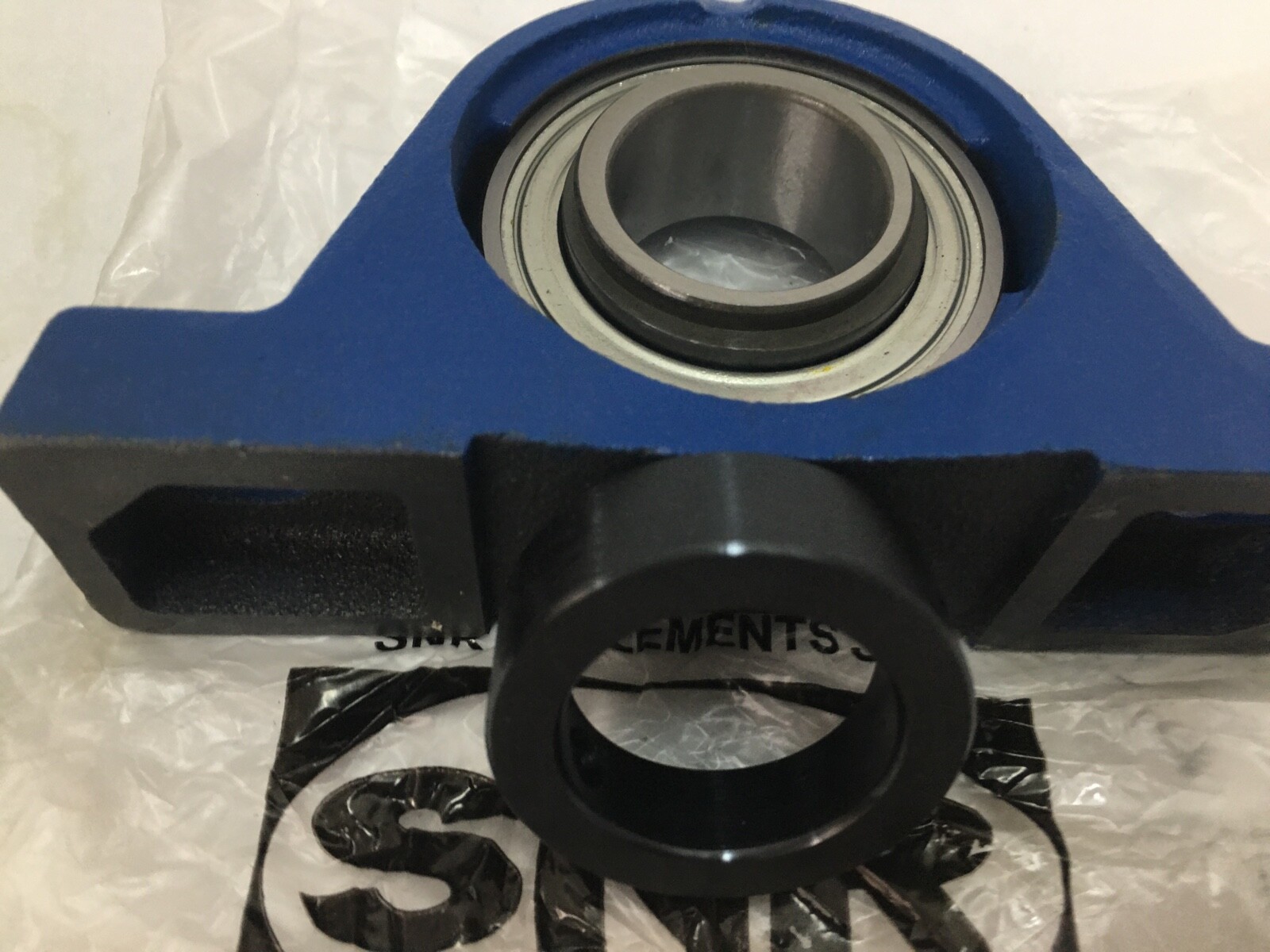

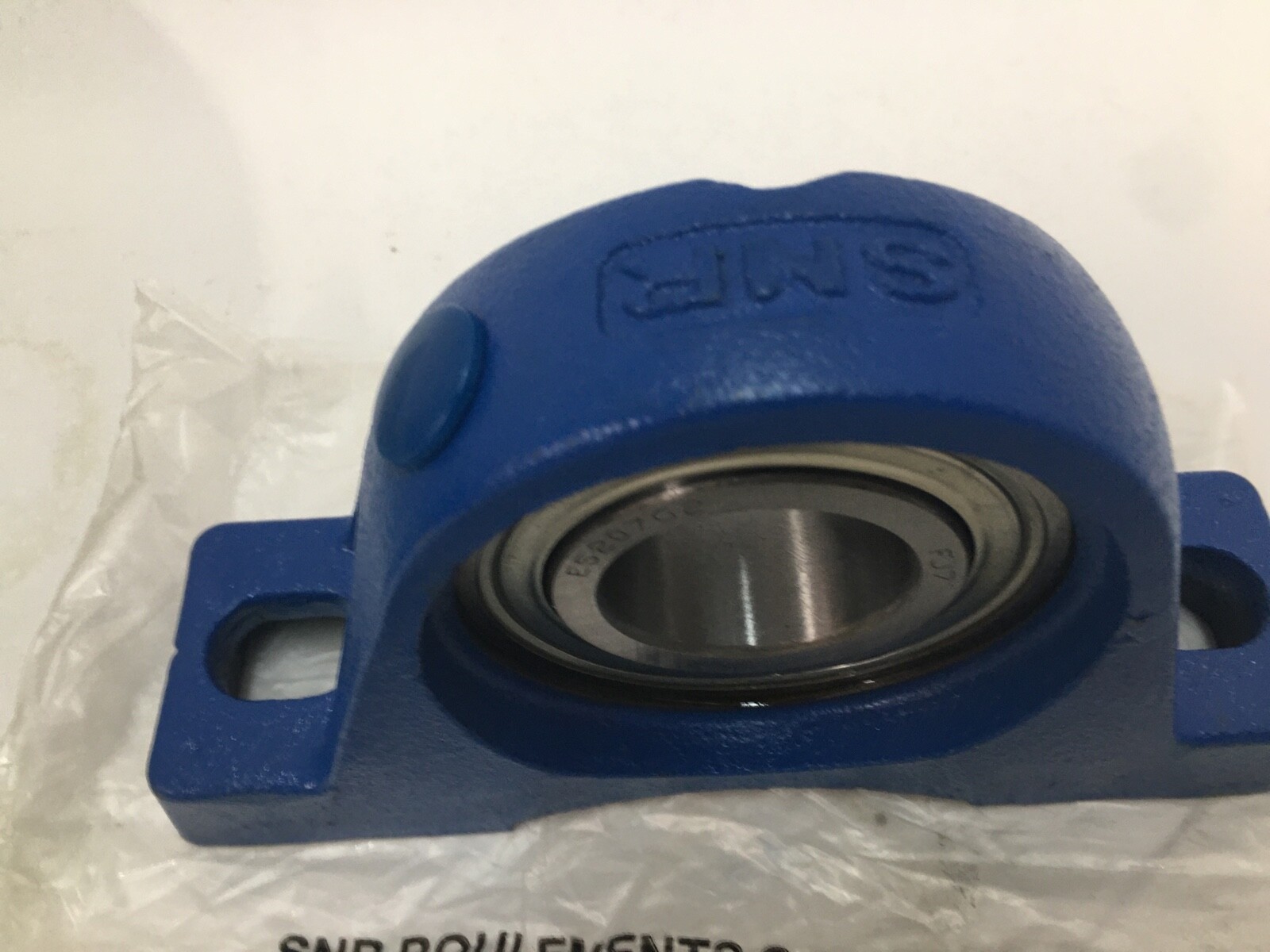

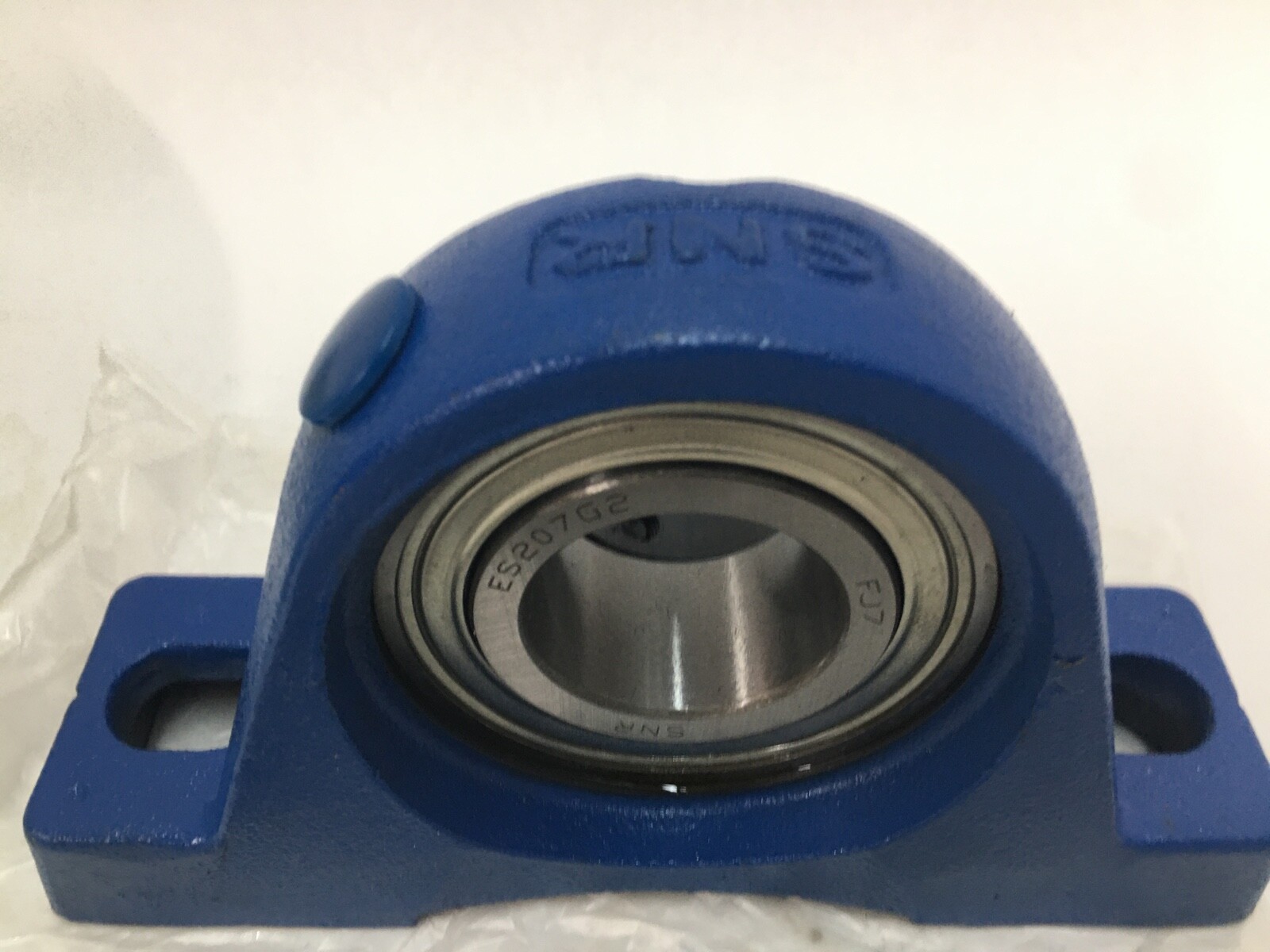

Two-bolt grey cast iron pillow block for a 35 mm shaft, 207 ISO envelope. Self-aligning ball insert with an eccentric locking collar, greaseable.
List Price
$38.00
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | ESPE.207 |
| GTIN | 3413529529865 |
| Model | ESPE.207 |
| ID | 35 mm |
| Type | Pillow Block Bearing |
|---|---|
| Base Number | ESP207 |
| Industry Terms | pillow block, plummer block, 2-bolt bearing unit, mounted unit, 35mm pillow block, UCP207 pattern |
| Common Misspellings | SNR ESPE 207, ESPE.20, SNR ESP-207, EPSE207, pillowblock, plumber block |
| Application Types | Conveyors, fans, agricultural machinery, material handling, food processing lines |
| Number Of Bolt Holes For Fasteners | 2 |
| Bore Shaft Size | 35 mm |
| Housing Style | 2-bolt pillow block, grey cast iron |
| Locking Method | Eccentric locking collar |
| Mpn Variants | ESPE.207, ESPE207, ESPE 207, ESP.207, ESP207, ESPE-207 |
| Manufacturer Status | SNR is now NTN-SNR |
| Material | Grey cast iron housing, standard bearing steel insert |
| Series | ESP / 207 |
| Rolling Elements | Ball |
| Bearing Type | Mounted ball bearing unit |
| Number Of Rows | 1 |
| Locking Device | Eccentric Collar |
| Housing Material | Grey cast iron |
| Part Number | ESPE.207 |
NTN-SNR ESPE.207 mounted ball bearing unit. Brand: SNR (NTN-SNR). Manufacturer Part Number: ESPE.207. Base Number: ESP207. Housing Style: two-bolt pillow block, grey cast iron. Bore / Shaft Size: 35 mm. Bore Type: straight. Series: ESP, 207 ISO envelope. Bearing Type: mounted ball bearing unit. Insert: single-row ball, wide inner ring, spherical outer race, standard bearing steel. Number of Rows: 1. Rolling Elements: balls. Locking Method: eccentric locking collar. Closure Type: single seal. Relubrication: grease fitting. Mounting Arrangement: base mounted through two bolt holes, mountable from top or bottom. Design Units: Metric. Unit Quantity: 1 Pc. GTIN: 3413529529865.
ES: SNR insert ball bearing with a wide inner ring. P: pillow block housing. E: eccentric locking collar. 207: the ISO 207 bearing envelope, giving a 35 mm bore, the same interchange size as a UCP207. SNR’s flange families in the same scheme are the UCFL two-bolt and UCFU four-bolt housings.
The 207 envelope is the workhorse size in metric mounted units, so a 35 mm shaft in this housing is among the easiest sizes to source parts for later.
An eccentric collar grips by cam action and leaves the shaft unmarked, so plain cold-drawn shafting is acceptable and the unit can be repositioned. The collar is tightened with the direction of rotation, which makes it a unidirectional-drive fitting.
The insert’s spherical outer race swivels in the housing seat and takes up shaft-to-housing angular error at installation. The grease fitting keeps the unit serviceable in place.
Unit Quantity: 1 Pc. One complete unit: housing with the insert and its eccentric collar fitted.
Interchangeable in role with UCP207-pattern two-bolt pillow blocks from NTN, FYH, Koyo and Timken, and with SealMaster MP/NP, Link-Belt P3U and Dodge P2B units at 35 mm bore. Bolt centre-to-centre and base-to-shaft centre height vary between makers at the same bore, so those two dimensions decide a cross-brand substitution. Adjacent sizes in the same series are the ESPE.206 at 30 mm and the ESPE.208 at 40 mm. Searchable variants of this number are ESPE.207, ESPE207, ESPE 207, ESP.207, ESP207 and ESPE-207. SNR is now NTN-SNR.
$61.17
64 in stock
