A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Double-row self-aligning ball bearing, 17 mm bore x 47 mm OD x 19 mm wide, open, polyamide cage. Dynamic load rating 14,400 N, normal CN clearance.
List Price
$41.99
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 2303G14 |
| Model | 2303-G14 |
| Bearing Type | Self Aligning Ball Bearing, Open |
| ID | 17 mm |
| OD | 47 mm |
| Width | 19 mm |
| Series | 2300 |
|---|---|
| Lubricant | Grease or oil |
| Base Number | 2303 |
| Industry Terms | self-aligning ball bearing, double row ball bearing, polyamide cage bearing, 2300 series, wide medium series |
| Common Misspellings | 2303G4, 2303GI4, 2330G14, 233G14 |
| Overall Width | 19 mm |
| Mpn Variants | 2303G14, 2303 G14, 2303-G14, 2303.G14, 2303, 2303-C3 |
| Precision Class | ABEC 1 / P0 |
| Dynamic Load Rating C1 | 14,400 N |
| Additional Attributes | Calculation factors: e 0.53, Y1 1.19, Y2 1.85, Y0 1.25; defect frequencies at 60 rpm: BPFO 3.802 Hz, BPFI 6.198 Hz, BSF 3.712 Hz, FTF 0.38 Hz |
| Min Temp | -20 °C |
| Dynamic Load Rating | 14,400 N |
| Static Load Rating | 3,550 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.157 kg (0.35 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 21,000 rpm |
| Internal Clearance | CN |
| Application Types | Line shafts; fans; conveyors; agricultural drives; general machinery |
| Cross Reference 1 | SKF 2303 ETN9 |
|---|---|
| Cross Reference 2 | FAG 2303-TVH |
| Cross Reference 3 | NSK 2303 |
| Cross Reference 4 | NTN 2303 |
| Cross Reference 5 | Koyo 2303 |

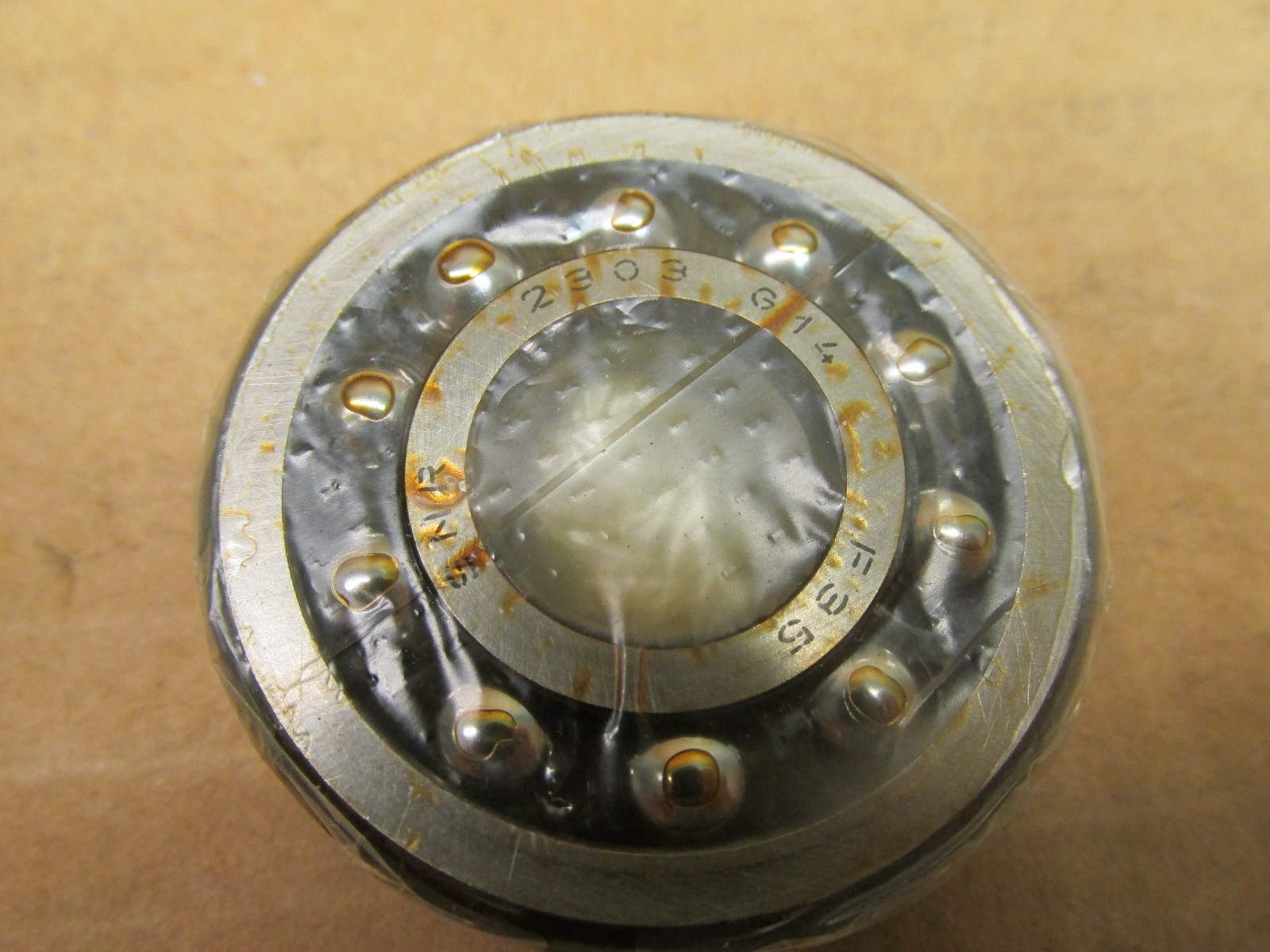

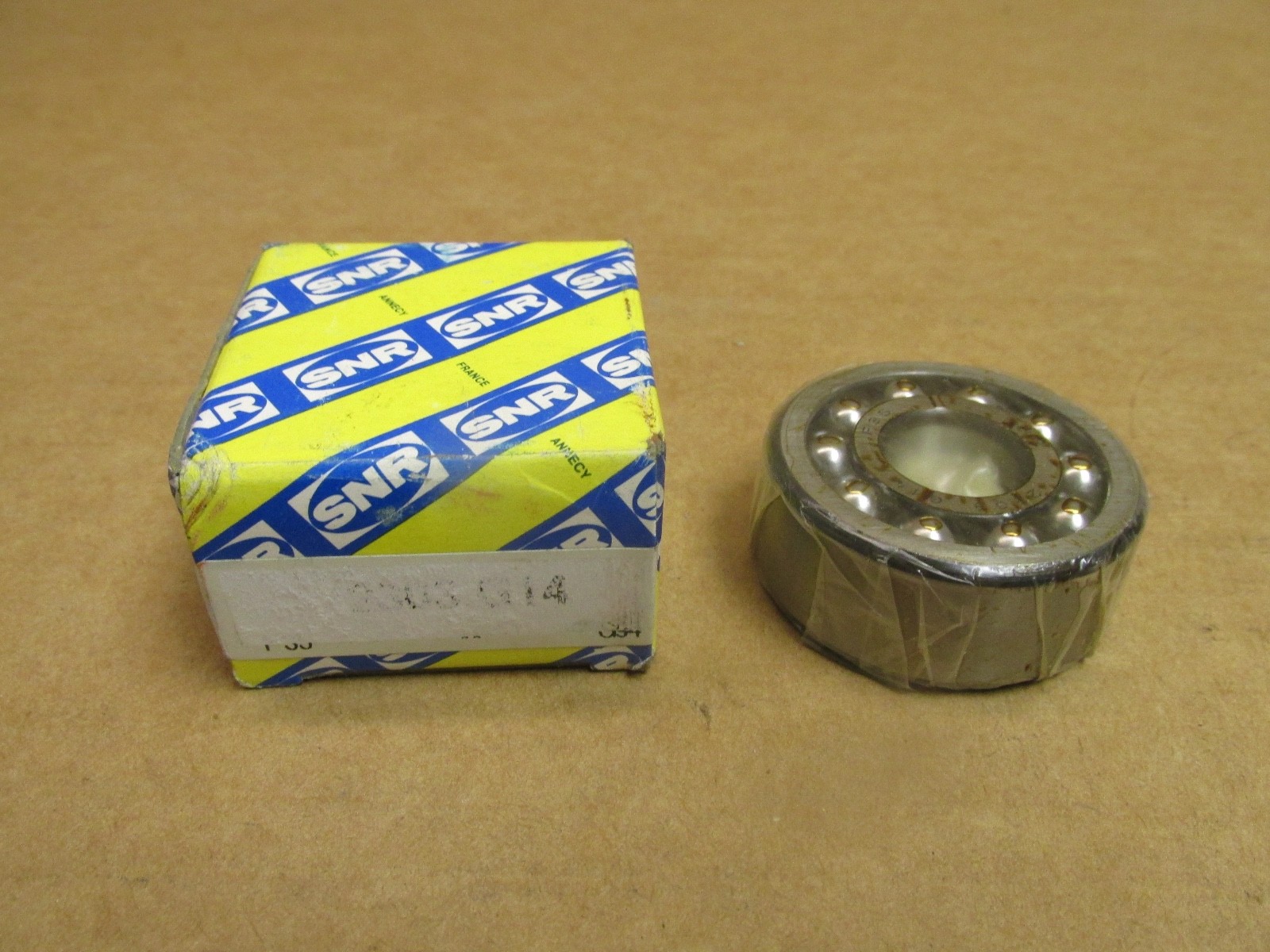

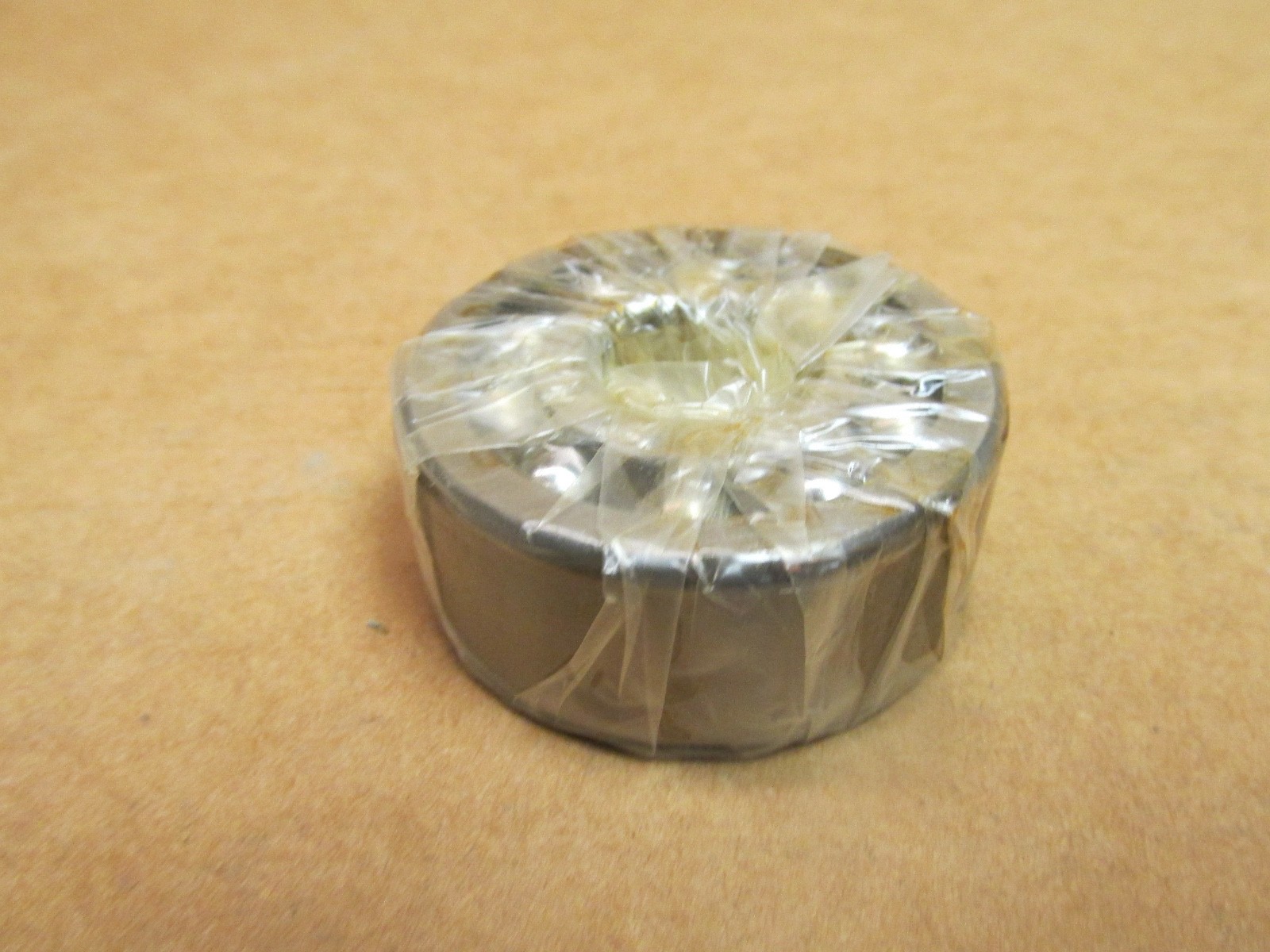

The SNR 2303G14 is a double-row self-aligning ball bearing with a cylindrical bore, a polyamide cage and an open design, from the ISO 23 wide medium series. Unit Quantity: 1 Pc. Two rows of balls run on a common spherical raceway in the outer ring, so the inner ring, balls and cage swivel relative to the outer ring and absorb shaft deflection and housing misalignment.
23 — double-row self-aligning ball bearing, ISO dimension series 23 (wide medium).
03 — bore code 03: 17 mm bore, 47 mm outside diameter, 19 mm width.
G14 — SNR polyamide cage.
Bore Diameter: 17 mm. Outside Diameter: 47 mm. Overall Width: 19 mm. Dynamic Load Rating: 14,400 N. Static Load Rating: 3,550 N. Fatigue Limit Load: 160 N. Reference Speed: 14,000 rpm. Limiting Speed: 21,000 rpm. Closure Type: Open. Cage Material: Polyamide. Internal Clearance: CN. Precision Class: ABEC 1 / P0. Rolling Elements: Ball. Number Of Rows: 2. Min Temp: -20 °C. Max Temp: 120 °C. Item Weight: 0.157 kg (0.35 lb).
Inner Ring Shoulder Diameter d1: 26 mm. Outer Ring Inner Diameter D1: 36.9 mm. Minimum Chamfer rs: 1 mm. Shaft Abutment Diameter da min: 22 mm. Housing Abutment Diameter Da max: 42 mm. Fillet Radius ra max: 1 mm.
Cross-references: SKF 2303 ETN9, FAG 2303-TVH, NSK 2303, NTN 2303, Koyo 2303. Each is a 17 x 47 x 19 mm double-row self-aligning ball bearing with a cylindrical bore. The SKF and FAG parts also carry polyamide cages.
Bore Diameter: 17 mm. Outside Diameter: 47 mm. Overall Width: 19 mm.
Dynamic Load Rating: 14,400 N. Static Load Rating: 3,550 N.
Polyamide cage (G14) and open design.
