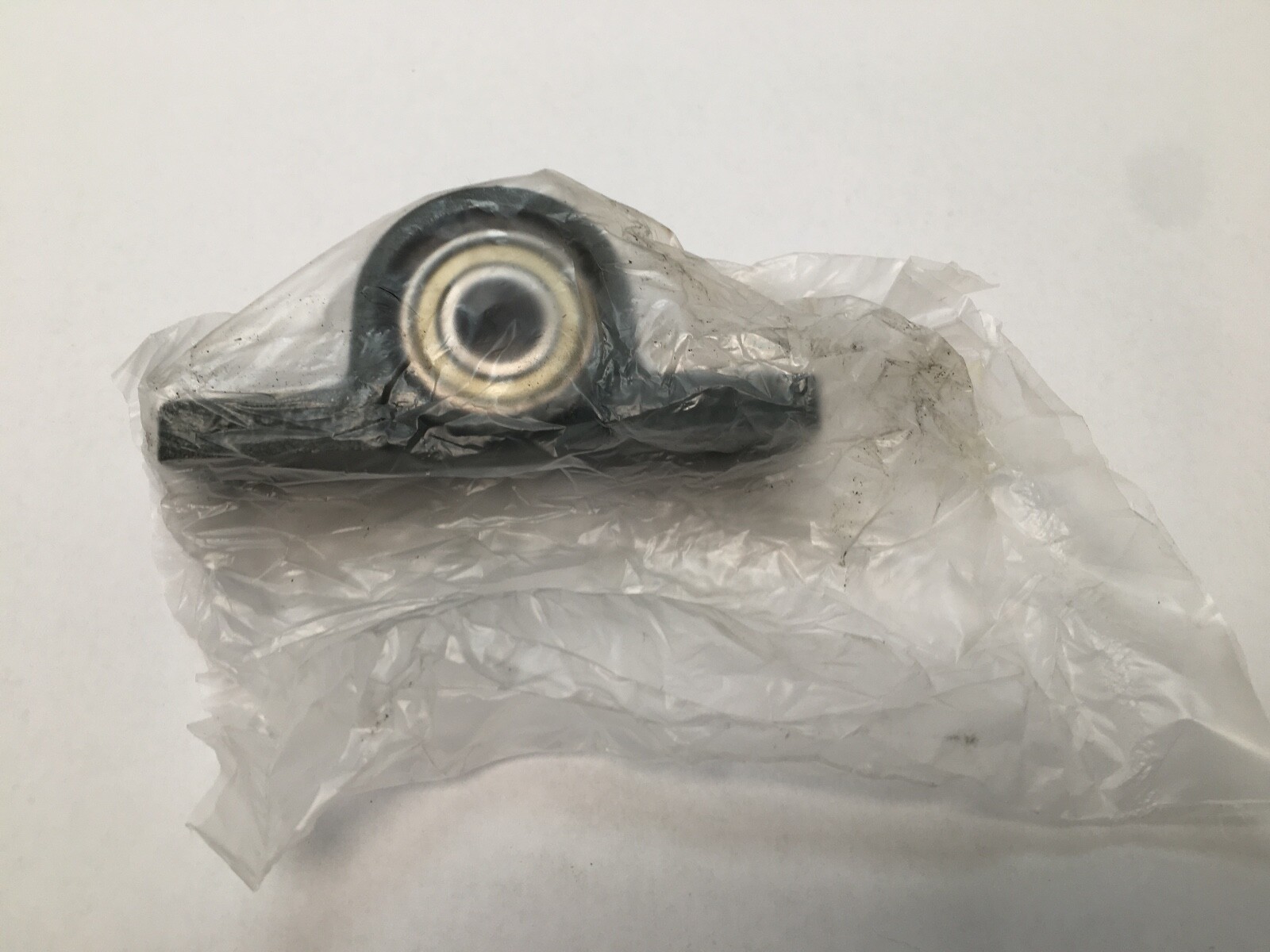

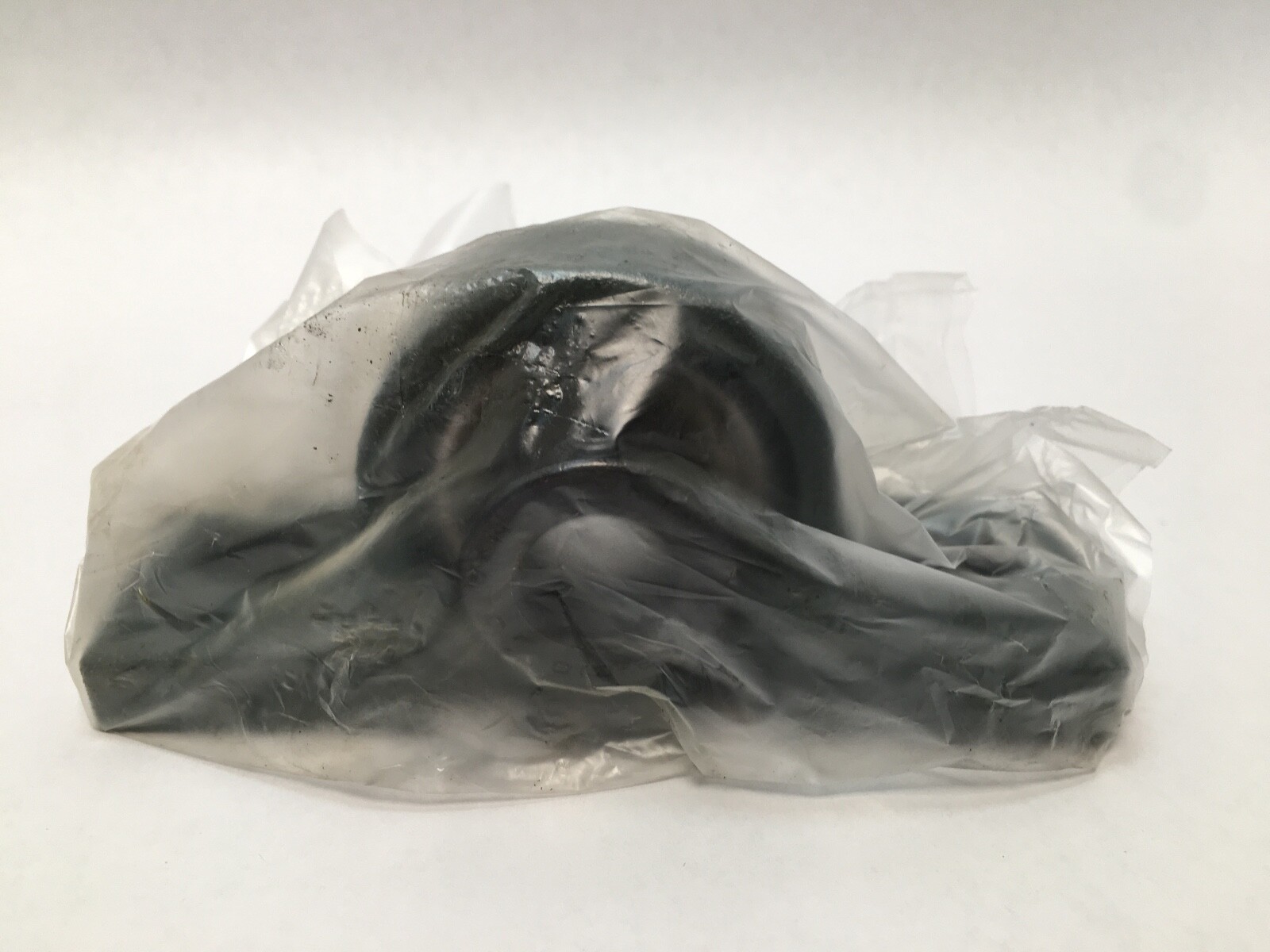

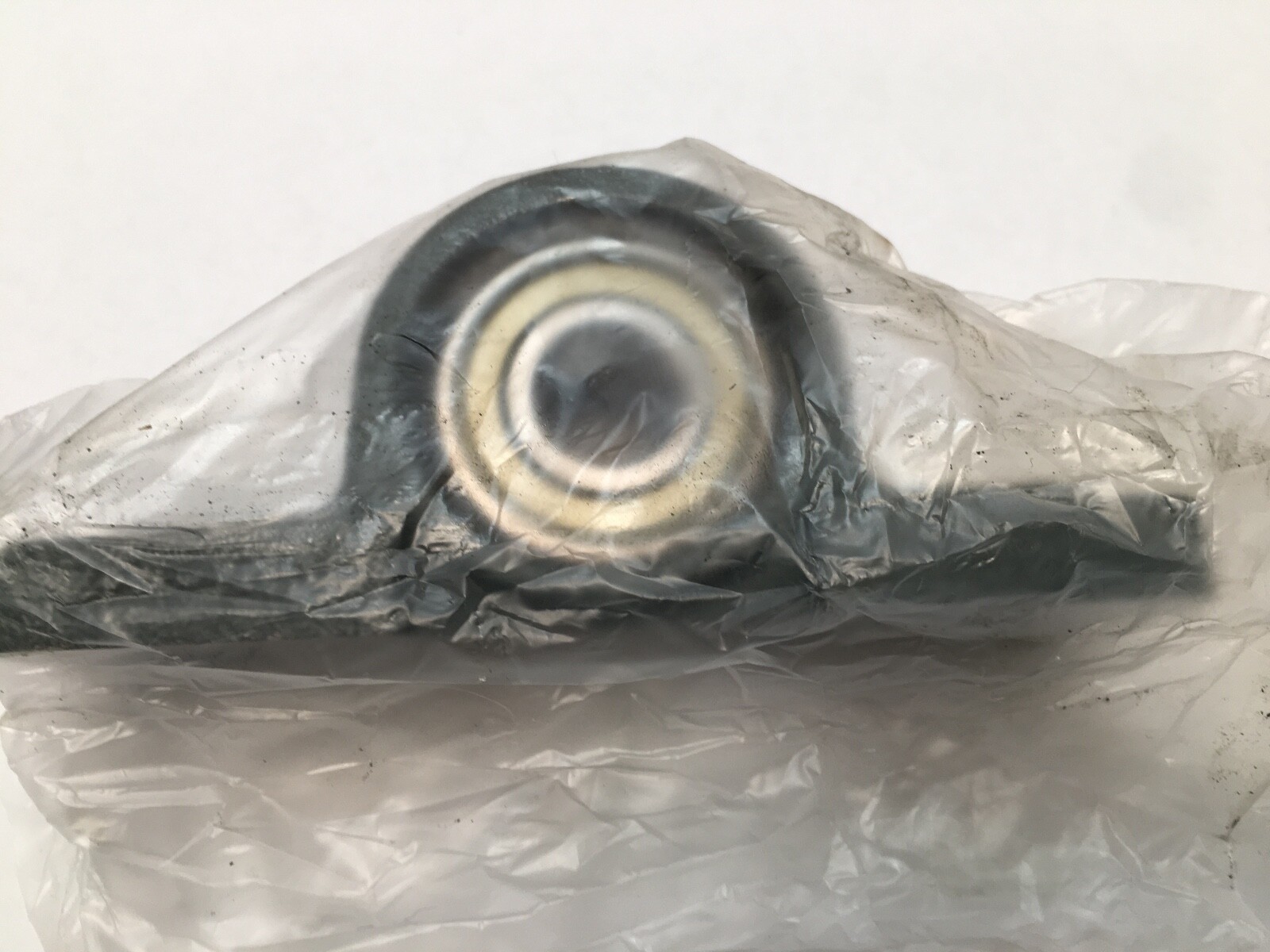

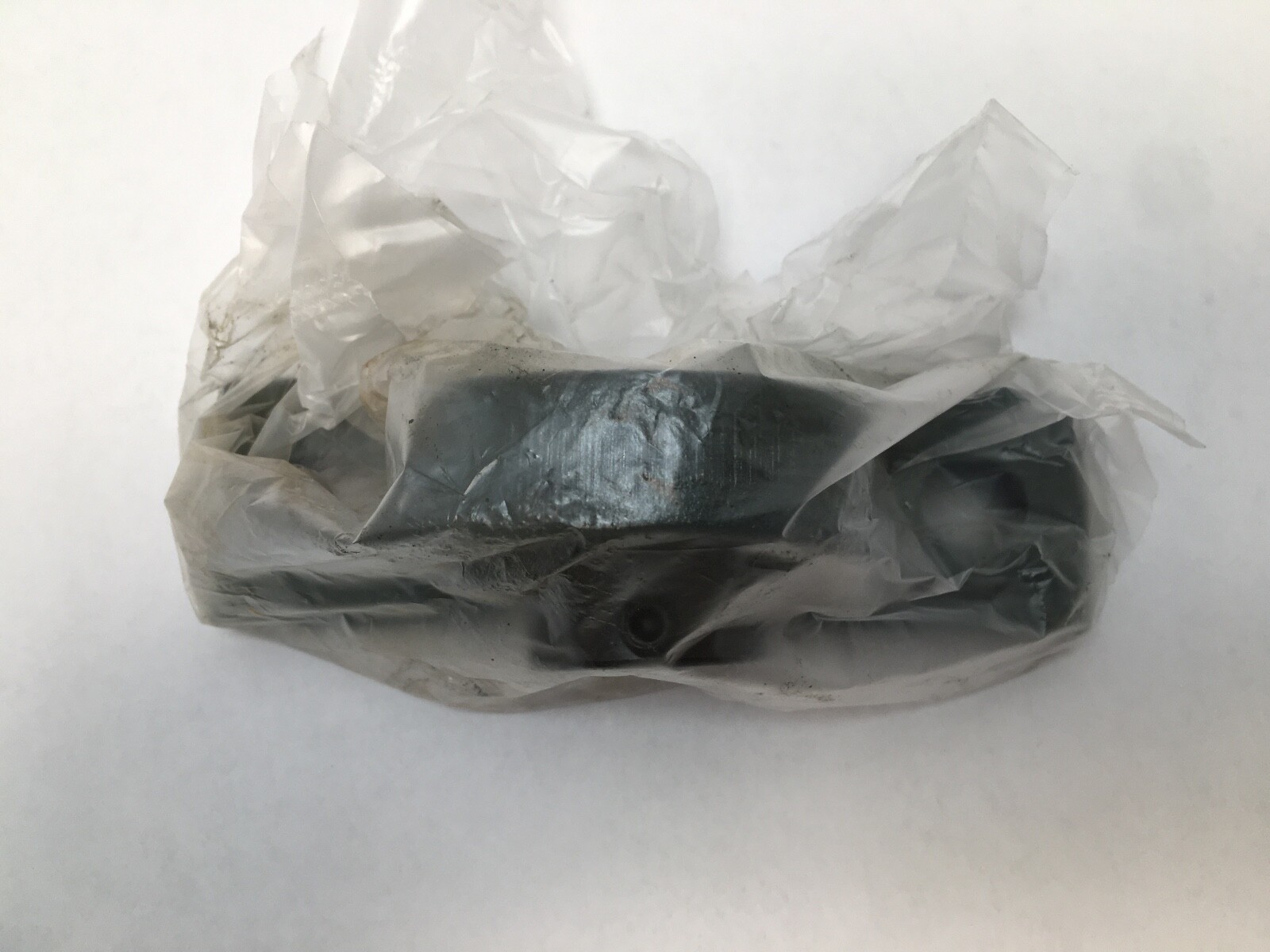

NTNAELPL202-010Two-Bolt Pillow Block Unit – 5/8 in Bore, Cast Iron, Eccentric Locking Collar, 2 Pcs

Product Description

What this part is:

NTN AELPL202-010 mounted ball bearing unit. Housing Style: Two-Bolt Pillow Block, narrow cast body. Bore / Shaft Size: 5/8 in (15.875 mm). Bore Type: Cylindrical. Design Units: Inch. Locking Method: Eccentric Locking Collar. Insert Part Number: AEL202-010. Housing Number: PL201. Housing Material: Cast Iron. Housing Construction: One piece. Performance Class: Light duty. End Type: Open. Unit Quantity: 2 Pcs.

Decoding the designation:

AELPL — NTN light-duty narrow cast-iron two-bolt pillow block with eccentric locking collar.

202 — insert AEL202 in housing PL201.

010 — 5/8 in (15.875 mm) bore.

Specifications:

Outside Diameter: 40 mm (1.5750 in). Inner Ring Width: 10 mm (0.3937 in). Outer Ring Width: 10 mm (0.3937 in). Insert Width Overall: 28.600 mm (1.1260 in). Rolling Elements: Balls, through-hardened steel. Cage Material: Pressed Steel. Internal Clearance: CN. Precision Rating: ISO Class 0. Seal Type: Contact. Seal Material: Nitrile Rubber. Dynamic Load Rating: 9.60 kN (2,158 lbf). Static Load Rating: 4.60 kN (1,034 lbf). Rotational Speed, Maximum: 10,000 RPM on grease. Operating Temperature Range: −40 to 120 °C (−40 to 250 °F). Item Weight: 0.470 kg (1.039 lb) each. Series: AELP / AELPL. GTIN: 4547359460957. Country of Origin: Japan.

Dimensions and mounting:

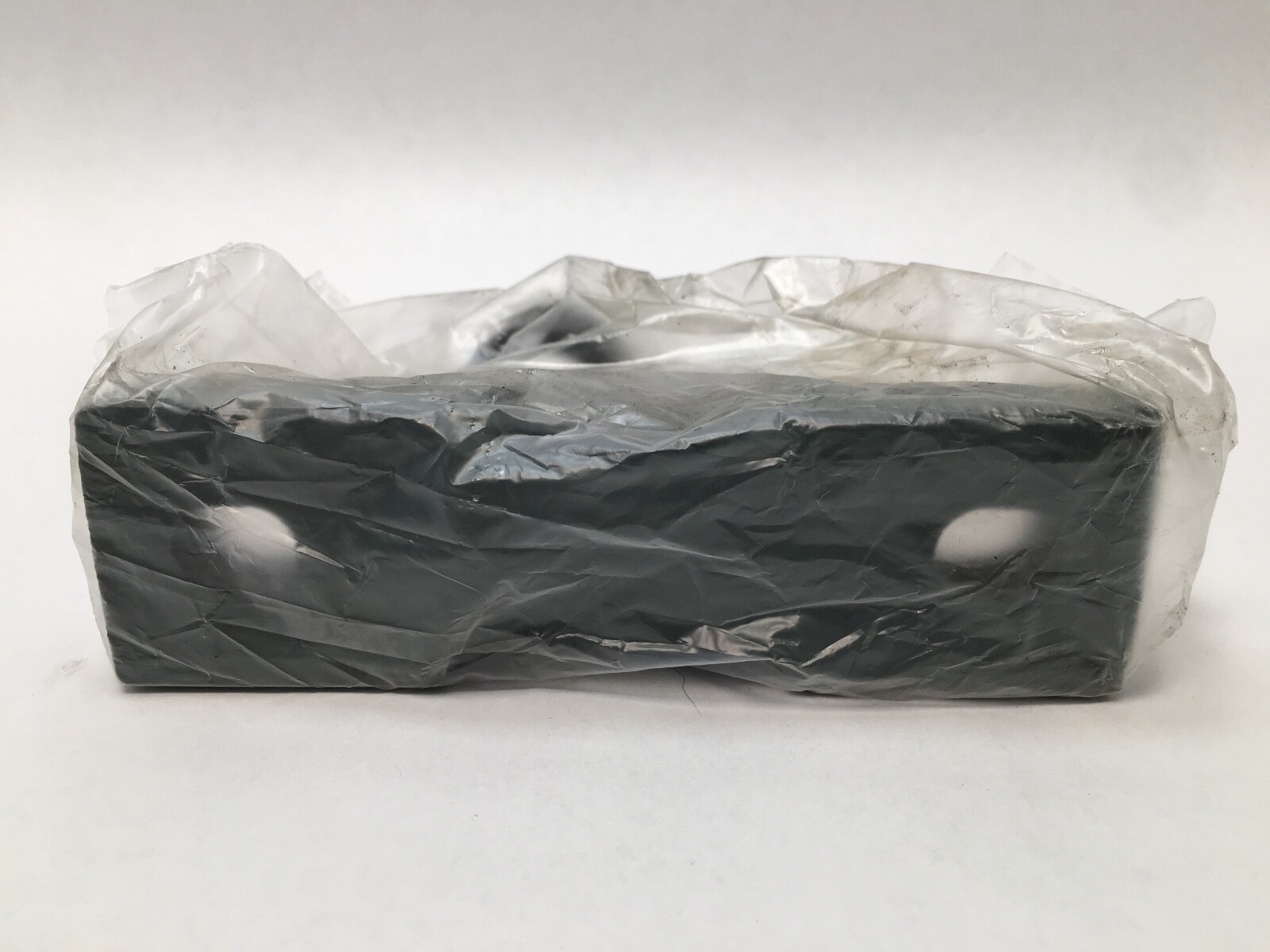

Two-bolt pillow block base. Bolt Hole Centres: 89 mm (3.5039 in). Bolt Hole Width: 11 mm (0.4331 in). Bolt Hole Length: 14 mm (0.5512 in). Base to Shaft Centre Height: 27 mm (1.0626 in). Overall Length: 121 mm (4.7638 in). Housing Width: 35 mm (1.3780 in). Total Height: 54 mm (2.1260 in). Base Thickness: 13 mm (0.5118 in). Housing Length at Base: 40 mm (1.5748 in). The insert outer ring is spherical and self-aligning in the housing seat.

Compatibility and replacement:

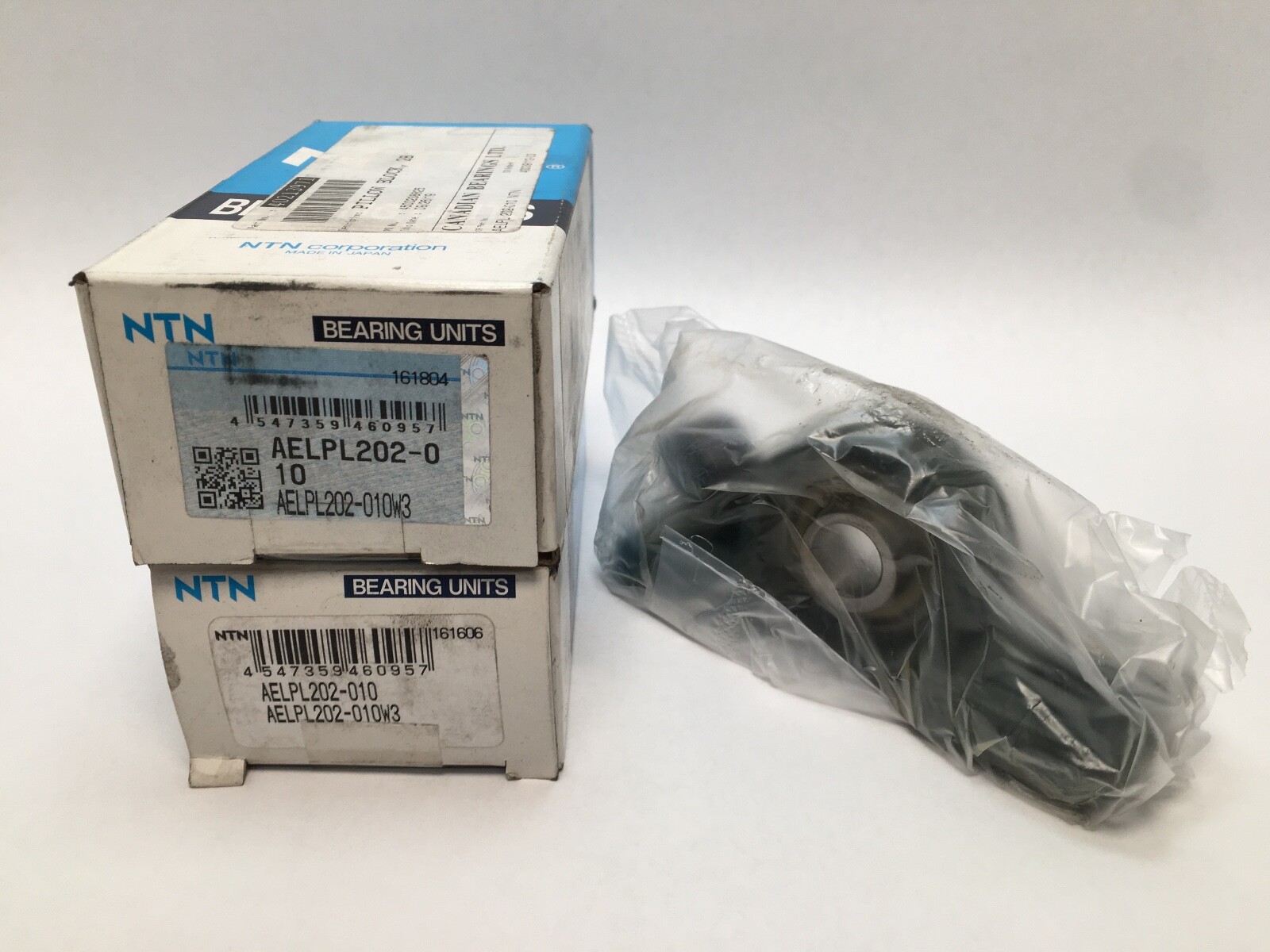

Replacement Insert: AEL202-010. Housing Number: PL201. Searchable variants: AELPL202-010, AELPL 202-010, AELPL202-010W3. Unit Quantity: 2 Pcs, two complete pillow block units, each with its insert, locking collar and housing.

Frequently asked questions:

What bore does the NTN AELPL202-010 have?

5/8 in (15.875 mm), cylindrical, locked with an eccentric locking collar.

What is the bolt hole spacing?

89 mm (3.5039 in) between bolt hole centres.

Which insert does it use?

Insert AEL202-010 in housing PL201.
