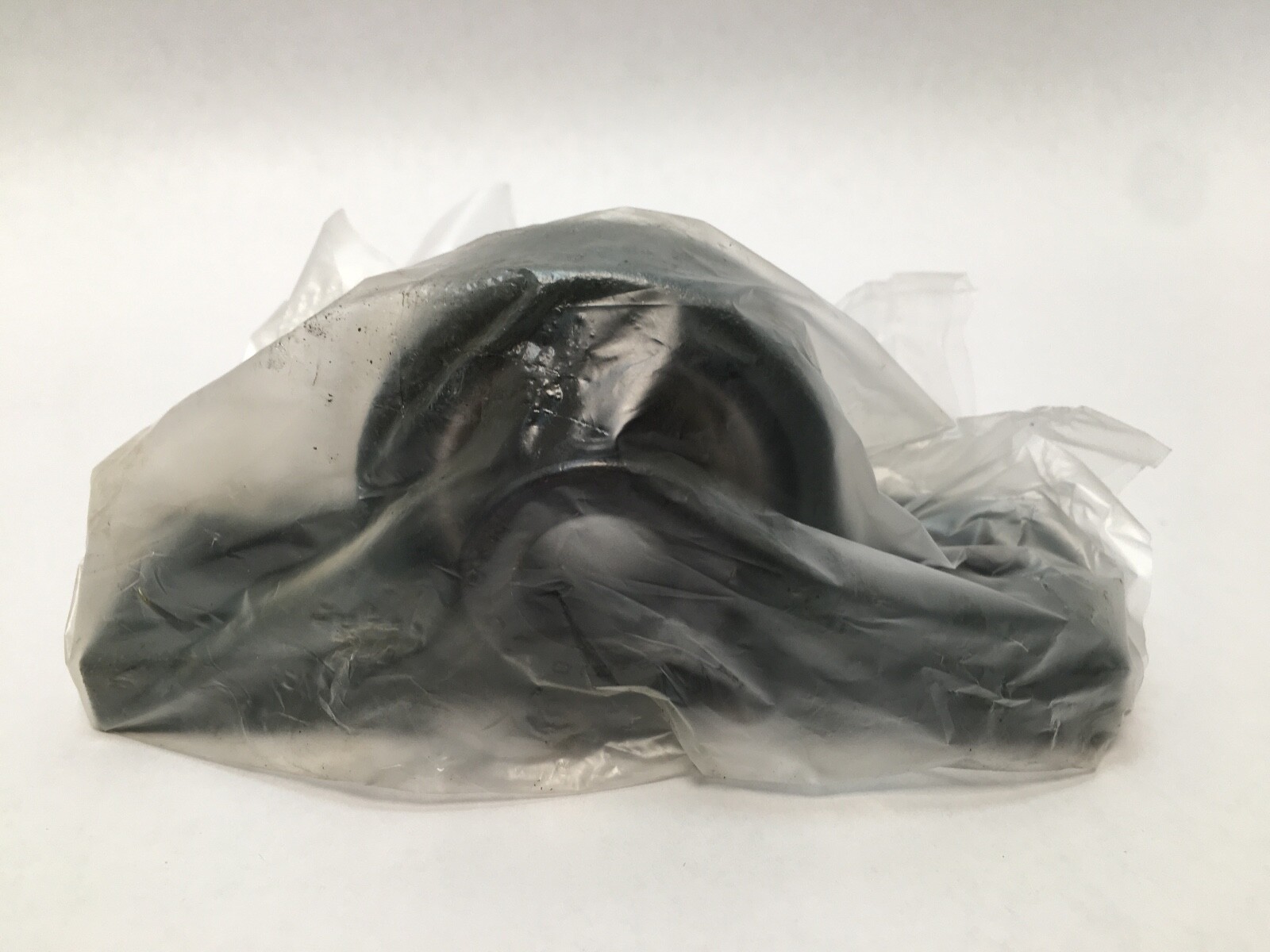

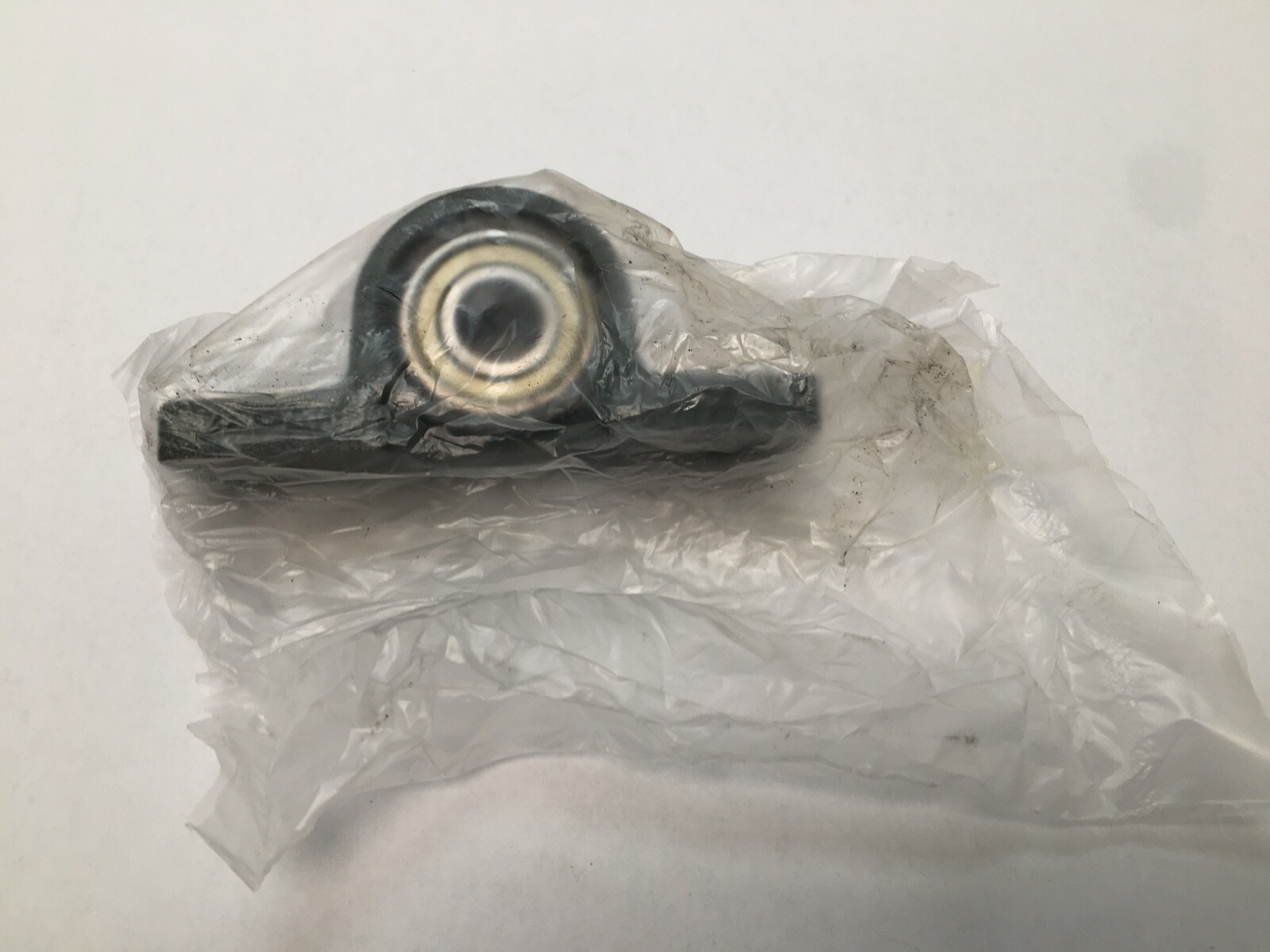

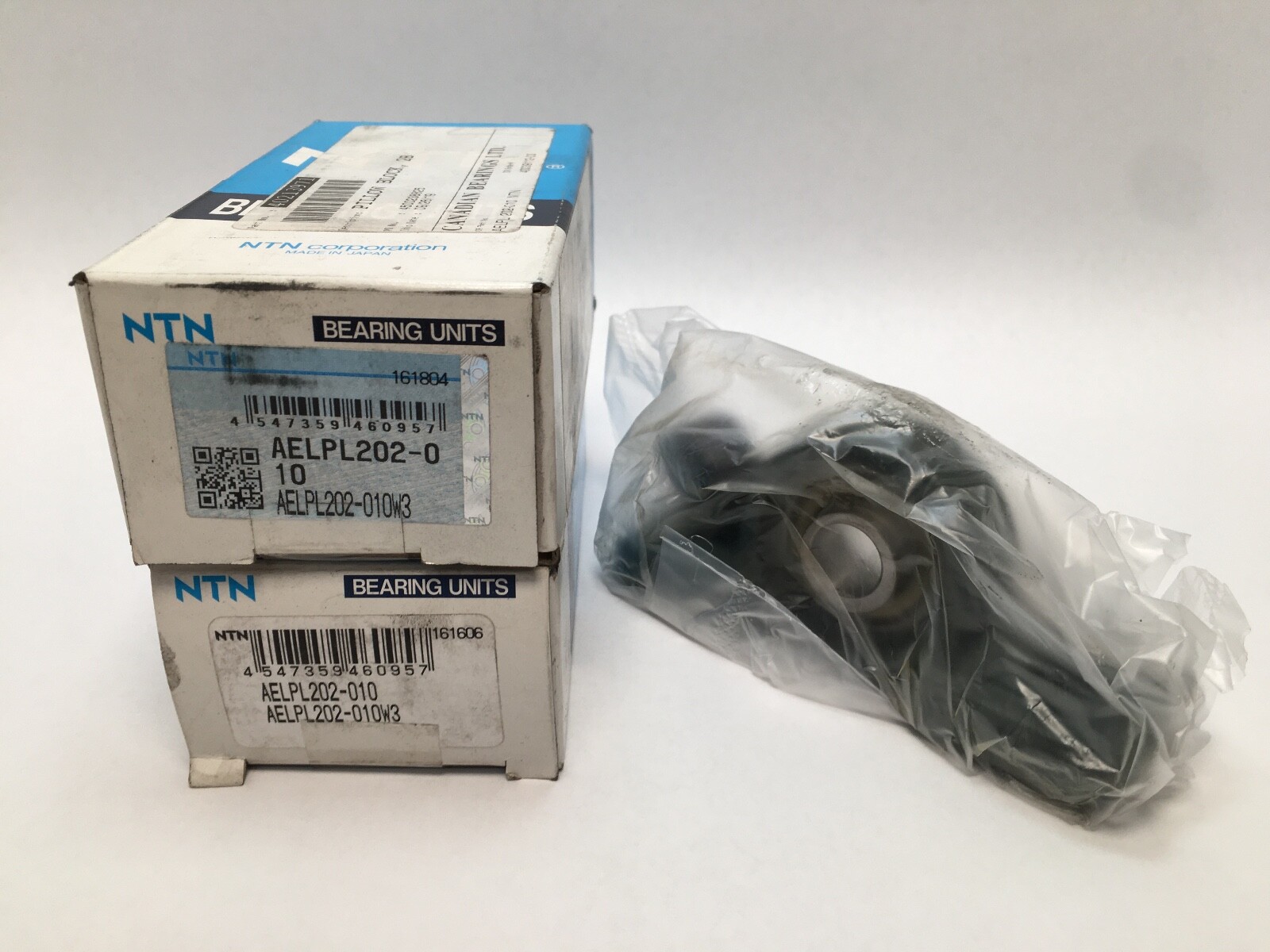

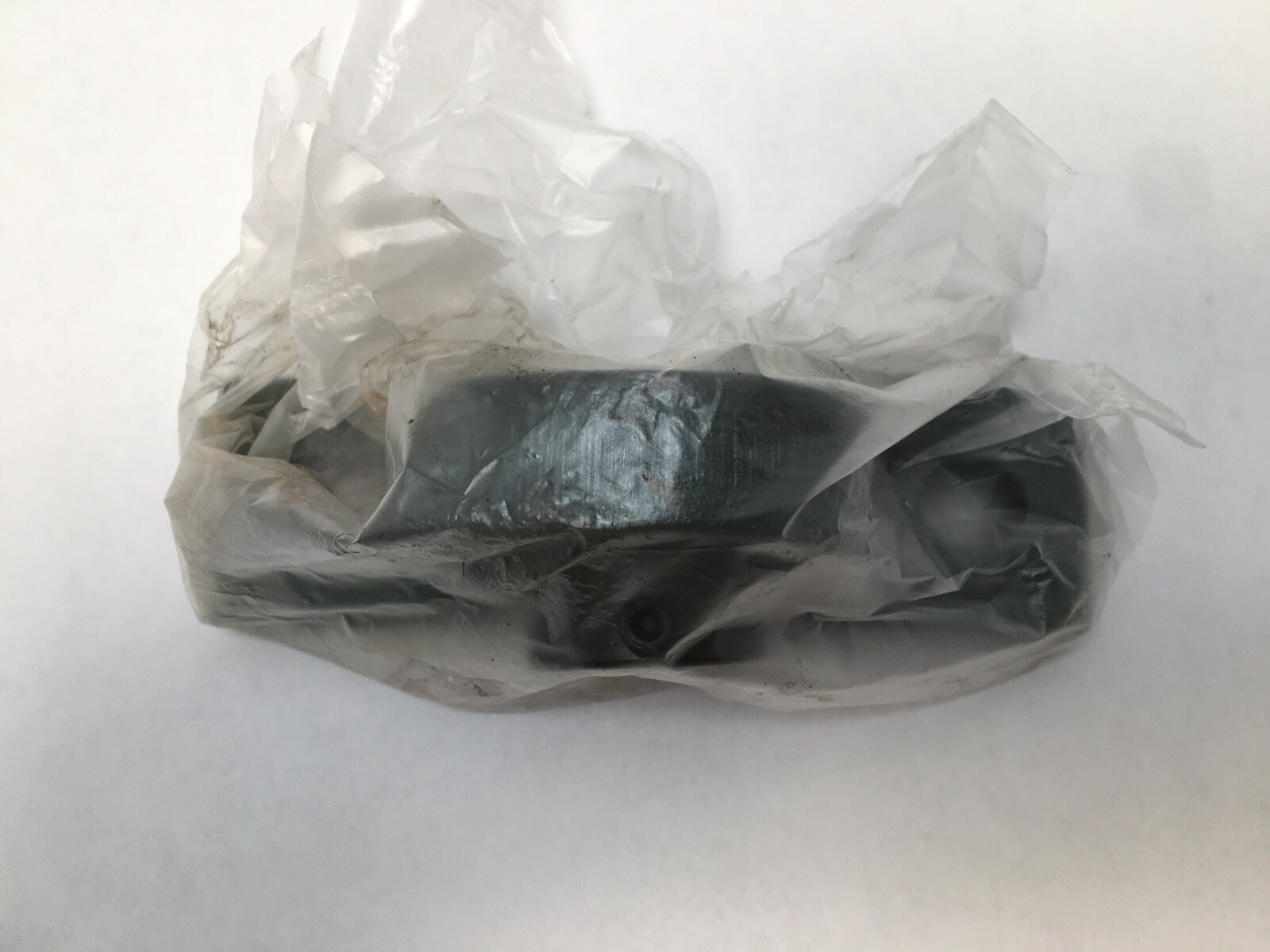

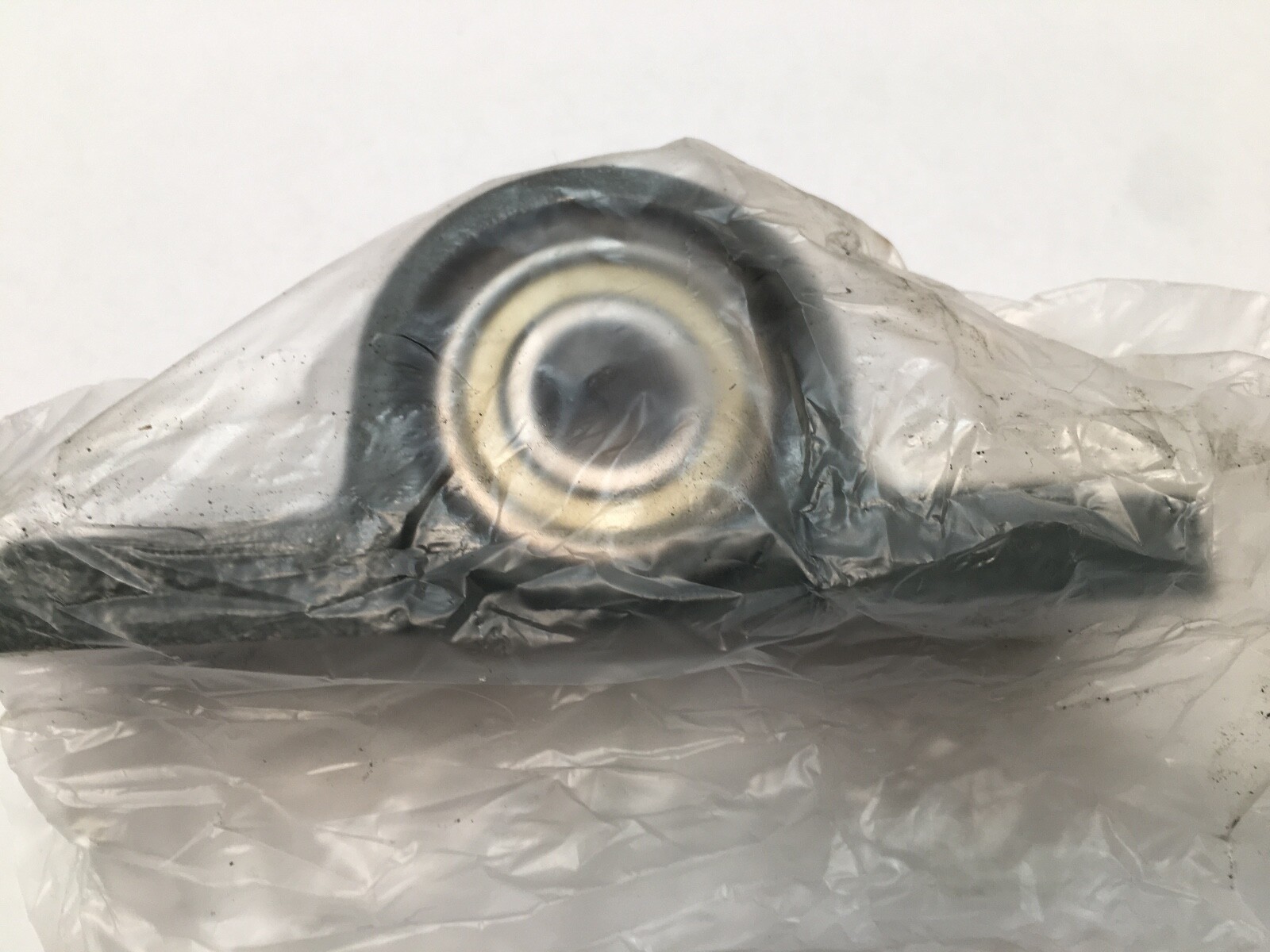

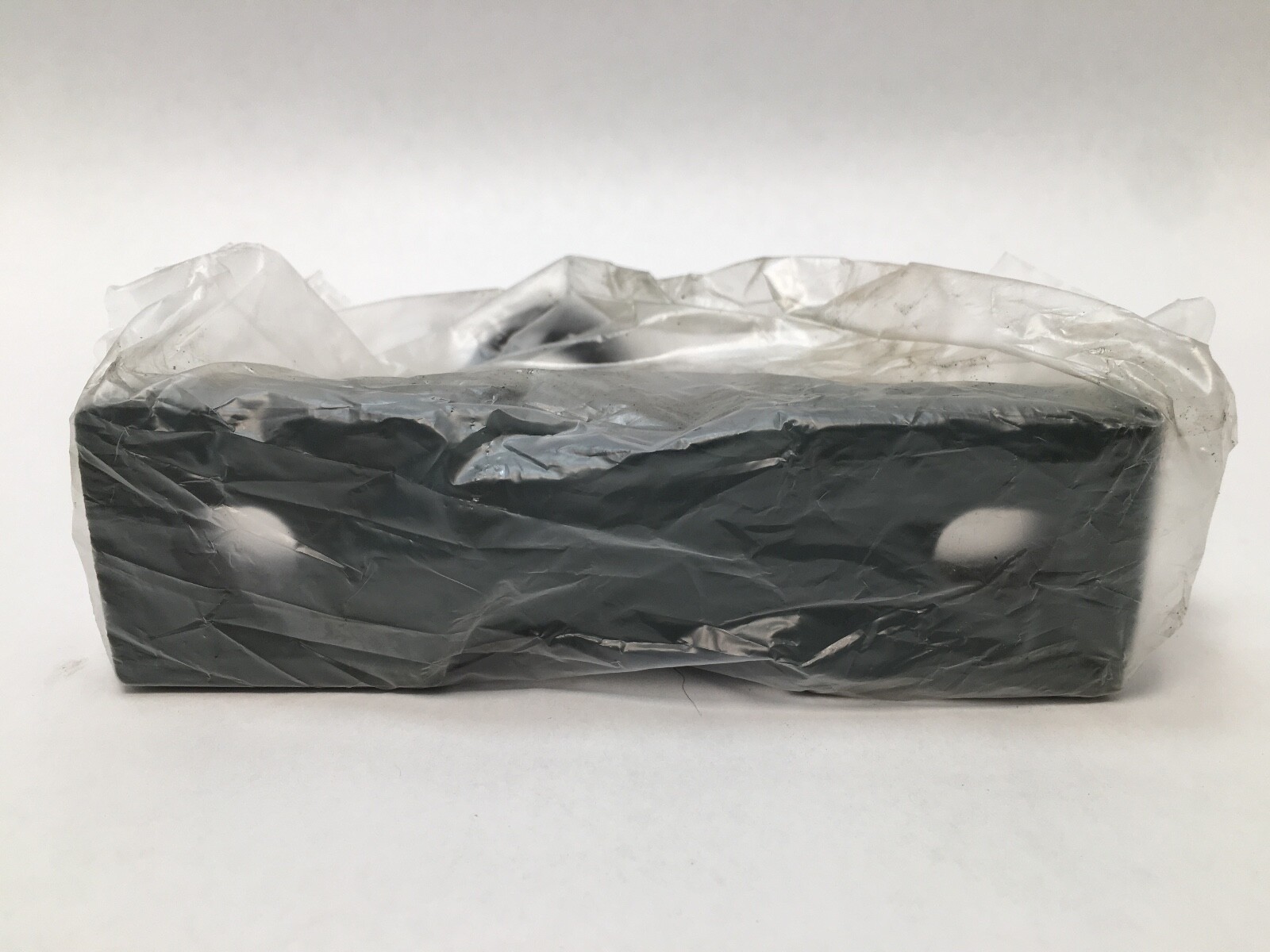

NTNAELPL202-010Two-Bolt Pillow Block Unit – 5/8 in Bore, Cast Iron, Eccentric Locking Collar, 2 Pcs

Name: Two-Bolt Pillow Block Unit – 5/8 in Bore, Cast Iron, Eccentric Locking Collar, 2 Pcs
Brand: NTN
SKU: AM5B2#DIVHGE
Price: 52.01 USD
Availability: InStock

Condition: New

Availability:

1 in stock

Categories: Bearings, Flanged Mount Bearing

Two-bolt cast iron pillow block units, 5/8 in bore, eccentric locking collar, nitrile contact seals, 89 mm bolt centres, 27 mm centre height.

Same day shipment

List Price

$52.01

1 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	NTN
MPN	AELPL202-010
GTIN	4547359460957
Model	AELPL202-010W3
ID	5/8 in (15.875 mm)
OD	40 mm (1.5750 in)

Technical Specifications

Condition	New
Type	Flanged Mount Bearing
Base Number	AELPL202
Industry Terms	Pillow block, plummer block, eccentric collar bearing, light duty mounted unit
Application Types	Light conveyors, fans, agricultural equipment, packaging machinery
Total Width	28.600 mm (1.1260 in) insert overall
Overall Width	10 mm (0.3937 in) outer ring
Bolt Center To Center Length	89 mm (3.5039 in)
Bore Shaft Size	5/8 in (15.875 mm)
Housing Style	Two-Bolt Pillow Block
Locking Method	Eccentric Locking Collar
Replacement Insert	AEL202-010
Mpn Variants	AELPL202-010, AELPL 202-010, AELPL202-010W3, AEL202-010, PL201
Material	Cast Iron Housing, Chrome Steel Insert
Min Temp	-40 °C (-40 °F)
Dynamic Load Rating	9.60 kN (2,158 lbf)
Static Load Rating	4.60 kN (1,034 lbf)
Precision Rating	ISO Class 0
Series	AELP / AELPL
Rolling Elements	Balls, Through-Hardened Steel
Max Temp	120 °C (250 °F)
Bearing Type	Mounted Ball Bearing Pillow Block Unit
Item Weight	0.470 kg (1.039 lb) each
Cage Material	Pressed Steel
Number Of Rows	1
Bore Type	Cylindrical
Internal Clearance	CN
Housing Material	Cast Iron
Design Units	Inch
Part Number	AELPL202-010
Mounting Type	Two-Bolt Base Mount

Seller Part Number: AM5B2#DIVHGE

Product Description

What this part is

NTN AELPL202-010 mounted ball bearing unit. Housing Style: Two-Bolt Pillow Block, narrow cast body. Bore / Shaft Size: 5/8 in (15.875 mm). Bore Type: Cylindrical. Design Units: Inch. Locking Method: Eccentric Locking Collar. Insert Part Number: AEL202-010. Housing Number: PL201. Housing Material: Cast Iron. Housing Construction: One piece. Performance Class: Light duty. End Type: Open. Unit Quantity: 2 Pcs.

Housing style and bolt pattern

Two-bolt pillow block base. Bolt Hole Centres: 89 mm (3.5039 in). Bolt Hole Width: 11 mm (0.4331 in). Bolt Hole Length: 14 mm (0.5512 in). Base to Shaft Centre Height: 27 mm (1.0626 in). Overall Length: 121 mm (4.7638 in). Housing Width: 35 mm (1.3780 in). Total Height: 54 mm (2.1260 in). Base Thickness: 13 mm (0.5118 in). Housing Length at Base: 40 mm (1.5748 in).

Insert bearing data

Outside Diameter: 40 mm (1.5750 in). Inner Ring Width: 10 mm (0.3937 in). Outer Ring Width: 10 mm (0.3937 in). Insert Width Overall: 28.600 mm (1.1260 in). Rolling Elements: Balls, through-hardened steel. Cage Material: Pressed Steel. Internal Clearance: CN. Precision Rating: ISO Class 0. Seal Type: Contact. Seal Material: Nitrile Rubber. Insert outer ring is spherical and self-aligning in the housing seat.

What these specs mean in practice

Dynamic Load Rating: 9.60 kN (2,158 lbf). Static Load Rating: 4.60 kN (1,034 lbf). Rotational Speed, Maximum: 10,000 RPM on grease. Operating Temperature Range: −40 to 120 °C (−40 to 250 °F). Item Weight: 0.470 kg (1.039 lb) each. The eccentric locking collar drives against a matching eccentric step on the extended inner ring, so the collar locks by shaft rotation in the drive direction and leaves the shaft surface unmarked, unlike a set screw.
