Two-bolt cast iron flange mount ball bearing unit, 1-1/16 in bore, ball insert, for shaft support through a vertical mounting face.
List Price
$52.62
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Piloted Flange Cartridge Ball Bearing - 1-5/8 in Bore, 4-Bolt, Cast Iron Housing$48.55
Two-Bolt Flange Mount Ball Bearing Unit, 1-7/16" Bore, Normal Duty, Cast Iron, Setscrew Locking, Non-Expansion$32.09
Two-Bolt Flange Mount Ball Bearing Unit, 1-1/16" Bore, Cast Iron, Setscrew Locking, Non-Expansion$32.64
Four-Bolt Square Flange Ball Bearing Unit - 1-1/16 in Bore, 206 Series, Setscrew Lock, Non-Expansion, 3-1/4 in Bolt Centres$33.96| MFR / Brand | MB |
|---|---|
| MPN | FC2251-116 |
| Model | FC2X25-11/16 / FYT11/16TM / FX3-U211N |
| ID | 1-1/16 in |
| Material | Cast Iron |
|---|---|
| Type | Flanged Mount Bearing |
| Base Number | FC2251 |
| Industry Terms | Two-bolt flange unit, flange block bearing, flange mount bearing unit, mounted ball bearing unit, 2-bolt flange bearing, flange cartridge bearing |
| Common Misspellings | FC2251 116, FC-2251-116, FC2251-1-16, MB Manufacturing, M B bearing |
| Application Types | Conveyor idler and pulley shafts, fan and blower shafts, agricultural drive shafts, general shaft support through a vertical mounting face |
| Number Of Bolt Holes For Fasteners | 2 |
| Bearing Insert Type | Ball |
| Bore Shaft Size | 1-1/16 in (1.0625 in) |
| Housing Style | Two-bolt flange unit |
| Mpn Variants | FC2251-116, FC2-25X1-1/16, FC2X25-11/16, FC2251116, FC2 251 116, FYT11/16TM, FX3-U211N, FX3U211N |
| Additional Attributes | MB FC2251-116 two-bolt cast iron flange mount ball bearing unit. Bore 1-1/16 in (1.0625 in) straight, single-row ball insert, two bolt holes, flange mount. Series FC2. Country of origin United States. |
| Series | FC2 |
| Rolling Elements | Balls |
| Bearing Type | Two-bolt flange mount ball bearing unit |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Mounting Arrangement | Flange mount, two-bolt |
| Housing Material | Cast iron |
| Design Units | English |
| Part Number | FC2251-116 |

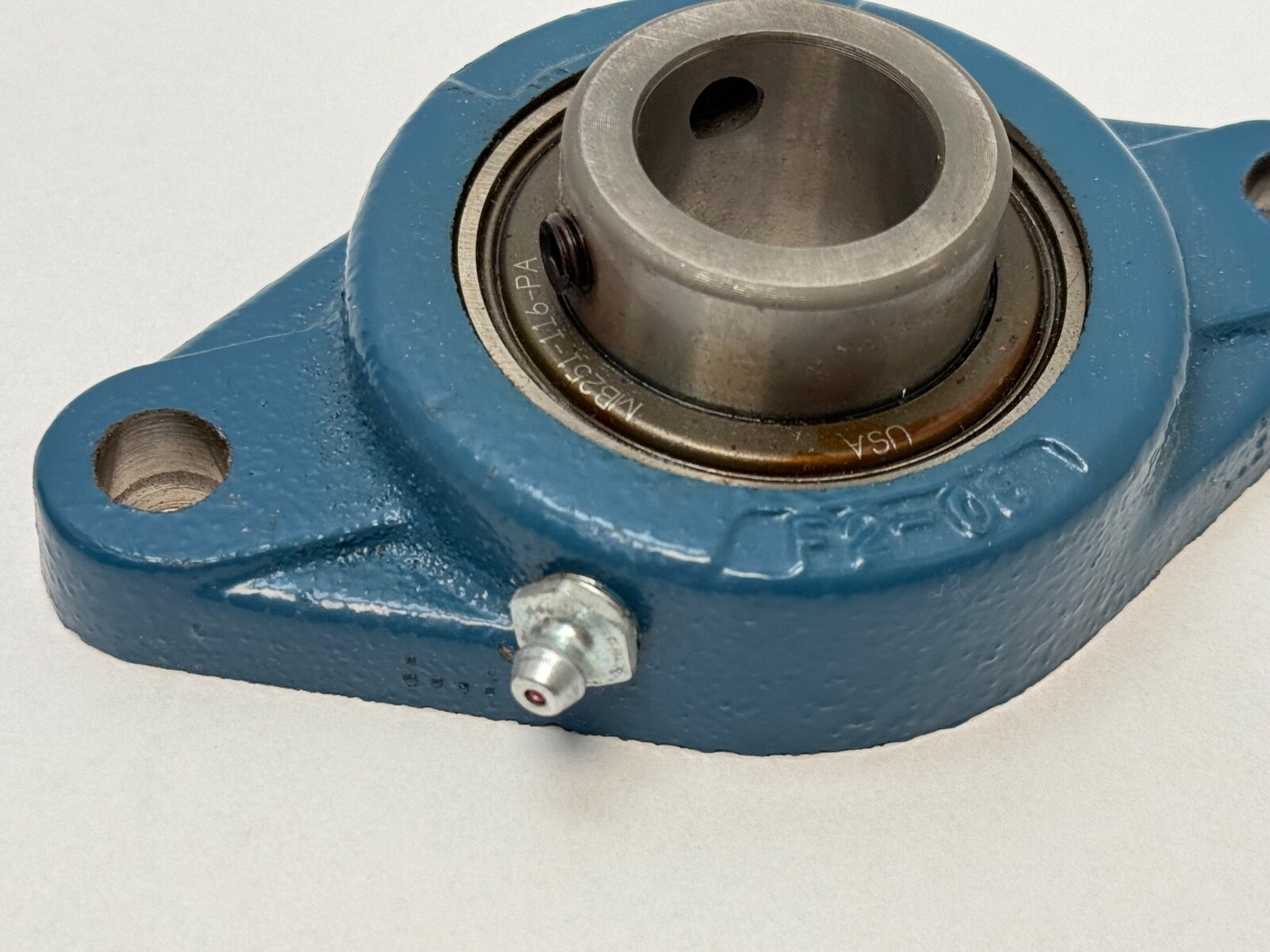

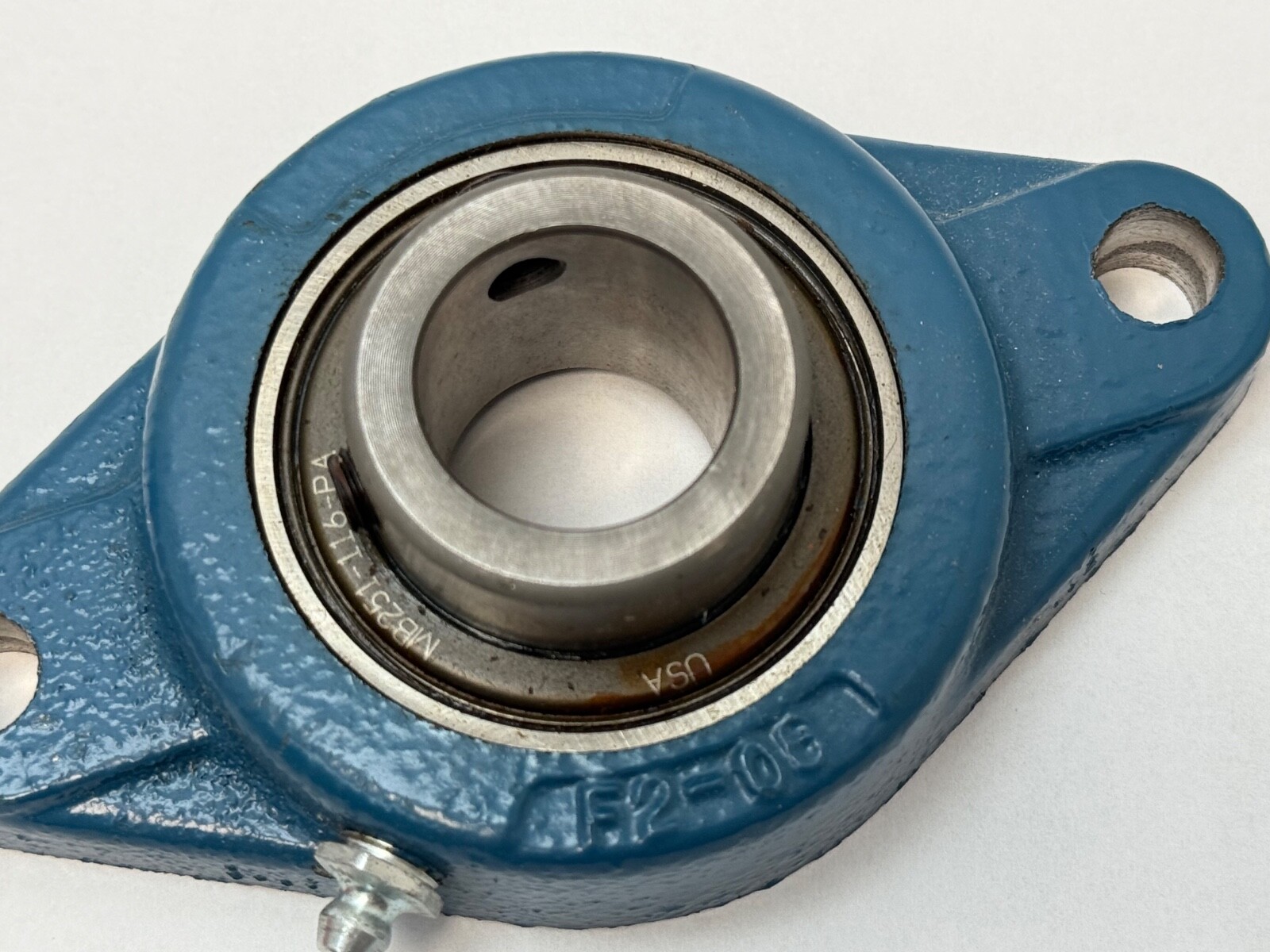

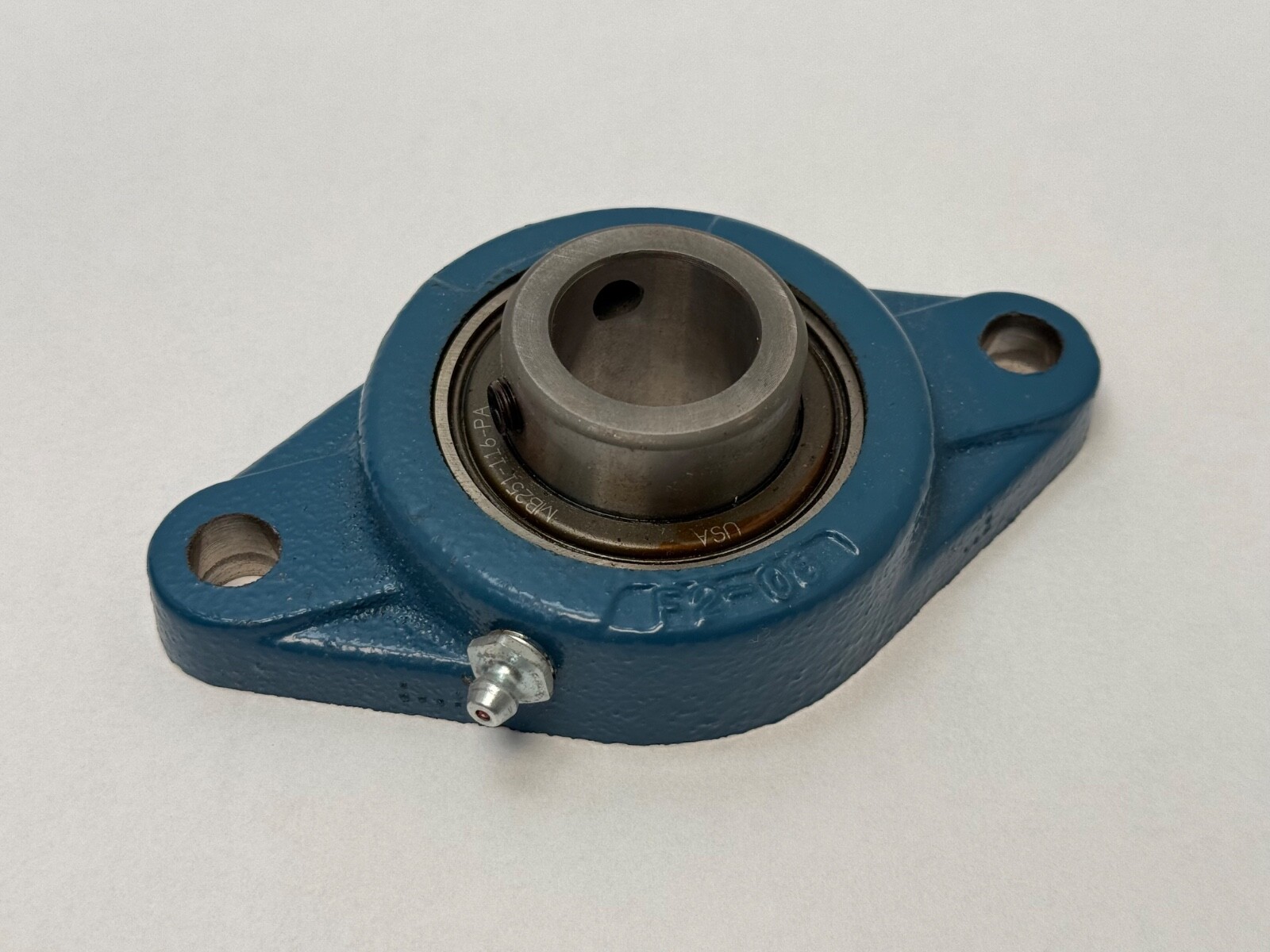

MB FC2251-116, a two-bolt cast iron flange mount ball bearing unit. Series: FC2. Housing Style: Two-bolt flange unit. Housing Material: Cast iron. Bore / Shaft Size: 1-1/16 in (1.0625 in). Bore Type: Straight. Rolling Elements: Balls. Number Of Rows: 1. Number Of Bolt Holes For Fasteners: 2. Country of Origin: United States. Unit Quantity: 2 Pcs.

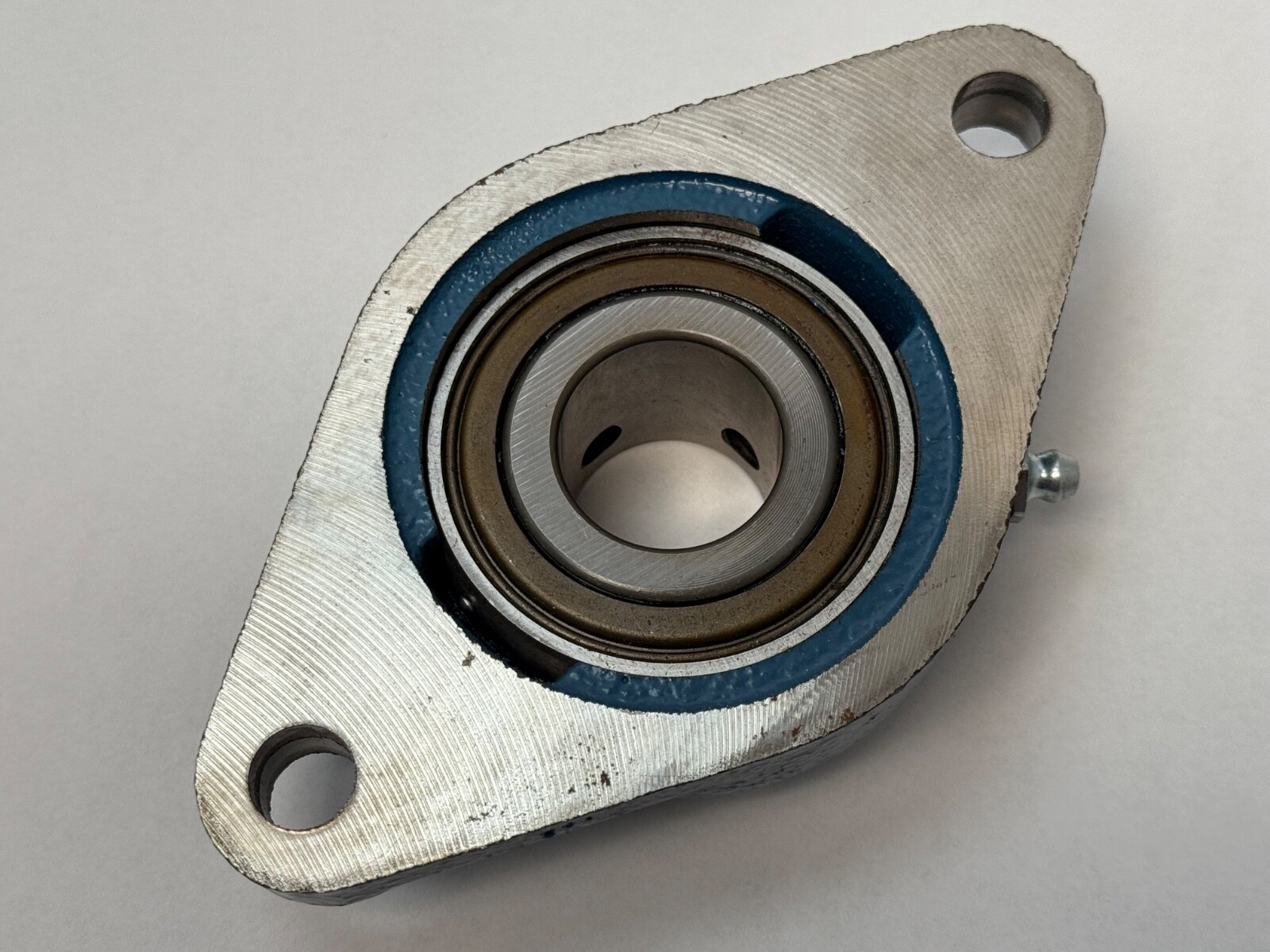

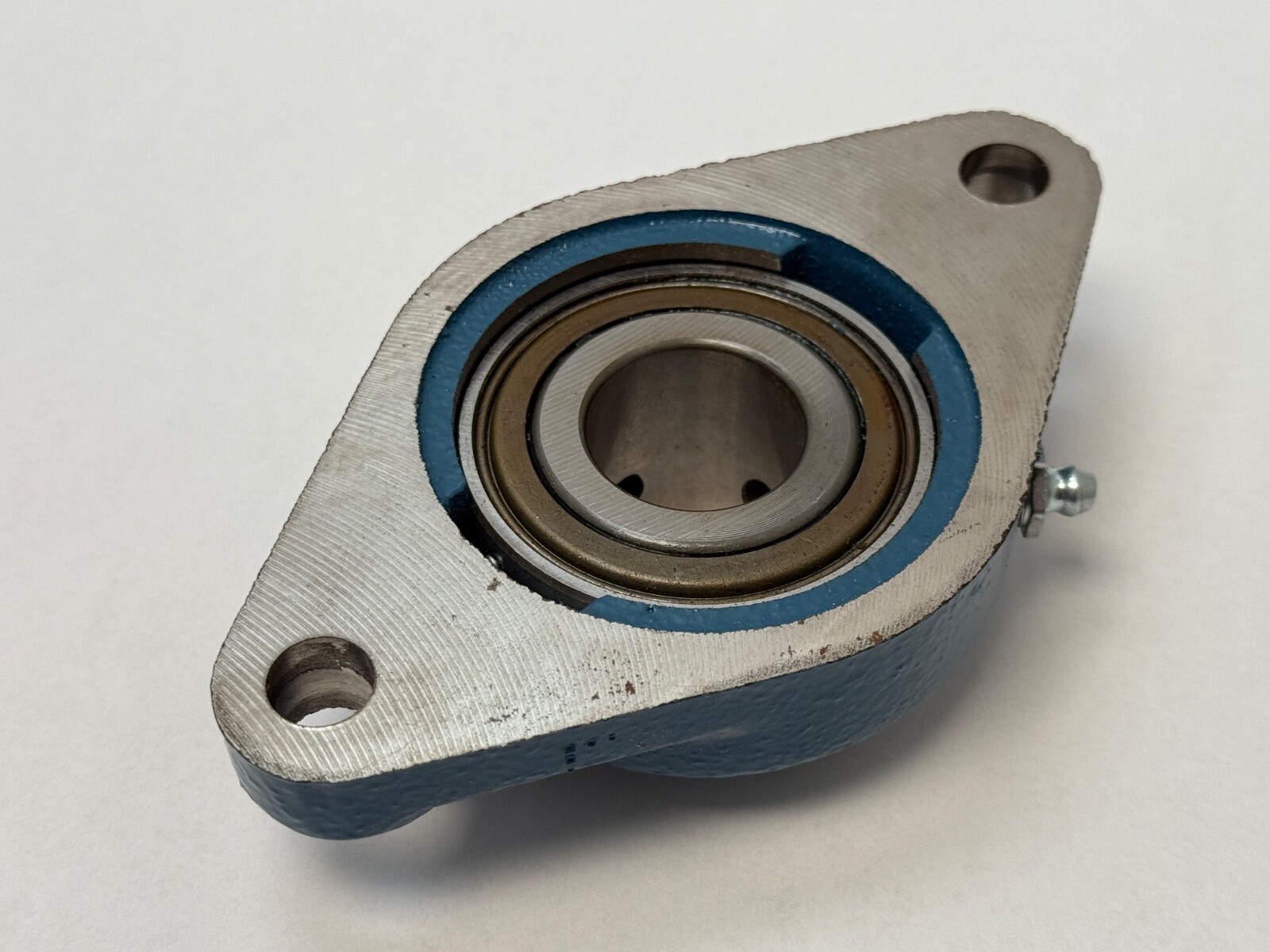

Housing Style: Two-bolt flange unit. Number Of Bolt Holes For Fasteners: 2. Mounting Arrangement: Flange mount. MB’s FC2 prefix is the two-bolt flange housing, so the two mounting bolts sit on a single centre line either side of the shaft and the unit bolts to a vertical face with the shaft passing through it. That is the flange to use where a pillow block has nowhere flat to sit.

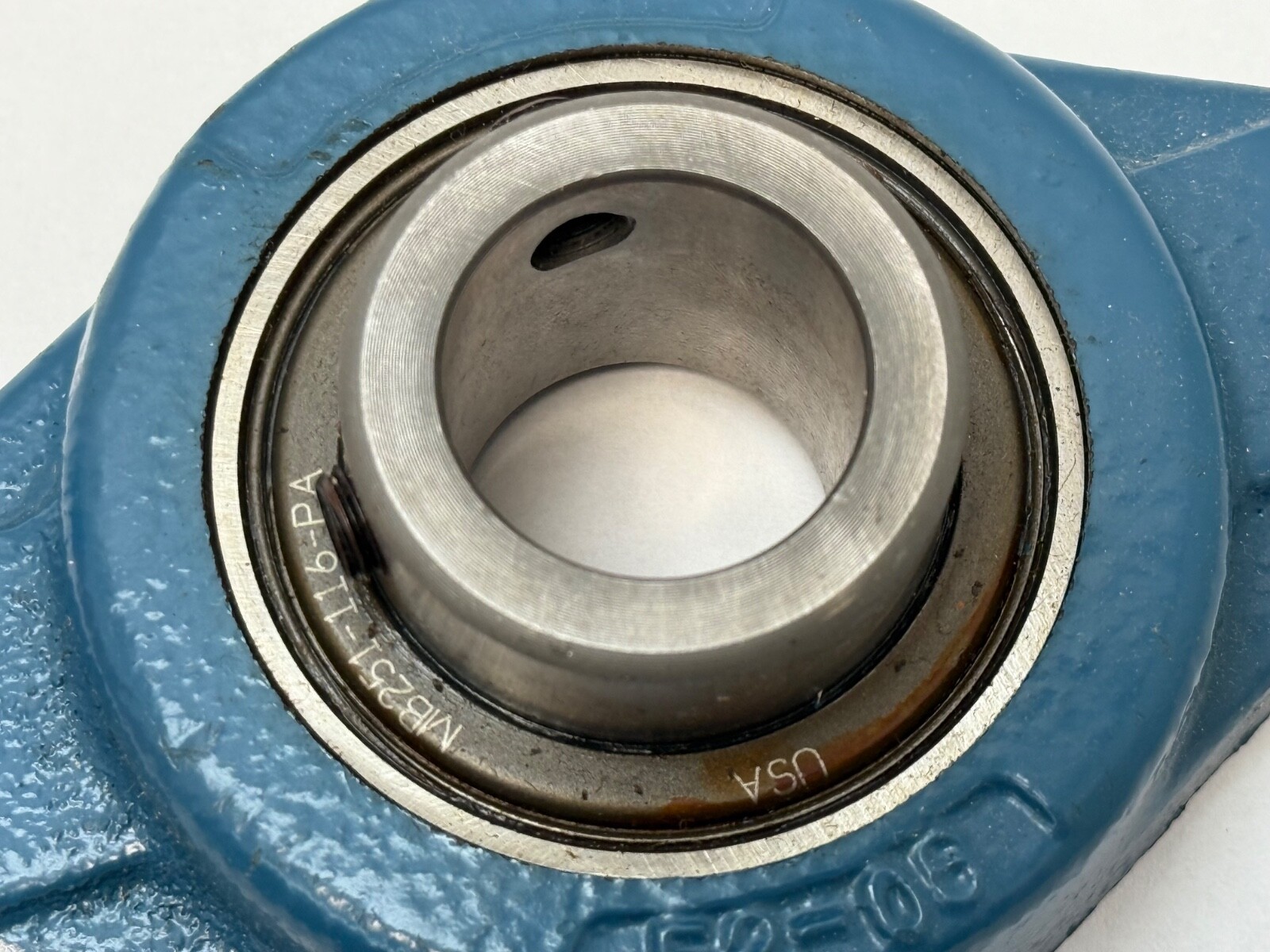

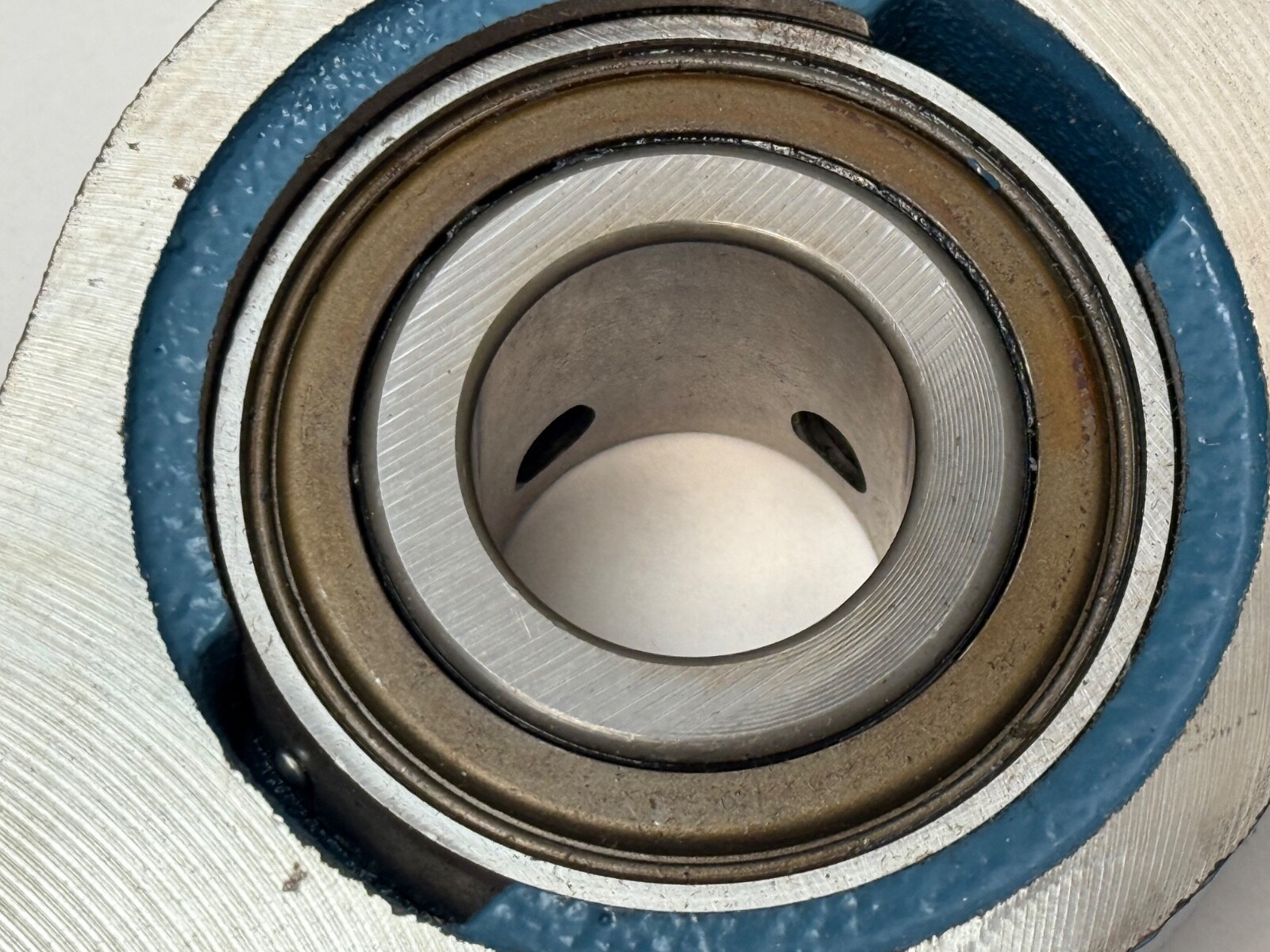

Rolling Elements: Balls. Number Of Rows: 1. Housing Material: Cast iron. Bore Type: Straight. The insert is a single-row ball bearing running on a straight commercial shaft, and the cast iron housing carries the load path from the insert into the mounting face.

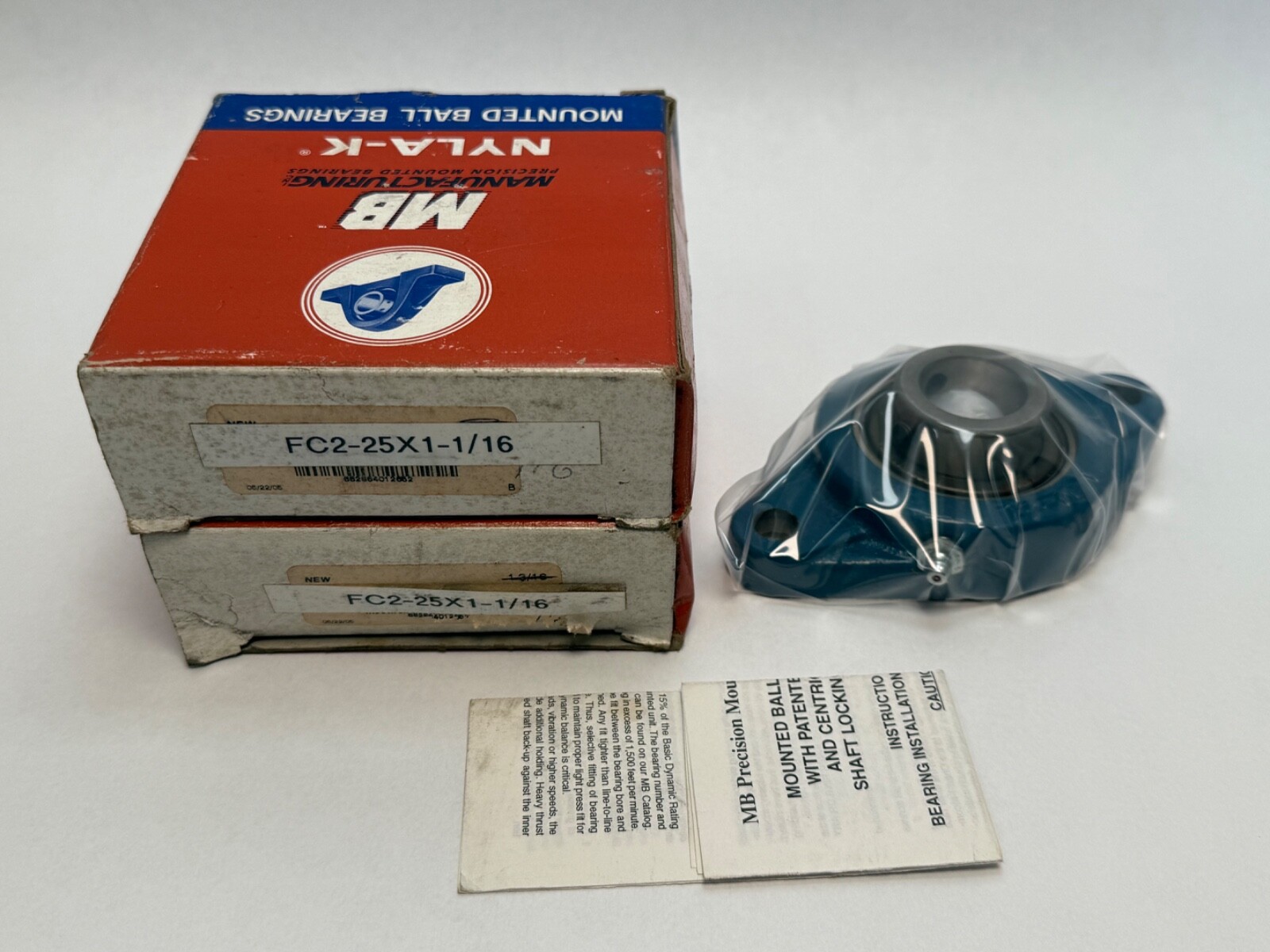

Unit Quantity: 2 Pcs. Two complete flange units, each with its cast iron two-bolt housing and ball insert.
Searchable forms of the designation: FC2251-116, FC2-25X1-1/16, FC2X25-11/16, FC2251116, FC2 251 116, FYT11/16TM, FX3-U211N, FX3U211N.
