INA RASE2-7/16 two-bolt pillow block ball bearing unit, 2-7/16 in bore, cast iron housing, eccentric collar lock, 2.752 in shaft height, 7.451 in bolt centres.
List Price
$124.06
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | INA |
|---|---|
| MPN | RASE2-7/16 |
| Model | RASE2-7/16 |
| ID | 2-7/16 in |
| Series | RASE |
|---|---|
| Type | Pillow Block Bearing |
| Bolt Center To Center | 7.451 in |
| Number Of Bolt Holes | 2 |
| Rolling Elements | Ball |
| Bearing Type | Pillow Block Bearing |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Locking Device | Eccentric Collar |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Cast Iron |
| Expansion Type | Non-expansion |
| Industry Terms | pillow block, plummer block, mounted ball bearing, two-bolt pillow block |
| Common Misspellings | RAS2-7/16, RASE27/16, RASE-2 7/16 |
| Application Types | conveyors, fans, blowers, agricultural machinery, general shaft support |
| Mpn Variants | RASE2-7/16, RASE 2-7/16, RASE-2-7/16, RASE2.7/16, RASE 2 7/16 |
| Additional Attributes | Base to Bore Centerline: 2.752 in; Overall Height: 5.512 in; Overall Length: 9.646 in |
| Dynamic Load Rating | 11,800 lbf |
| Static Load Rating | 8,100 lbf |

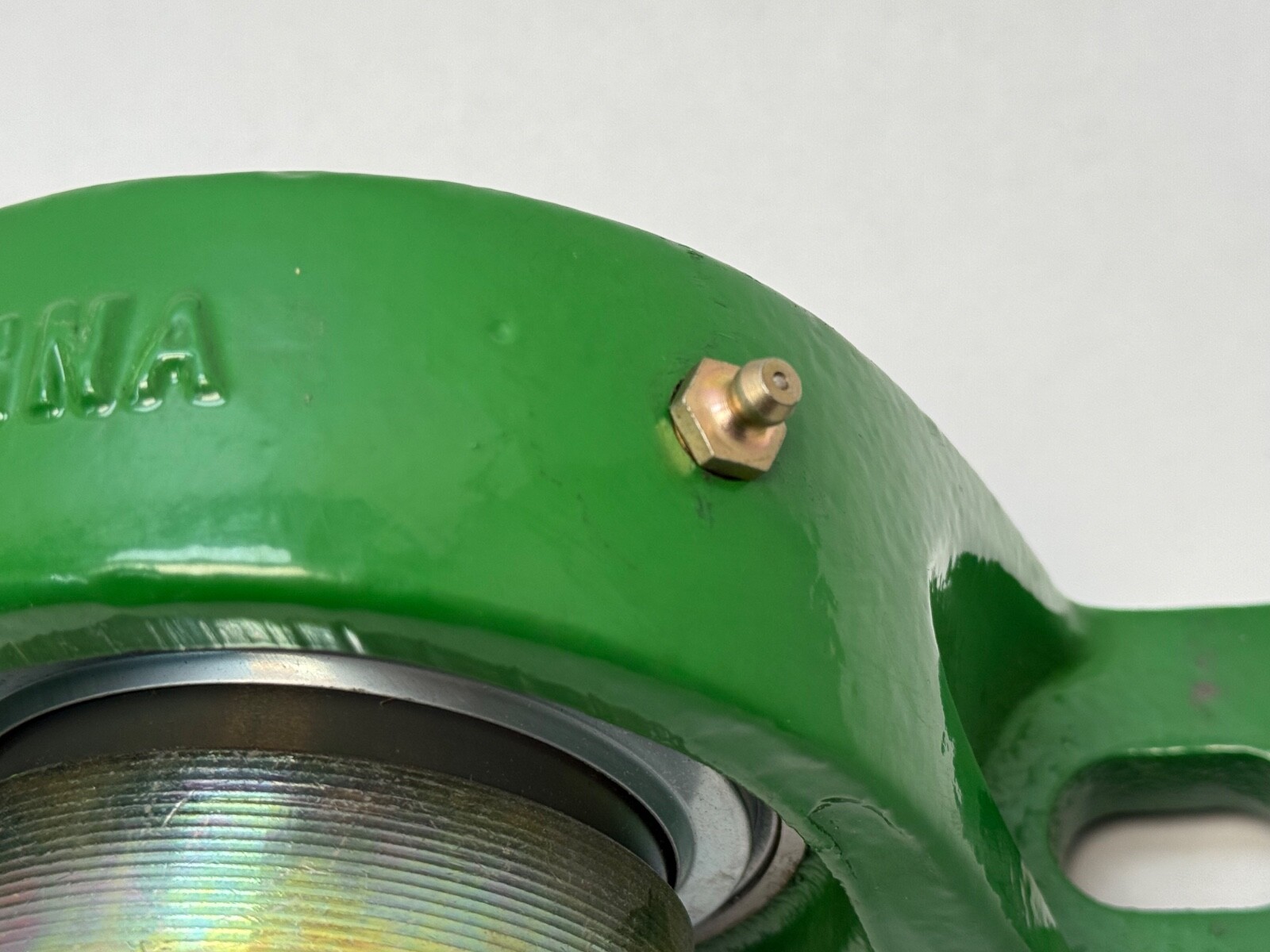

| Relubrication Feature | Grease fitting |

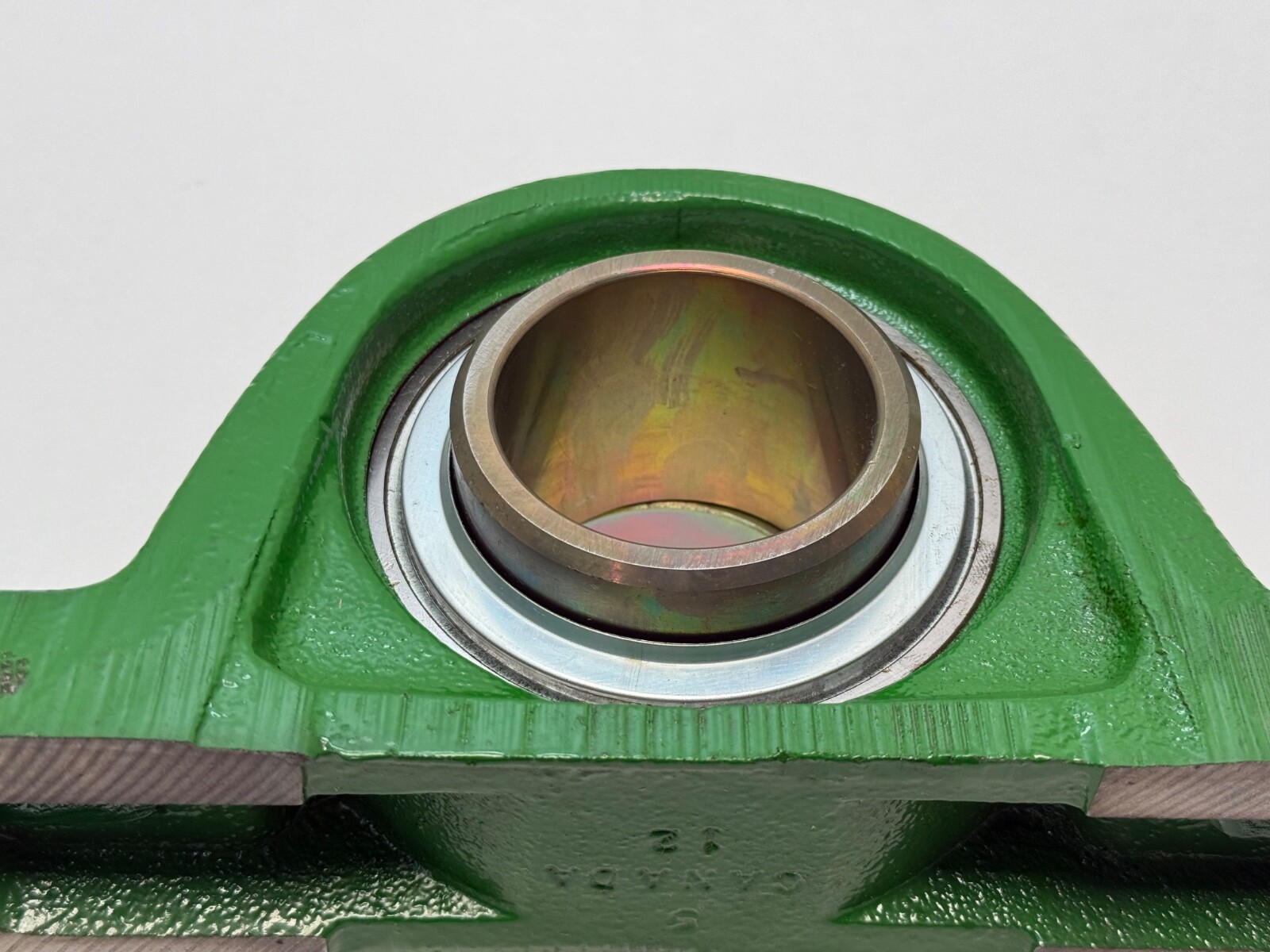

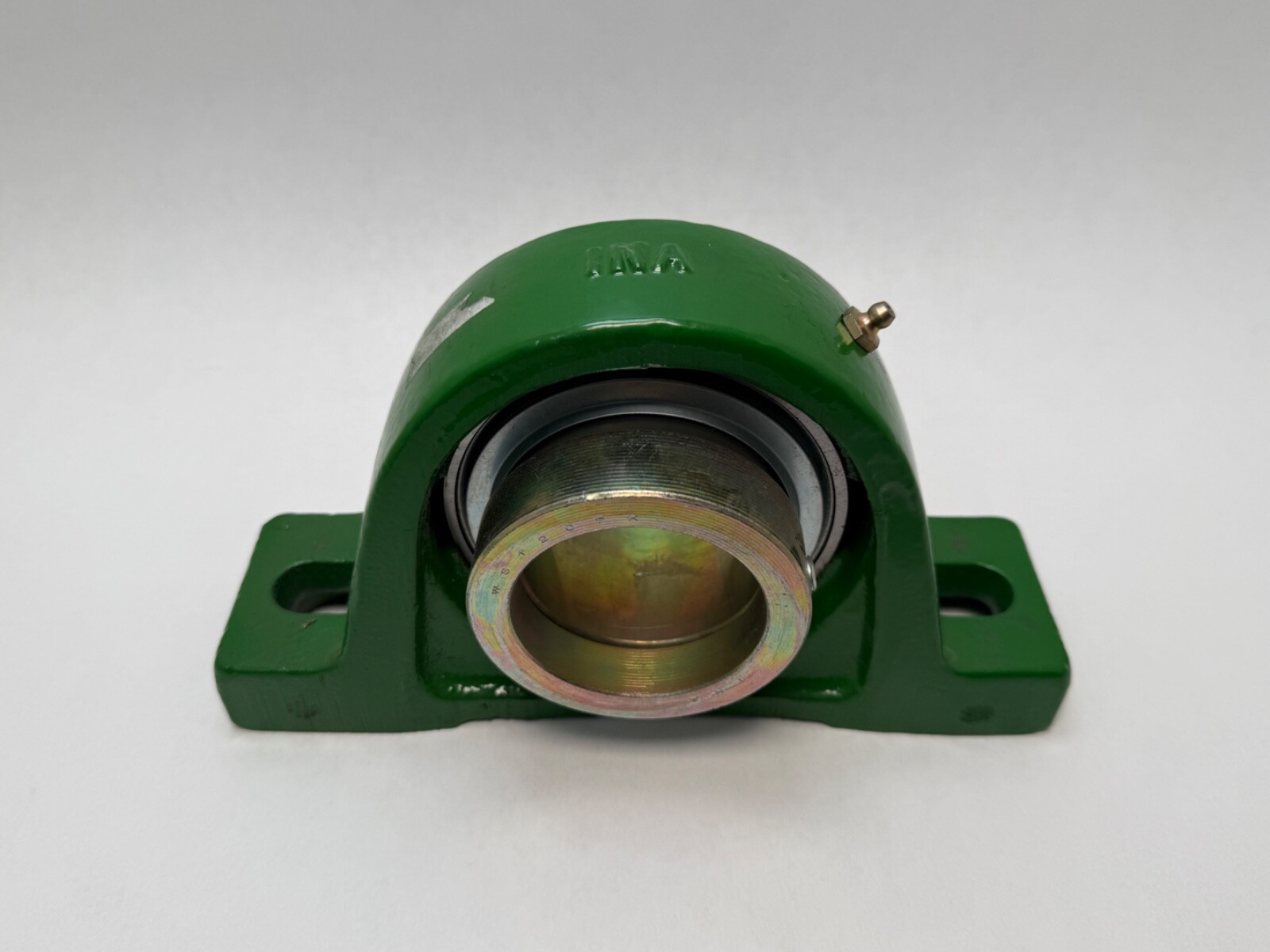

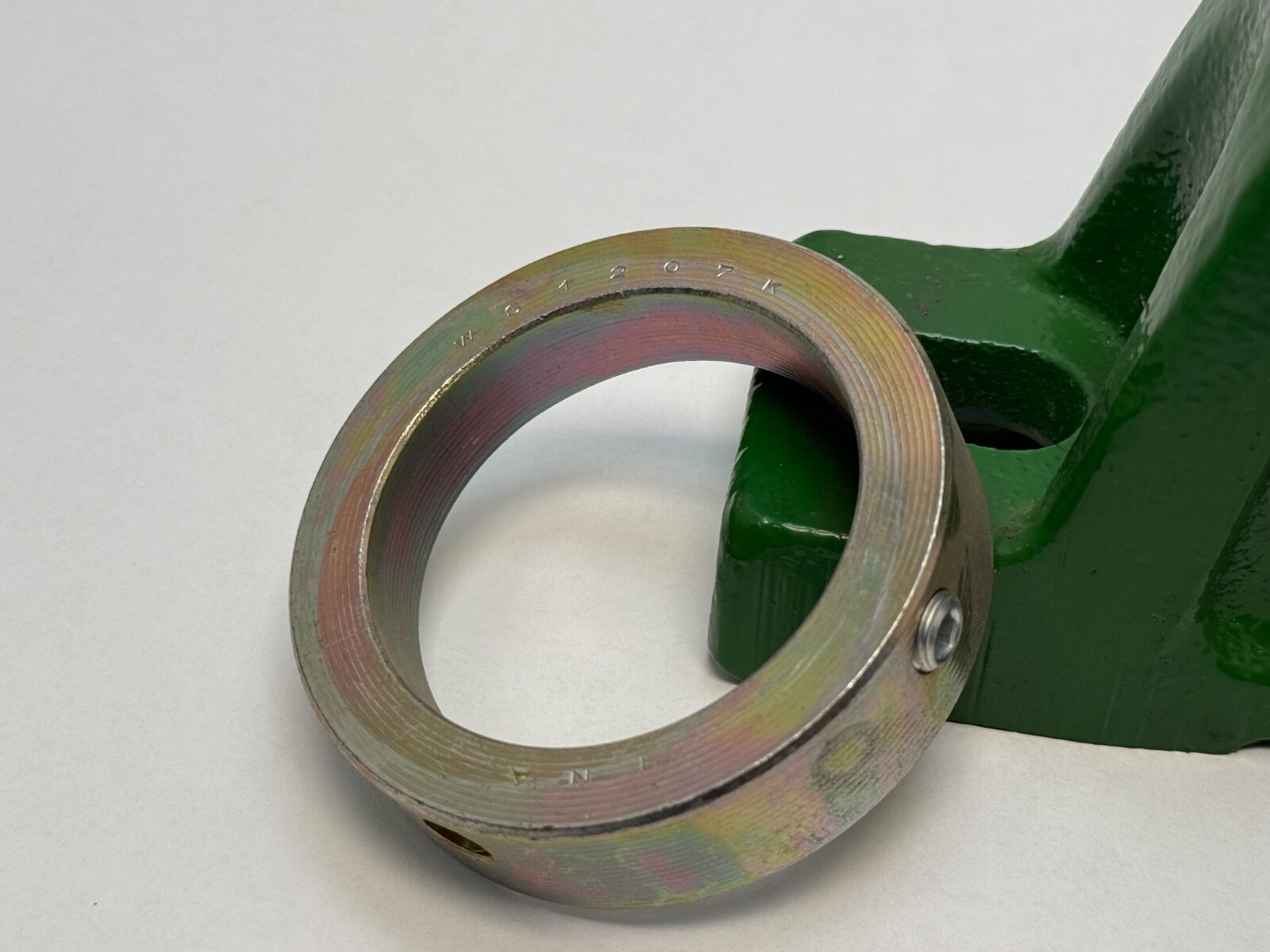

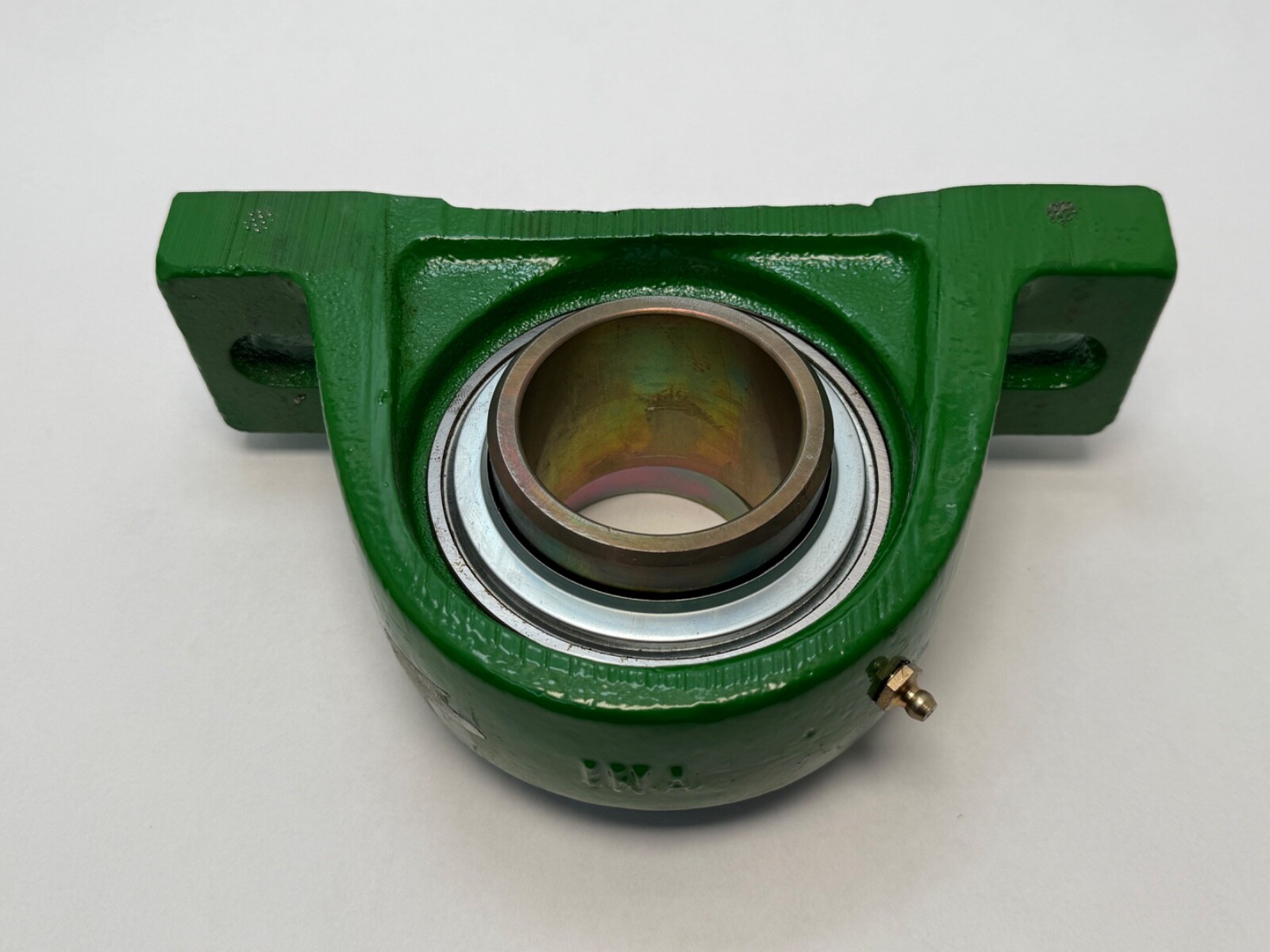

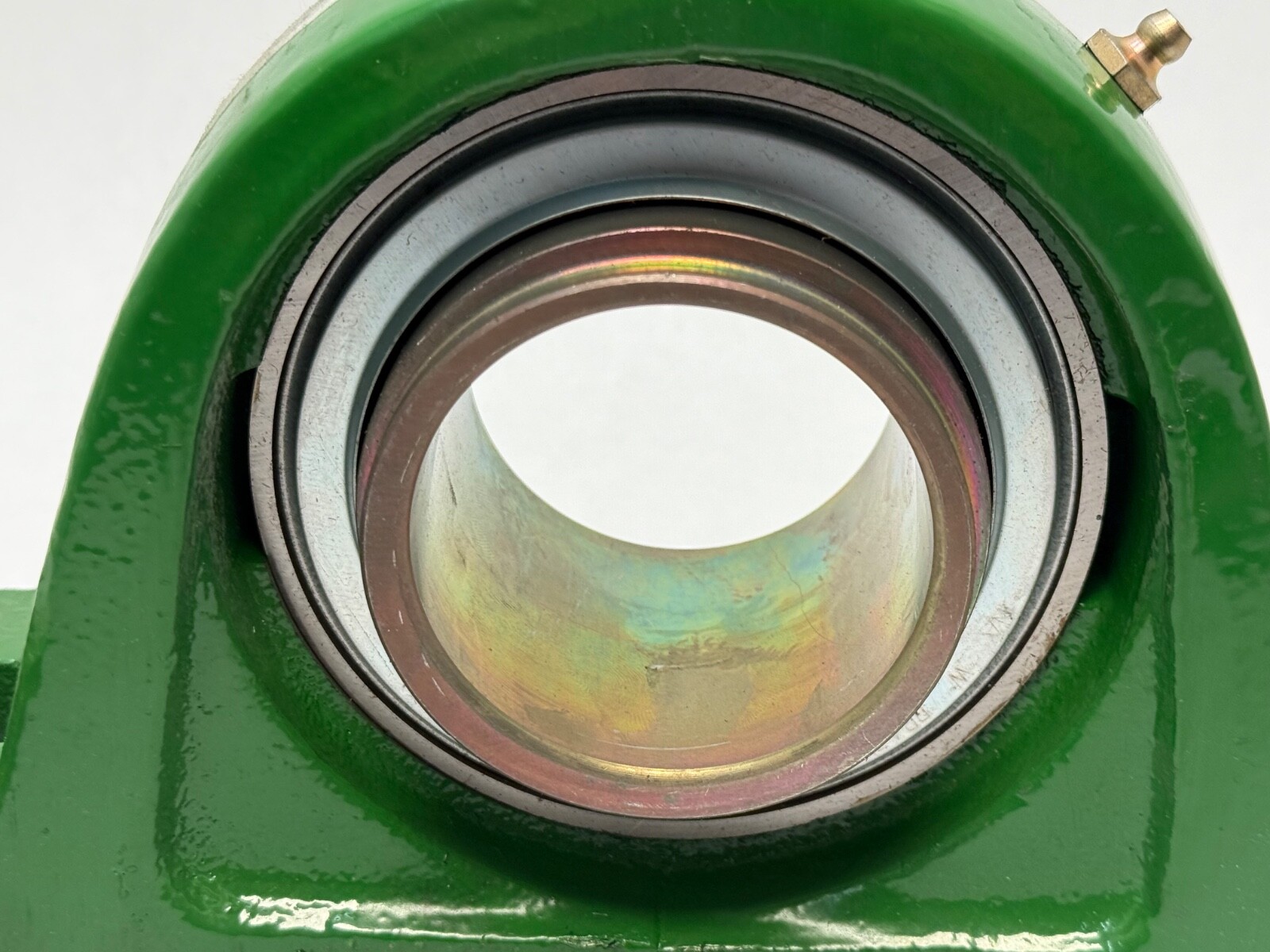

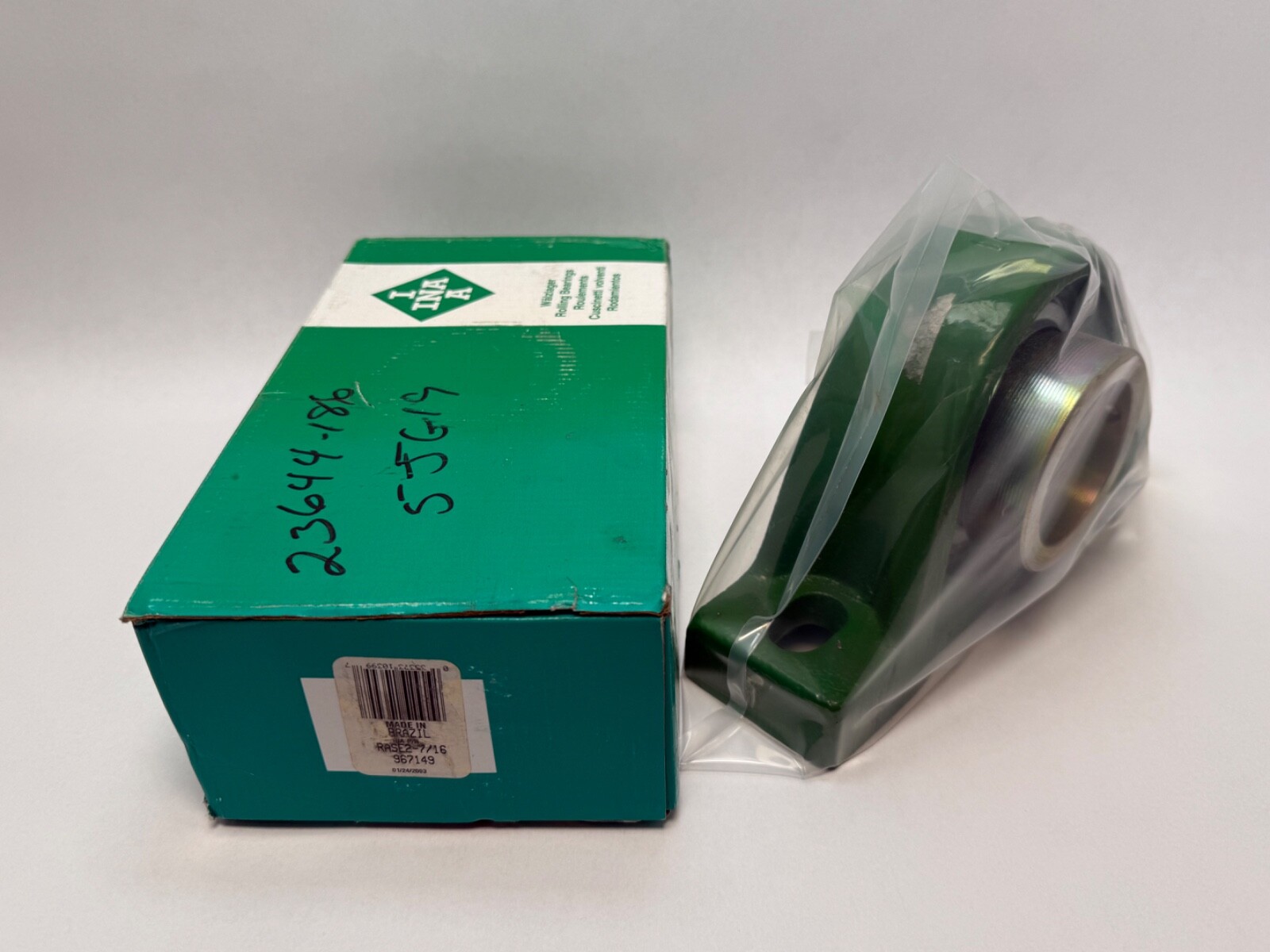

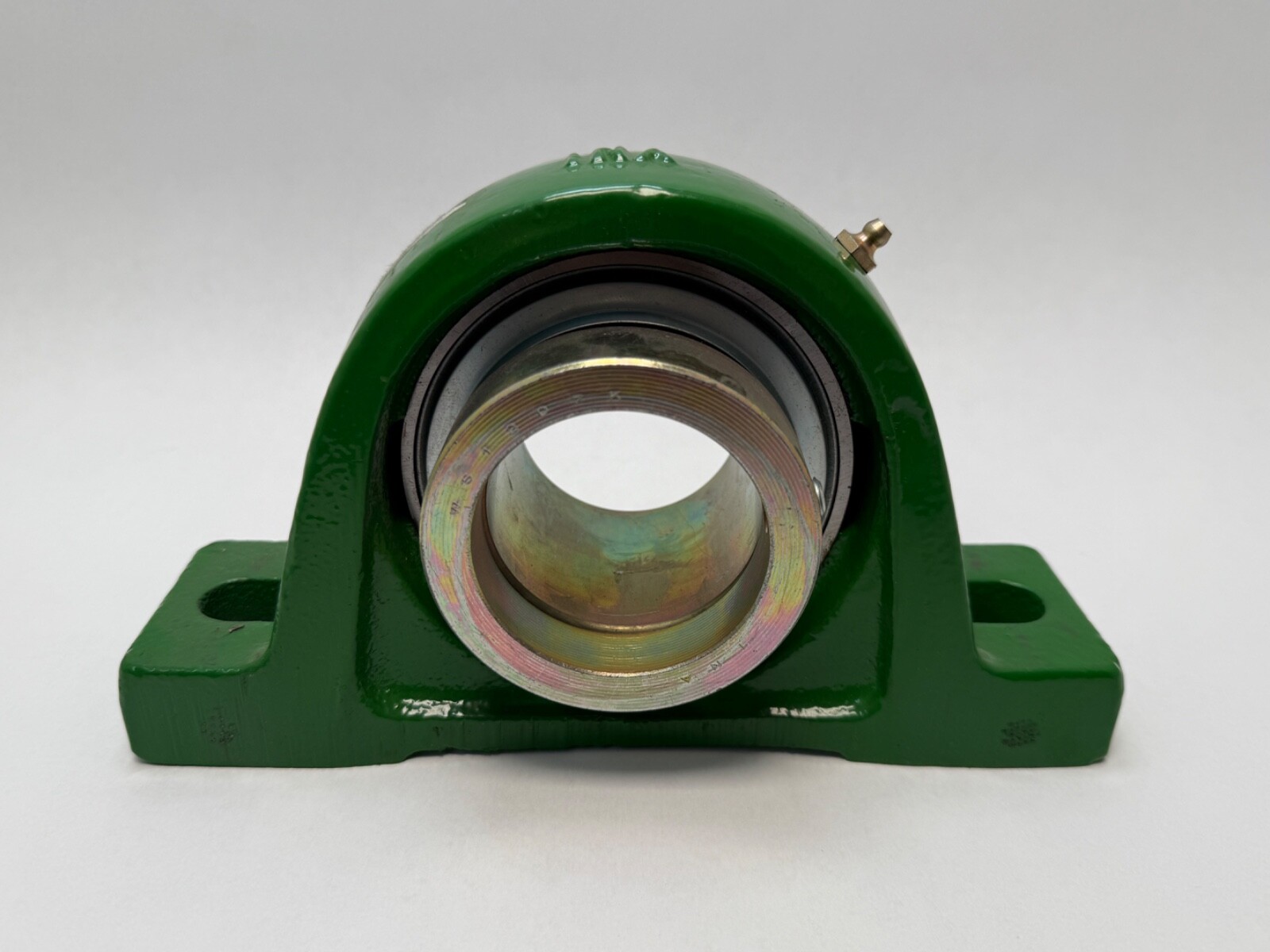

INA RASE2-7/16 is a two-bolt pillow block ball bearing unit: a cast iron plummer housing carrying a deep groove ball bearing insert with an eccentric locking collar, for a 2-7/16 in shaft. Complete unit, housing and bearing insert. Unit Quantity: 1 Pc.
RASE — INA two-bolt pillow block with eccentric locking collar insert.
2-7/16 — 2-7/16 in shaft bore.
Bore Diameter: 2-7/16 in. Housing Material: Cast iron. Locking Device: Eccentric collar. Expansion Type: Non-expansion (fixed). Number Of Bolt Holes: 2. Rolling Elements: Ball. Relubrication Feature: Grease fitting. Series: RASE.
Dynamic Load Rating: 11,800 lbf. Static Load Rating: 8,100 lbf.
Base to Bore Centerline: 2.752 in. Bolt Center To Center: 7.451 in. Overall Height: 5.512 in. Overall Length: 9.646 in.
MPN variants: RASE2-7/16, RASE 2-7/16, RASE-2-7/16, RASE2.7/16, RASE 2 7/16.
A two-bolt pillow block ball bearing unit with a cast iron housing and an eccentric collar insert.
Bore Diameter: 2-7/16 in.
Bolt Center To Center: 7.451 in. Base to Bore Centerline: 2.752 in. Overall Height: 5.512 in. Overall Length: 9.646 in.
