Availability:
16 in stock
Two-bolt flange bearing unit, 1-1/2 in bore, D-LOK clamp collar, polymer washdown housing. 5.65 in bolt centres, triple-lip contact seals, relubricatable.
List Price
$83.93
16 in stock
16 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | DODGE |
|---|---|
| MPN | F2B-DLEZ-108-PCR |
| GTIN | 782475985074 |
| Model | w/ Collar F2BDLEZ108 PCR |
| ID | 1.5 in |
| OD | 6.77 in |
| Width | 2.15 in |
| Material | Stainless Steel |
|---|---|
| Series | 208 Series |
| Condition | New |
| Type | Flanged Mount Bearing |
| Lubricant | Grease |
| Base Number | 127608 |
| Industry Terms | E-Z Kleen flange block, washdown flange bearing, polymer 2-bolt flange unit, D-LOK flange bearing |
| Application Types | Washdown, food and beverage, chemical wash, corrosive environments |
| Bolt Center To Center | 5.65 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 5.650 in (143.5 mm) |
| Number Of Bolt Holes For Fasteners | 2 |
| Bore Shaft Size | 1-1/2 in (38.1 mm), straight round bore |
| Housing Style | 2-Bolt Flange, solid polymer |
| Locking Method | D-LOK concentric clamp collar |
| Relubrication | Relubricatable through the housing fitting |
| Mpn Variants | F2BDLEZ108PCR; F2B DLEZ 108 PCR; F2B-DLEZ-108-PCR/127608; 127608 |
| Min Temp | -29°C |
| Cage Type | Not specified |
| Dynamic Load Rating | 32.6 kN / 7332 lbf |
| Static Load Rating | 19.9 kN / 4475 lbf |
| Rolling Elements | Balls |
| Max Temp | 107°C |
| Bearing Type | Flange Unit, Mounted Ball Bearing |
| Item Weight | 2.80 lb (1.27 kg) |
| Cage Material | Steel |
| Limiting Speed | 3500 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Duty Type | Normal Duty |
| Locking Device | D-LOK |
| Insert Outer Ring | Spherical |
| Relubrication Feature | With |
| Harmonization Code | 8483.20.4040 |
| Mounting Arrangement | 2-Bolt Flange |
| Housing Material | PBT Polymer |
| Expansion Type | Non-Expanding |
| Part Number | F2B-DLEZ-108-PCR |
| Cross Reference 1 | SKF F2B 108-D-PCR |
|---|

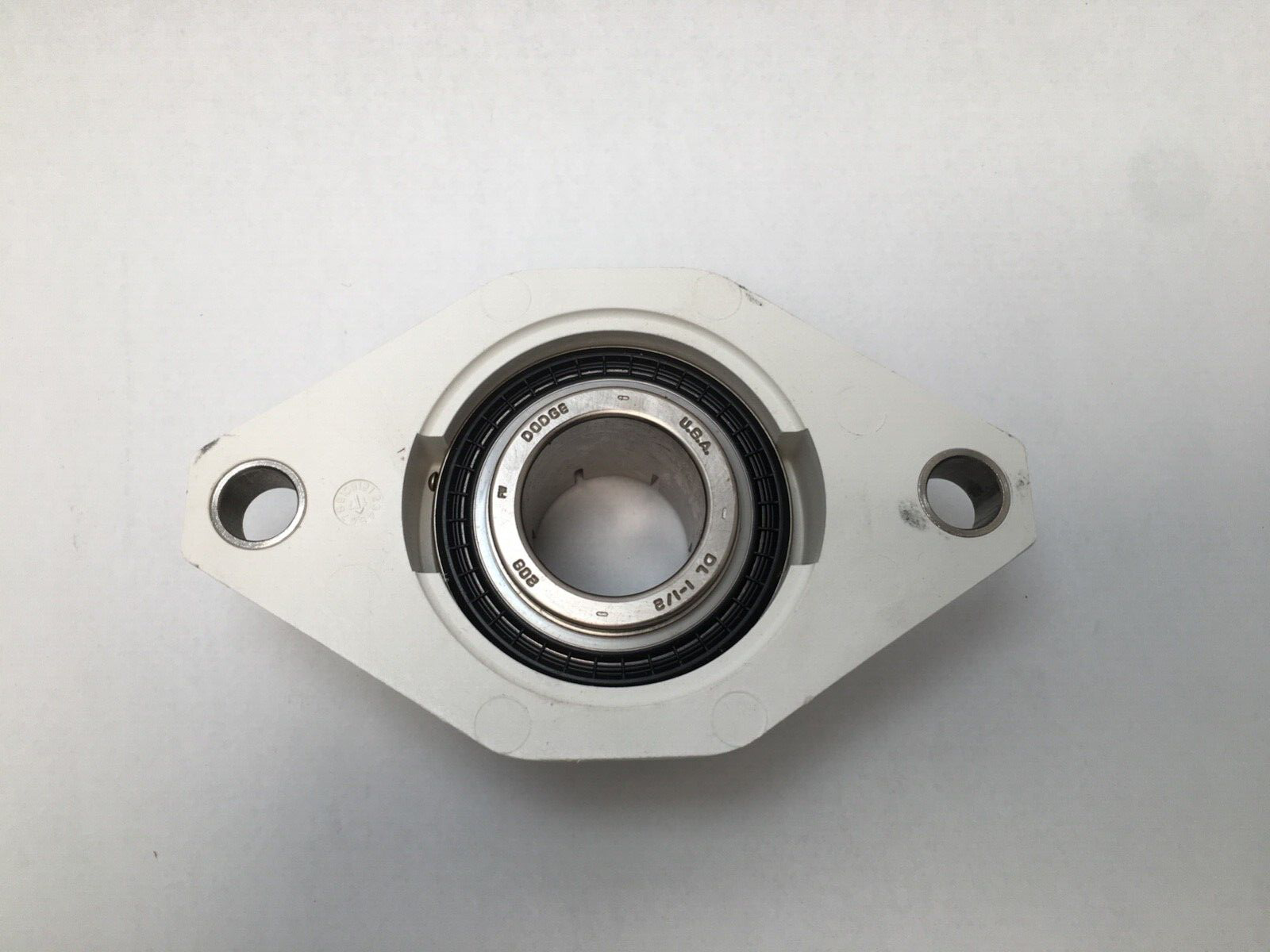

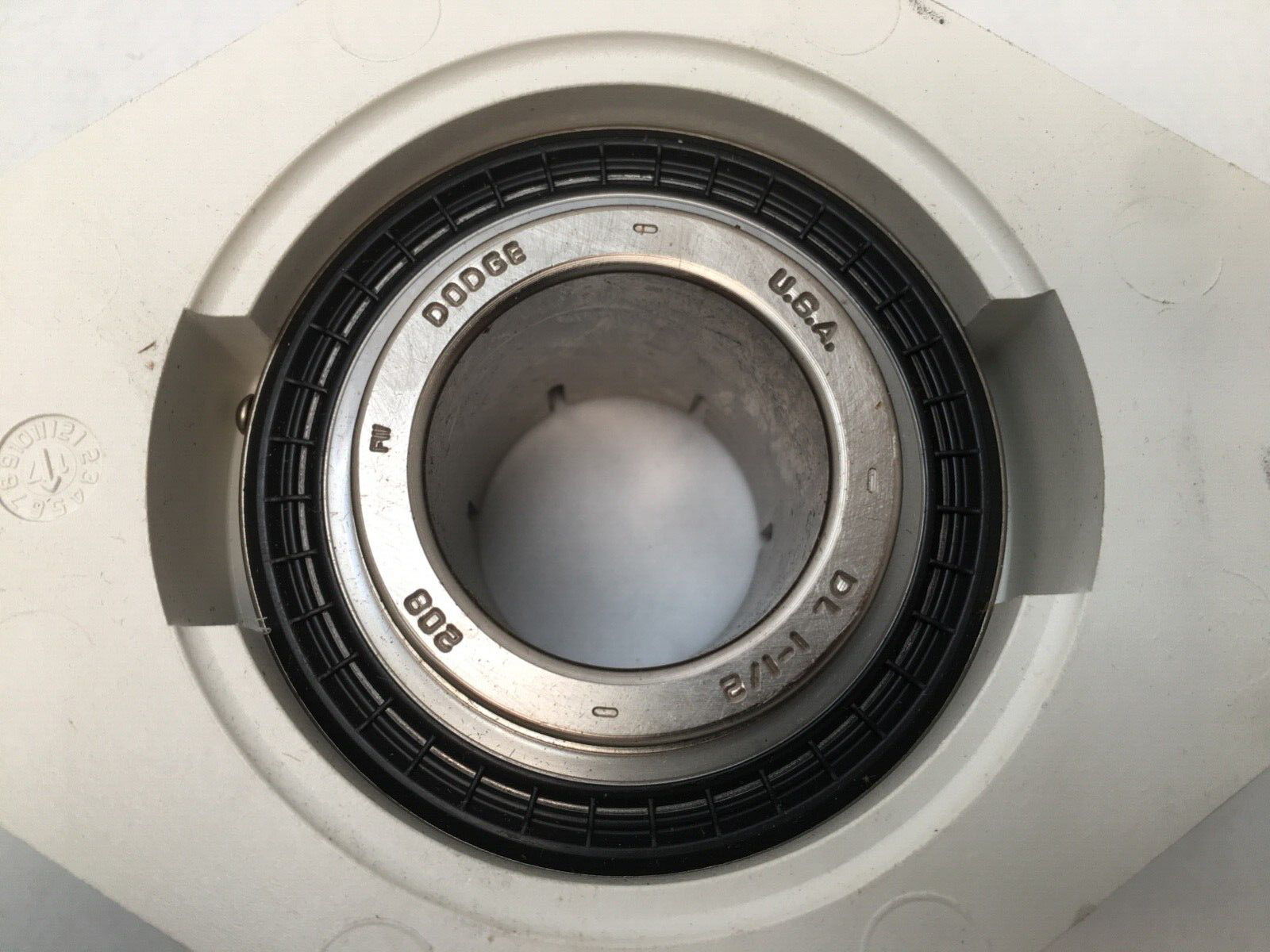

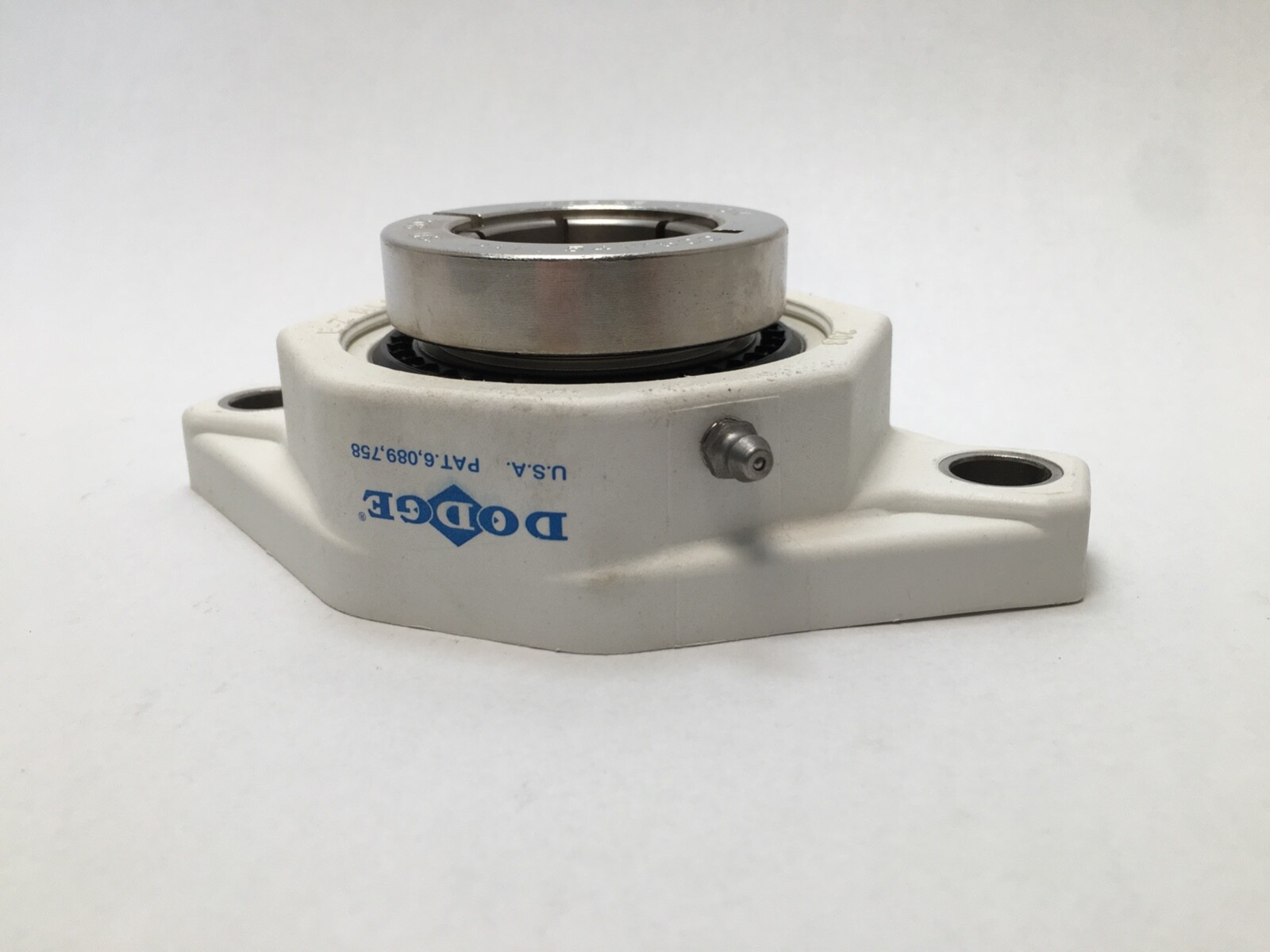

Dodge F2B-DLEZ-108-PCR two-bolt flange-mount ball bearing unit, manufacturer catalogue number 127608. Bore: 1-1/2 in, straight and round. Series: 208. Housing: solid PBT polymer, two-bolt flange. Insert: normal-duty wide inner ring ball bearing with a plated steel outer ring, spherical outside surface for self-alignment. Locking device: D-LOK concentric clamp collar. Expansion type: non-expansion (fixed).
F2B: two-bolt flange block. DL: D-LOK concentric clamp collar shaft attachment. EZ: E-Z Kleen washdown construction. 108: 1-1/2 in bore. PCR: polymer housing with a corrosion-resistant insert. GTIN: 782475985074.
Two-bolt flange, solid polymer. Bolt centre to centre: 5.650 in. Bolt hole diameter: 0.500 in, for 1/2 in fasteners. Bore length through the insert: 2.01 in. Weight: 2.80 lb.
Dynamic load capacity: 7332 lbf (32.6 kN). Static load capacity: 4475 lbf (19.9 kN). Maximum speed: 3500 rpm. Operating temperature range: -29 °C to 107 °C (-20 °F to 225 °F).

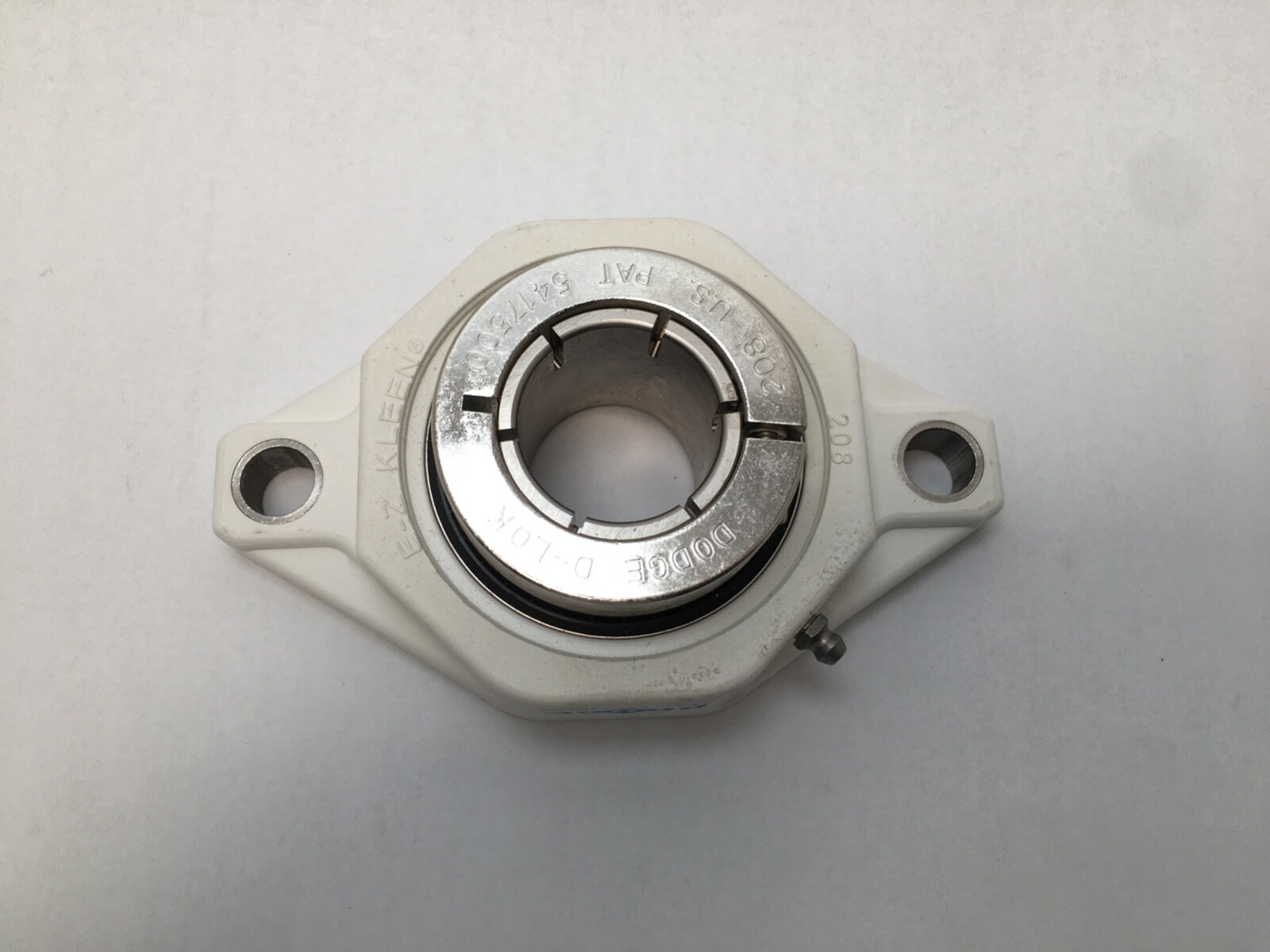

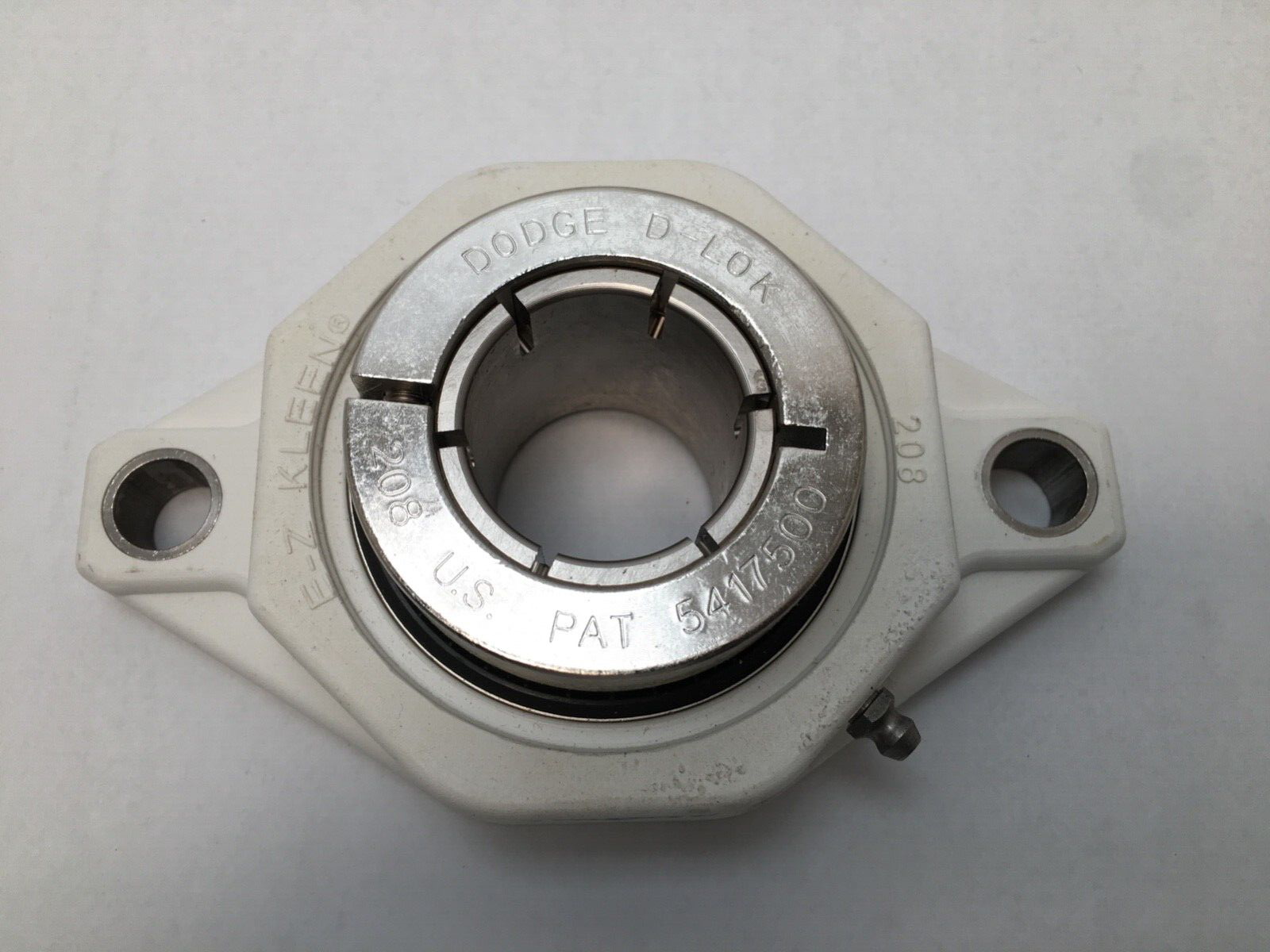

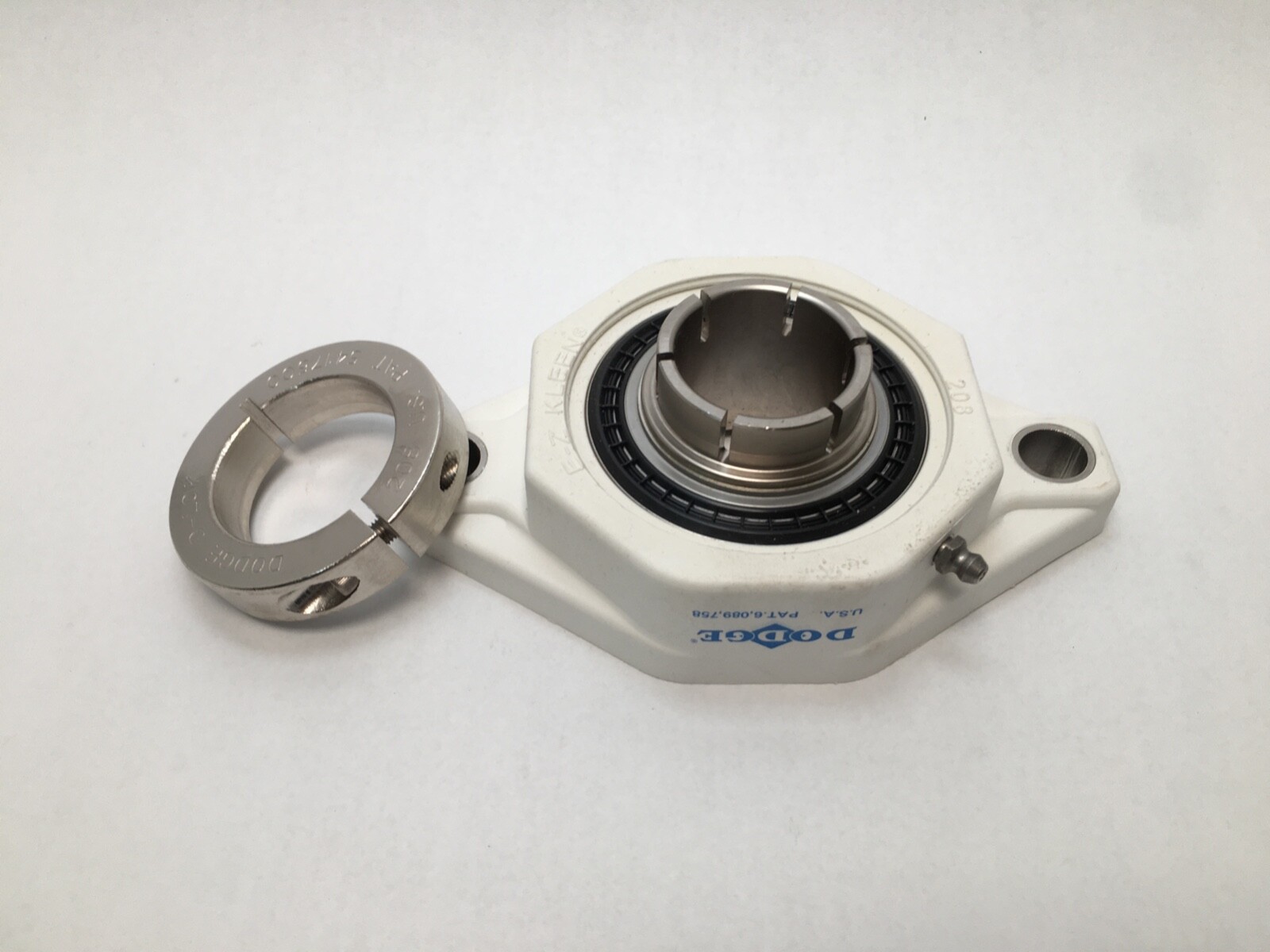

The polymer housing and corrosion-resistant insert suit washdown and chemically aggressive lines where a cast-iron block corrodes at the flange face. The D-LOK concentric clamp collar grips the shaft all the way round instead of on two setscrew points, so it holds a higher reversing load and leaves no burr on the shaft when removed. The spherical insert outside surface takes up initial shaft misalignment during mounting.
Triple-lip contact seals with a rubberised flinger on both sides. Relubricatable through the housing fitting. Factory grease: MobilGrease FM222, an NSF-registered food-grade lubricant. Sensor ready with an adapter.

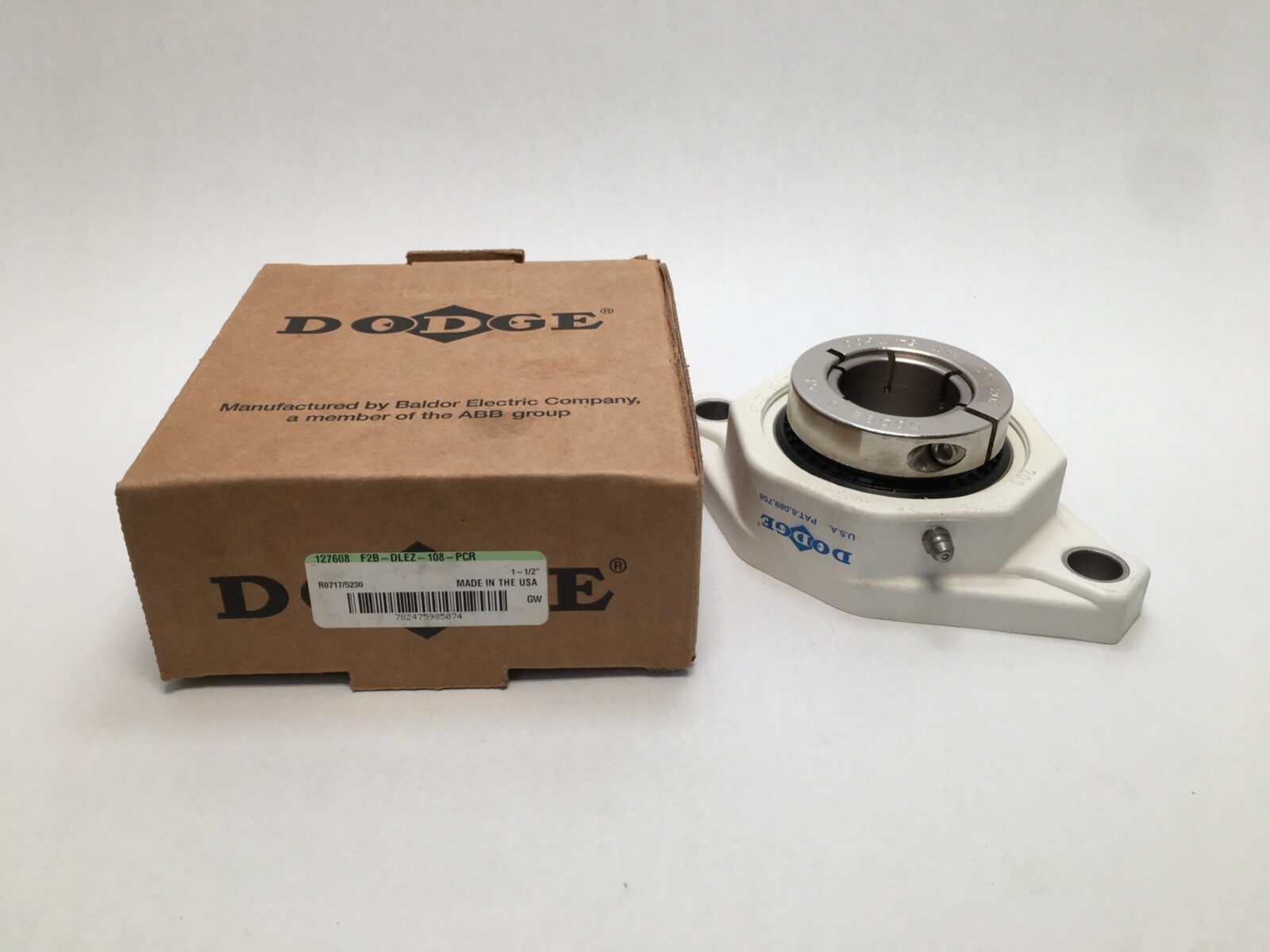

One complete flange unit with insert and clamp collar. Country of origin: United States. Harmonization code: 8483.20.4040.
SKF F2B 108-D-PCR is the same-spec equivalent two-bolt polymer flange unit. Searchable forms: F2BDLEZ108PCR, F2B DLEZ 108 PCR, 127608, F2B-DLEZ-108-PCR/127608.
