SKF22216CKJC3Double Row Spherical Roller Bearing – 1:12 Tapered Bore, 80 mm ID, 140 mm OD, 33 mm Width, Open, Pressed Steel Cage, C3 Clearance

Product Description

What this part is

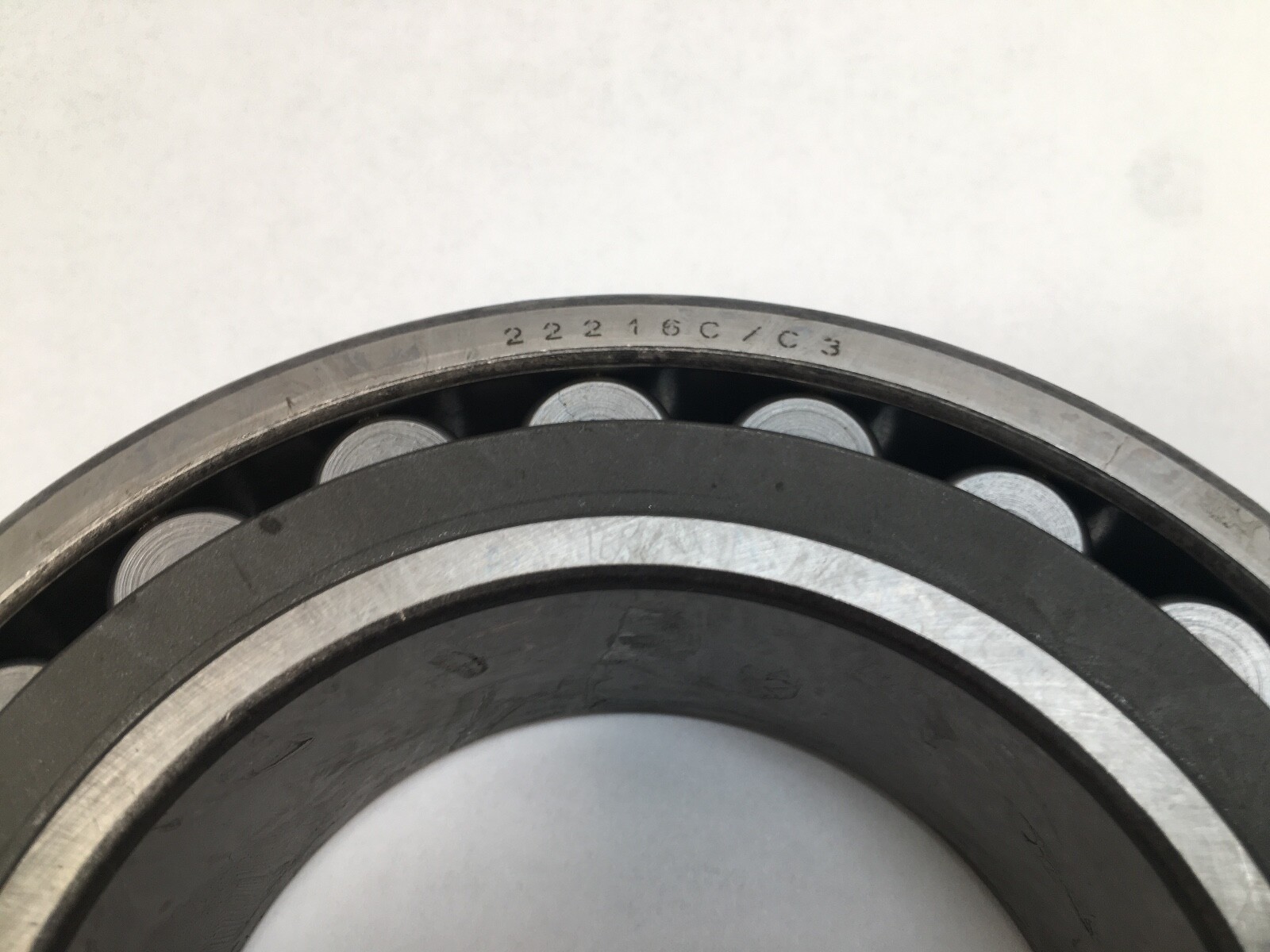

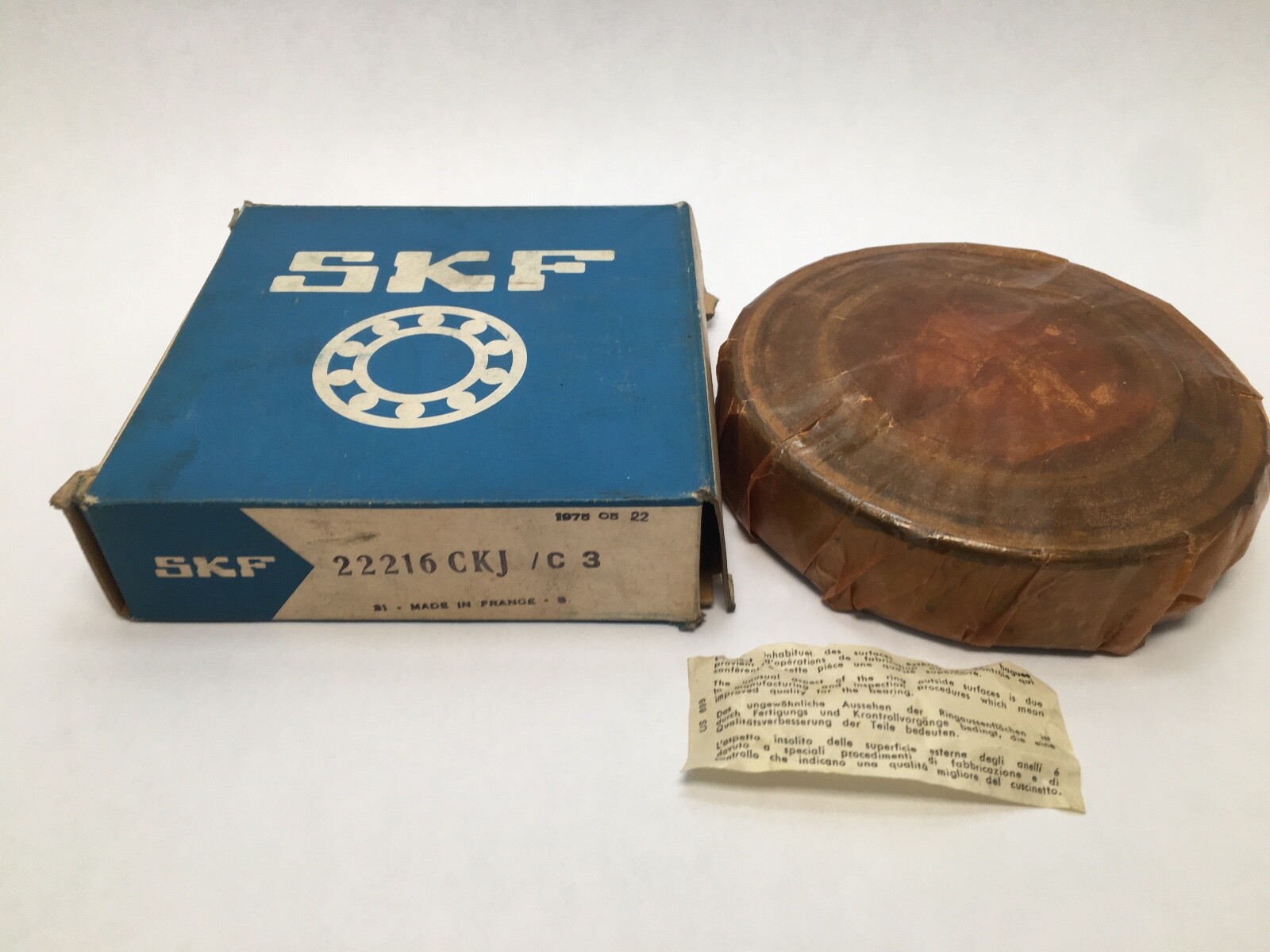

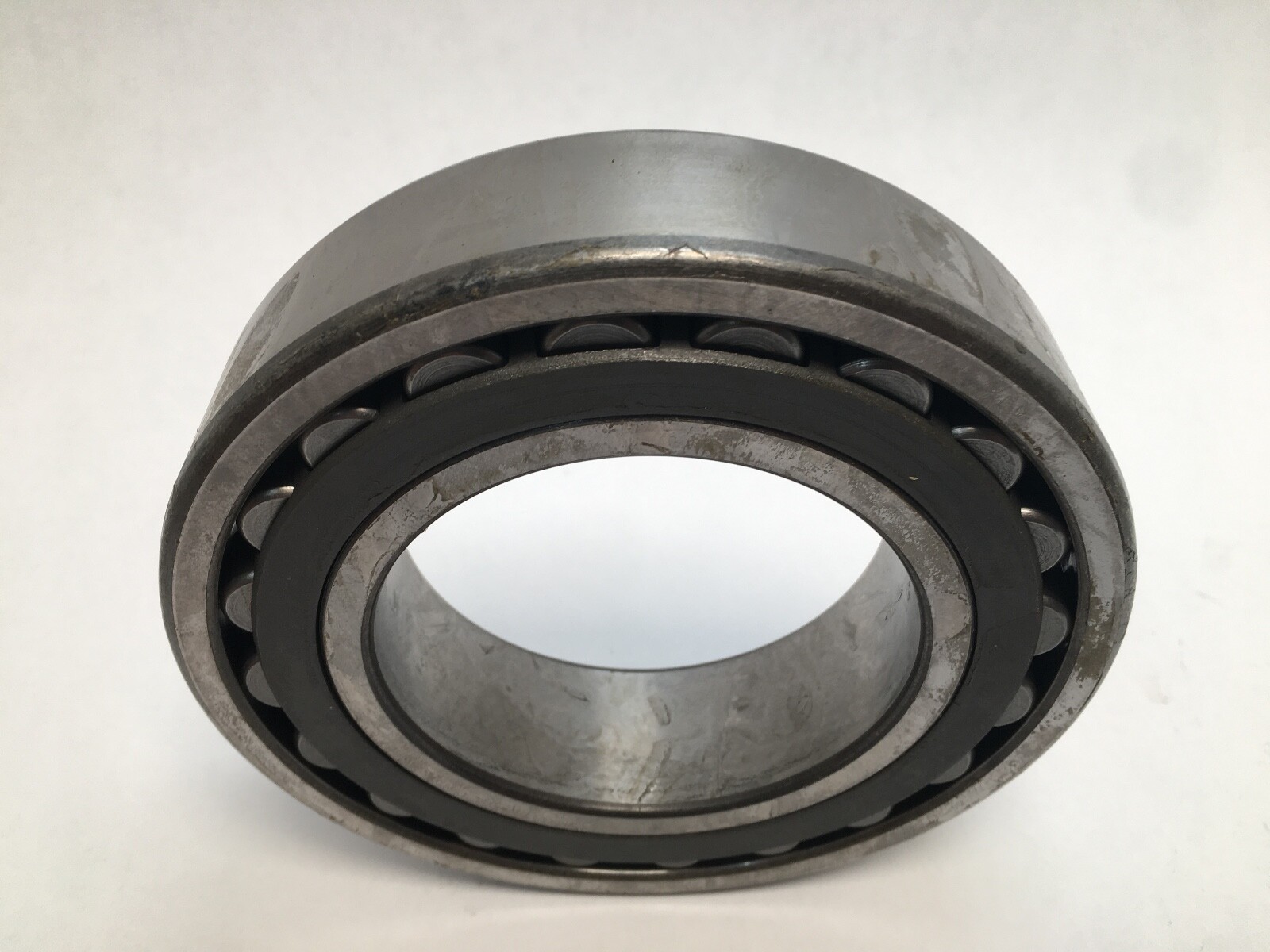

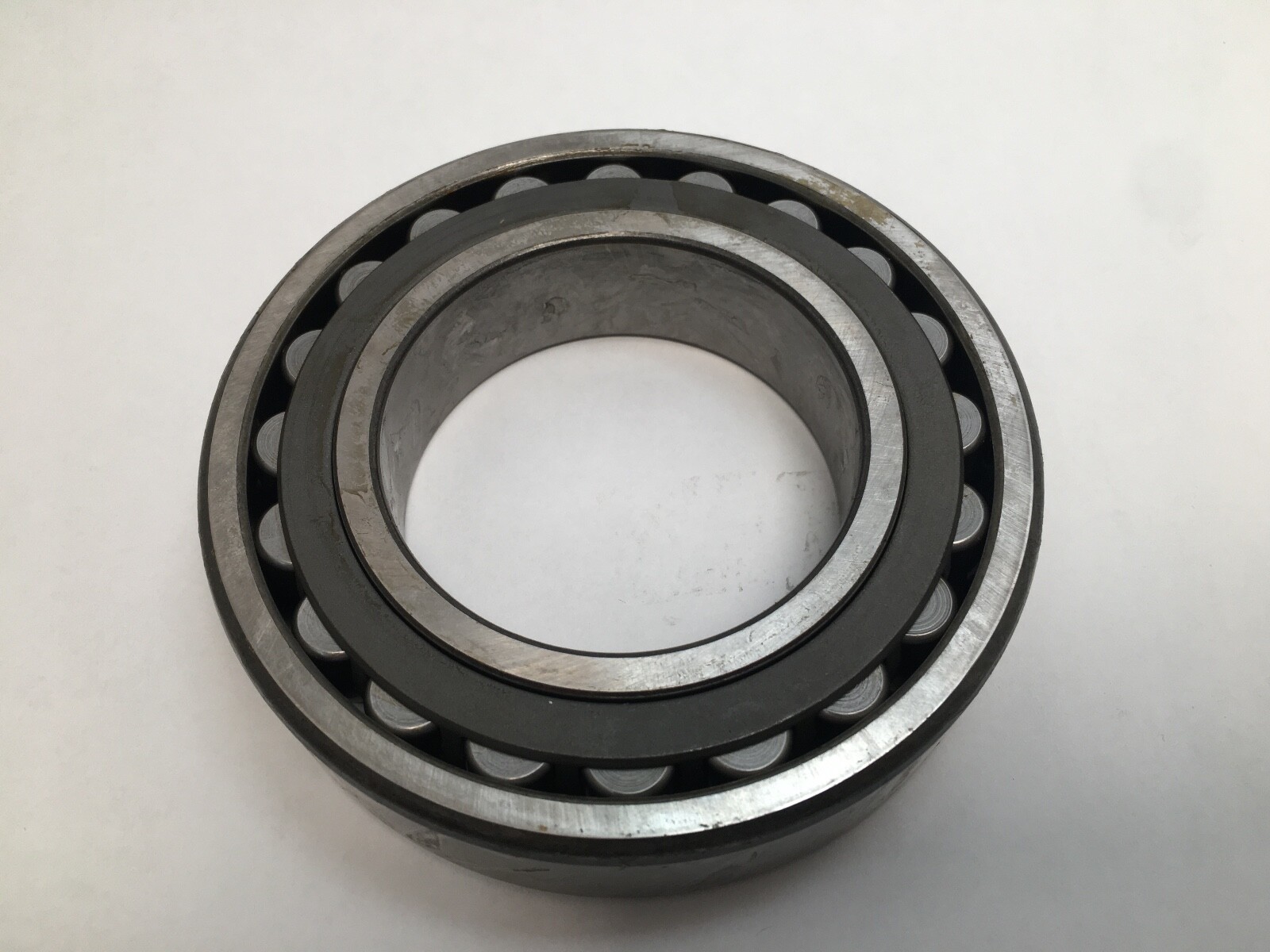

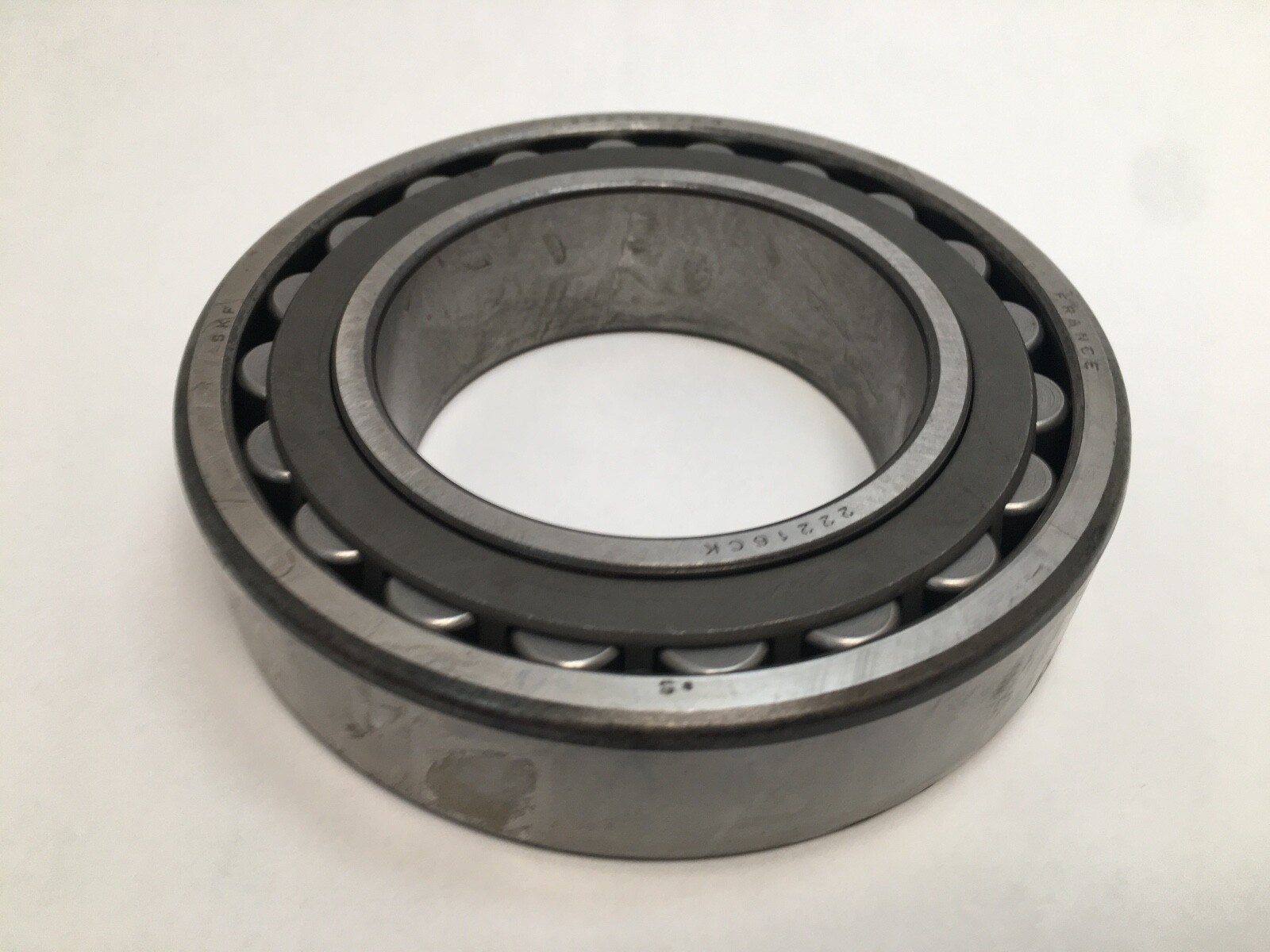

SKF 22216 CKJ C3 double row spherical roller bearing, 80 mm bore, 140 mm outside diameter, 33 mm width. Tapered 1:12 bore, open, two rows of barrel-shaped rollers running on a common sphered outer raceway, pressed steel cages and a guide ring. Radial internal clearance C3.

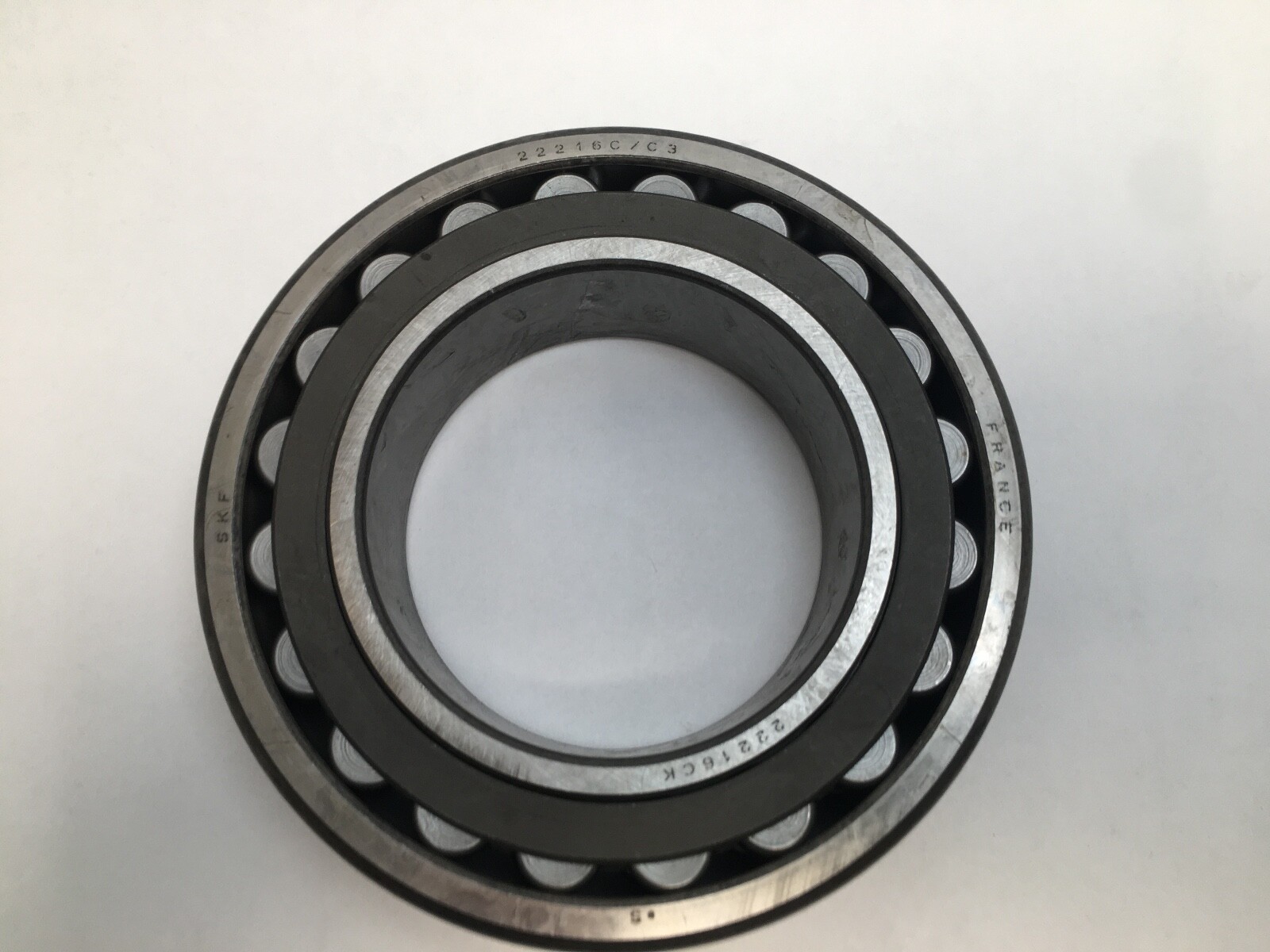

Decoding the designation

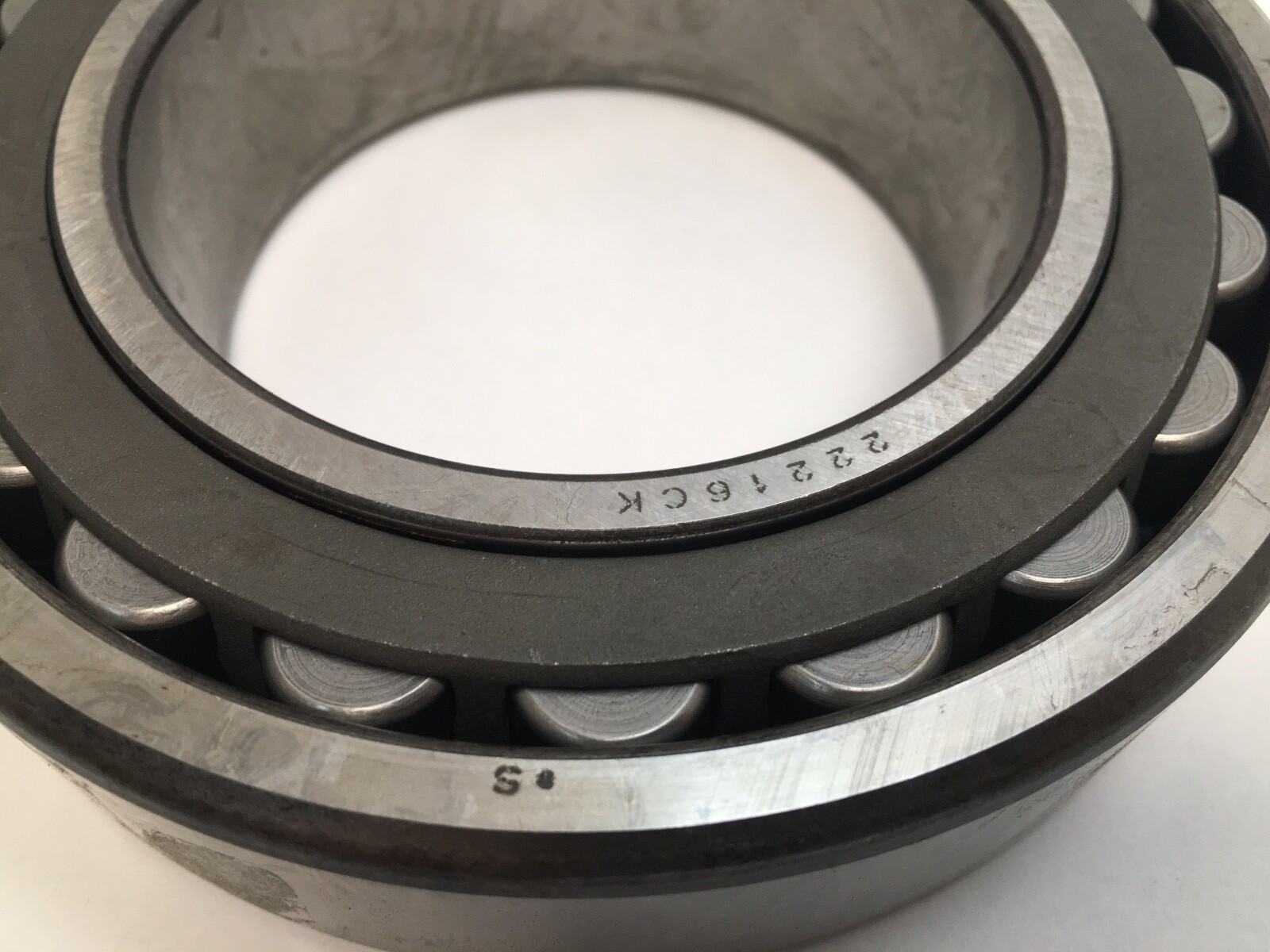

22216 gives the 222 dimension series and bore code 16 for the 80 mm bore. C denotes the internal design with a flangeless inner ring and a guide ring centred on the outer ring raceway. K is the 1:12 tapered bore. J is the pressed steel cage. C3 is radial internal clearance greater than normal.

What these specs mean in practice

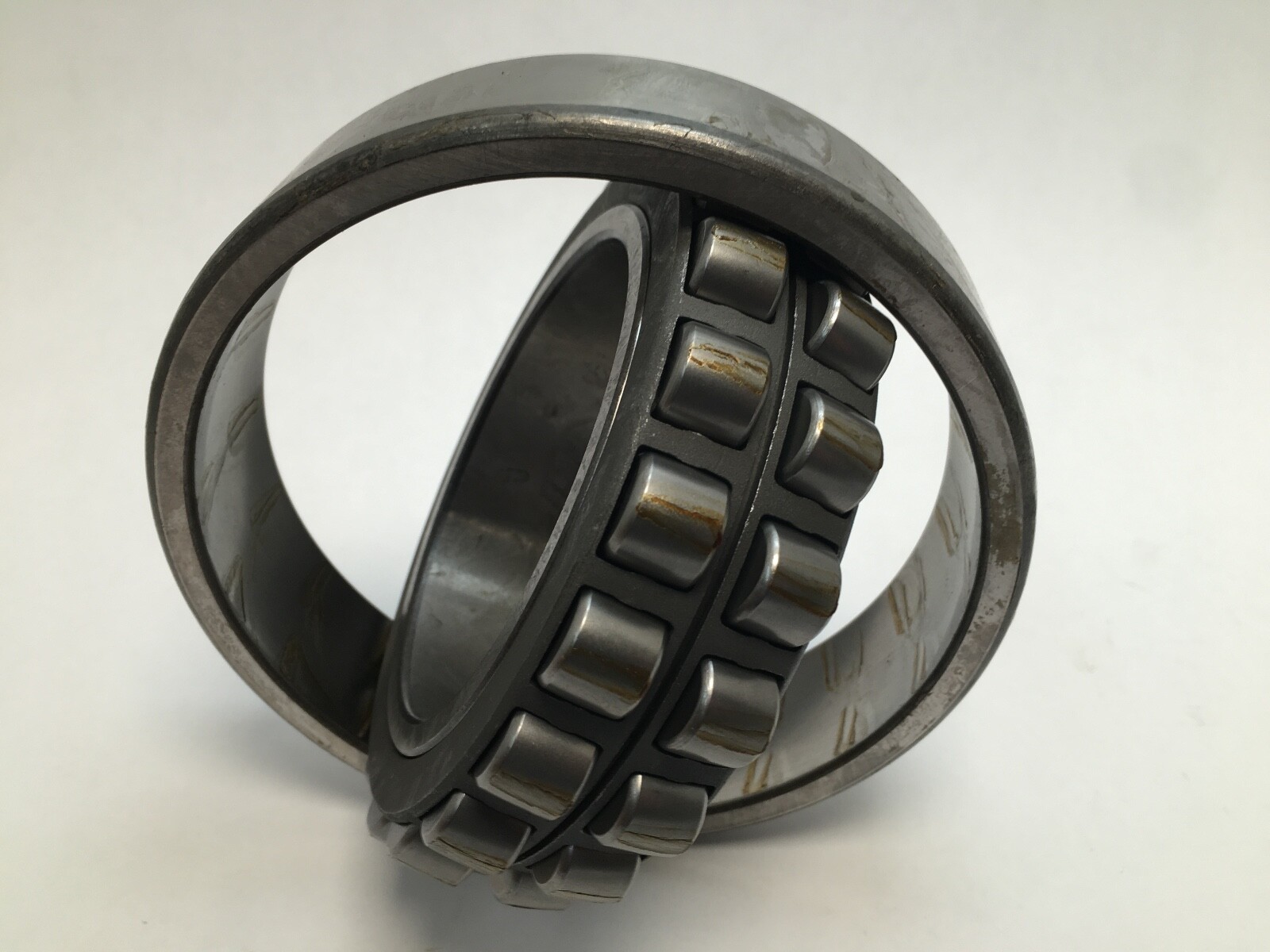

The sphered outer raceway lets the roller set swivel, so the bearing is self-aligning and absorbs shaft deflection and housing misalignment up to about 1.5° with almost no rise in friction or temperature. Being double row, it carries axial load in both directions as well as heavy radial load. C3 clearance leaves extra room at assembly, which suits a tapered-bore mounting where drive-up on the sleeve reduces clearance, and suits a hot inner ring in service.

Bore form

The bore is tapered 1:12, not straight, so the 80 mm figure is the bore at the large end rather than the shaft size. The bearing seats on an SKF H2316 adapter sleeve, which fits a 70 mm straight shaft and is secured with a KM 16 locknut and MB 16 lockwasher. Those are separate related parts.

Quantity and configuration

One bearing.

Fitting notes

Clearance is set by the drive-up distance on the adapter sleeve, measured either as axial advance or as residual radial clearance with a feeler gauge, and the C3 starting clearance defines the target. The bearing can also be mounted directly on a 1:12 tapered shaft journal where one exists.

Interchange guidance

Same-design equivalents at 80 x 140 x 33 mm with a tapered bore and C3 clearance are the FAG 22216-E1-K-C3 and the NSK 22216EAKE4C3. A 22216 CJ or 22216 EJ in the same envelope has a straight bore and mounts directly on the shaft, making it a related size rather than an interchange.
