Timing Belt Pulleys and V-Belt Sheaves: Matching Belt Drive Components Correctly
Belt drives may appear simple, consisting of two wheels and a belt for power transfer.
Availability:
2 in stock
Double-row cylindrical roller bearing, 65 x 100 x 26 mm, 1:12 tapered bore, machined brass cage. SKF NN-3013-AKMC/C481, open, non-locating, 1 Pc.
List Price
$151.06
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | NN-3013-AKMC/C481 |
| Model | NN 3013 A K M C481 NN3013KMP5 NN-3013-K-M-C481 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 65 mm |
| OD | 100 mm |
| Width | 26 mm |
| Material | Bearing Steel |
|---|---|
| Series | NN3000 |
| Base Number | NN 3013 K |
| Industry Terms | Double row cylindrical roller bearing, super precision spindle bearing, machine tool spindle bearing, tapered bore cylindrical roller, NN series, precision roller bearing |
| Common Misspellings | NN3013AKMC, NN 3013 AKMC C481, NN3013-AKM-C481, NN3O13, NN3013AK MC481, cylindrical roler bearing, cylindricle roller bearing |
| Application Types | Machine tool spindles, boring and milling spindles, grinding spindles, lathe headstocks, precision gearboxes, rotary tables, indexing heads |
| Bore Shaft Size | 65 mm (2.5591 in), tapered 1:12 |
| Mpn Variants | NN-3013-AKMC/C481, NN3013AKMC/C481, NN 3013 AKM/C481, NN-3013-A-K-M-P5, NN3013AKMP5, NN3013KM, NN3013K, NN3013 |
| Compatible With Replaces | Related sizes, not interchanges: NN 3013 TN/SP (polyamide cage), NN 3013 (cylindrical bore), NNU 4913 (flanged outer ring, same bore) |
| Rolling Elements | Cylindrical |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Harmonization Code | 8482.50.00 |
| Part Number | NN-3013-AKMC/C481 |
| Total Width | 26 mm |
| Closure Type | Open |
| Cross Reference 1 | FAG NN3013-AS-K-M-SP |
|---|---|
| Cross Reference 2 | NSK NN3013TBKRCC0P4 - P4 class vs P5 |
| Cross Reference 3 | NTN NN3013K - standard class, not P5 |
| Cross Reference 4 | Koyo NN3013K - standard class, not P5 |

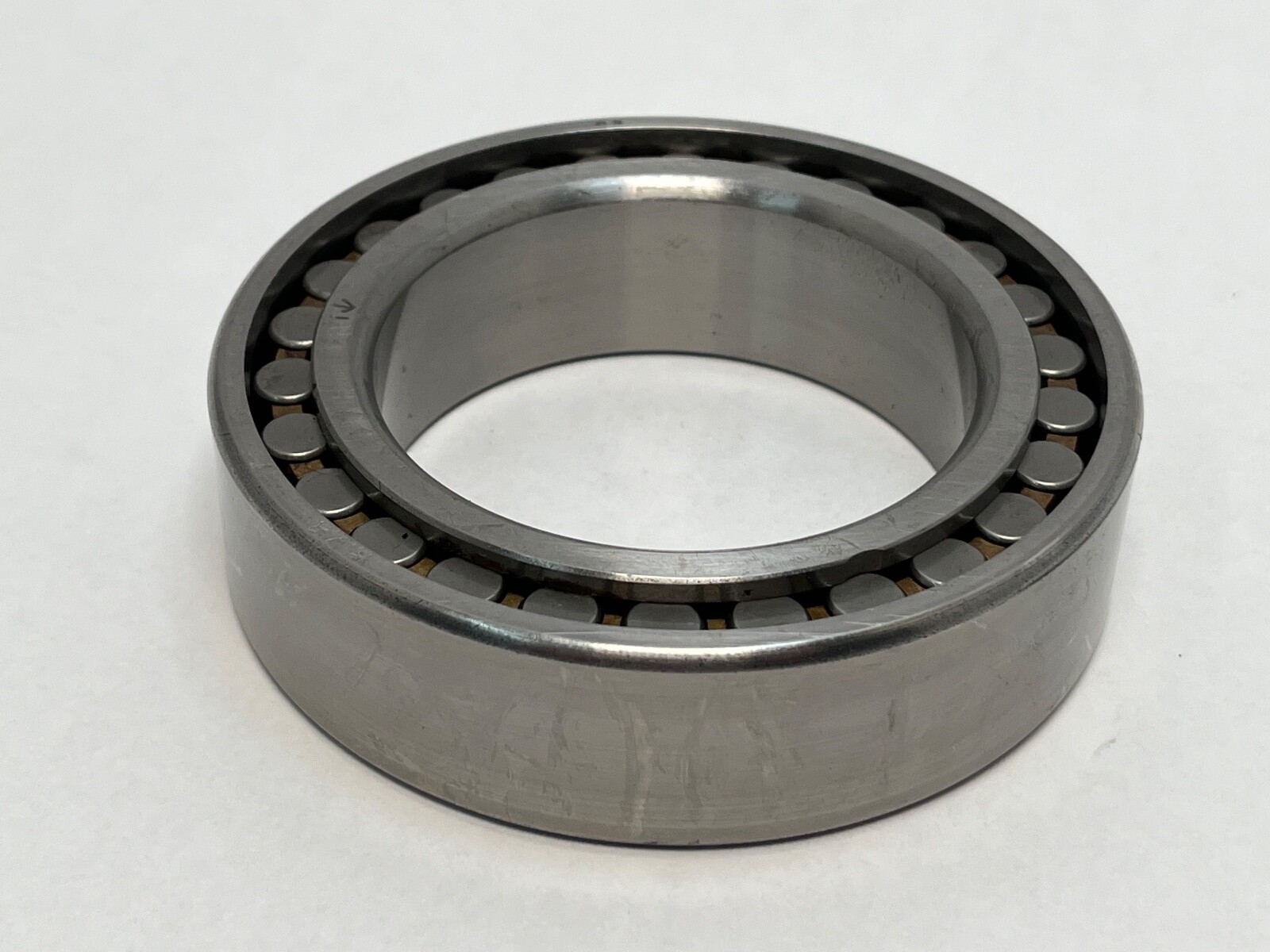

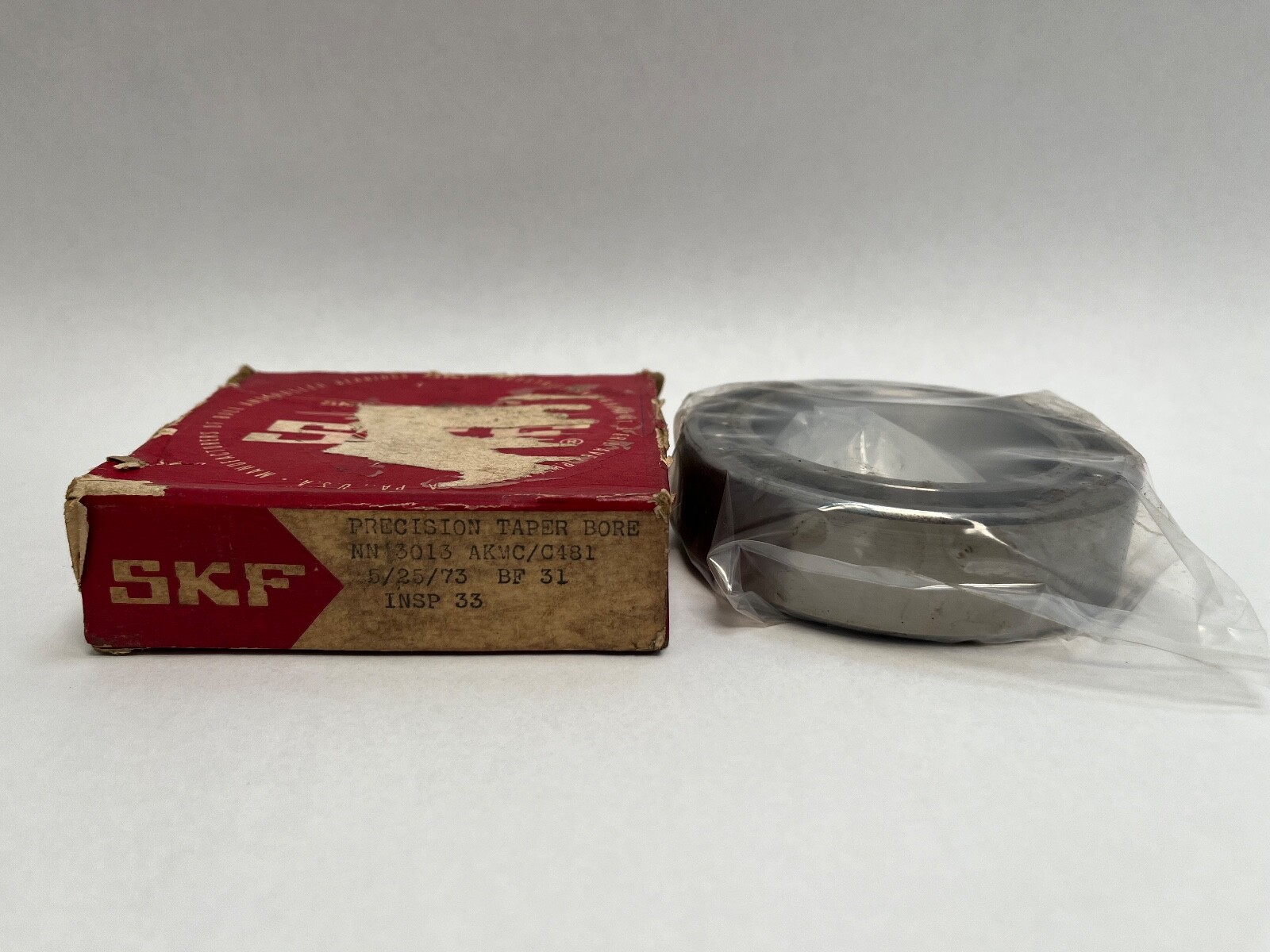

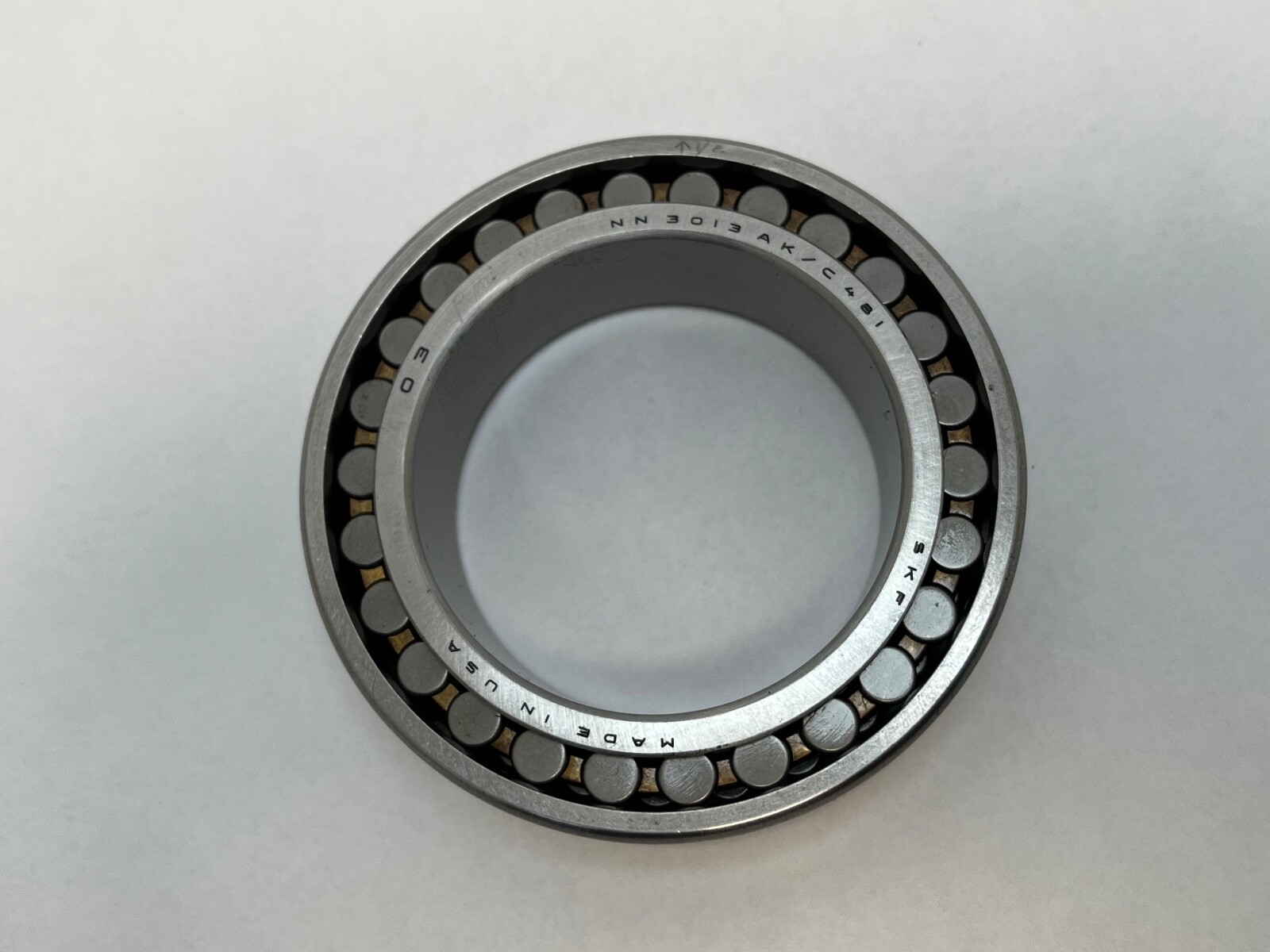

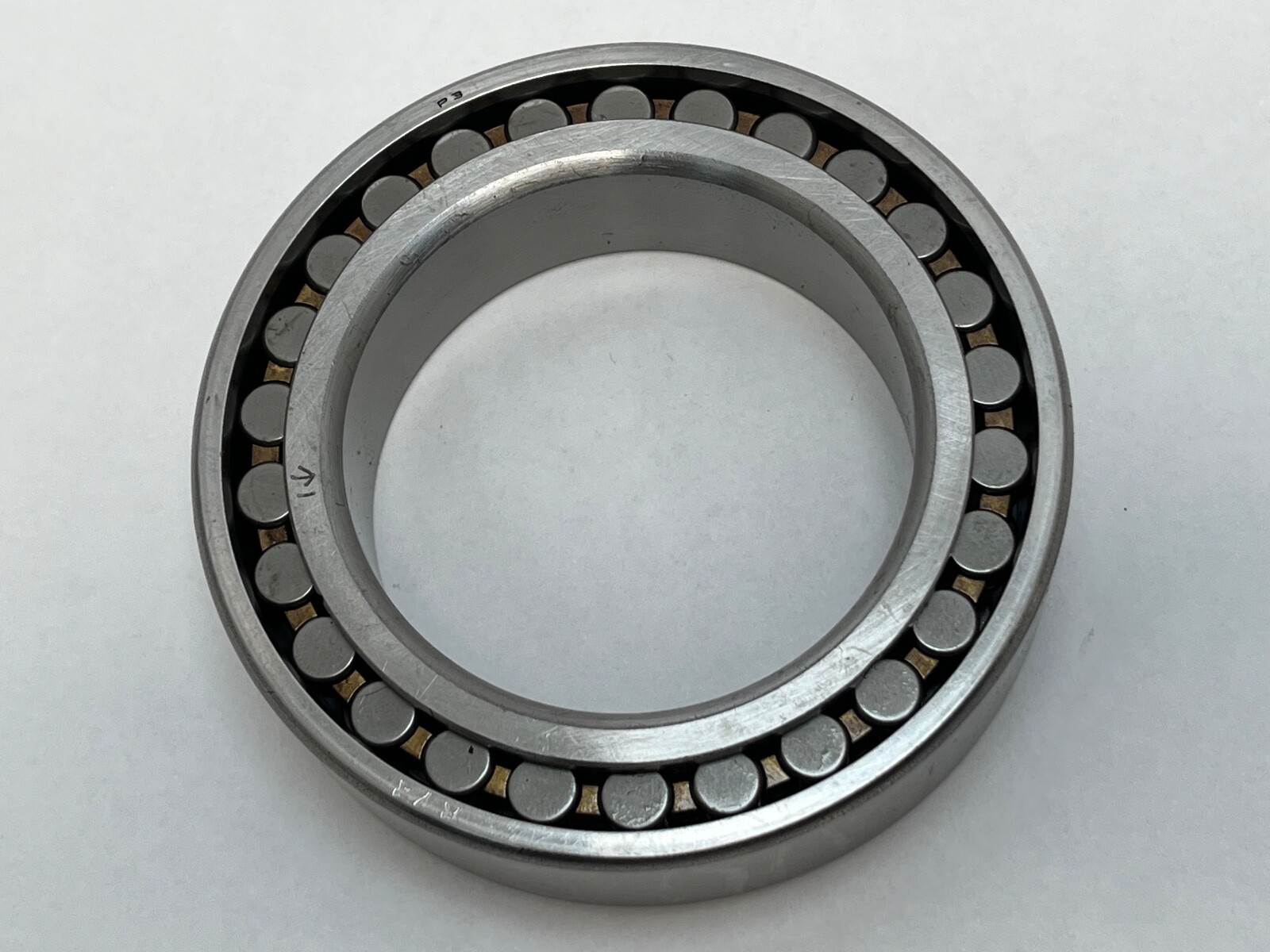

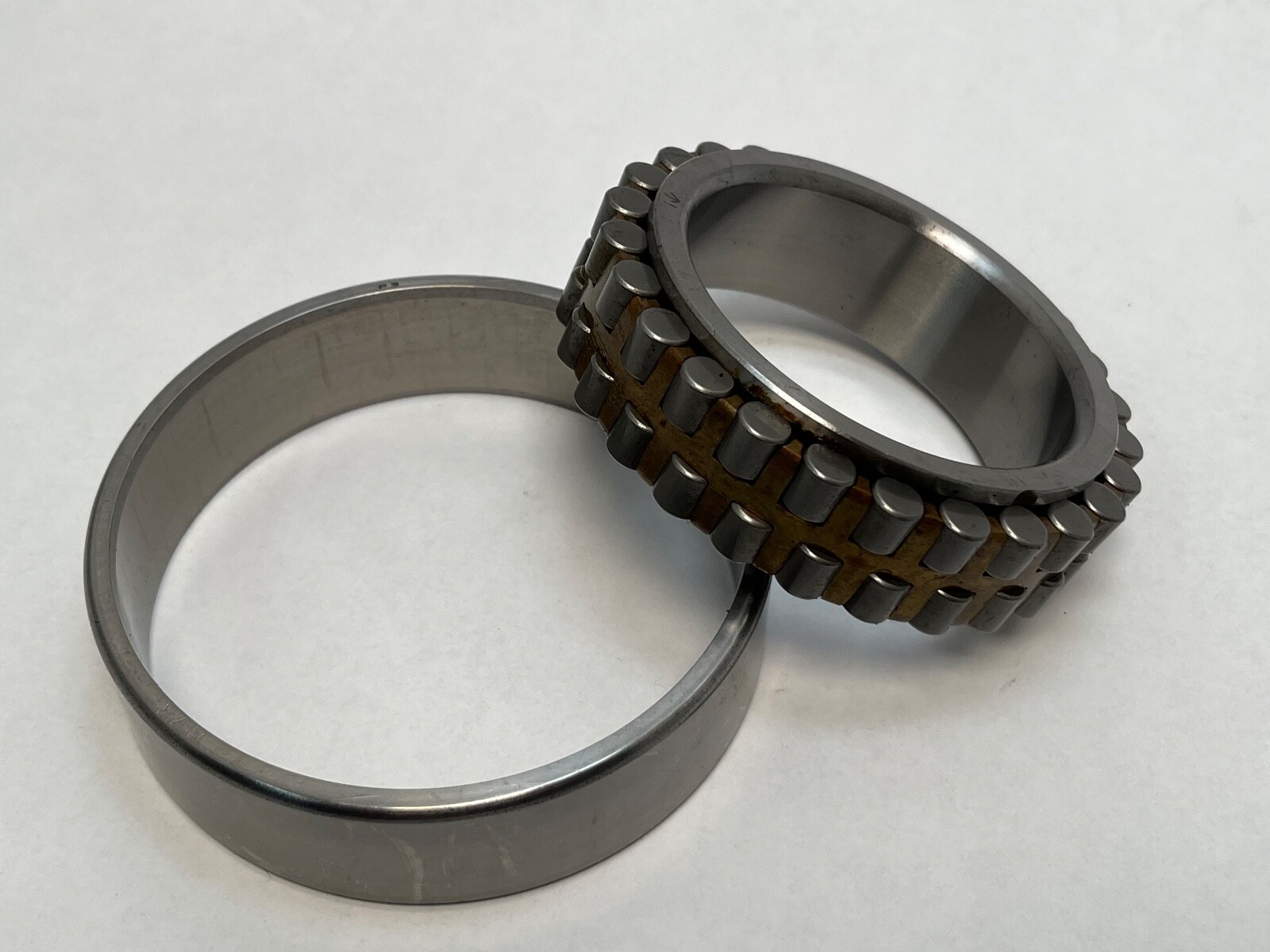

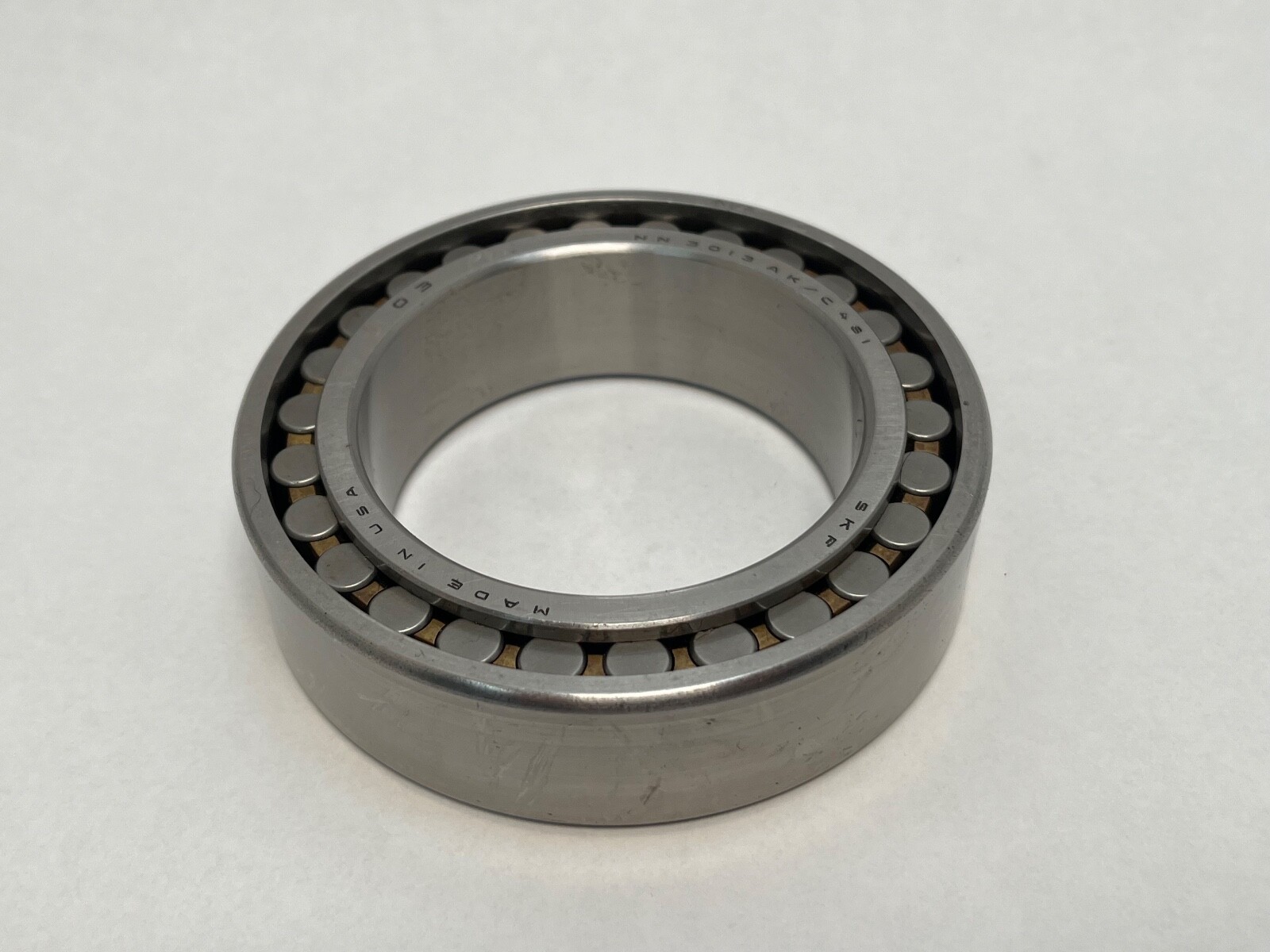

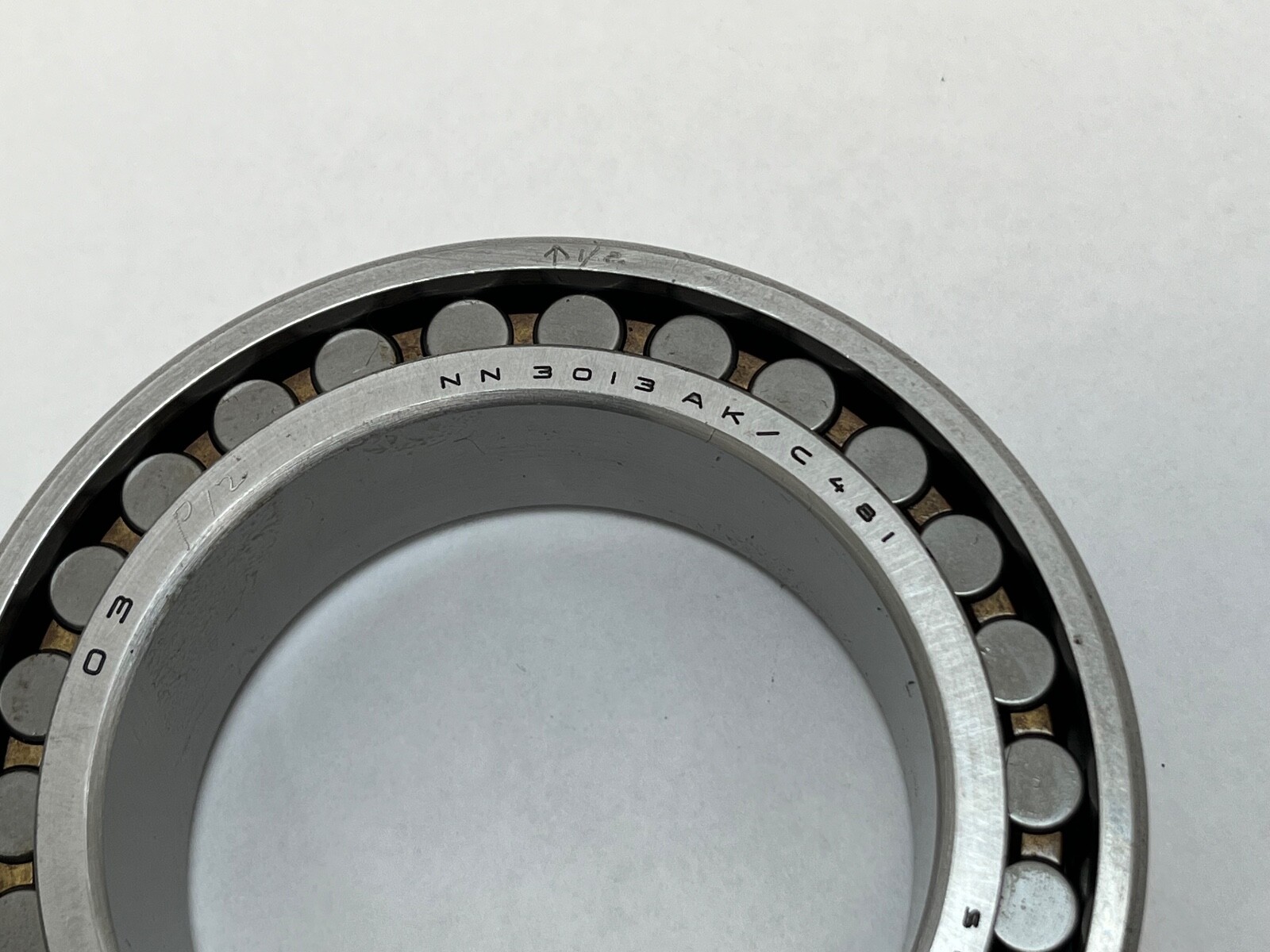

SKF NN-3013-AKMC/C481 double-row cylindrical roller bearing, 65 mm bore x 100 mm outside diameter x 26 mm width (2.5591 x 3.9370 x 1.0236 in), with a 1:12 tapered bore and a machined brass cage. Open design with no seals or shields. Bearing only. Unit Quantity: 1 Pc. Condition: new old stock, open box.
NN — double-row cylindrical roller bearing, non-locating design.
30 — dimension series 30.
13 — bore code, 65 mm bore.
K — tapered bore, taper 1:12.
M — machined brass cage, roller centred.
Bore Diameter: 65 mm (2.5591 in), tapered 1:12. Outside Diameter: 100 mm (3.9370 in). Overall Width: 26 mm (1.0236 in). Number Of Rows: 2. Rolling Elements: Cylindrical rollers. Bore Type: Tapered. Cage Material: Machined brass. Closure Type: Open.
The 1:12 tapered bore seats directly on a tapered journal. The NN design is non-locating.
Cross-references: FAG NN3013-AS-K-M-SP; NSK NN3013TBKRCC0P4 (P4 class vs P5); NTN NN3013K (standard class, not P5); Koyo NN3013K (standard class, not P5). Related sizes, not interchanges: SKF NN 3013 TN/SP (polyamide cage), SKF NN 3013 (cylindrical bore), SKF NNU 4913 (flanged outer ring, same bore).
Bore Diameter: 65 mm. Outside Diameter: 100 mm. Overall Width: 26 mm.
The K in the designation denotes a tapered bore with a 1:12 taper.
The M in the designation denotes a machined brass cage, roller centred.
