INASL181830-A-C3Full-Complement Cylindrical Roller Bearing – 150 mm Bore, 190 mm OD, 20 mm Width, C3 Clearance

Product Description

What this part is:

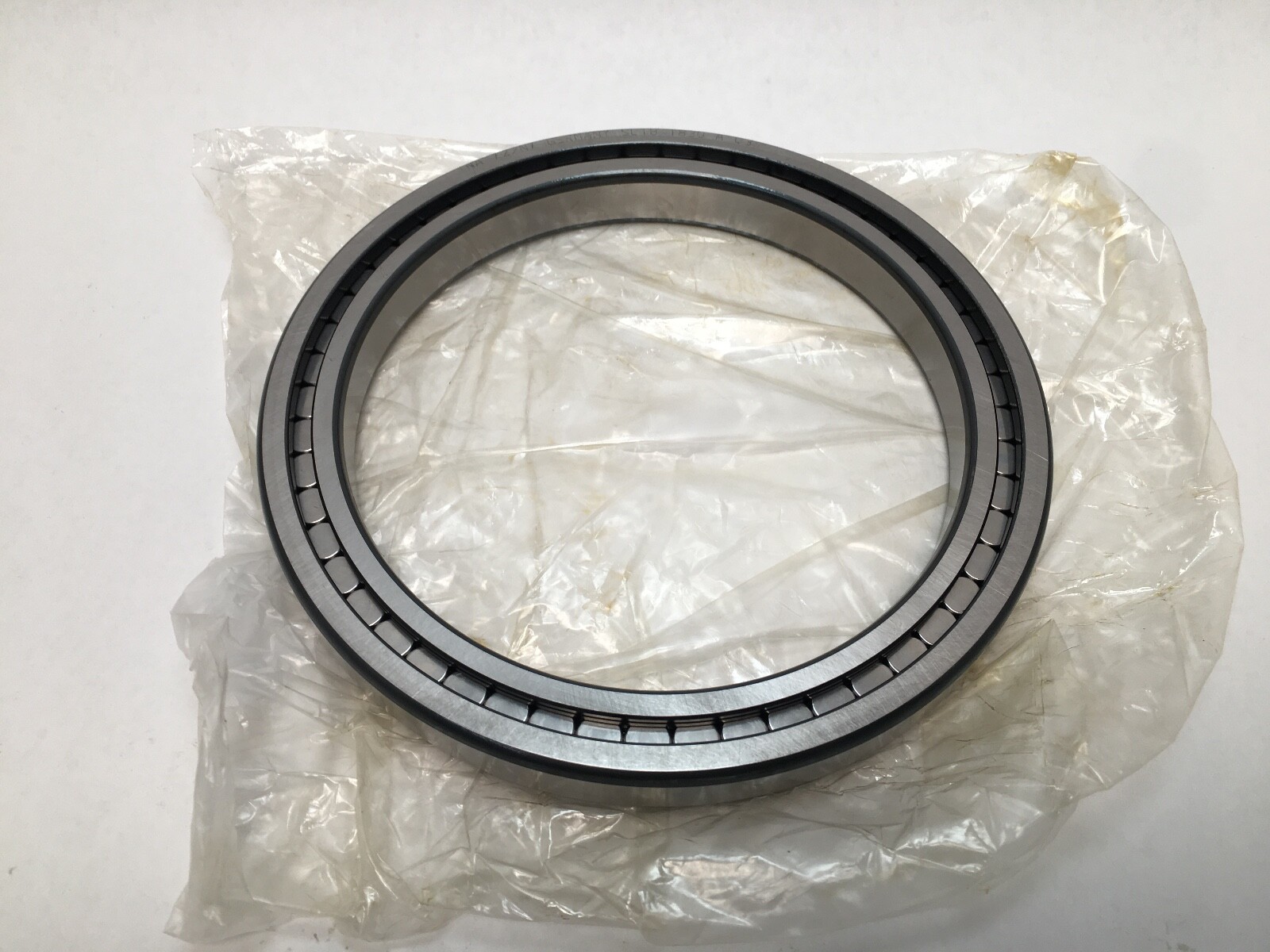

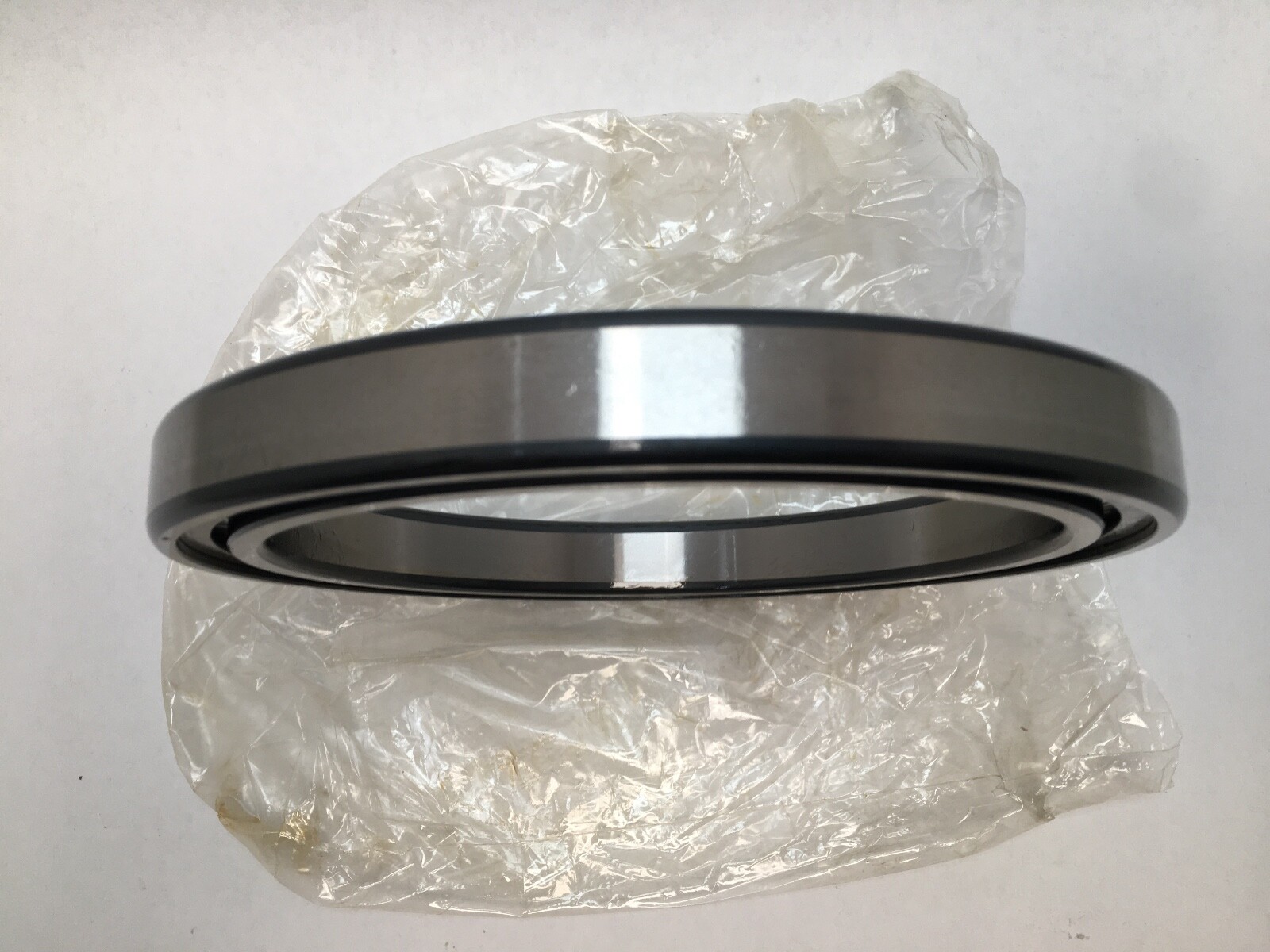

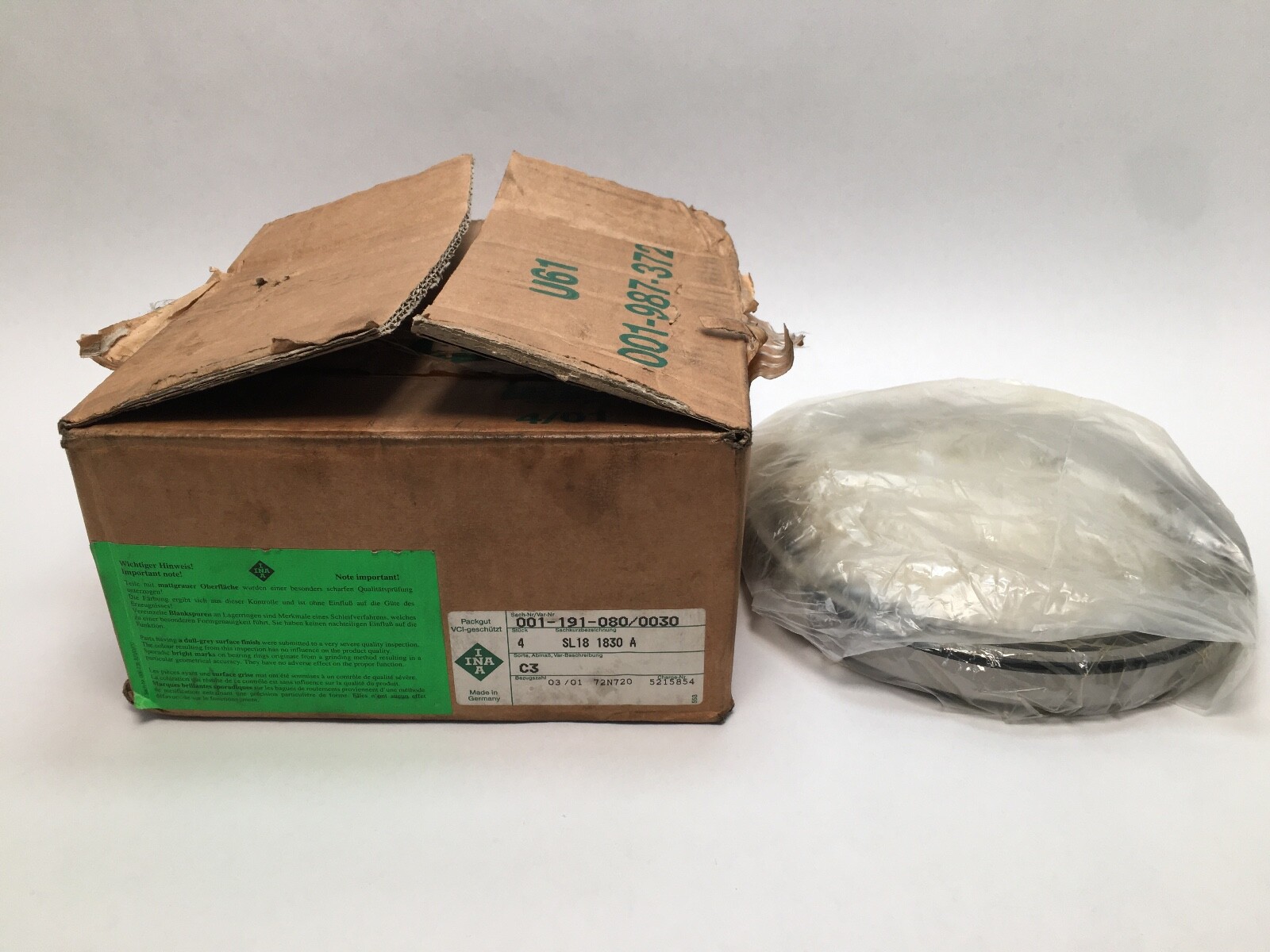

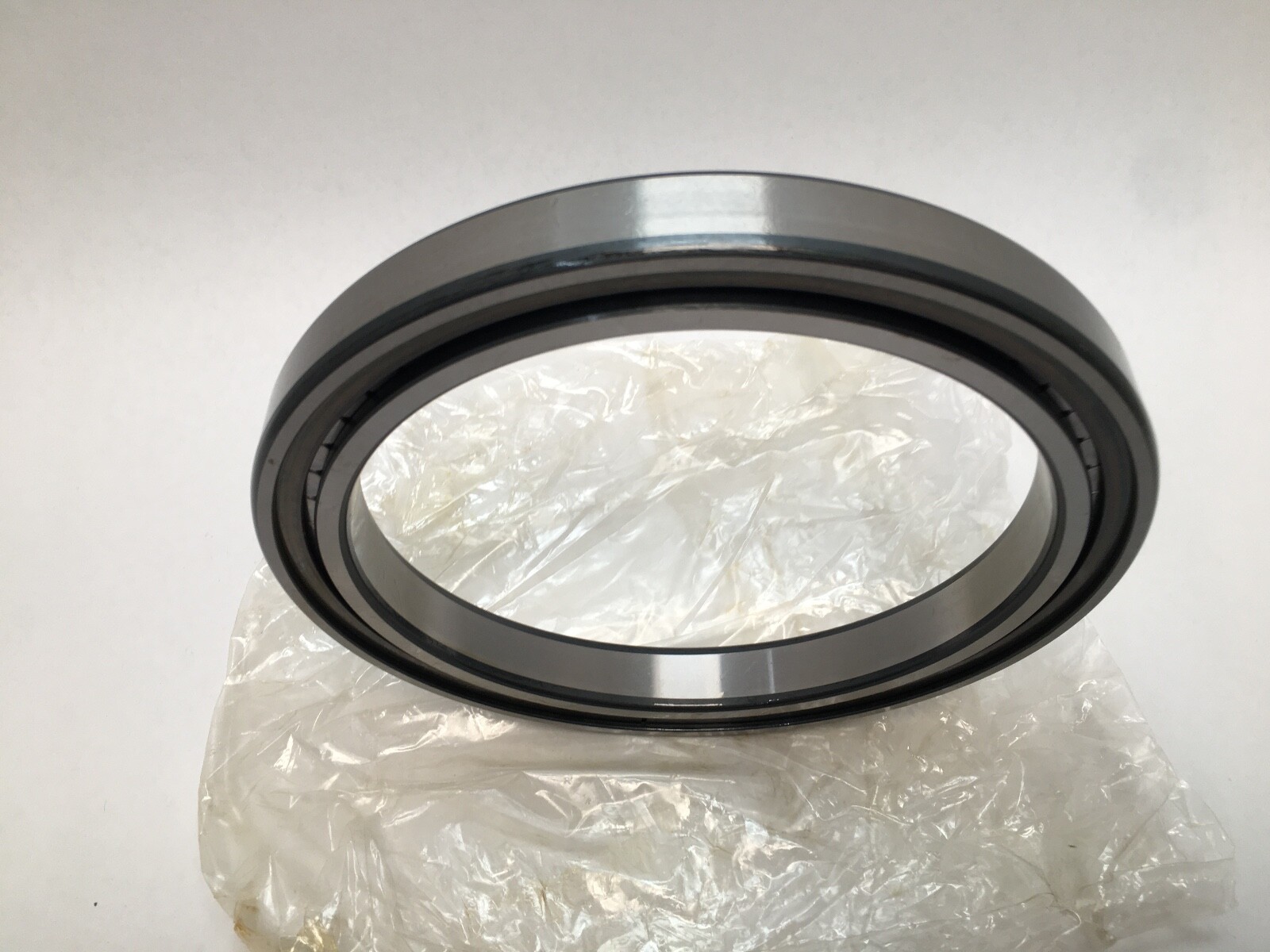

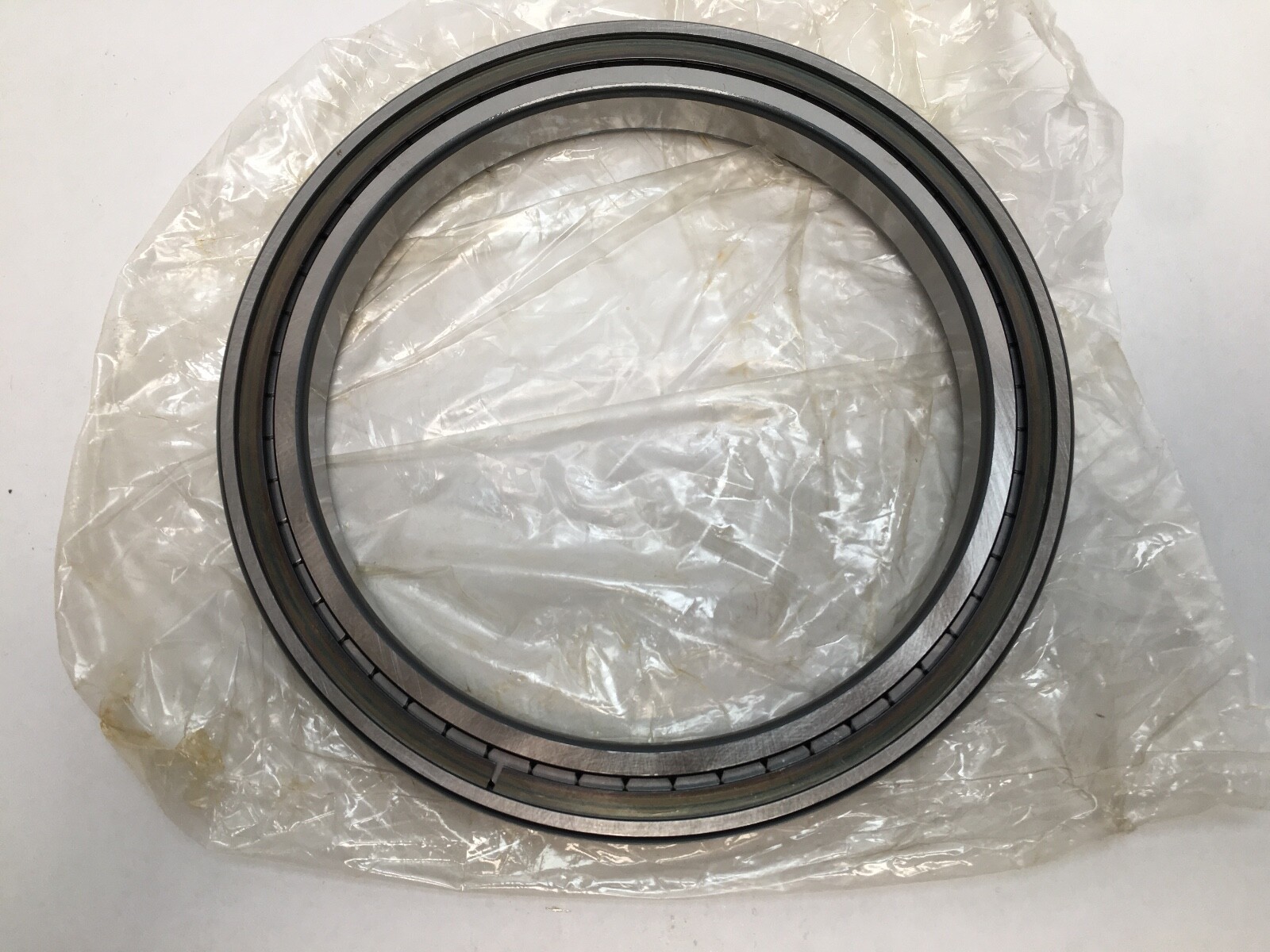

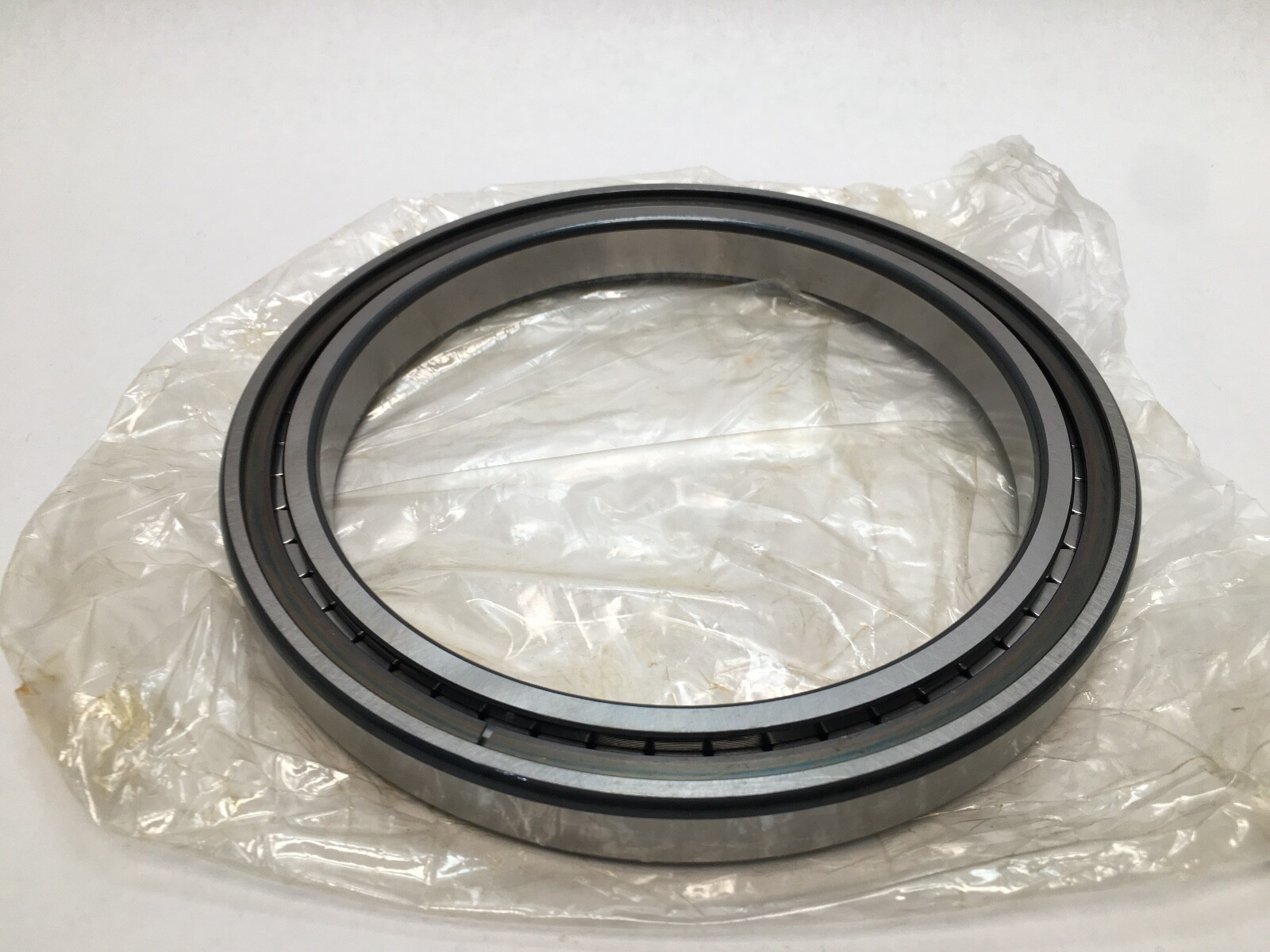

INA SL181830-A-C3 single-row full-complement cylindrical roller bearing, 150 x 190 x 20 mm, cylindrical bore, no cage, semi-locating support bearing. Unit Quantity: 1 Pc. Country of Origin: Germany.

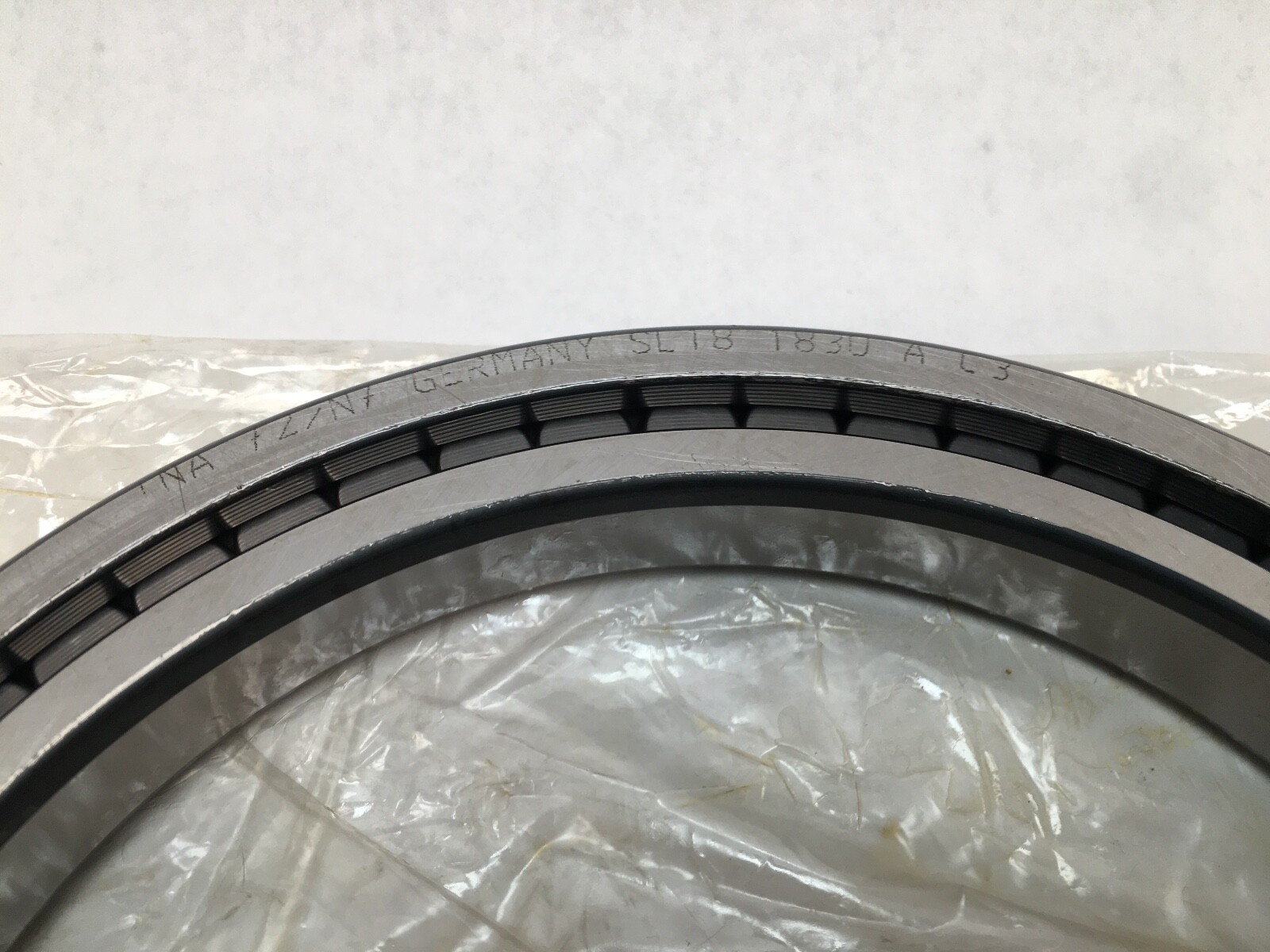

Decoding the designation:

SL18 — Schaeffler single-row full-complement cylindrical roller bearing range with solid inner and outer rings, used as a semi-locating support bearing.

18 — dimension series for a 190 mm outside diameter and 20 mm width over a 150 mm bore.

30 — bore code: 30 x 5 gives the 150 mm bore.

C3 — radial internal clearance greater than normal.

Specifications:

Bore Diameter: 150 mm. Outside Diameter: 190 mm. Overall Width: 20 mm. Number Of Rows: 1. Rolling Elements: Cylindrical Roller. Cage Type: Full complement, no cage. Bore Type: Cylindrical. Internal Clearance: C3. Precision Class: Standard. Closure Type: Open. Expansion Type: Semi-locating. Item Weight: 1.3 kg. Series: SL1818. Base Number: SL181830. Harmonization Code: 8482.50.00.

Dimensions and mounting:

Shaft seat: 150 mm. Housing bore: 190 mm. Seat length: 20 mm. The rib arrangement takes radial load plus axial load in one direction and permits axial shaft movement in the other.

Compatibility and replacement:

Cross-Reference 1: NCF1830V/C3, the NCF-scheme designation with the same 150 x 190 x 20 mm envelope, full-complement single-row layout and C3 clearance. Searchable forms of the number: SL181830AC3, SL18-1830-A-C3, SL18 1830 A C3, SL181830A, SL181830.

Frequently asked questions:

What are the dimensions of the INA SL181830-A-C3?

The bearing has a 150 mm bore, 190 mm outside diameter and 20 mm width.

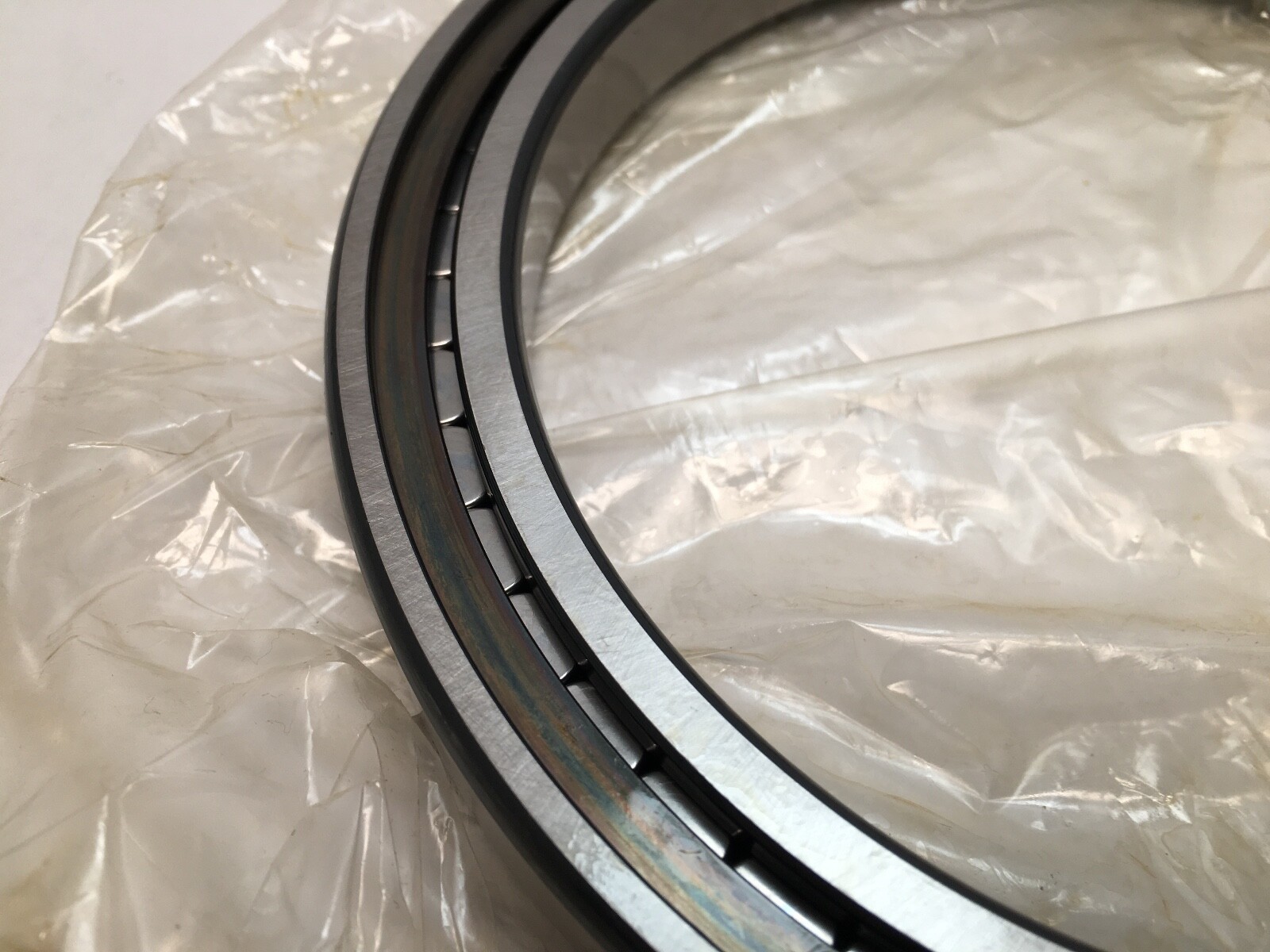

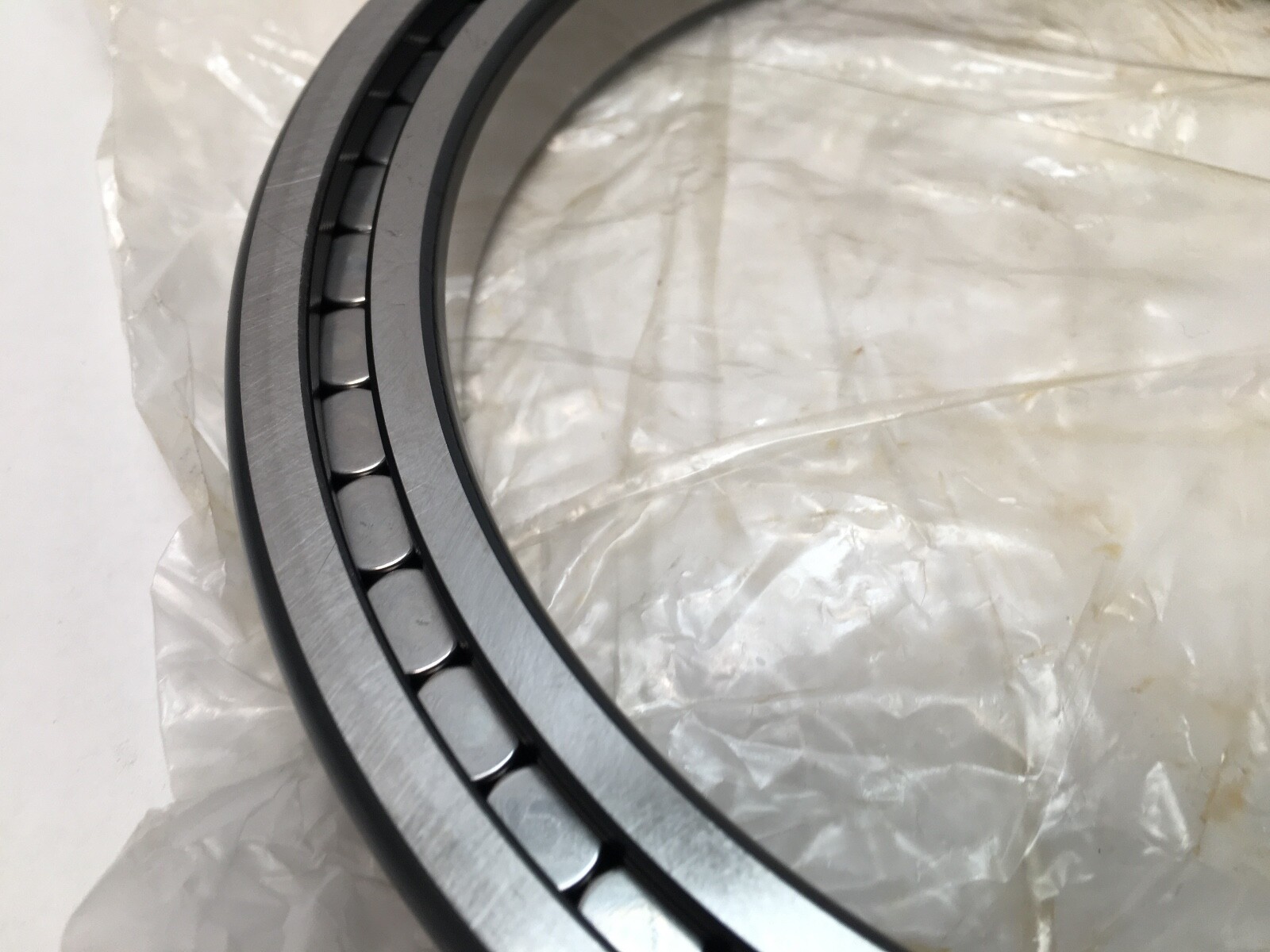

Does it have a cage?

It is a full-complement design: the roller set carries no cage.

What radial clearance does it have?

C3, radial internal clearance greater than normal.
