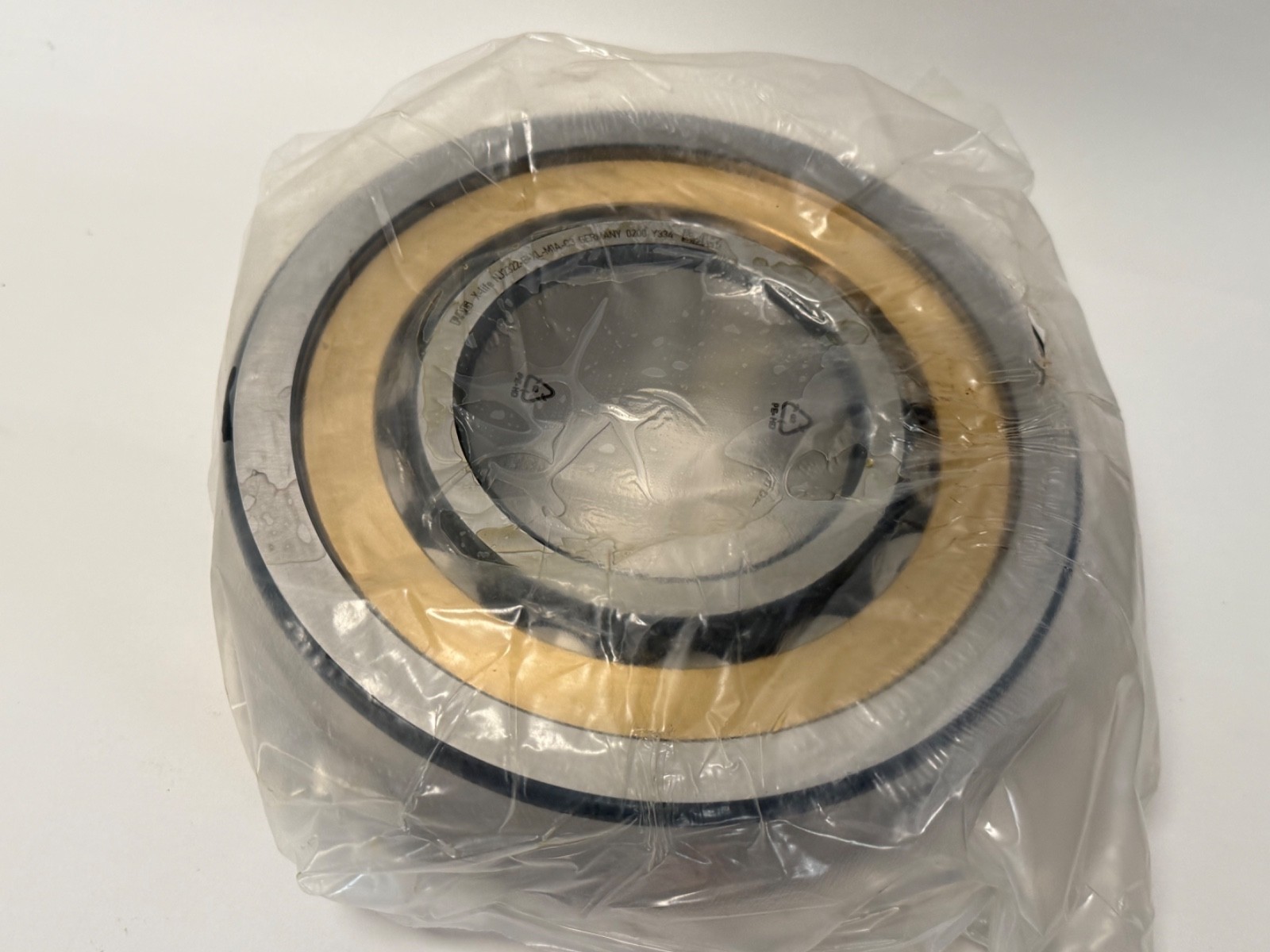

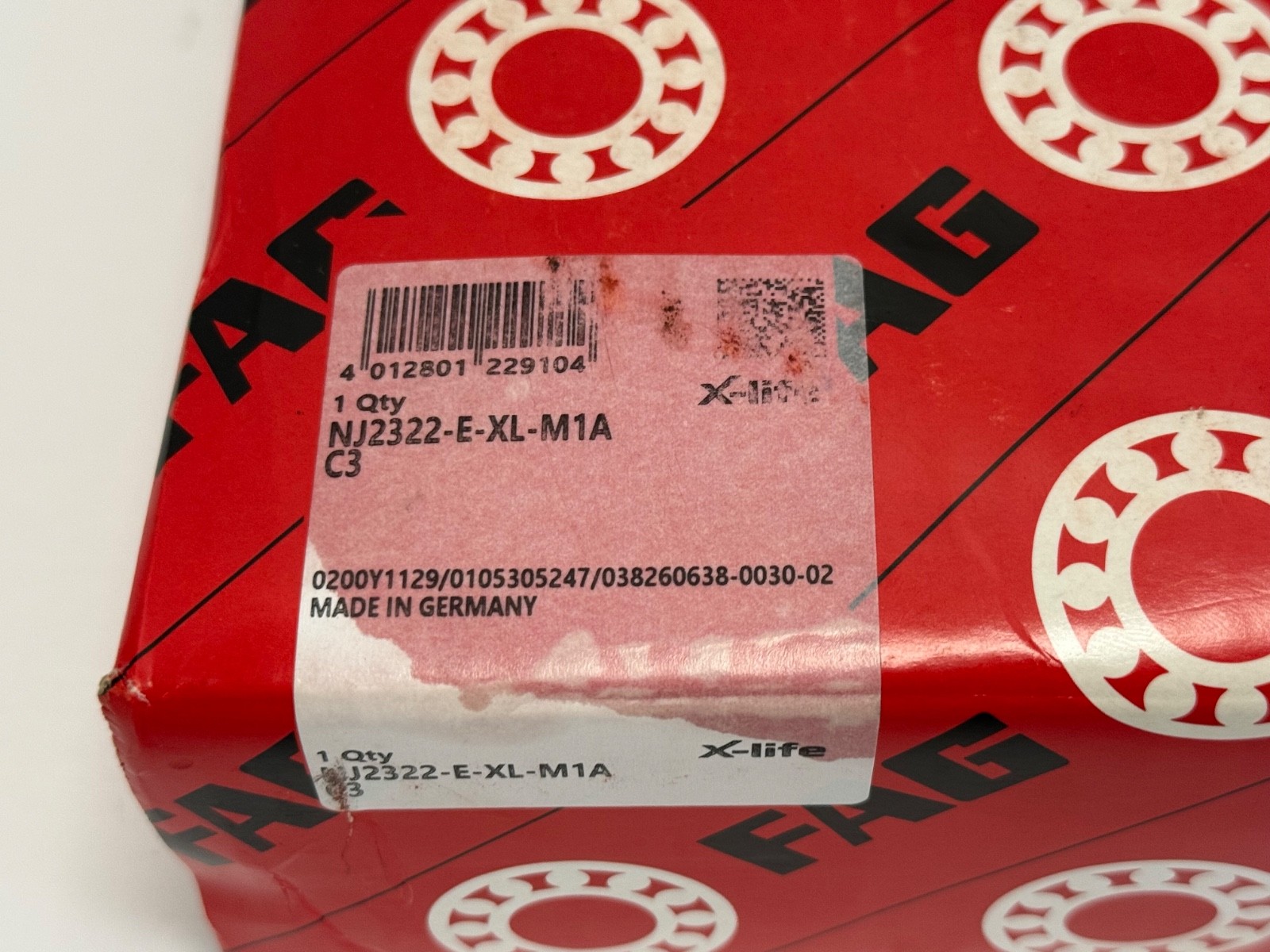

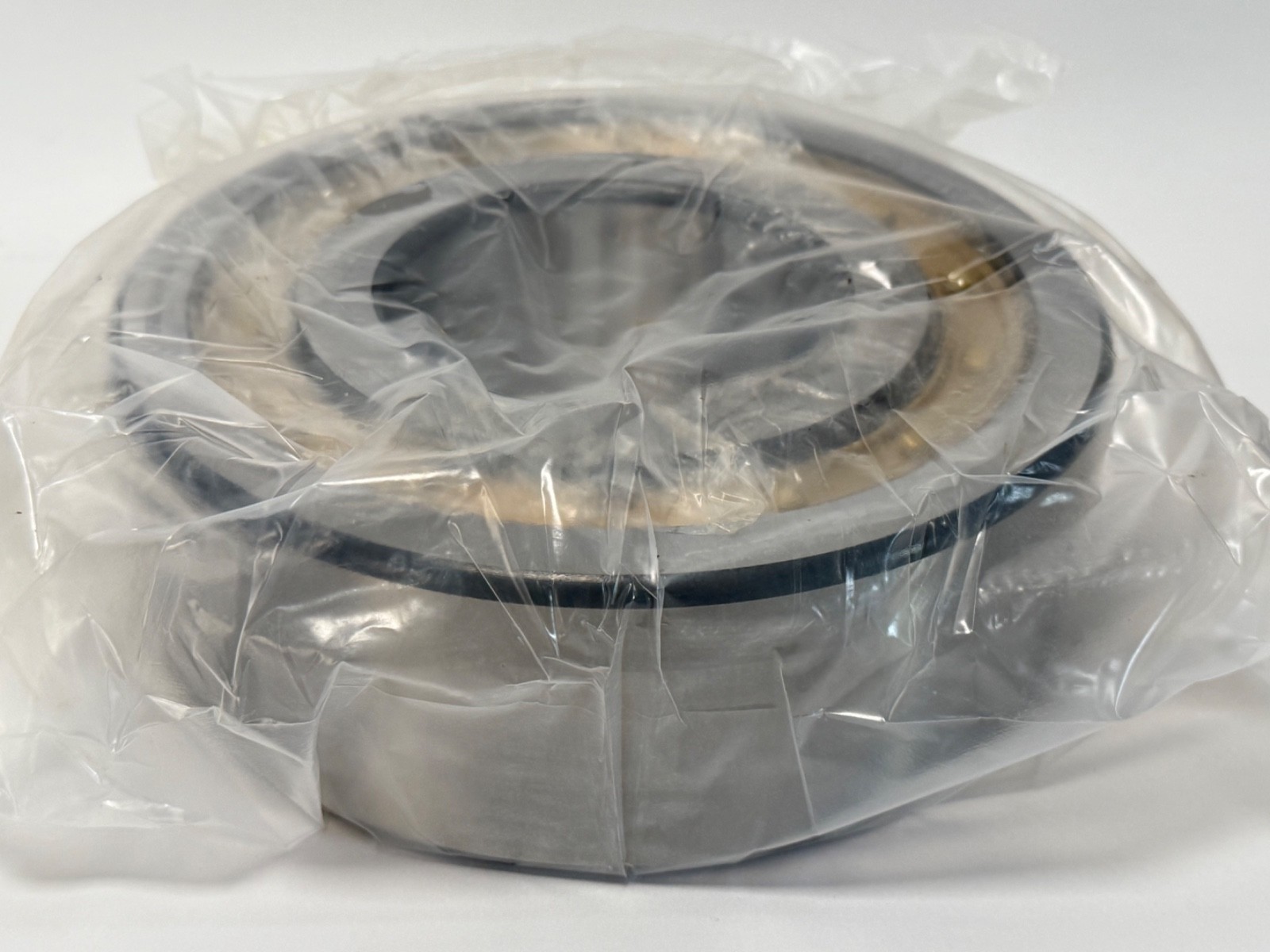

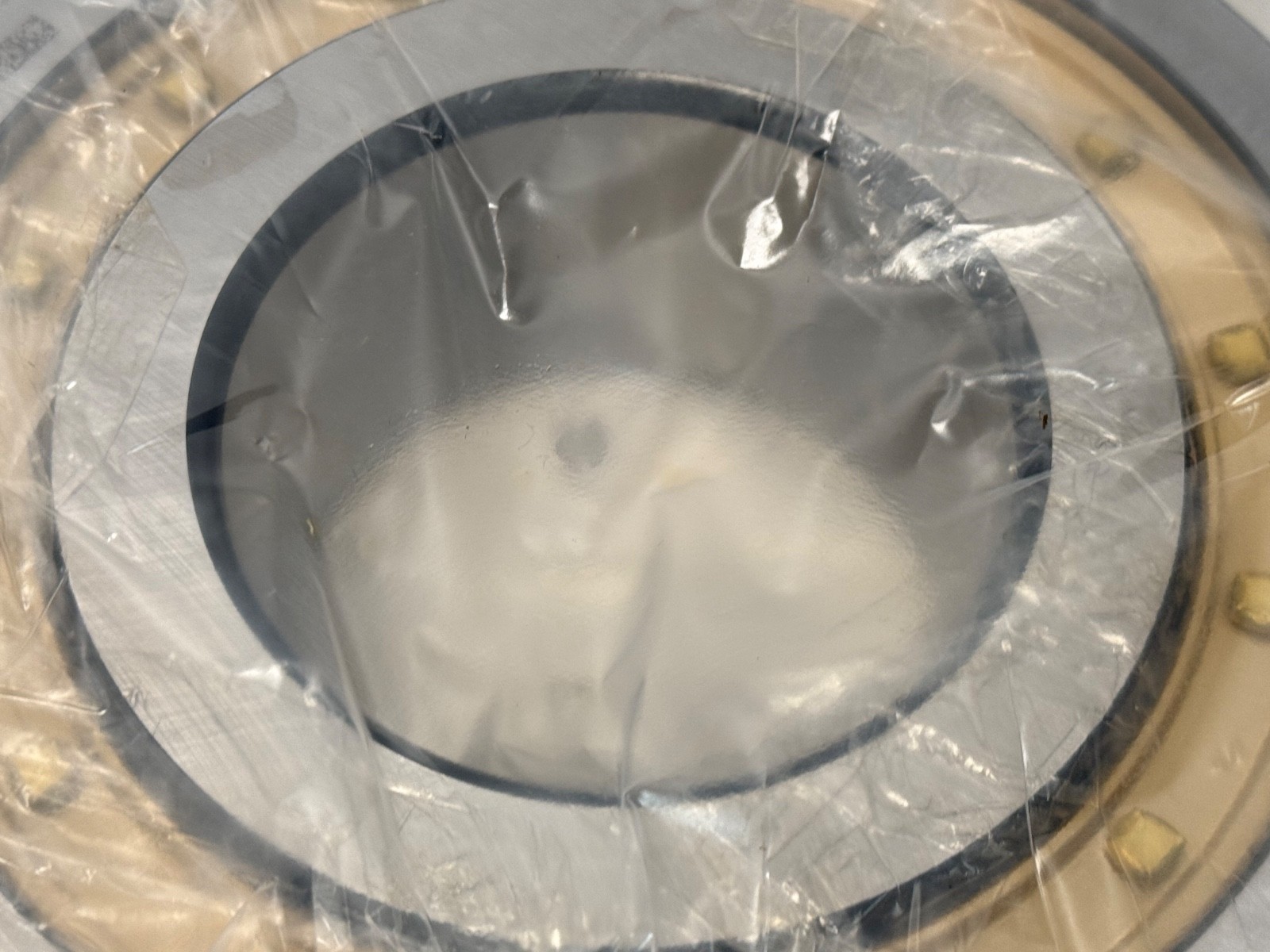

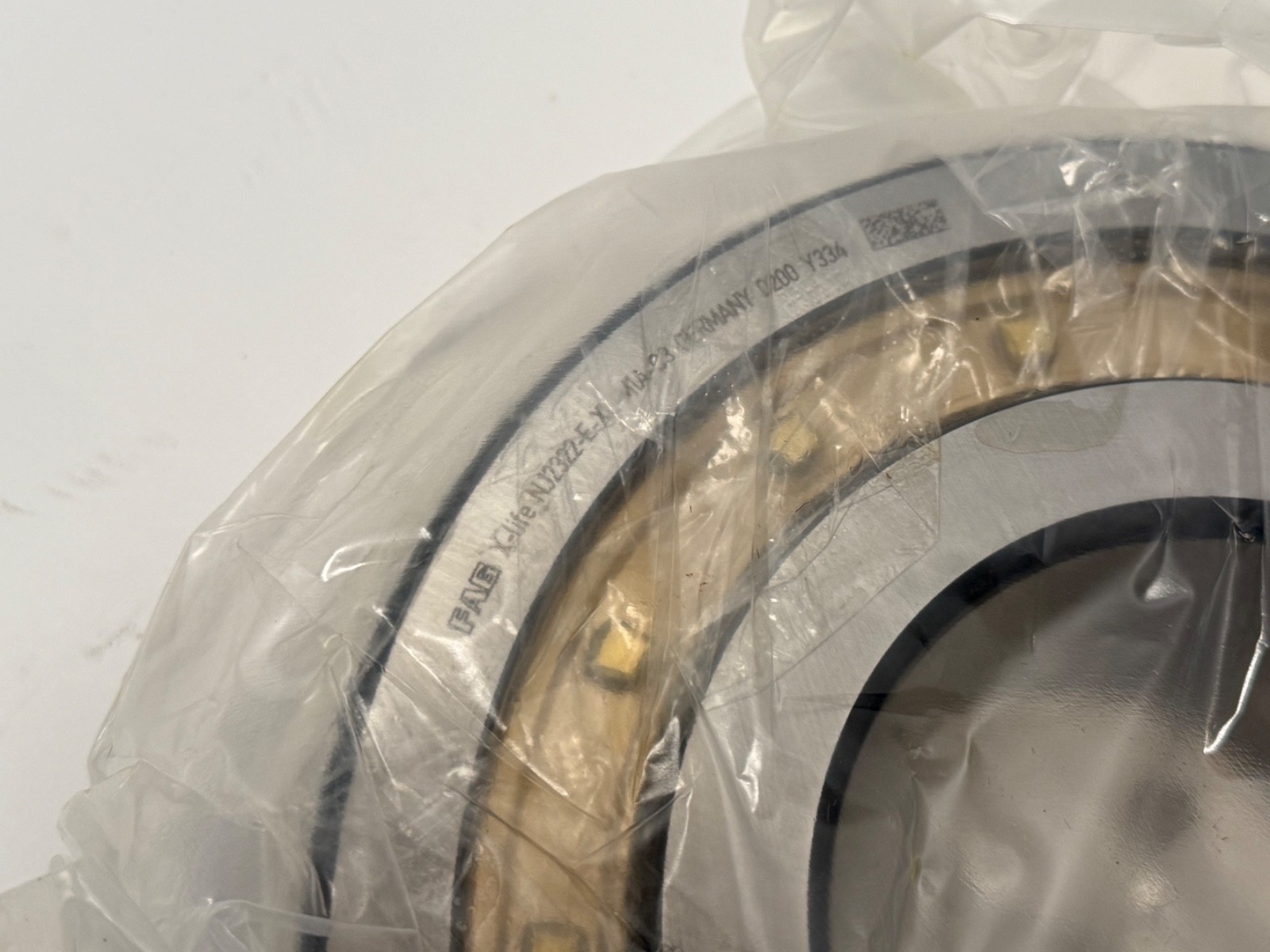

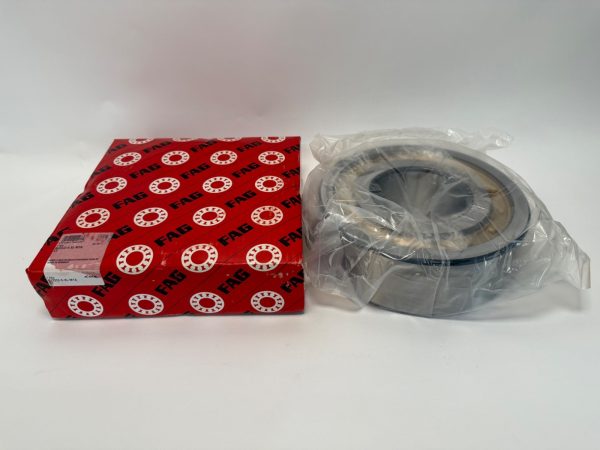

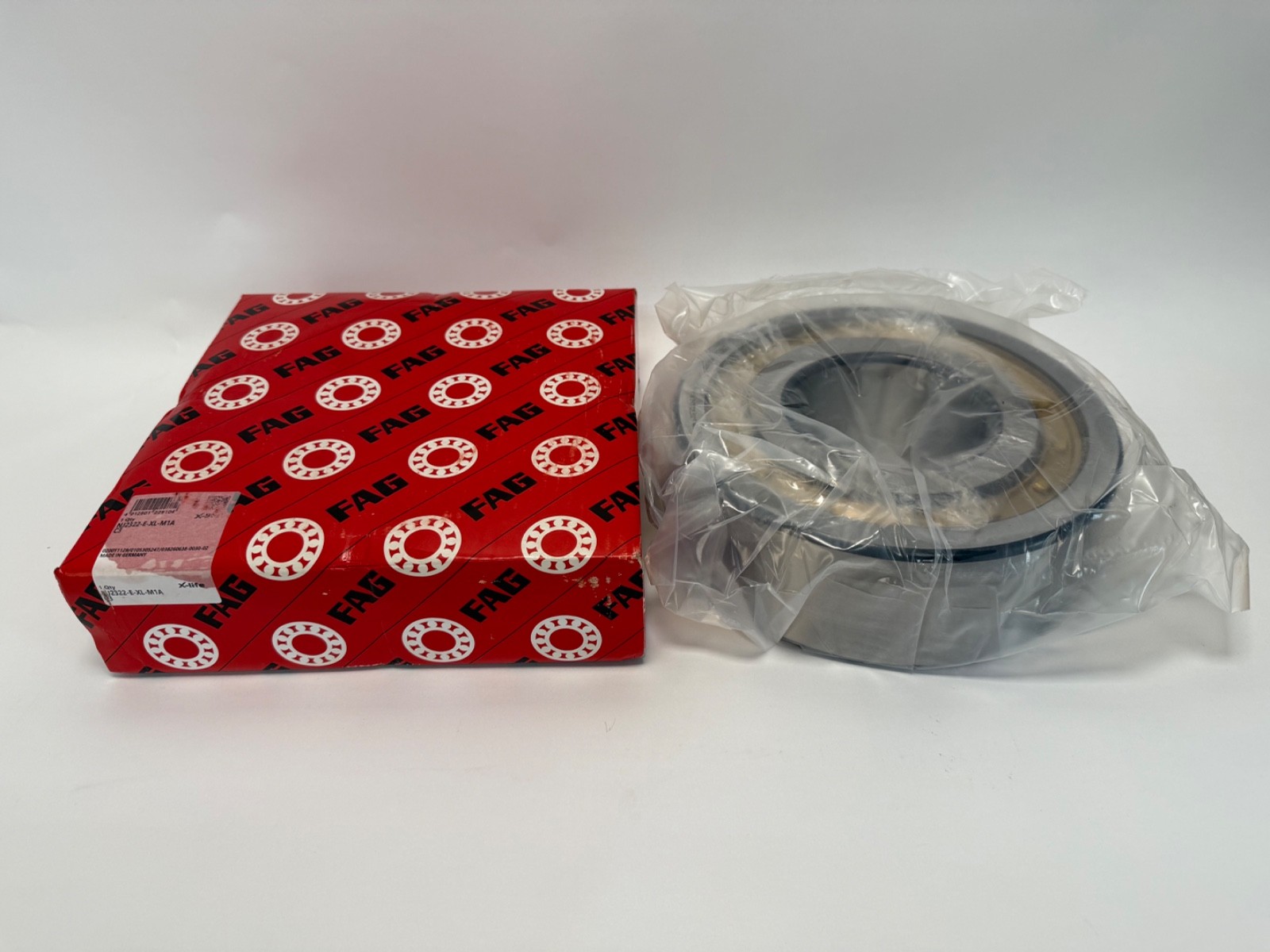

FAGNJ2322-E-XL-M1A-C3Cylindrical Roller Bearing — 110 mm ID, 240 mm OD, 80 mm Width, NJ Semi-Locating, X-life, Brass Cage, C3 Clearance

Product Description

What this part is

FAG NJ2322-E-XL-M1A-C3 is a single-row X-life cylindrical roller bearing of type NJ, in the 23 dimension series. Bore Diameter: 110 mm. Outside Diameter: 240 mm. Overall Width: 80 mm. Two ribs on the outer ring and one rib on the inner ring make it a semi-locating bearing: it locates the shaft axially in one direction. The separable design allows the inner and outer rings to be mounted independently. Rolling Elements: Cylindrical Roller.

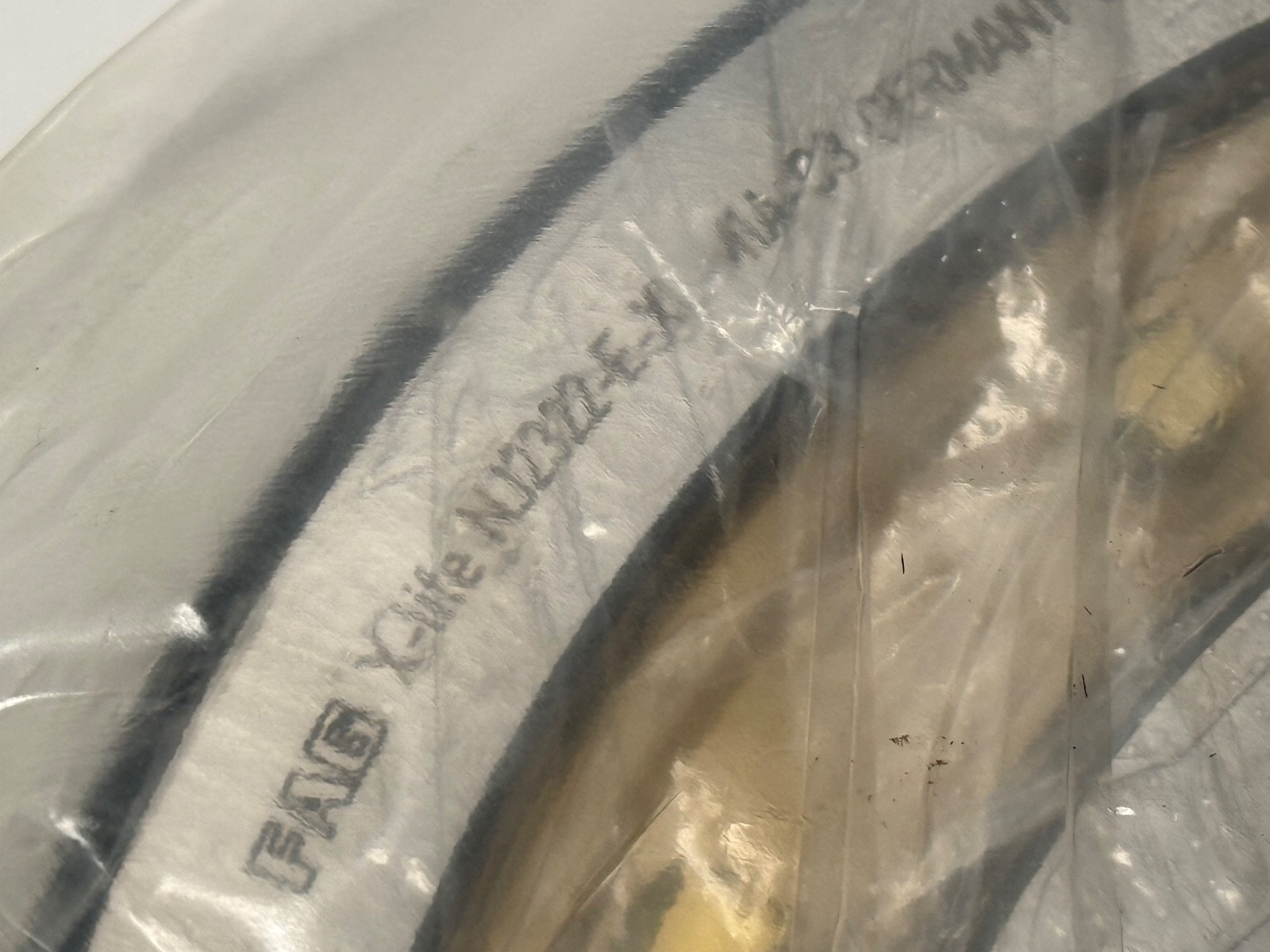

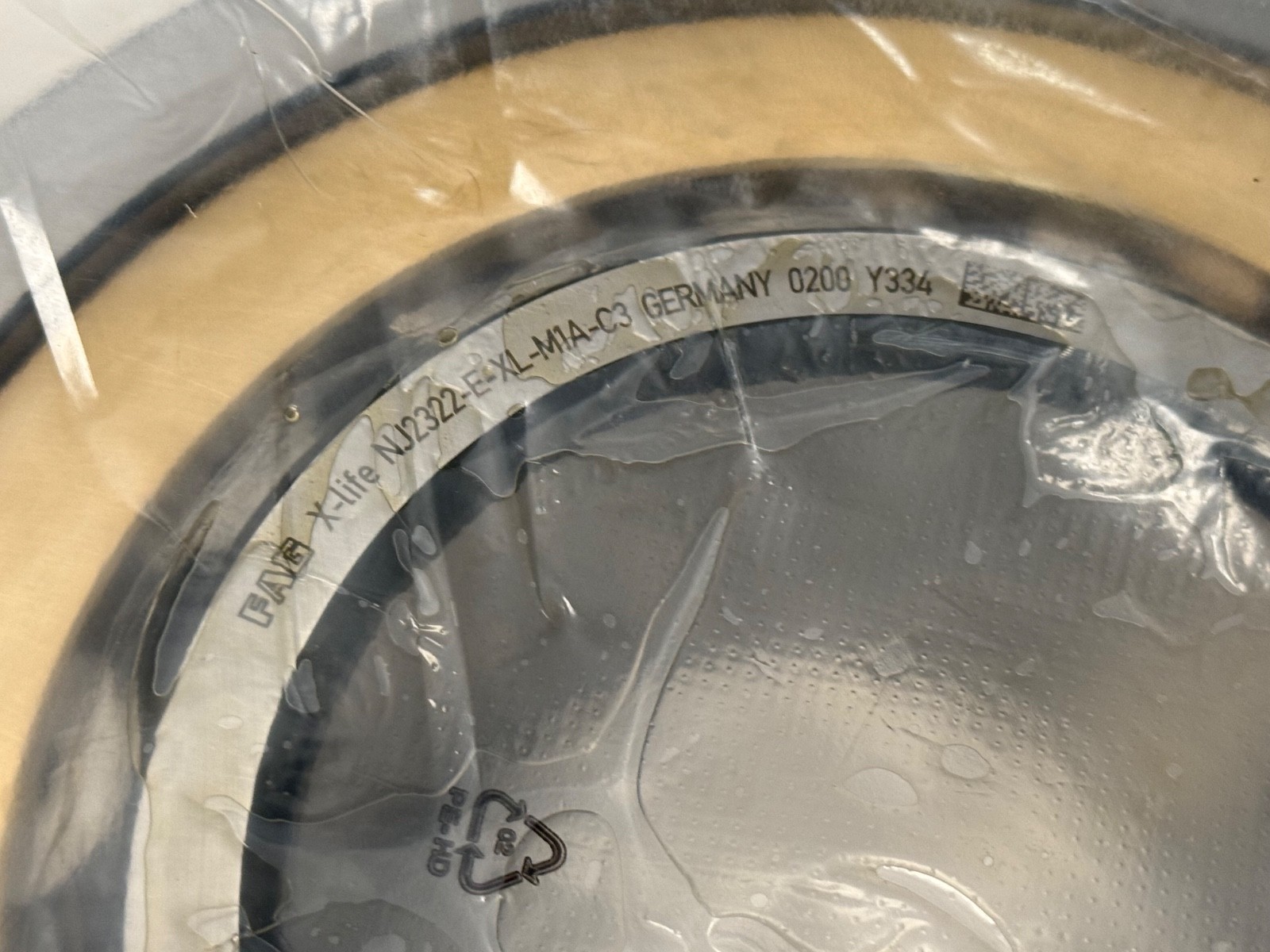

Decoding the designation

NJ2322 — NJ type, 23 dimension series, bore code 22 = 110 mm. Main dimensions to DIN 5412-1.

E — FAG increased-capacity internal design.

XL — X-life, Schaeffler’s higher-performance execution with increased rating life.

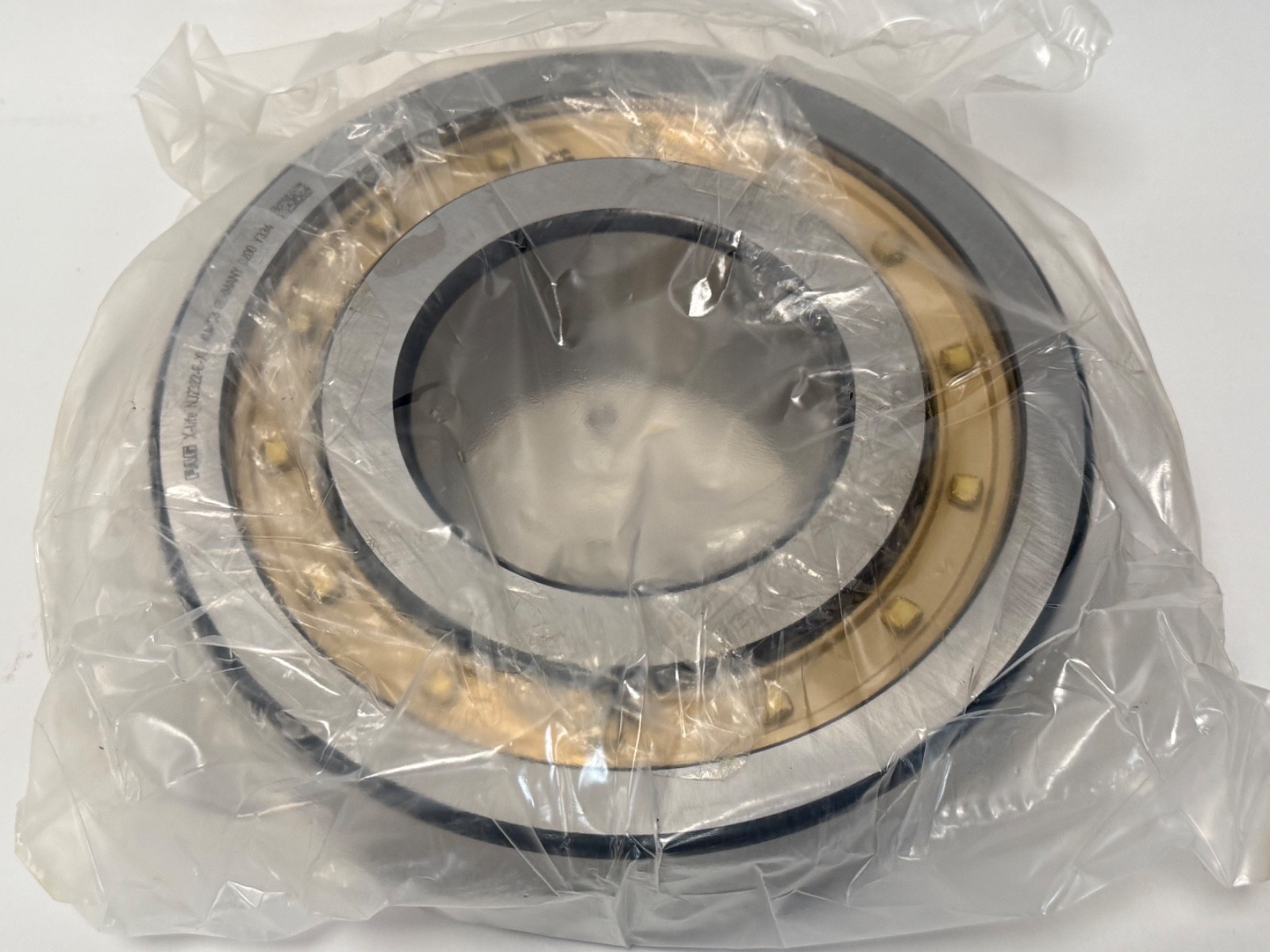

M1A — two-piece machined brass cage, lip guided.

C3 — radial internal clearance larger than CN.

What these specs mean in practice

Internal Clearance: C3. Cage Material: Machined brass. Cage Type: Two-piece machined, lip guided. The heavy 23-series section carries high radial load; the brass cage suits shock, vibration and elevated-temperature duty.

Interchange guidance

Same envelope and NJ semi-locating configuration as SKF NJ 2322 ECMA/C3 and NSK NJ2322EMC3. Predecessor designation: NJ2322-E-M1A-C3.
