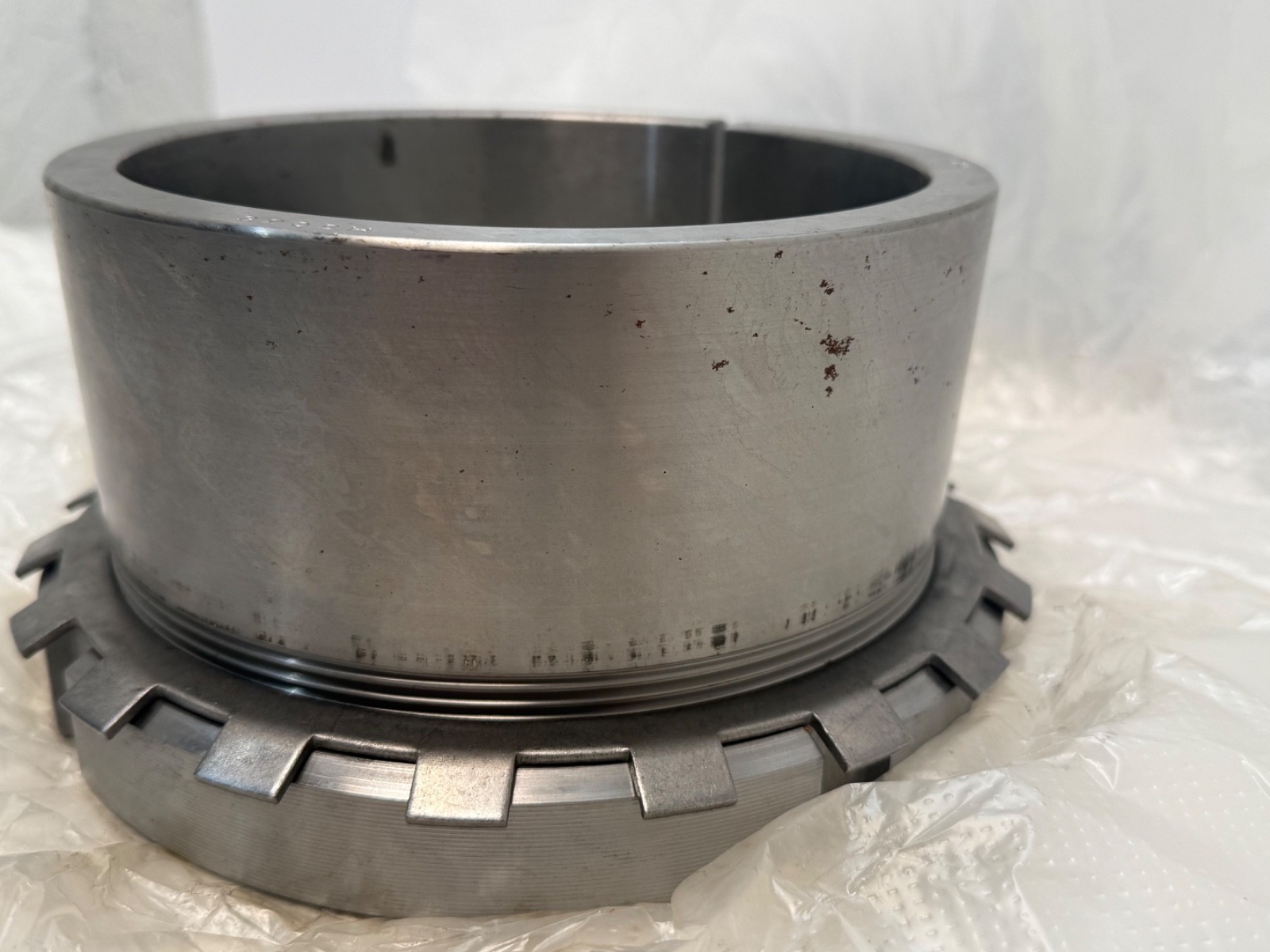

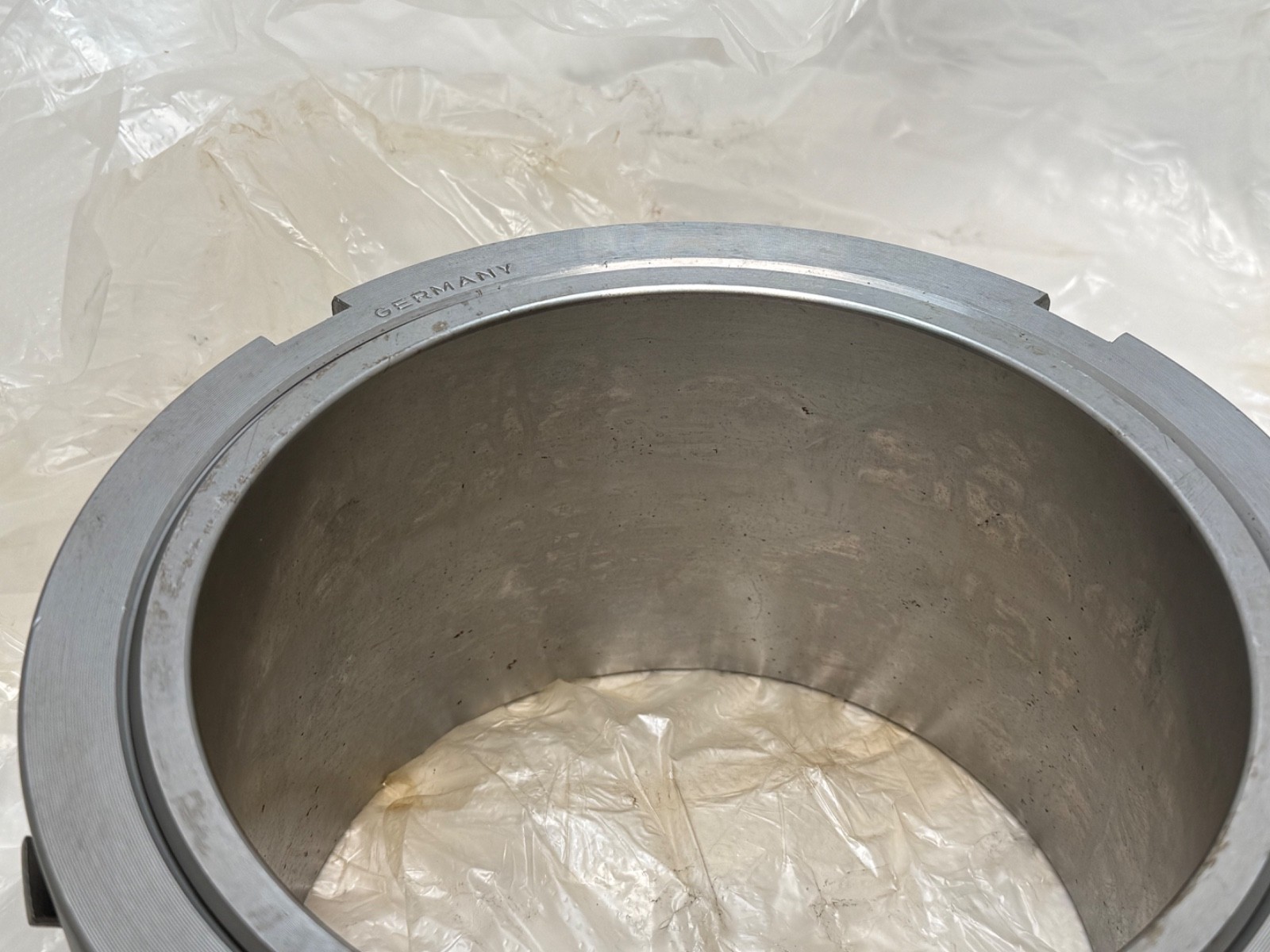

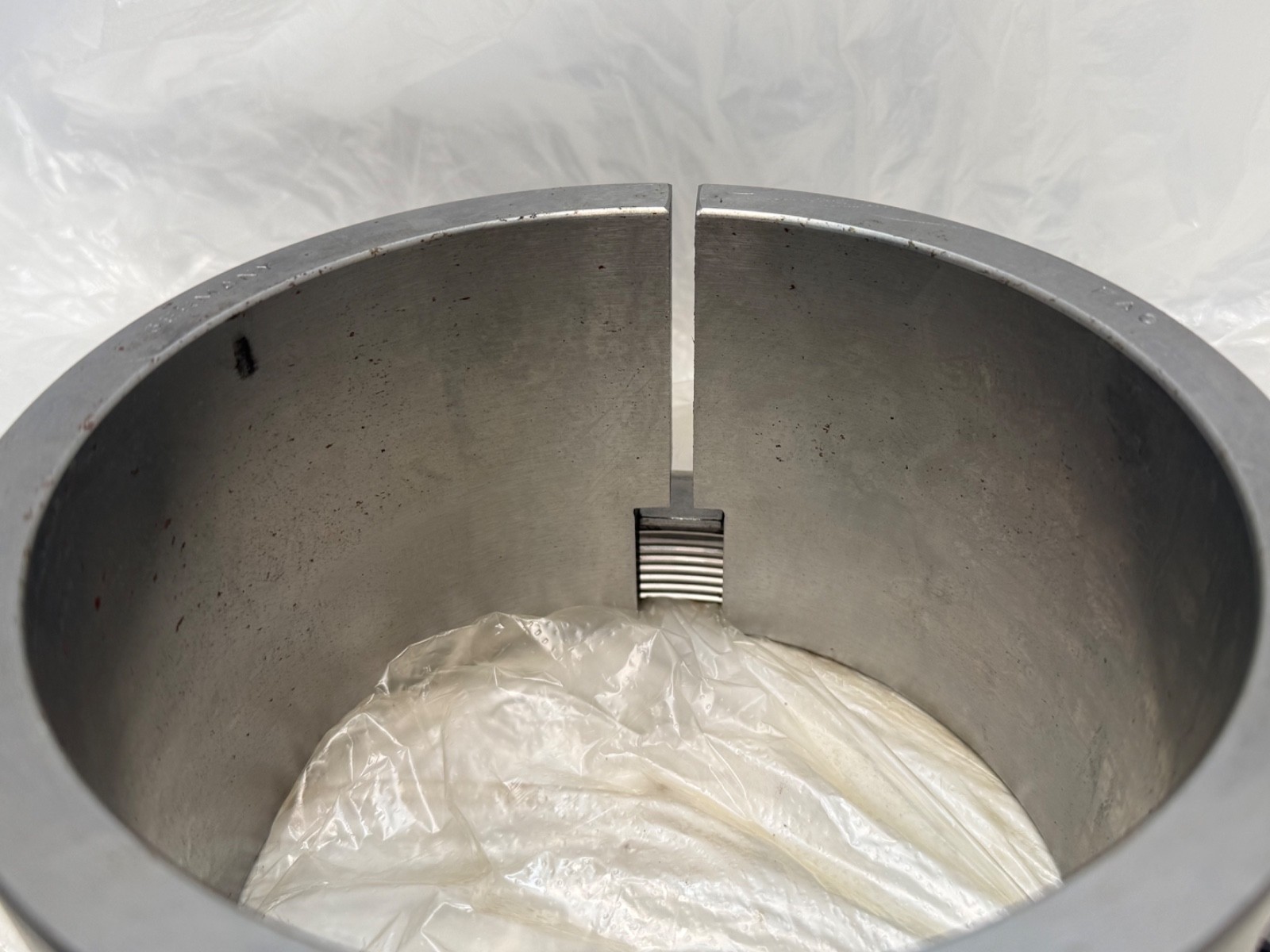

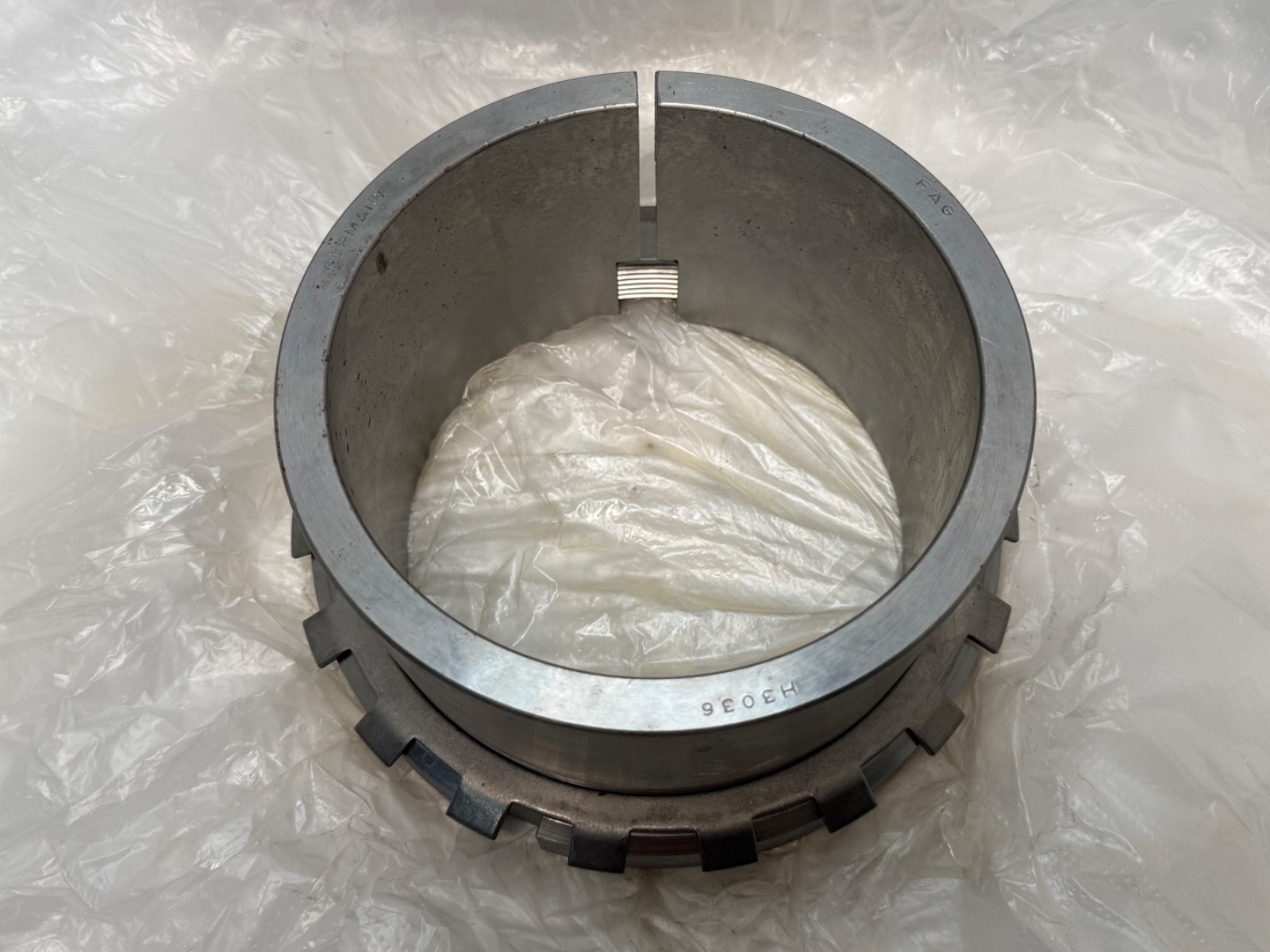

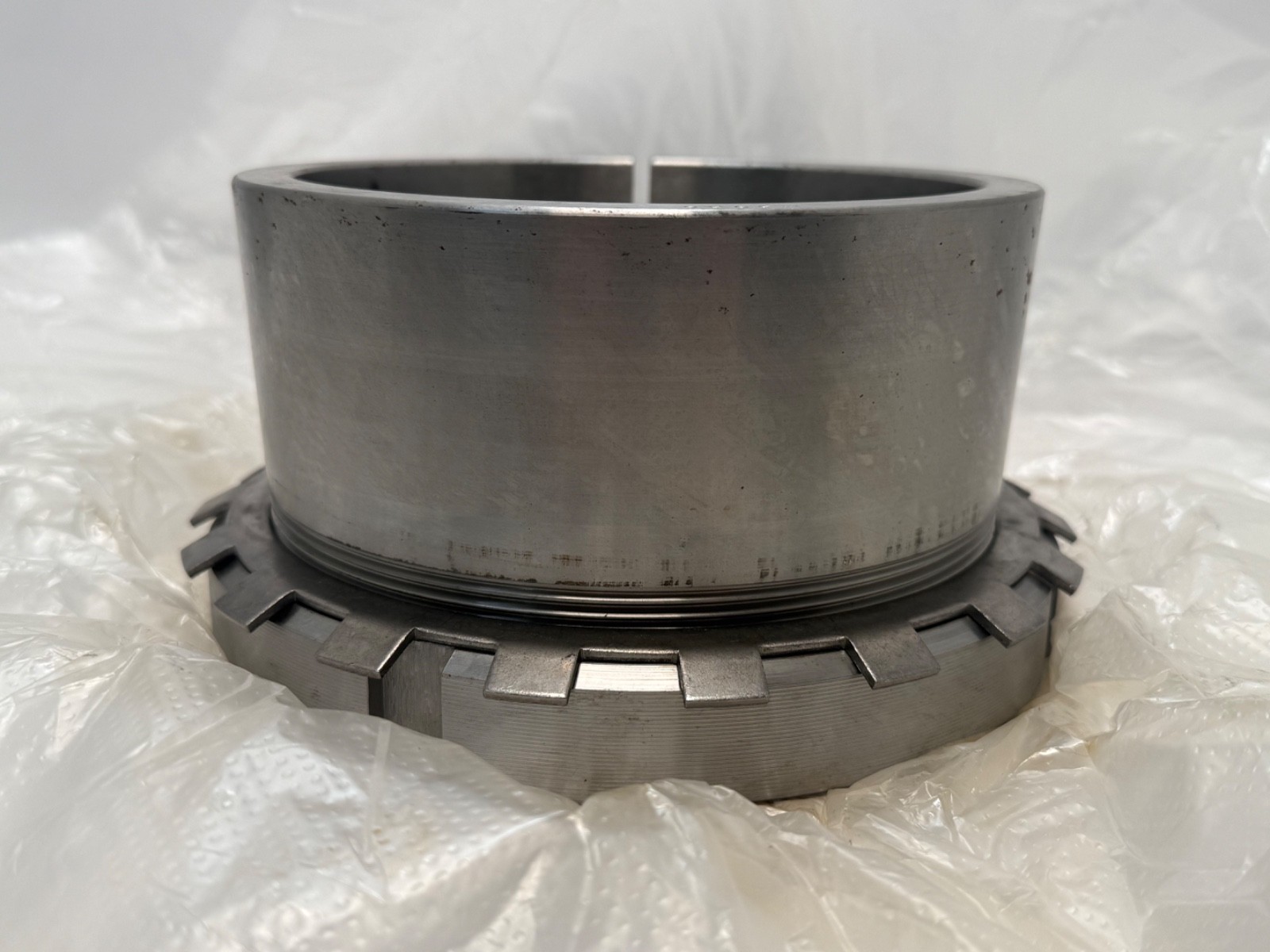

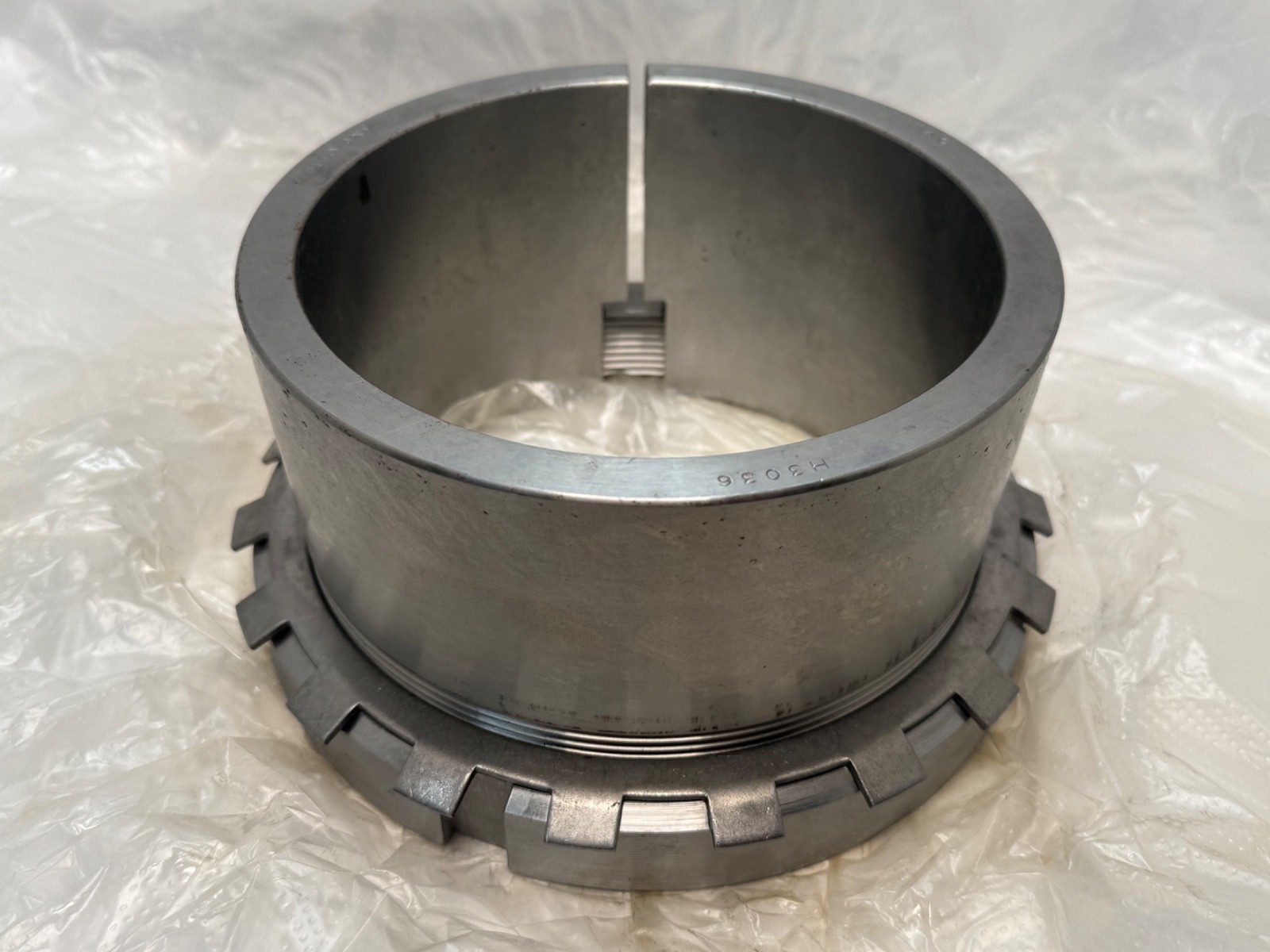

FAG H3036 bearing adapter sleeve, 160 mm shaft, M180×3 thread, 1:12 taper, DIN 5415, complete with KML36 locknut and MBL36 tab washer — new old stock.
List Price
$262.79
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | H3036 |
| Model | H 3036 |
| Bearing Type | Bearing Adapter Sleeve |
| ID | 160 mm |
| OD | 8-1/4 in |
| Width | 1-1/8 in |
| Material | Steel |
|---|---|
| Condition | New – Open box |
| Category Id | 35565 |
| Currency | USD |

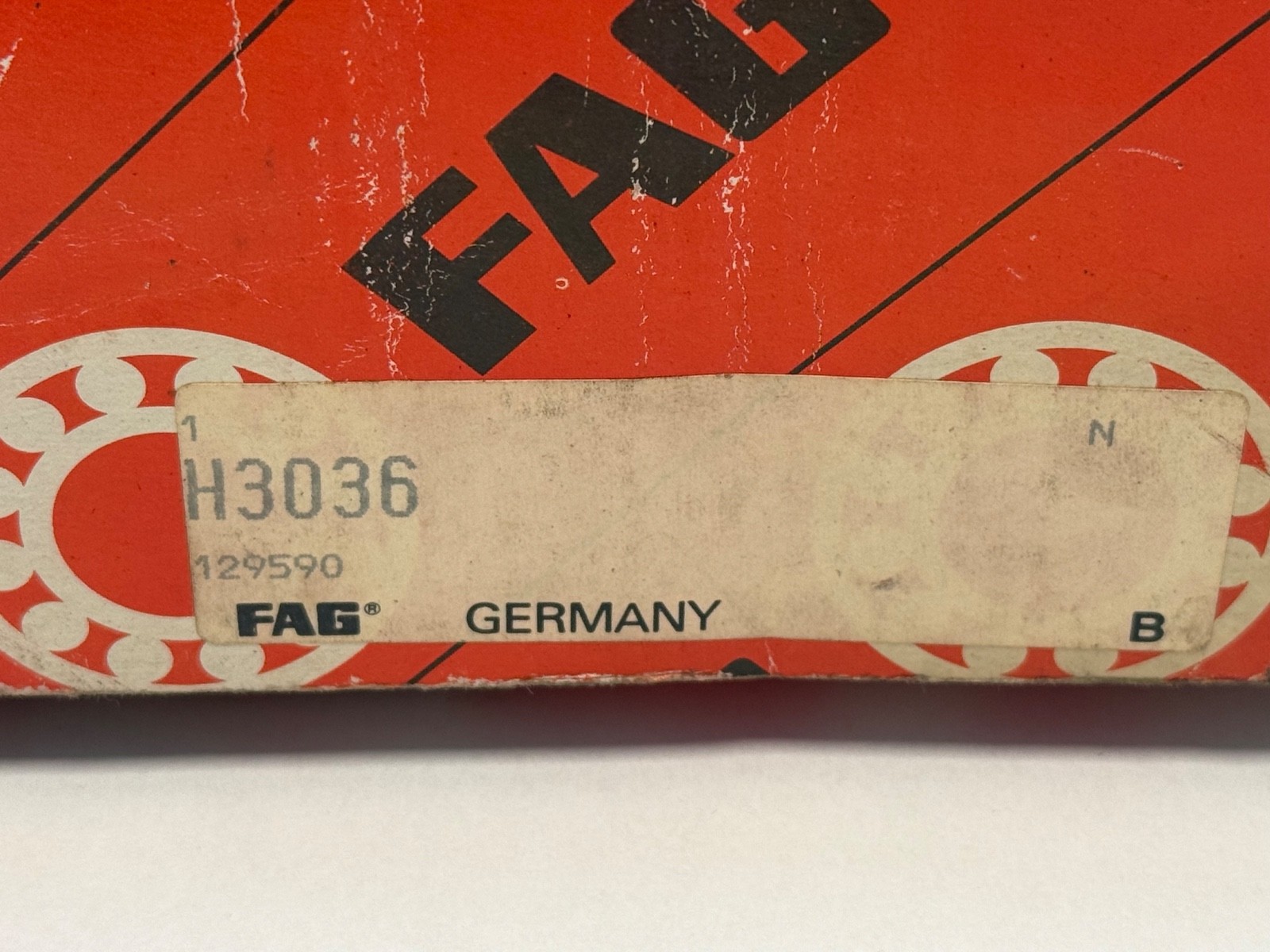

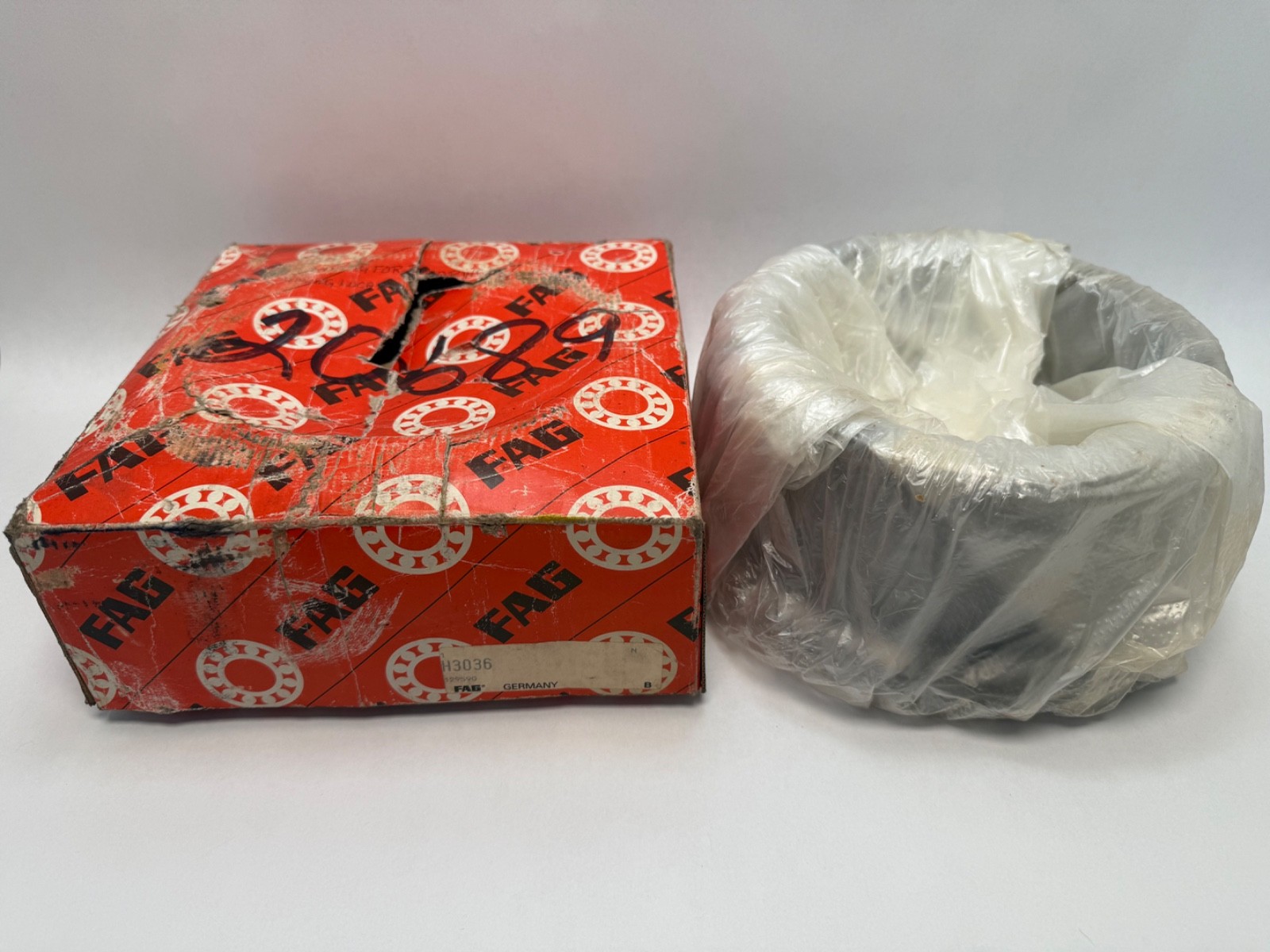

| Condition Note | Made In Germany, New Old Stock, See Pictures |
The FAG H3036 is a metric bearing adapter sleeve that mounts a 180 mm-bore, 1:12 tapered-bore bearing (self-aligning ball or spherical roller, e.g. 22236K / 23236K) onto a 160 mm (6.2992 in) smooth or stepped shaft. FAG is a Schaeffler brand.
The bearing is drawn up and clamped on the 1:12 tapered seat by an M180×3 locknut, letting it be fixed at any point along a plain shaft with no shoulder or shaft thread required.
Standard: DIN 5415, through-hardened bearing steel
Shaft size: 160 mm (6.2992 in)
Bearing bore: 180 mm, 1:12 taper
Nut thread: M180×3
Sleeve outer/nut diameter: 210 mm (8.2677 in)
Weight: approx. 6.7 kg (14.8 lb)

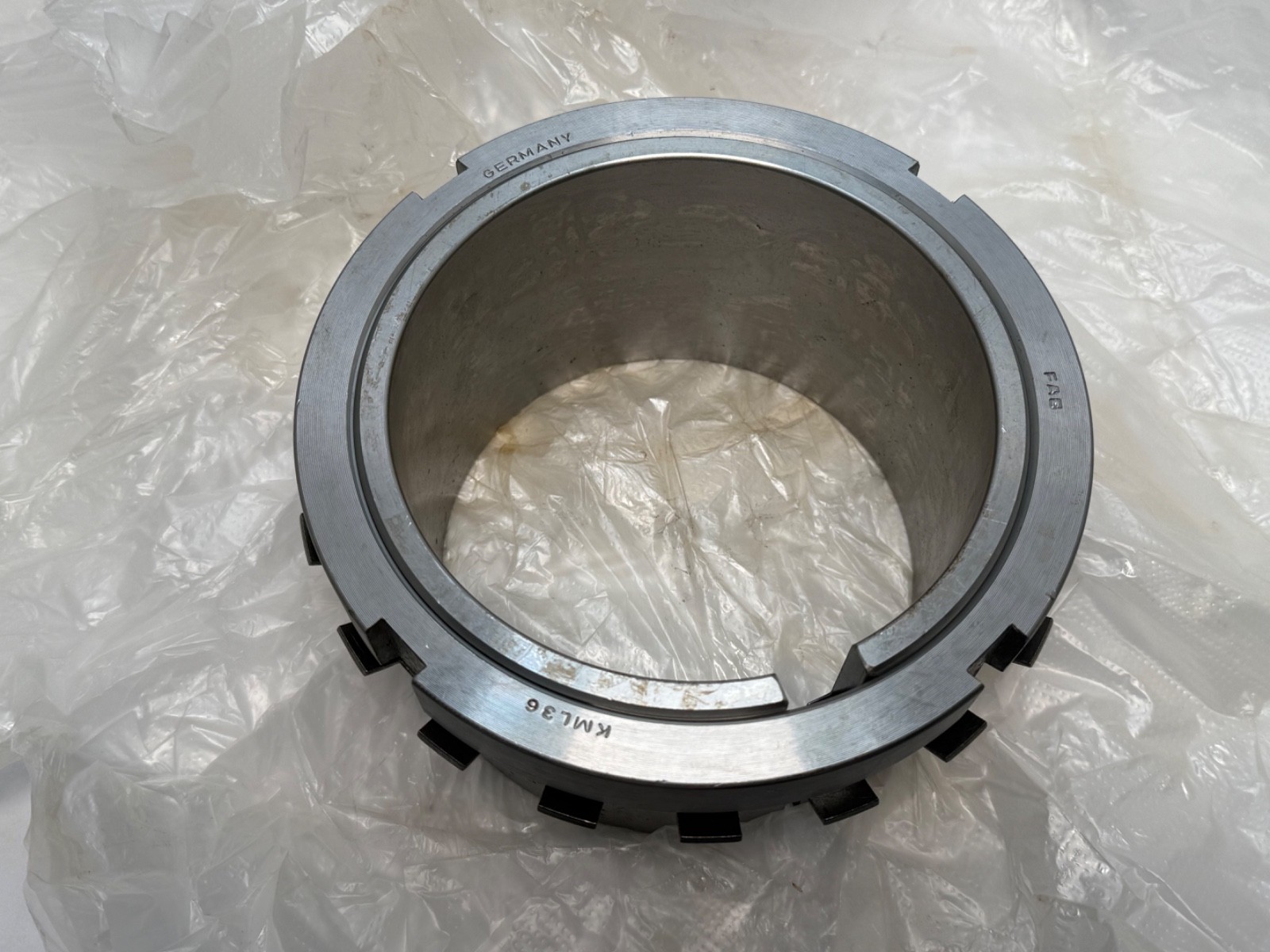

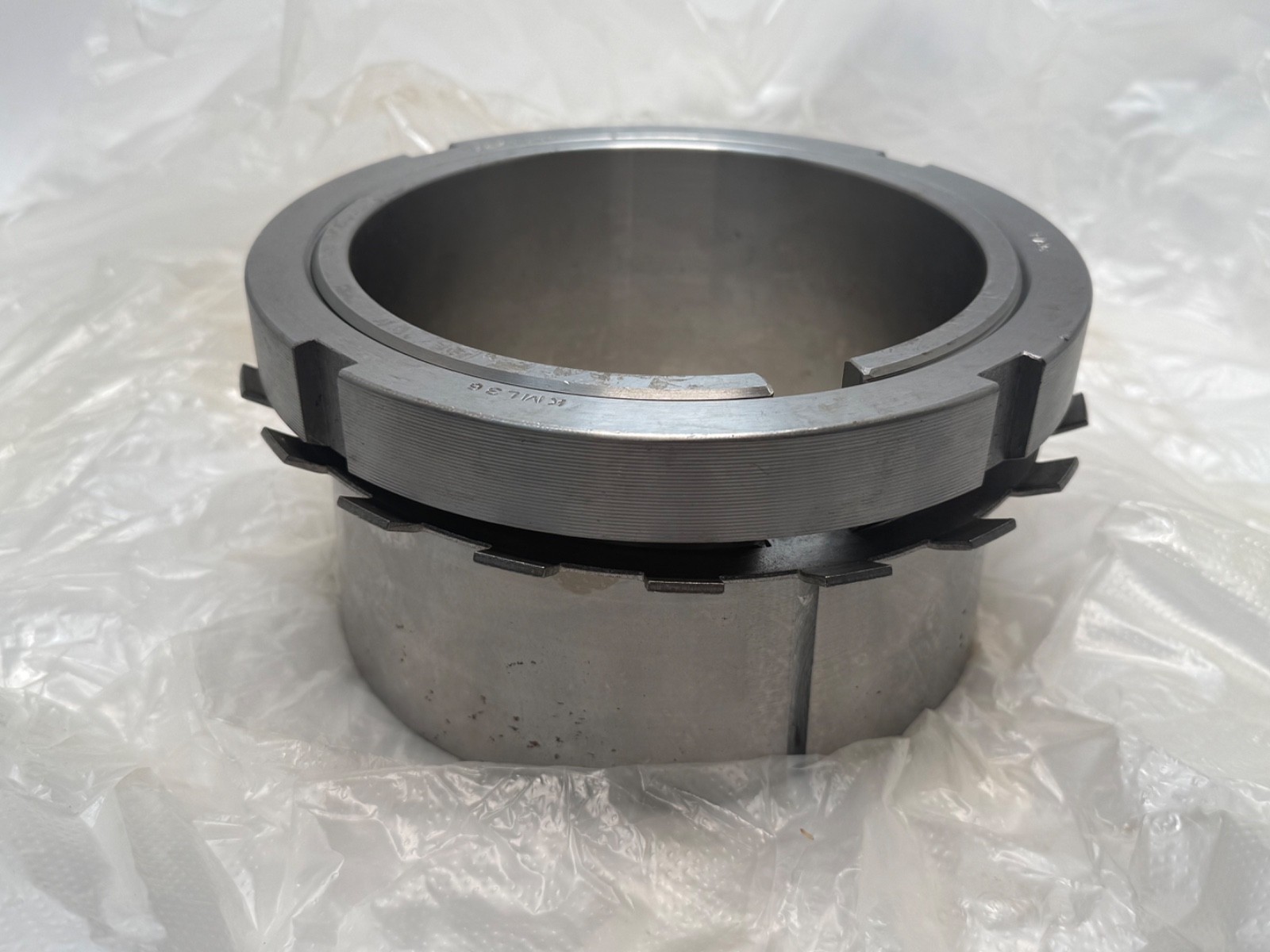

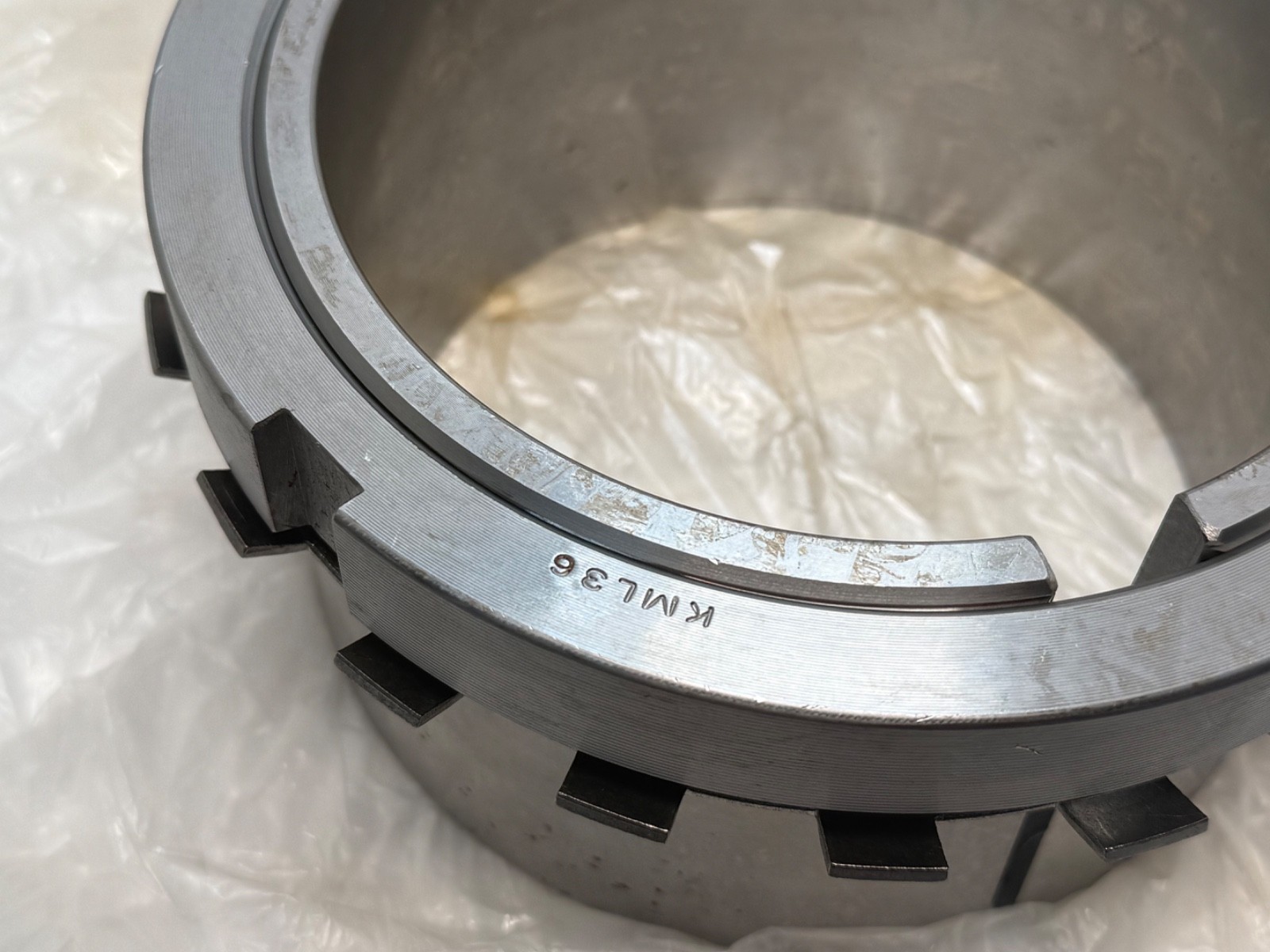

Assembly ships complete with the KML36 locknut and MBL36 tab lockwasher.
The H3036 is a direct DIN-standard interchange with SKF H 3036, NSK, NTN, and Timken H3036. Also written H-3036, H 3036, FAGH3036.
