Availability:
Out of stock

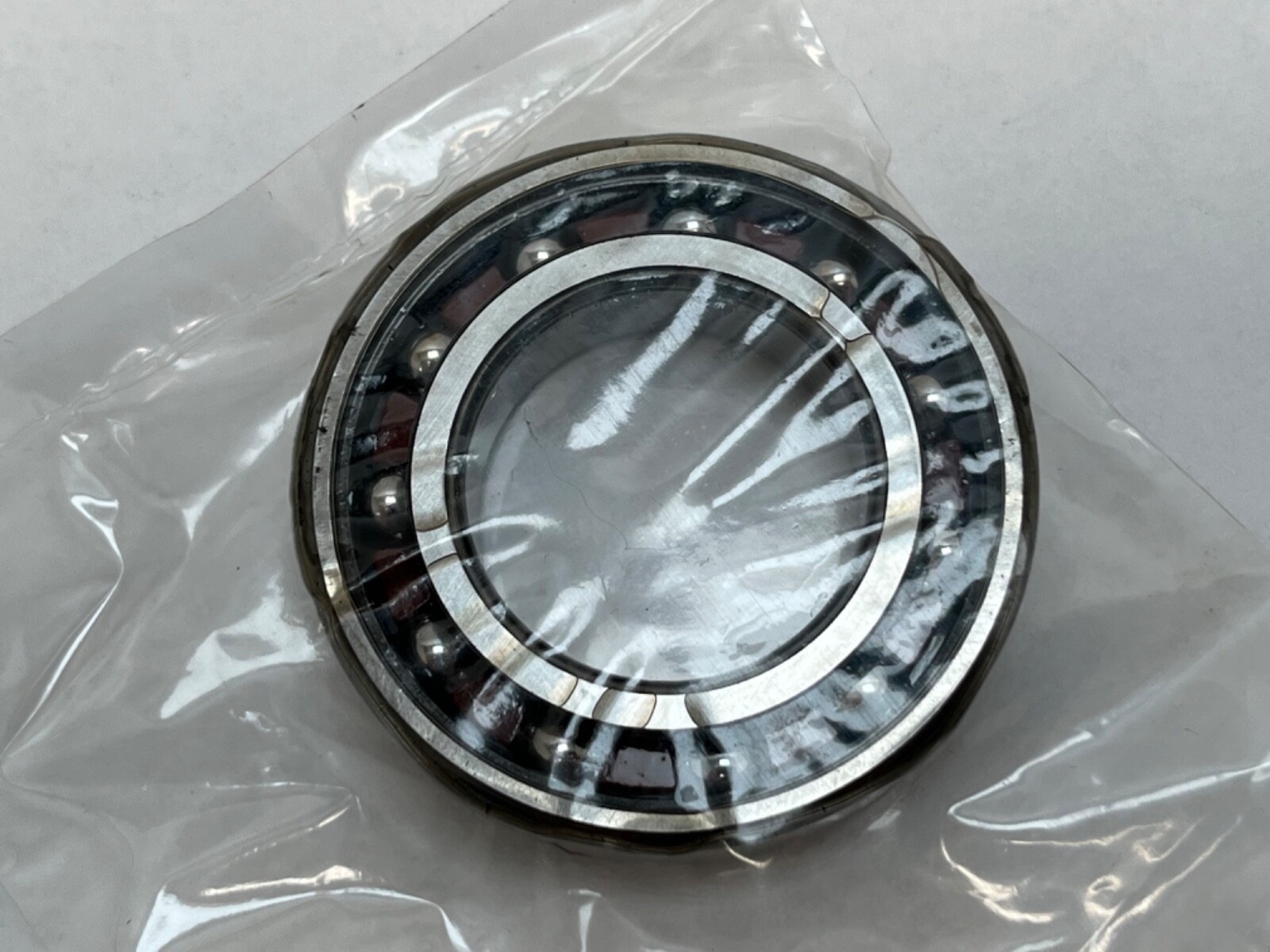

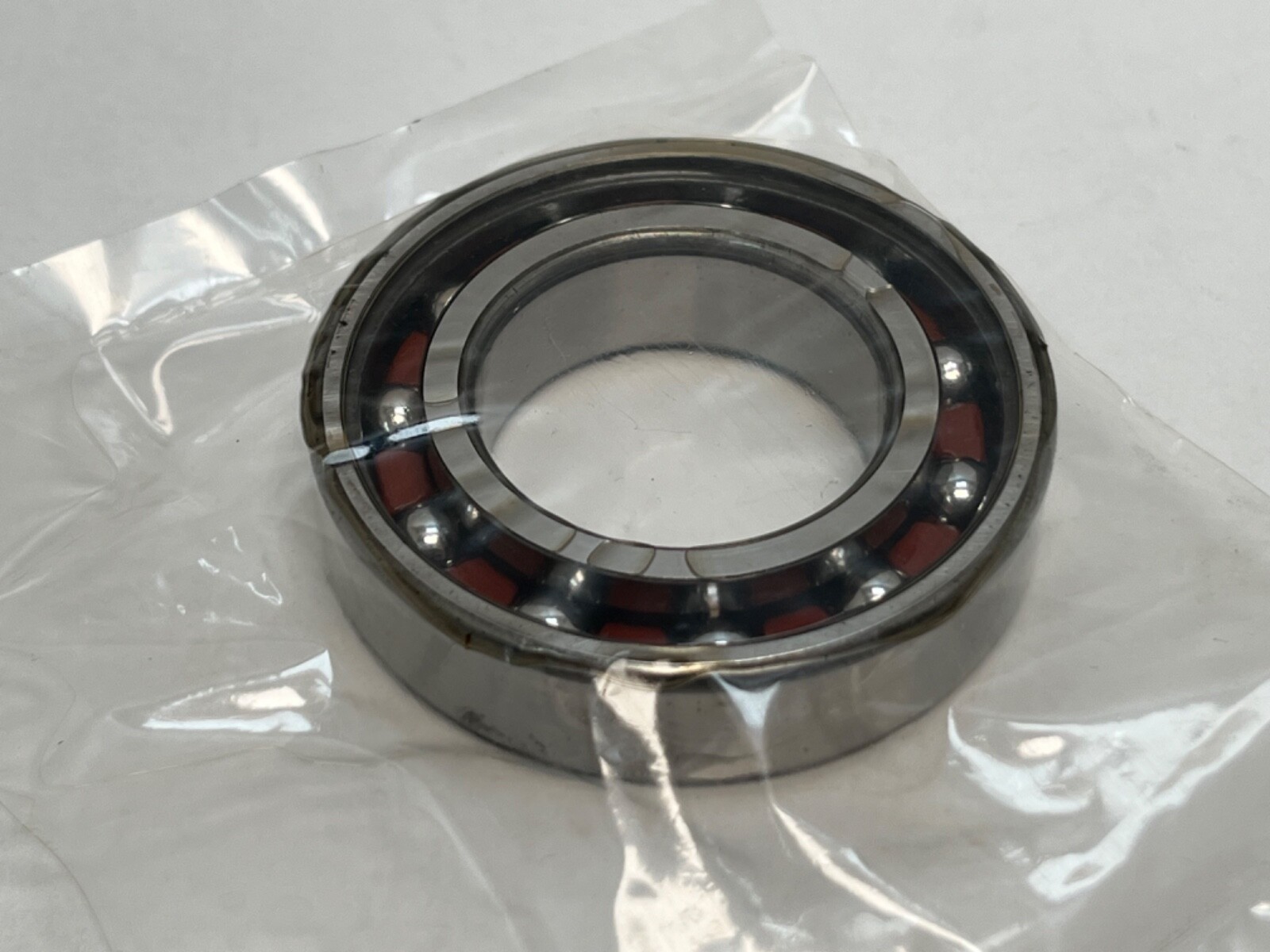

Super precision deep groove ball bearing, 30 mm bore, 55 mm OD, 13 mm wide, ABEC 7 / P4, open, machined phenolic cage. Fafnir MM9106K envelope.
List Price
$27.91
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Deep Groove Ball Bearing - Straight Bore, 30 mm ID, 55 mm OD, 13 mm Width, Open, Without Snap Ring.$49.60
Deep Groove Ball Bearing — 30 mm ID, 55 mm OD, 13 mm Width, Contact Seals Both Sides, C3 Clearance$51.63
Spindle Deep Groove Ball Bearing – 30 mm ID x 72 mm OD x 19 mm, Straight Bore, Open, Phenolic Cage, ABEC 3 / P6$21.22
Maximum Capacity Filling Slot Ball Bearing - 30 mm Bore, 90 mm OD, 23 mm Width, Open, Straight Bore, Heavy 400 Series$26.73| MFR / Brand | RHP |
|---|---|
| MPN | 6006TBHP4 |
| Model | MM 9106 K CR / 6006 TBH P4 6006TP4 |
| Bearing Type | Ball Bearing, Open |
| ID | 30 mm |
| OD | 55 mm |
| Width | 13 mm |
| Material | Bearing Steel |
|---|---|
| Series | 6000 |
| Mpn Variants | 6006TBHP4, 6006 T/TBH P4, 6006TP4, MM9106KCR, MM-9106-K |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined, inner-ring centred |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Cross Reference 1 | Fafnir MM9106K |
|---|---|
| Cross Reference 2 | SKF 6006/P4 |
| Cross Reference 3 | NSK 6006 P4 |
RHP 6006TBHP4 is a super precision single row deep groove ball bearing in the ISO 6006 envelope, built for machine tool spindles and high speed precision shafts. Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined, inner-ring centred. Closure Type: Open. Rolling Elements: Ball. Bore Type: Straight.
6006 — ISO deep groove series 60, bore code 06 = 30 mm.
TB — one-piece machined laminated phenolic cage, inner-ring centred.
P4 — ISO P4 tolerance class, equivalent to ABEC 7.
ABEC 7 running accuracy and a light phenolic cage give low vibration and stable running at spindle speeds. Snap Ring: No.
Unit Quantity: 1 Pc. Condition: new old stock, open box.
Cross-Reference 1: Fafnir MM9106K, ABEC 7, same envelope. Cross-Reference 2: SKF 6006/P4. Cross-Reference 3: NSK 6006 P4. Standard-precision 6006 bearings from SKF, FAG, NSK and NTN share the envelope at ABEC 1.
