Deep groove ball bearing, 70 x 150 x 35 mm, open, MRC 300-S medium series. Dynamic Load Rating 104,000 N, Static 68,000 N. Pressed steel cage, CN clearance.
List Price
$72.41
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Deep Groove Ball Bearing - 70 mm Bore, 150 mm OD, 35 mm Width, Contact Seals Both Sides, Snap-Ring Groove Outer Ring$51.33
Single-Row Deep Groove Ball Bearing, 70 x 150 x 35 mm, Open Both Faces, Normal Clearance$52.41
Ball Bearing — 70 mm ID, 150 mm OD, 35 mm Width, Open, Phenolic Separator$72.41
Deep Groove Ball Bearing - 70 mm ID, 150 mm OD, 35 mm Width, Open, Machined Brass Cage, ABEC 5 / P5$81.63| MFR / Brand | MRC |
|---|---|
| MPN | 314S |
| GTIN | 097741009010 |
| Model | 314-S |
| Bearing Type | Ball Bearing, Open |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Series | 300-S Medium |
|---|---|
| Dynamic Load Rating | 104,000 N |
| Static Load Rating | 68,000 N |
| Rolling Elements | Ball |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Internal Clearance | CN |
| Limiting Speed | 4,500 rpm grease; 5,300 rpm oil |
| Base Number | 6314 |
| Industry Terms | Deep groove ball bearing; radial ball bearing; single row ball bearing; open ball bearing; Conrad bearing; medium series ball bearing |
| Common Misspellings | 3145; 314 5; MRC314S; MRC 314 S; 6314S |
| Total Width | 35 mm |
| Overall Width | 35 mm |
| Bore Shaft Size | 70 mm |
| Mpn Variants | 314S; 314-S; 314 S |
| Additional Attributes | Maximum fillet radius (shaft or housing): 2.0 mm |
| Design Units | Metric |
| Part Number | 314S |
| Closure Type | Open |
| Cross Reference 1 | SKF 6314 |
|---|---|
| Cross Reference 2 | FAG 6314 |
| Cross Reference 3 | NSK 6314 |
| Cross Reference 4 | NTN 6314 |
| Cross Reference 5 | Koyo 6314 |
| Cross Reference 6 | Fafnir 314K |

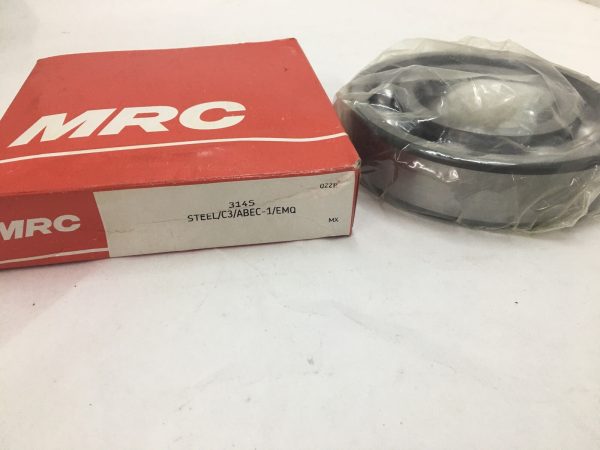

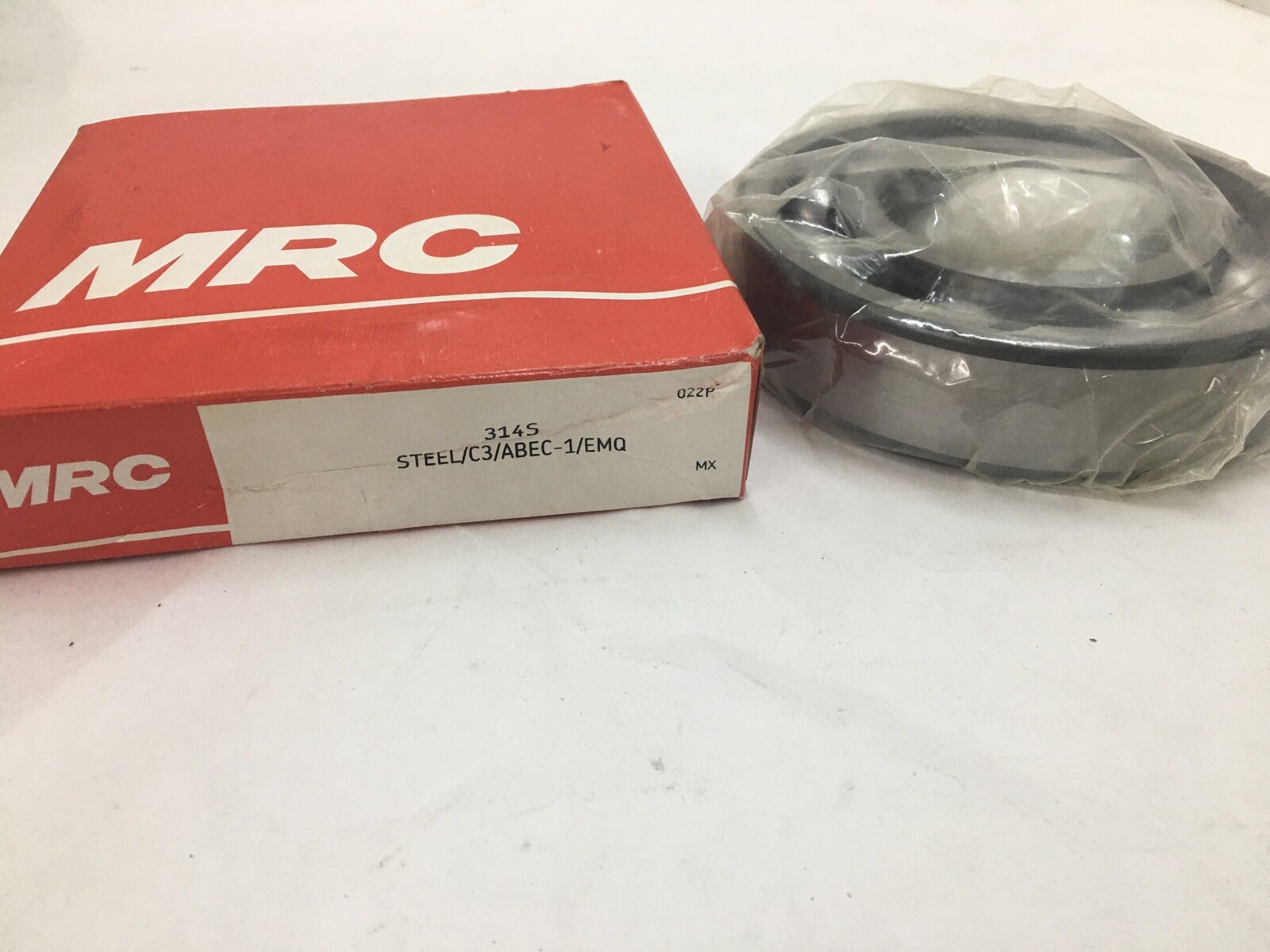

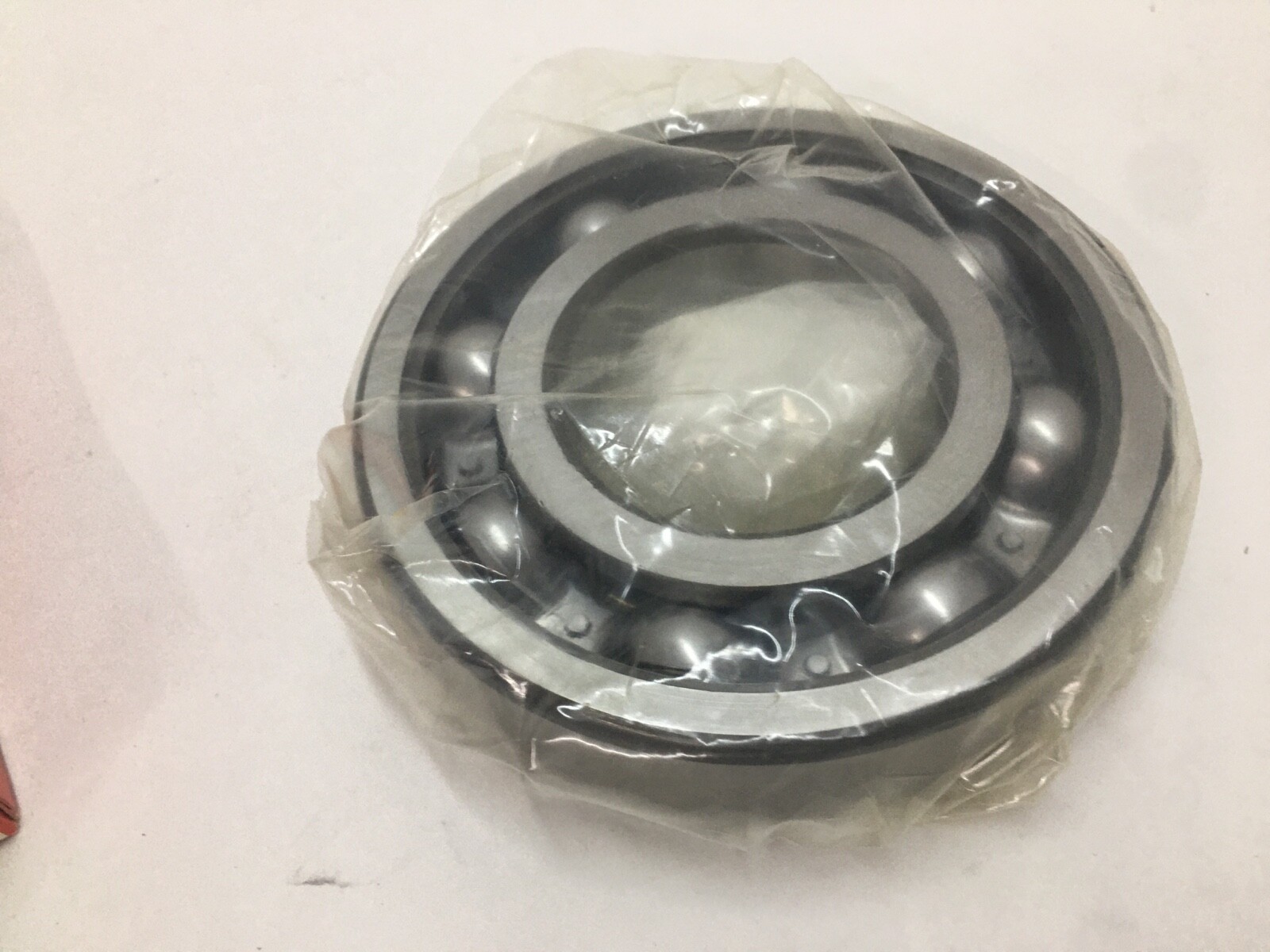

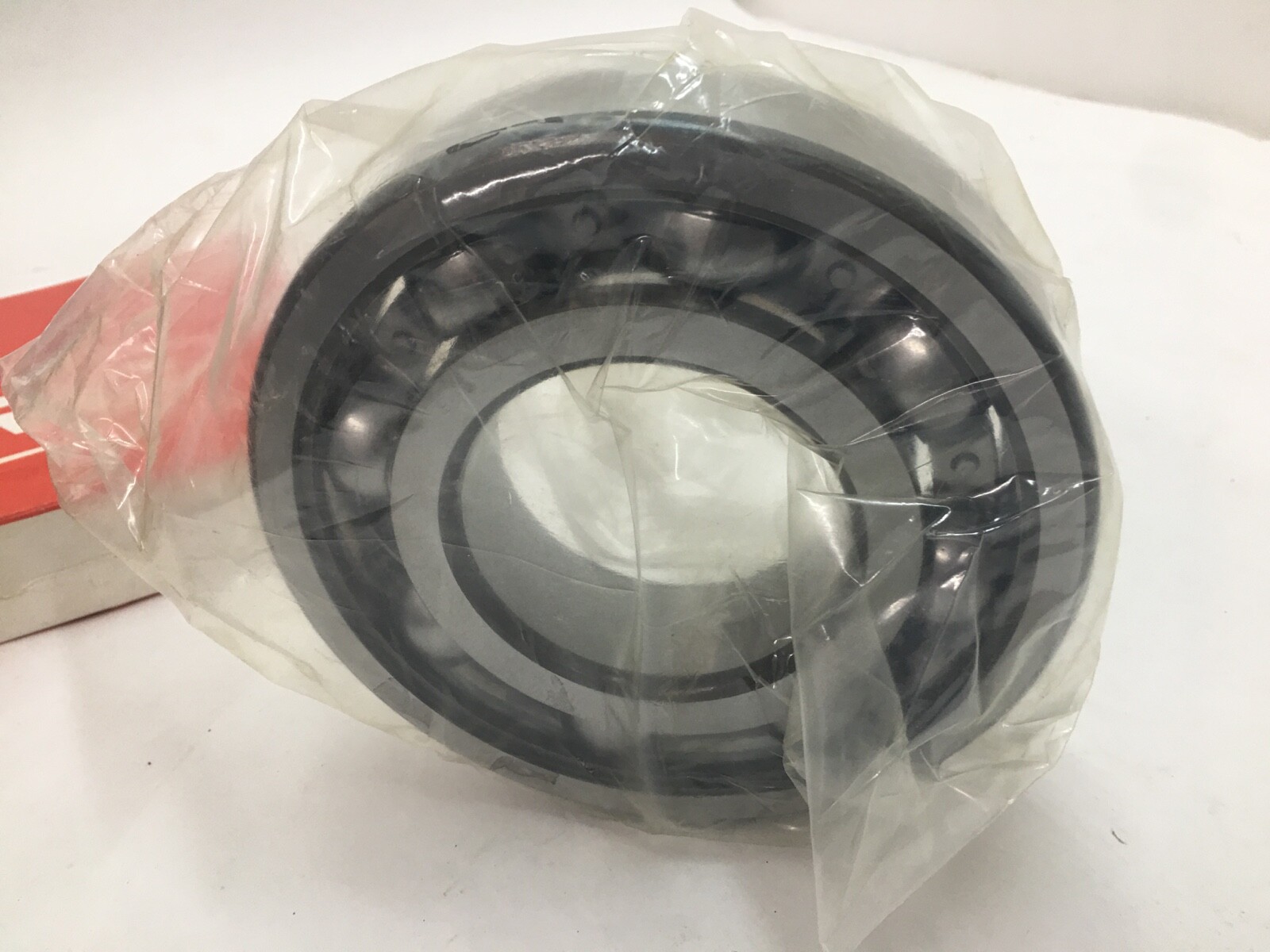

MRC 314S single-row Conrad deep groove ball bearing, open on both faces, from the MRC 300-S Medium Series. Bore Diameter: 70 mm. Outside Diameter: 150 mm. Overall Width: 35 mm. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Open.
314 — MRC 300-S Medium Series, bore code 14, giving a 70 mm bore.
S — Conrad-type single-row deep groove construction with no filling notches.
Dynamic Load Rating: 104,000 N. Static Load Rating: 68,000 N. Limiting Speed: 4,500 rpm grease; 5,300 rpm oil. Cage Material: Pressed steel. Internal Clearance: CN. Bore Type: Straight. Snap Ring: No.

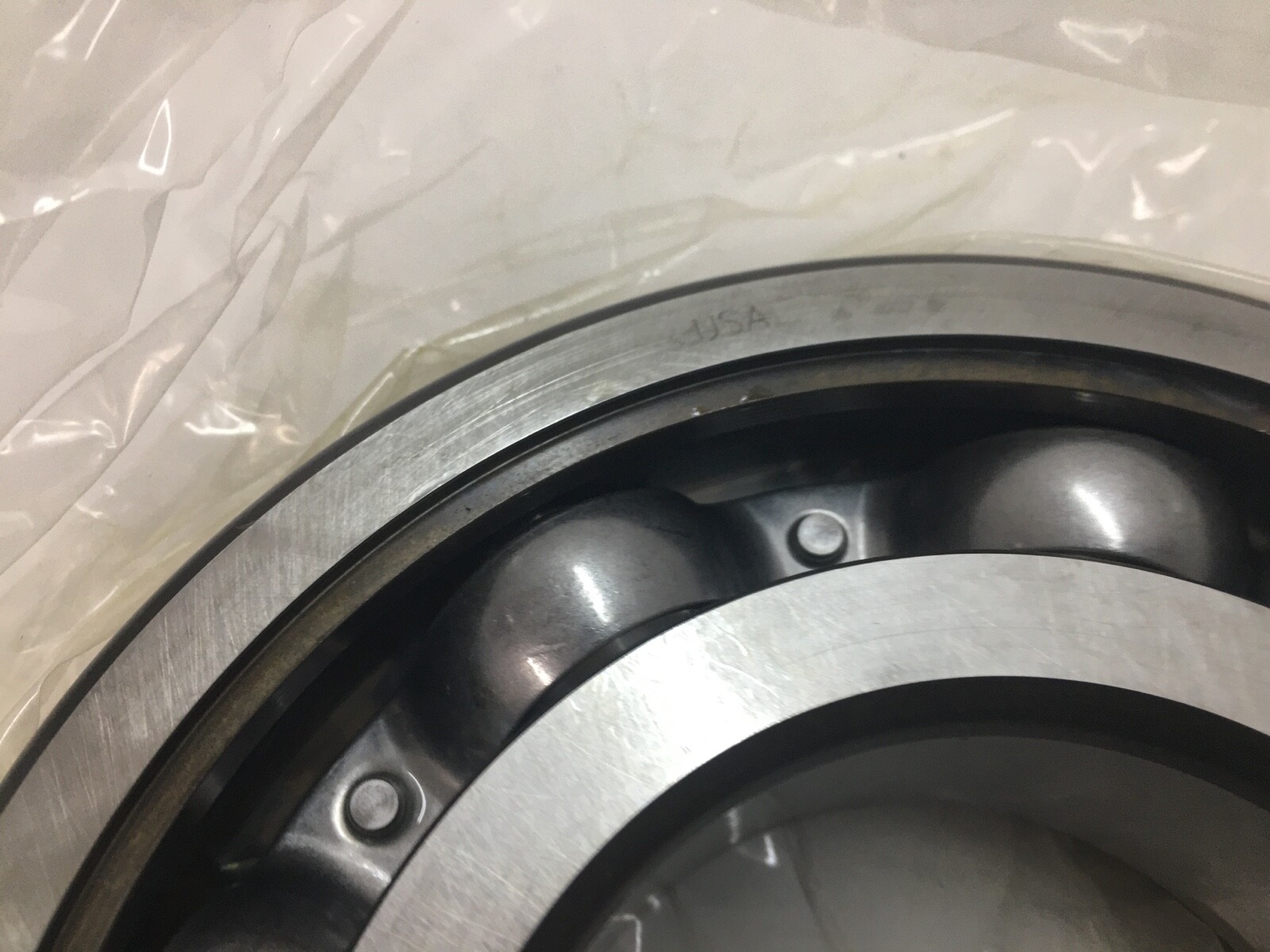

Uninterrupted raceway grooves and close ball-to-raceway conformity carry heavy radial load together with thrust load in either direction.
Maximum Fillet Radius (shaft or housing): 2.0 mm. Straight bore for a 70 mm shaft seat; 150 mm housing bore.
Unit Quantity: 1 Pc. Single bearing.
Same 70 x 150 x 35 mm open deep groove envelope: SKF 6314, FAG 6314, NSK 6314, NTN 6314, Koyo 6314, Fafnir 314K.
MPN Variants: 314S, 314-S, 314 S.
