Deep groove ball bearing, 50 mm bore x 110 mm OD x 27 mm wide, contact rubber seals both sides, C3 clearance, 68,000 N dynamic rating, L038 grease fill.
List Price
$40.76
9 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6310.2RSR.C3 |
| Model | 6310RSR C3.L38 |
| Bearing Type | Ball Bearing, Contact seals both sides |
| ID | 50 mm |
| OD | 110 mm |
| Width | 27 mm |
| Material | Bearing Steel |
|---|---|
| Series | 6300 Series |
| Lubricant | Grease |
| Mpn Variants | 6310.2RSR.C3, 6310-2RSR-C3, 6310-2RSR-L038-C3, 63102RSRC3, 6310RSR C3.L38 |
| Min Temp | -20 °C |
| Dynamic Load Rating | 68,000 N |
| Static Load Rating | 38,500 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 1.083 kg (2.39 lb) |
| Cage Material | Pressed steel |
| Limiting Speed | 3,950 rpm grease |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.10.5016 |
| Cross Reference 1 | SKF 6310-2RS1/C3 |
|---|---|
| Cross Reference 2 | NSK 6310DDUC3 |
| Cross Reference 3 | NTN 6310LLUC3 |
| Cross Reference 4 | Koyo 6310-2RSC3 |
| Cross Reference 5 | Timken 6310-2RS-C3 |

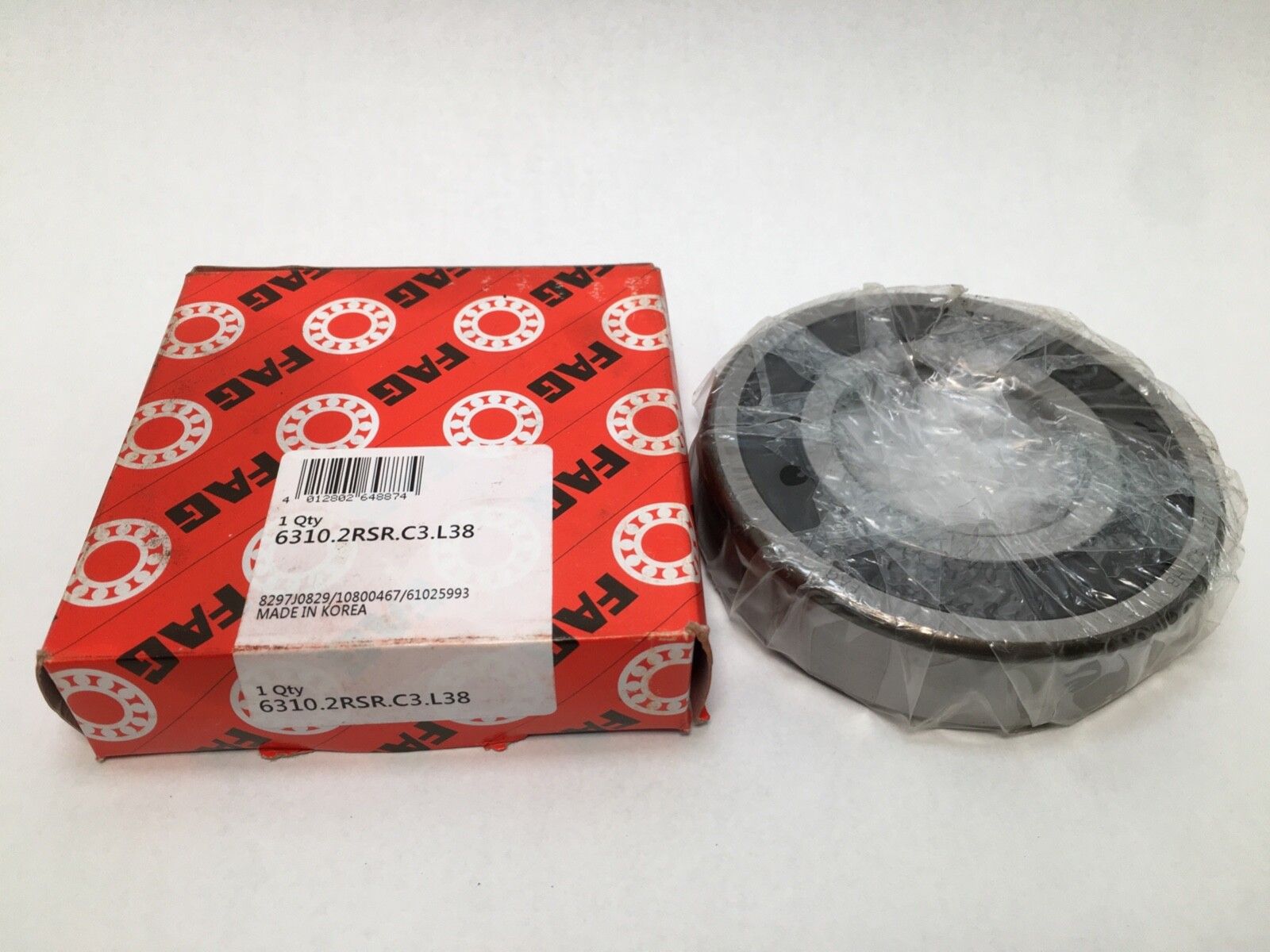

FAG 6310-2RSR-L038-C3 single-row deep groove ball bearing with contact rubber seals on both sides, greased for life. Bore Diameter: 50 mm. Outside Diameter: 110 mm. Width: 27 mm. Closure Type: Contact seals both sides. Internal Clearance: C3.
63 — deep groove ball bearing, 03 medium diameter series.
10 — bore code, 10 x 5 = 50 mm bore.
2RSR — lip seals of the contact type on both sides.
L038 — Schaeffler grease fill code L038.
C3 — radial internal clearance larger than normal.
Dynamic Load Rating: 68,000 N. Static Load Rating: 38,500 N. Limiting Speed: 3,950 rpm grease. Fatigue load limit: 2,650 N. Operating Temperature: −20 °C to +100 °C. Cage Material: Pressed steel. Item Weight: 1.083 kg (2.39 lb). Rings dimensionally stabilised to 150 °C. C3 clearance allows for tighter fits and for the inner ring running warmer than the outer.
Minimum shaft shoulder diameter: 61 mm. Maximum housing shoulder diameter: 99 mm. Maximum fillet radius: 2 mm. Minimum chamfer: 2 mm.
Unit Quantity: 1 Pc. Sealed and pre-greased.
Same 50 x 110 x 27 mm double contact-seal C3 envelope: SKF 6310-2RS1/C3, NSK 6310DDUC3, NTN 6310LLUC3, Koyo 6310-2RSC3, Timken 6310-2RS-C3.
