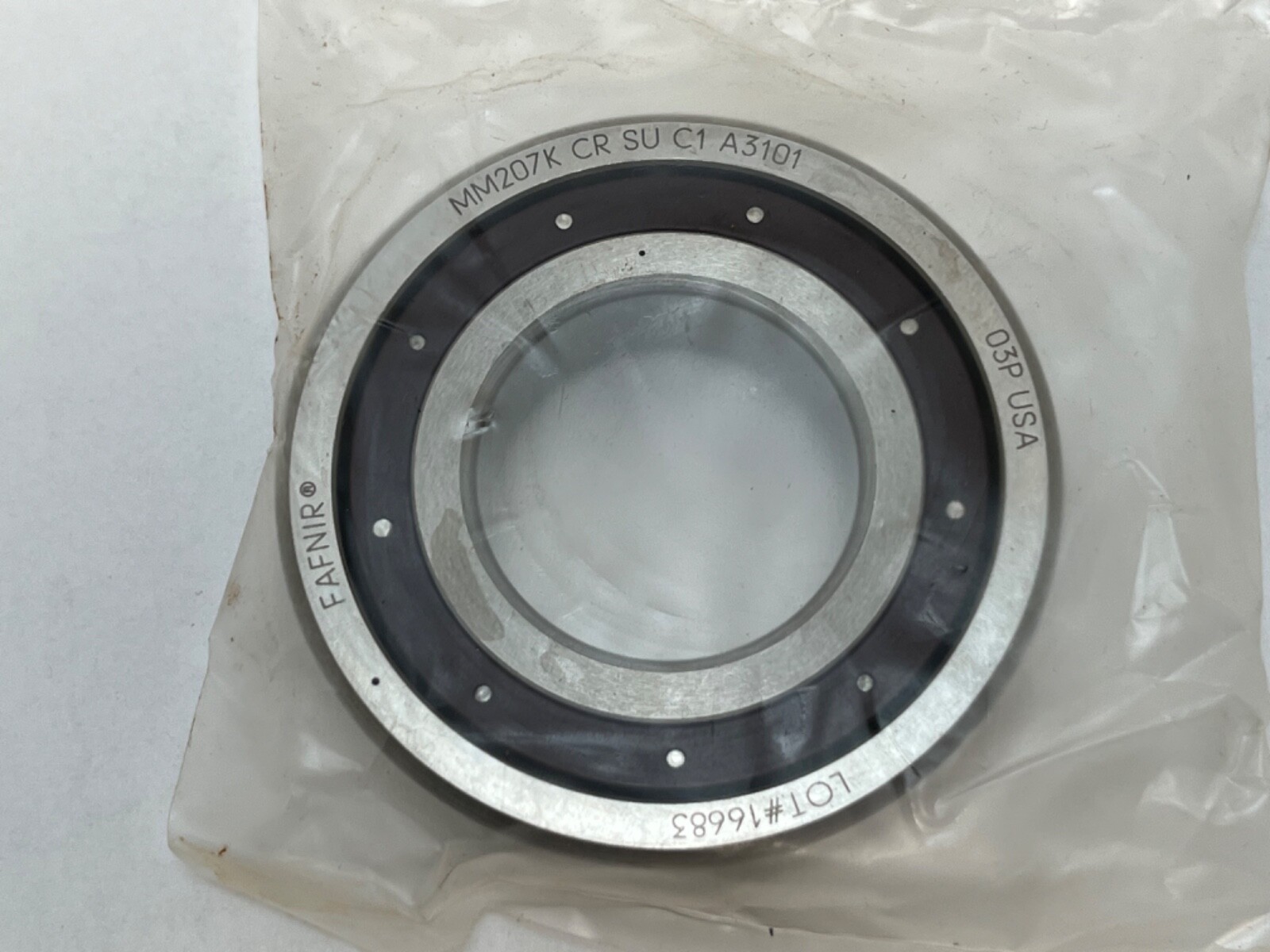

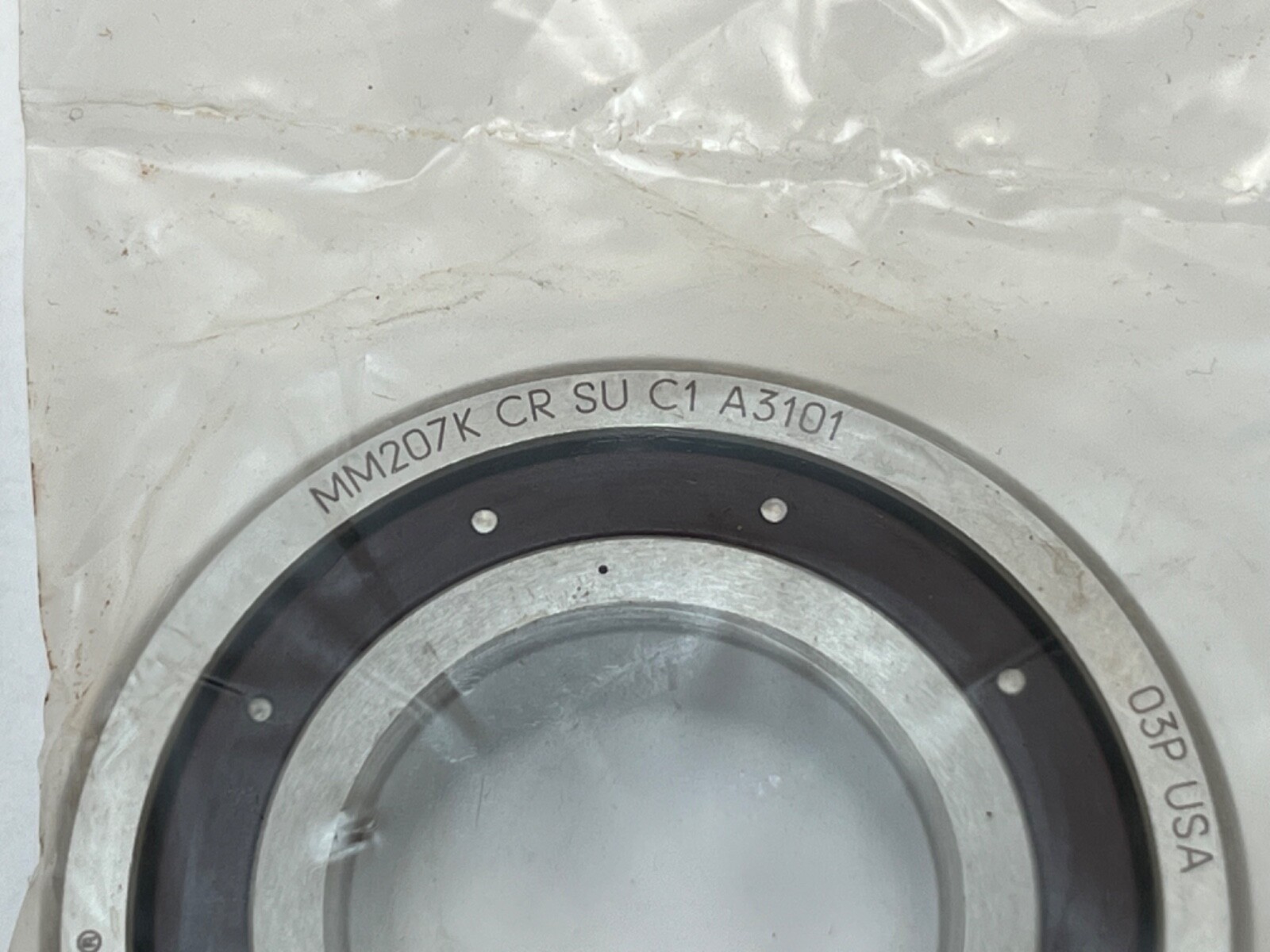

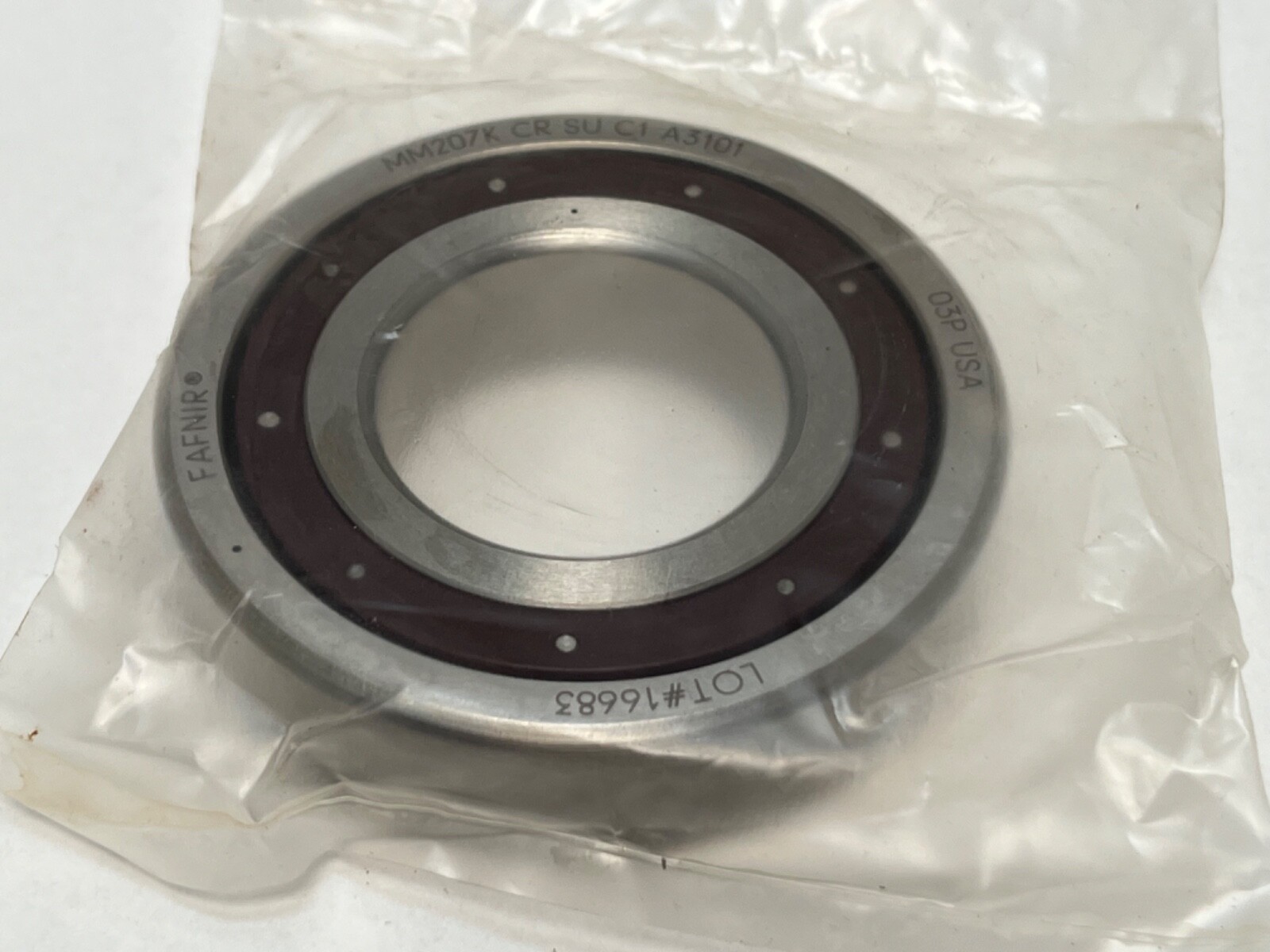

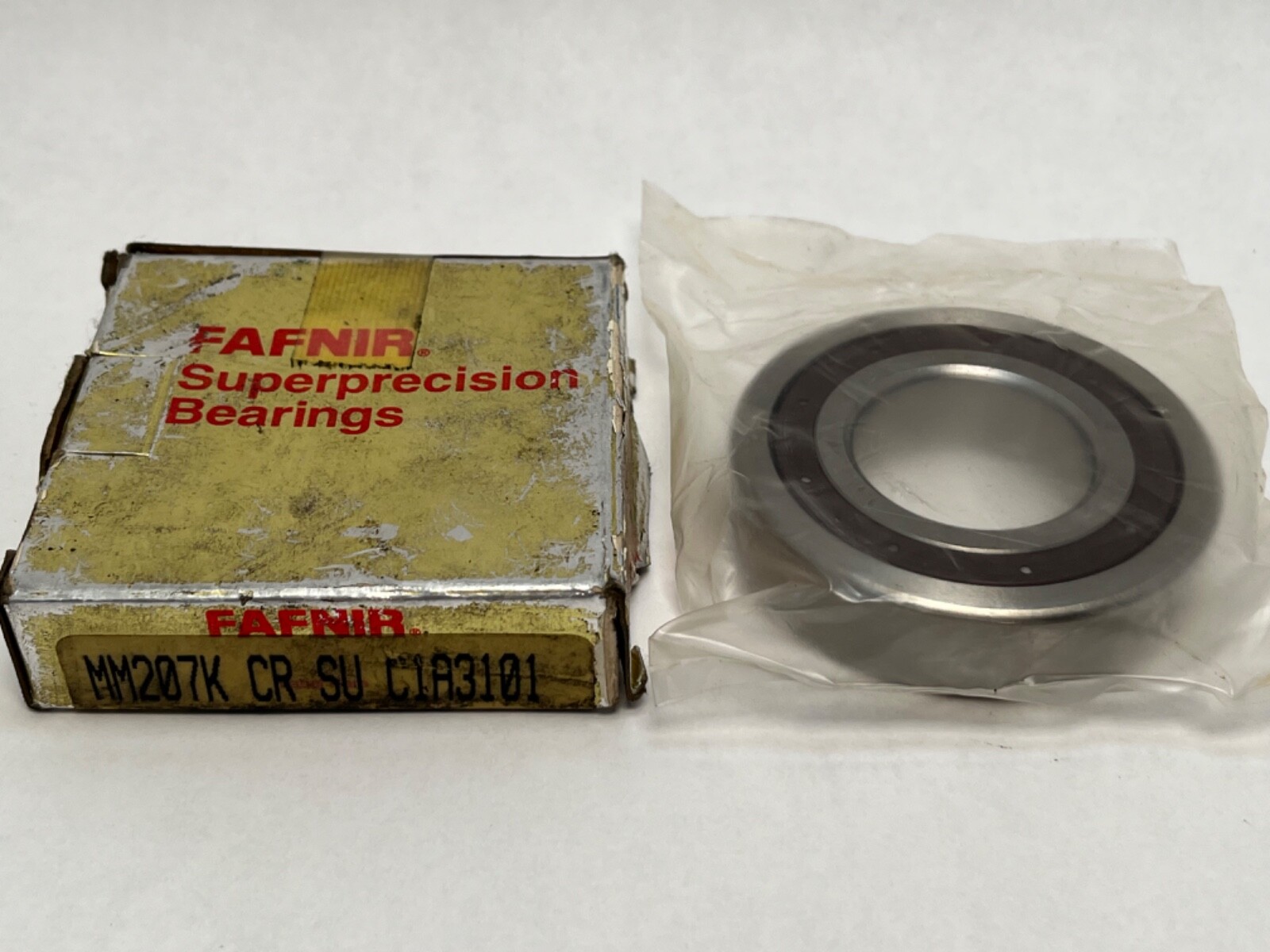

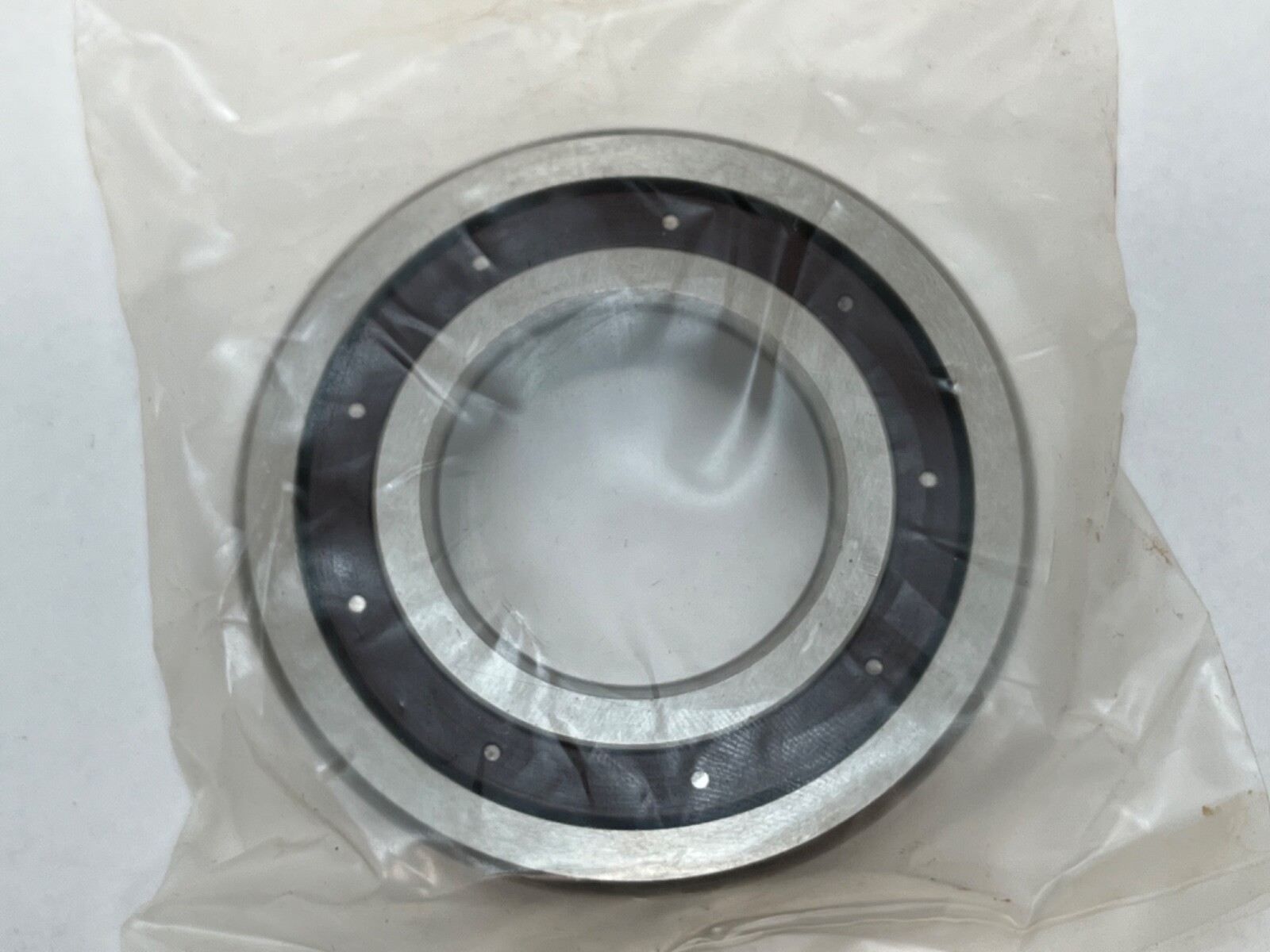

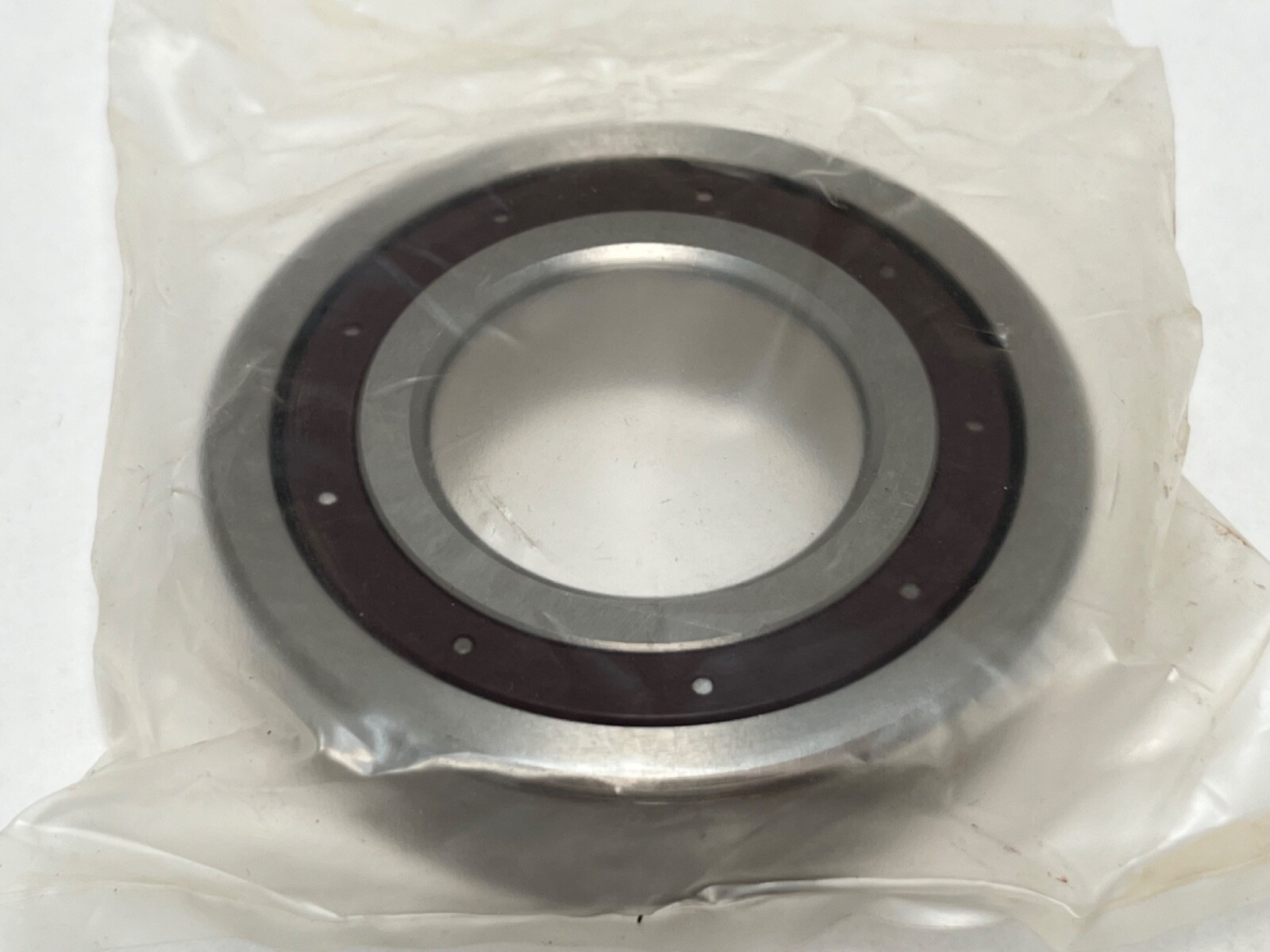

Fafnir MM207KCRSU deep groove ball bearing, 35mm bore, 72mm OD, 17mm width. ISO 6207 equivalent, ABEC 7/P4 precision, open, single-ground for pairing.
List Price
$85.13
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
P4 / ABEC-7 Precision Deep Groove Ball Bearing 35x72x17 mm, Solid-Lubricant Filled, No Relubrication Required$87.77
Deep Groove Ball Bearing, 35 mm Bore, 72 mm OD, 17 mm Width, Open, Single Row$22.24
Deep Groove Ball Bearing - 35 mm ID, 72 mm OD, 17 mm Width, Single Shield, P6 / ABEC 3$33.99
Precision Spindle Deep Groove Ball Bearing – 35 mm Bore, 80 mm OD, 21 mm Width, ABEC 3 / P6, Phenolic Cage$29.50| MFR / Brand | Fafnir |
|---|---|
| MPN | MM207KCRSU |
| Model | MM 207 K CR SU / 6207 TB P4 |
| Bearing Type | Ball Bearing, Open |
| ID | 35 mm |
| OD | 72 mm |
| Width | 17 mm |
| Series | 200 |
|---|---|
| Material | Bearing Steel |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Bearing Material | Bearing Steel |
Deep groove ball bearing, 35 mm bore, 72 mm outside diameter, 17 mm width. Open construction, straight bore, ABEC 7 / P4 precision.
MM — Fafnir ABEC 7 / ISO P4 precision series.
207 — Fafnir’s size code for the 35 x 72 x 17 mm envelope, cross-referenced as ISO 6207.
K — Fafnir deep-groove spindle bearing marking. No contact angle.
CR — phenolic cage.
SU — single, universally ground for face-to-face or back-to-back pairing.
Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 17 mm. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Closure Type: Open.
Unit Quantity: 1 Pc.
Cross-Reference 3: GMN 6207.
$52.41
2 in stock
$33.99
17 in stock
$33.98
11 in stock
$45.69
23 in stock
$61.17
57 in stock
