Availability:
Out of stock

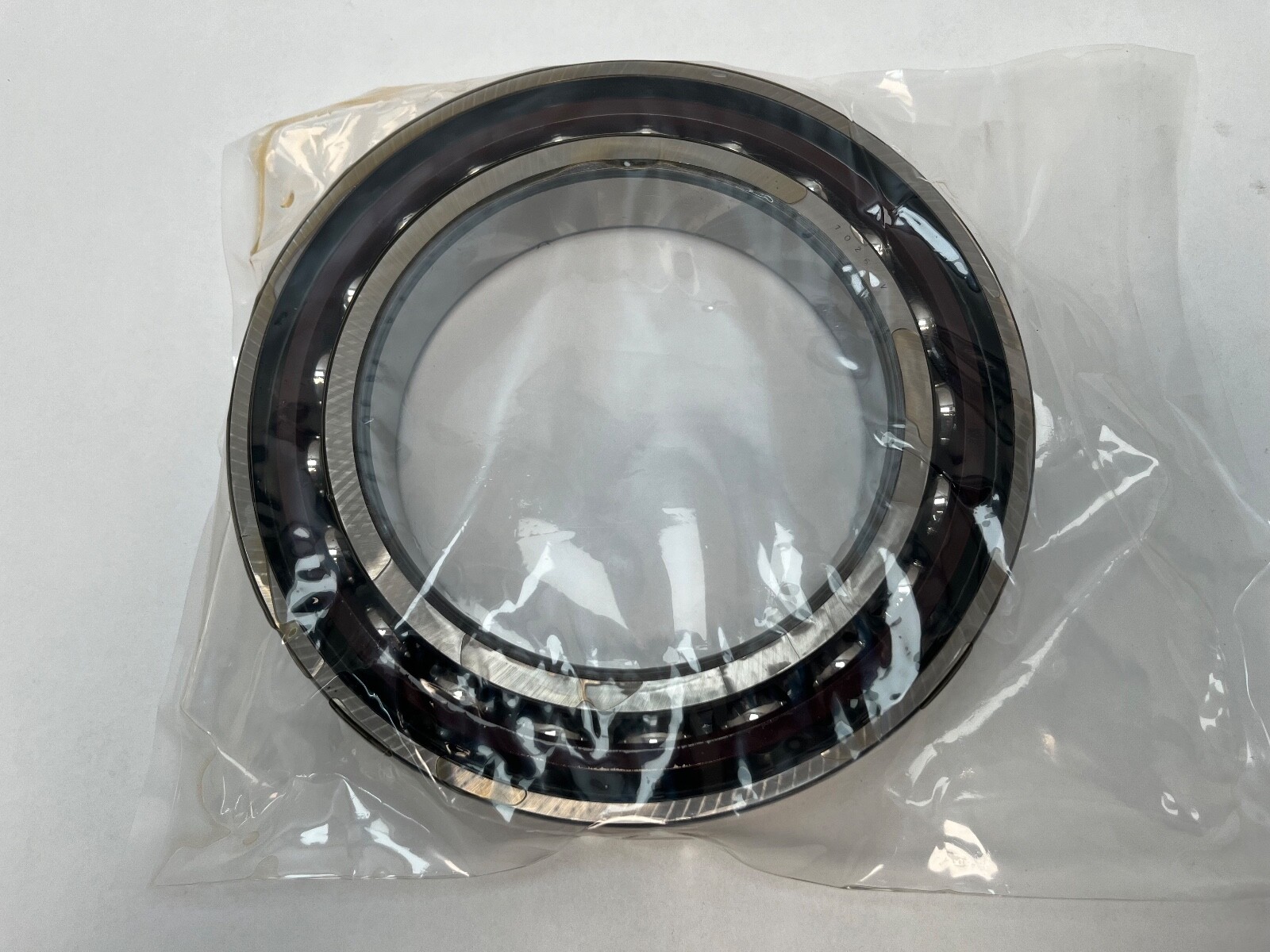

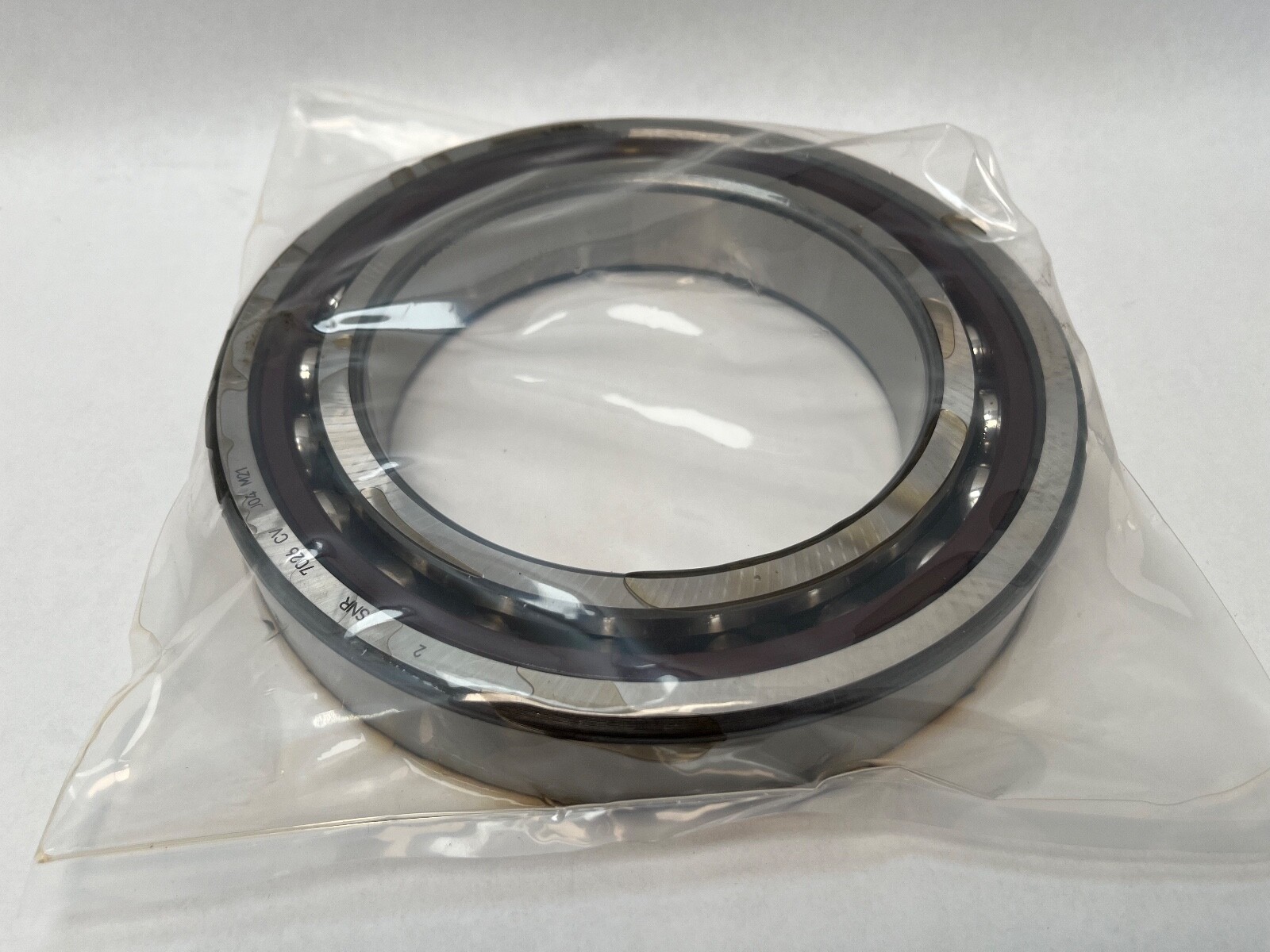

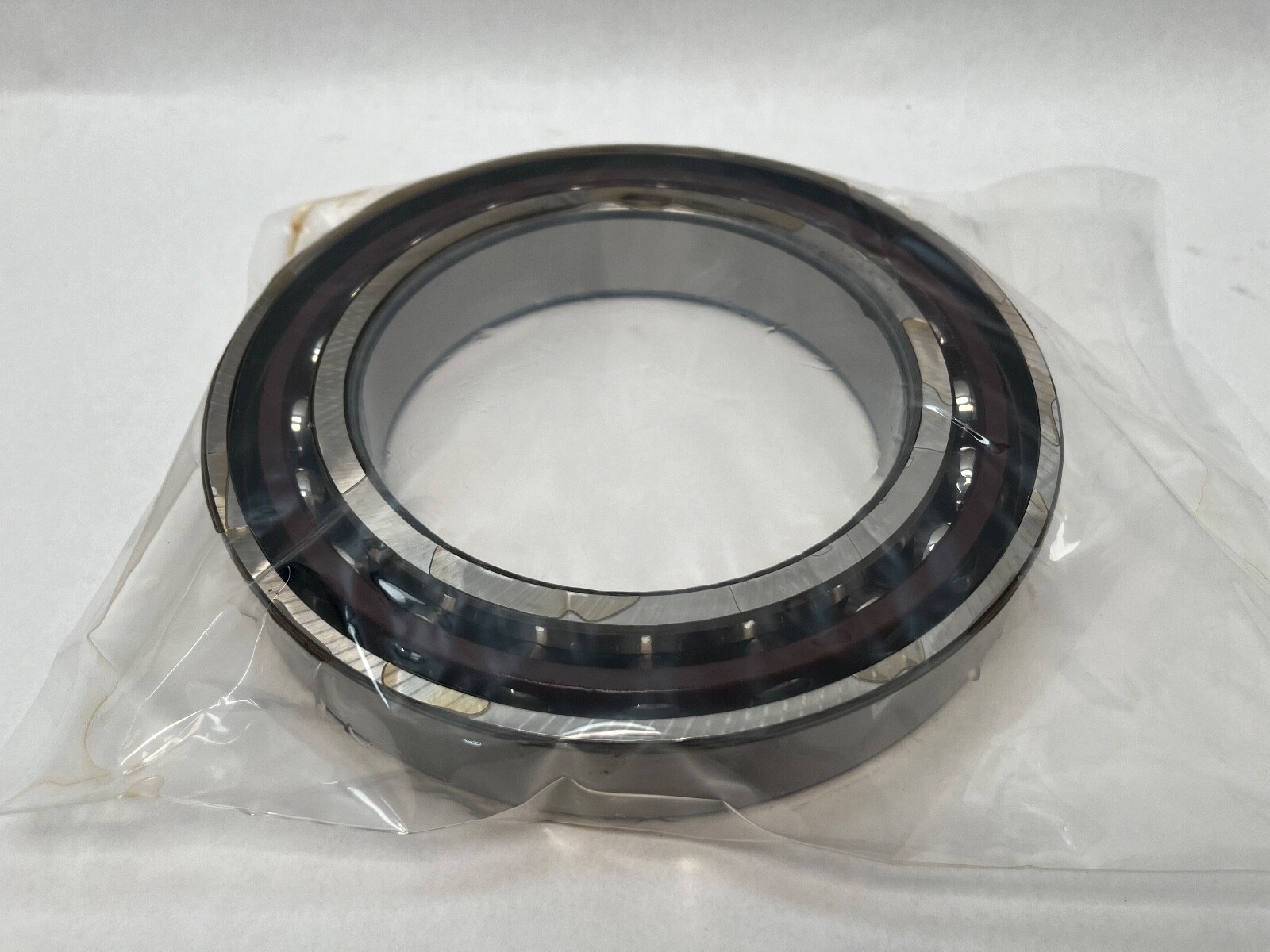

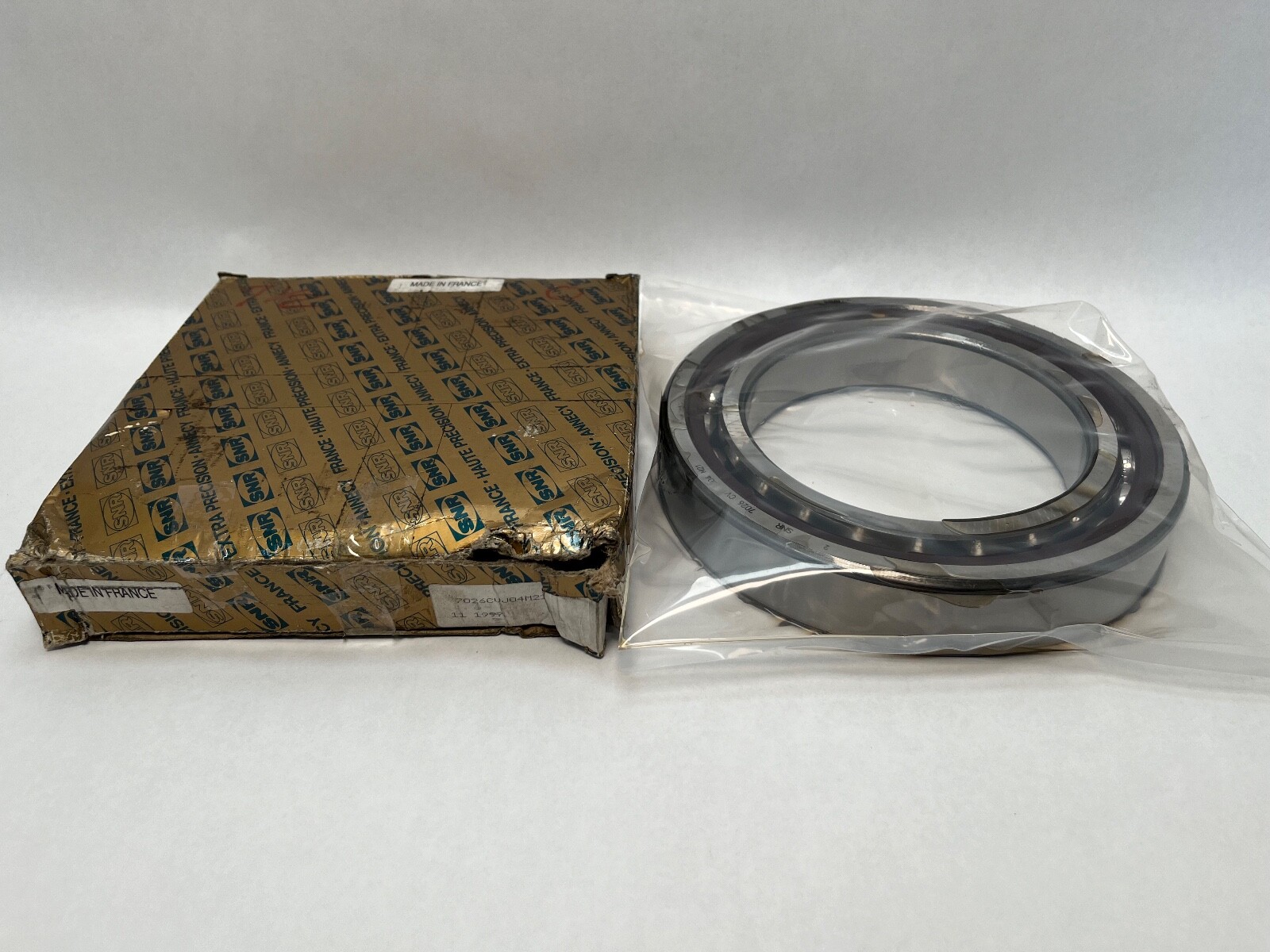

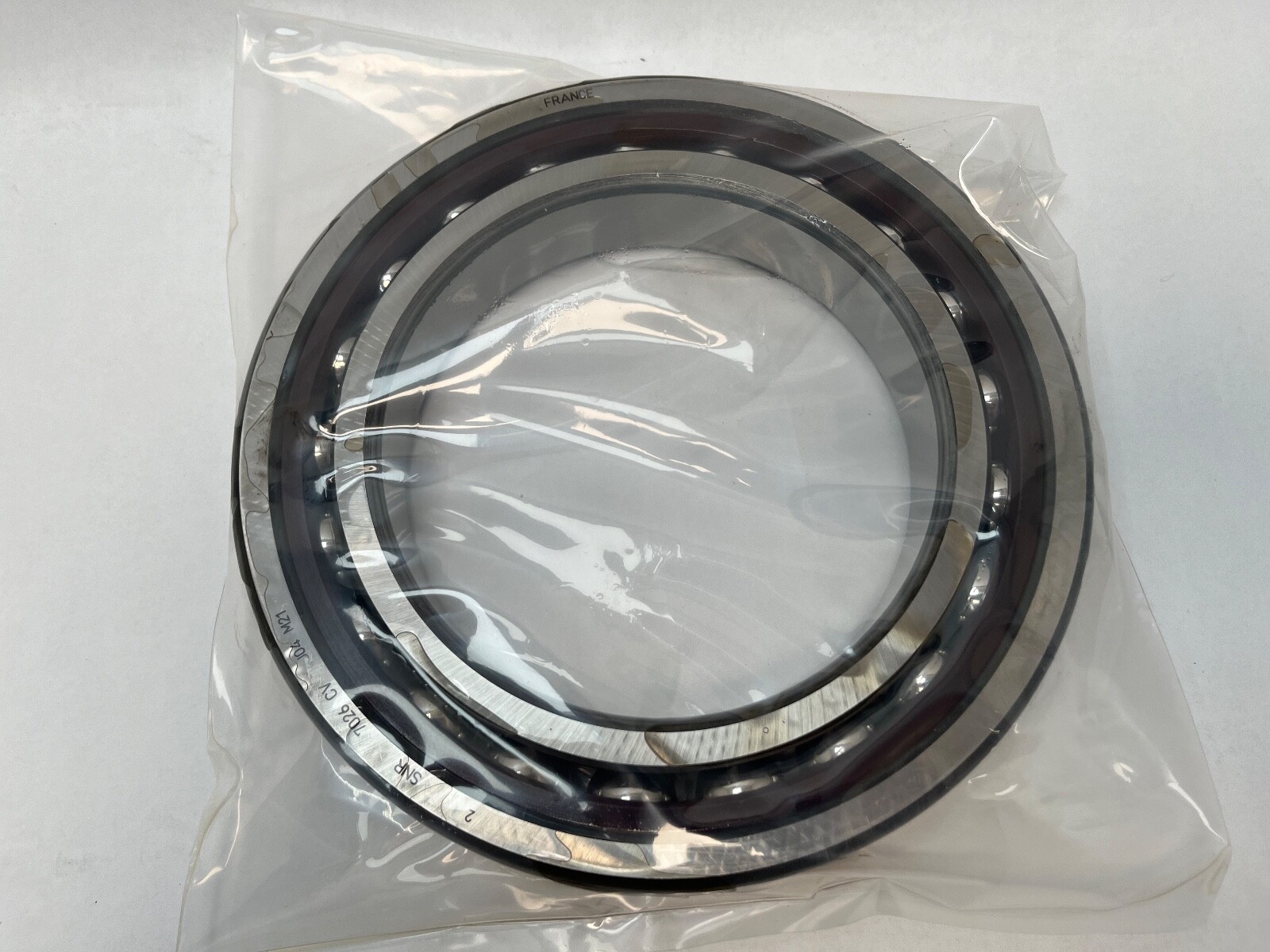

Super-precision angular contact ball bearing, 130 x 200 x 33 mm, 15° contact angle, P4 class, open. Phenolic cage for high-speed spindle service.
List Price
$534.68
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super-Precision Angular Contact Ball Bearing - 130 mm Bore, 200 mm OD, 33 mm Width, 15° Contact Angle, Open, Phenolic Machined Cage, Heavy Preload Duplex$606.52
Super Precision Angular Contact Ball Bearing Pair – 130 mm ID, 200 mm OD, 33 mm Width, 15° Contact Angle, Light Preload, P4$1,334.72
Angular Contact Ball Bearing - 130 mm ID, 200 mm OD, 33 mm Width, 15° Contact Angle, Open$290.56
Angular Contact Ball Bearing - 130 mm ID, 200 mm OD, 33 mm Width, 15° Contact Angle, Open$290.56| MFR / Brand | SNR |
|---|---|
| MPN | 7026CVJ04M21 |
| Model | 7026C T P4 / 2MM9126 WI CR / 7026 C V J04 M21 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 130 mm |
| OD | 200 mm |
| Width | 33 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil Preservative |
| Preload | Light |
| Base Number | 7026 |
| Industry Terms | spindle bearing; super precision angular contact; phenolic cage bearing; 15 degree contact angle; ABEC 7; large bore spindle bearing; 7026C |
| Application Types | Large-diameter high-speed machine-tool spindles; grinding and boring spindles; precision rotating assemblies |
| Bore Shaft Size | 130 mm |
| Mpn Variants | 7026CVJ04M21; 7026C VJ04 M21; 7026-C-VJ04-M21; 7026CVJ04; 7026C; 7026 |
| Manufacturer Status | SNR is a French manufacturer, now trading as NTN-SNR. The 7026C envelope remains in production. |
| Precision Class | P4 |
| Precision Rating | P4 (ABEC 7) |
| Rolling Elements | Balls |
| Cage Material | Phenolic (fabric laminate) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Part Number | 7026CVJ04M21 |

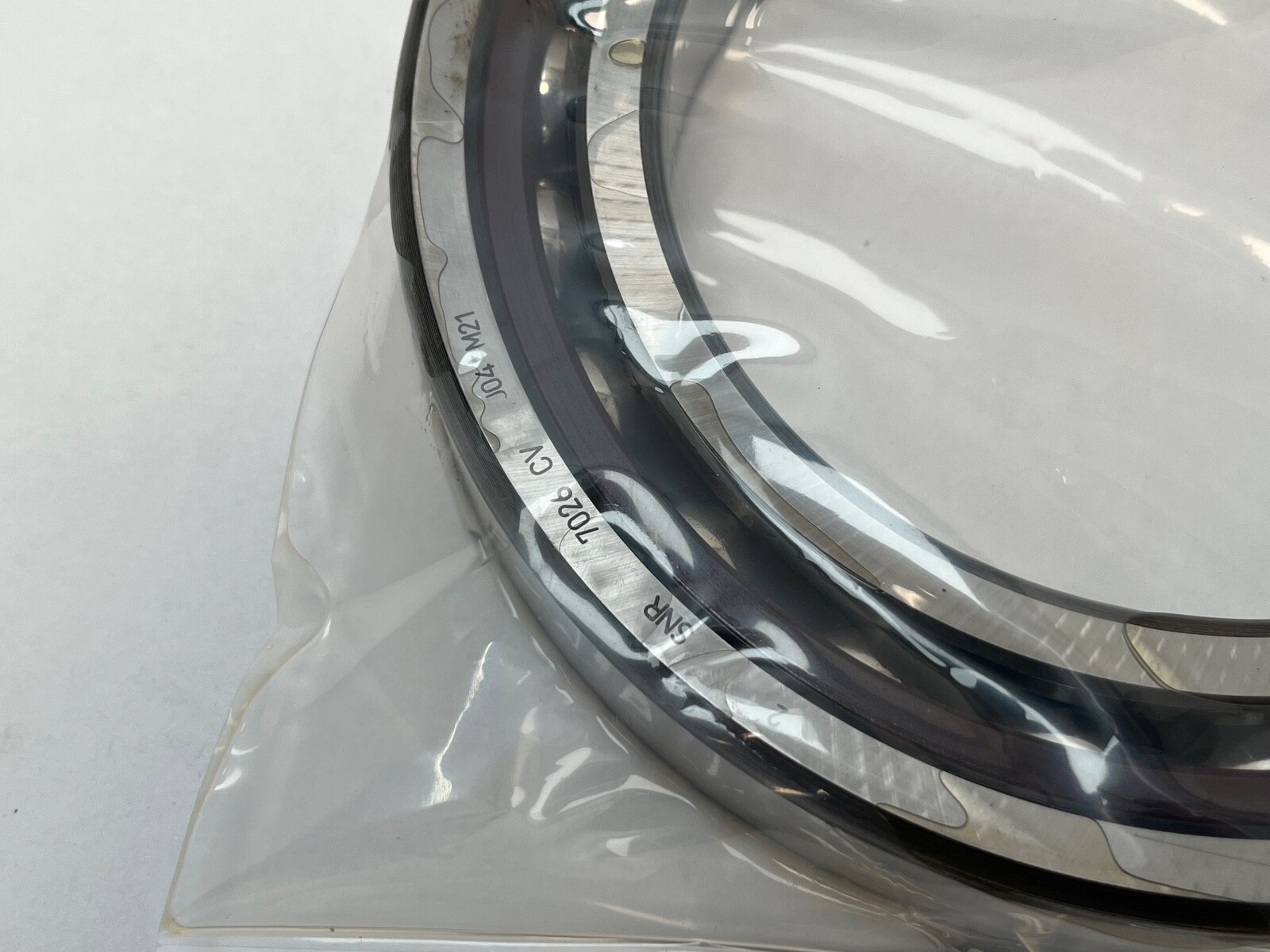

An SNR super-precision angular contact ball bearing in the 7026 envelope. SNR is the French bearing manufacturer now trading as NTN-SNR. VJ04M21 is an SNR internal variant and preload code.
Brand: SNR (NTN-SNR)
Part Number: 7026CVJ04M21
Base Number: 7026
Series: ISO 70 dimension series
Bore: 130 mm
Outside Diameter: 200 mm
Width: 33 mm
Bore Type: Straight
Contact Angle: 15°
Precision Class: P4
Precision Rating: P4 (ABEC 7)
Number Of Rows: 1
Bearing Type: Super-precision angular contact ball bearing, single row, open
Rolling Elements: Balls
Cage Material: Phenolic (fabric laminate)
Material: Bearing steel
Seal Type: Open
Closure Type: Open
Lubricant: Oil preservative
Snap Ring Included: No
A 15° contact angle sits at the high-speed end of the spindle-bearing range. The shallow angle keeps the load path close to the radial plane and reduces ball centrifugal and gyroscopic effects, giving higher speed capability and lower heat generation, with lower axial stiffness and thrust capacity than a 25° bearing in the same envelope.
The phenolic cage is self-lubricating, absorbs oil, and protects the ball set during momentary lubrication starvation. It also sets the bearing’s temperature ceiling, placing the bearing in cool-running spindle service.
Large-diameter high-speed machine-tool spindles, grinding and boring spindles, and precision rotating assemblies.
Unit Quantity: 1 Pc
ISO base number 7026, envelope 130 x 200 x 33 mm. A P4 spindle bearing is matched on the full designation including the precision class. A commercial-grade 7026 shares the envelope at several tolerance classes coarser. Searchable forms: 7026CVJ04M21, 7026C VJ04 M21, 7026-C-VJ04-M21, 7026CVJ04, 7026C, 7026, 7026-C-T-P4.

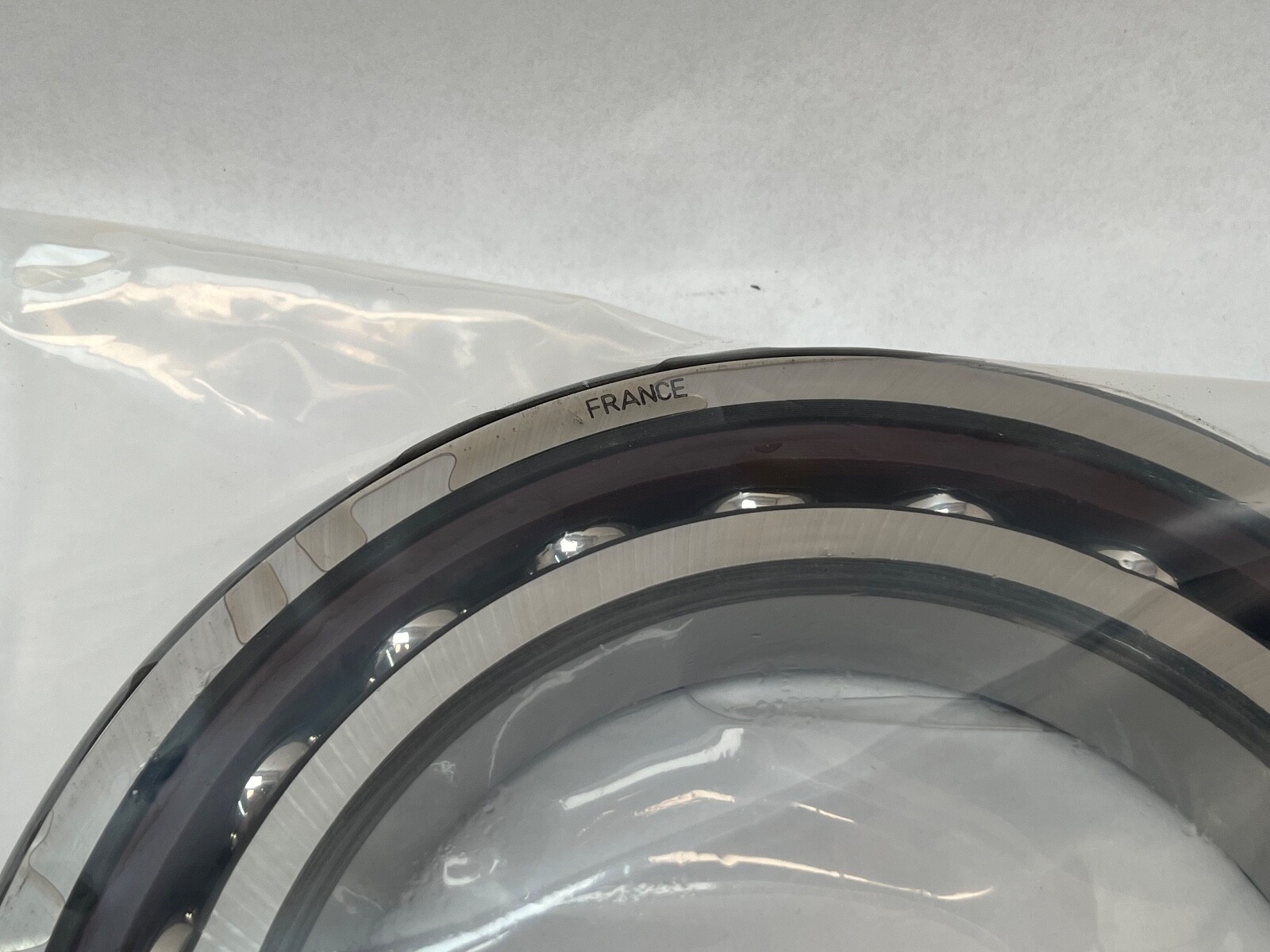

Country of Origin: France
Harmonization Code: 8482.10.50.28
