Availability:
1 in stock

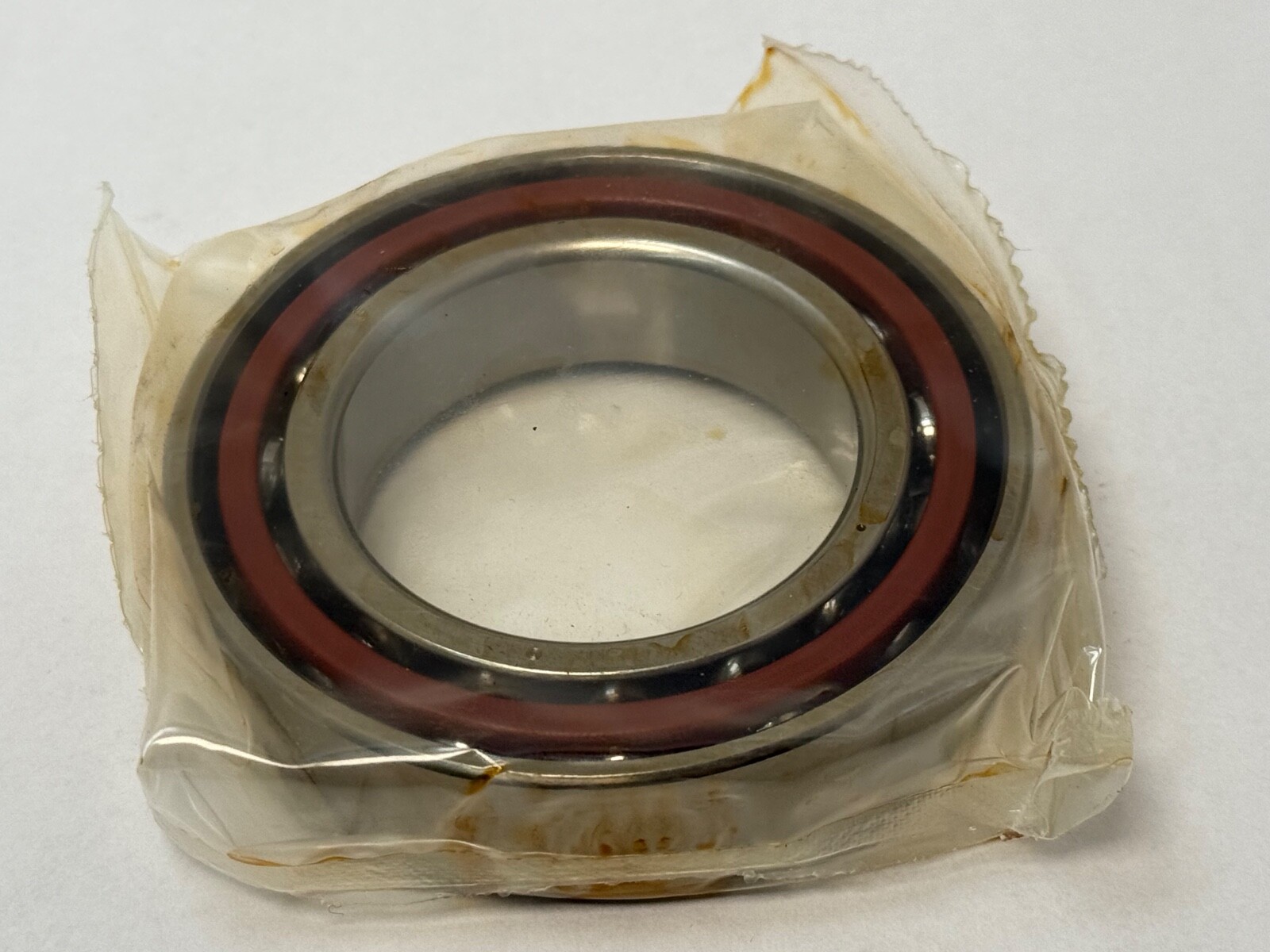

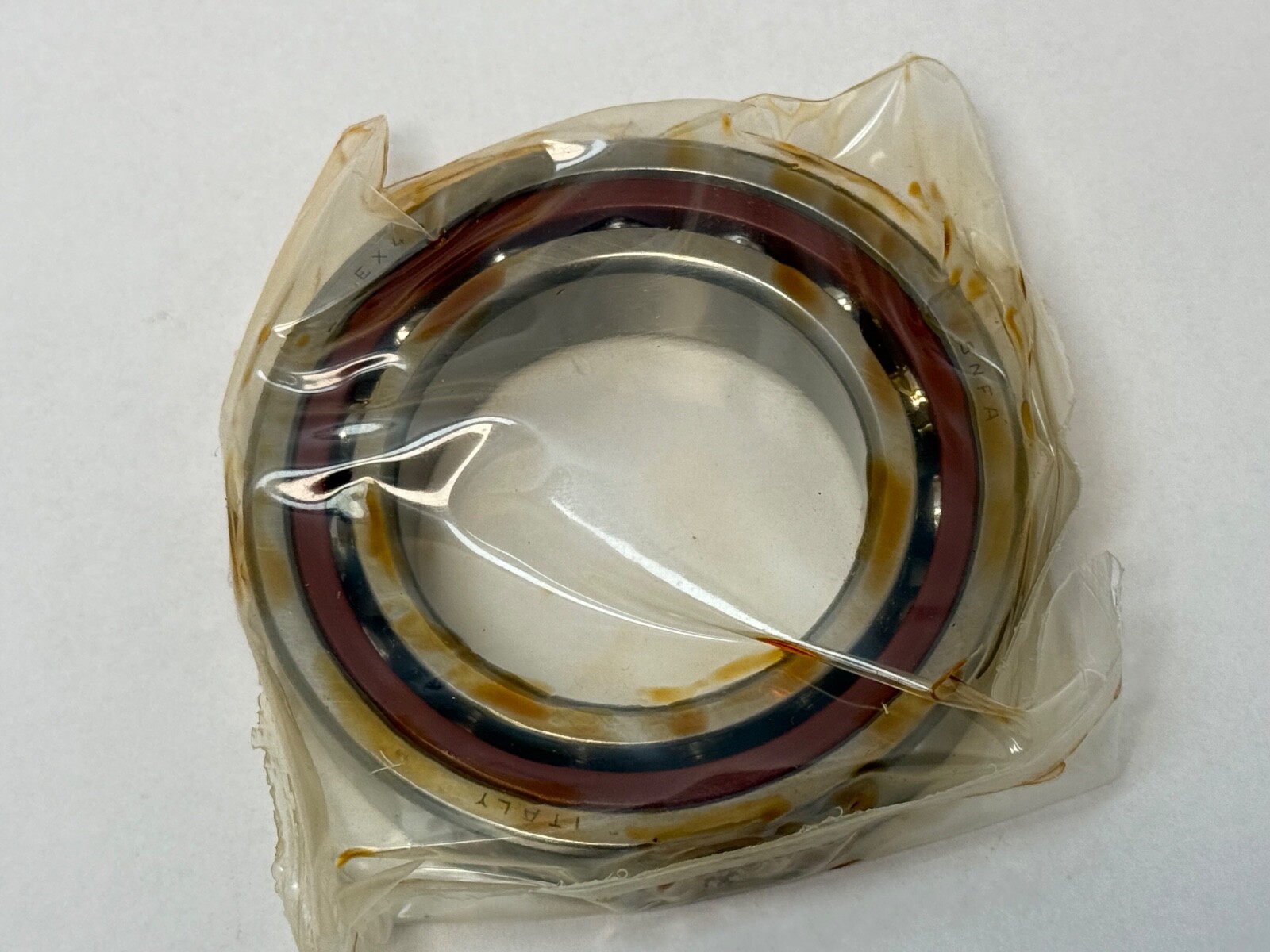

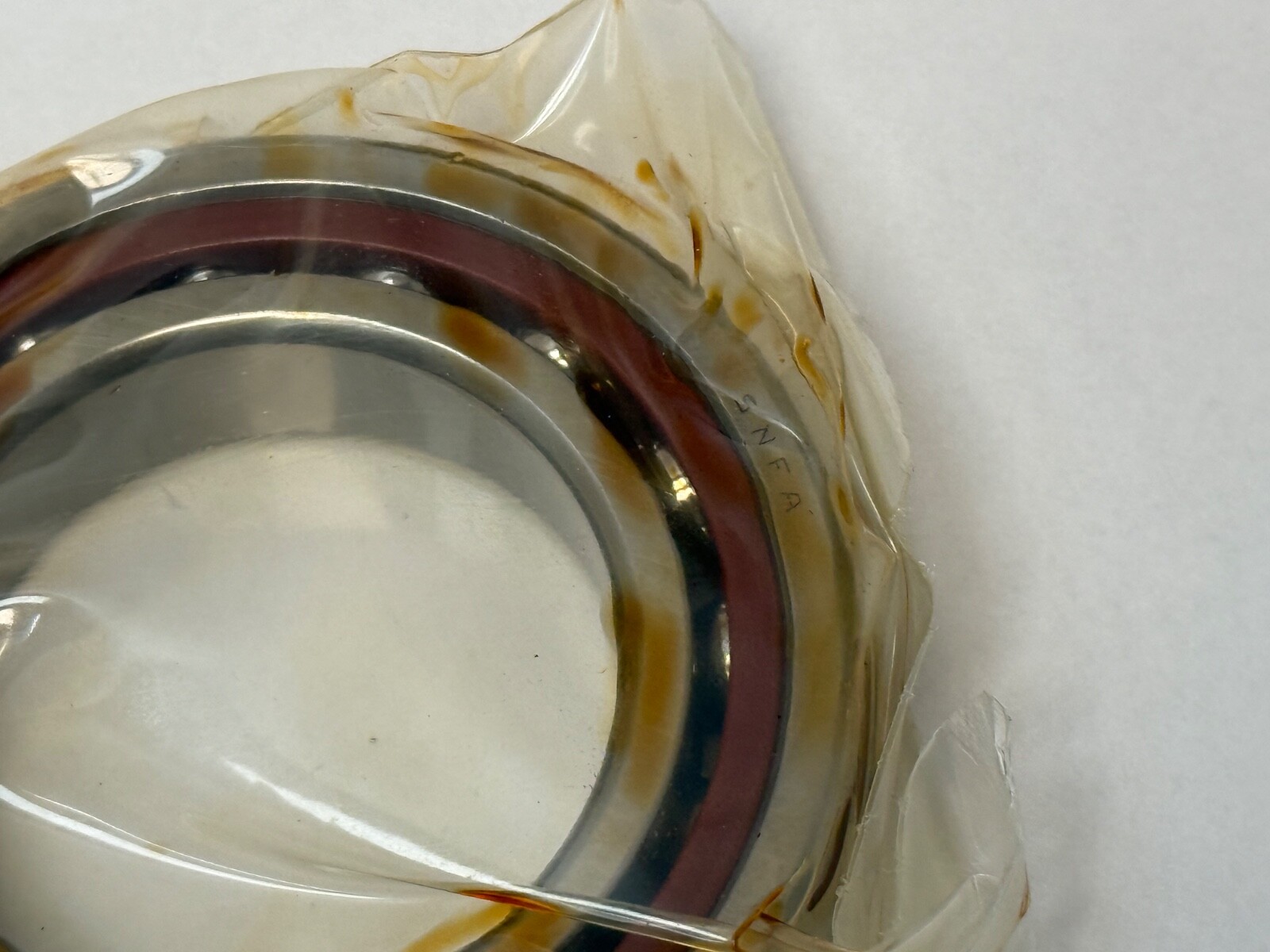

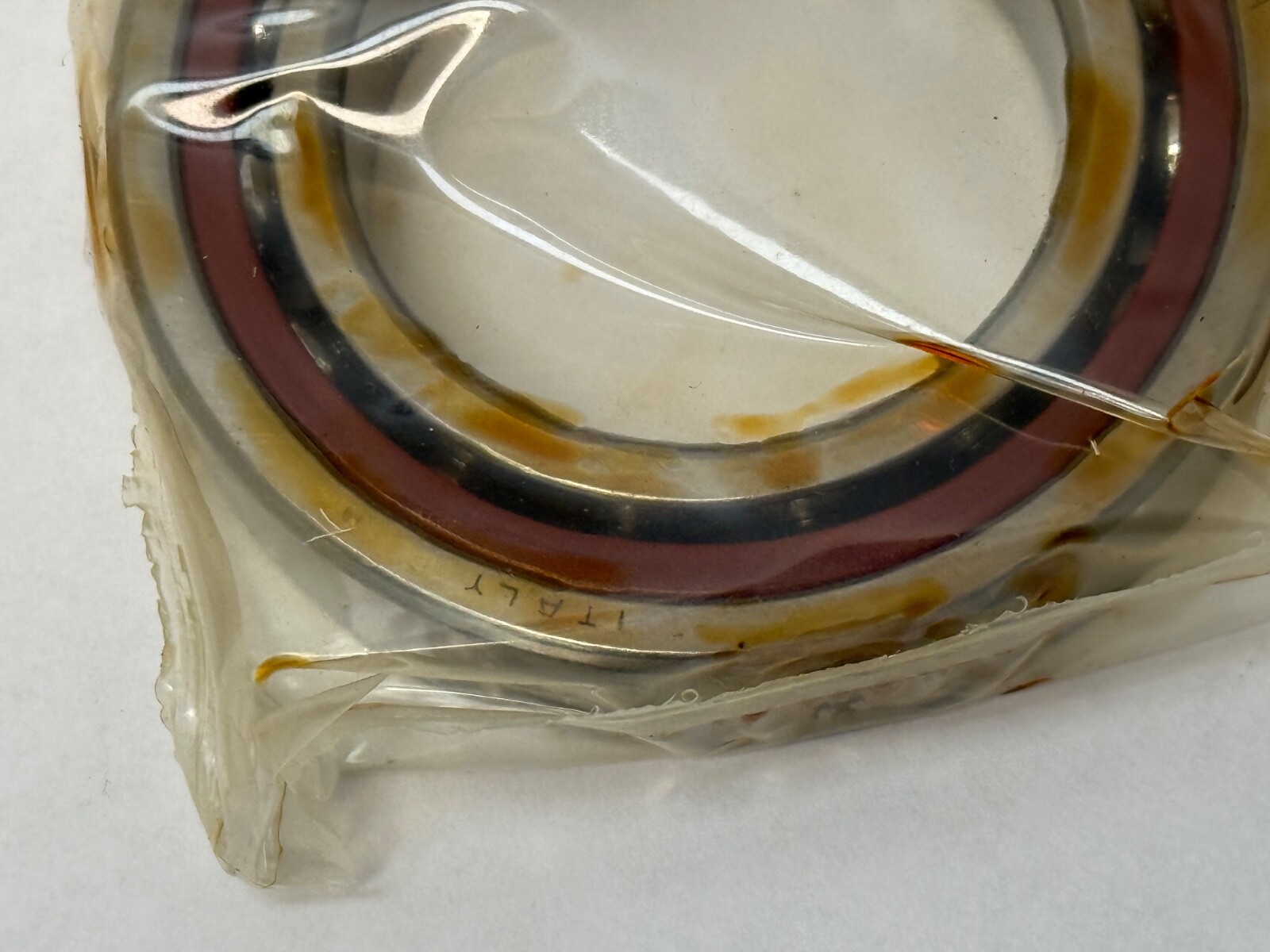

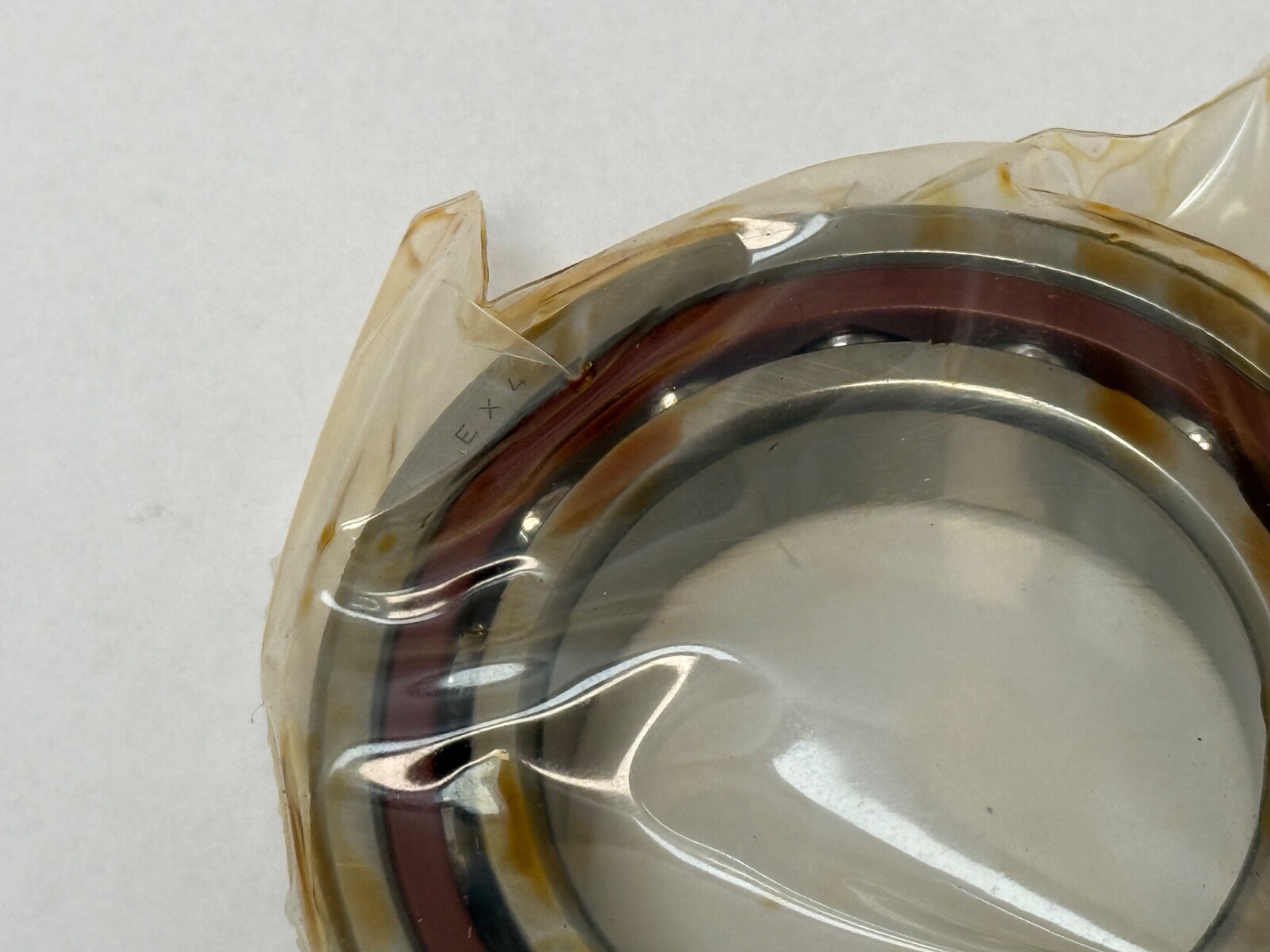

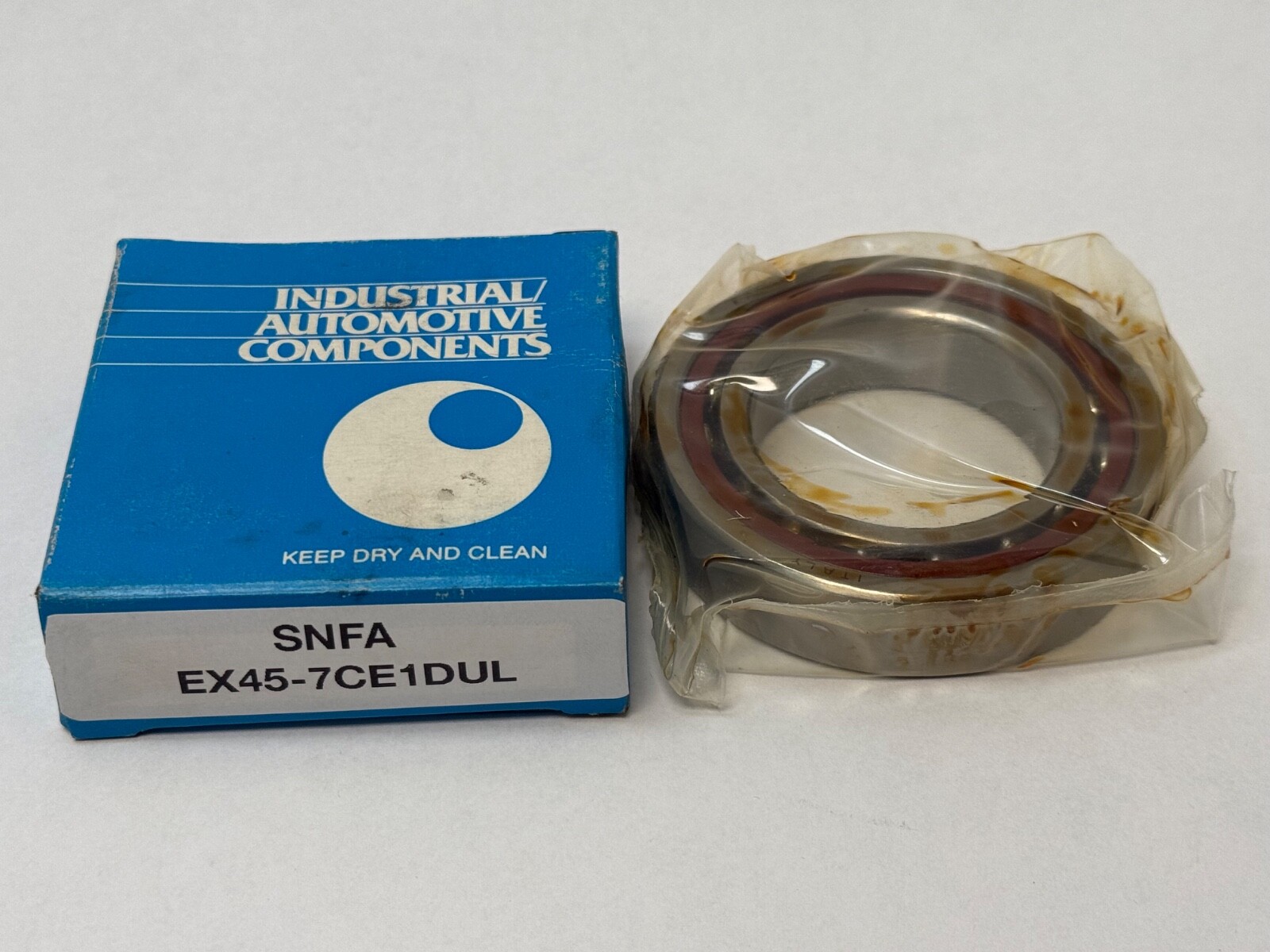

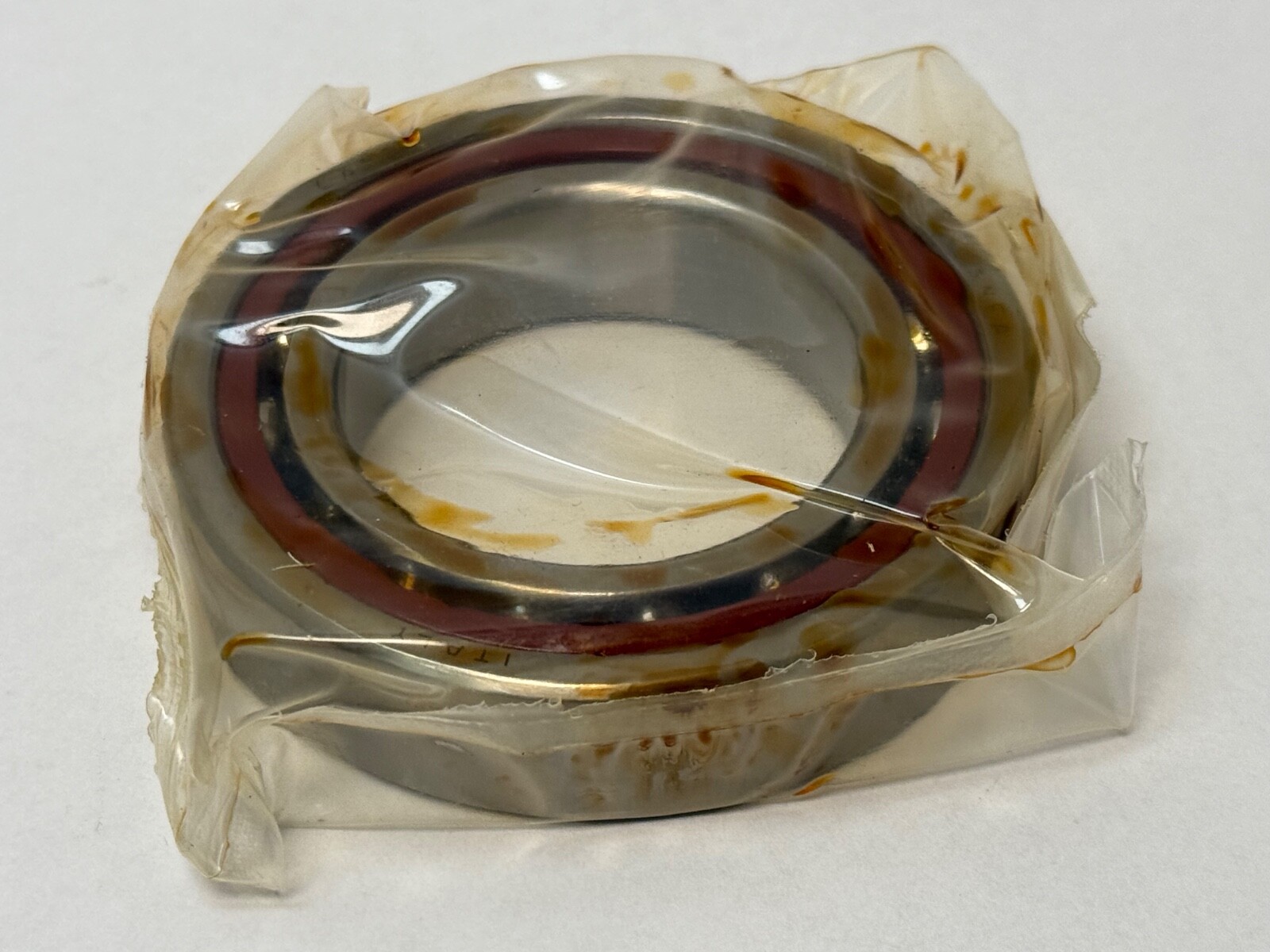

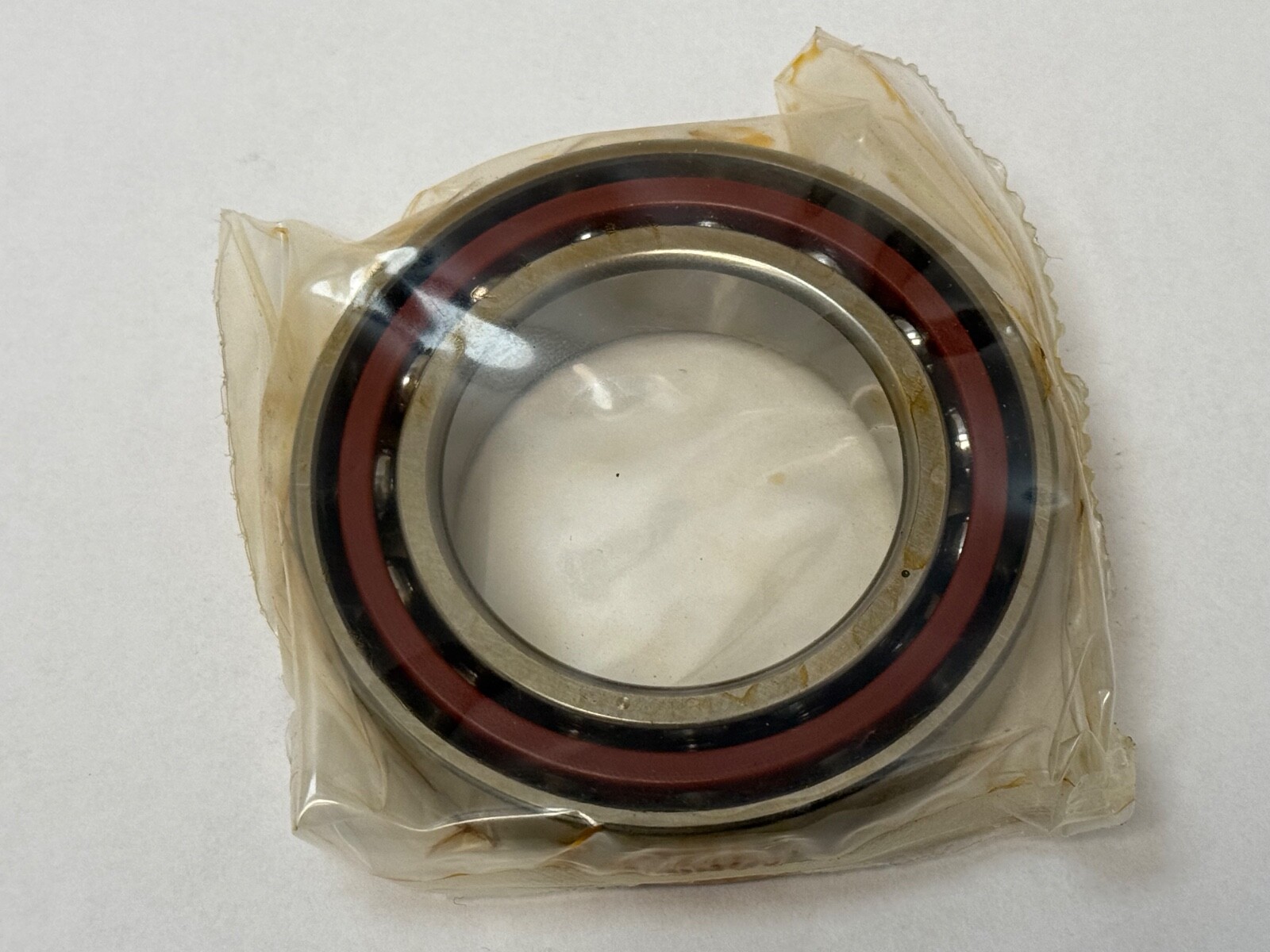

Super-precision angular contact ball bearing, 45 x 75 x 16 mm, 15° contact angle, ABEC 7 / P4, light preload, one bearing of a universal duplex pair.
List Price
$94.73
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| MPN | EX45-7CE1DUL |
| Model | 2MM-9109 WI DUL / 7009 C T P4 DUL / EX 45-7 CE 1 DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | EX (ISO 10) |
| Preload | Light |
| Mpn Variants | EX45-7CE1DUL-1/2PR, EX45-7CE1DUL, EX 45 7CE1 DUL, EX45-7CE1-DUL |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Outer-ring guided |
| Dynamic Load Rating | 28,600 N |
| Static Load Rating | 22,400 N |
| Rolling Elements | Ball |
| Item Weight | 0.231 kg (0.51 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 19,000 rpm grease; 30,000 rpm oil |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally ground single bearing (back-to-back, face-to-face or tandem) |
| Cross Reference 1 | SKF 7009 CDGA/P4A |
|---|---|
| Cross Reference 2 | SKF 7009 CD/P4A |
| Cross Reference 3 | NSK 7009CTYNSULP4 |
| Cross Reference 4 | FAG B7009-C-T-P4S-UL |
| Cross Reference 5 | Fafnir 2MM9109WICRSUL |
SNFA EX45-7CE1DUL-1/2PR is one super-precision single-row angular contact ball bearing from a factory SNFA EX45-7CE1DUL universal duplex pair, SNFA EX high-capacity series, ISO dimension series 10. Bore Diameter: 45 mm. Outside Diameter: 75 mm. Width: 16 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. The current SKF equivalent is the 7009 CD/P4A high-capacity D design.
EX — SNFA high-capacity angular contact series, ISO dimension series 10 (70xx envelope).
45 — bore diameter in millimetres.
7 — SNFA precision grade, ABEC 7 (ISO P4).
C — phenolic resin cage.
E — cage centred on the outer ring.
1 — 15° contact angle.
DU — universal duplex grinding: the faces are ground for back-to-back, face-to-face or tandem mounting.
L — light preload.
1/2PR — one bearing, half of the matched pair.
Dynamic Load Rating: 28,600 N. Static Load Rating: 22,400 N. Limiting Speed: 19,000 rpm grease; 30,000 rpm oil-air. The 15° angle favours radial stiffness and speed.
Item Weight: 0.231 kg (0.51 lb). Cage Type: Outer-ring guided. Cage Material: Phenolic. Closure Type: Open.
Unit Quantity: 1 Pc. Mounting Arrangement: Universally ground single bearing, pairs with another EX45-7CE1DUL bearing. Preload: Light.
SKF owns SNFA and lists the EX series as the SNFA equivalent of its 70 .. CD range. Cross-references with the same 45 x 75 x 16 mm envelope and 15° contact angle: SKF 7009 CDGA/P4A, SKF 7009 CD/P4A, NSK 7009CTYNSULP4, FAG B7009-C-T-P4S-UL, Fafnir 2MM9109WICRSUL.
