Availability:
3 in stock

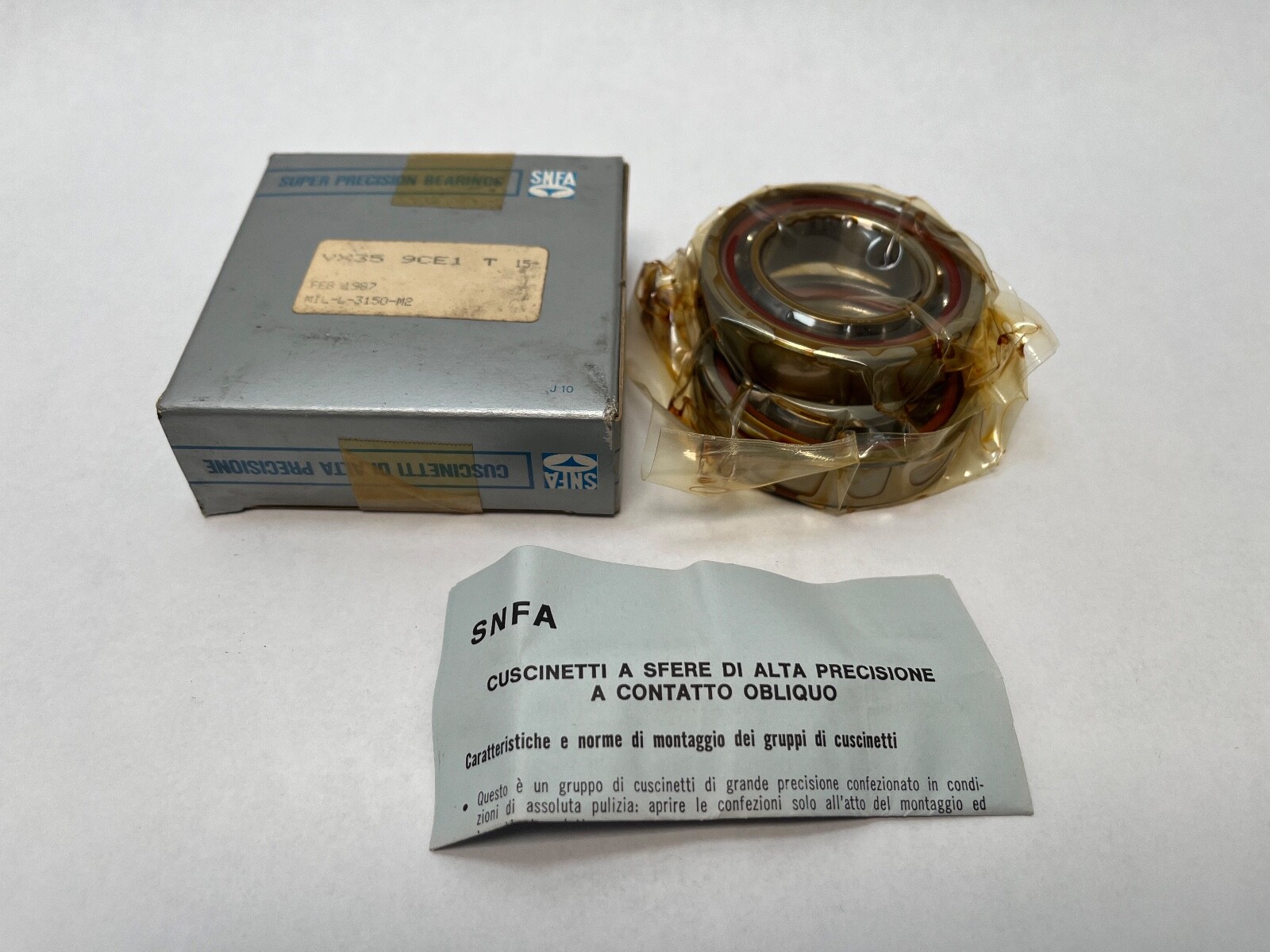

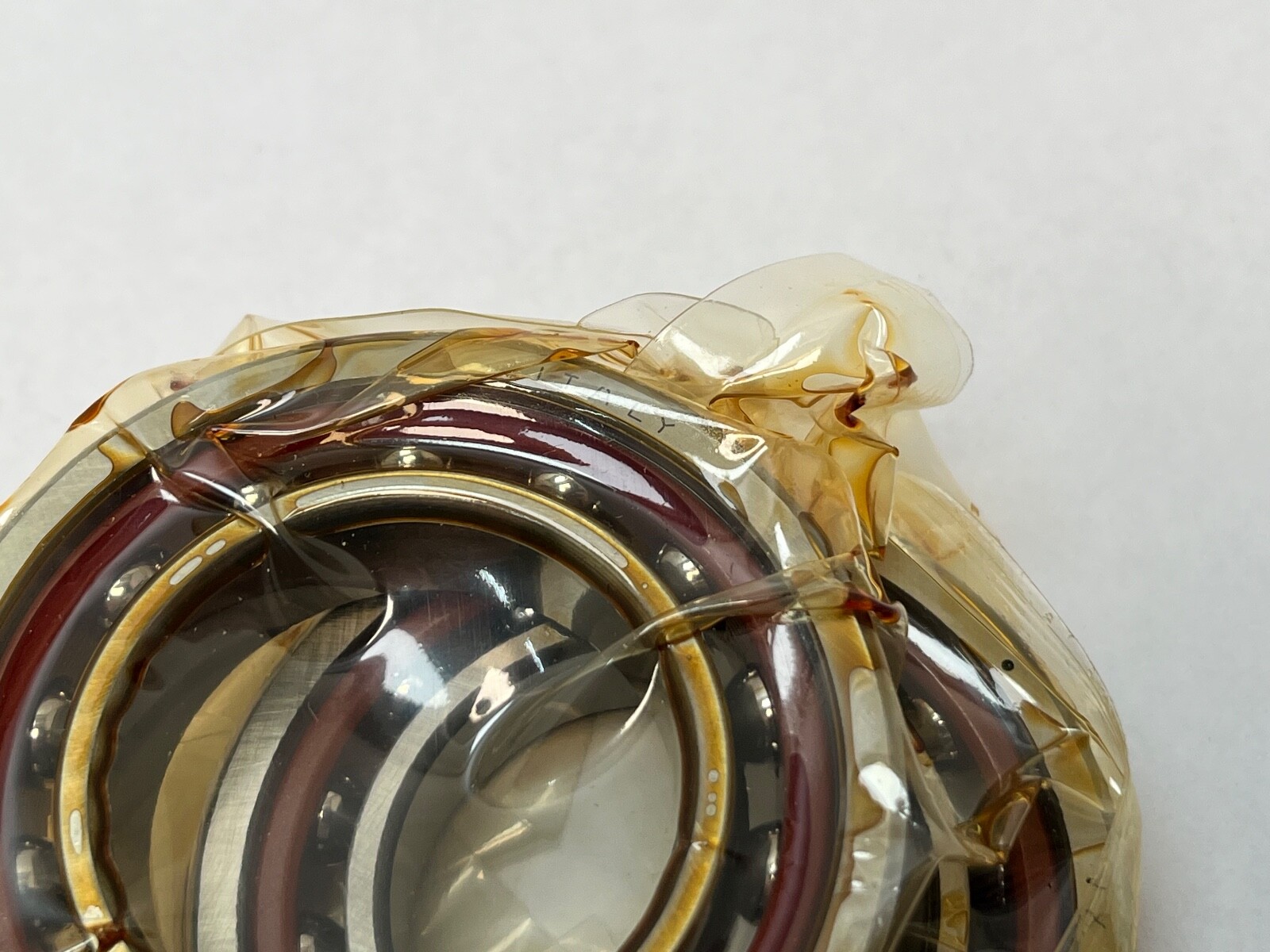

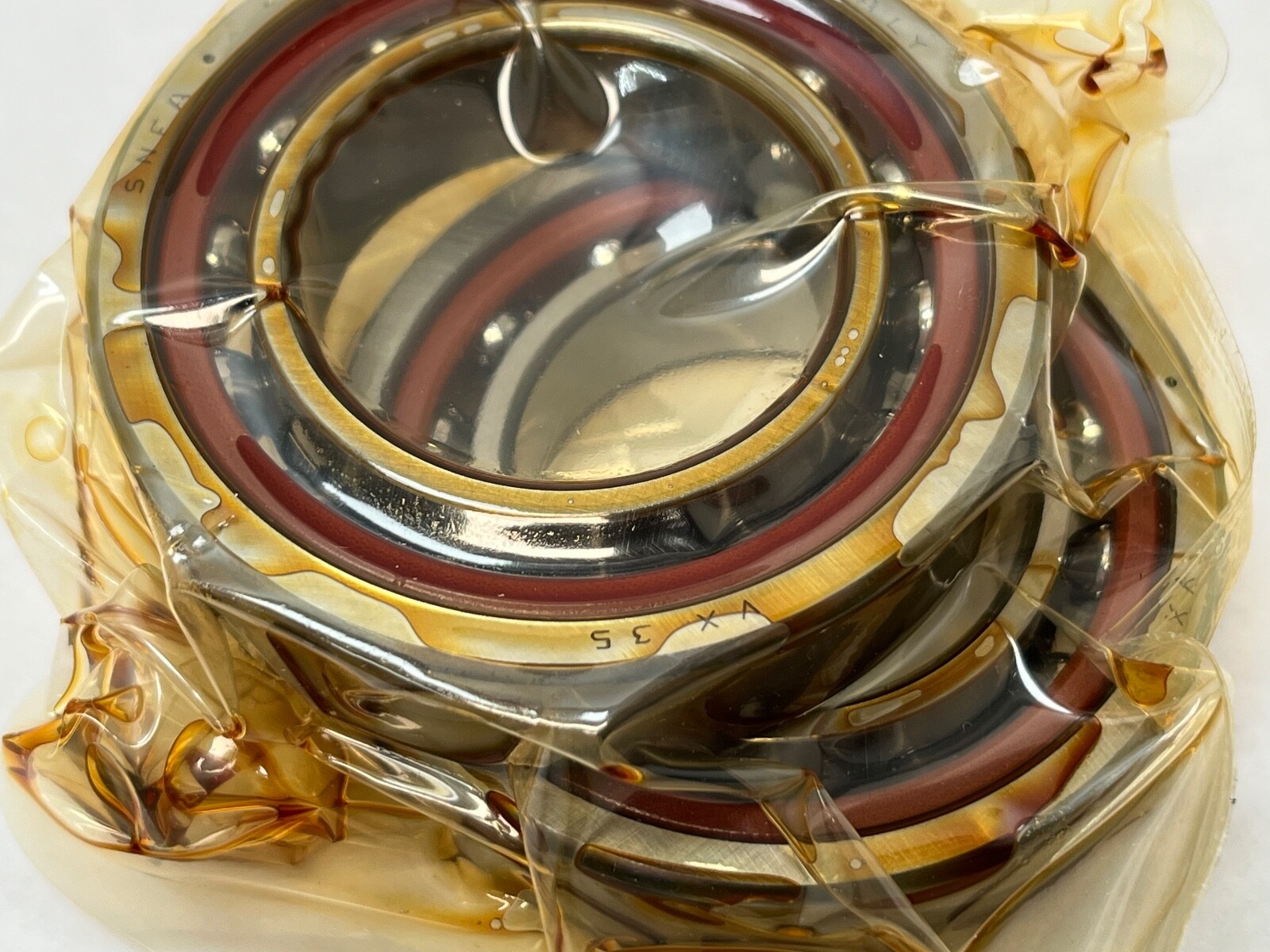

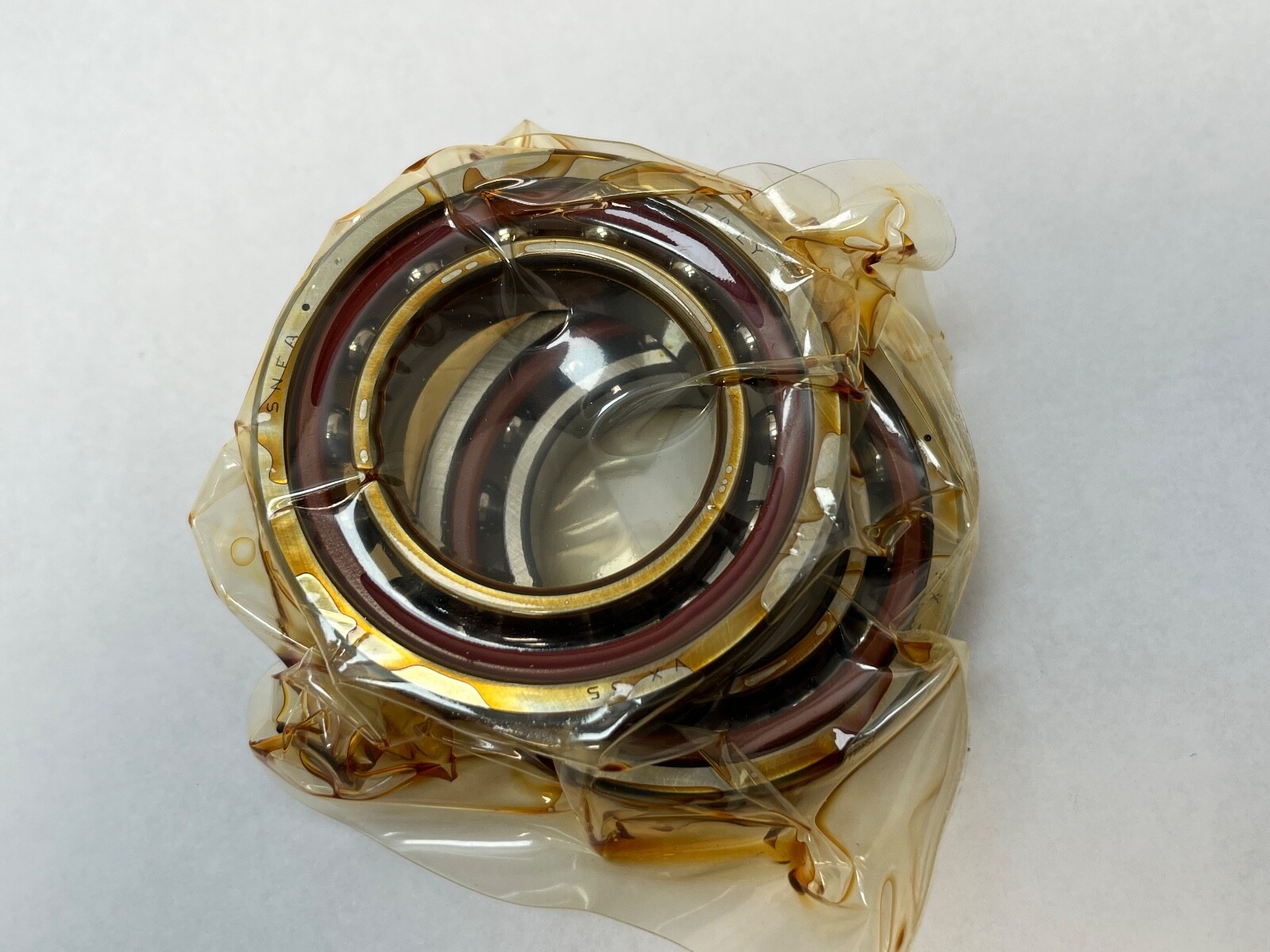

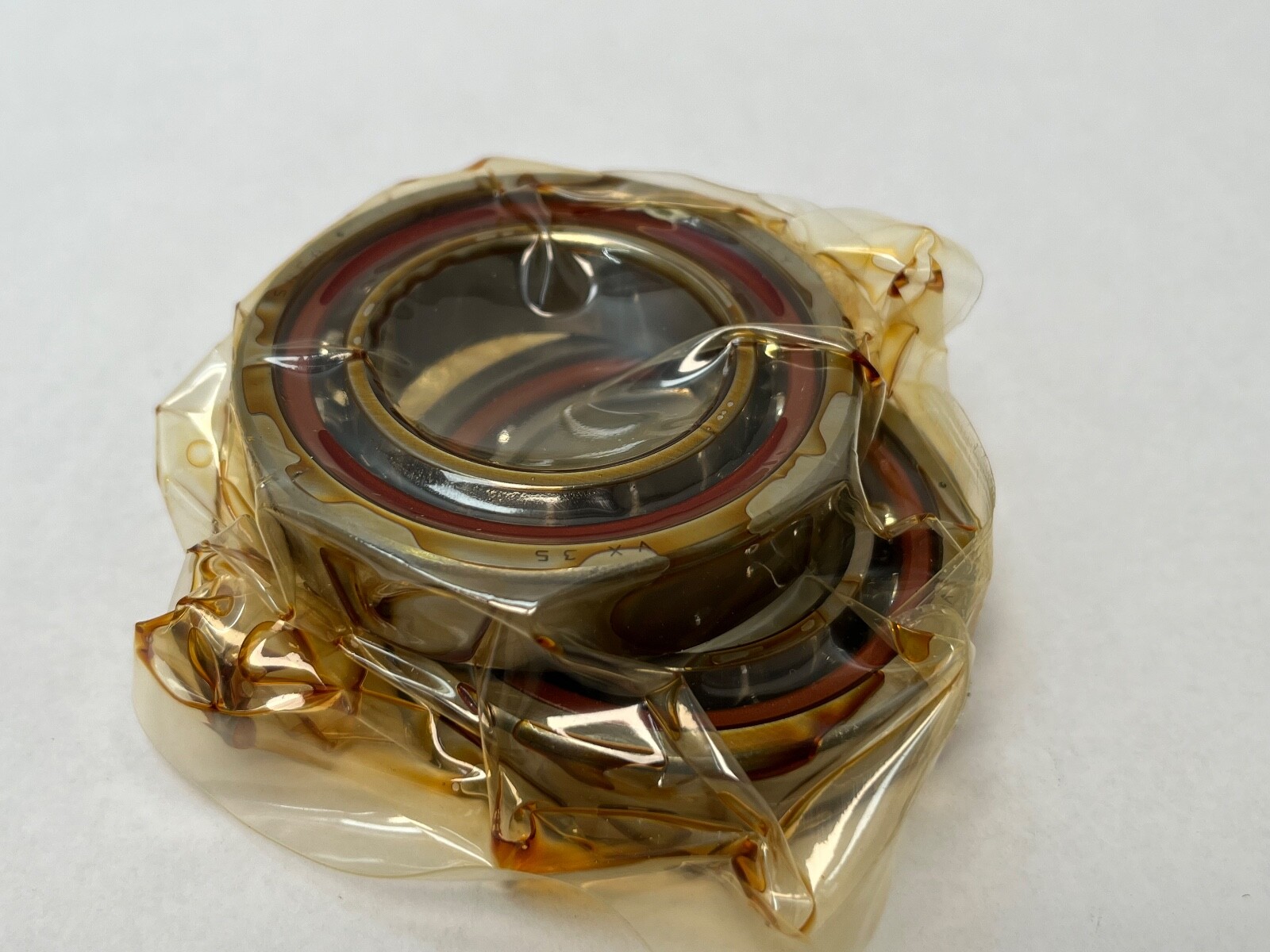

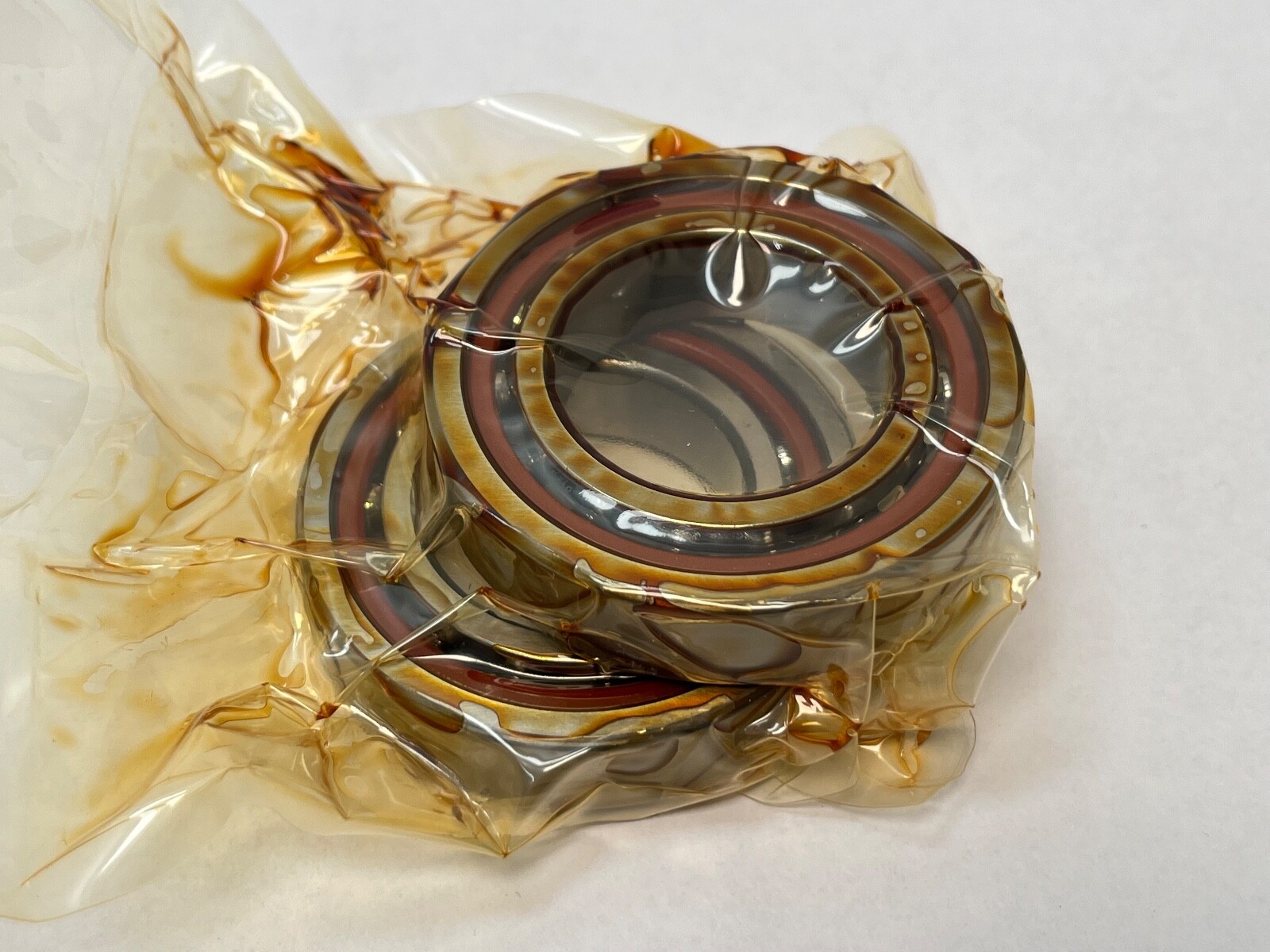

SNFA VX35-9CE1T super-precision angular contact ball bearing tandem set, 35 x 62 x 14 mm, 15° contact angle, ABEC 9 / P2, phenolic cage. Two bearings.
List Price
$263.03
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| MPN | VX35-9CE1T |
| Model | VX35-9-CE-1-T 7007-C-P2 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm |
| Base Number | 7007 |
|---|---|
| Overall Width | 14 mm |
| Mpn Variants | VX35-9CE1T, VX35-9-CE-1-T, VX35 9 CE 1 T, 7007-C-P2, 7007CE/PA9A |
| Arrangement Configuration | Tandem (T) |
| Precision Class | ABEC 9 / P2 |
| Cage Type | Machined, outer-ring located |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Contact Angle | 15° |
| Mounting Arrangement | Tandem |
| Cross Reference 1 | 7007 (ISO size, same envelope) |
|---|
SNFA VX35-9CE1T is a matched tandem set of two super-precision angular contact ball bearings, ISO dimension series 10, size 7007. Bore Diameter: 35 mm. Outside Diameter: 62 mm. Overall Width: 14 mm. Contact Angle: 15°. Precision Class: ABEC 9 / P2. Arrangement / Configuration: Tandem.
35 — bore diameter, 35 mm.
9 — ABEC 9 precision.
C — stratified textile resin (phenolic) cage.
E — cage located on the outer ring.
1 — 15° nominal contact angle.
T — tandem set. Both bearings face the same direction and share the axial load in one direction.
The 15° angle favours speed and radial stiffness. ABEC 9 is the tightest SNFA running-accuracy grade. Cage Material: Phenolic. Cage Type: Machined, outer-ring located. Rolling Elements: Ball.
Closure Type: Open. Snap Ring: No.
Unit Quantity: 2 Pcs. Two bearings matched as a tandem set.
ISO size 7007, 35 x 62 x 14 mm, 15° contact angle, ABEC 9 / P2 precision.
$760.47
16 in stock
$141.11
255 in stock
