Fafnir2MM9104WICRDUMSuper-Precision Angular Contact Ball Bearing Pair – 20 mm Bore, 42 mm OD, 12 mm Width, 15°, Medium Preload

Condition: New – Open box
Condition Note: Made In USA, New Old Stock

Availability:

1 in stock

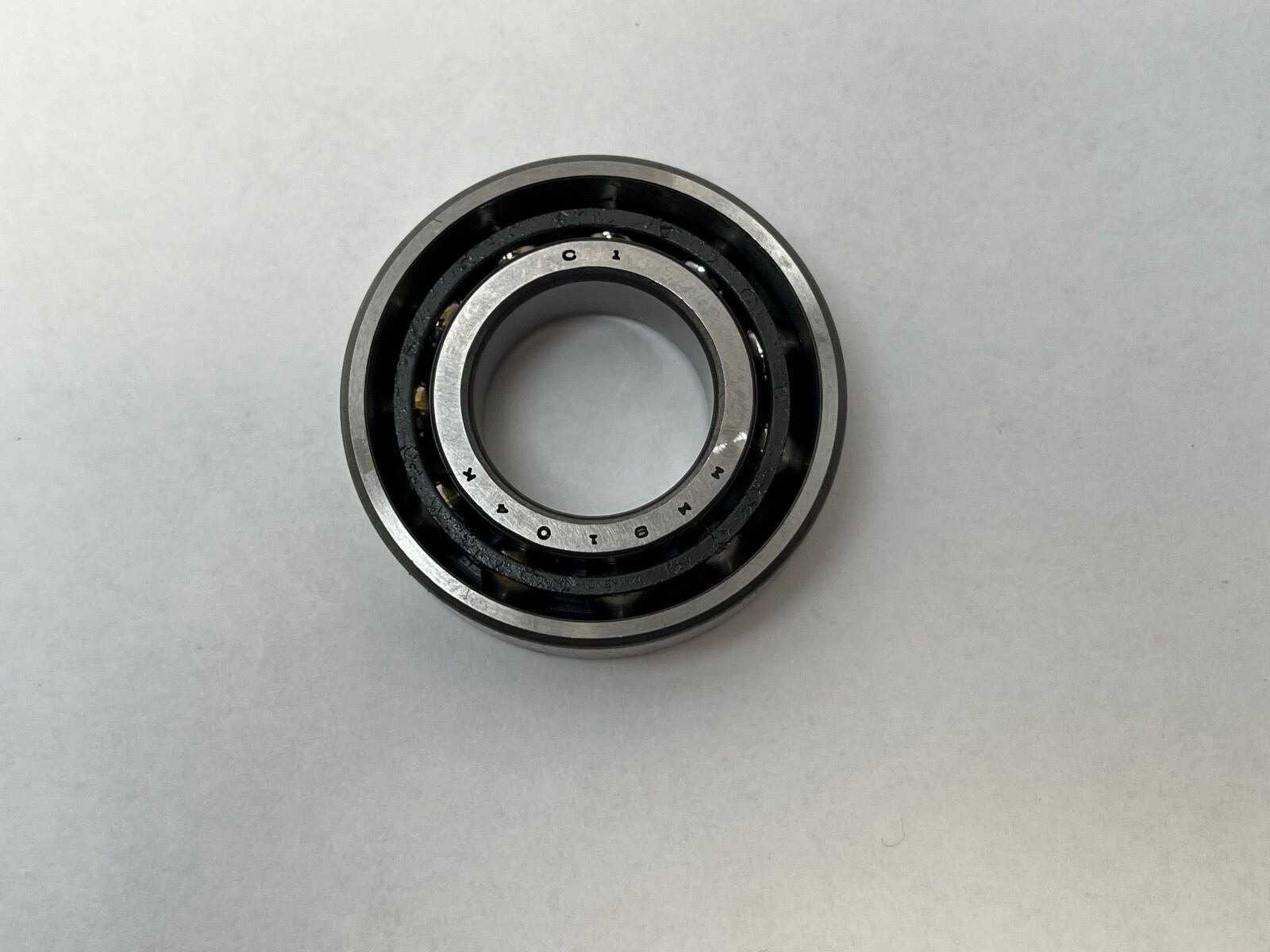

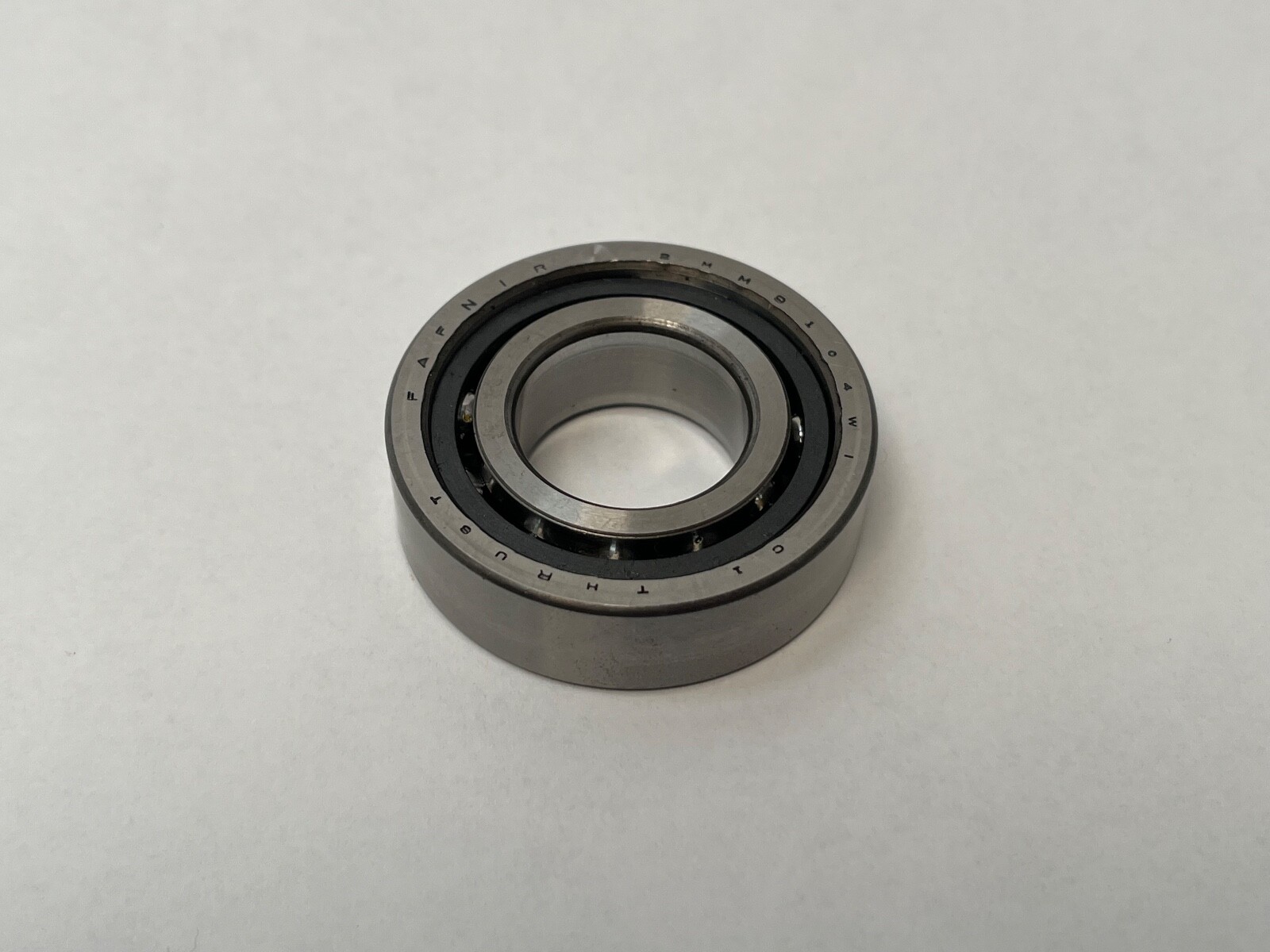

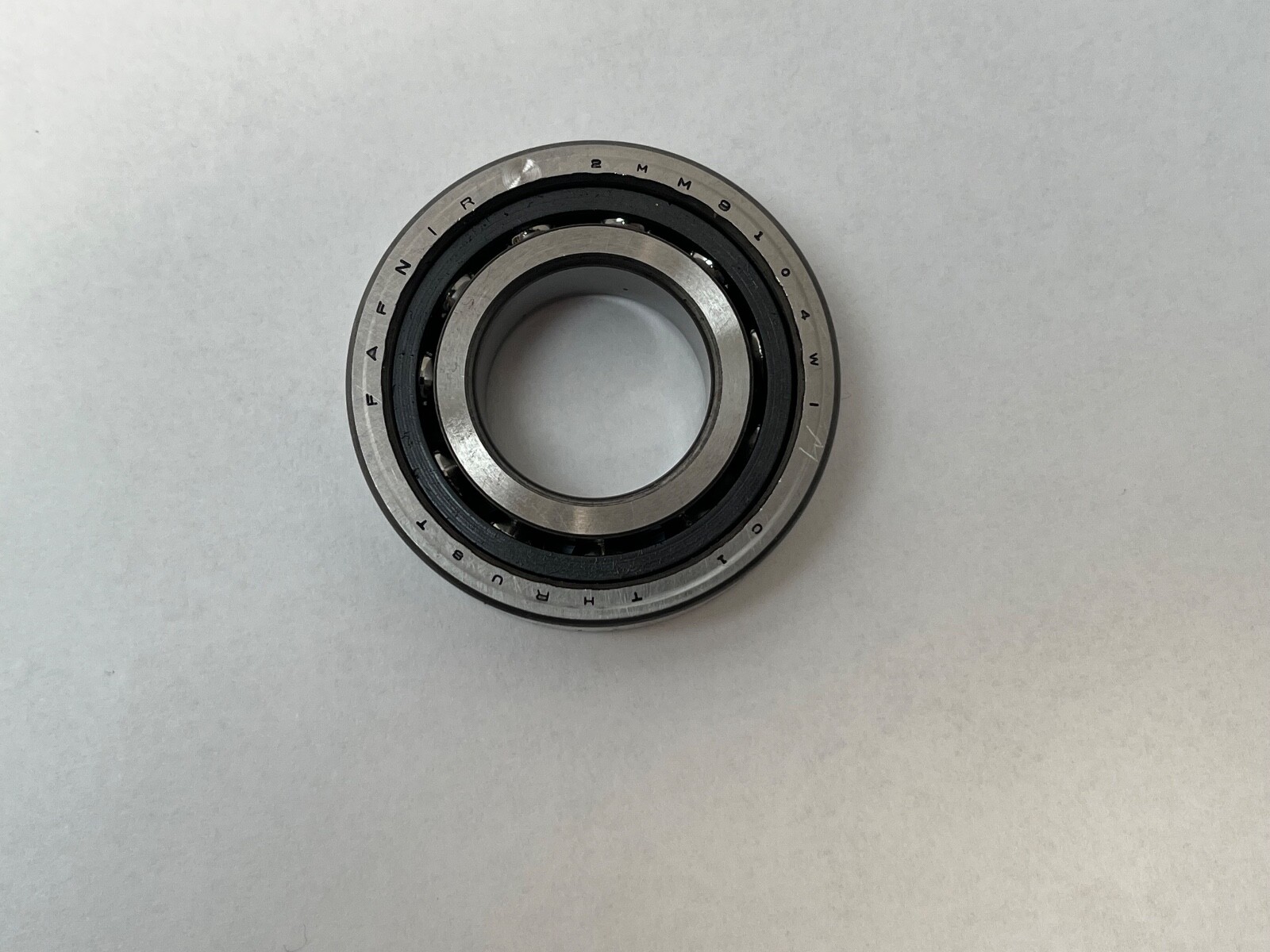

Super-precision angular contact ball bearing duplex pair, 20 x 42 x 12 mm each, 15° contact angle, medium preload, phenolic cage. Fafnir 2MM9104WICRDUM.

Same day shipment

List Price

$38.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFafnir
MPN2MM9104WICRDUM
GTIN087796071919
Model2MM 9104 WI DUM / 7004 C P4A DGA / 7004 C TY/TR DUM
Bearing TypeAngular Contact Ball Bearing, Open
ID20 mm
OD42 mm
Width12 mm

Technical Specifications

Series9100WI
LubricantOil
PreloadMedium
Base Number2MM9104WI
Total Width24 mm (pair)
Overall Width12 mm
Mpn Variants2MM9104WIDUM; 2MM-9104-WI-CR-DUM; 2 MM 9104 WI CR DUM; 2MM9104WICRDUM
Precision ClassABEC 7 / P4
Dynamic Load Rating11,600 N (per bearing)
Static Load Rating6,010 N (per bearing)
Rolling ElementsBall
Item Weight0.134 kg (0.30 lb) per pair
Cage MaterialPhenolic
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Limiting Speed37,100 rpm grease; 74,200 rpm oil
Contact Angle15°
Mounting ArrangementUniversally ground duplex pair
Closure TypeOpen

Cross-References

Cross Reference 1FAG B7004-C-T-P4S-UL
Cross Reference 2SKF 7004 CD/P4ADGB
Cross Reference 3NSK 7004CTRDUMP4
Cross Reference 4NTN 7004UCG/GNP4
Cross Reference 5RHP 7004CTDUMP4
Cross Reference 6Koyo 7004C P4 DUM
Cross Reference 7SNFA VEX 20 /NS 7CE1
Cross Reference 87004-C - standard tolerance, no P4S
Seller Part Number: AJ1B3#YODHTQ

Product Description

What this part is:

Fafnir 2MM9104WICRDUM, a super-precision angular contact ball bearing supplied as a universally ground duplex pair. Unit Quantity: 2 Pcs. Bore Diameter: 20 mm. Outside Diameter: 42 mm. Overall Width: 12 mm per bearing. Total Width: 24 mm mounted as a pair. GTIN: 087796071919.

Decoding the designation:

2MM — Fafnir super-precision spindle range at a 15° contact angle, P4 (ABEC 7) precision class.

9104 — the 9100 light dimension series, bore code 04, which maps to the ISO 7004 envelope: 20 mm bore, 42 mm outside diameter, 12 mm width.

WI — low shoulder on both rings.

CR — phenolic cage.

DUM — duplex pair, universally ground, medium preload. The pair mounts back-to-back, face-to-face or in tandem.

Specifications:

Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic. Precision Class: ABEC 7 / P4. Preload: Medium. Series: 9100WI. Base Number: 2MM9104WI. Dynamic Load Rating: 11,600 N per bearing. Static Load Rating: 6,010 N per bearing. Limiting Speed: 37,100 rpm grease; 74,200 rpm oil. Item Weight: 0.134 kg (0.30 lb) for the pair.

Dimensions and mounting:

Bore Diameter: 20 mm. Outside Diameter: 42 mm. Overall Width: 12 mm per bearing; 24 mm for the pair. Shaft Backing Shoulder Diameter: 24.8 mm. Housing Backing Shoulder Diameter: 37.7 mm. Maximum Housing Fillet Radius: 0.6 mm (0.024 in).

Compatibility and replacement:

Cross-references on the 7004 envelope at 15° with medium preload: FAG B7004-C-T-P4S-UL, SKF 7004 CD/P4ADGB, NSK 7004CTRDUMP4, NTN 7004UCG/GNP4, RHP 7004CTDUMP4, Koyo 7004C P4 DUM and SNFA VEX 20 /NS 7CE1. A standard-tolerance 7004-C matches the envelope and angle only. MPN Variants: 2MM9104WIDUM, 2MM-9104-WI-CR-DUM, 2 MM 9104 WI CR DUM, 2MM9104WICRDUM.

Frequently asked questions:

What is the Fafnir 2MM9104WICRDUM?

It is a super-precision angular contact ball bearing, 20 x 42 x 12 mm, supplied as a universally ground duplex pair with medium preload and a phenolic cage.

What is the contact angle and speed rating?

The contact angle is 15°. Limiting speed is 37,100 rpm on grease and 74,200 rpm on oil.

What are the load ratings?

Dynamic load rating is 11,600 N and static load rating is 6,010 N, each per bearing.
