SKF BDAB 634203 C/TGA single-direction angular contact thrust ball bearing, 1.751 in bore, 3.000 in OD, 0.625 in wide, inch envelope. Three bearings.
List Price
$269.86
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | BDAB 634203 C/TGA |
| Model | BDAB634203CTGA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 1.7510 in (44.475 mm) |
| OD | 3.0000 in (76.200 mm) |
| Width | 0.625 in |
| Material | Bearing Steel |
|---|---|
| Lubricant | Oil/Grease |
| Base Number | BDAB 634203 |
| Industry Terms | angular contact thrust bearing; ball screw support bearing; precision thrust bearing; drawing-number bearing |
| Common Misspellings | BDAB634203; BDA B634203; BDAB 63420 |
| Application Types | Machine tool ball screw supports; precision thrust positions |
| Overall Width | 0.6250 in (15.875 mm) |
| Mpn Variants | BDAB 634203 C/TGA; BDAB-634203-C/TGA; BDAB634203C/TGA; BDAB634203CTGA; BDAB-634203-C-TGA; BDAB634203 C TGA |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |

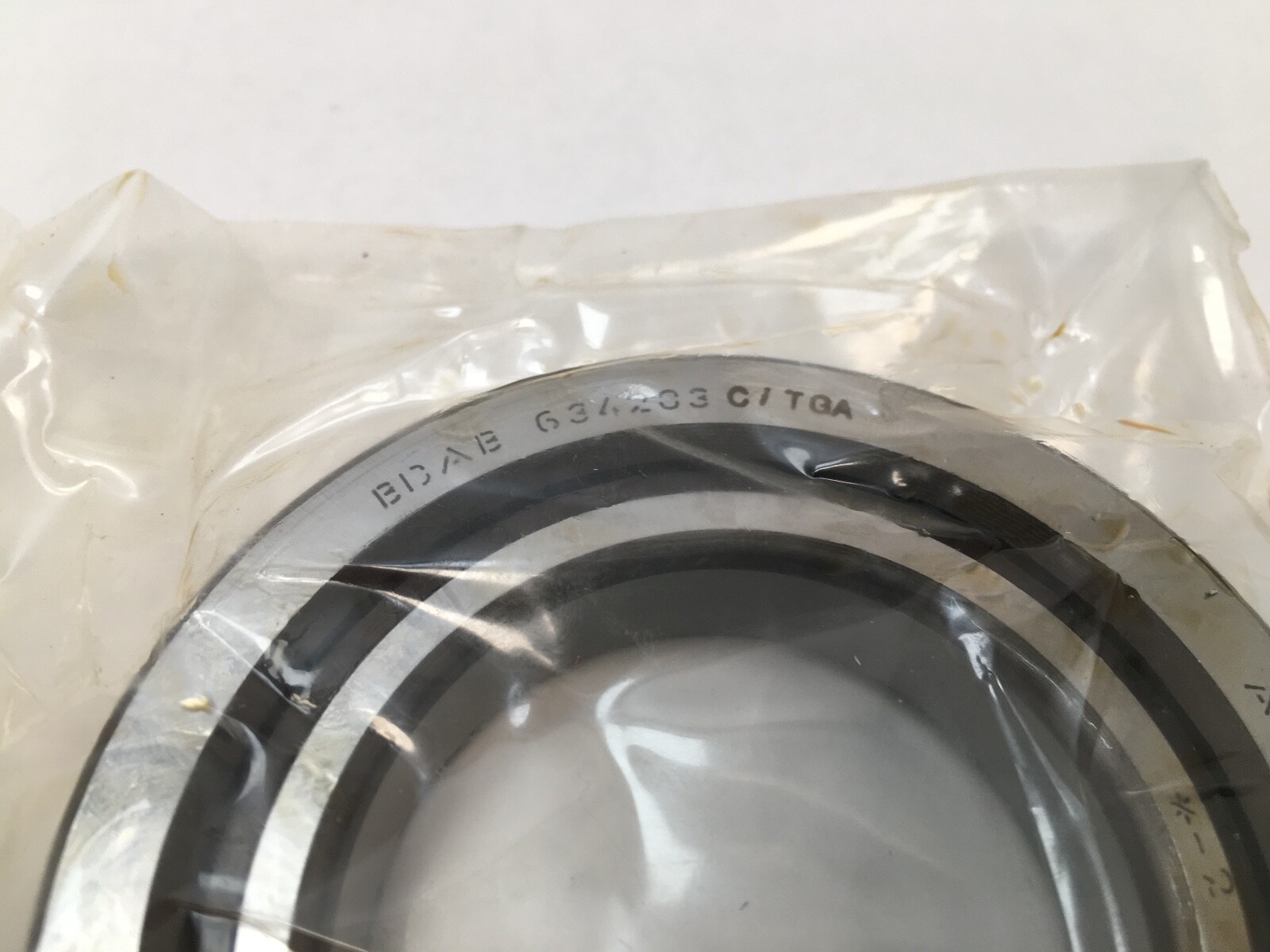

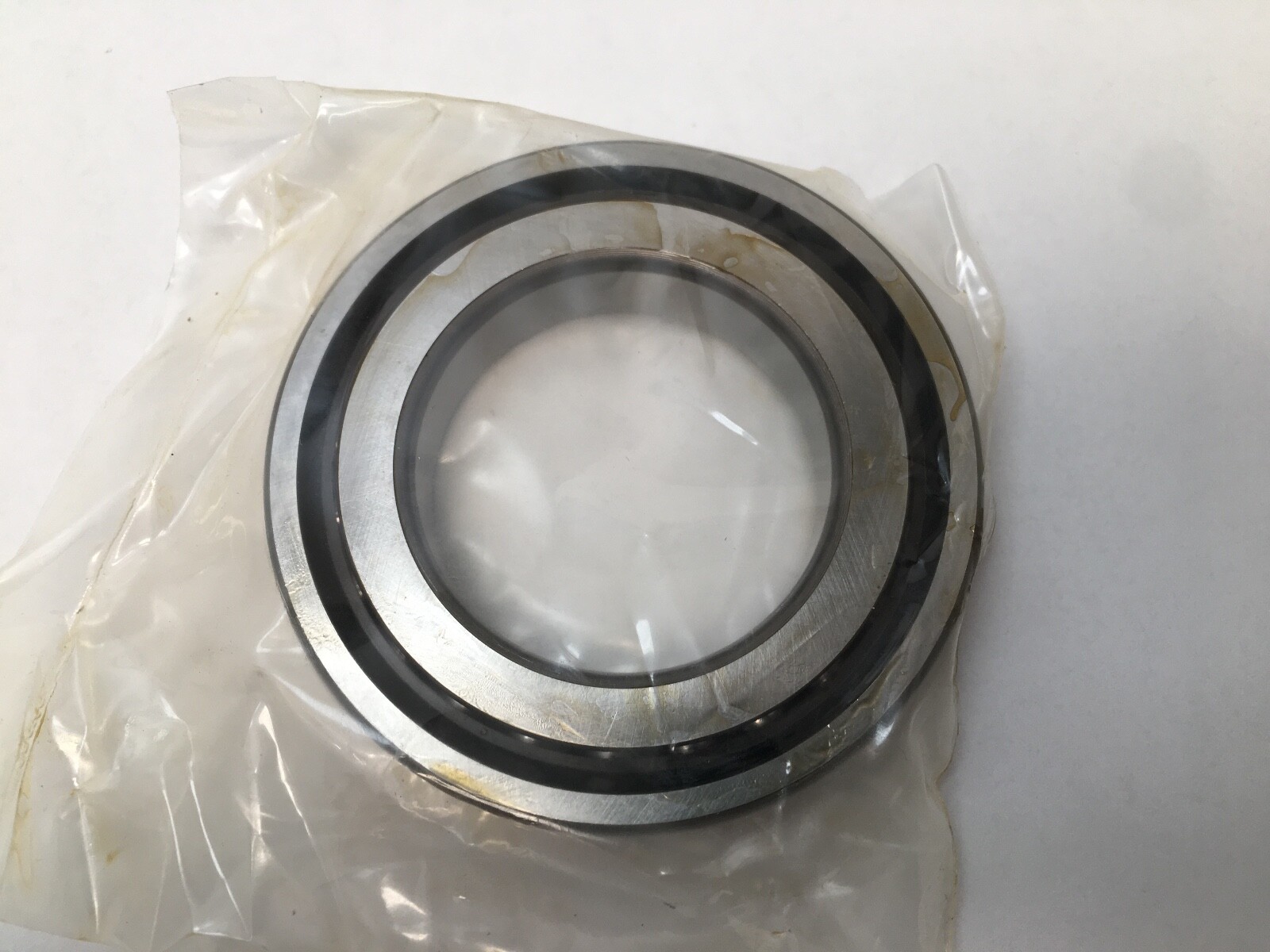

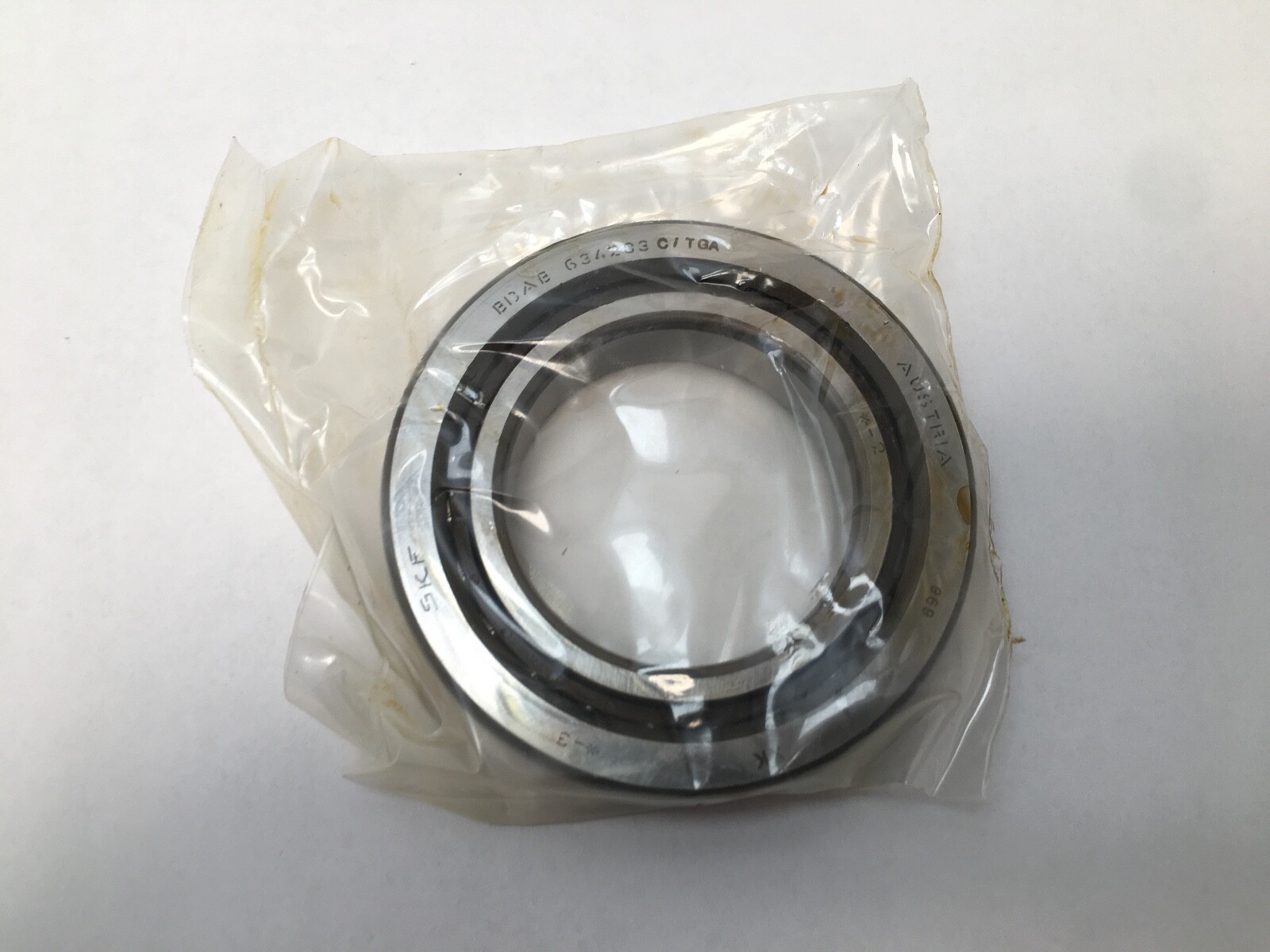

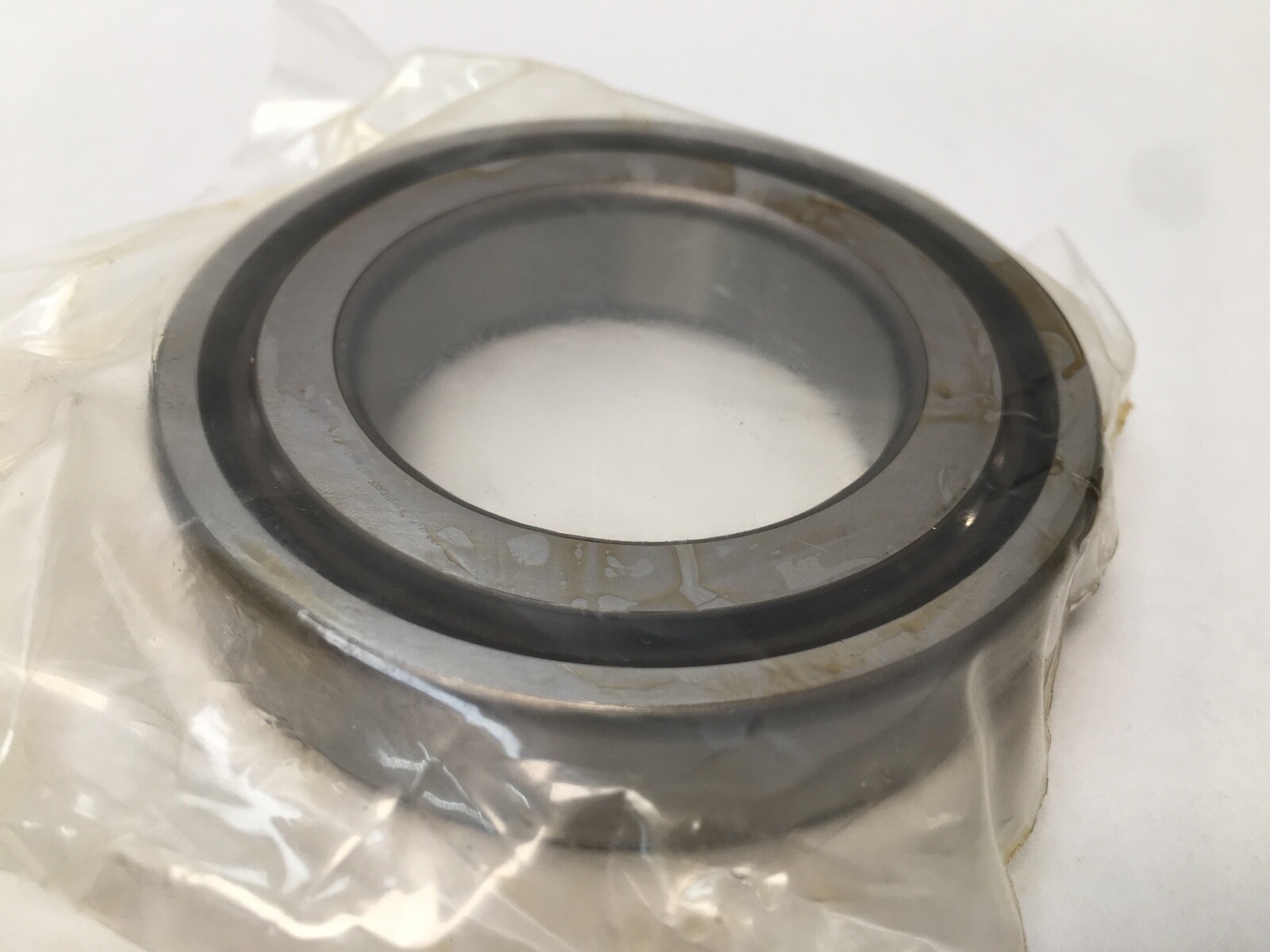

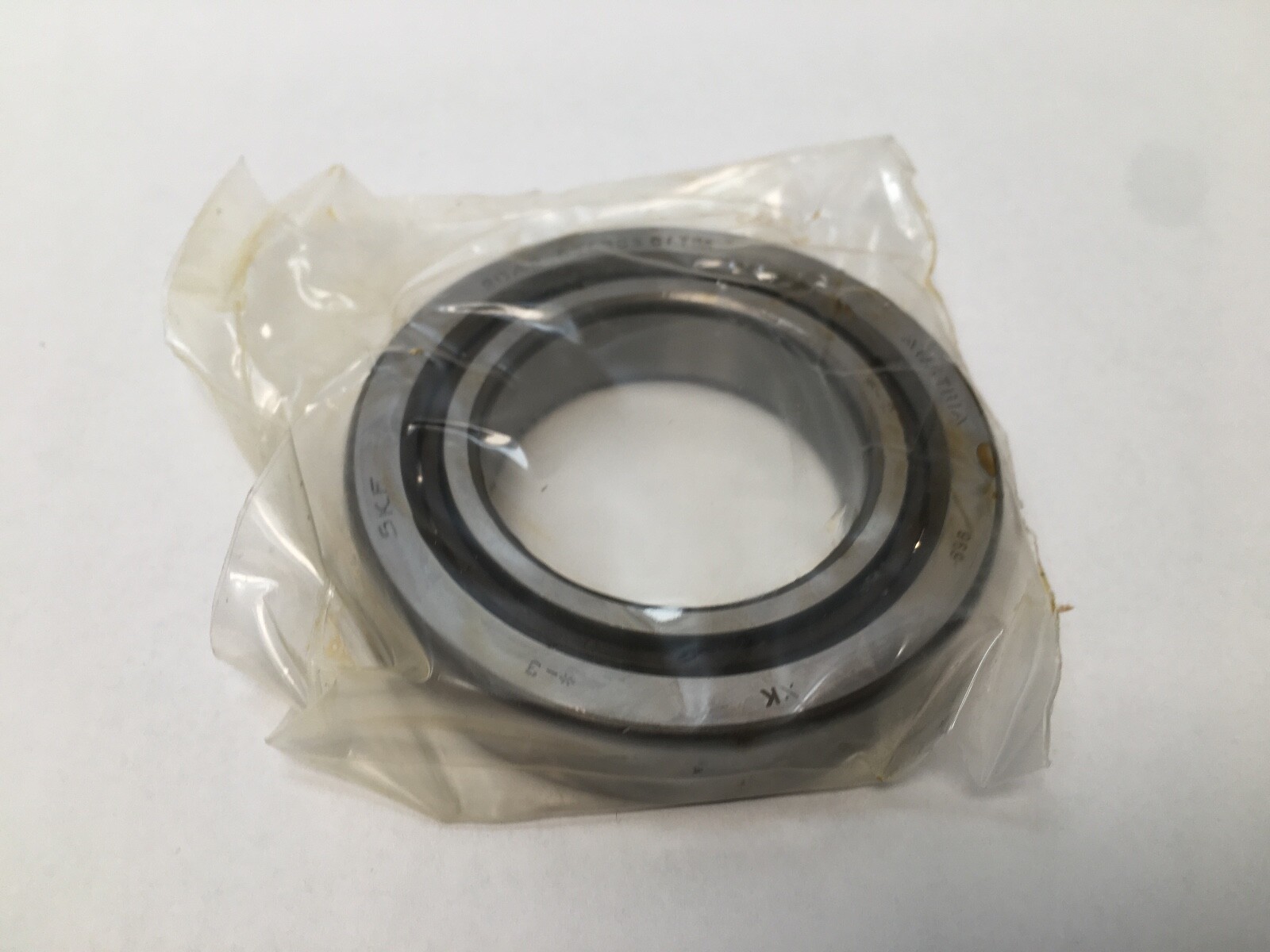

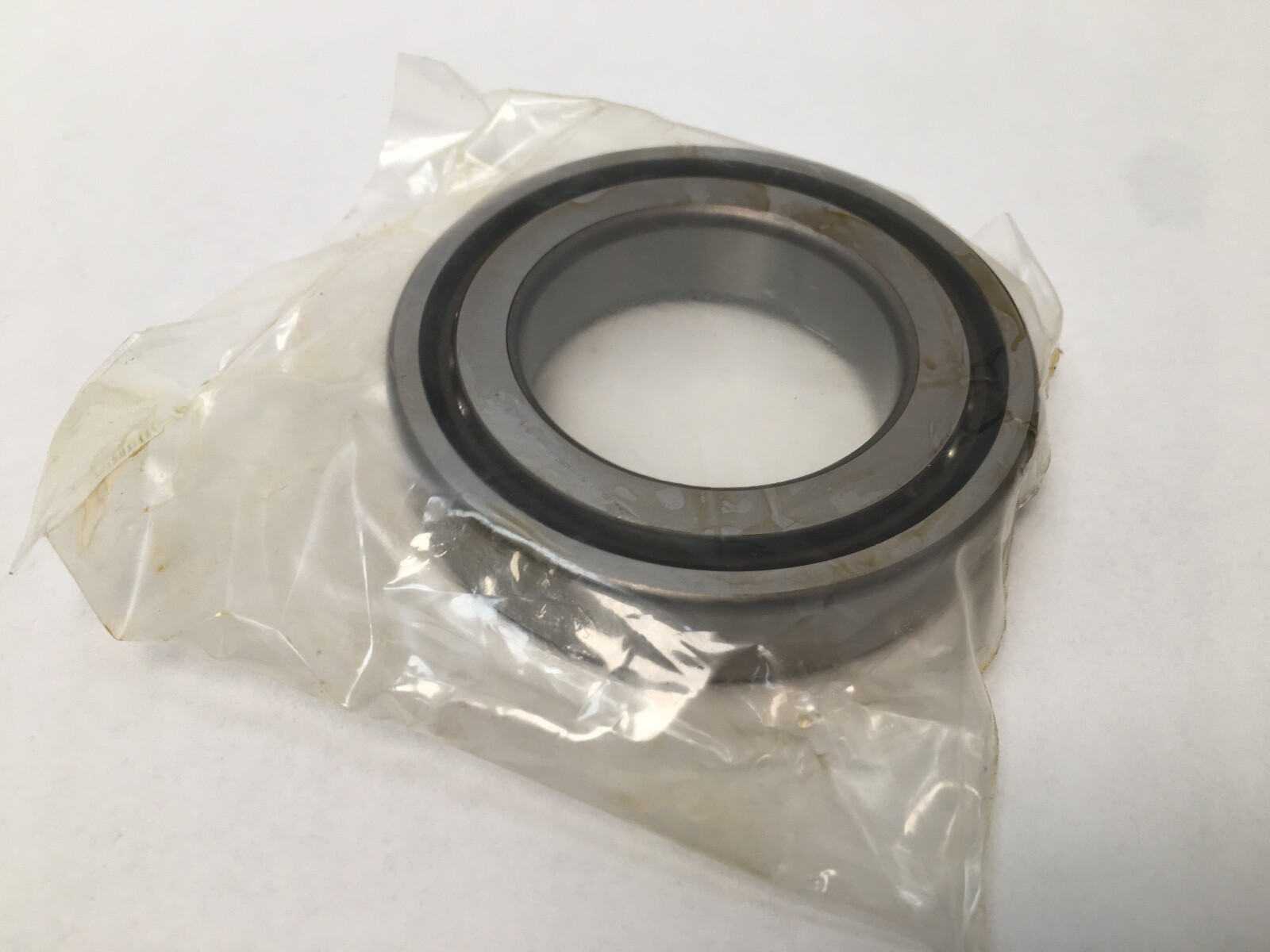

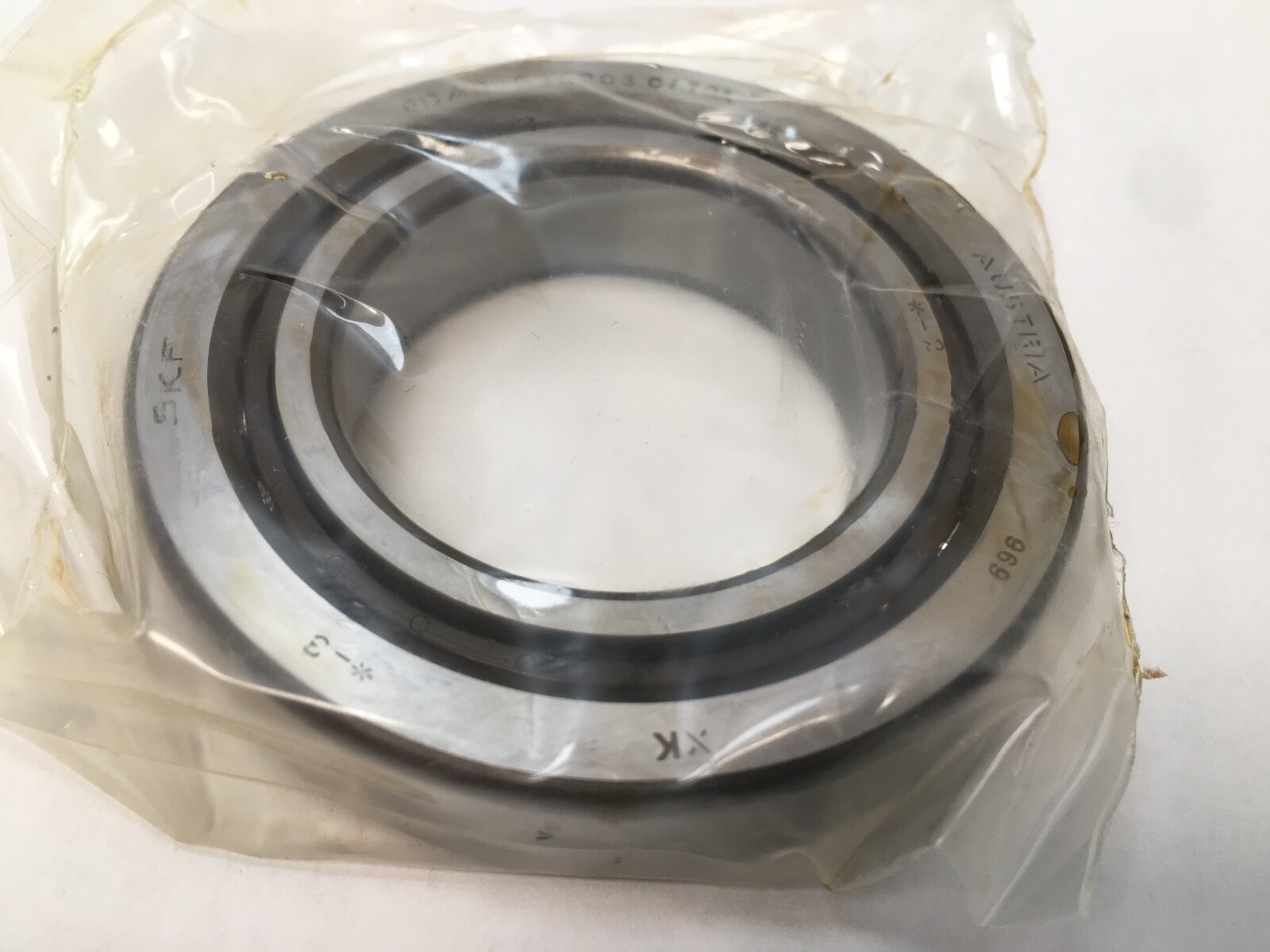

SKF BDAB 634203 C/TGA is a single-direction angular contact thrust ball bearing from SKF’s BDAB drawing-number family. It carries one open single row of balls in an inch envelope and is typically used in ball screw support and precision thrust positions on machine tools.
BDAB — SKF drawing-number prefix for single-direction angular contact thrust ball bearings.
634203 — SKF drawing number identifying this size and execution.
Bore Diameter: 1.7510 in (44.475 mm). Outside Diameter: 3.0000 in (76.200 mm). Overall Width: 0.6250 in (15.875 mm). Number Of Rows: 1. Bearing type: Angular contact thrust ball bearing, single direction. Seal type: Open. Closure Type: Open. Bore Type: Straight.

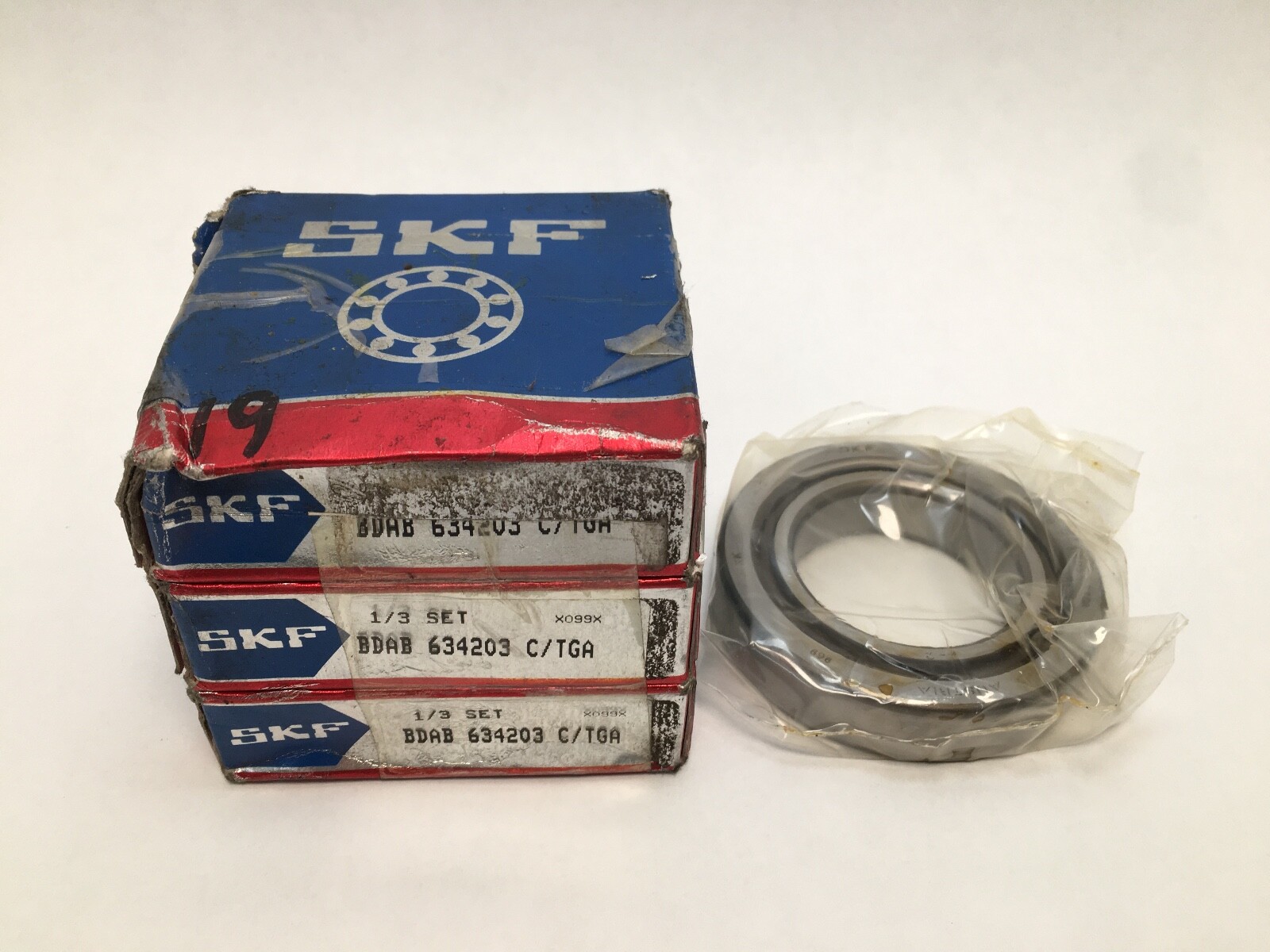

Unit Quantity: 3 Pcs.
BDAB 634203 is an SKF drawing-number bearing with an inch envelope; replacement is by the SKF designation BDAB 634203 C or BDAB634203C.
