Super-precision angular contact ball bearing pair, 65 x 120 x 23 mm each, 15° contact angle, P4, light preload. Dynamic 66,300 N, static 53,000 N.
List Price
$381.10
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7213 C/P4 DGA |
| Model | 7213 C P4 DGA / 2MM213WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Preload | Light (class A) |
| Base Number | 7213 |
| Industry Terms | Spindle bearing; super precision angular contact ball bearing; ABEC 7 duplex pair; machine tool spindle bearing |
| Bore Shaft Size | 65 mm (2.559 in) |
| Mpn Variants | 7213CP4DGA; 7213 C/P4 DGA; 7213-C-P4-DGA; 7213 CDGA/P4A; 2MM213WI CR DUL; 2MM213WICRDUL |
| Precision Class | P4 |
| Additional Attributes | Fatigue load limit Pu 2.28 kN; ball diameter 15.875 mm; 15 balls; preload when unmounted 250 N; axial stiffness 78 N/um; shoulder d1 82.9 mm, D1 102.1 mm; pressure point a 24 mm; chamfer r min 1.5 and 0.6 mm; da min 74 mm; Da max 111 mm, Db max 115.8 mm; fillet ra max 1.5 and 0.6 mm |
| Dynamic Load Rating | 66,300 N |
| Static Load Rating | 53,000 N |
| Rolling Elements | Ball |
| Item Weight | 0.977 kg (2.15 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Bearing Material | Bearing steel |
| Part Number | 7213 C/P4 DGA |
| Closure Type | Open |
| Cross Reference 1 | Timken Fafnir 2MM213WI CR DUL |
|---|

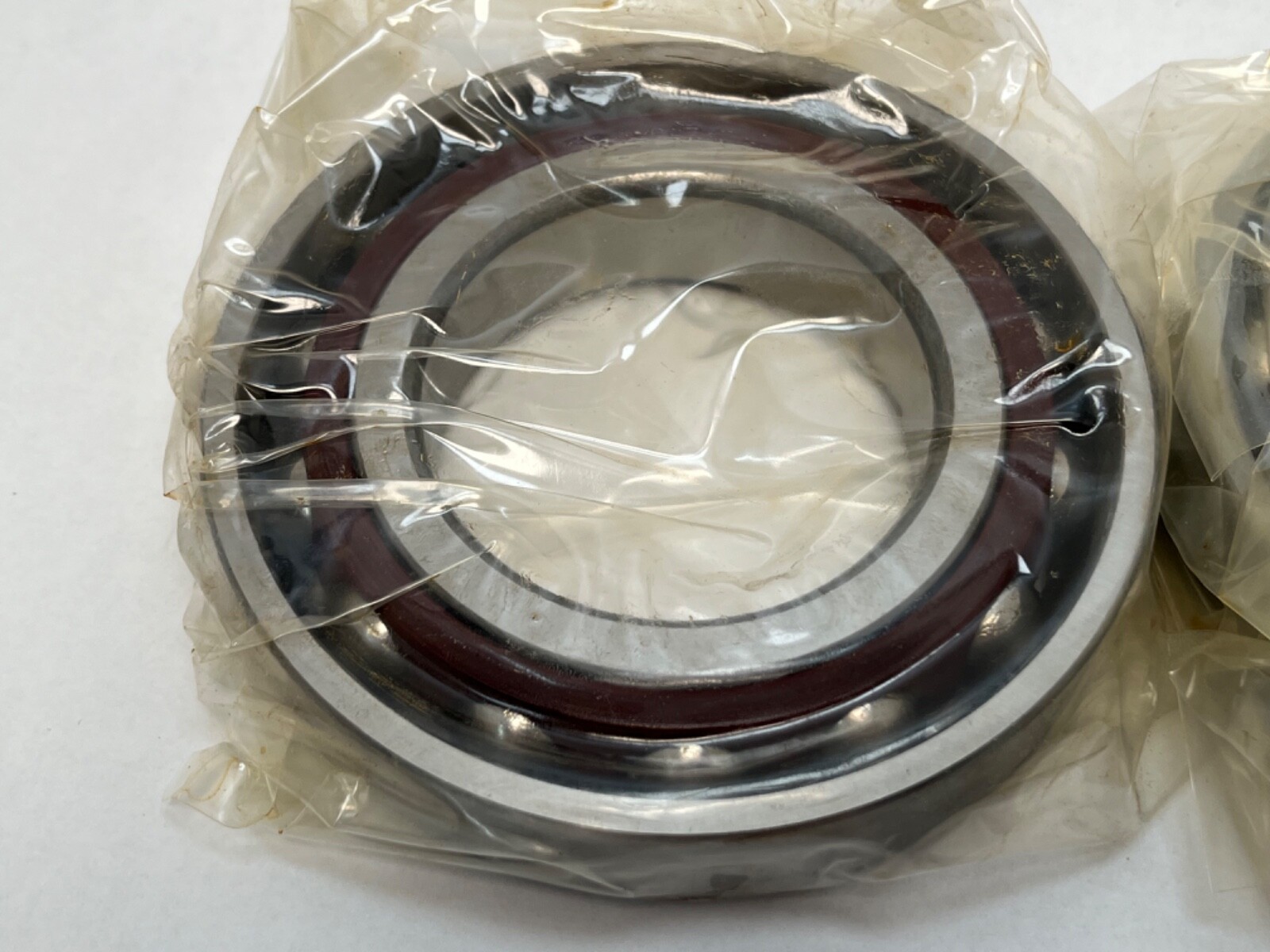

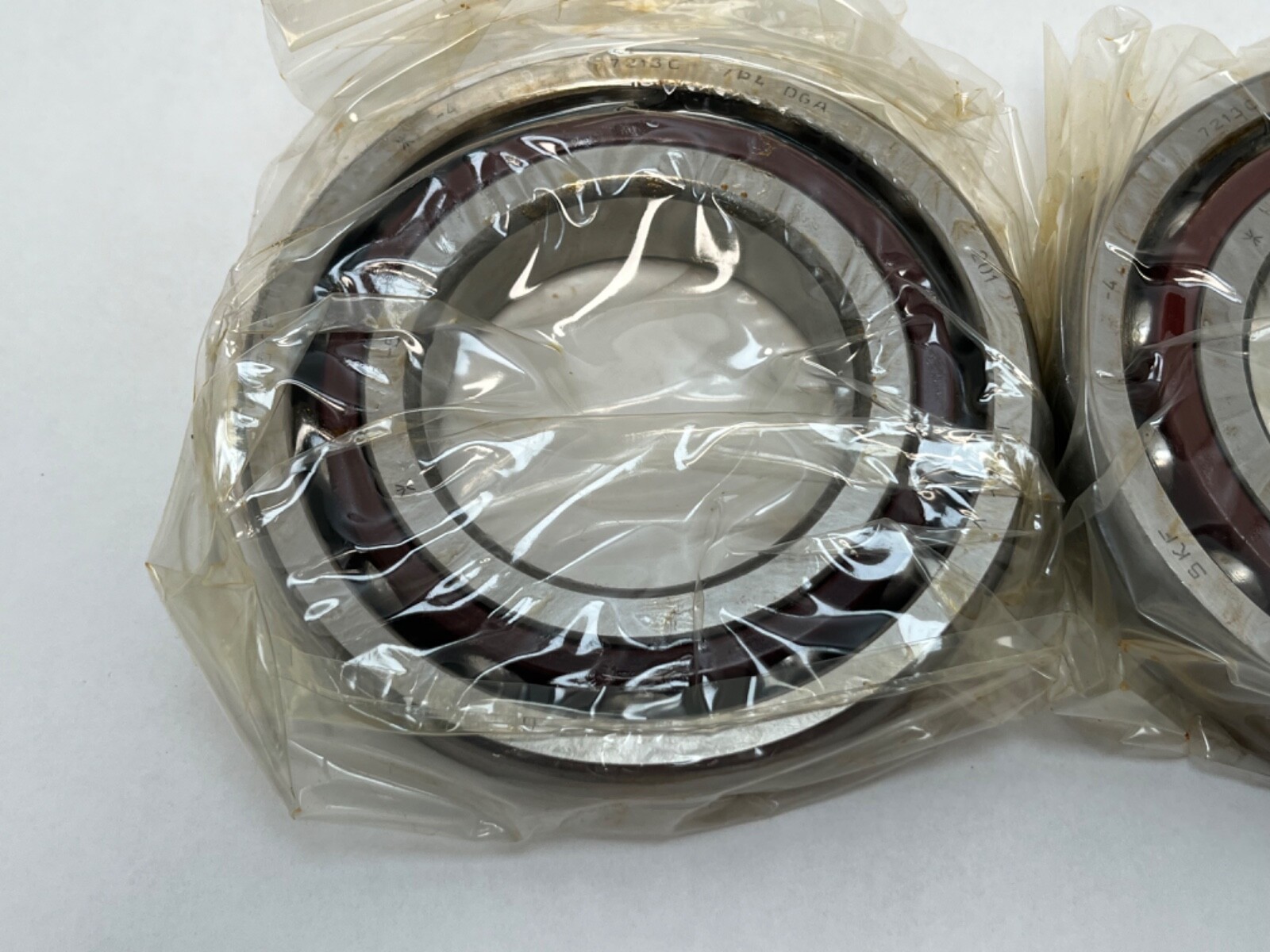

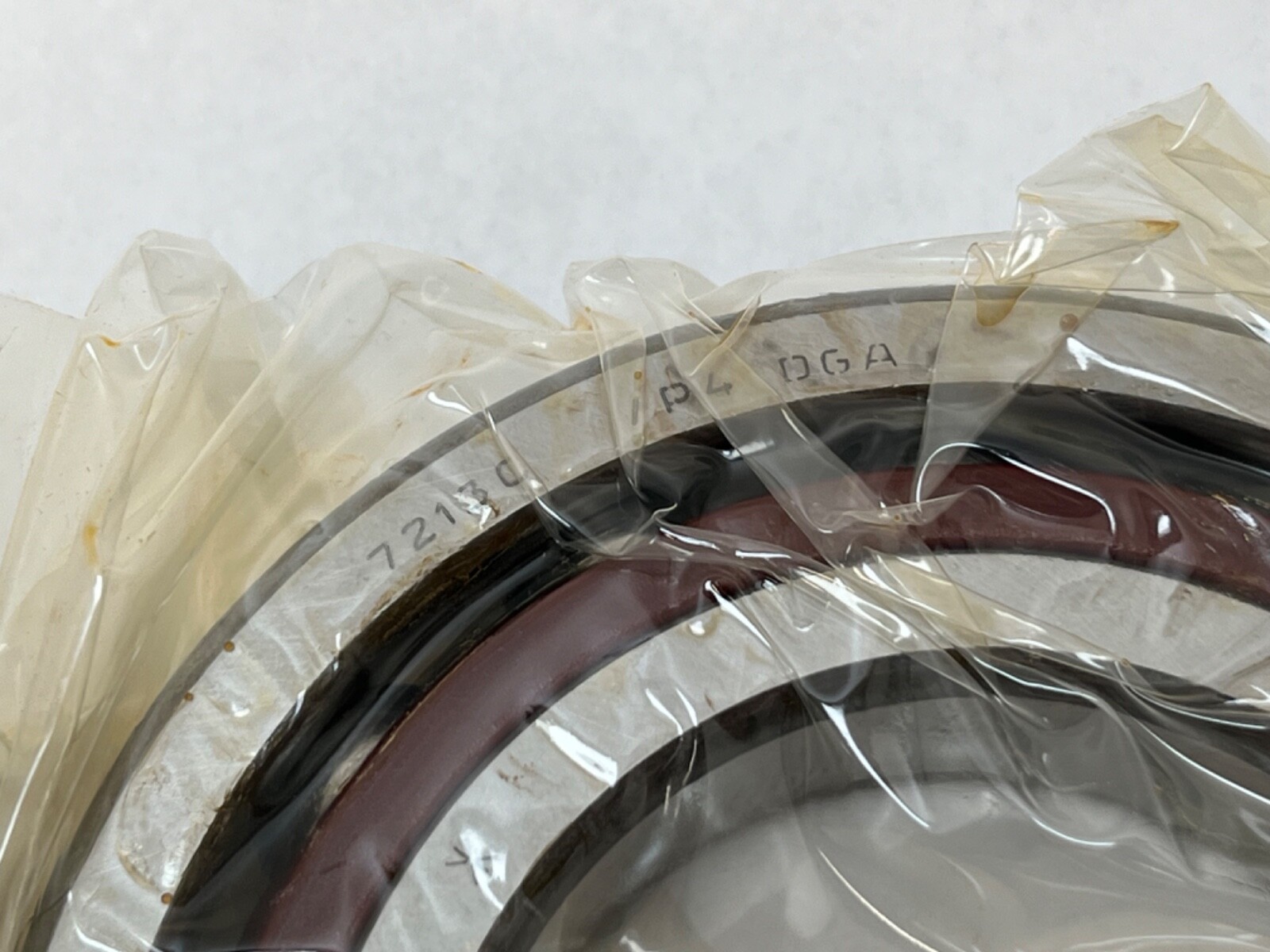

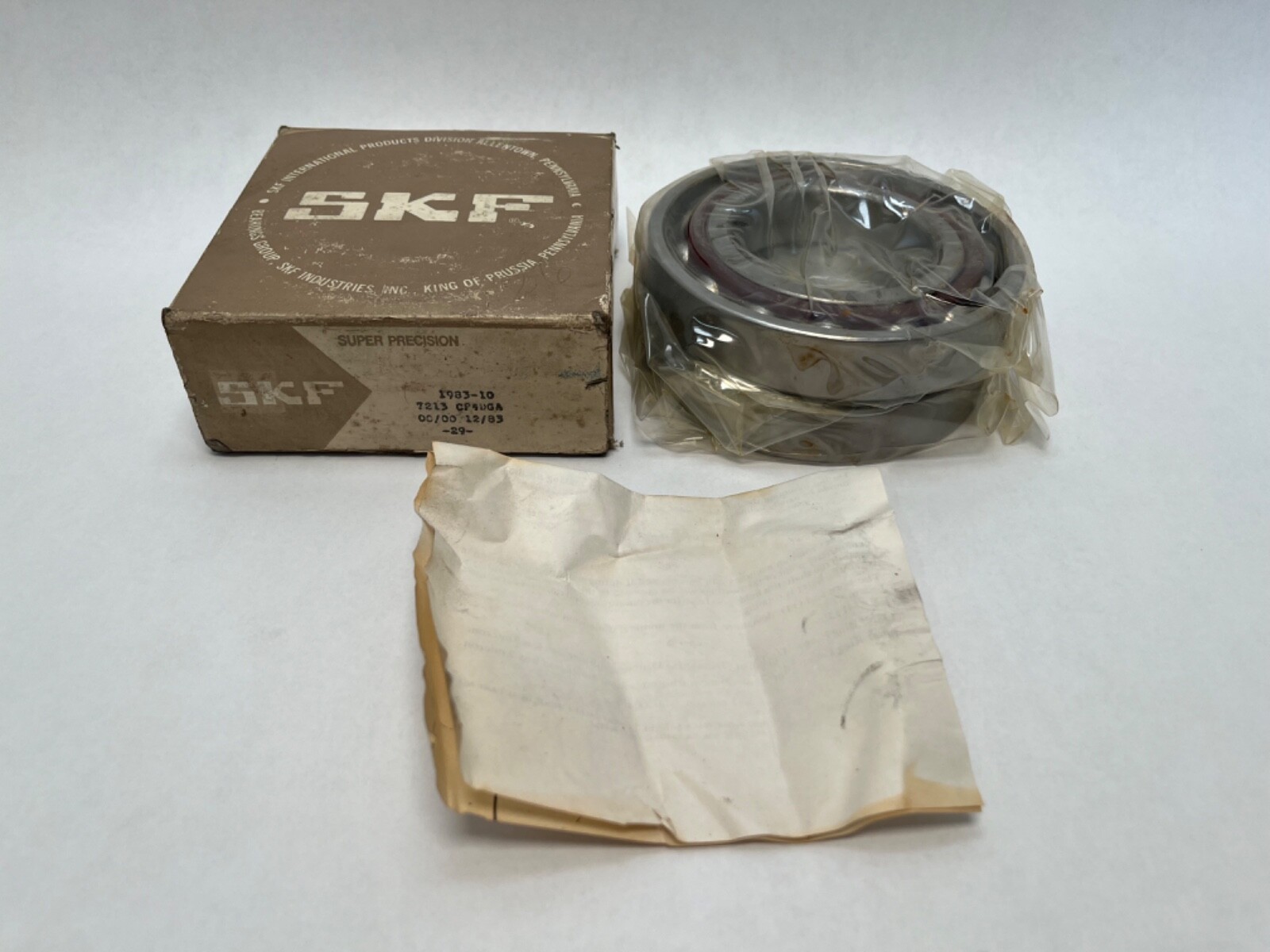

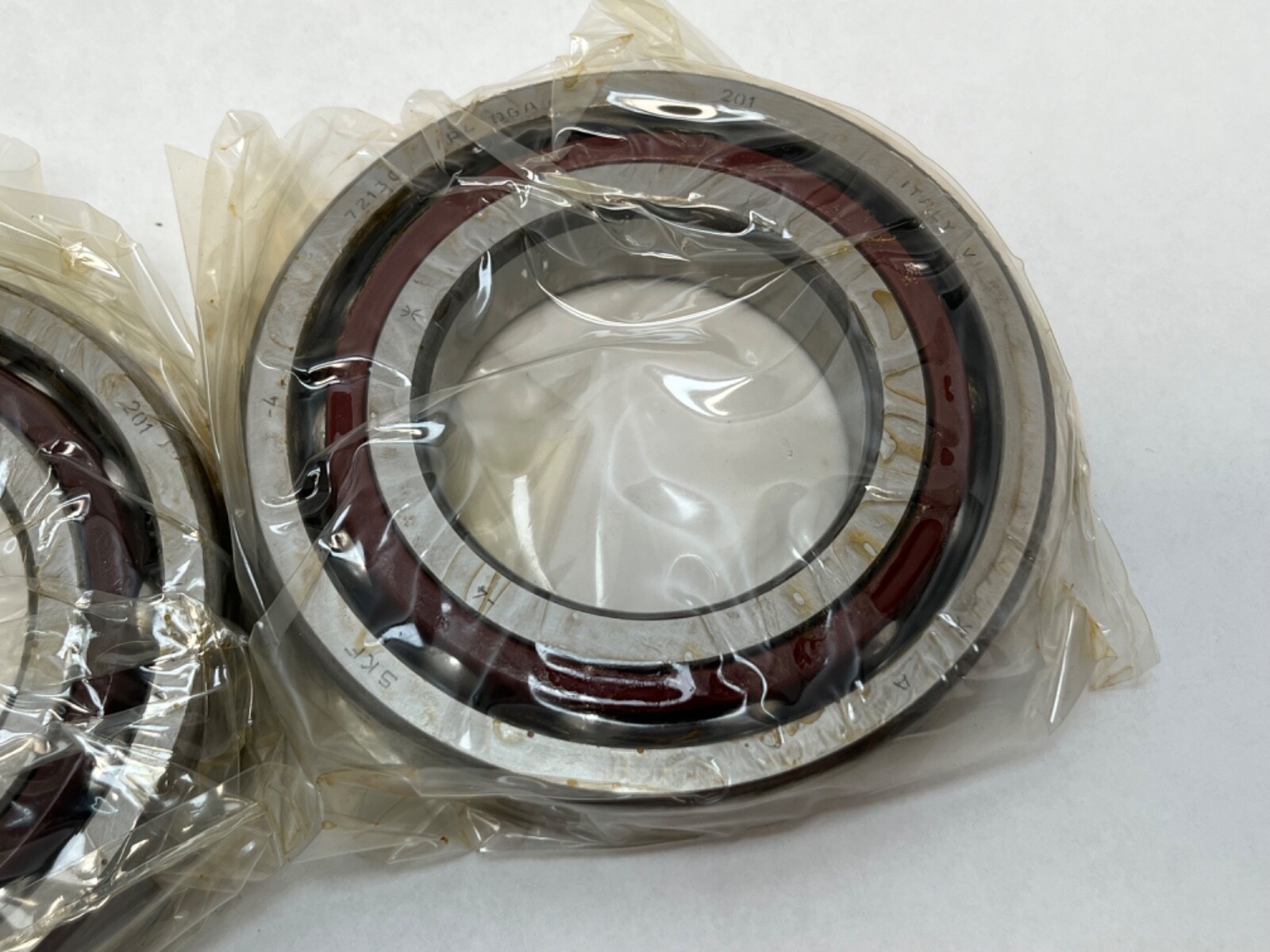

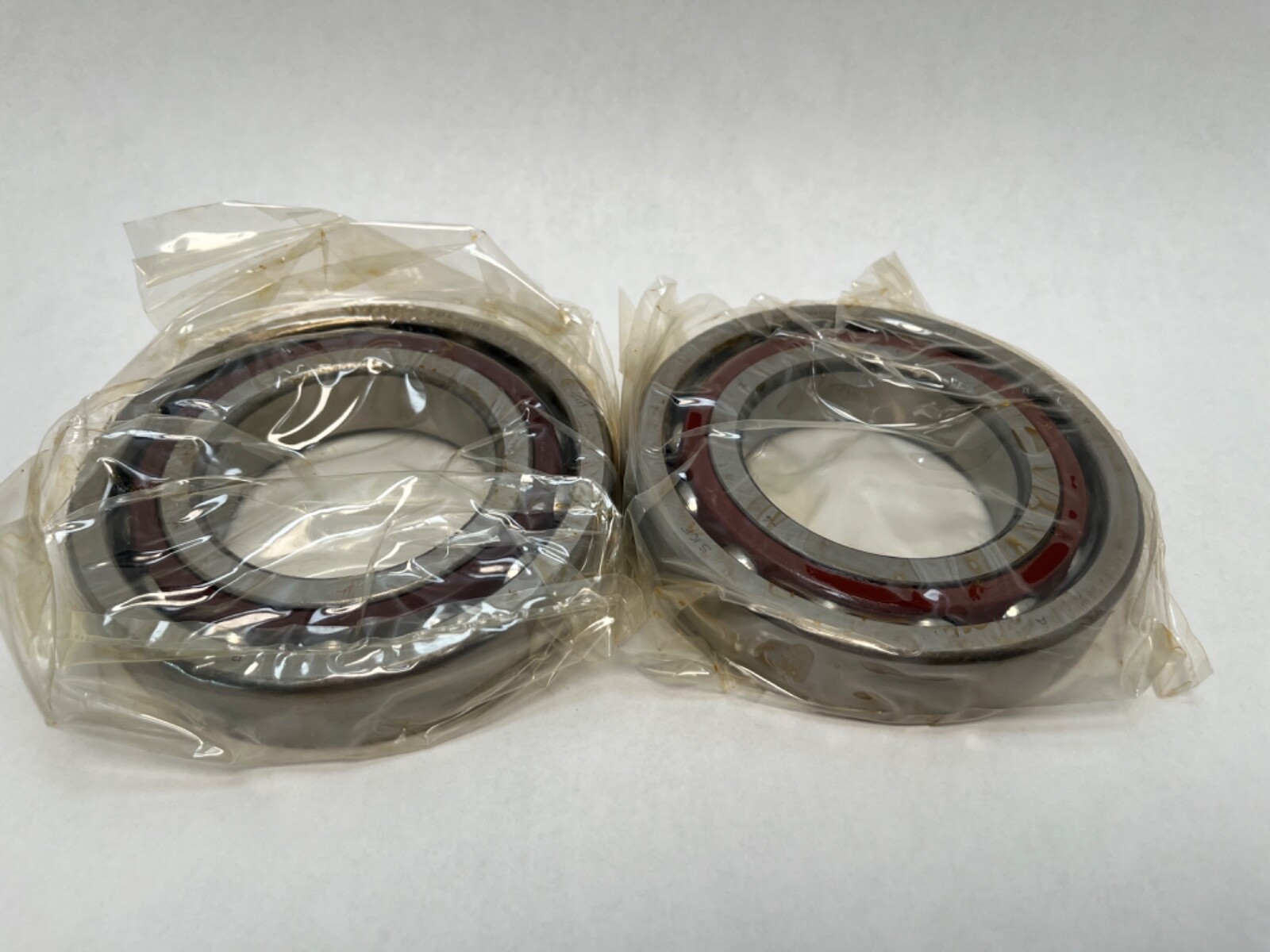

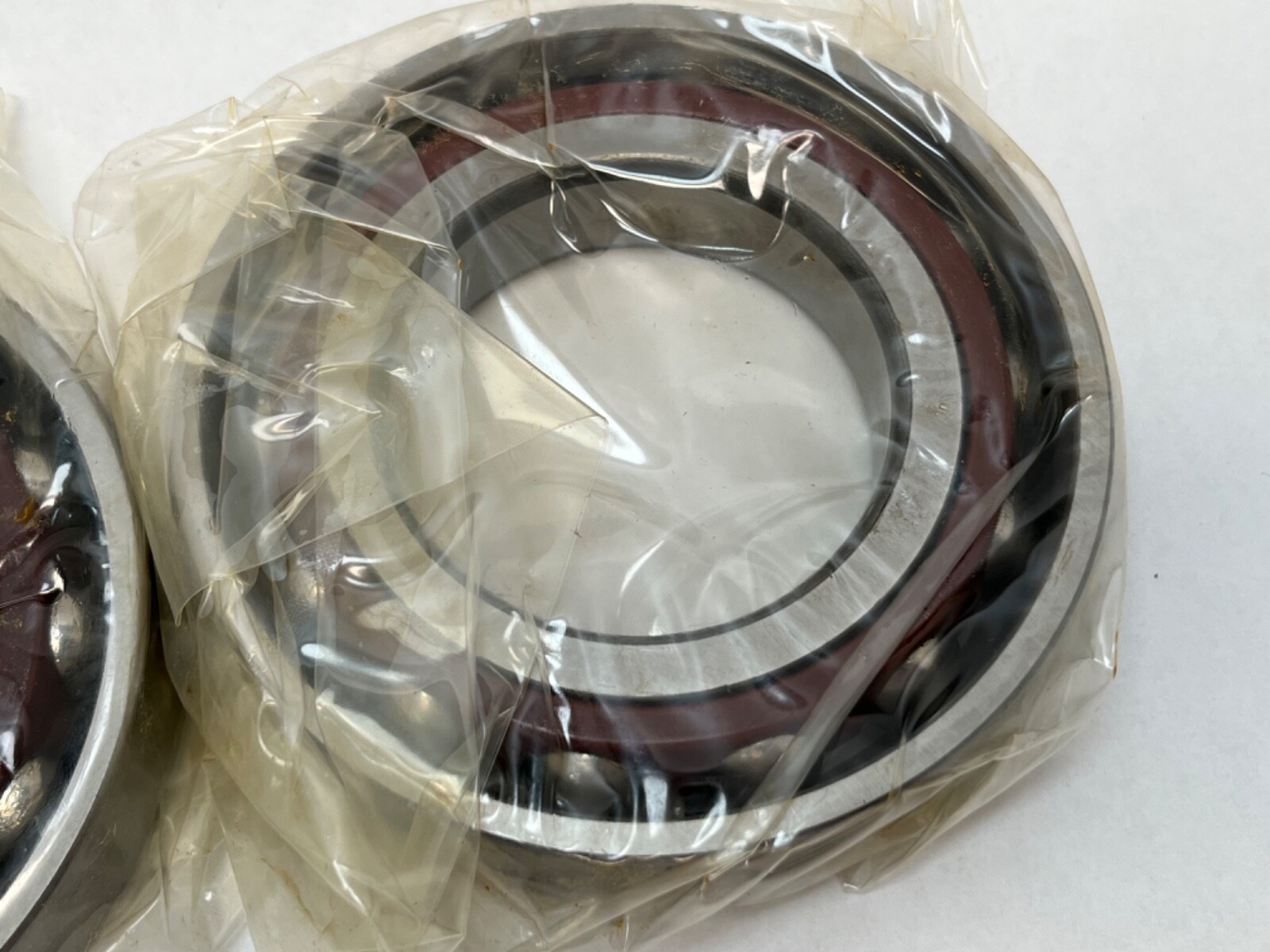

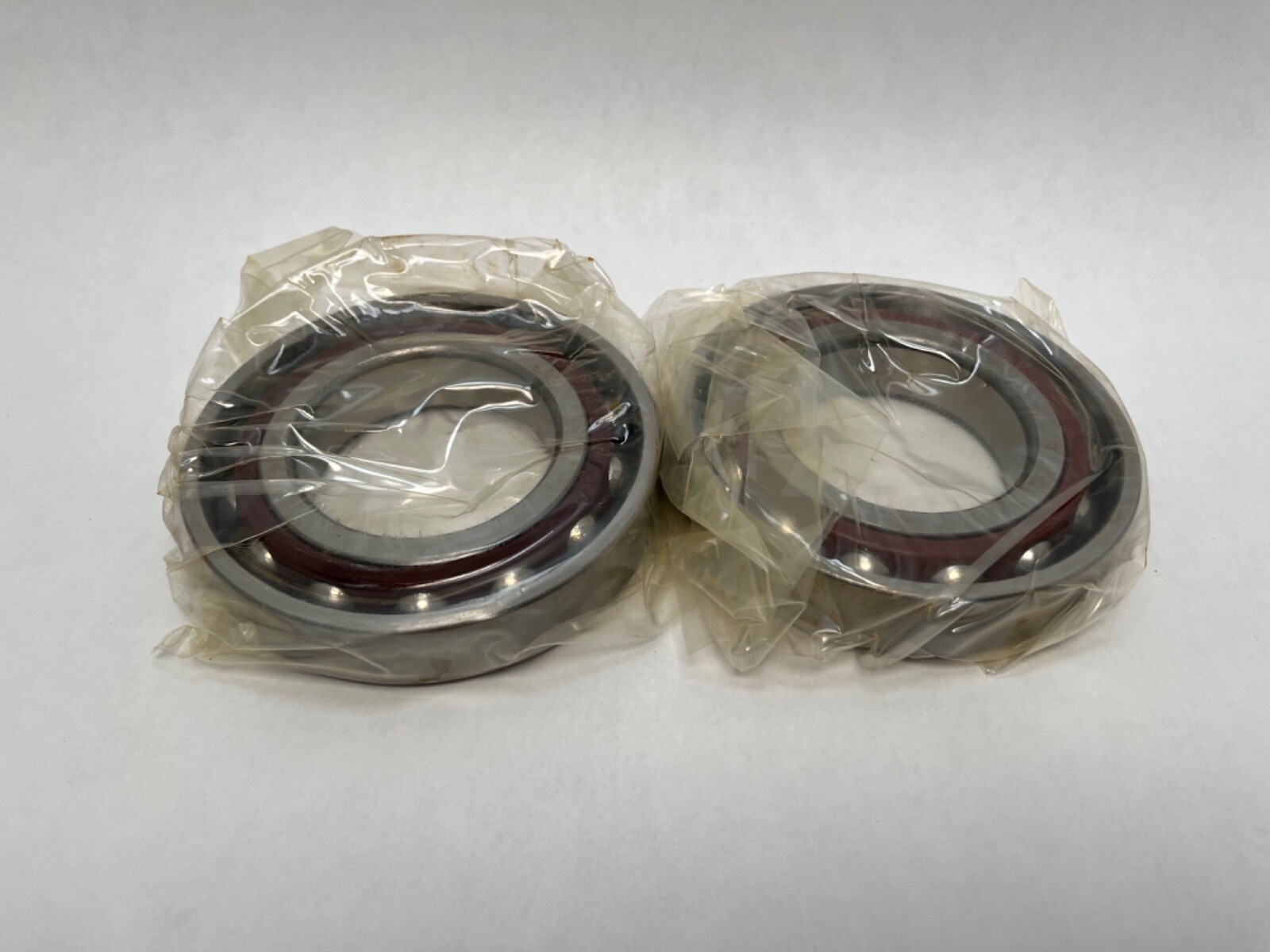

SKF 7213 C/P4 DGA super-precision angular contact ball bearing, supplied as two pieces (Unit Quantity: 2 Pcs). Single row, open, universally matchable. The carton also carries the Fafnir designation 2MM213WI CR DUL for the same size and class. SKF lists the current form as 7213 CDGA/P4A.
7213 — series 72, bore code 13, 65 mm bore.
C — 15° contact angle.
P4 — precision class P4.
DGA — light preload (class A) on a universally matchable bearing.
2MM — Fafnir 15° contact angle, P4 precision.
WI — Fafnir low shoulder on both rings, the duplex form.
CR — Fafnir phenolic cage.
DUL — Fafnir duplex universal, light preload.
Dynamic Load Rating: 66,300 N. Static Load Rating: 53,000 N. Fatigue Load Limit: 2,280 N. Contact Angle: 15°. Number Of Rows: 1. Closure Type: Open. Bore Type: Straight. Cage Material: Phenolic. Bearing Material: Bearing steel. Preload: Light (class A). Preload when unmounted: 250 N. Axial stiffness: 78 N/µm. Ball diameter: 15.875 mm. Balls per bearing: 15. Item Weight: 0.977 kg (2.15 lb) per bearing.
Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm. Distance from side face to pressure point a: 24 mm. Inner ring shoulder diameter d1: 82.9 mm. Outer ring shoulder diameter D1: 102.1 mm. Chamfer r min: 1.5 mm and 0.6 mm. Shaft abutment diameter da min: 74 mm. Housing abutment diameter Da max: 111 mm and 115.8 mm. Fillet radius ra max: 1.5 mm and 0.6 mm.
Fafnir 2MM213WI CR DUL is the Timken/Fafnir designation printed on the same carton. Current SKF designation: 7213 CDGA/P4A. Also written as 7213CP4DGA, 7213-C-P4-DGA.
Bore diameter 65 mm, outside diameter 120 mm, width 23 mm.
The contact angle is 15° and the preload is light, class A.
Dynamic load rating 66,300 N and static load rating 53,000 N.
