Availability:
1 in stock

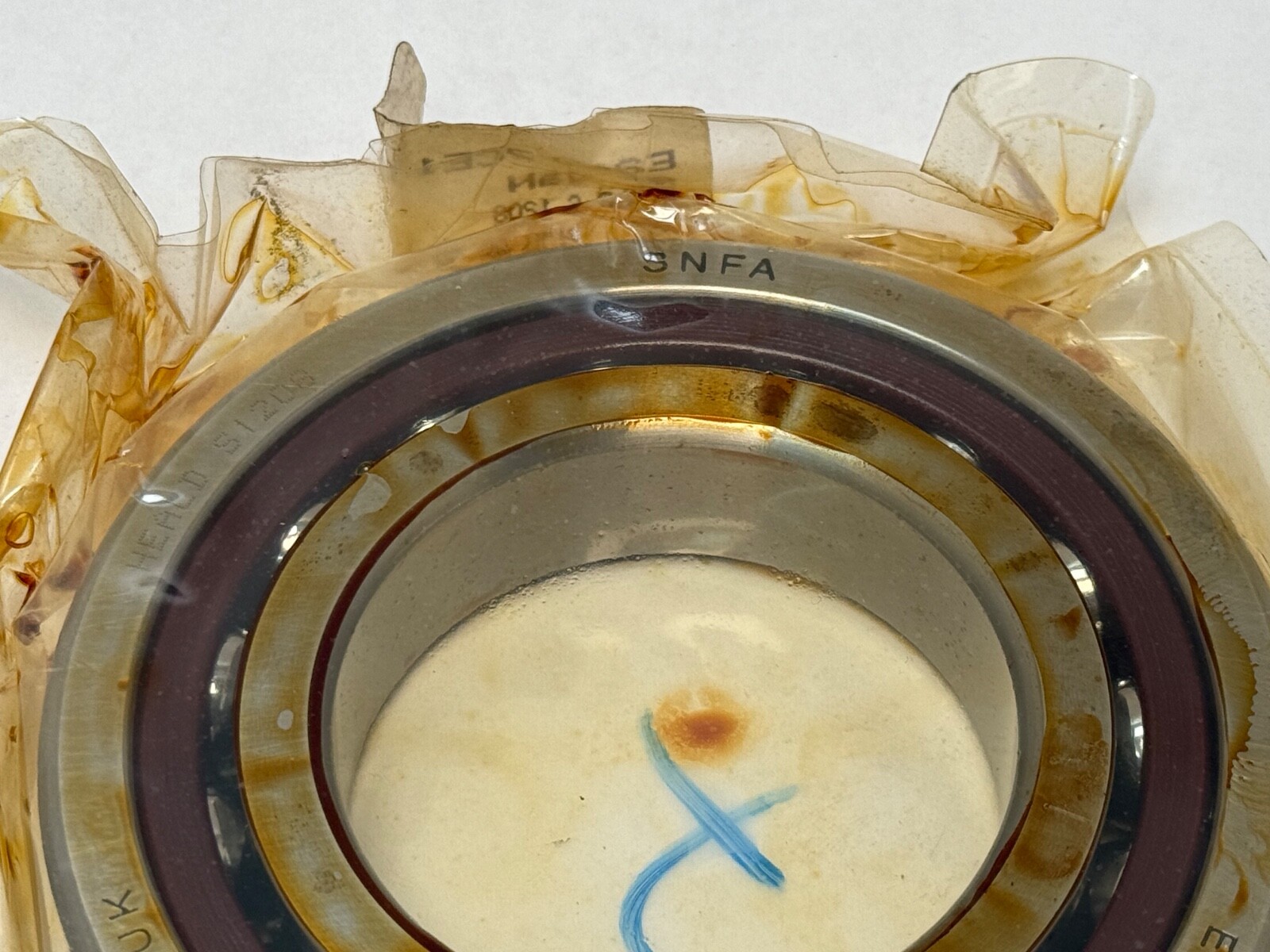

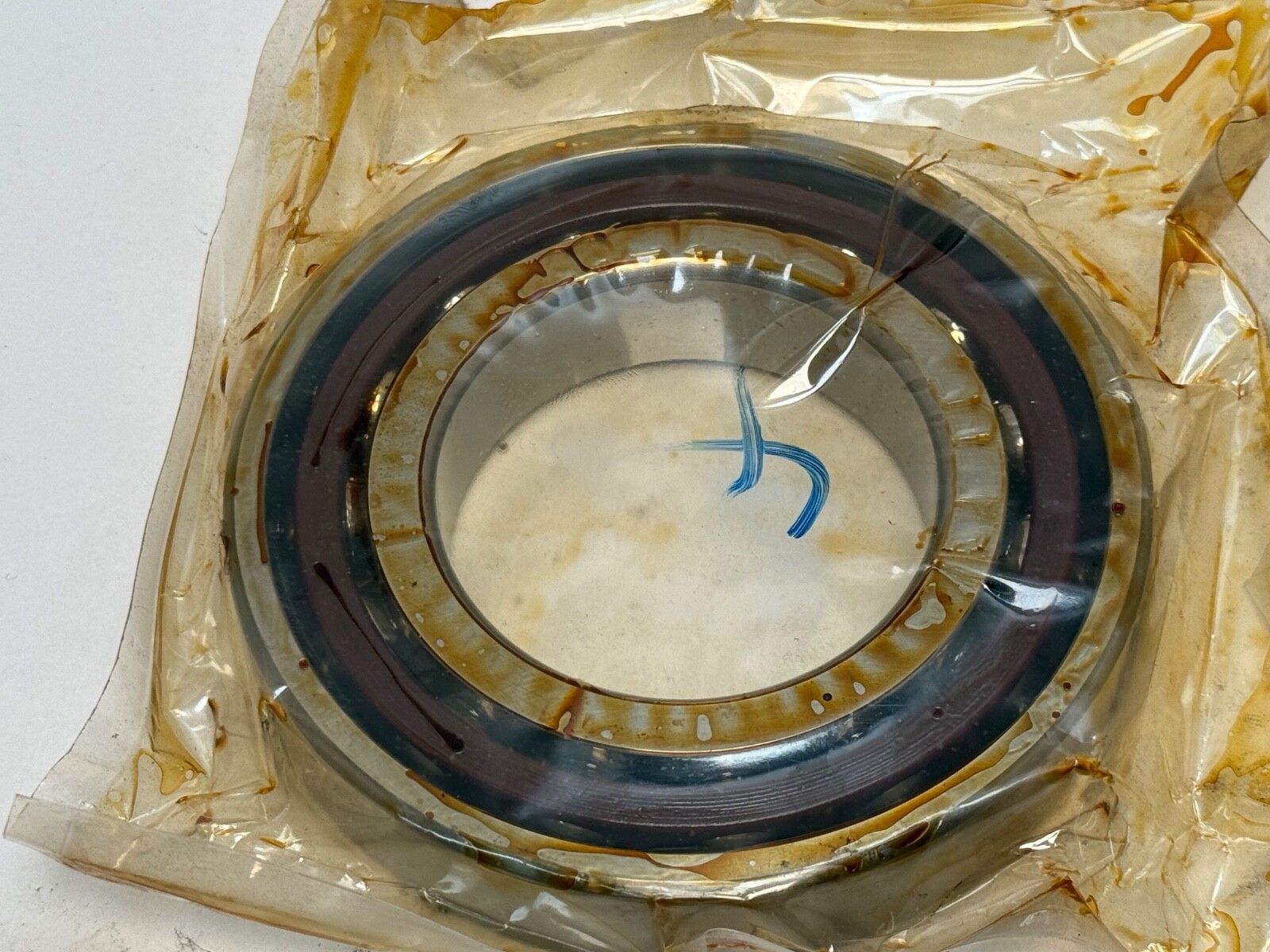

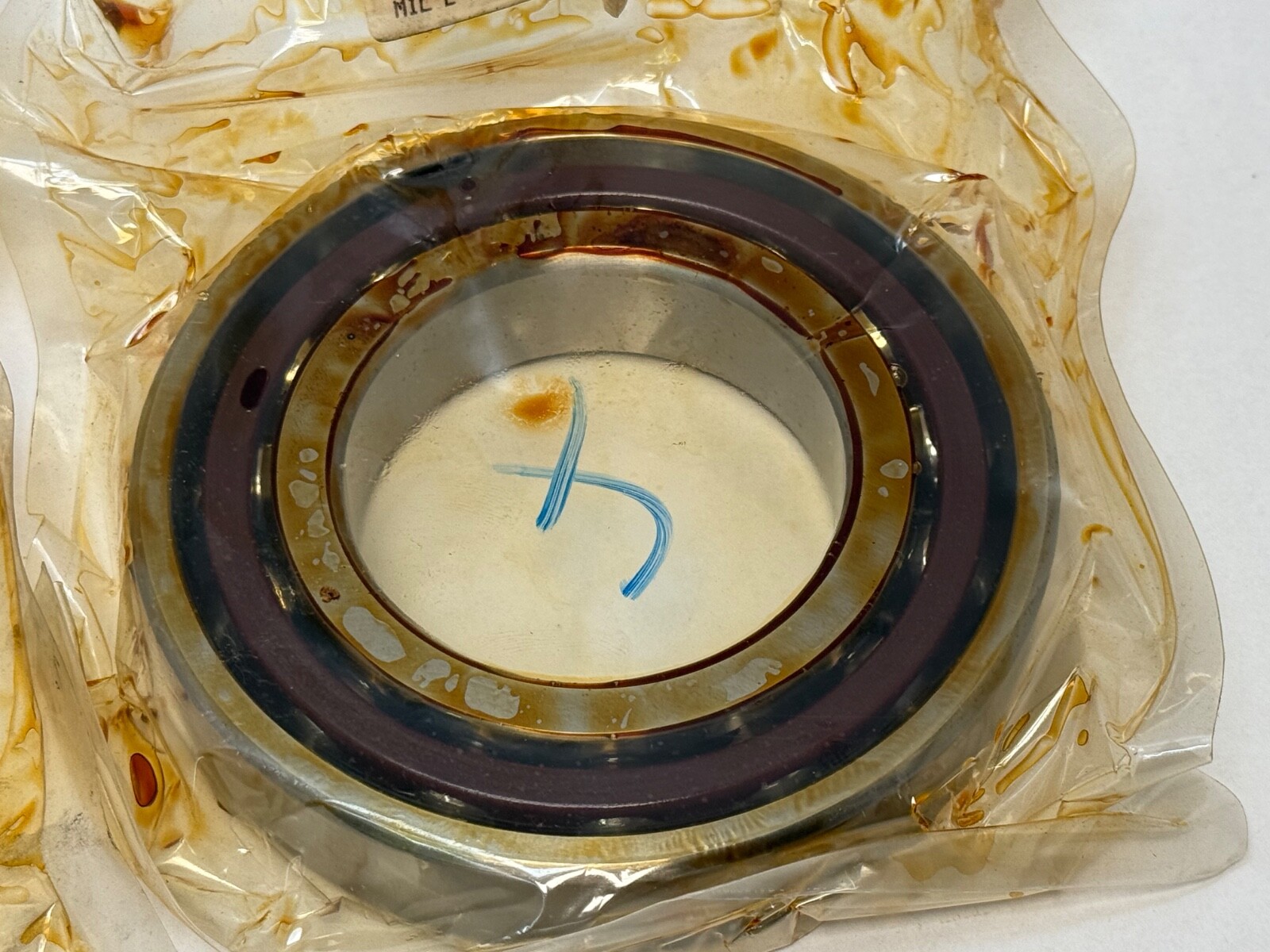

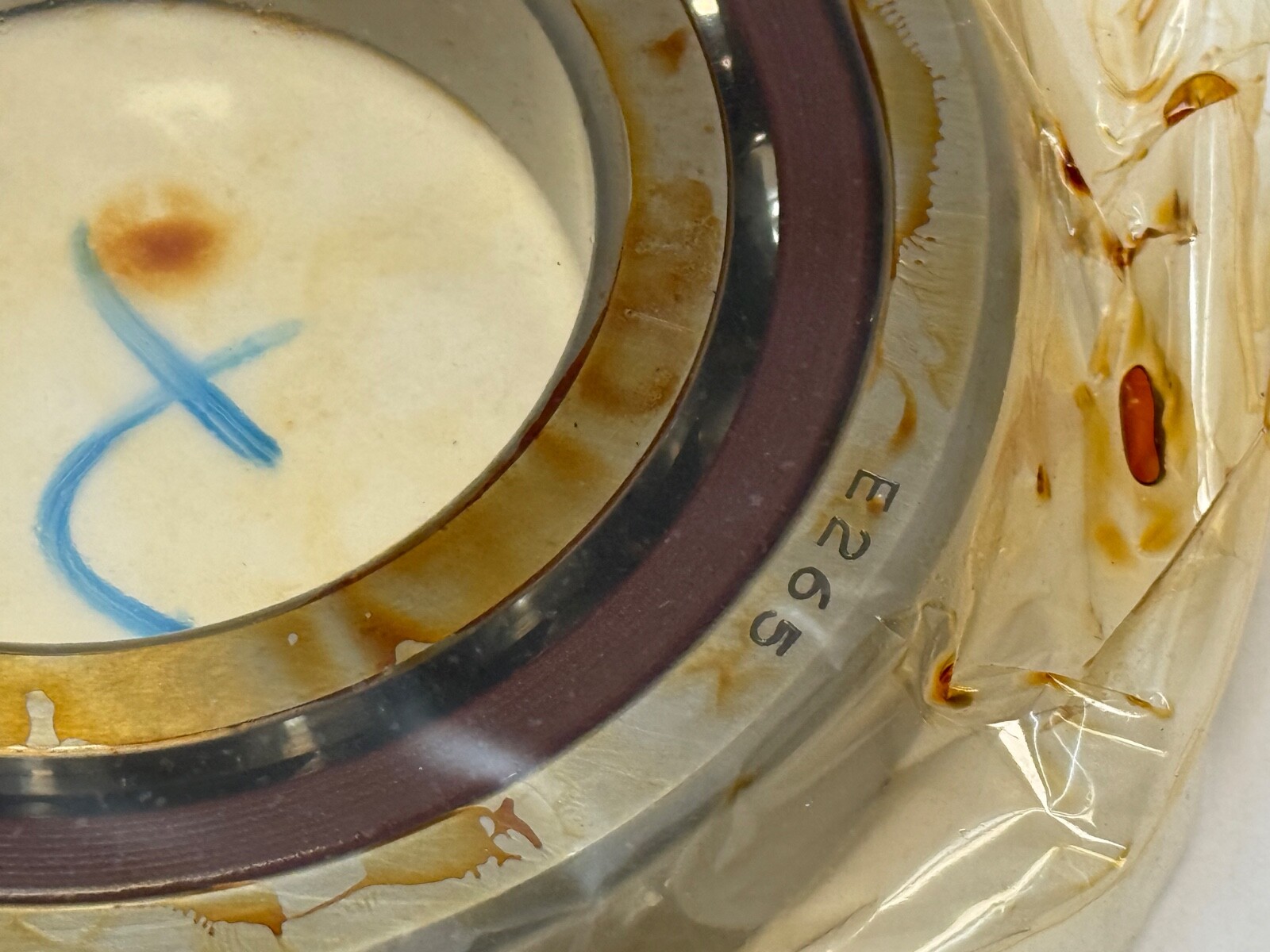

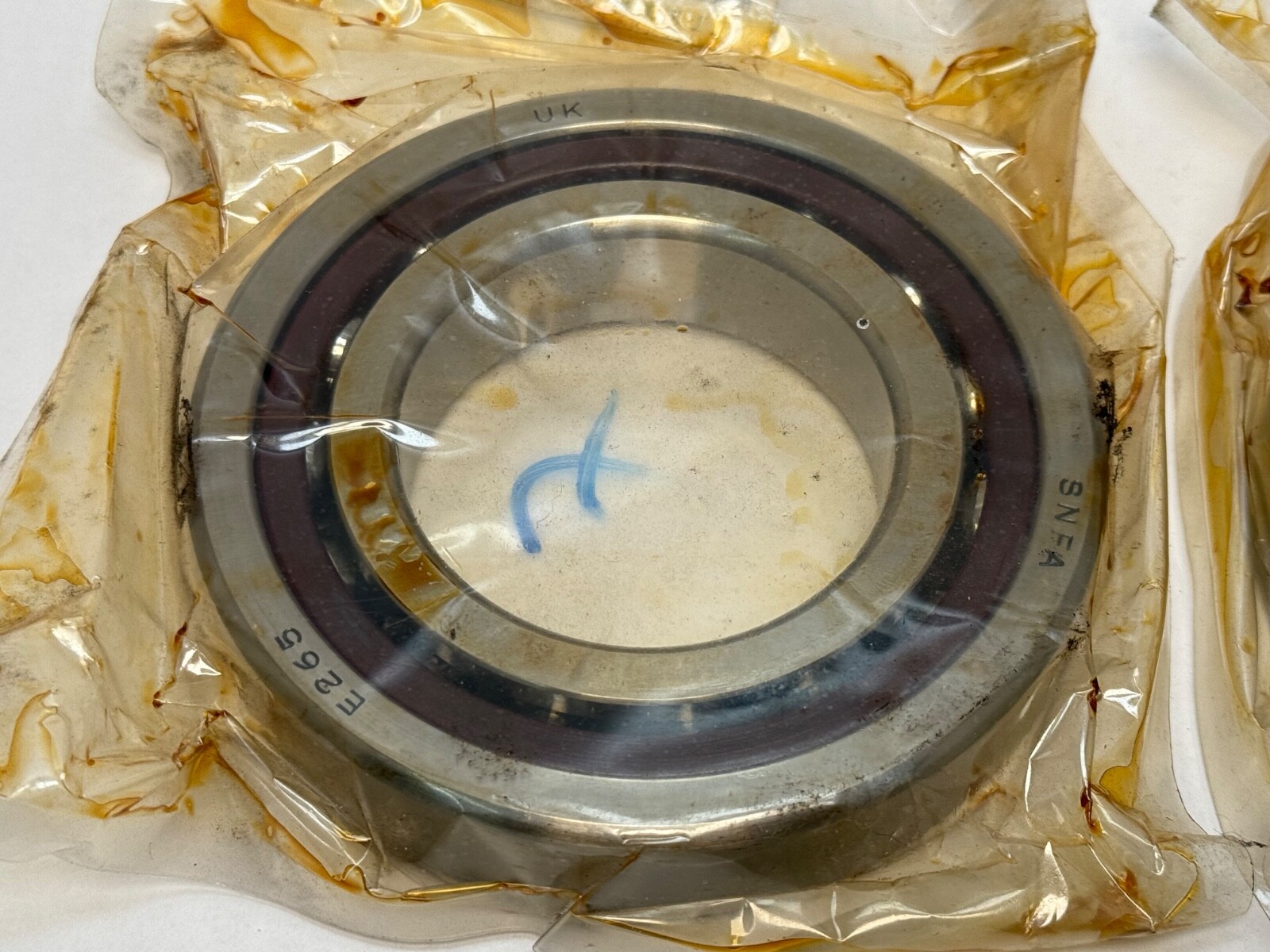

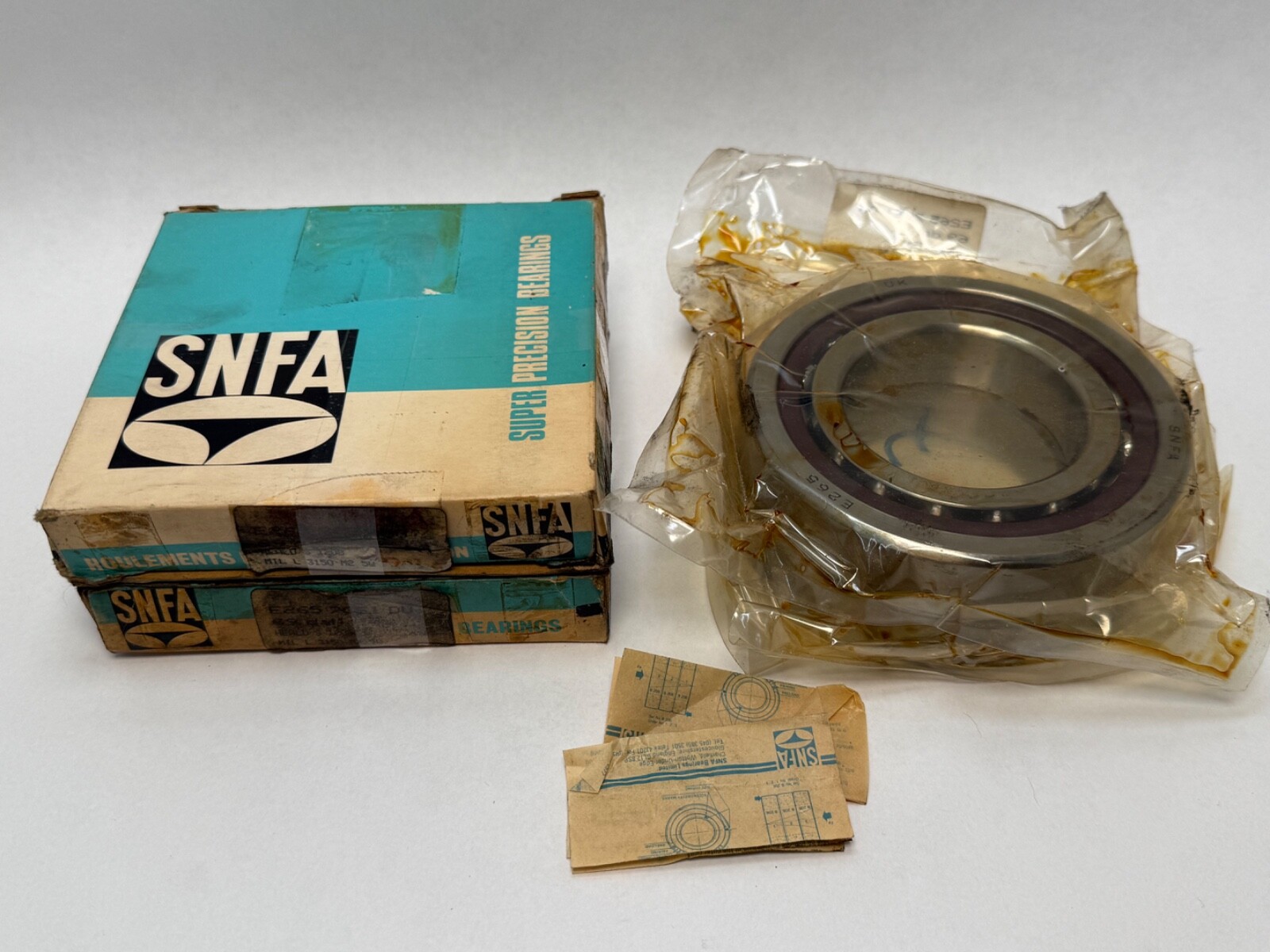

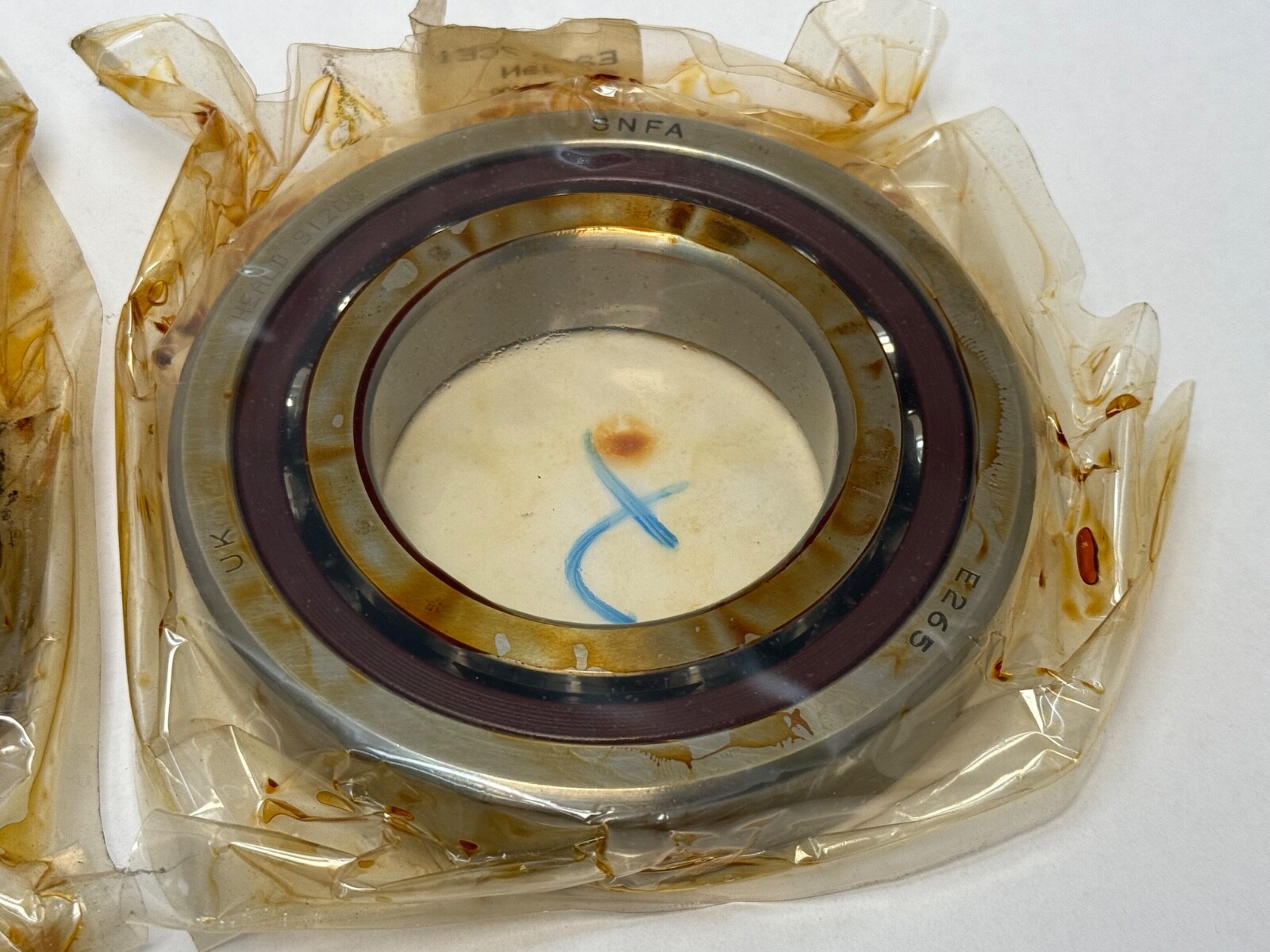

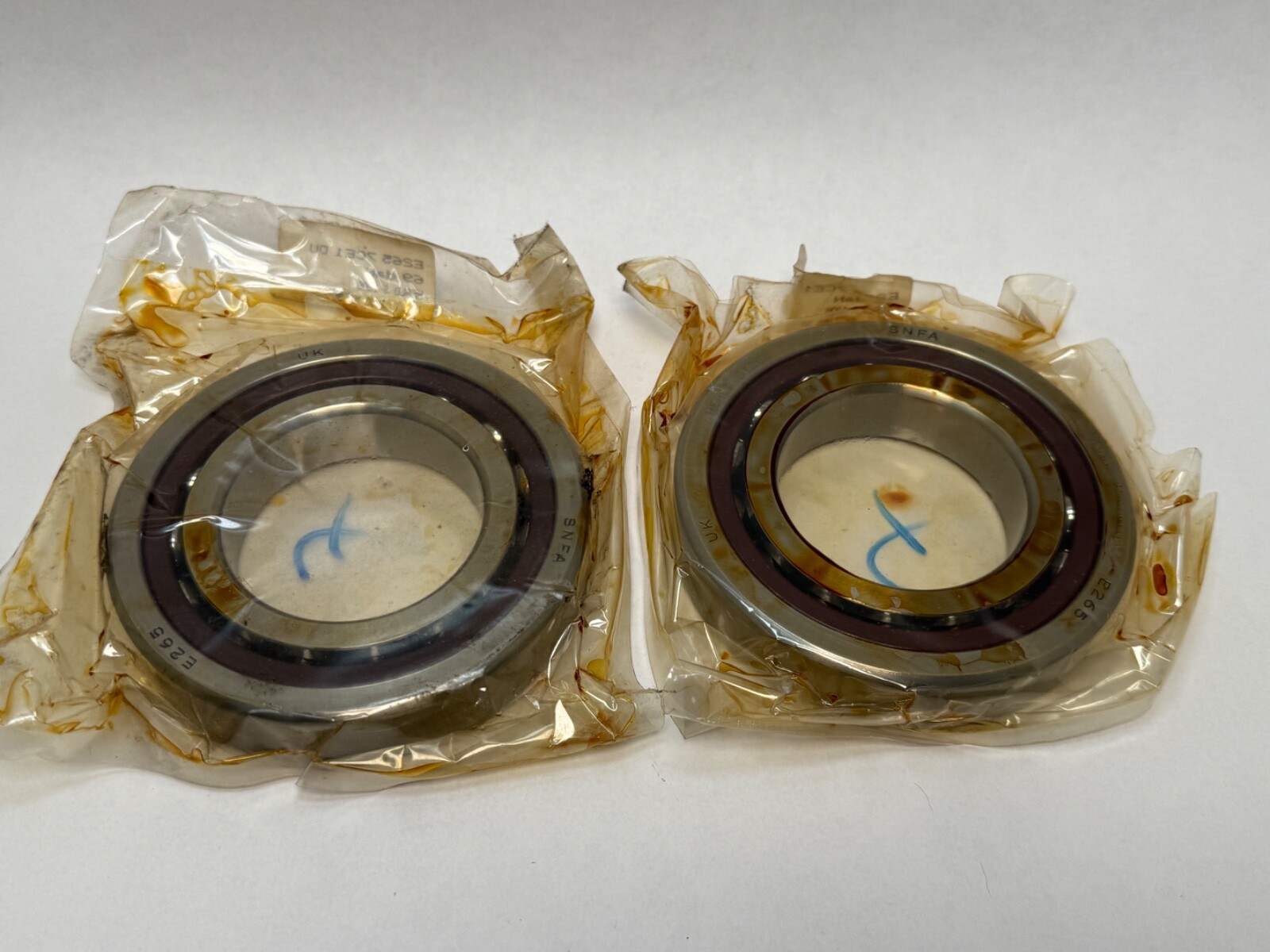

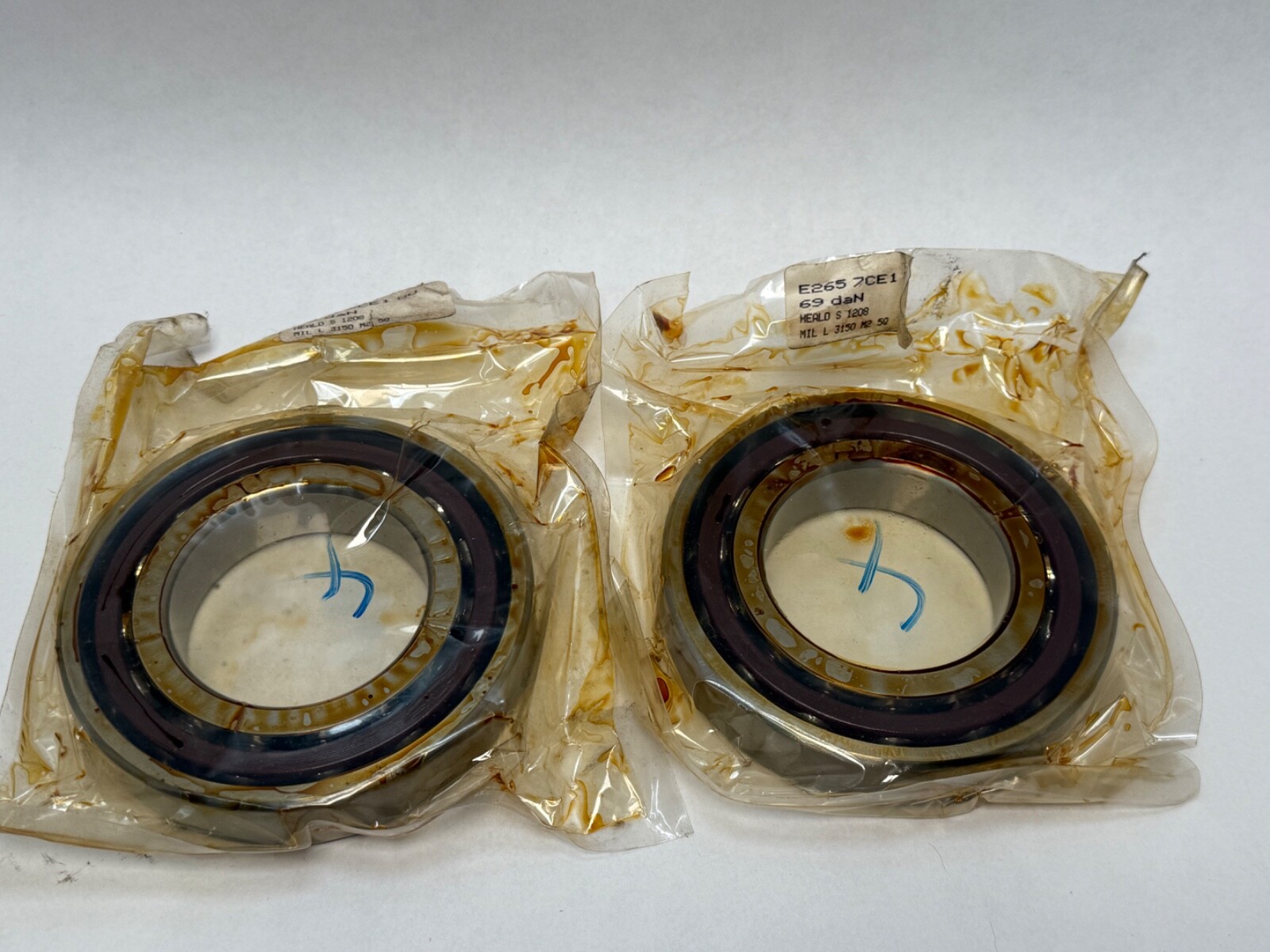

SNFA E265-7CE1DU angular contact ball bearing pair, 65 x 120 x 23 mm, 15° contact angle, ABEC 7 / P4, duplex universal, 69 daN preload. Two bearings.
List Price
$294.89
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| Model | E265-7CE1DU |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Series | SNFA E 200 (ISO 02) |
|---|---|
| Preload | Special, 69 daN |
| Closure Type | Open |
| Cage Type | Machined, outer-ring located |
| Dynamic Load Rating | 6,800 daN (C33, per bearing) |
| Static Load Rating | 6,800 daN (C0, per bearing) |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Base Number | 7213 |
| Overall Width | 23 mm |
| Mpn Variants | E265-7CE1DU, E265 7CE1DU 69daN, E 265 7 CE 1 DU 69daN, 7213C, 7213 C T DUL |
| Arrangement Configuration | Duplex universal pair (DU) |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Minimum chamfer Rmin 1.5 mm; rmin 1.0 mm |
| Cross Reference 1 | 7213 (ISO size, 15°) |
|---|
SNFA E265-7CE1DU is a duplex universal pair of super-precision angular contact ball bearings, SNFA E 200 series, ISO dimension series 02, size 7213. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Special, 69 daN.
E2 — SNFA E 200 series, ISO dimension series 02.
65 — bore diameter, 65 mm.
7 — ABEC 7 precision.
C — stratified textile resin (phenolic) cage.
E — cage located on the outer ring.
1 — 15° nominal contact angle.
DU — duplex universal. The pair mounts back-to-back, face-to-face or tandem.

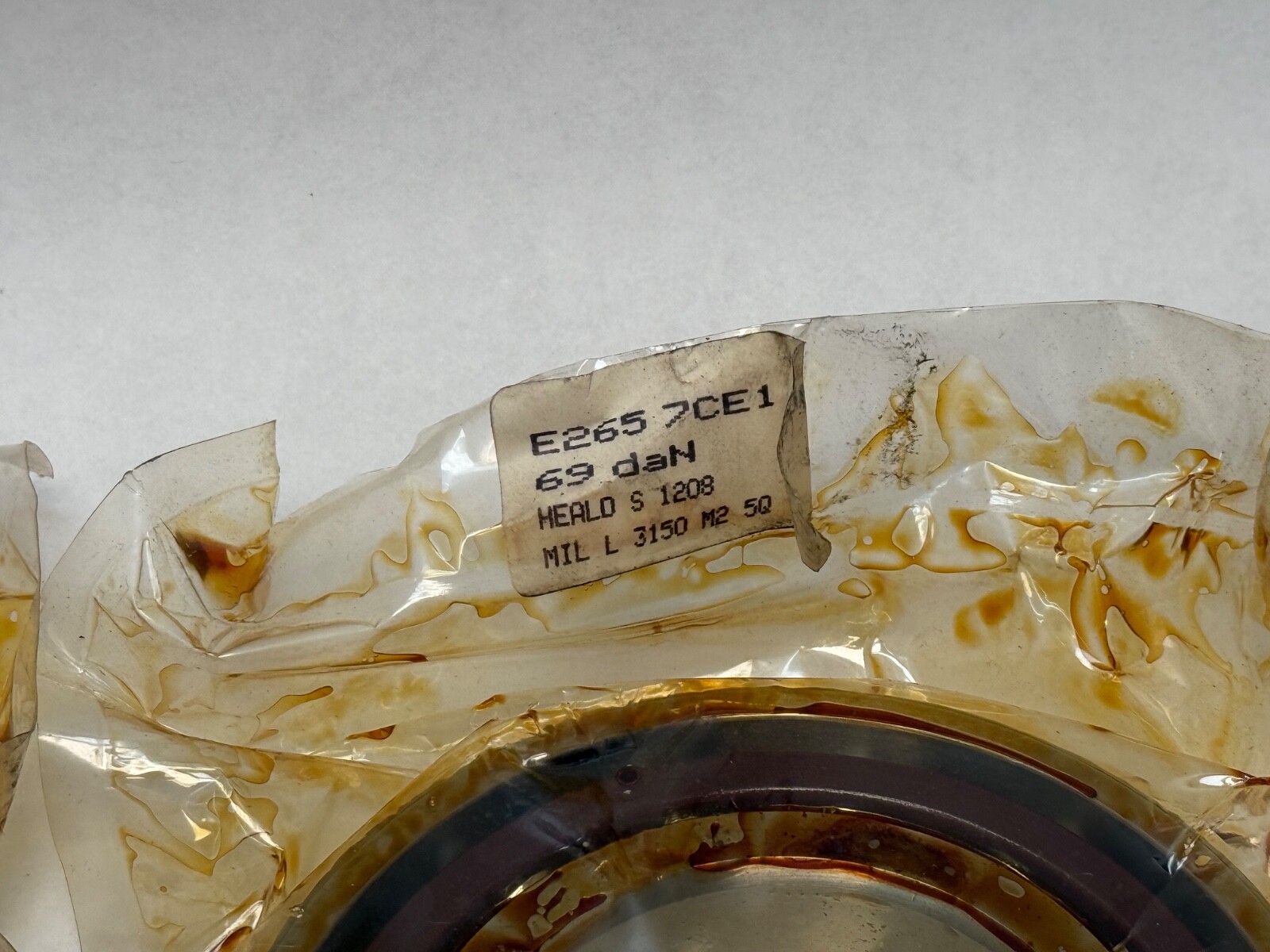

69 daN — special preload value set by SNFA for this pair.
Dynamic Load Rating: 6,800 daN per bearing (SNFA C33 rating). Static Load Rating: 6,800 daN per bearing (C0). Cage Material: Phenolic. Cage Type: Machined, outer-ring located. The heavy 02 section carries higher loads than the 10-series bearing of the same bore.
Minimum chamfer, outer ring (Rmin): 1.5 mm. Minimum chamfer, inner ring (rmin): 1.0 mm. Bore Type: Straight. Closure Type: Open. Snap Ring: No.
Unit Quantity: 2 Pcs. A duplex universal pair with 69 daN special preload.
ISO size 7213, 65 x 120 x 23 mm, 15°, ABEC 7 / P4.
