Availability:
1 in stock

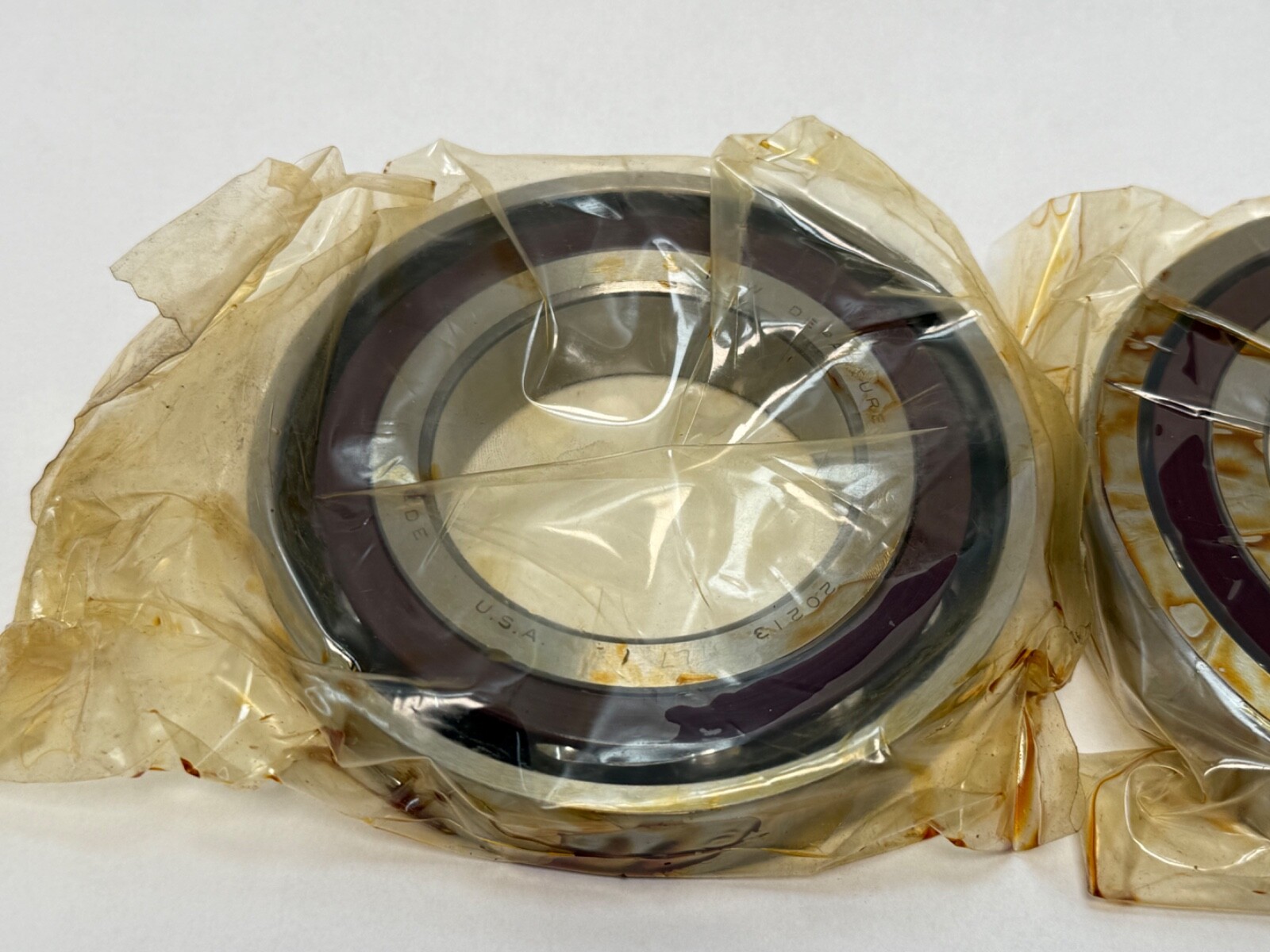

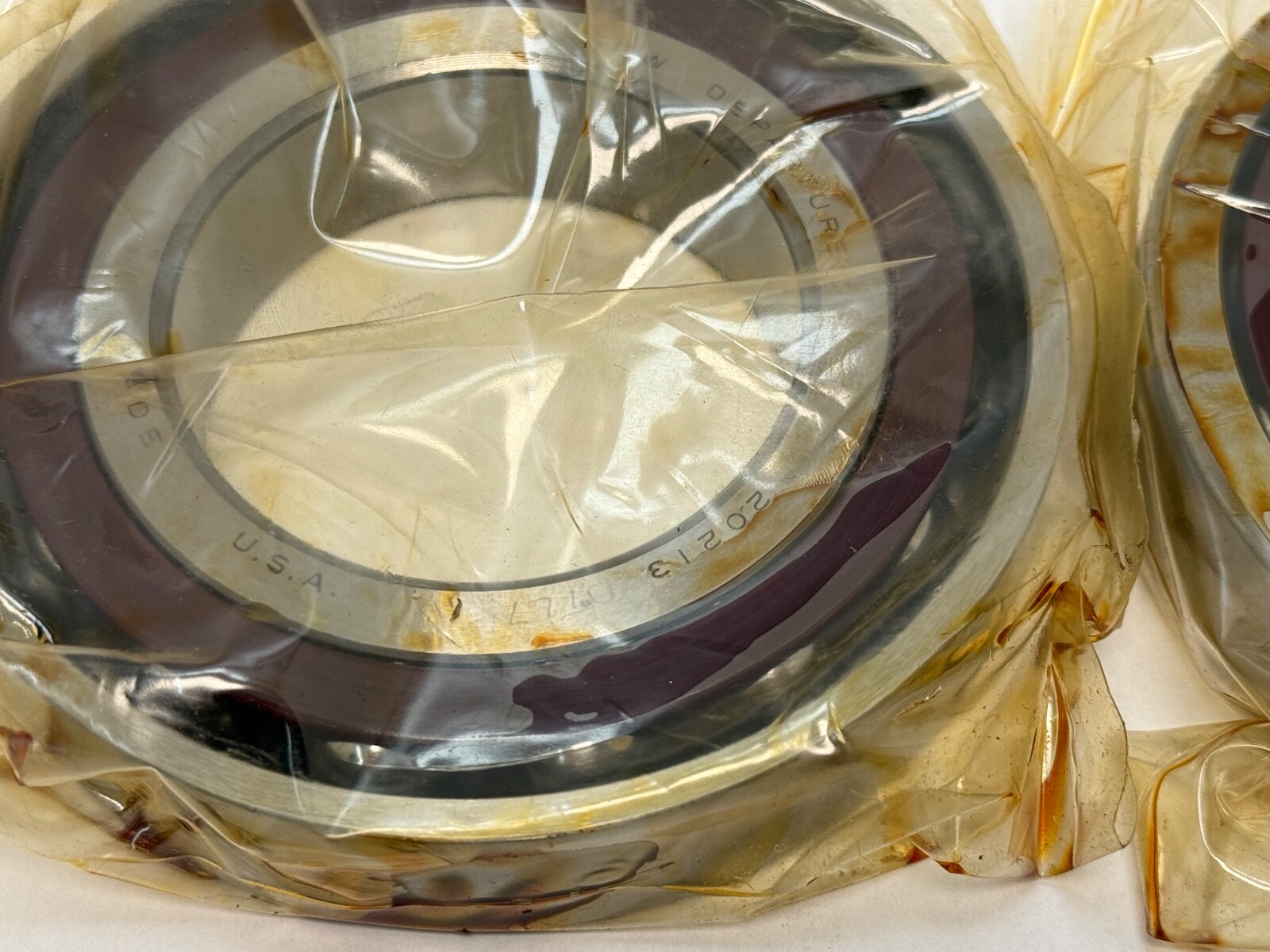

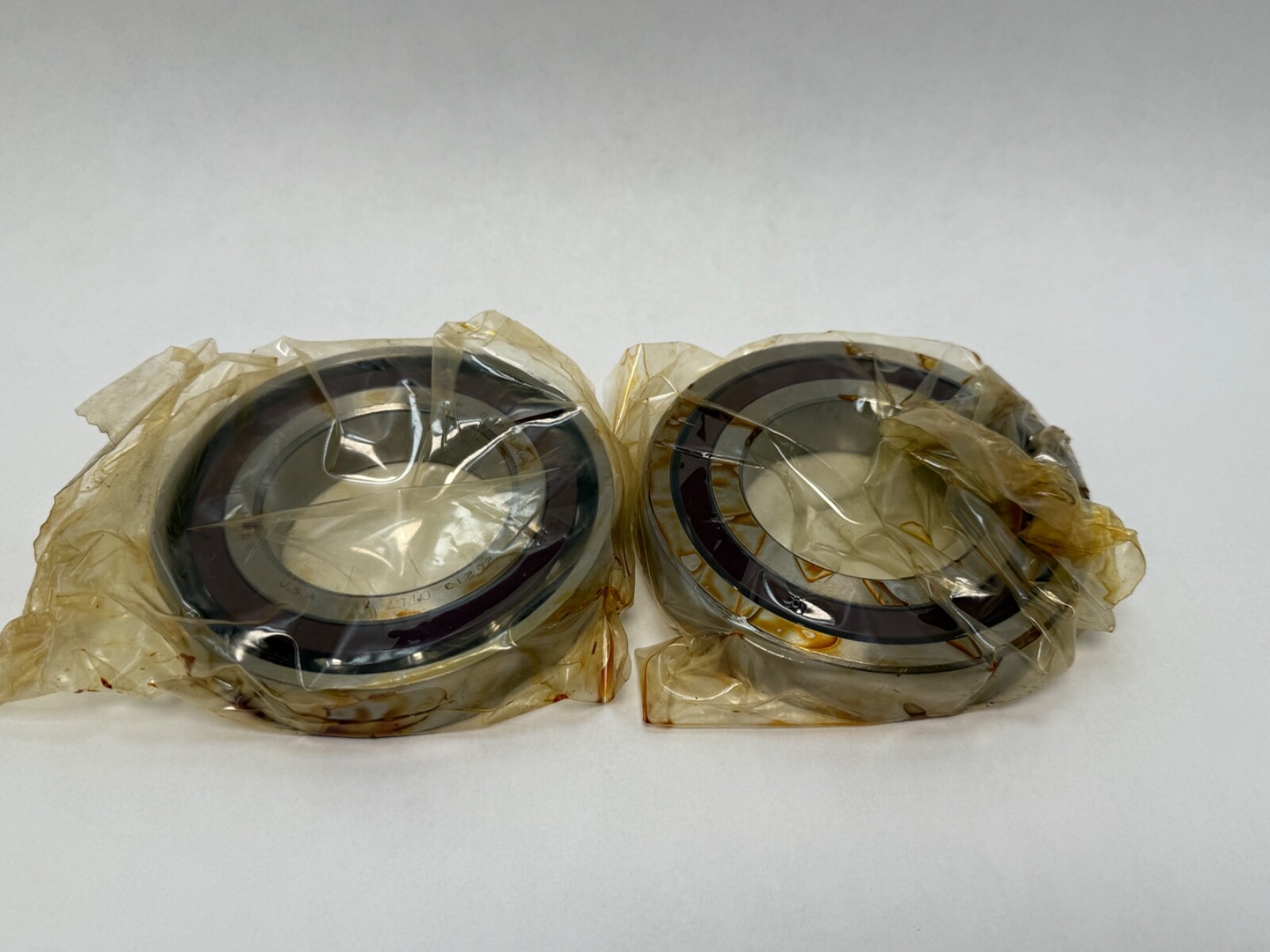

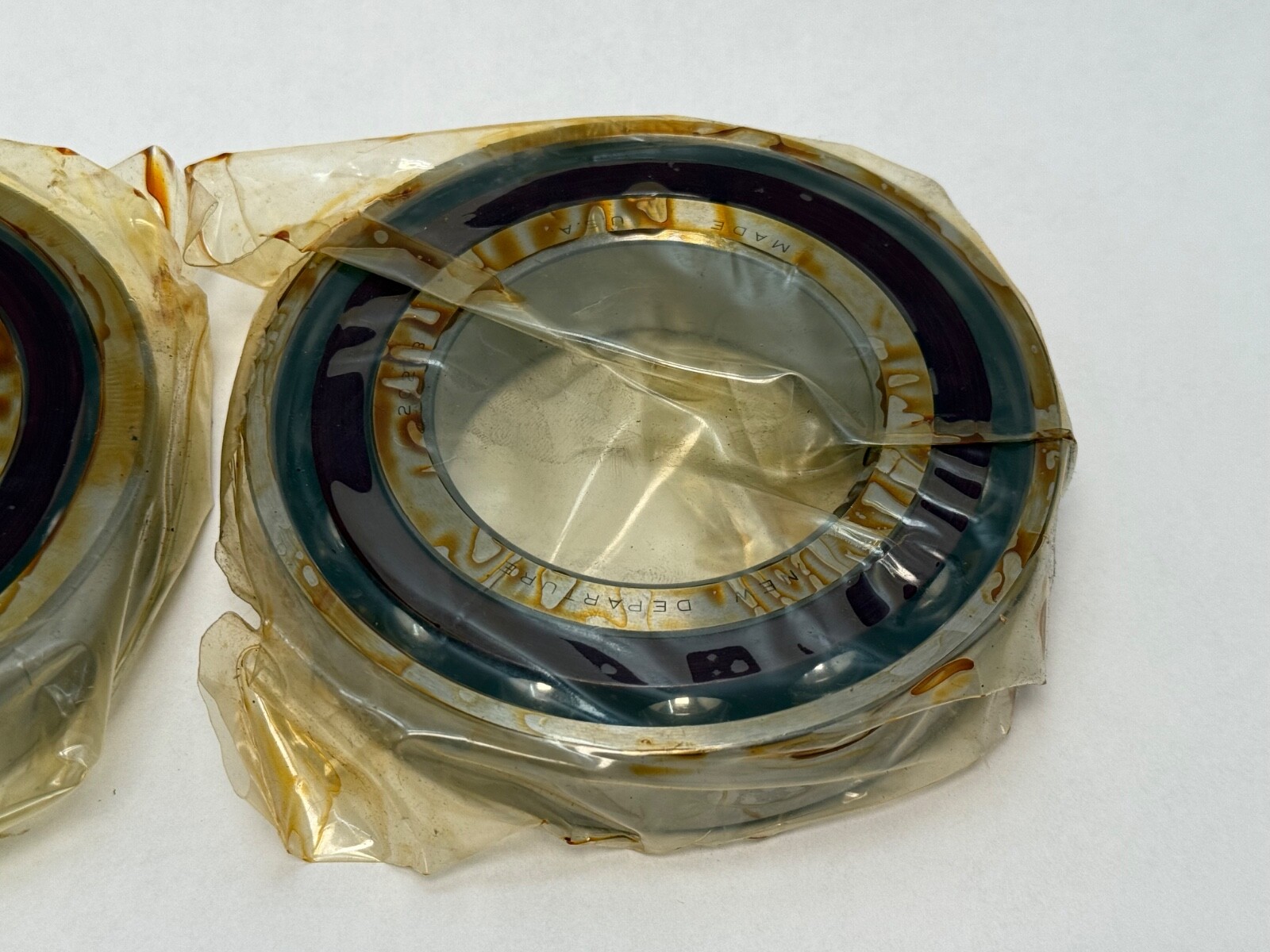

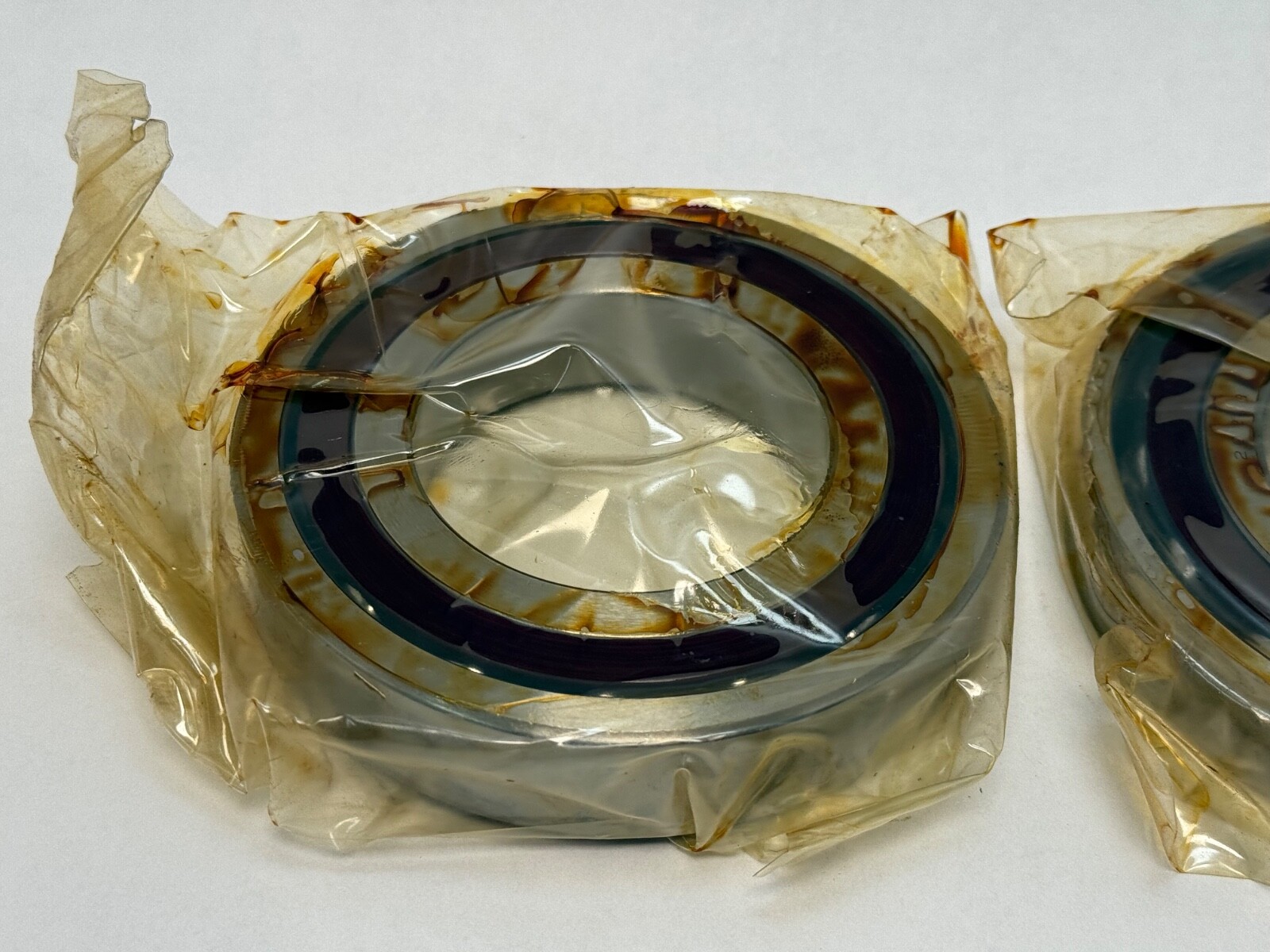

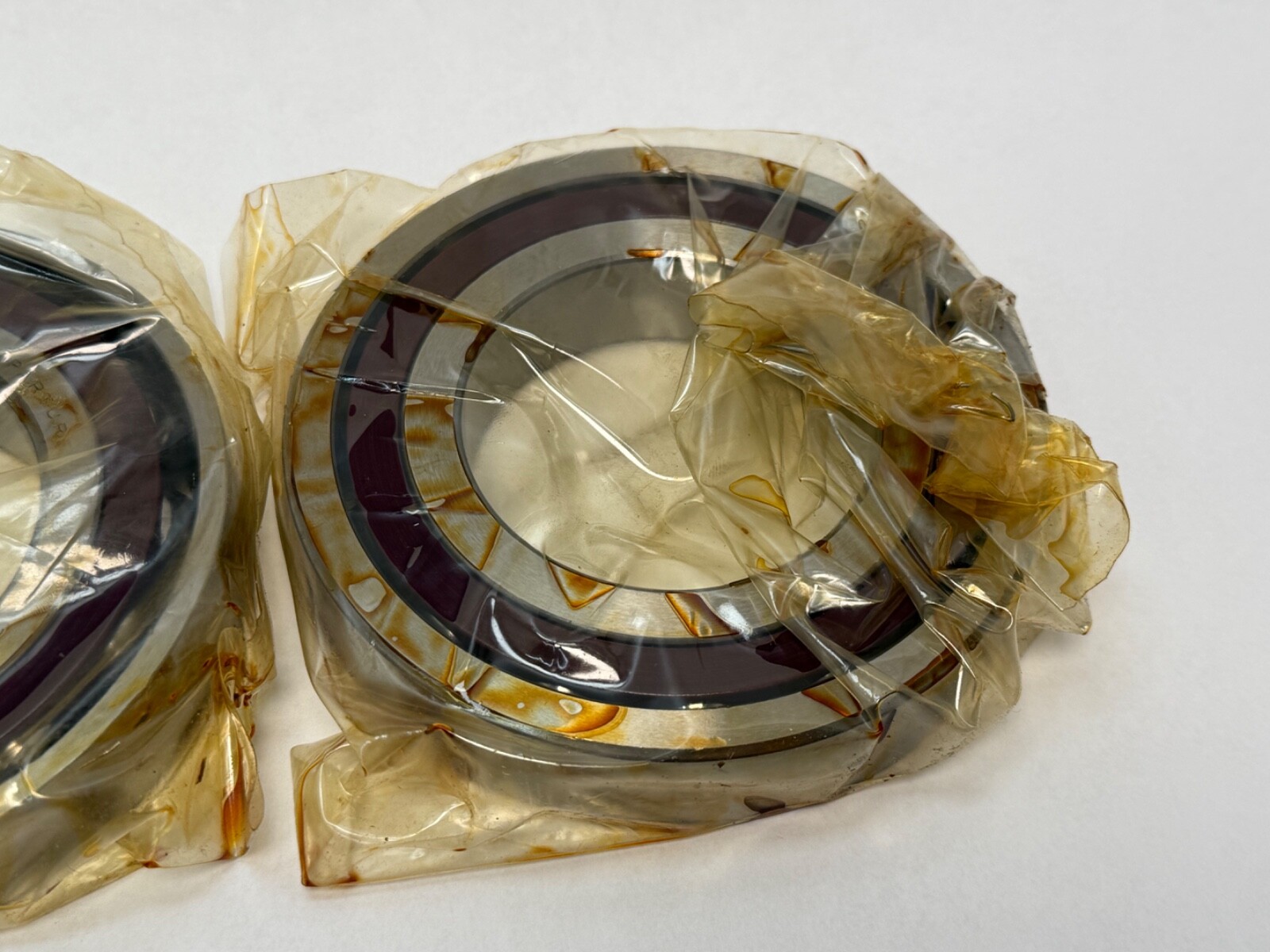

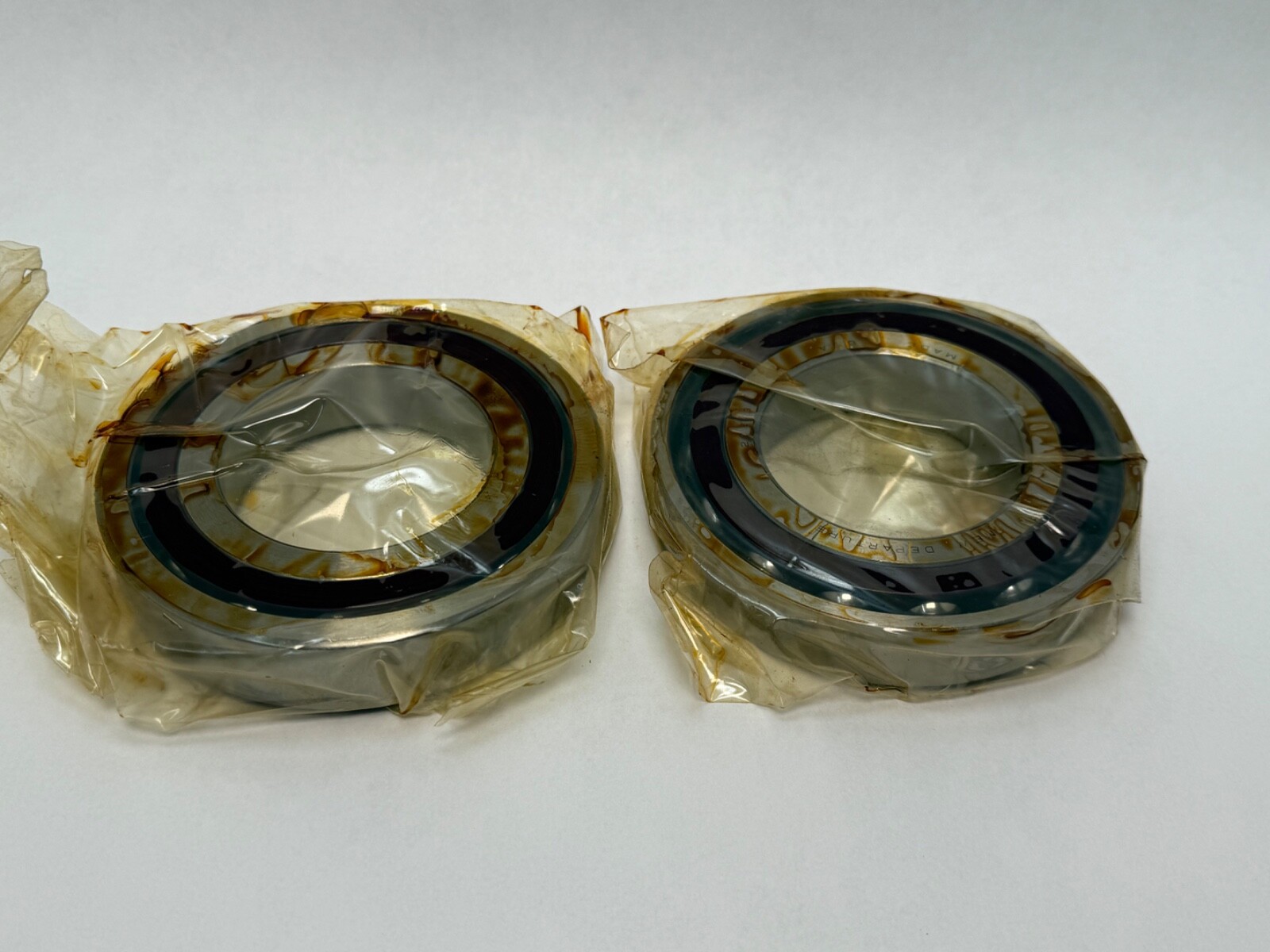

NDH Q20213DTL7A angular contact ball bearing pair, 65 x 120 x 23 mm, 15°, ABEC 7, phenolic cage, light preload tandem (DT). Cross: 7213C, 2MM213WI.
List Price
$252.36
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NDH |
|---|---|
| Model | Q20213 DT L7A |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Series | 200 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Mounting Arrangement | Tandem (DT) |
| Base Number | 20213 |
| Industry Terms | super precision angular contact bearing, spindle bearing, duplex tandem pair, 7213C |
| Common Misspellings | Q20213DT L7A, Q20213-DTL7A, 20213DTL7 |
| Application Types | Machine tool spindles, grinding spindles, high-speed precision shafts |
| Mpn Variants | Q20213DTL7A, Q-20213-DT-L7A, Q20213 DT L7A, 7213 C T P4, 2MM213WI CR |
| Precision Class | ABEC 7 / P4 |
| Contact Angle | 15° |
| Preload | Light |
| Cross Reference 1 | Fafnir 2MM213WI |
|---|---|
| Cross Reference 2 | SKF 7213 CD/P4A |
| Cross Reference 3 | NSK 7213CTYNP4 |
| Cross Reference 4 | FAG B7213-C-T-P4S |
NDH Q20213DTL7A super-precision angular contact ball bearing, supplied as a matched tandem pair. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 23 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Preload: Light. Mounting Arrangement: Tandem (DT).
Q — phenolic separator.
20213 — NDH’s number for the ISO 7213 size, 65 x 120 x 23 mm. The 20-series prefix is the 15° angular contact family.
DT — duplex tandem. Two single-row bearings ground as a matched set, mounted facing the same direction. Not a double-row bearing.
L — light preload.
7 — NDH tolerance grade, equivalent to ABEC 7.
A 15° contact angle favours speed and radial stiffness. The tandem arrangement shares thrust in one direction across both bearings. ABEC 7 tolerances suit machine tool spindles and other high-accuracy shafts.

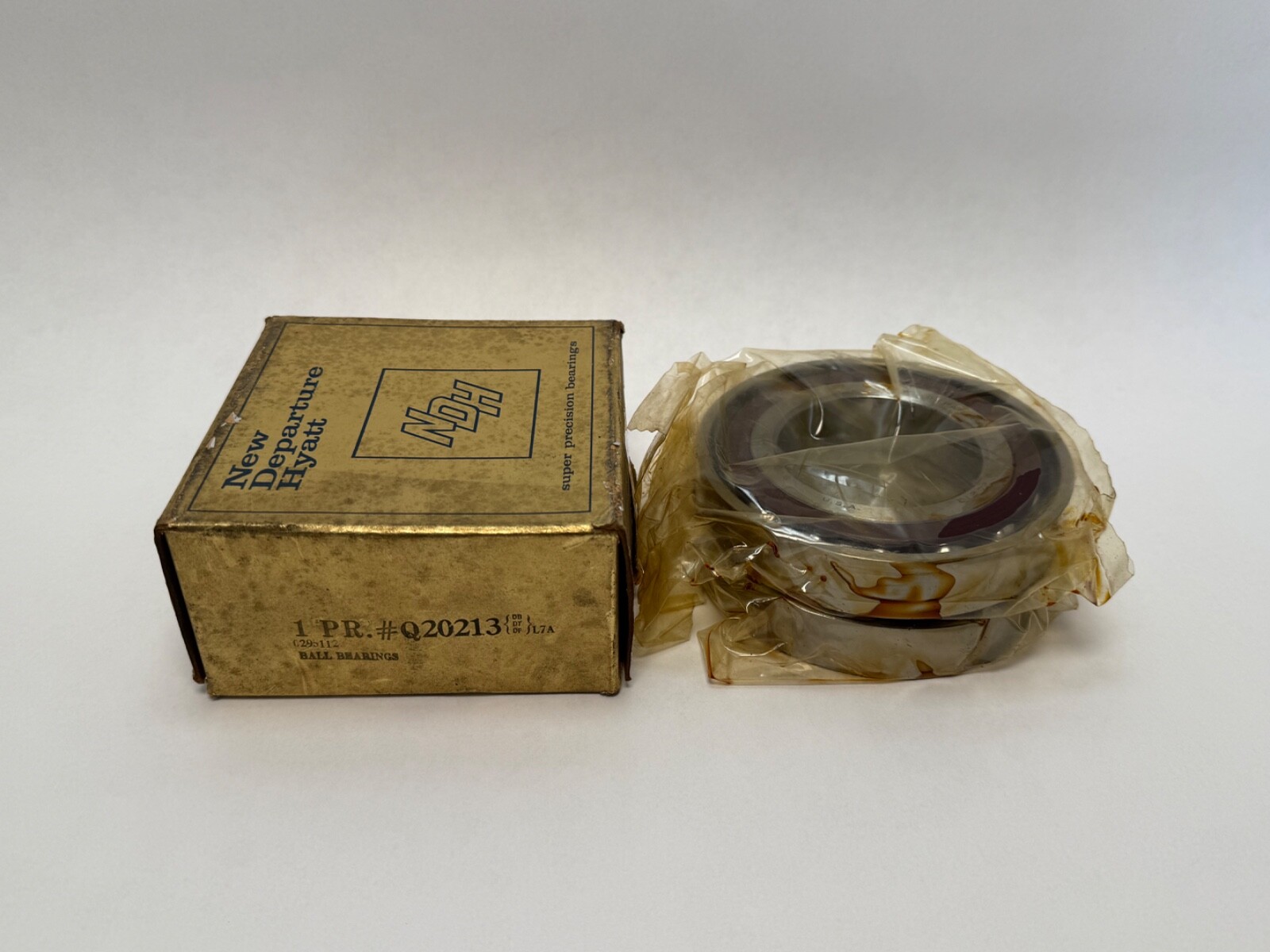

Unit Quantity: 2 Pcs, one matched DT pair. Carton markings: Q20213 DT L7A, 7213 C T P4, 2MM213WI CR.
Cross-references (65 x 120 x 23 mm, 15° angle, P4 class): Fafnir 2MM213WI, SKF 7213 CD/P4A, NSK 7213CTYNP4, FAG B7213-C-T-P4S. Pair and preload codes differ by maker.
$231.30
29 in stock
$111.47
35 in stock
