Availability:
1 in stock
Super precision angular contact ball bearing, 65x120x23 mm, 15 degree contact angle, ball-guided cage, ABEC 7 heavy-preload duplex pair, 92,000 N dynamic.
List Price
$179.75
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7213CTYDUHP4 |
| Model | 7213 C TY DUH P4 / 2MM213WI CR DUH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 Super Precision |
| Preload | Heavy (H) |
| Base Number | 7213C |
| Industry Terms | Super precision spindle bearing; matched duplex pair; heavy preload spindle bearing; precision angular contact bearing; ABEC 7 bearing |
| Common Misspellings | 7213CTVDUHP4; 7213 CTY DUHP4; 7213CTYDHUP4; 7213CTYDUHP-4; NSK 7213CTYDUP4 |
| Application Types | Machine tool spindles; grinding spindles; boring and milling spindles; precision gearboxes; rotary tables |
| Overall Width | 23 mm |
| Mpn Variants | 7213CTYDUHP4; 7213C TY DUH P4; 7213-C-TY-DUH-P4; 7213CTYSUHP4 (legacy listing spelling); 7213CTYDUH P4 |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | da min 74 mm; Da max 111 mm; Db max 114 mm; ra max 1.5 mm; rb max 0.8 mm; r min 1.5 mm; r1 min 1 mm; effective load centre a 23.9 mm; permissible axial load Pa 40.0 kN; recommended grease quantity 5.3 g per bearing |
| Closure Type | Open |
| Cage Type | Ball-guided |
| Dynamic Load Rating | 92,000 N |
| Static Load Rating | 58,500 N |
| Rolling Elements | Ball |
| Item Weight | 1.01 kg (2.227 lb) per bearing |
| Number Of Rows | Single Row |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 12,500 rpm grease; 19,000 rpm oil |
| Lubricant | Grease or oil-air |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex universal (DU) |
| Bearing Material | Bearing Steel |
| Cross Reference 1 | SKF 7213 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7213-C-T-P4S |
| Cross Reference 3 | Timken (Fafnir) 2MM213WI |
| Cross Reference 4 | RHP 7213CTDUH |
| Cross Reference 5 | Koyo 7213C-5G |
| Cross Reference 6 | NTN 7213CG/GNP4 |
| Cross Reference 7 | GMN S 6213 C |
| Cross Reference 8 | NSK 7213CTRDUHP4 (sibling execution, phenolic outer-ring guided cage) |
| Cross Reference 9 | NSK 7213A5TYDUHP4 (25° contact angle, not a direct equivalent) |

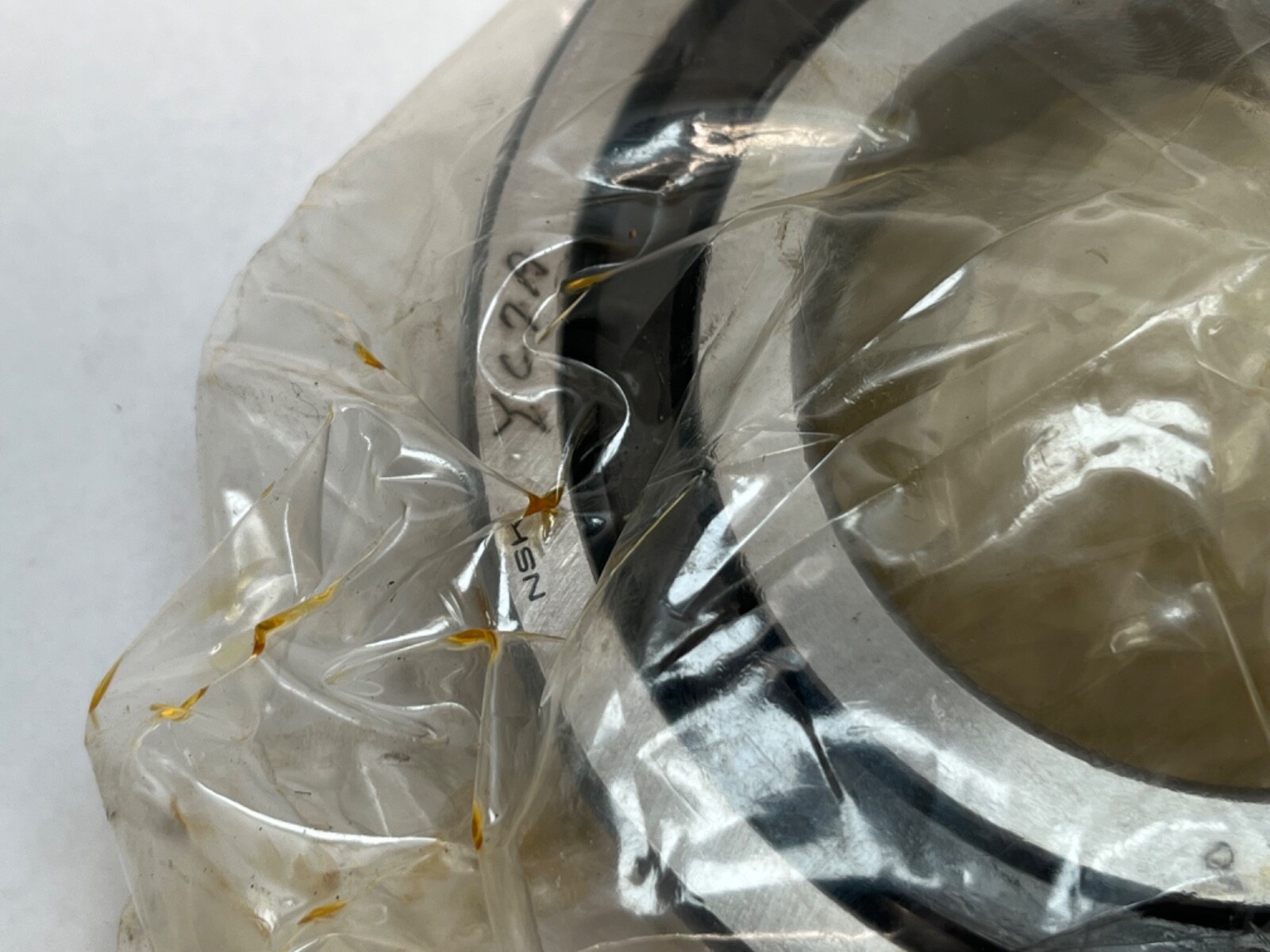

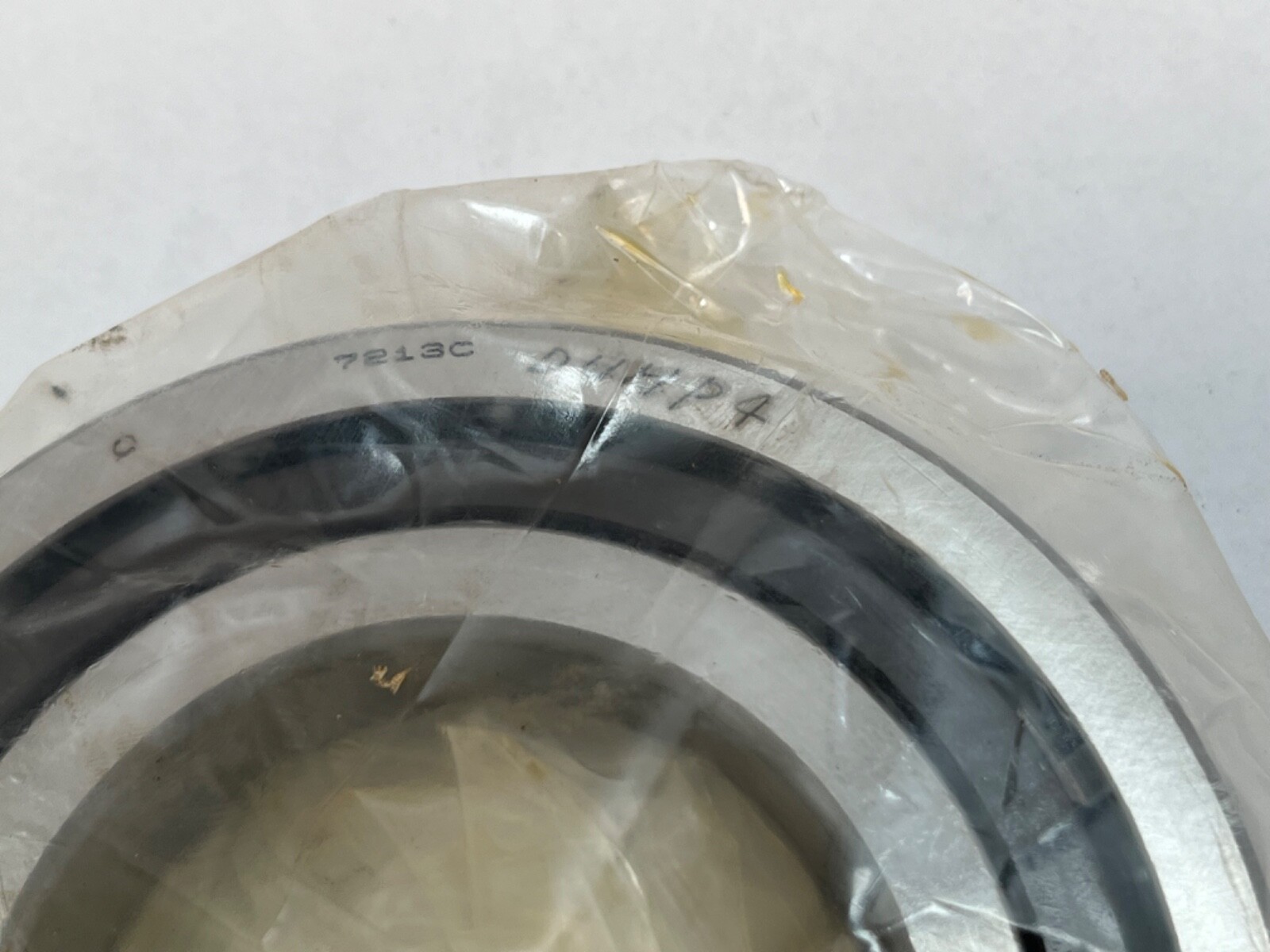

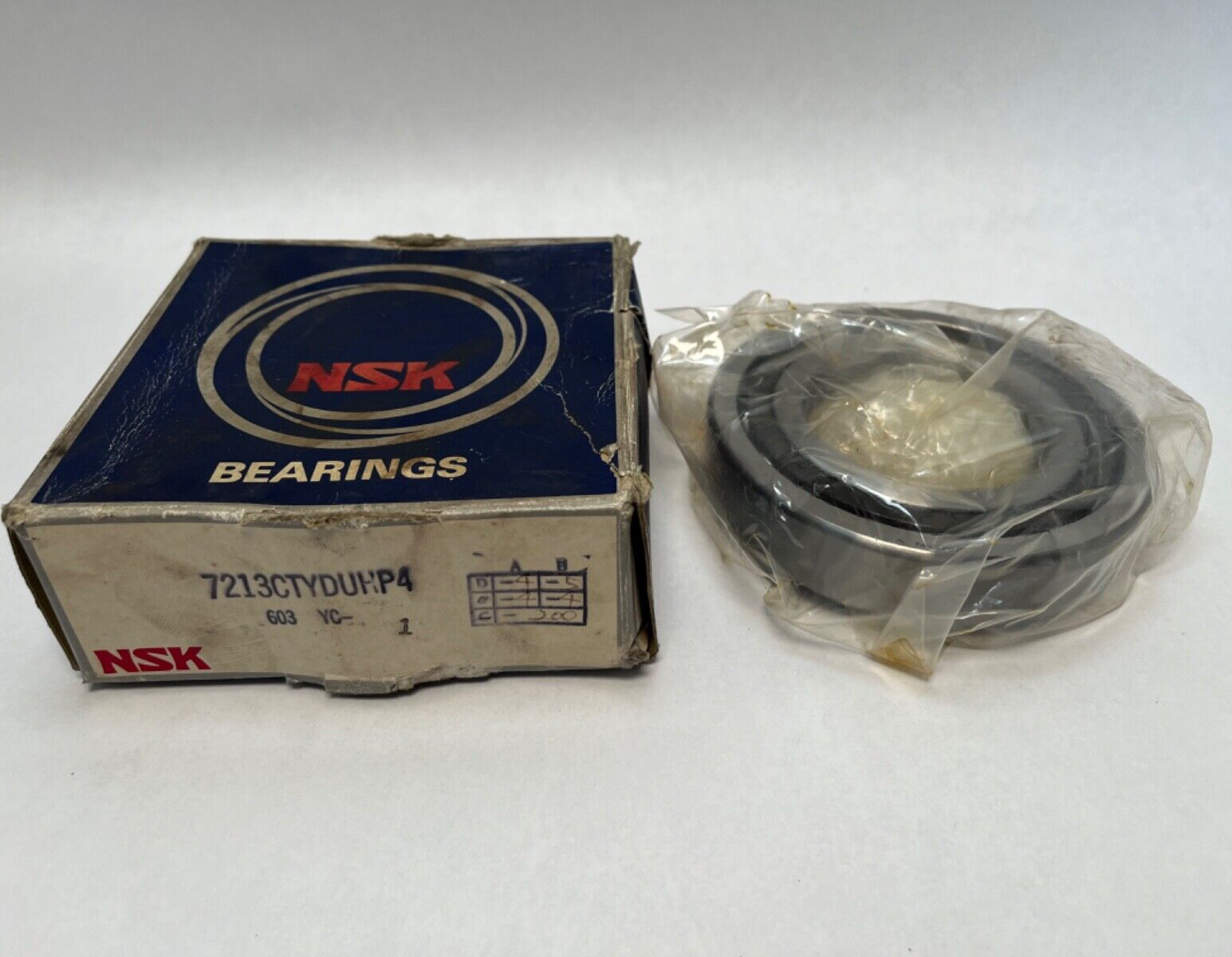

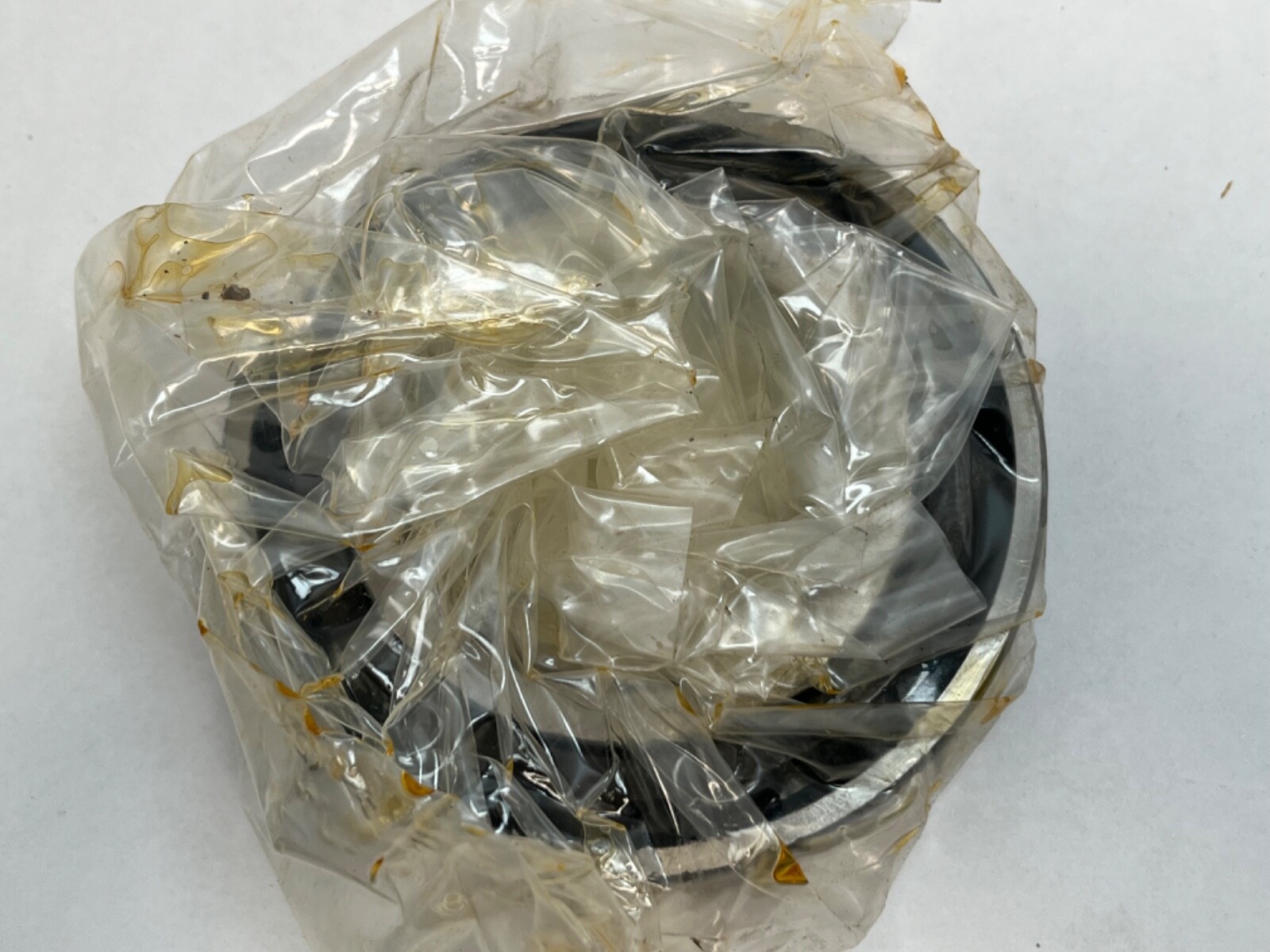

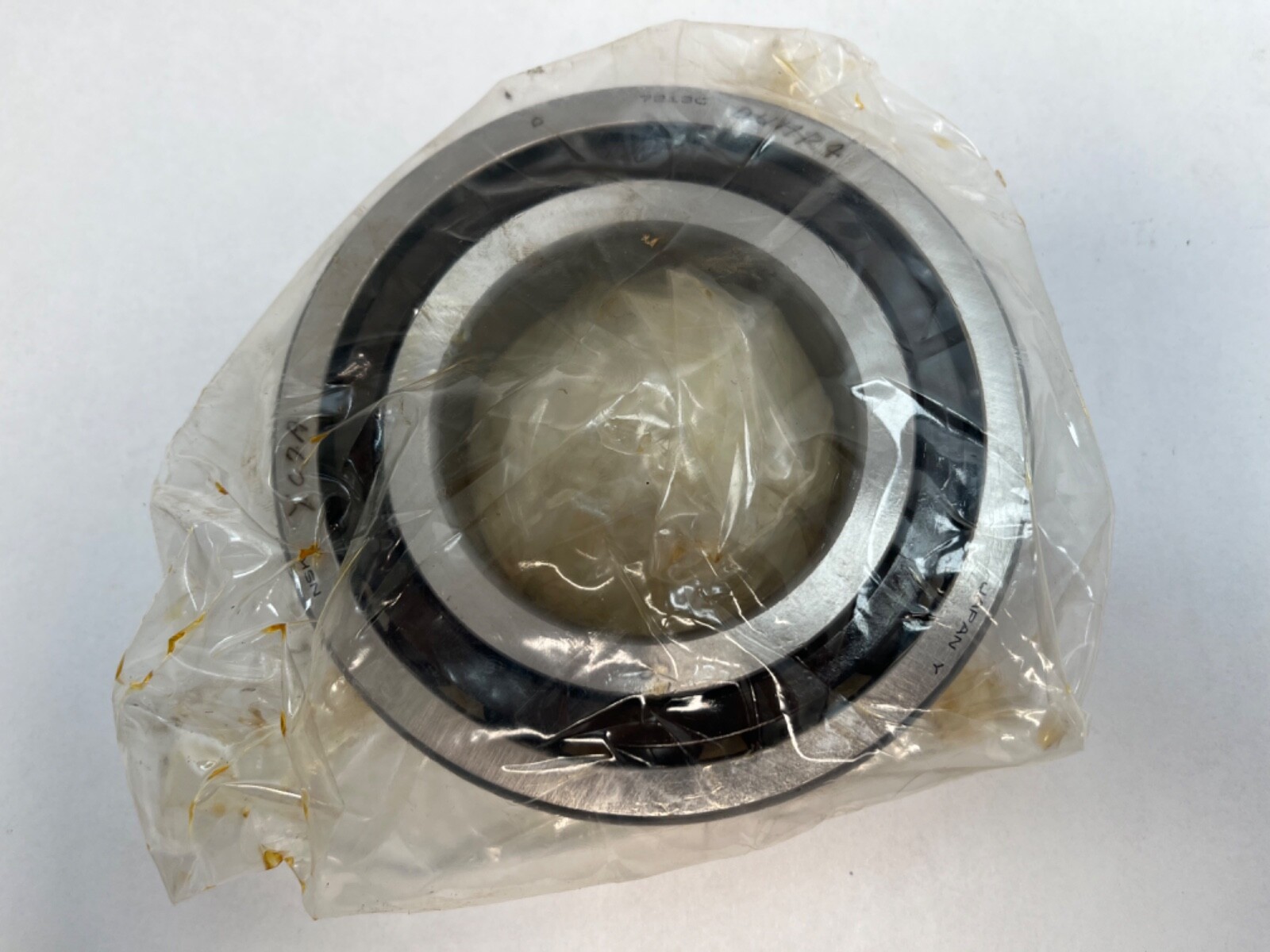

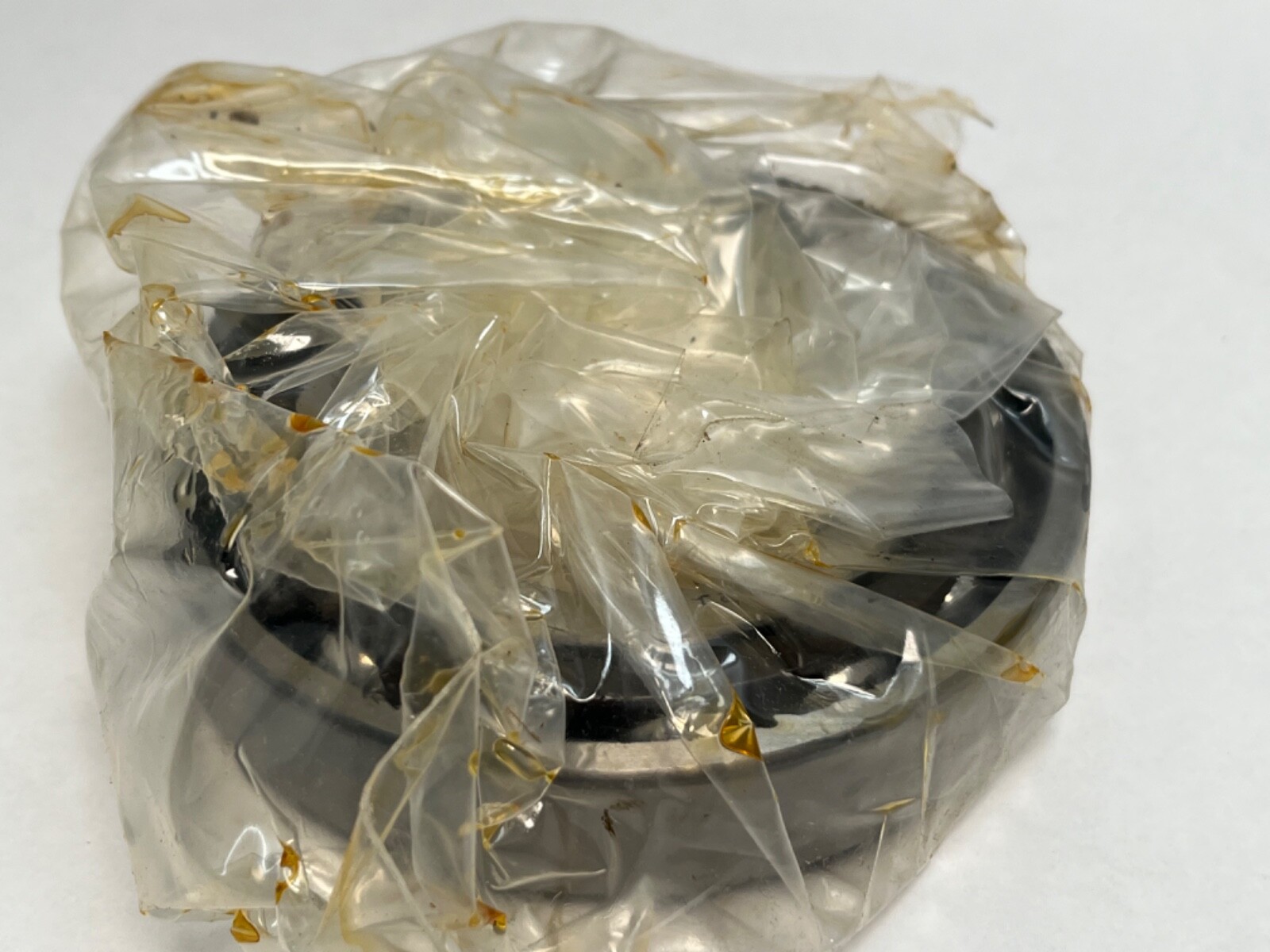

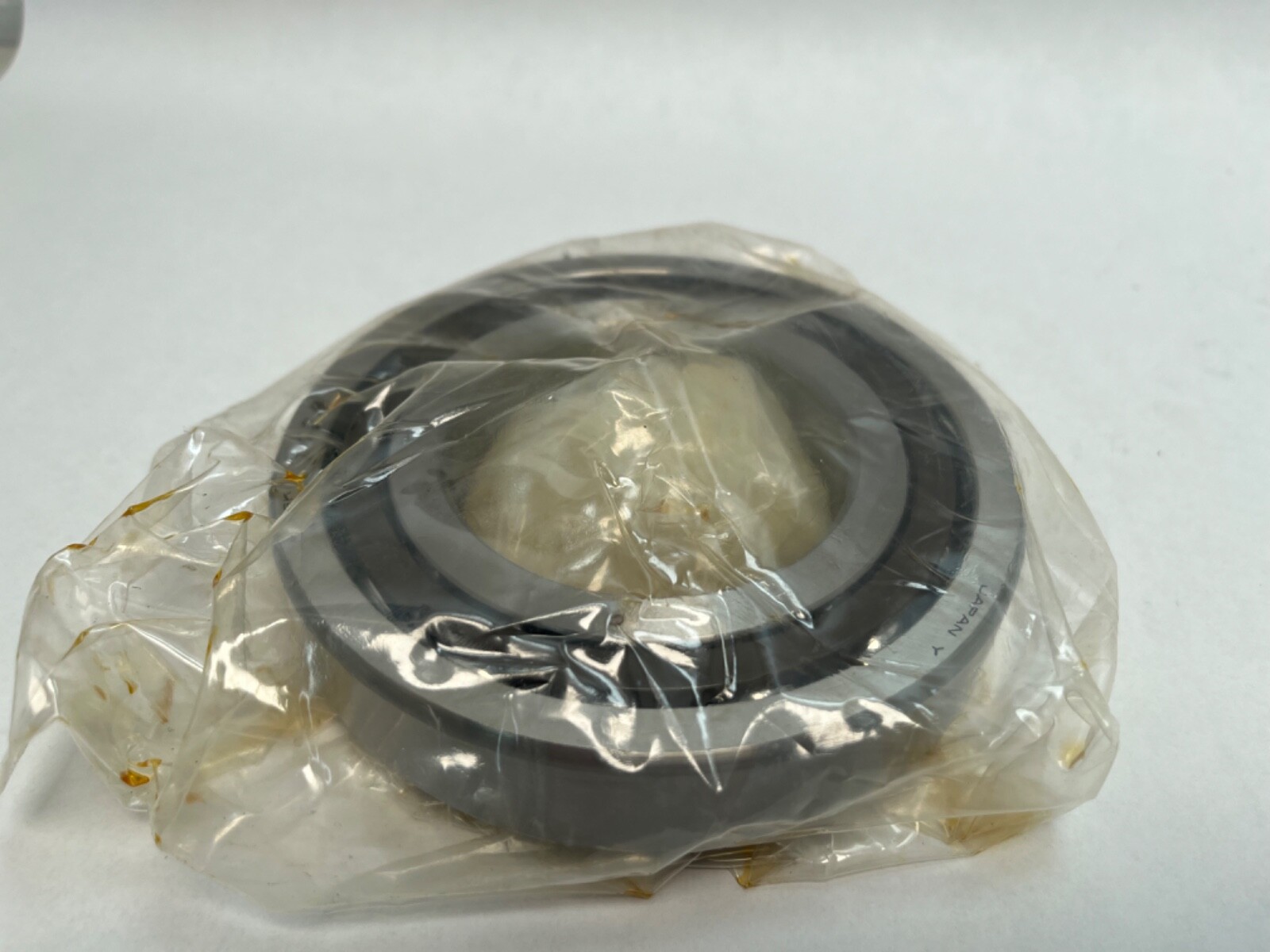

NSK 7213C TY DUH P4 is a super precision single-row angular contact ball bearing supplied as a matched duplex pair. Bore Diameter: 65 mm (2.5591 in). Outside Diameter: 120 mm (4.7244 in). Overall Width: 23 mm (0.9055 in). Contact Angle: 15°. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Number Of Rows: Single Row. Bearing Material: Bearing Steel.
7213 — 72 series super precision angular contact ball bearing in the 13 bore size, giving a 65 mm bore.
C — 15° contact angle.
TY — ball-guided cage.
DU — duplex universal matching, so two bearings pair back-to-back, face-to-face or in tandem.
H — heavy preload.
P4 — ISO class 4 super precision tolerance, ABEC 7.
Dynamic Load Rating: 92,000 N per bearing. Static Load Rating: 58,500 N per bearing. Dynamic Load Rating (lbf): 20,683 lbf per bearing. Static Load Rating (lbf): 13,151 lbf per bearing. Limiting Speed: 12,500 rpm grease; 19,000 rpm oil. Item Weight: 1.01 kg (2.227 lb) per bearing. Precision Class: ABEC 7 / P4. Cage Type: Ball-guided. Preload: Heavy (H). Lubricant: Grease or oil-air. Permissible axial load Pa: 40.0 kN per bearing. Recommended grease quantity: 5.3 g per bearing.
Shaft abutment diameter da min: 74 mm. Housing abutment diameter Da max: 111 mm. Housing abutment diameter Db max: 114 mm. Shaft fillet radius ra max: 1.5 mm. Housing fillet radius rb max: 0.8 mm. Chamfer r min: 1.5 mm. Chamfer r1 min: 1 mm. Effective load centre a: 23.9 mm.
Unit Quantity: 2 Pcs. Mounting Arrangement: Duplex universal (DU). Series: 7200 Super Precision. Base Number: 7213C. Load ratings and mass stated above are per bearing.
Same-envelope 15° super precision executions: SKF 7213 CD/P4A · FAG B7213-C-T-P4S · Timken 2MM213WI · RHP 7213CTDUH · Koyo 7213C-5G · NTN 7213CG/GNP4 · GMN S 6213 C.
NSK sibling execution 7213CTRDUHP4 carries a phenolic outer-ring guided cage in place of the ball-guided cage. NSK 7213A5TYDUHP4 shares the envelope at a 25° contact angle and is not a direct equivalent.
