A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

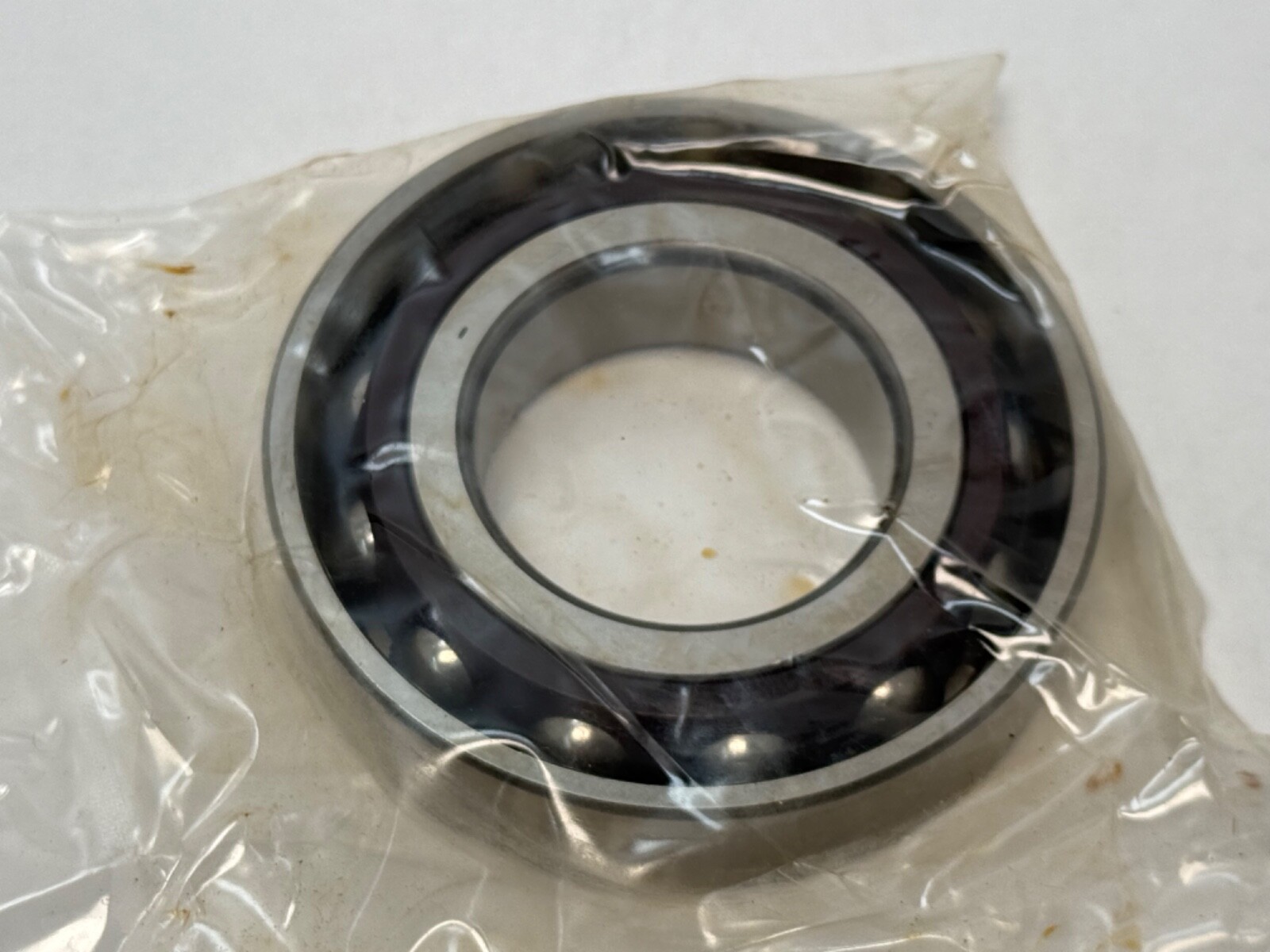

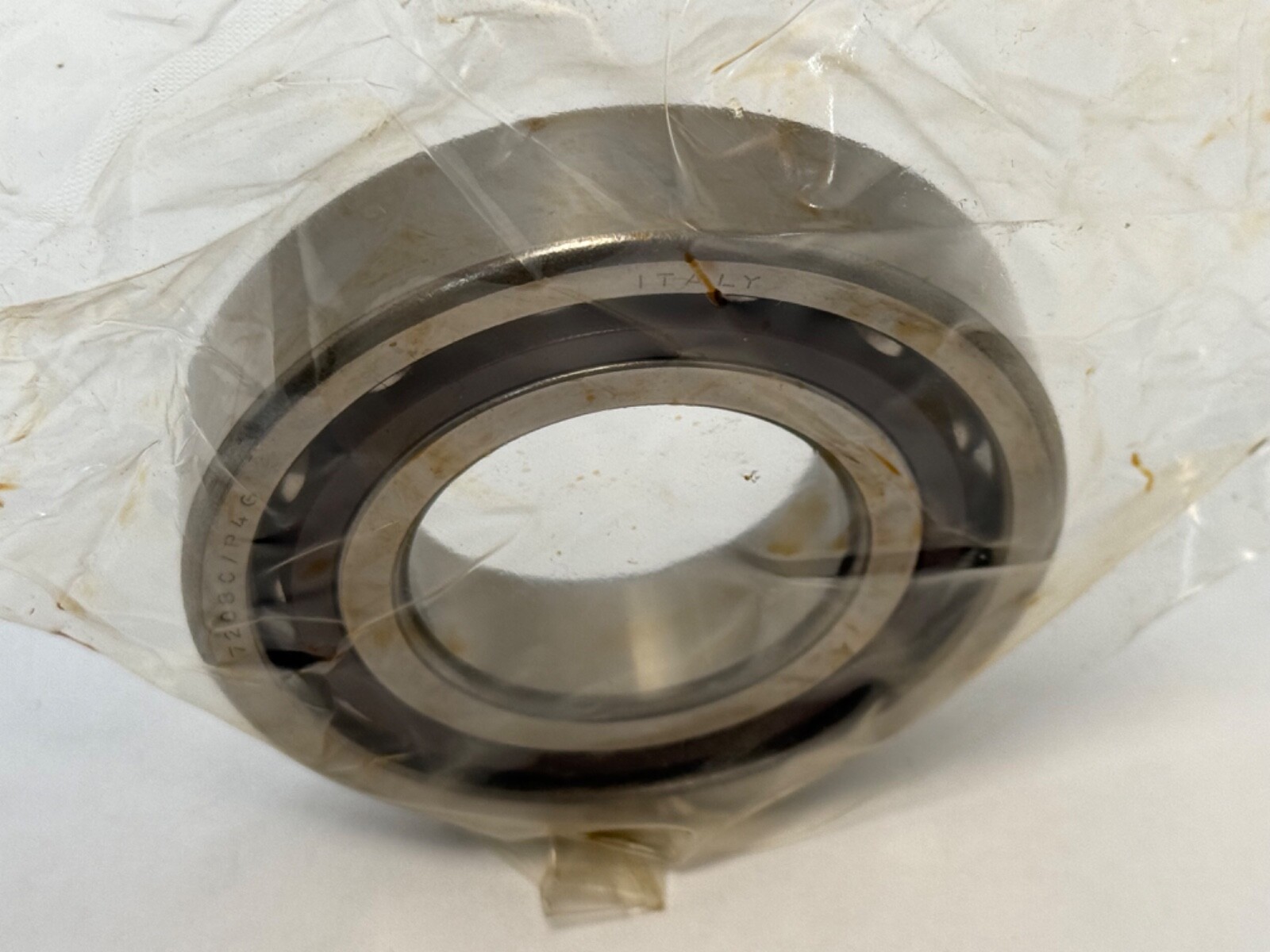

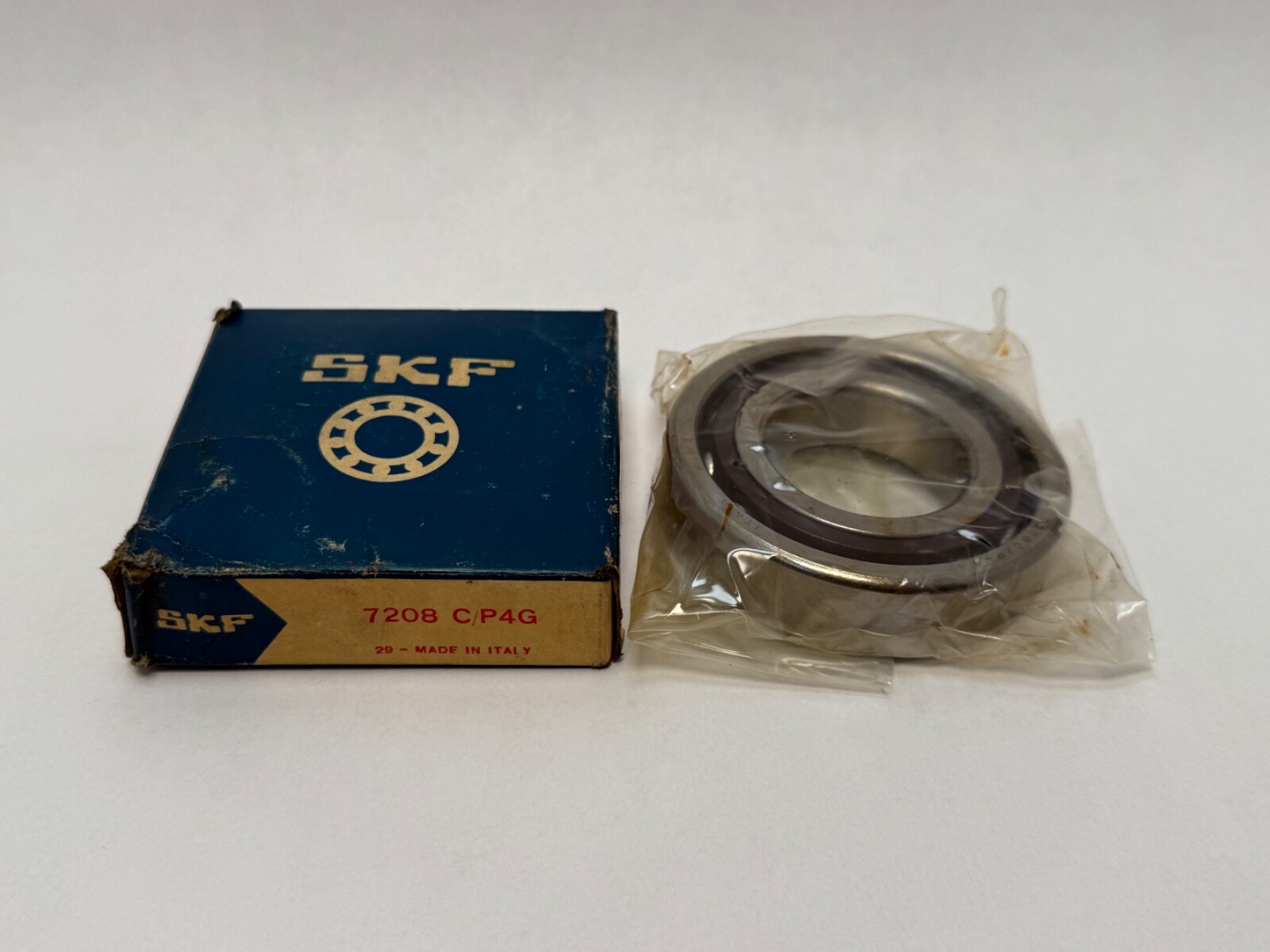

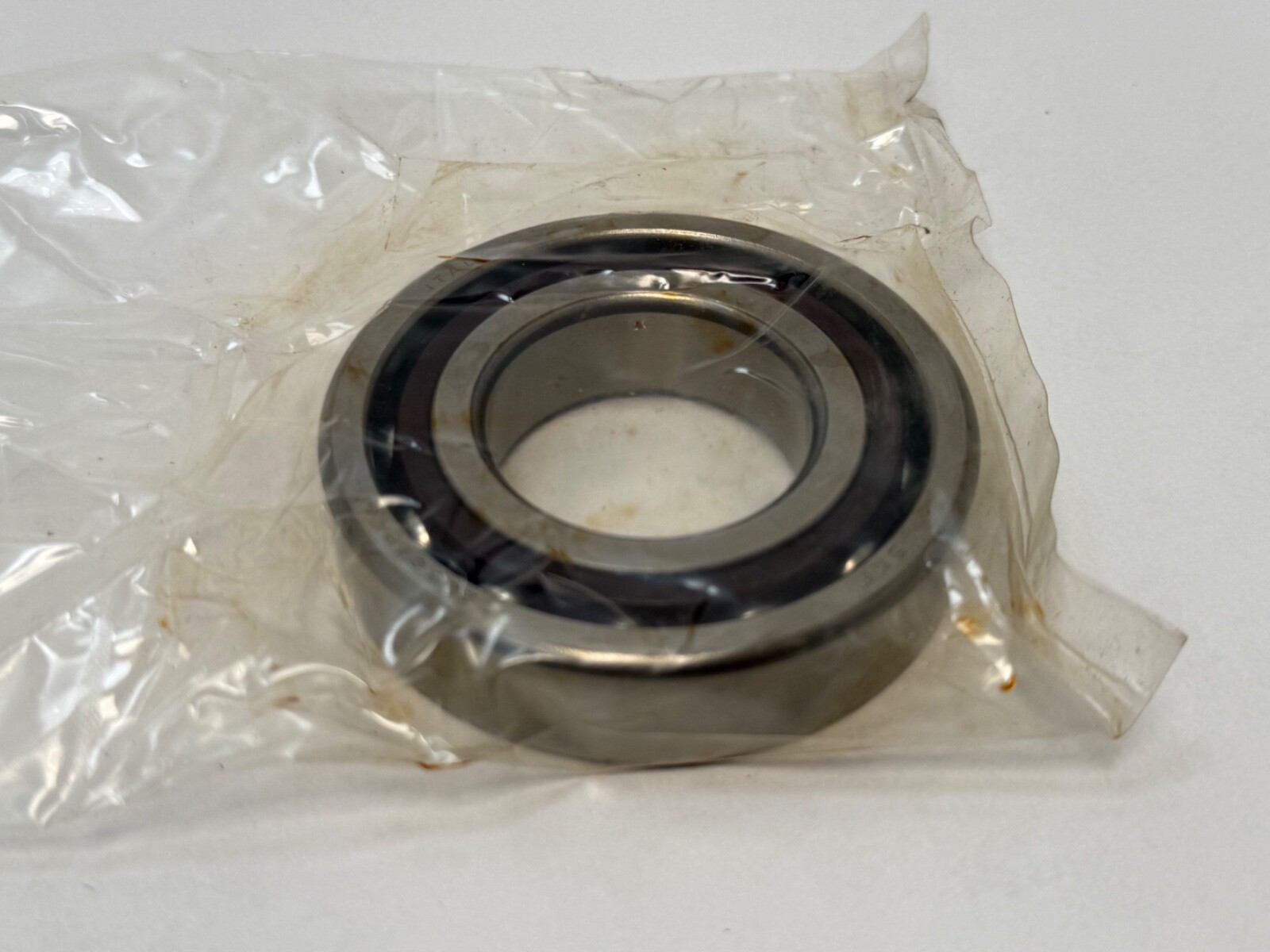

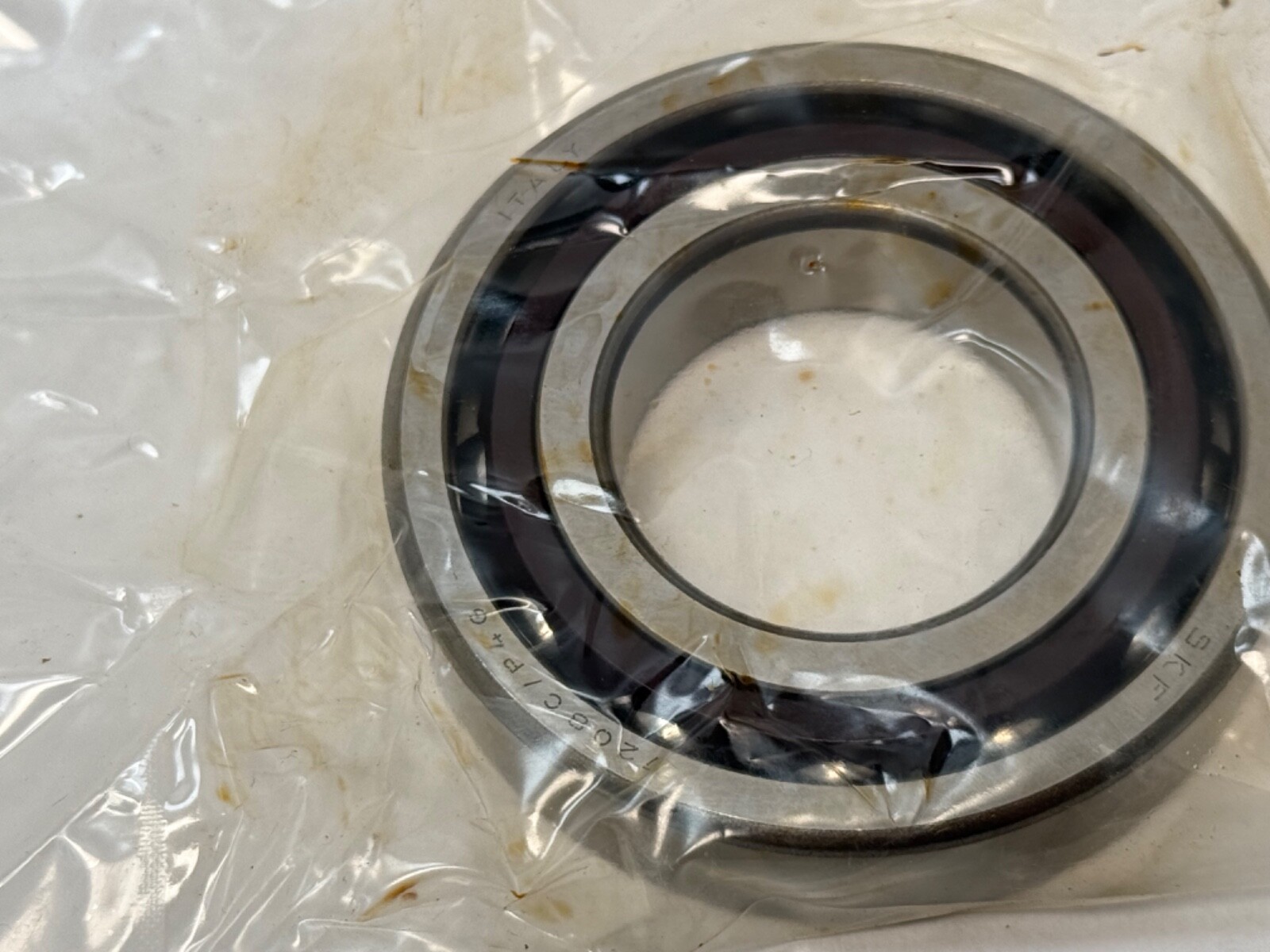

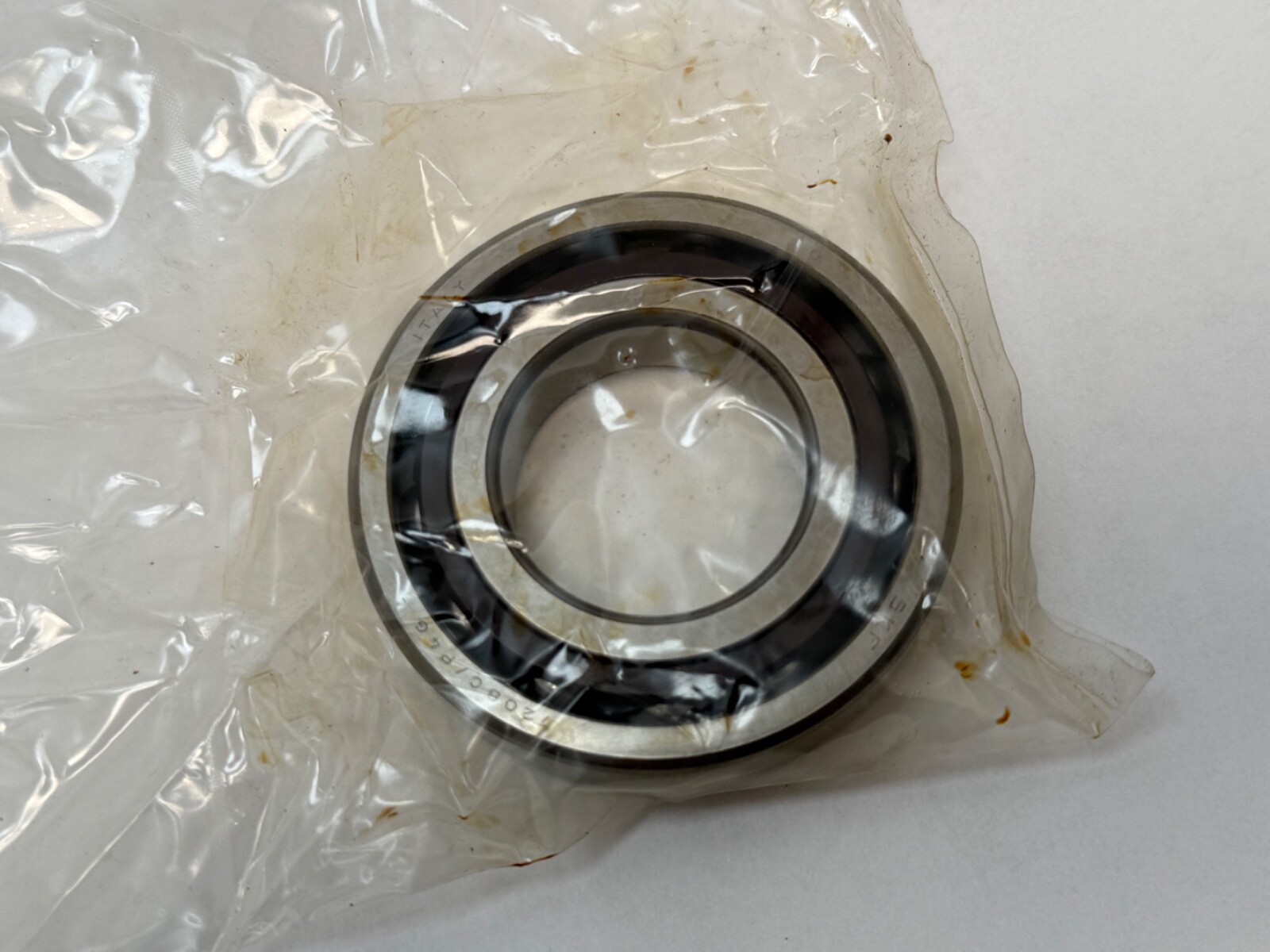

SKF 7208 C/P4G super-precision angular contact ball bearing, 40 x 80 x 18 mm, 15 degree contact angle, P4 (ABEC 7) tolerance. Single row, open.
List Price
$86.90
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7208 C/P4G |
| Model | 7208-C-P4G |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Contact Angle | 15° |
| Overall Width | 18 mm |
| Mpn Variants | 7208 C/P4G, 7208C/P4G, 7208-C-P4G, 7208CP4G, 7208C, 7208 C P4 |
| Precision Class | ABEC 7 / P4 |
| Cross Reference 1 | SKF 7208 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7208-C-T-P4S |
| Cross Reference 3 | NSK 7208CTYNSULP4 |
| Cross Reference 4 | Timken Fafnir 2MM208WI |
SKF 7208 C/P4G single row super-precision angular contact ball bearing. Bore Diameter: 40 mm. Outside Diameter: 80 mm. Width: 18 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
72 — angular contact ball bearing, ISO 02 series.
08 — bore code, 8 x 5 = 40 mm.
C — 15° contact angle.
P4 — ISO tolerance class 4, equivalent to ABEC 7.
Rolling Elements: Ball. Number Of Rows: 1. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Closure Type: Open.
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Width: 18 mm. The 15° angle favours speed and radial stiffness in machine tool spindles.
Current SKF designation in the same envelope and angle: SKF 7208 CD/P4A. Same envelope, 15°, P4 class: FAG B7208-C-T-P4S, NSK 7208CTYNSULP4, Timken Fafnir 2MM208WI.
What is the contact angle of the SKF 7208 C?
15°.
What does P4 mean?
ISO tolerance class 4, the equivalent of ABEC 7.
What is the current SKF equivalent?
SKF 7208 CD/P4A in the same 40 x 80 x 18 mm envelope and 15° angle.
