Availability:
1 in stock
Deep groove ball bearing, 80 mm bore x 125 mm OD x 22 mm wide, contact rubber seals both sides, C3 clearance. ISO 6016 size, single row, grease filled.
List Price
$40.96
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 6016DDUC3 |
| GTIN | 029176085963 |
| Model | 6016-RS-C3 |
| Bearing Type | Ball Bearing, Double Rubber Seal |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Series | 6000 |
|---|---|
| Lubricant | Grease |
| Material | Chrome Steel |
| Industry Terms | Deep groove ball bearing, sealed bearing, 2RS bearing, radial ball bearing, 6000 series, C3 clearance |
| Overall Width | 22 mm |
| Mpn Variants | 6016DDUC3, 6016 DDU C3, 6016DDC3, 6016-RS-C3, 6016-2RS, 6016RS, 6016-2RS1/C3 |
| Dynamic Load Rating | 52,500 N |
| Static Load Rating | 40,000 N |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 3,200 rpm grease |
| Internal Clearance | C3 |
| Harmonization Code | 84821000 |
| Bearing Material | Chrome steel |
| Common Misspellings | NSK 6016 DDUC3; NSK 6016DUC3; NKS 6016DDUC3; 6016DDU C3 |
| Application Types | Electric motors; pumps; gearboxes; general industrial machinery |
| Cross Reference 1 | SKF 6016-2RS1/C3 |
|---|---|
| Cross Reference 2 | FAG 6016-2RSR-C3 |
| Cross Reference 3 | NTN 6016LLUC3 |
| Cross Reference 4 | Koyo 6016-2RSC3 |
| Cross Reference 5 | Nachi 6016-2NSEC3 |
| Cross Reference 6 | SNR 6016.EE.J30 |

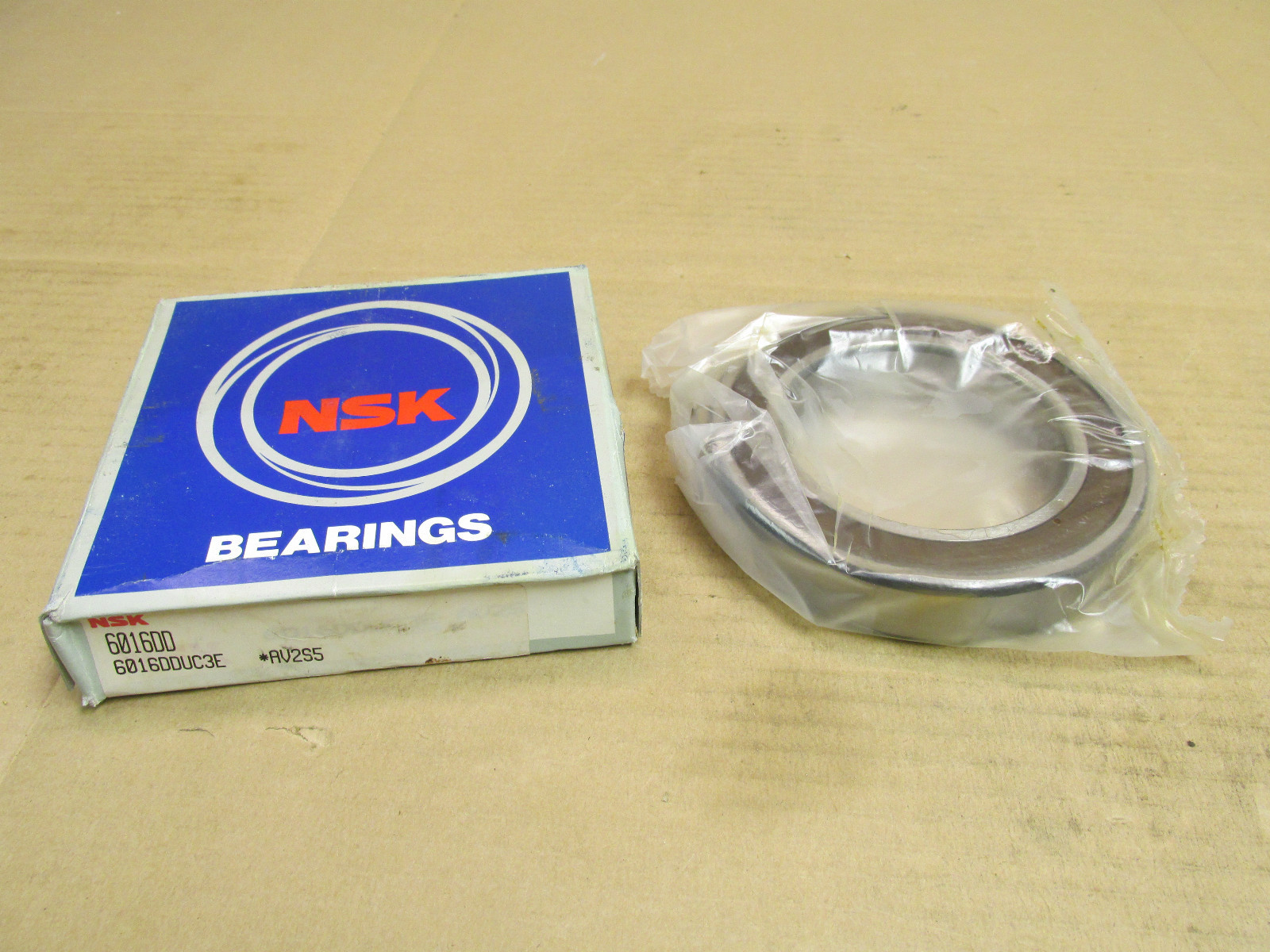

NSK 6016DDUC3 single-row deep groove ball bearing with a contact rubber seal on each side and C3 radial internal clearance. One complete sealed bearing, factory grease filled.
6016 — ISO 6016 size, extra-light series 60, 80 x 125 x 22 mm.
DDU — contact rubber seals both sides.
C3 — radial internal clearance greater than normal, suited to interference fits and higher running temperatures.
Closure Type: Contact seals both sides. Lubricant: Grease. Internal Clearance: C3. Rolling Elements: Ball. Number Of Rows: 1. Bearing Material: Chrome steel. Dynamic Load Rating: 52,500 N. Static Load Rating: 40,000 N. Limiting Speed: 3,200 rpm grease. Harmonization Code: 84821000. Country of Origin: Japan.
Bore Diameter: 80 mm. Outside Diameter: 125 mm. Overall Width: 22 mm. Bore Type: Straight. Series: 6000. Snap Ring Included: No. Unit Quantity: 1 Pc.
Cross-references: SKF 6016-2RS1/C3, FAG 6016-2RSR-C3, NTN 6016LLUC3, Koyo 6016-2RSC3, Nachi 6016-2NSEC3, SNR 6016.EE.J30. MPN variants: 6016DDUC3, 6016DDC3, 6016-RS-C3, 6016-2RS, 6016RS.
Bore 80 mm, outside diameter 125 mm, width 22 mm.
Contact rubber seals on both sides, designation DDU.
C3, radial internal clearance greater than normal.
