Axial cylindrical roller thrust bearing, 15 x 28 x 9 mm, single direction, shaft washer plus housing washer plus roller and cage, 28.5 kN static.
List Price
$28.68
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | INA |
|---|---|
| MPN | 81102TN |
| Model | 81102-TN |
| ID | 15 mm |
| OD | 28 mm |
| Width | 9 mm |
| Material | Chrome steel |
|---|---|
| Lubricant | Grease or oil |
| Series | 811 |
| Duty Type | Standard |
| Base Number | 81102 |
| Mpn Variants | 81102TN; 81102-TN; 811 02 TN; 81102; 81102-TV; 81102TVPB |
| Precision Class | RBEC 1 / P0 |
| Min Temp | -30 °C |
| Dynamic Load Rating | 14,400 N axial |
| Static Load Rating | 28,500 N axial |
| Rolling Elements | Cylindrical Roller |
| Max Temp | 120 °C |
| Bearing Type | Axial Cylindrical Roller Thrust Bearing, Open |
| Item Weight | 0.021 kg (0.05 lb) |
| Cage Material | Polyamide |
| Limiting Speed | 13,400 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50 |
| Mounting Arrangement | Single direction axial |
| Bearing Material | Chrome steel |
| Part Number | 81102TN |
| Cross Reference 1 | SKF 81102 TN |
|---|---|
| Cross Reference 2 | NSK 81102 |
| Cross Reference 3 | Koyo 81102TVPB |

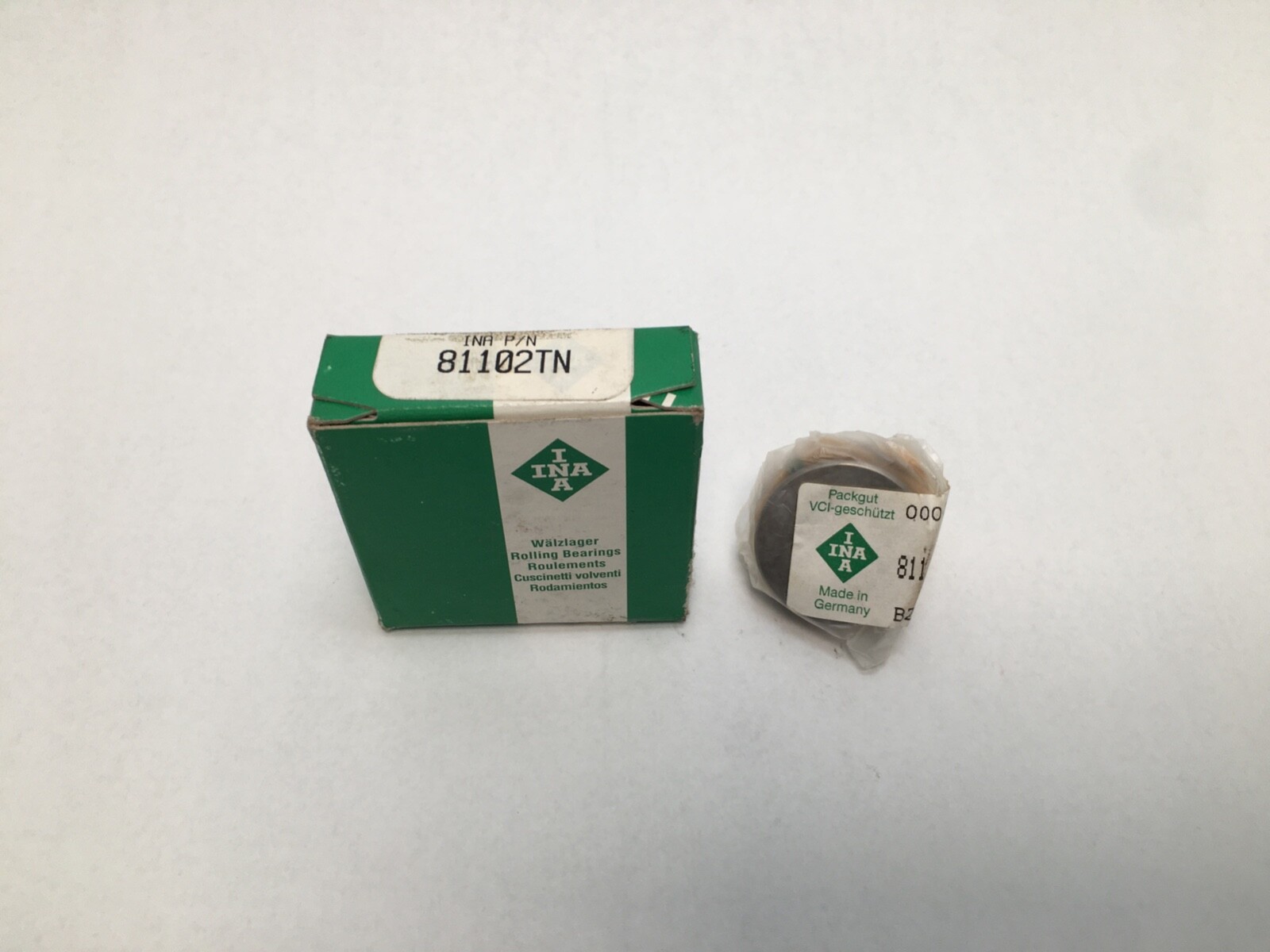

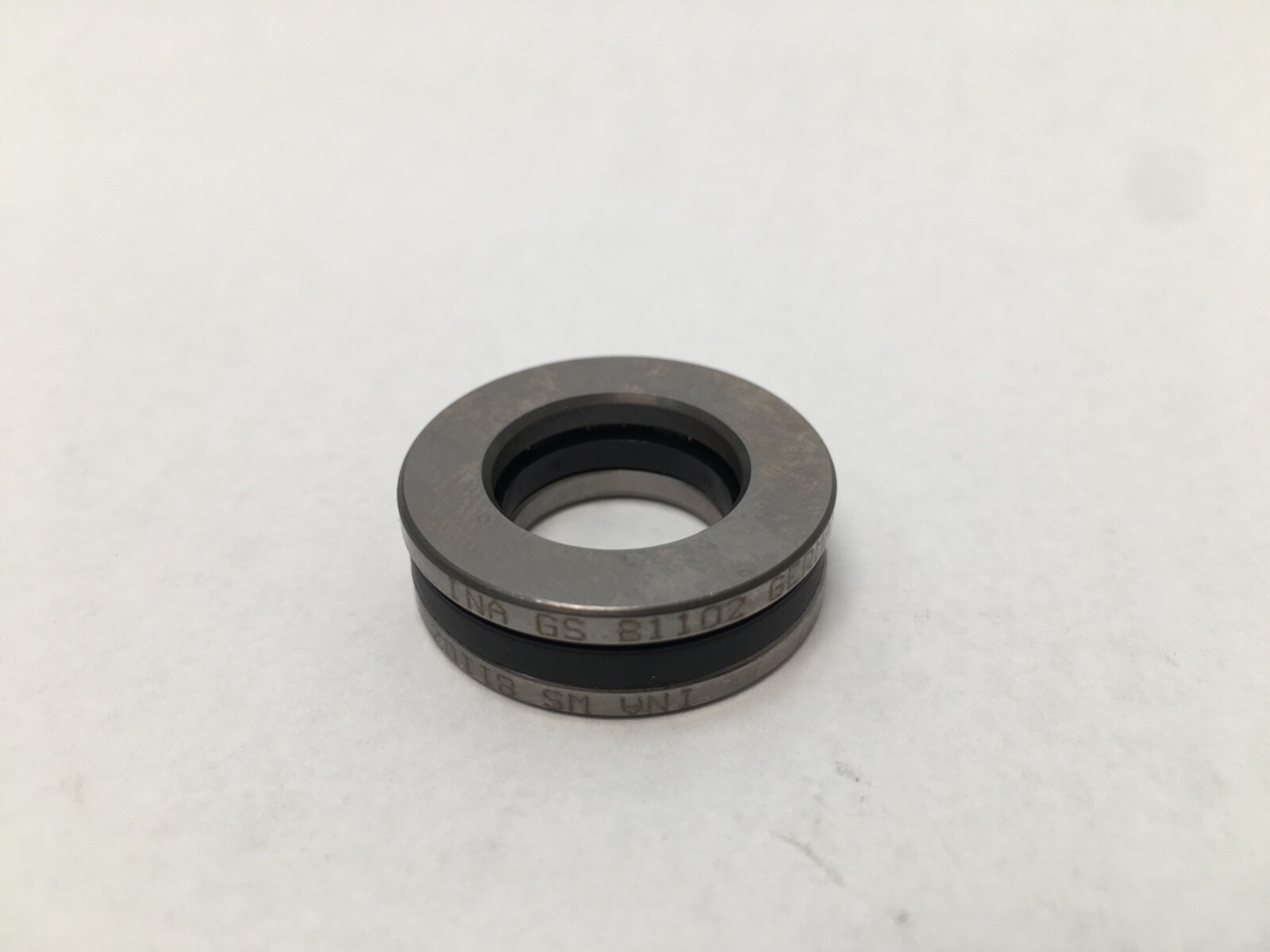

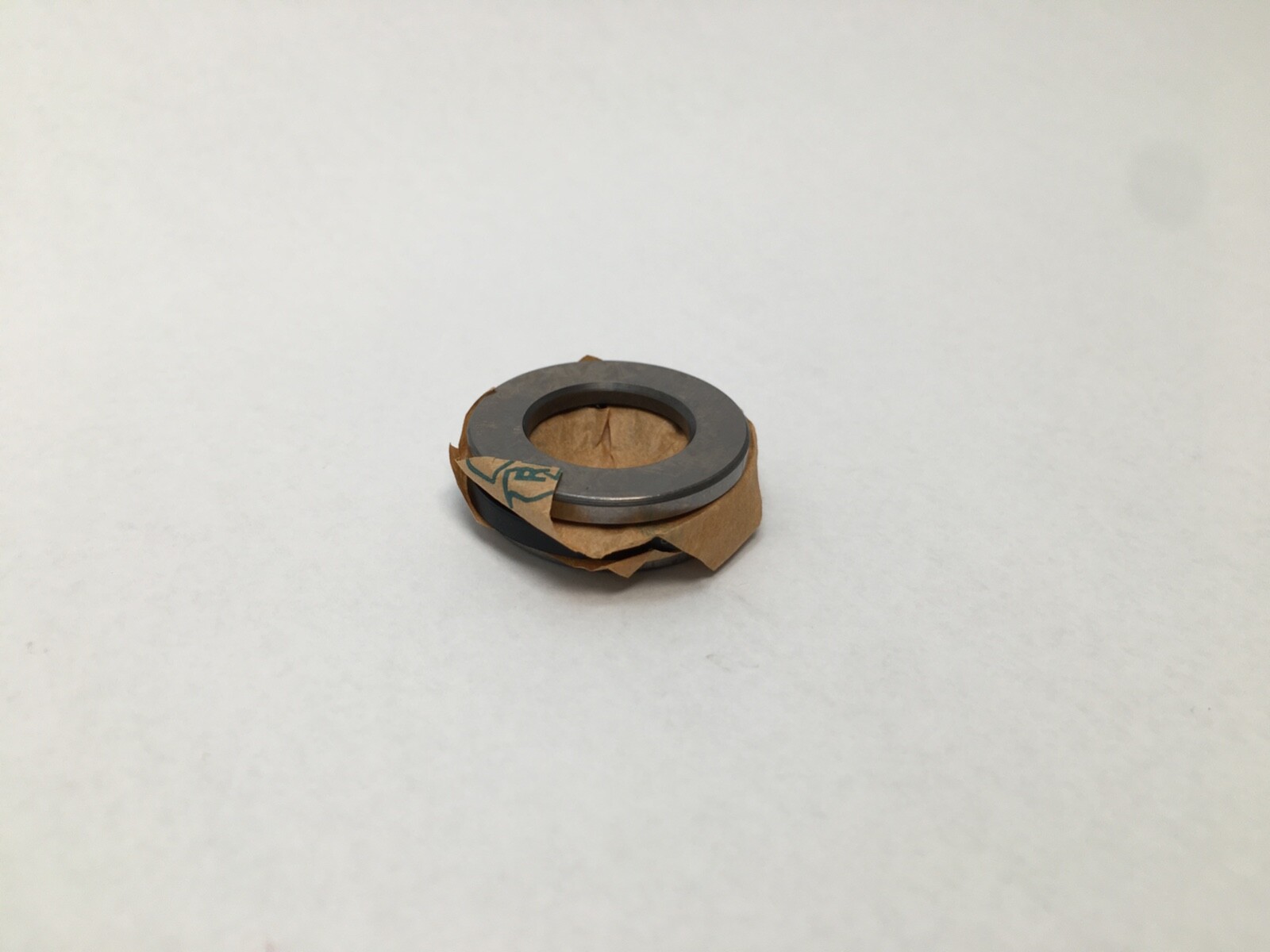

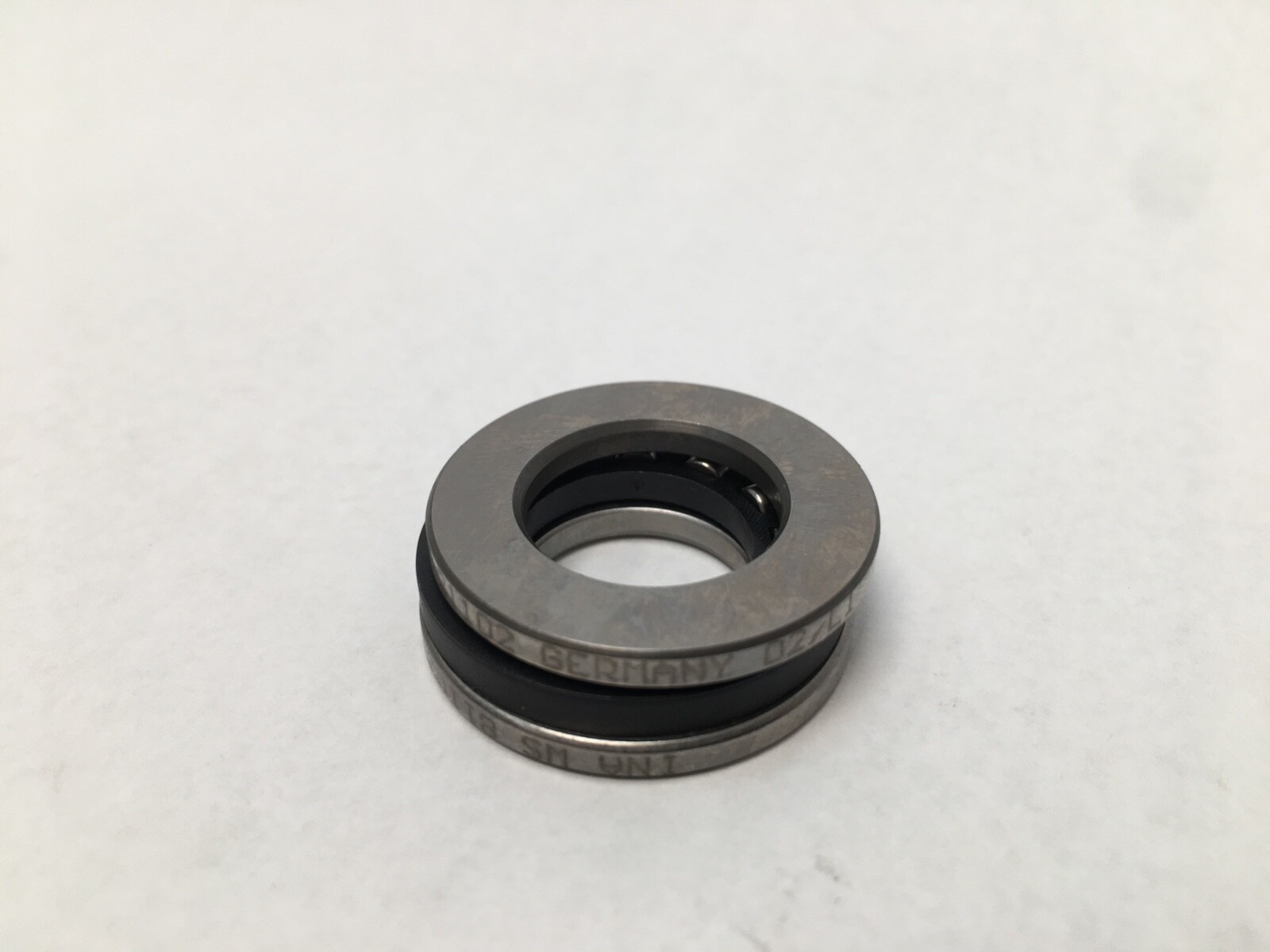

INA 81102TN single-direction axial cylindrical roller thrust bearing, 15 mm bore, 28 mm outside diameter, 9 mm height. One complete assembly: shaft washer, housing washer and roller and cage assembly. Unit Quantity: 1 Pc.
811 — axial cylindrical roller bearing series; the rollers lie flat between two washers and the load path is axial.
02 — bore code, 15 mm.
TN — polyamide cage. Schaeffler’s current designation for this part is 81102-TV.
Bore Diameter: 15 mm. Outside Diameter: 28 mm. Overall Width: 9 mm. Rolling Elements: Cylindrical Roller. Number Of Rows: 1. Dynamic Load Rating: 14,400 N axial. Static Load Rating: 28,500 N axial. Limiting Speed: 13,400 rpm. Reference Speed: 6,300 rpm. Axial fatigue load limit: 4,050 N. Cage Material: Polyamide. Lubricant: grease or oil. Operating temperature range: -30 °C to +120 °C. Item Weight: 0.021 kg (0.05 lb). Bearing Material: Chrome steel.
Shaft washer outer diameter: 28 mm. Housing washer inner diameter: 16 mm. Minimum shaft shoulder diameter: 27 mm. Maximum housing shoulder diameter: 16 mm. Minimum chamfer dimension: 0.3 mm. The bearing takes axial load in one direction.
Cross-references: SKF 81102 TN; NSK 81102; Koyo 81102TVPB. Current Schaeffler designation 81102-TV.
Dynamic 14,400 N and static 28,500 N axial.
15 mm bore, 28 mm outside diameter, 9 mm height.

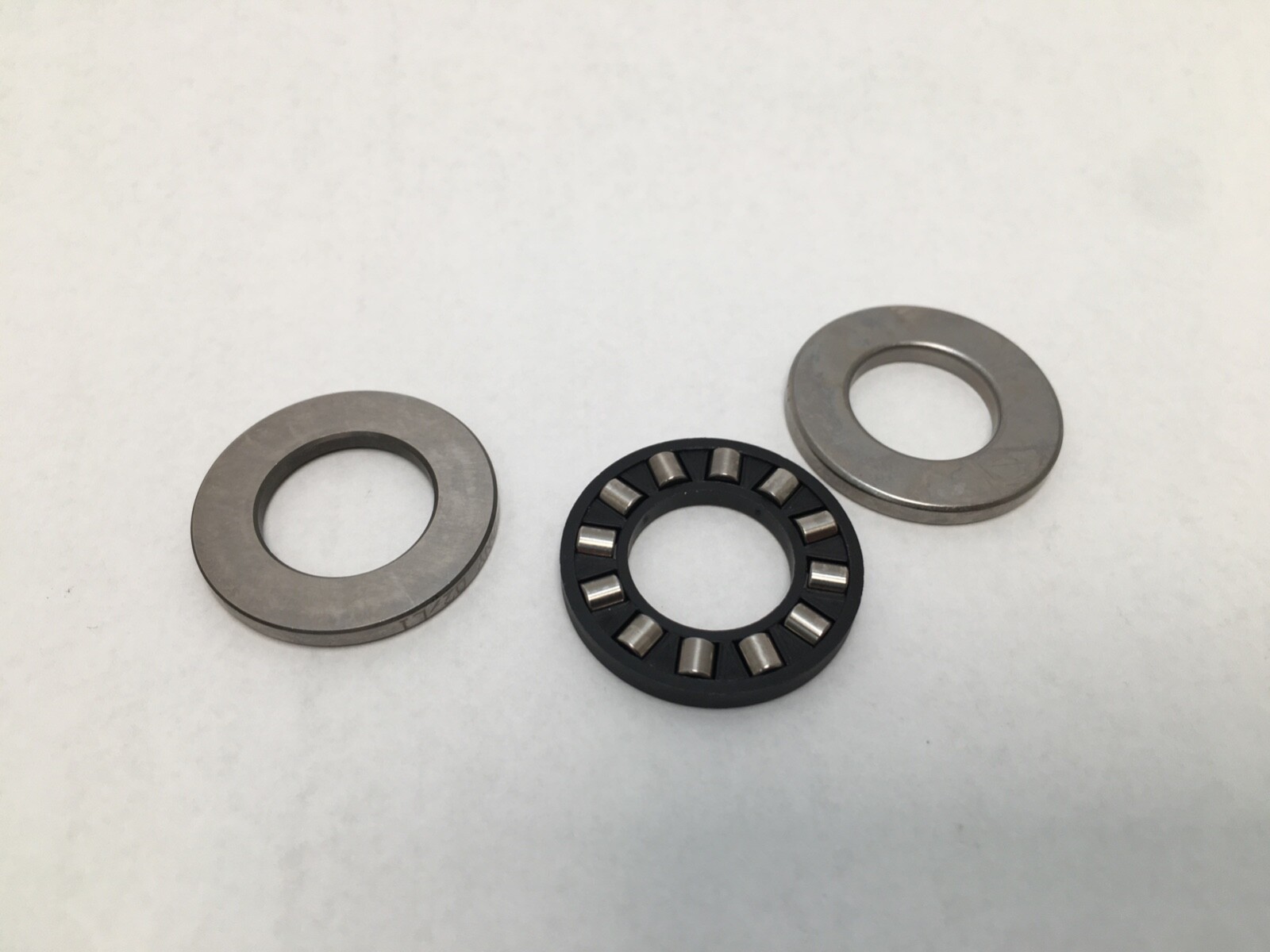

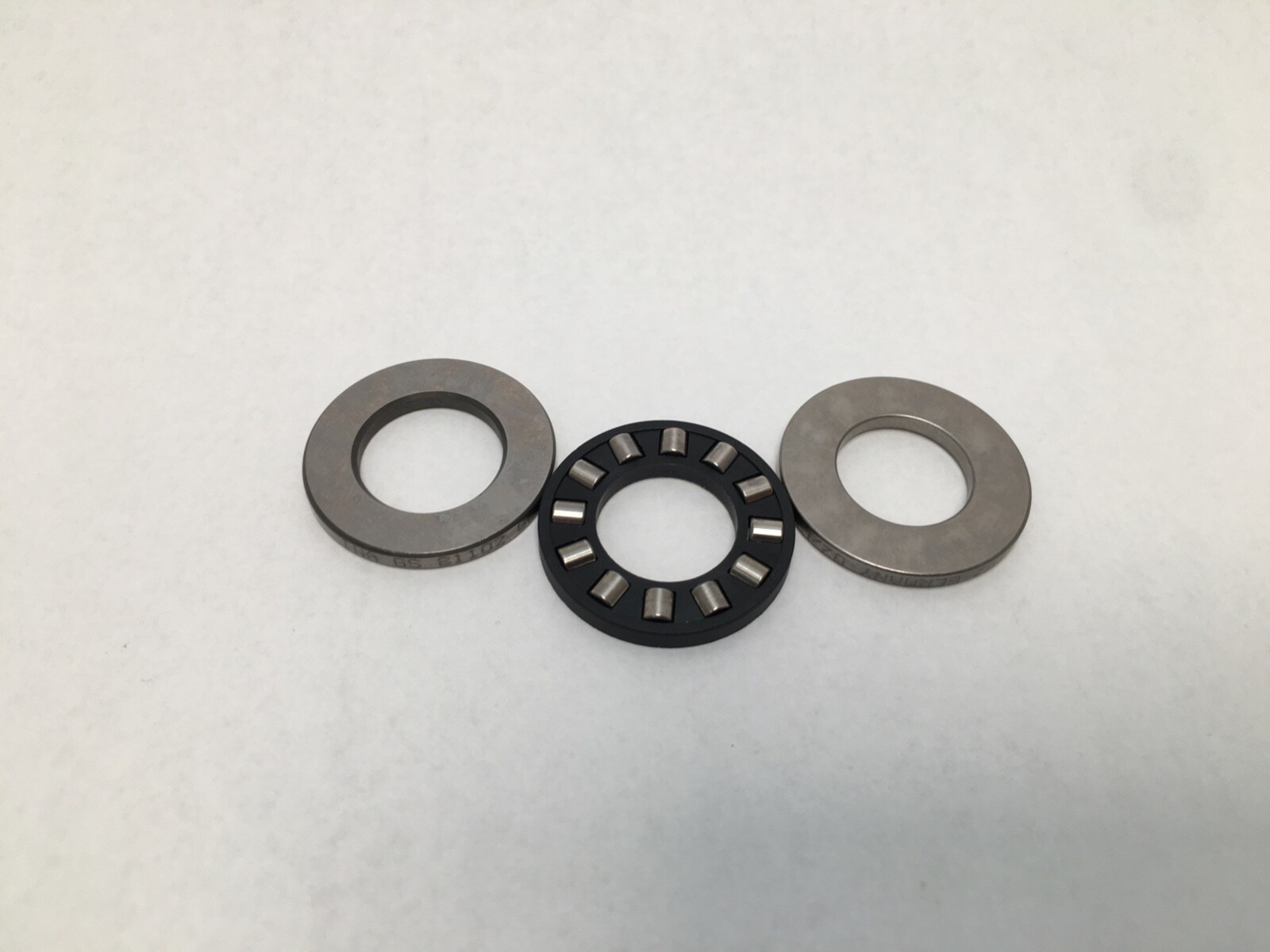

Shaft washer, housing washer and the roller and cage assembly.
