Availability:
2 in stock
Super-precision angular contact ball bearing, 90 mm bore, 140 mm outside diameter, 24 mm width. 15 degree contact angle, P4 class, universally matchable at extra light preload.
List Price
$298.34
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7018CGAP4 |
| Model | 7018CGA/P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 90 mm |
| OD | 140 mm |
| Width | 24 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7000 |
| Condition | New |
| Lubricant | Oil |
| Preload | Extra light |
| Base Number | 7018 |
| Industry Terms | super precision spindle bearing; machine tool bearing; angular contact ball bearing; universally matchable single; extra light preload bearing; P4 bearing |
| Common Misspellings | SFK; SKG; 7018 CGA P.4; 7018CGA-PA; 7018 GCA/P4 |
| Application Types | Machine tool spindles; grinding spindles; high-speed milling heads; precision rotary tables |
| Bore Shaft Size | 90 mm (3.5433 in) |
| Mpn Variants | 7018 CGA/P4; 7018CGA/P4; 7018CGAP4; 7018-CGA-P4; 7018 CGA P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Part Number | 7018 CGA/P4 |
| Cross Reference 1 | SKF 7018 ACGA/P4 – 25° vs 15° |
|---|---|
| Cross Reference 2 | SKF 7018 CGB/P4 – light vs extra light preload |
| Cross Reference 3 | SKF 7018 CGC/P4 – medium vs extra light preload |

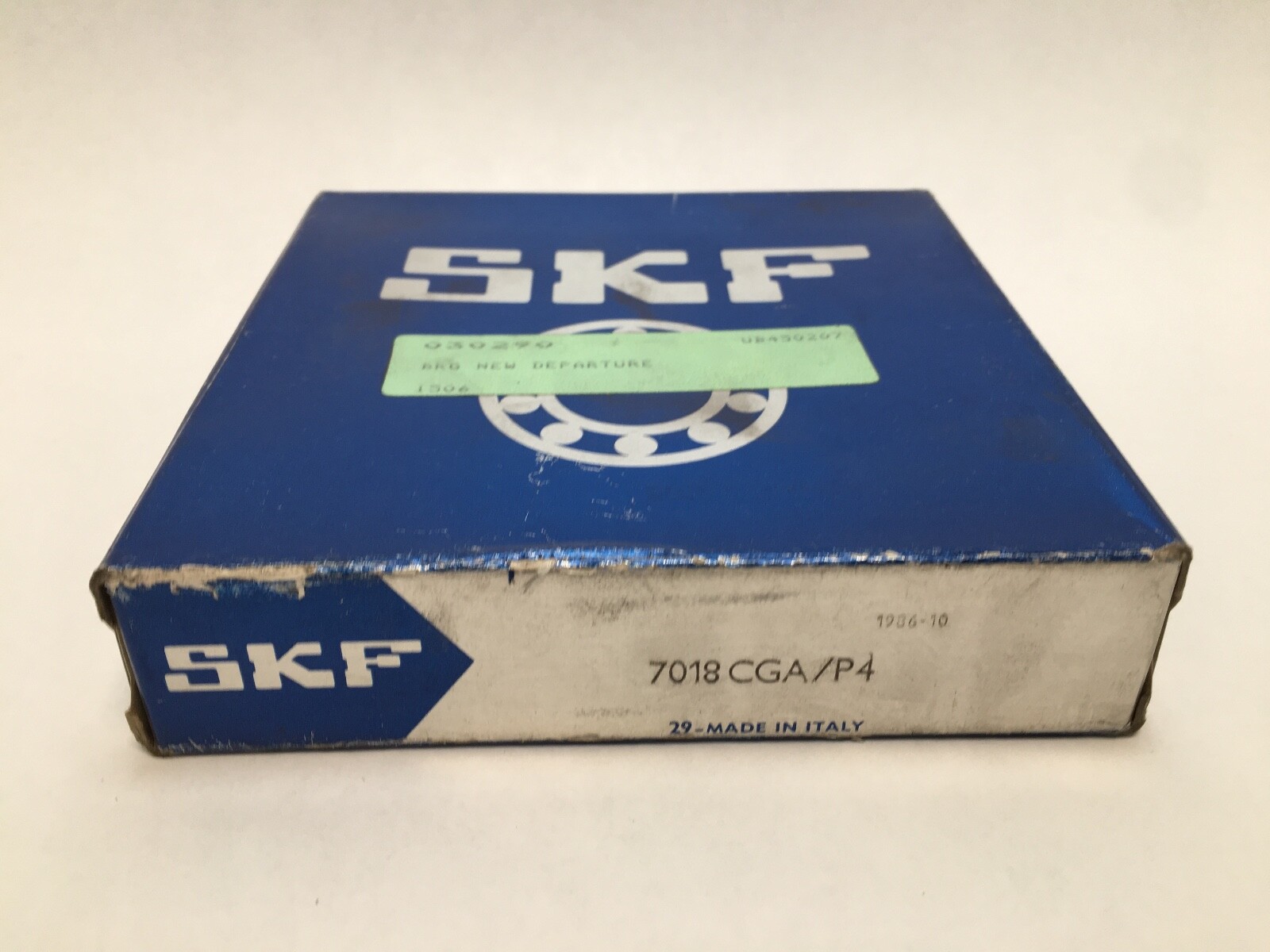

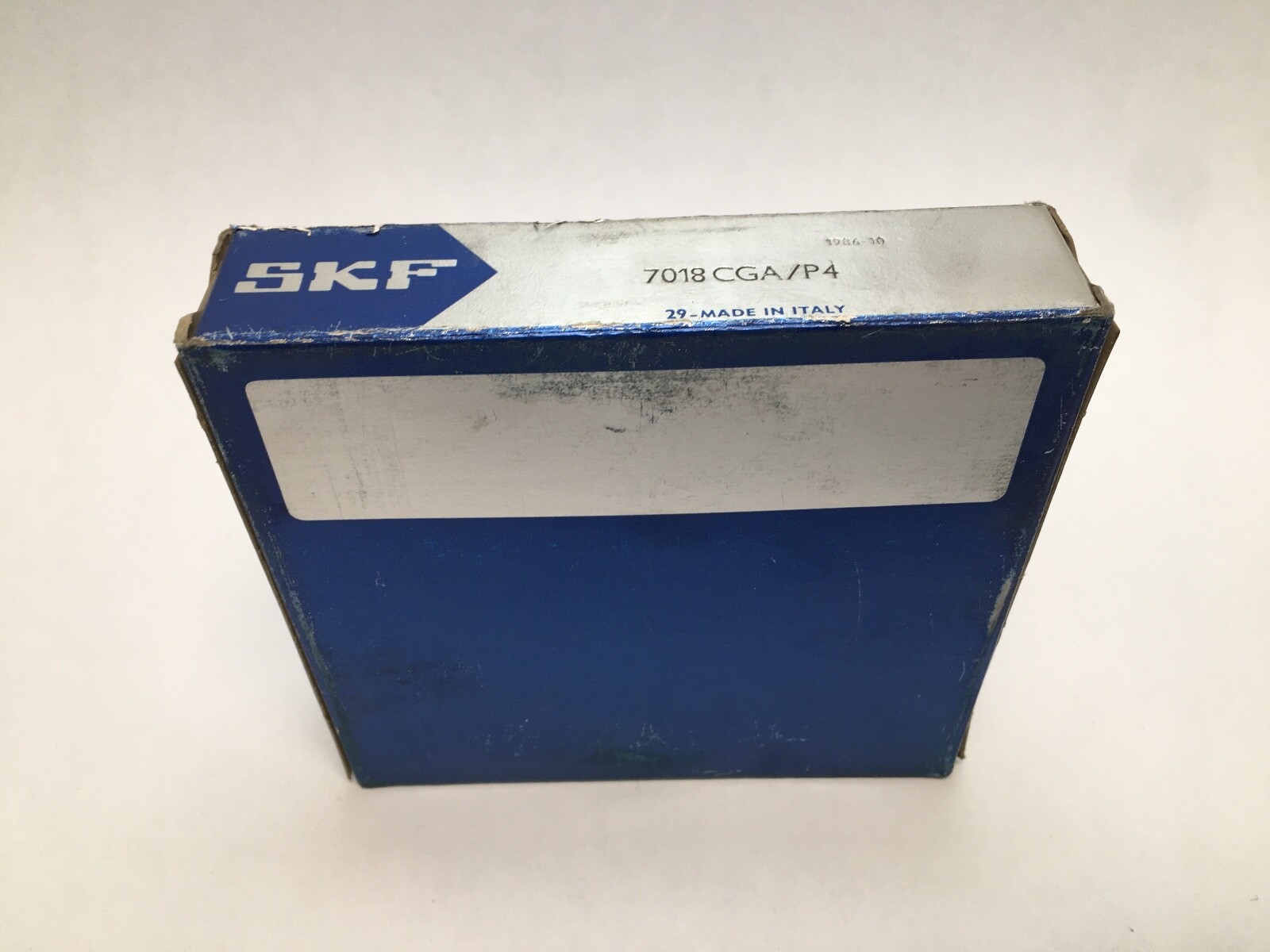

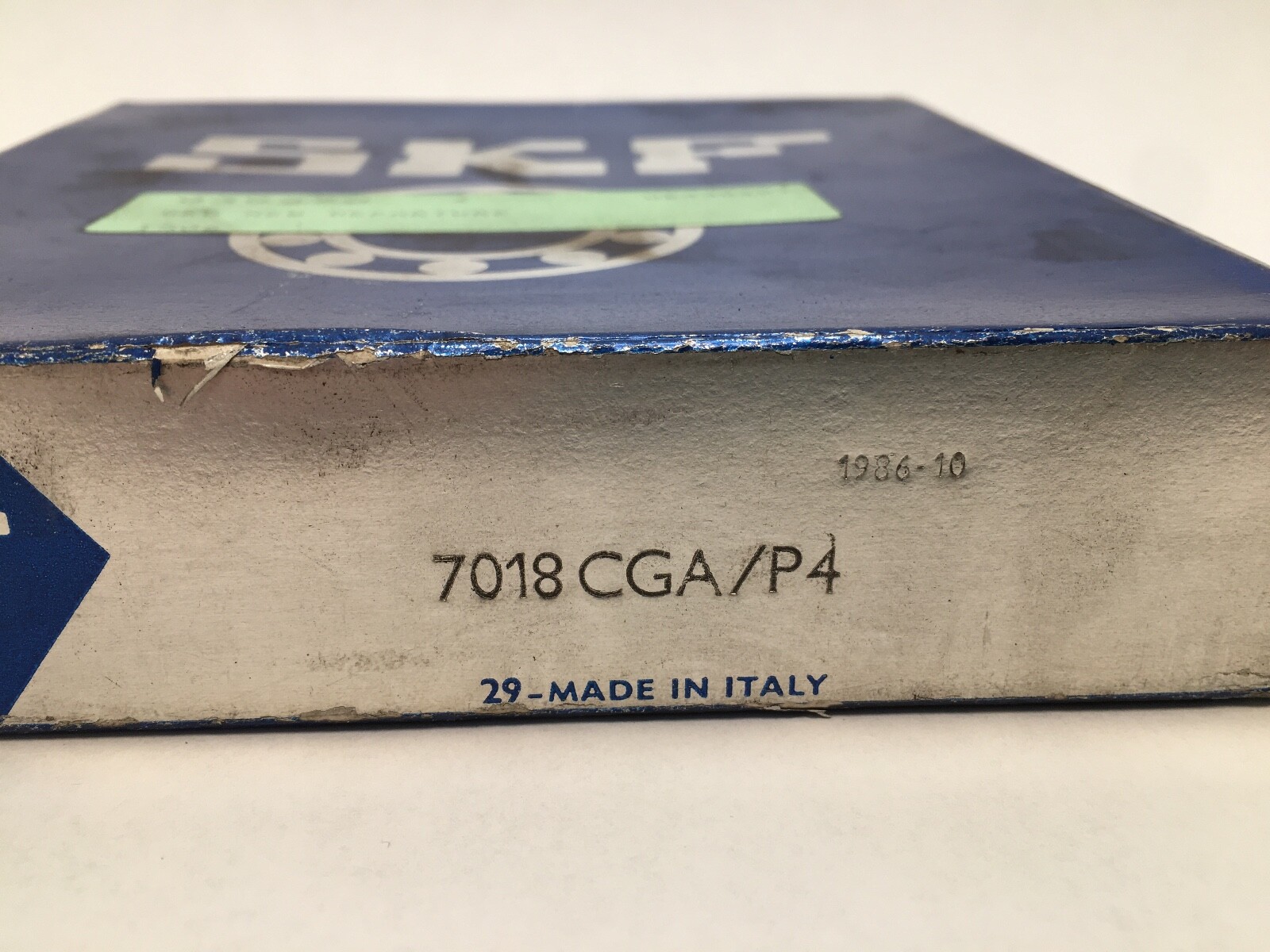

An SKF 7018 CGA/P4 super-precision angular contact ball bearing, single row, universally matchable. Steel rings, steel balls, open on both faces.
70 — ISO 70 dimension series; bore code 18 gives a 90 mm bore.
C — 15° contact angle in SKF’s scheme.
GA — universally matchable design, extra light preload.
/P4 — ISO tolerance class 4, equivalent to ABEC 7.
A 15° contact angle favours speed and radial stiffness over thrust capacity, which is the standard choice for a spindle front position. Extra light preload holds a low running temperature and low frictional torque, at some cost in axial stiffness. Universal matching means the ring faces are flush-ground to a common height, so any two rings of this designation seat together back-to-back, face-to-face or in tandem and reach the marked preload with no shim stack. P4 tolerances hold the bore, outside diameter and running accuracy to ISO class 4.
Bore: 90 mm (3.5433 in). Outside diameter: 140 mm (5.5118 in). Width: 24 mm (0.9449 in). Contact angle: 15°. Precision class: P4 (ABEC 7). Preload: extra light (GA). Rolling elements: steel balls, single row. Closure: open both faces.
1 Pc, a universally matchable single at extra light preload.
ISO base number 7018. Searchable forms are 7018 CGA/P4, 7018CGA/P4, 7018CGAP4, 7018-CGA-P4 and 7018 CGA P4. SKF 7018 ACGA/P4 is the same size at 25°. SKF 7018 CGB/P4 and 7018 CGC/P4 are the same bearing at light and medium preload.
