Super-precision angular contact ball bearing, 80 x 125 x 22 mm, 15° contact angle, high-capacity D design, universally matchable, light preload.
List Price
$864.43
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing – 80 mm ID, 125 mm OD, 22 mm Width, Open, 15°, Medium Preload, ABEC 7, Matched Pair$404.51
Angular Contact Ball Bearing – 80 mm Bore, 125 mm OD, 22 mm Width, 15° Contact Angle, ABEC 5$107.08
Super-Precision Angular Contact Ball Bearing - 80 mm ID, 125 mm OD, 22 mm Width, 15° Contact Angle, Light Preload, ABEC 7$202.26
Super-Precision Angular Contact Ball Bearing - Straight Bore, 80 mm ID, 125 mm OD, 22 mm Width, Open, 15° Contact Angle, Heavy Preload, Universal Duplex, ABEC 7$202.26| MFR / Brand | SKF |
|---|---|
| MPN | 7016 CD/P4ADGB |
| Model | 7016CD/P4A DGB |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Bearing steel |
|---|---|
| Series | 7000 |
| Lubricant | Supplied unlubricated |
| Preload | Light |
| Unspsc | 31171531 |
| Base Number | 7016 |
| Industry Terms | Super precision spindle bearing, ABEC 7 angular contact, high-capacity D design, universally matchable, matched bearing set, light preload, P4A |
| Common Misspellings | 7016CD P4A DGB, 7016 CD/P4A DBG, 7016CDP4ADGP, SKF 7016CDP4A-DGB |
| Bore Shaft Size | 80 mm |
| Mpn Variants | 7016 CD/P4ADGB, 7016CD/P4ADGB, 7016-CD/P4ADGB, 7016CDP4ADGB, 7016 CD P4A DGB, 7016 CDGB/P4A, 7016CD/P4A DGB |
| Compatible With Replaces | Machine tool spindles, grinding heads, precision pumps and rotary tables using an 80 mm bore 15° super-precision angular contact set |
| Precision Class | P4A |
| Additional Attributes | Fatigue load limit 2.55 kN; 20 balls of 14.288 mm; reference grease quantity 11.1 cm3; pressure point distance a 24.8 mm; oil nozzle position dn 96.9 mm |
| Dynamic Load Rating | 65,000 N |
| Static Load Rating | 61,000 N |
| Rolling Elements | Balls |
| Item Weight | 0.842 kg (1.86 lb) |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable |
| Part Number | 7016 CD/P4ADGB |
| Running Accuracy Radial And Axial Runout | 0.002 mm |
| Cross Reference 1 | SKF 7016 CD/P4ADGA - extra light preload |
|---|---|
| Cross Reference 2 | SKF 7016 ACD/P4ADGB - 25 deg contact angle |
| Cross Reference 3 | NSK 7016CTRDUMP4 - P4, medium preload |
| Cross Reference 4 | Fafnir 2MM9116WI-DUM - P4, medium preload |
| Cross Reference 5 | FAG B7016C.T.P4S.DUM - P4S, medium preload |

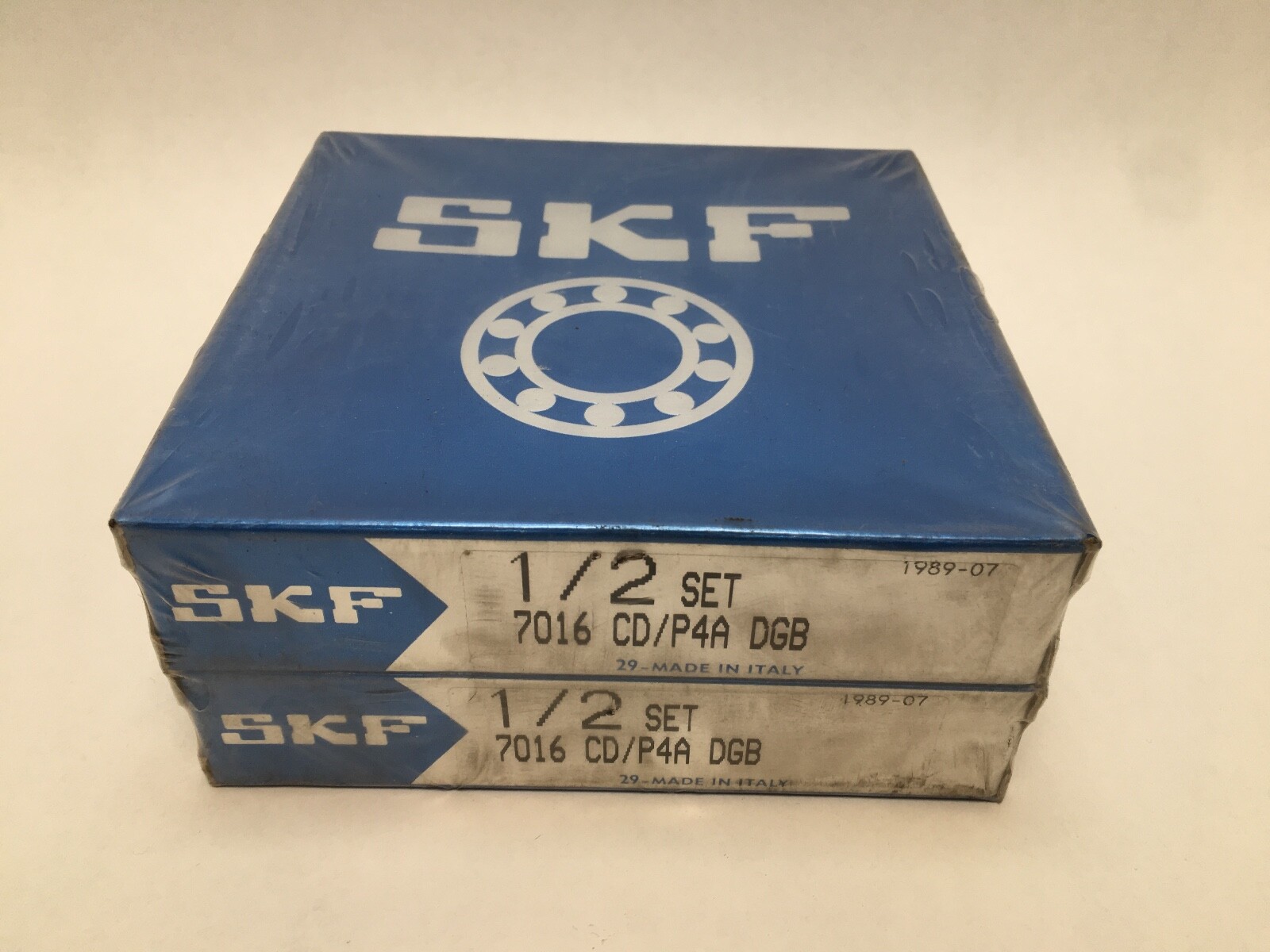

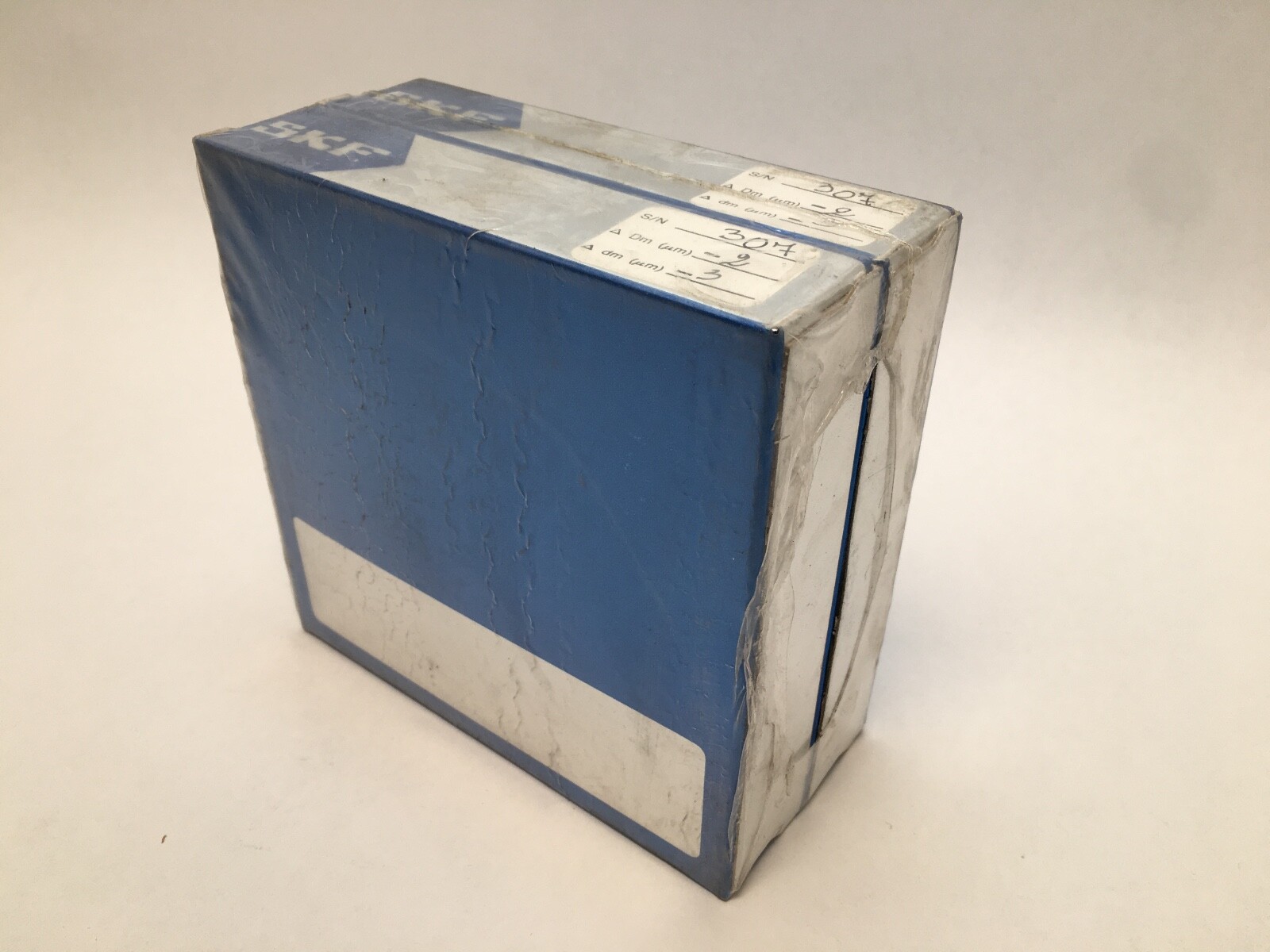

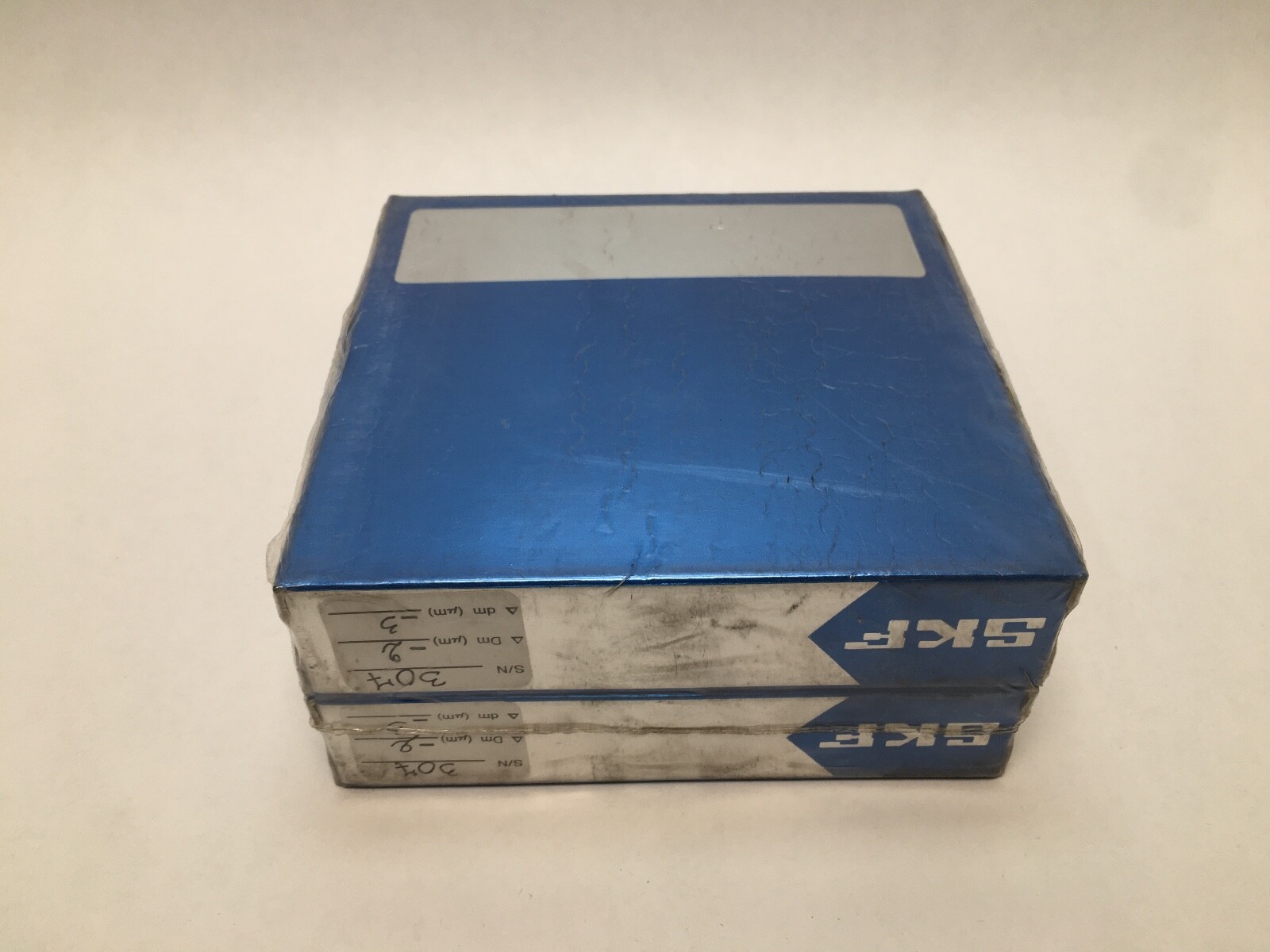

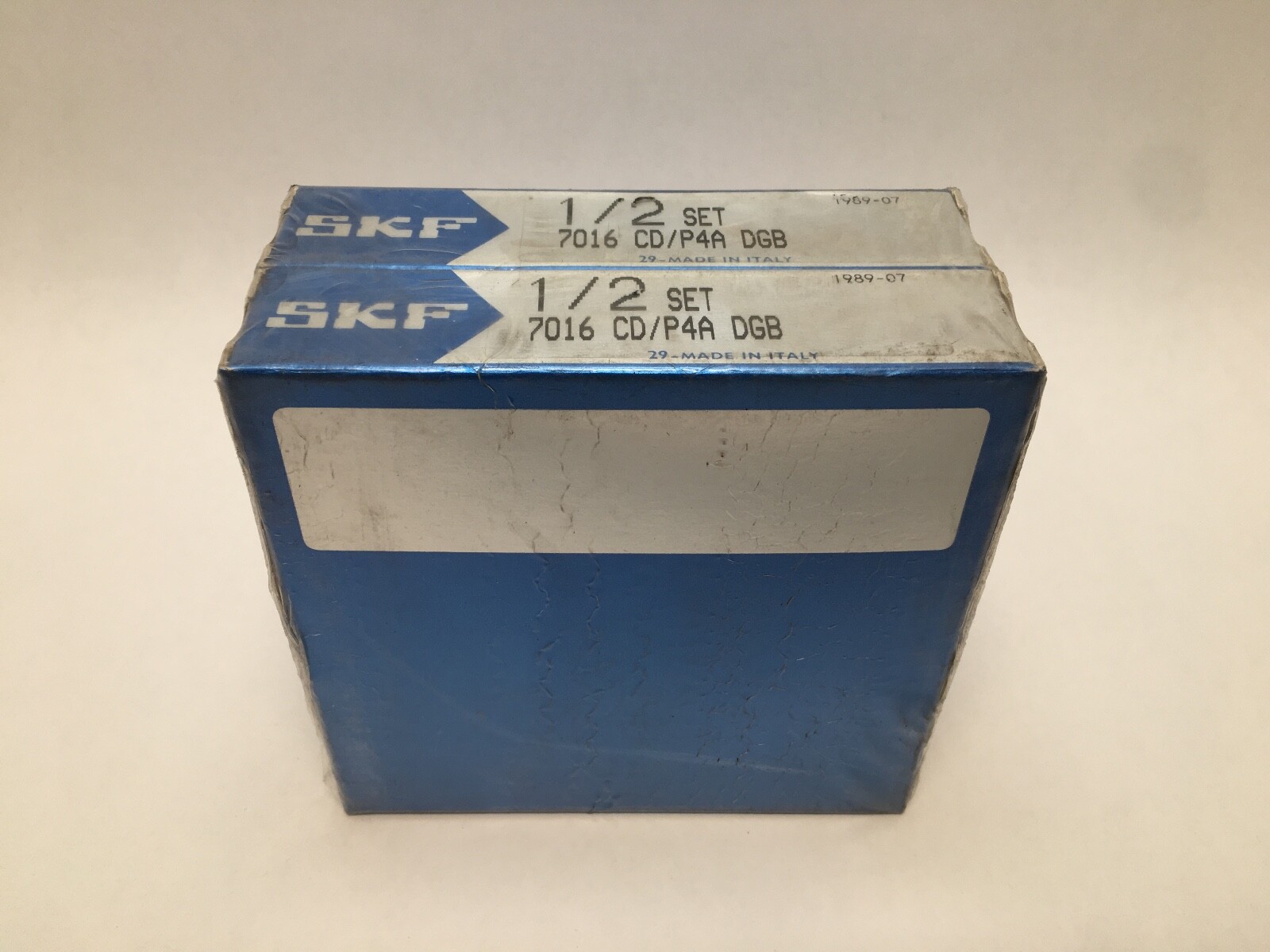

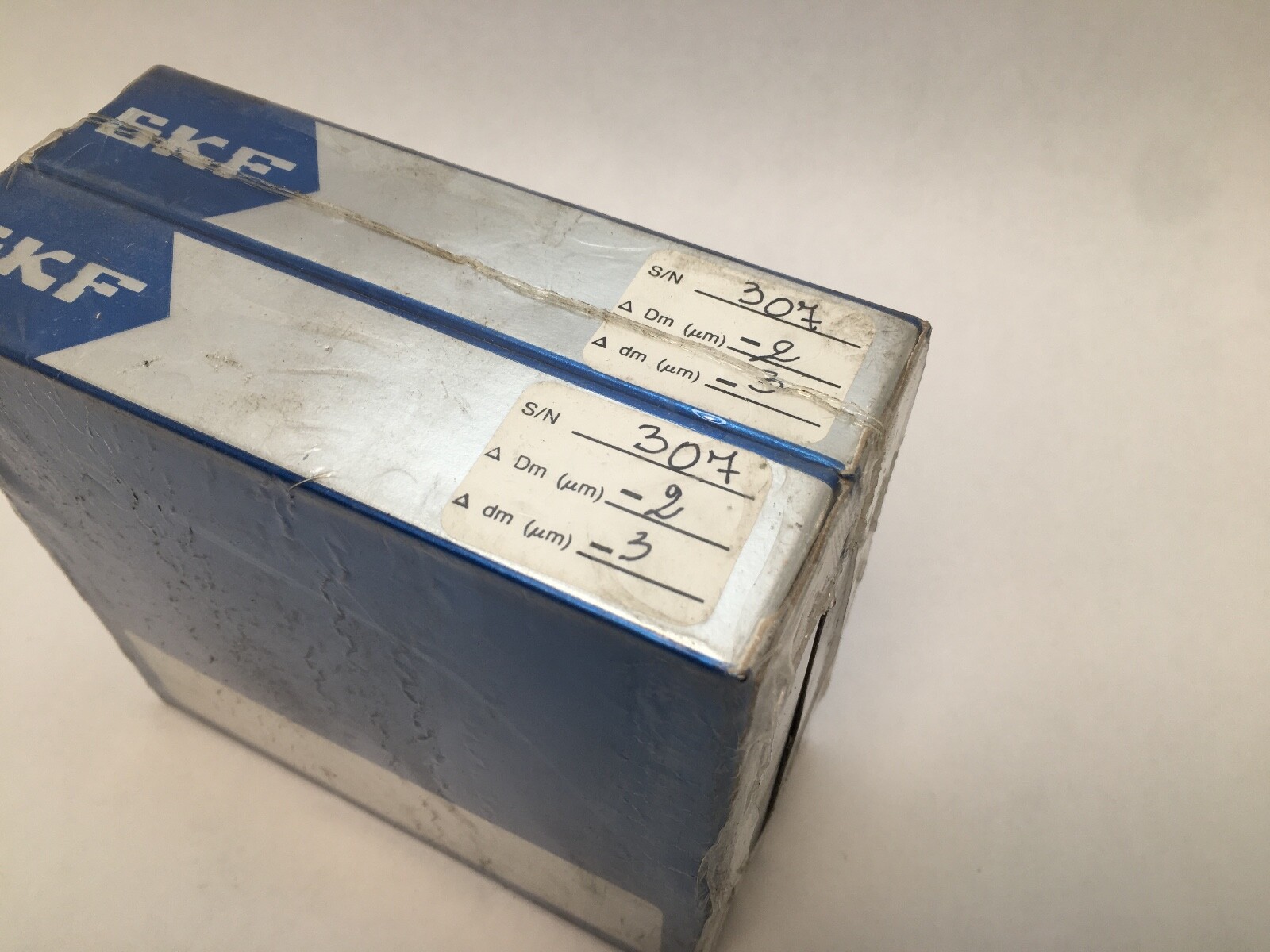

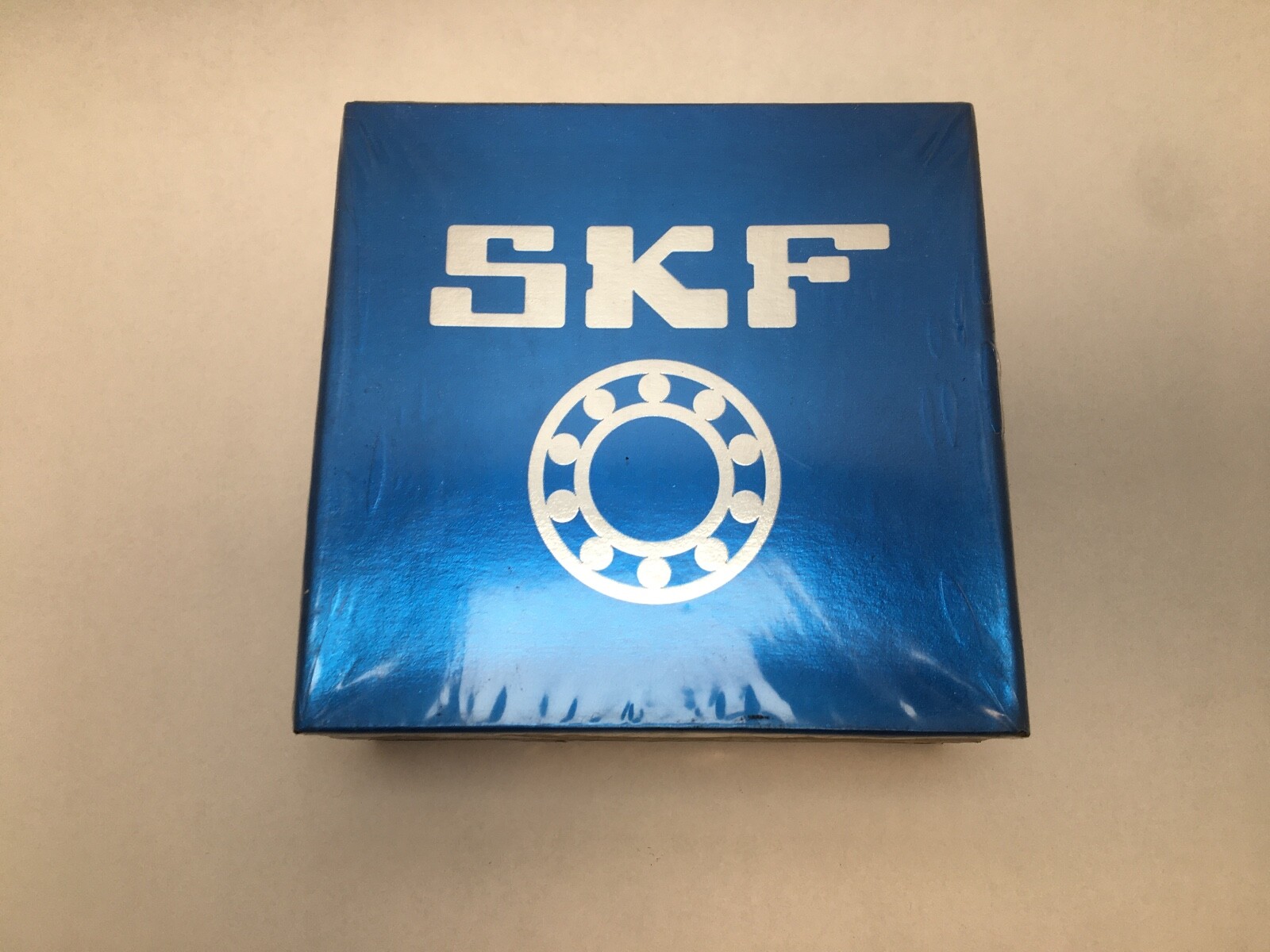

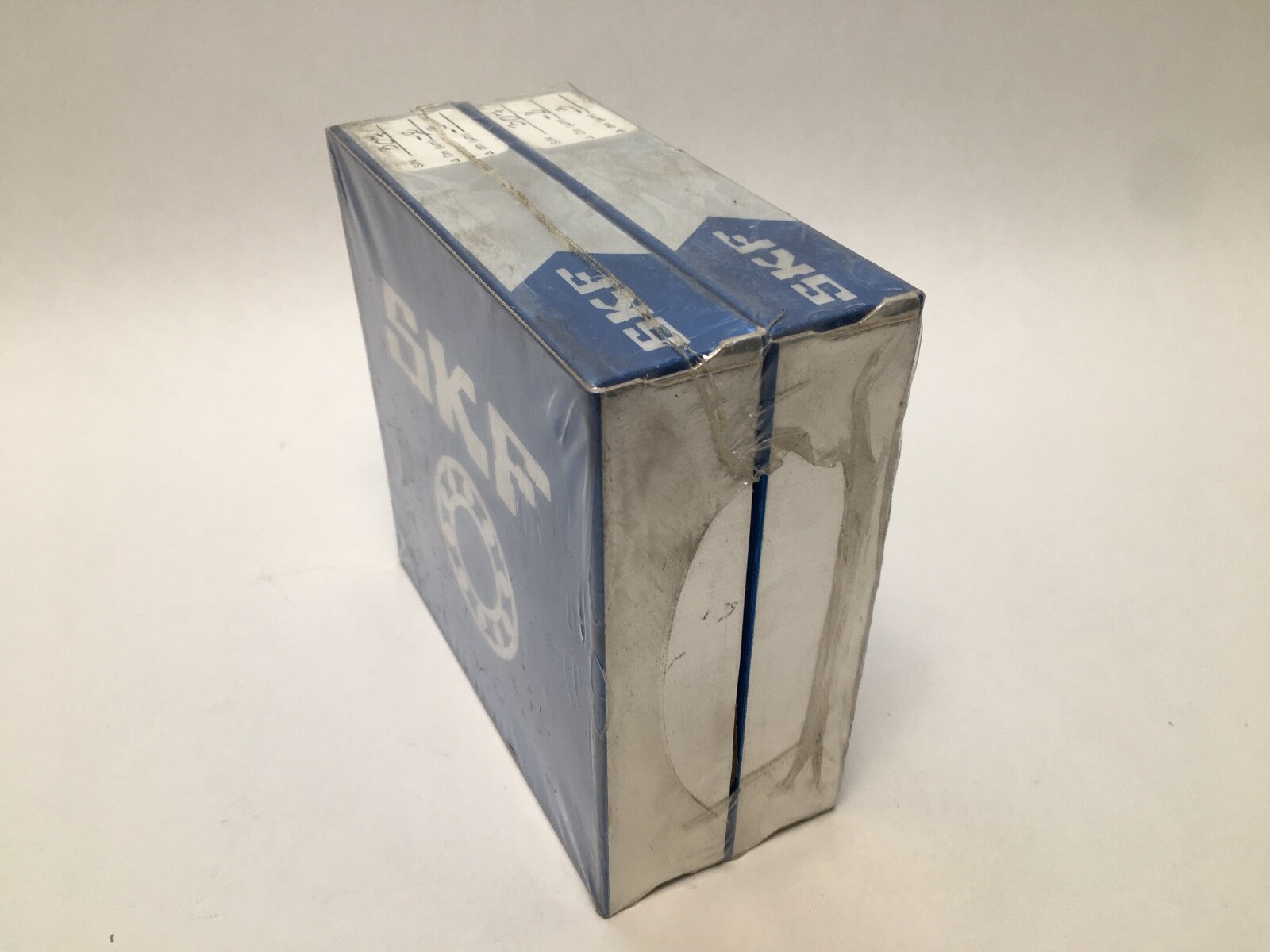

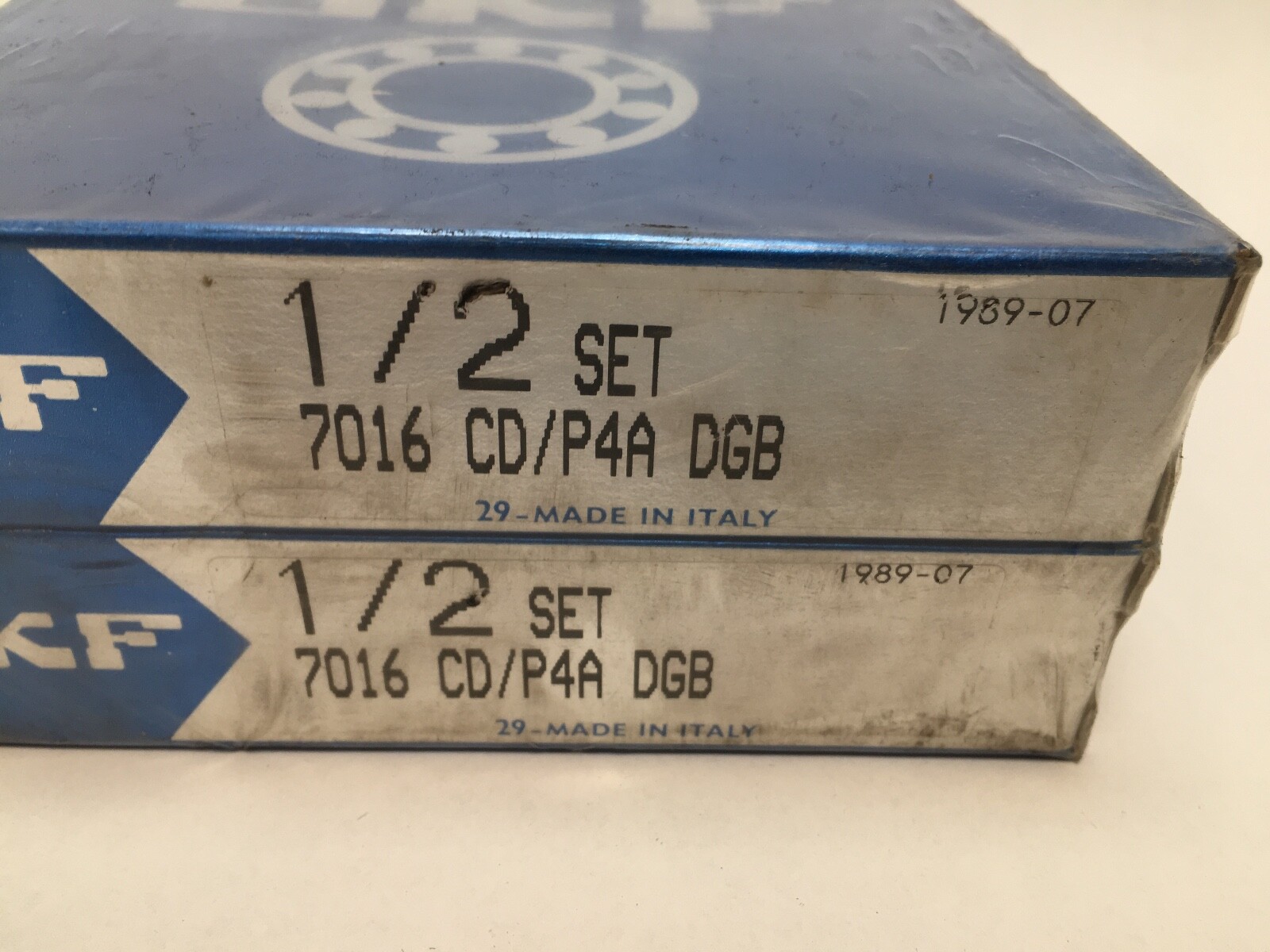

SKF 7016 CD/P4ADGB super-precision angular contact ball bearing, supplied as a matched set. Bore 80 mm, outside diameter 125 mm, width 22 mm. Series 70, single row, 15° contact angle, high-capacity D design. Open on both faces, one-piece inner and outer rings, machined cage. Country of Origin: Italy.
7016 — 70 series, 80 mm bore.
CD — 15° contact angle in SKF’s high-capacity D design.
P4A — SKF super-precision tolerance class with measuring load class A.
DGB — universally matchable, light preload.
Bore Diameter: 80 mm. Outside Diameter: 125 mm. Overall Width: 22 mm. Contact Angle: 15°. Precision Class: P4A. Dynamic Load Rating: 65,000 N. Static Load Rating: 61,000 N. Fatigue Load Limit: 2,550 N. Preload: Light. Radial and Axial Runout: 0.002 mm. Item Weight: 0.842 kg (1.86 lb) per bearing. Rolling Elements: 20 balls of 14.288 mm. Reference Grease Quantity: 11.1 cm³ per bearing. Closure Type: Open. Mounting Arrangement: Universally matchable.
Shaft abutment diameter da: 86 mm minimum. Housing abutment diameters Da 119 mm and Db 121 mm maximum. Fillet radii ra 1 mm and rb 0.6 mm maximum. Chamfer dimensions r1 1.1 mm and r2 0.6 mm minimum. Distance from side face to pressure point a: 24.8 mm. Oil nozzle position dn: 96.9 mm. Inner ring shoulder diameter 93.9 mm. Outer ring shoulder diameter 111.1 mm. Universally ground faces allow back-to-back, face-to-face or tandem arrangement.
Cross-references: SKF 7016 CD/P4ADGA (extra light preload); SKF 7016 ACD/P4ADGB (25° contact angle); NSK 7016CTRDUMP4 (P4, medium preload); Fafnir 2MM9116WI-DUM (P4, medium preload); FAG B7016C.T.P4S.DUM (P4S, medium preload). MPN variants: 7016 CD/P4ADGB, 7016CD/P4ADGB, 7016-CD/P4ADGB, 7016CDP4ADGB, 7016 CD P4A DGB, 7016 CDGB/P4A.
Basic dynamic load rating 65 kN and basic static load rating 61 kN (SKF).
DGB marks a universally matchable bearing at light preload.
15 degrees (CD design).
