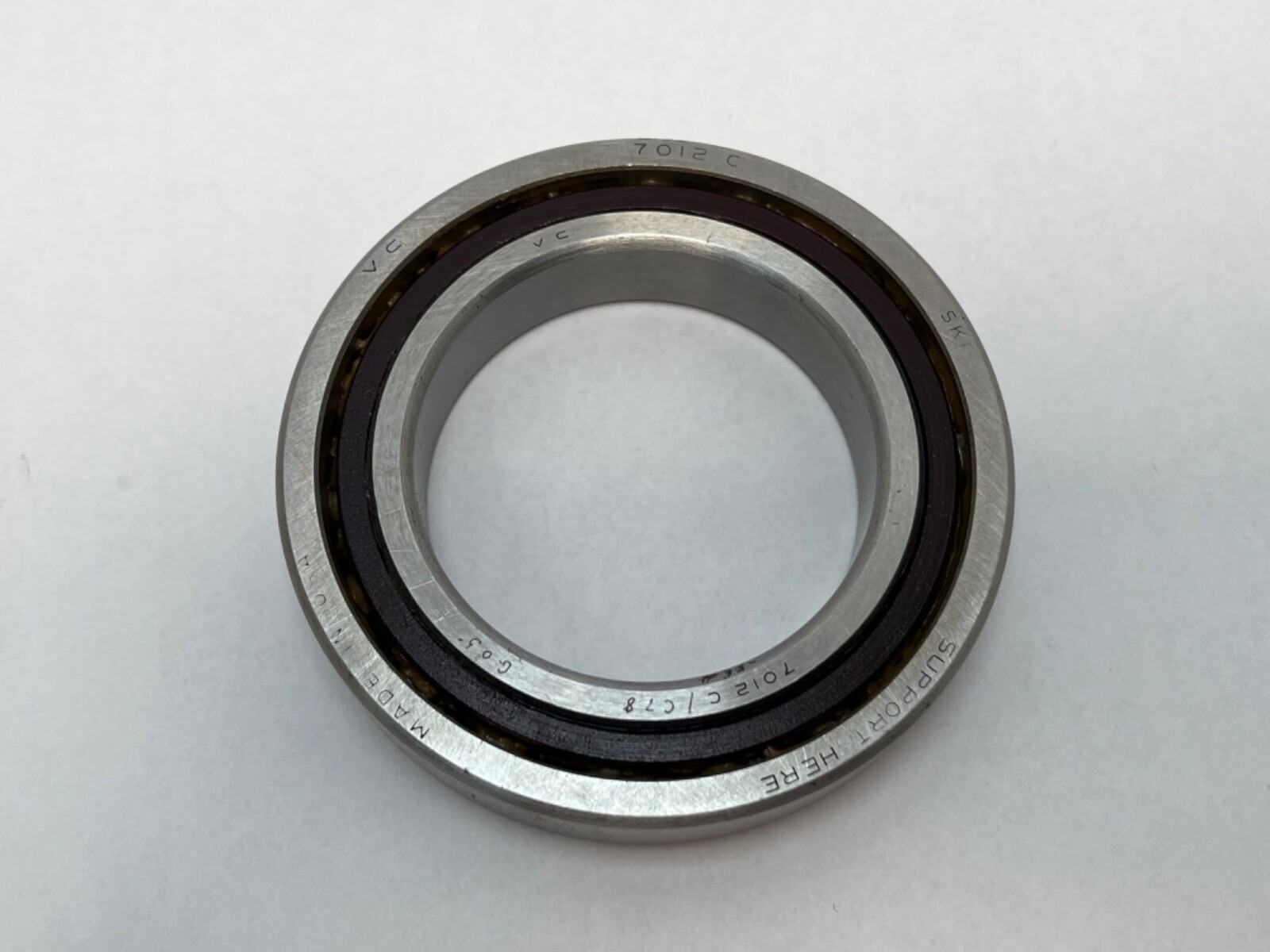

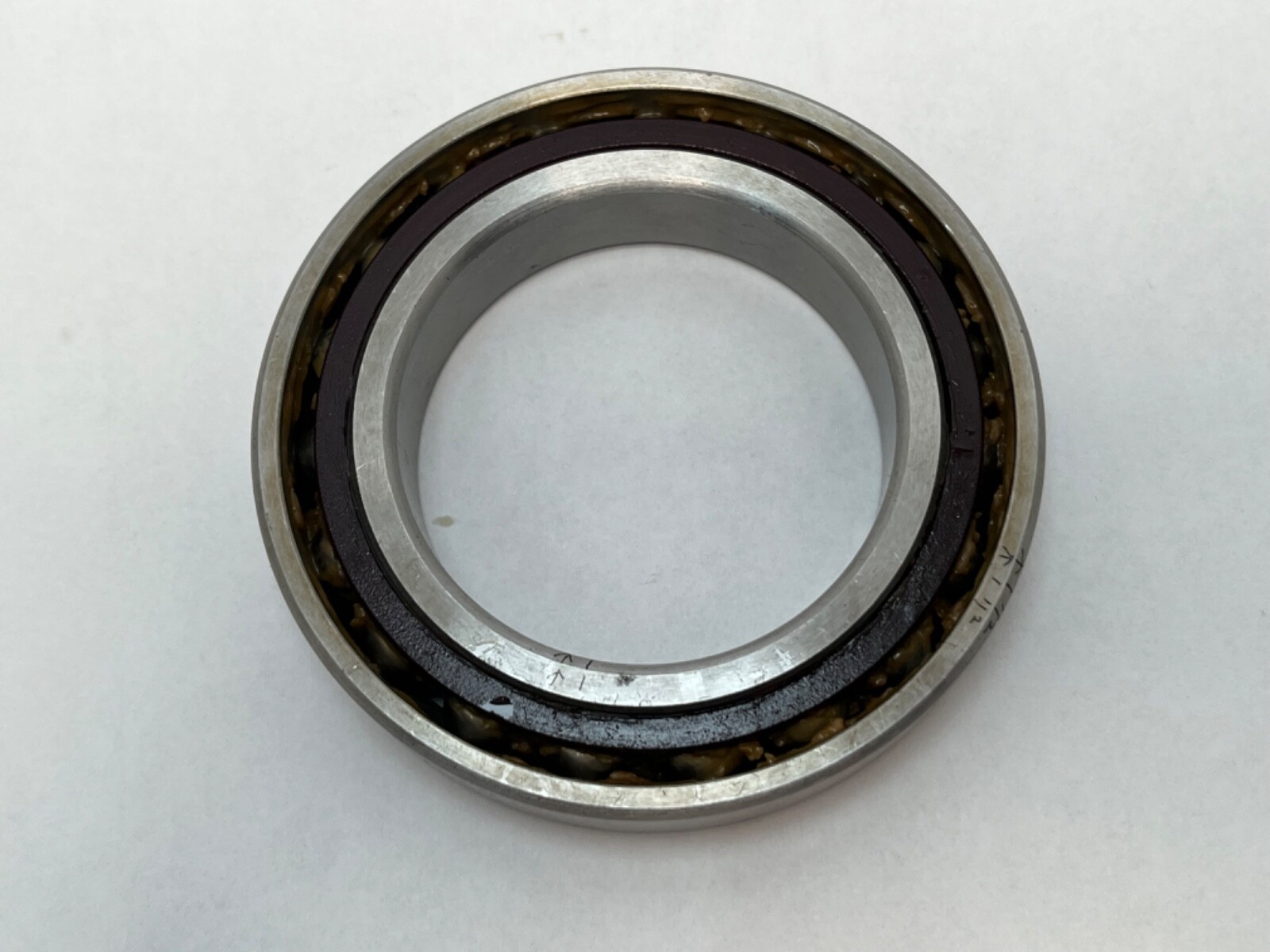

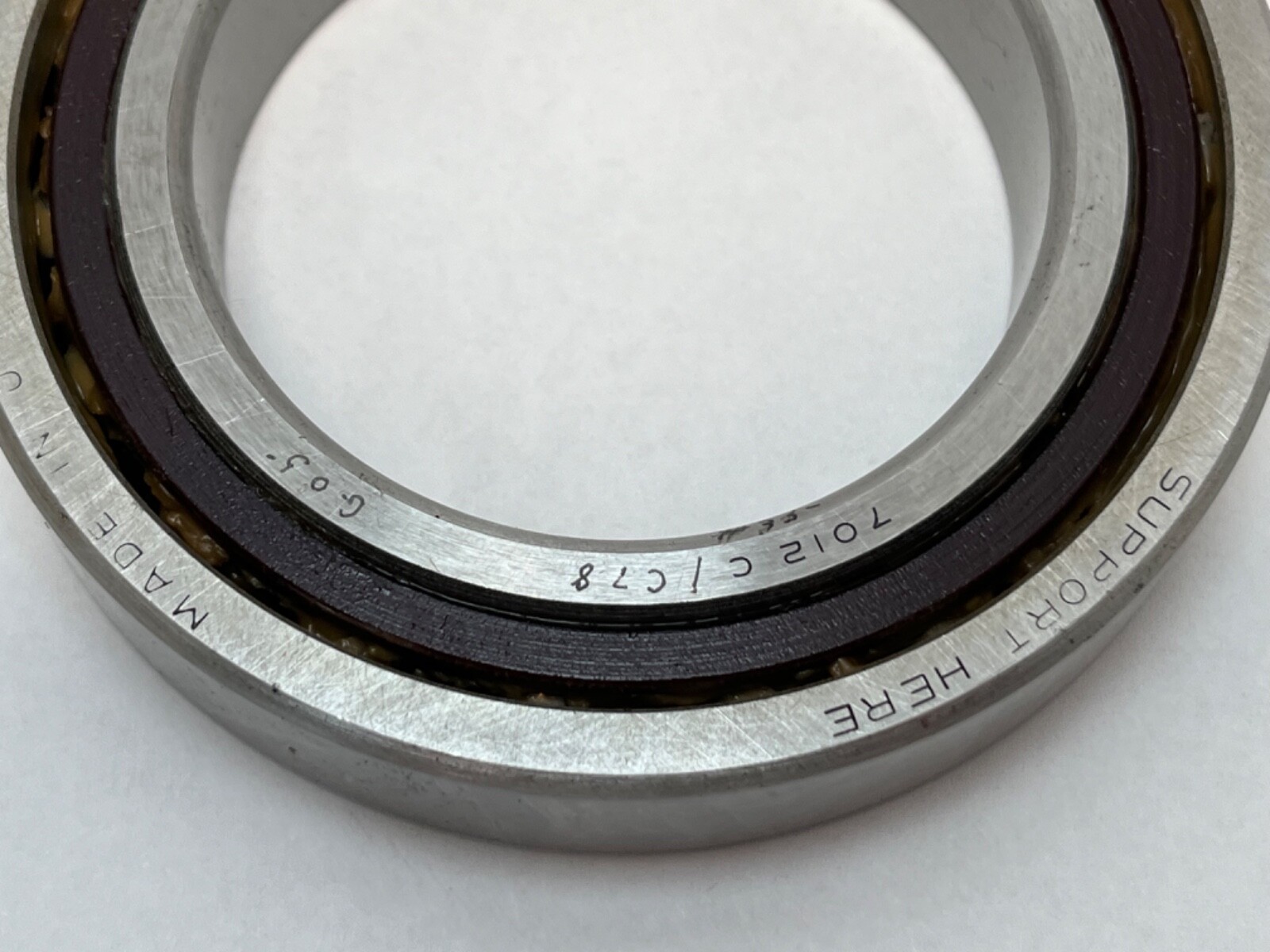

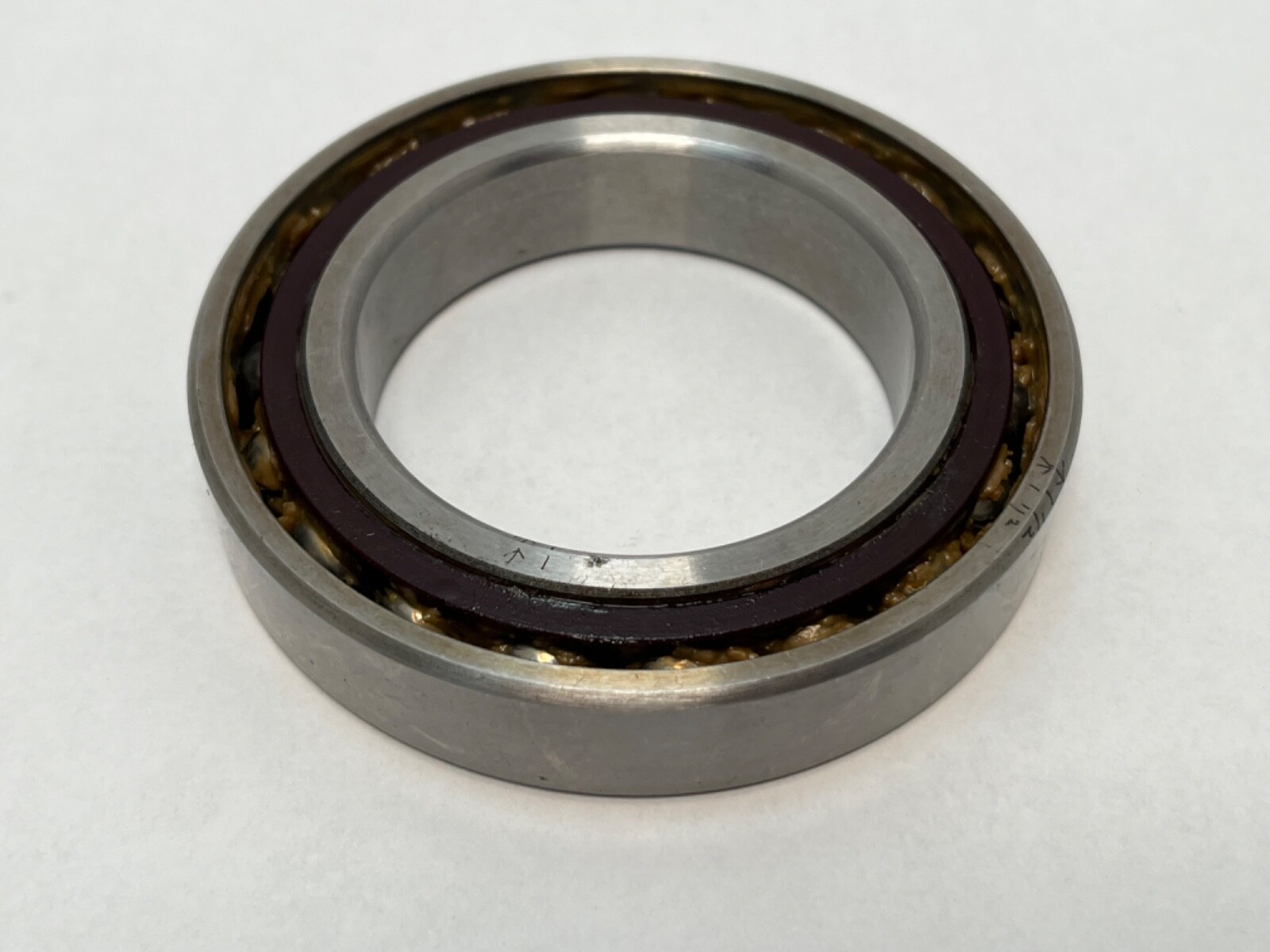

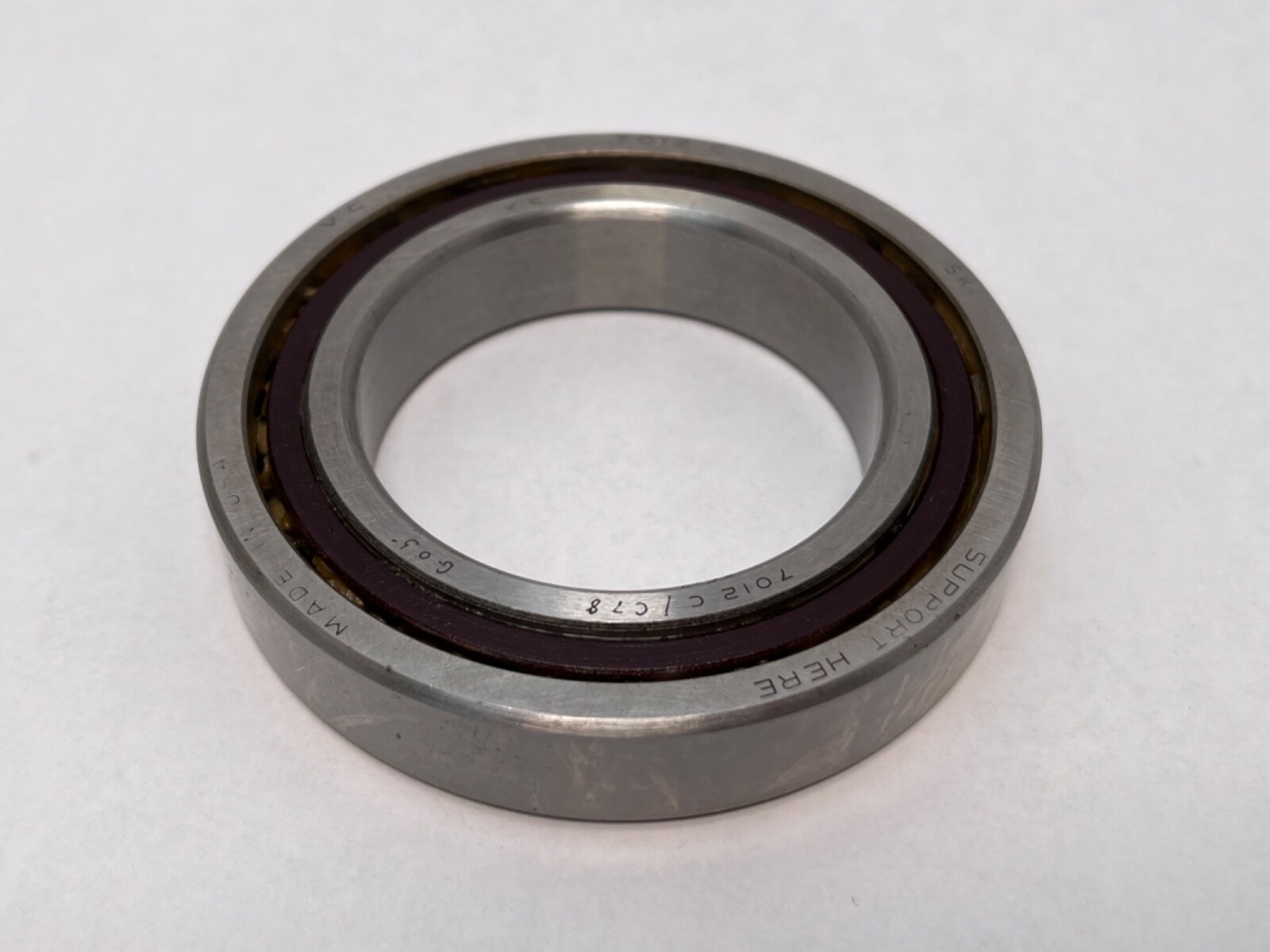

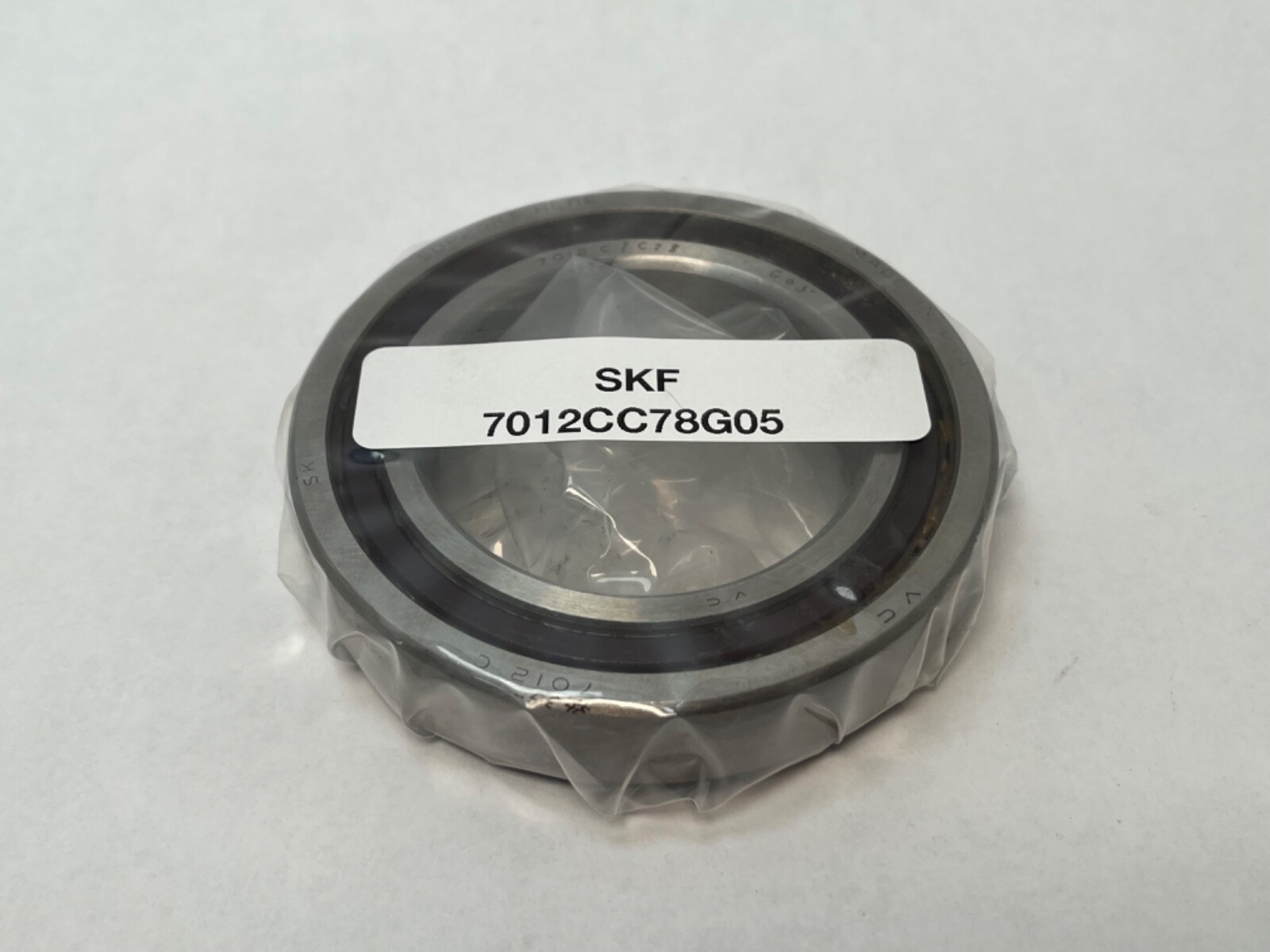

Super Precision Angular Contact Ball Bearing 60x95x18 mm, 15° Contact Angle, Phenolic Cage, ABEC 7, Light Preload, Duplex Universally Ground$276.79| MFR / Brand | SKF |
|---|---|
| MPN | 7012CTCC78G05 |
| Model | 7012 C TC C78 G05 / 2M9112WI CR / ABEC5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 95 mm |
| Width | 18 mm |
| Series | 7000 |
|---|---|
| Material | Bearing Steel |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 29.1 kN / 6540 lbf |
| Static Load Rating | 22 kN / 4950 lbf |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Item Weight | 1.05 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Single Universal |
| Limiting Speed | 20000 rpm |
