Ball screw support cartridge unit, 30 mm bore, 88 mm housing OD, 82 mm long. Quad set of 60 degree angular contact thrust bearings, heavy preload.
List Price
$650.22
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Ball Screw Support Cartridge Unit - 30 mm Bore, 80 mm OD, 52 mm Overall Length, Duplex Universal, Heavy Preload, P3 Precision$328.88
Angular Contact Ball Bearing - 30 mm ID, 55 mm OD, 13 mm Width, Open, 25° Contact Angle, Medium Preload, P4$75.77
Angular Contact Ball Bearing - Straight Bore, 30 mm ID, 62 mm OD, 16 mm Width, Open, 25° Contact Angle, Light Preload, Single Universal$76.08
Angular Contact Ball Bearing - 30 mm ID, 62 mm OD, 16 mm Width, 15° Contact Angle, ABEC 7 / P4, Light Preload, Open.$76.08| MFR / Brand | RHP |
|---|---|
| MPN | BSCU30080QUHP3 |
| Model | BSCU 30080 QUH P3 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 30 mm |
| OD | 88 mm |
| Width | 82 mm |
| Base Number | BSCU30080 |
|---|---|
| Industry Terms | ball screw support bearing, ball screw end bearing, thrust cartridge unit, 60 degree angular contact thrust bearing, screw support cartridge, feed axis bearing |
| Common Misspellings | BSCU30080QUHP3, BSCU 30080QUHP3, BSCU30080-QUH-P3, BCSU30080QUHP3, BSCU30080QUH P3 |
| Application Types | CNC machine tool feed axes, ball screw fixed-end supports, precision linear actuators, servo positioning stages |
| Total Width | 82 mm cartridge overall length (3.2283 in) |
| Bore Shaft Size | 30 mm (1.1811 in) |
| Mpn Variants | BSCU30080QUHP3, BSCU-30080-QUH-P3, BSCU 30080 QUH P3, BSCU30080QUH, BSCU30080, BSCU 30080 |
| Arrangement Configuration | QUH - quad set, four matched bearings, heavy preload, in a cartridge housing |
| Precision Class | P3 |
| Series | BSCU (ball screw support cartridge unit) |
| Rolling Elements | Balls |
| Number Of Rows | 4 (quad set) |
| Bore Type | Straight (cylindrical) |
| Internal Clearance | N/A |
| Contact Angle | 60 degrees |
| Preload | Heavy (H) |
| Design Units | Metric |
| Part Number | BSCU30080QUHP3 |
| Cross Reference 1 | RHP BSB030080 (loose-bearing equivalent size, 30 x 80 mm, 60 degree) |
|---|---|
| Cross Reference 2 | NSK BSF3080 (same 30 x 80 mm ball screw support size, NSK designation) |
| Cross Reference 3 | BSCU30080DUH (related part, duplex pair instead of a quad set, lower total stiffness) |
| Cross Reference 4 | BSCU30080QUL / BSCU30080QUM (related parts, light and medium preload instead of heavy) |

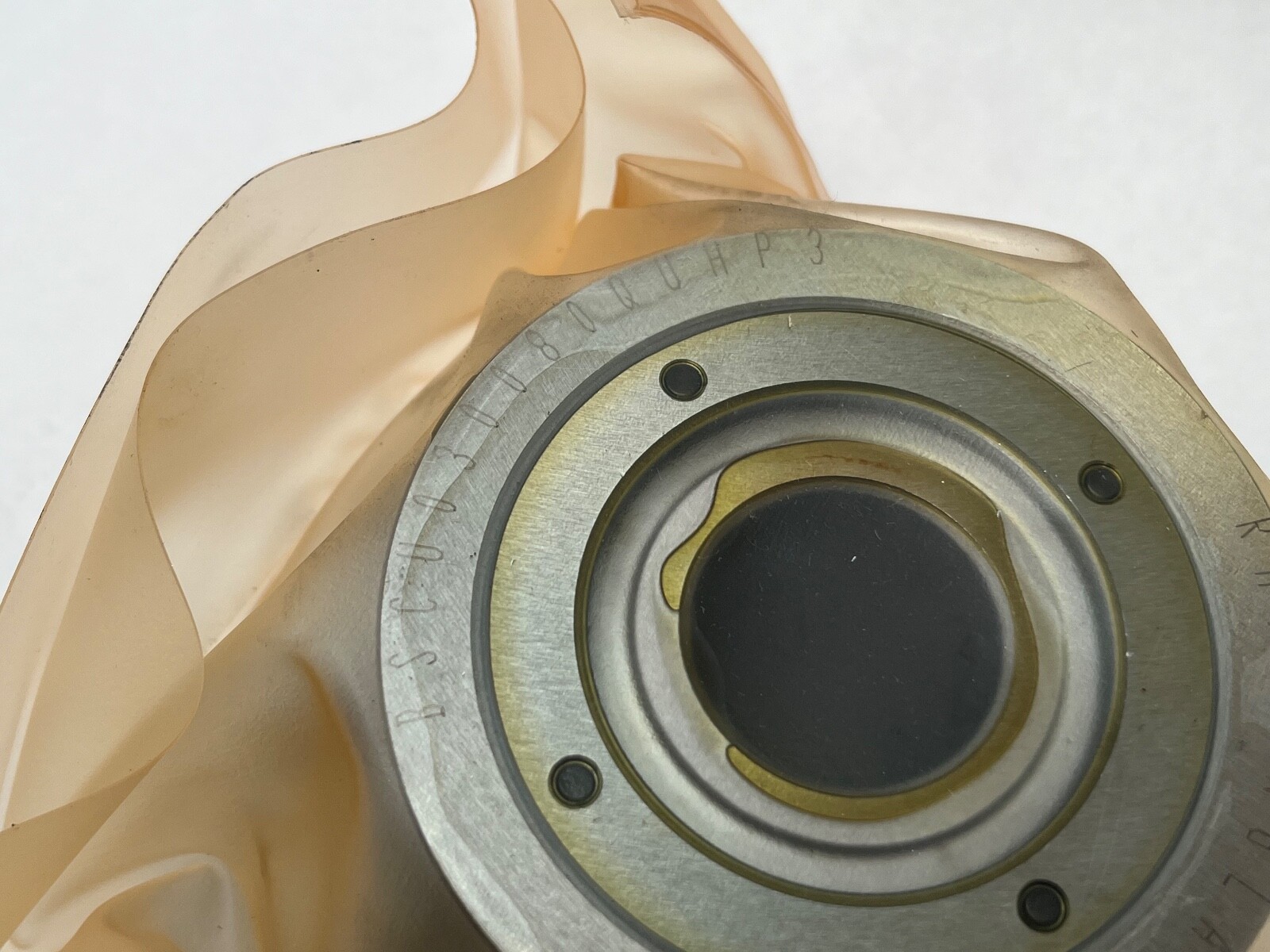

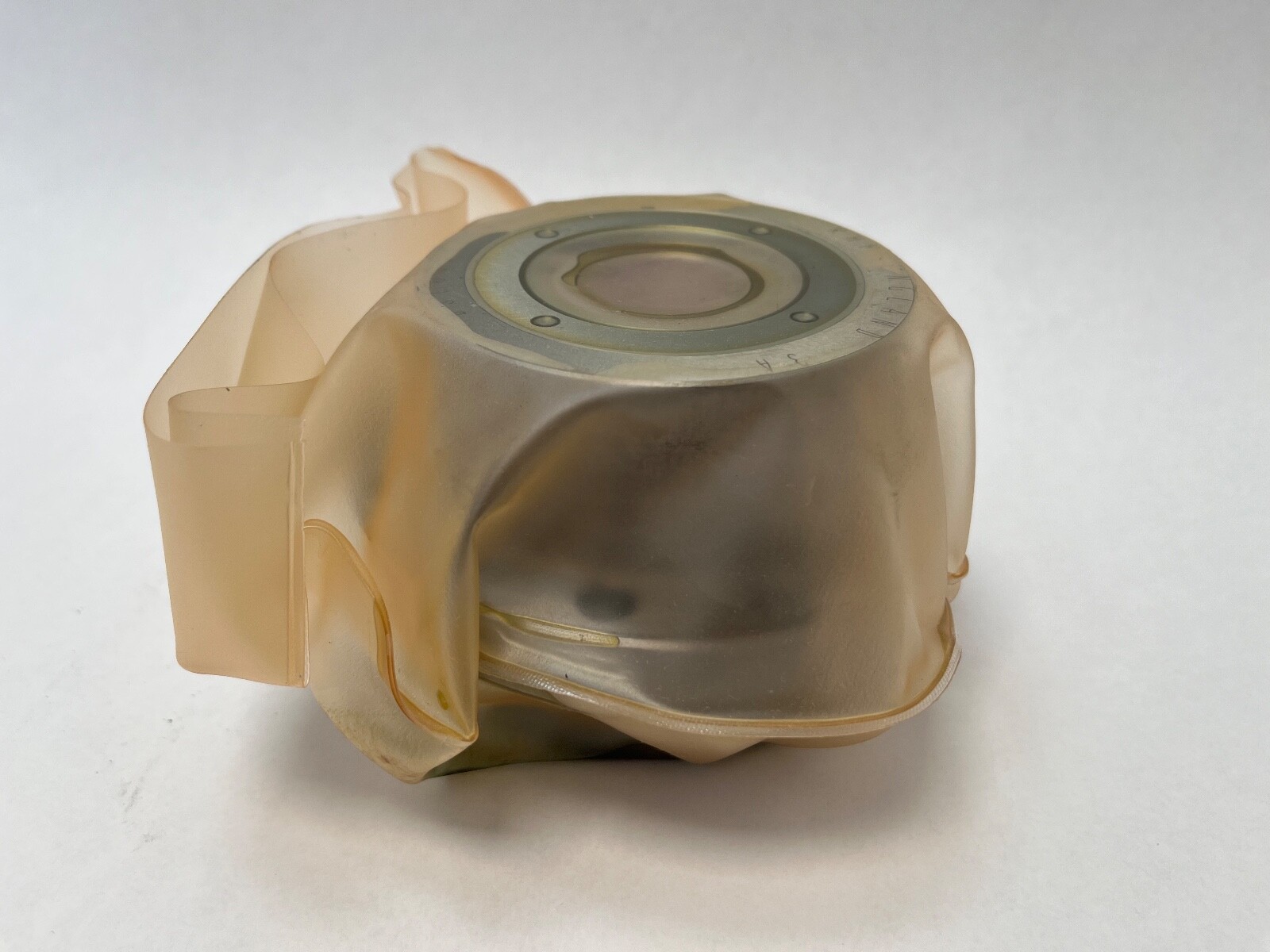

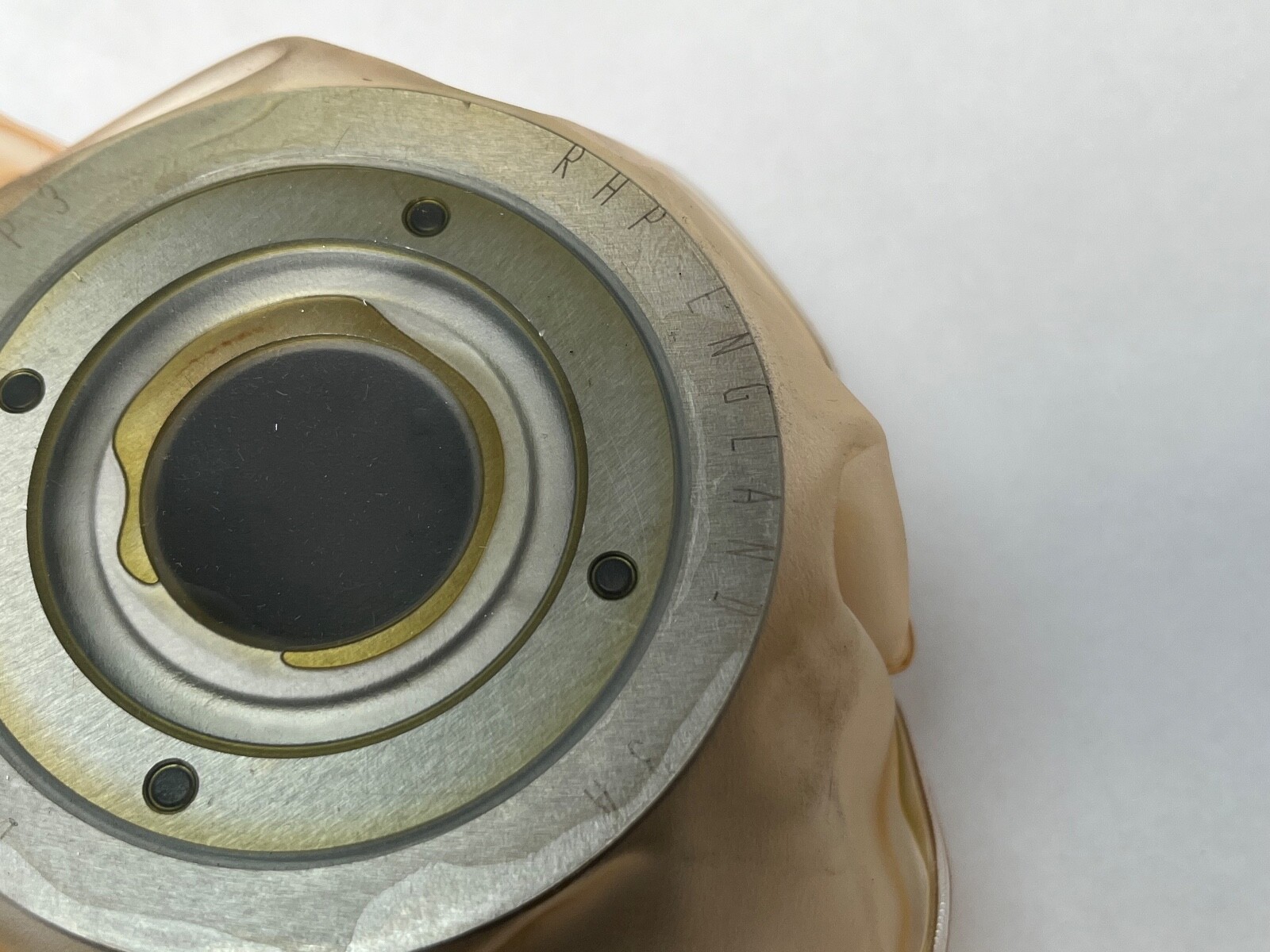

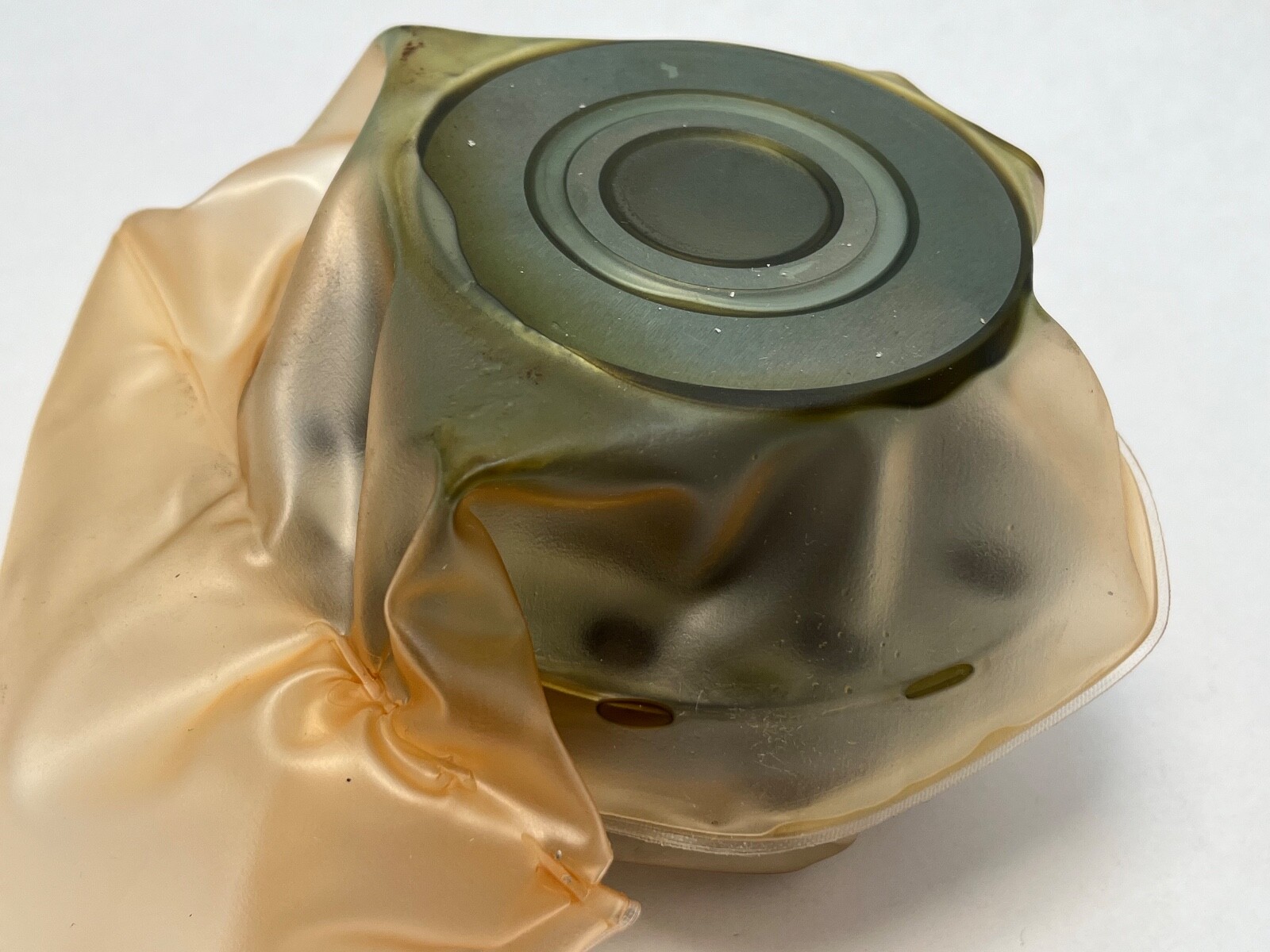

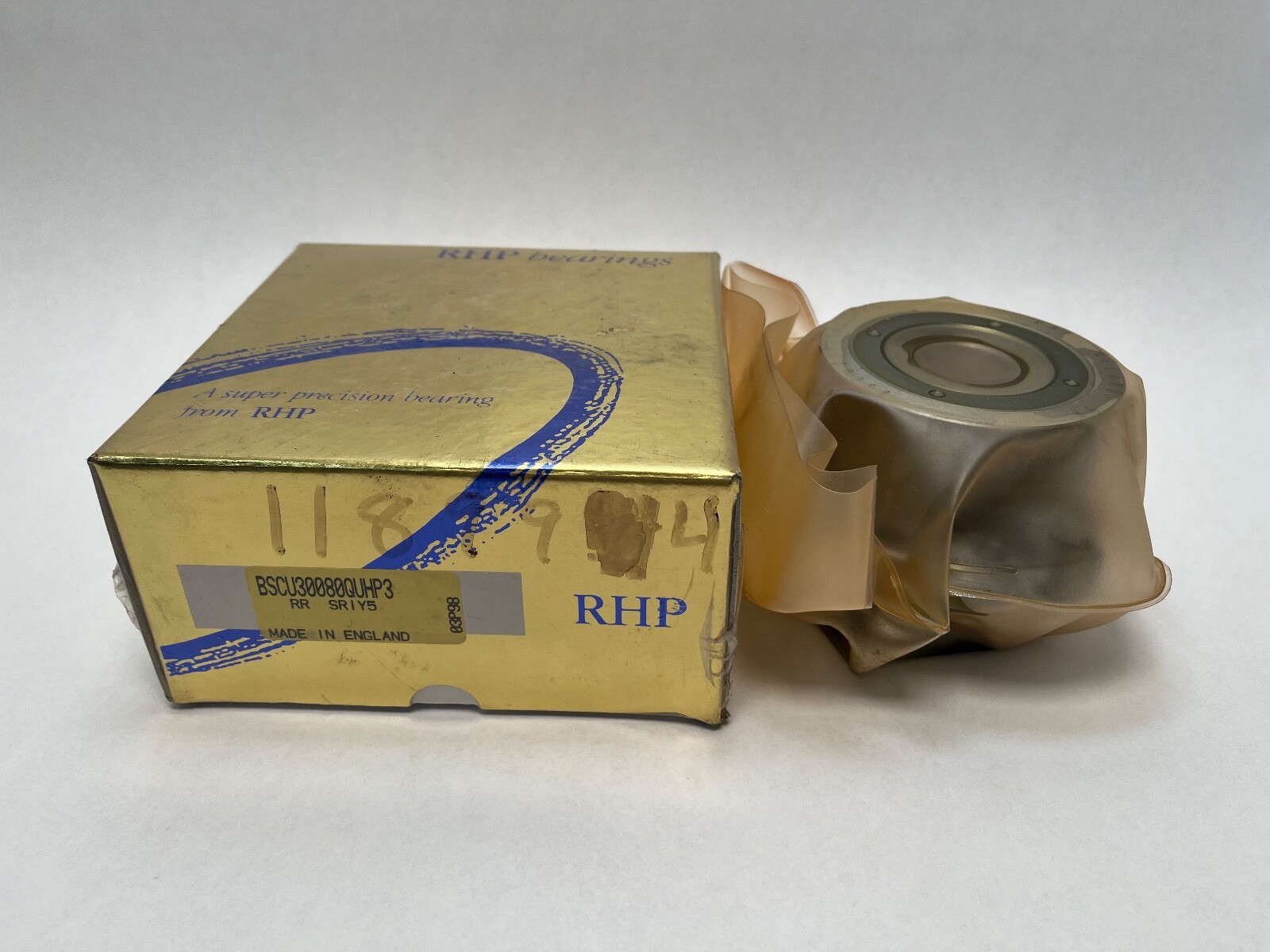

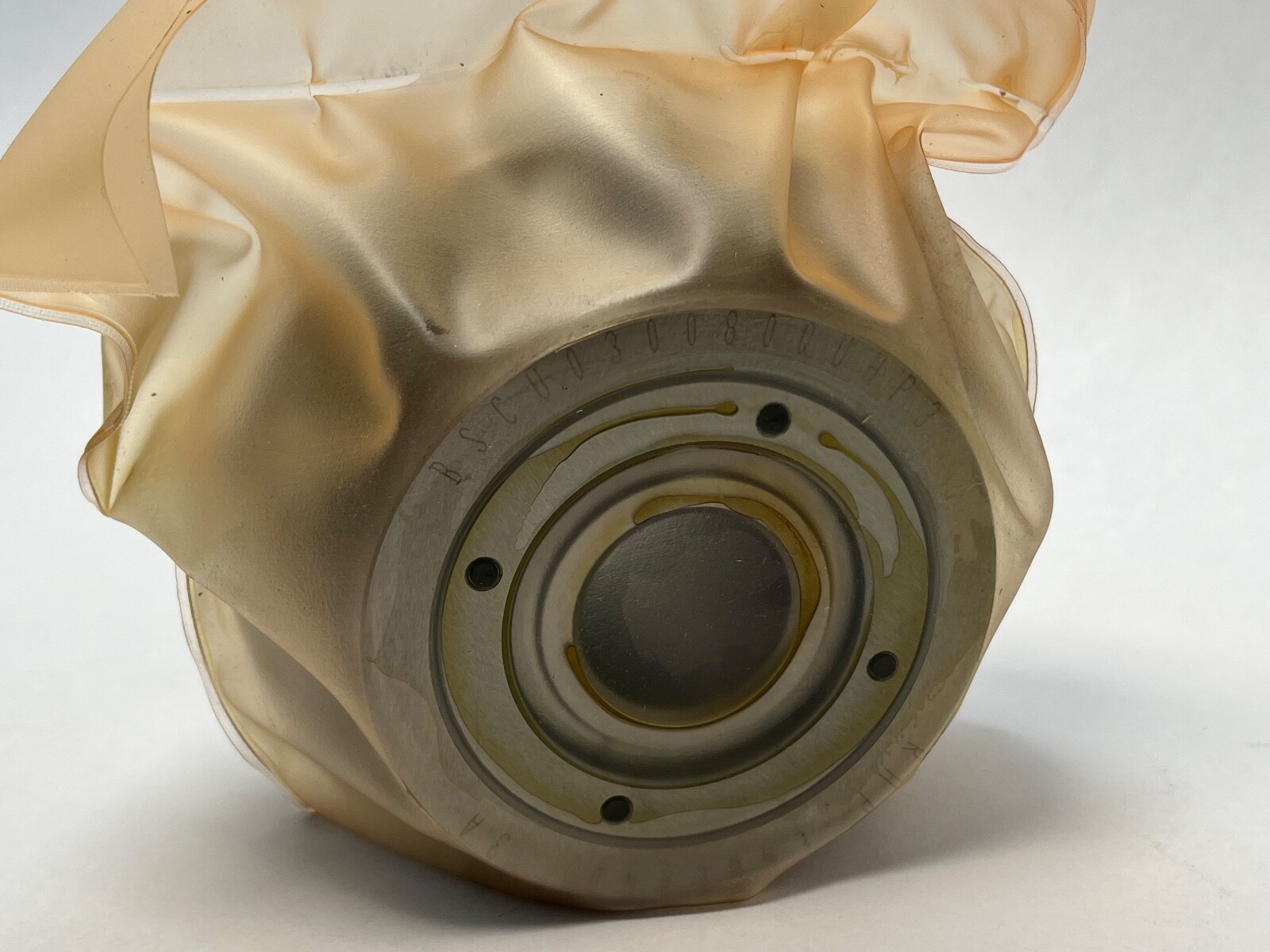

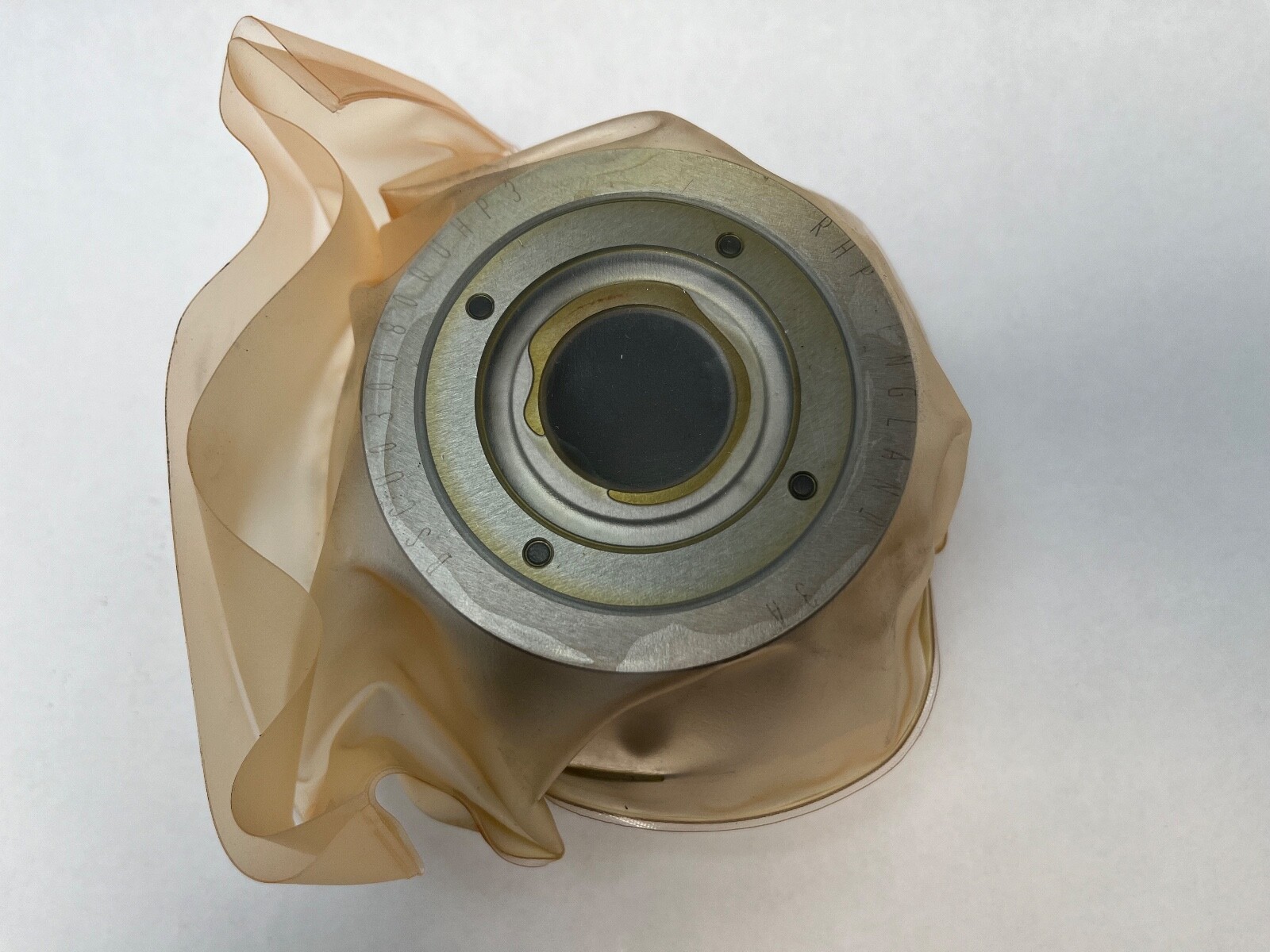

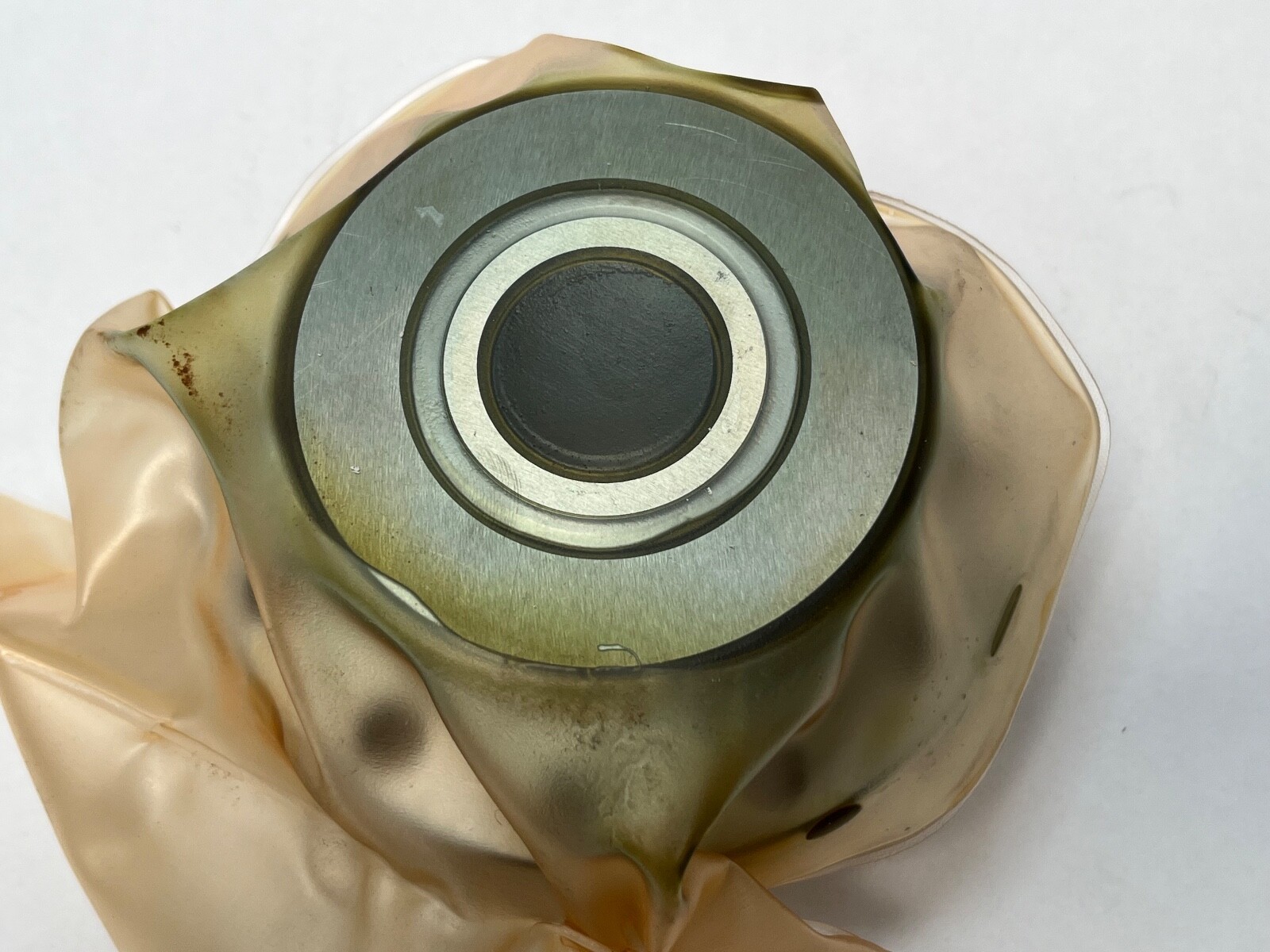

RHP BSCU30080QUHP3, a ball screw support cartridge unit. Bore: 30 mm. Cartridge housing outside diameter: 88 mm. Cartridge overall length: 82 mm. Bearing outside diameter: 80 mm. Contains a quad set of 60° angular contact thrust ball bearings at heavy preload. Country of origin: United Kingdom.
BSCU is the RHP ball screw support cartridge unit family. 30080 is the bearing size code: 30 mm bore, 80 mm outside diameter. QU is a quad set, four bearings matched at the factory. H is heavy preload. P3 is the precision grade.
Contact angle: 60°. Ball screw support bearings run a steep angle because the load on a screw-end bearing is almost entirely axial. At 60° the ball contact line points close to the screw axis, which maximises axial rigidity and thrust capacity for a given envelope, at the cost of radial capacity and speed. Axial stiffness is what holds positioning accuracy on a servo feed axis: a soft screw-end bearing shows up directly as lost motion at the tool.
Arrangement: quad set, four bearings. Preload: heavy. Heavy preload removes all axial play and raises stiffness further, so the screw end is located rigidly in both directions and reverses without backlash. Because the set is preloaded, internal clearance does not apply. Precision grade: P3.
The cartridge unit supplies the bearings already mounted, spaced and preloaded inside their own housing, so the machine builder bolts one assembly to the screw-end bracket. That fixes the preload at the factory rather than at assembly, which is where a hand-built stack of four bearings usually loses its accuracy.
One cartridge unit, containing the factory quad set.
Searchable variants: BSCU-30080-QUH-P3, BSCU 30080 QUH P3, BSCU30080QUH, BSCU30080. The loose-bearing equivalent size in the same family is the RHP BSB030080 at 30 x 80 mm; NSK, which owns RHP, files the same size as BSF3080. A duplex or triplex set on the same size code carries DU or TU in place of QU and a different total stiffness, which makes it a related part rather than an interchange, and a different preload letter (L or M in place of H) changes the stiffness and running torque.
