RHP7206X1TDUMEP7Angular Contact Bearing – 30 mm ID, 62 mm OD, 16 mm Width, Open, Medium Preload, ABEC 7

Product Description

What this part is

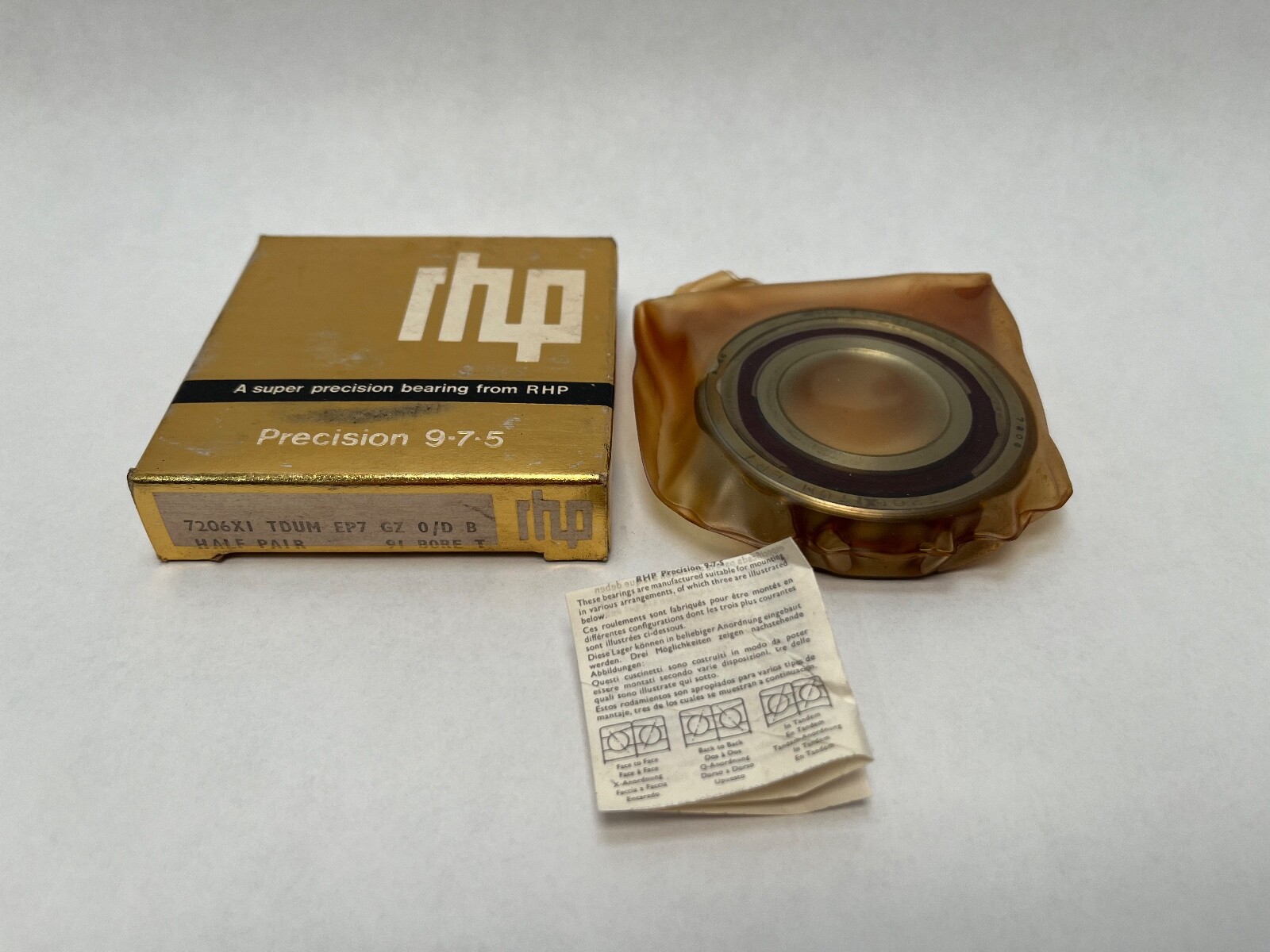

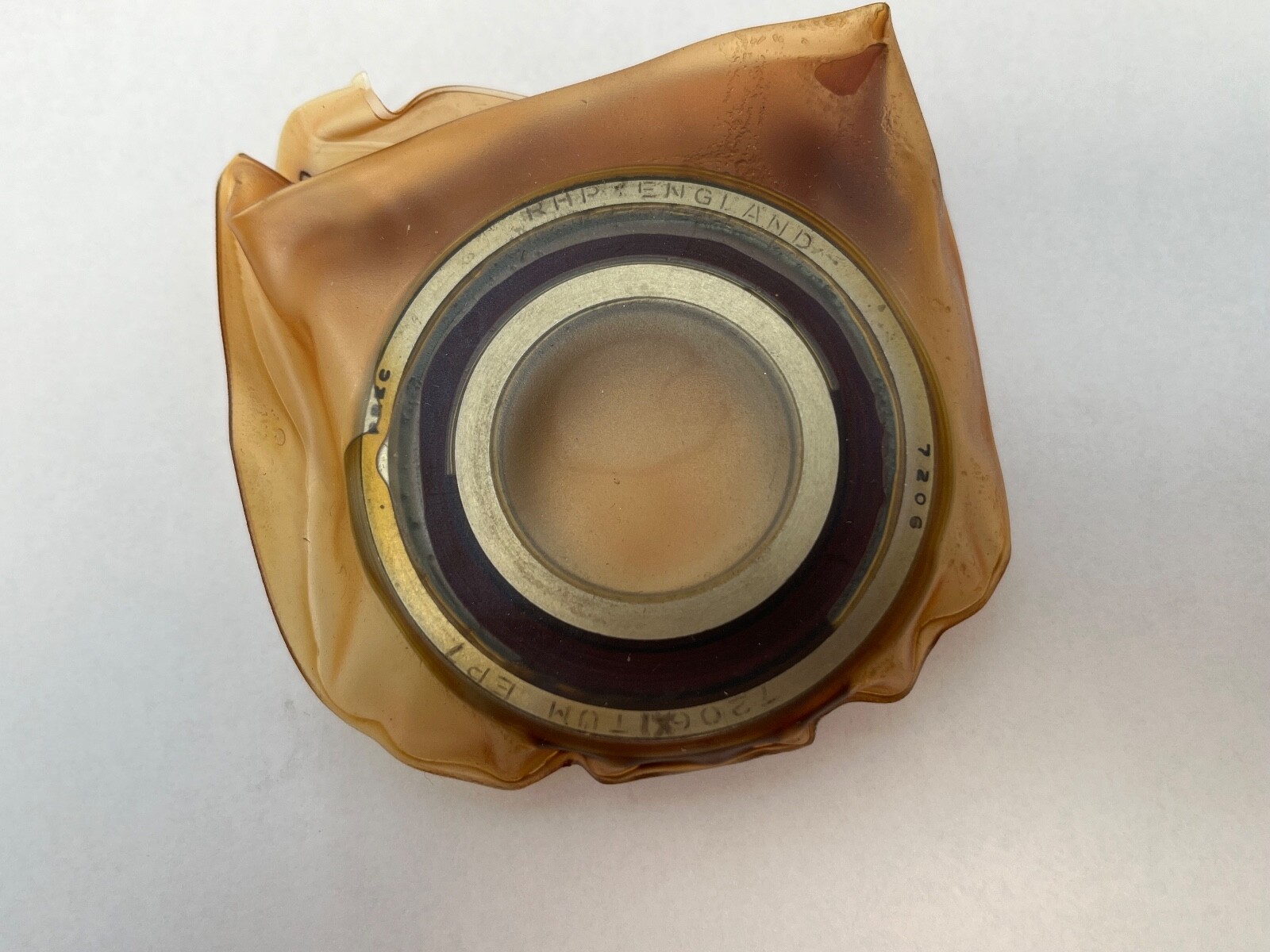

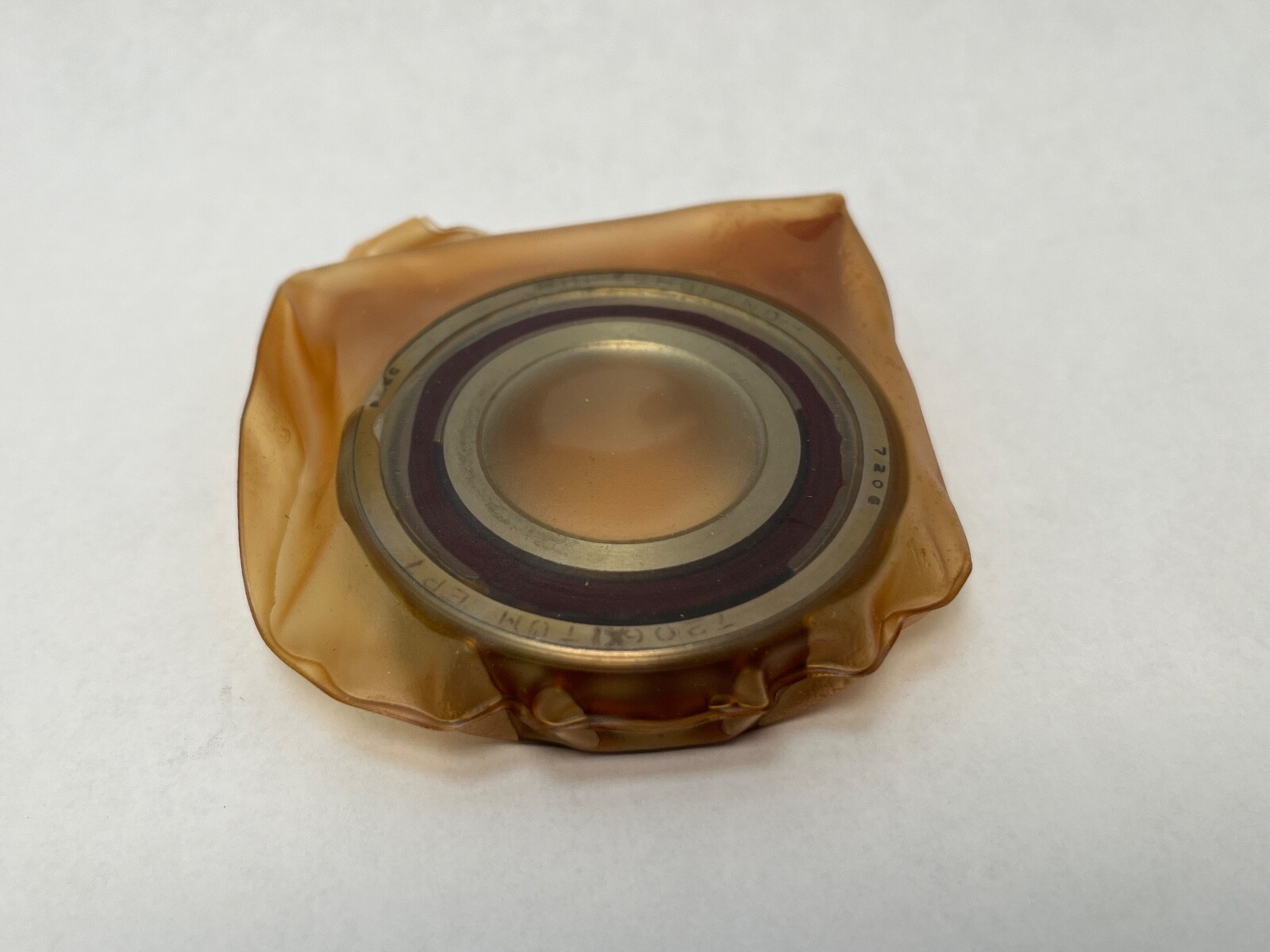

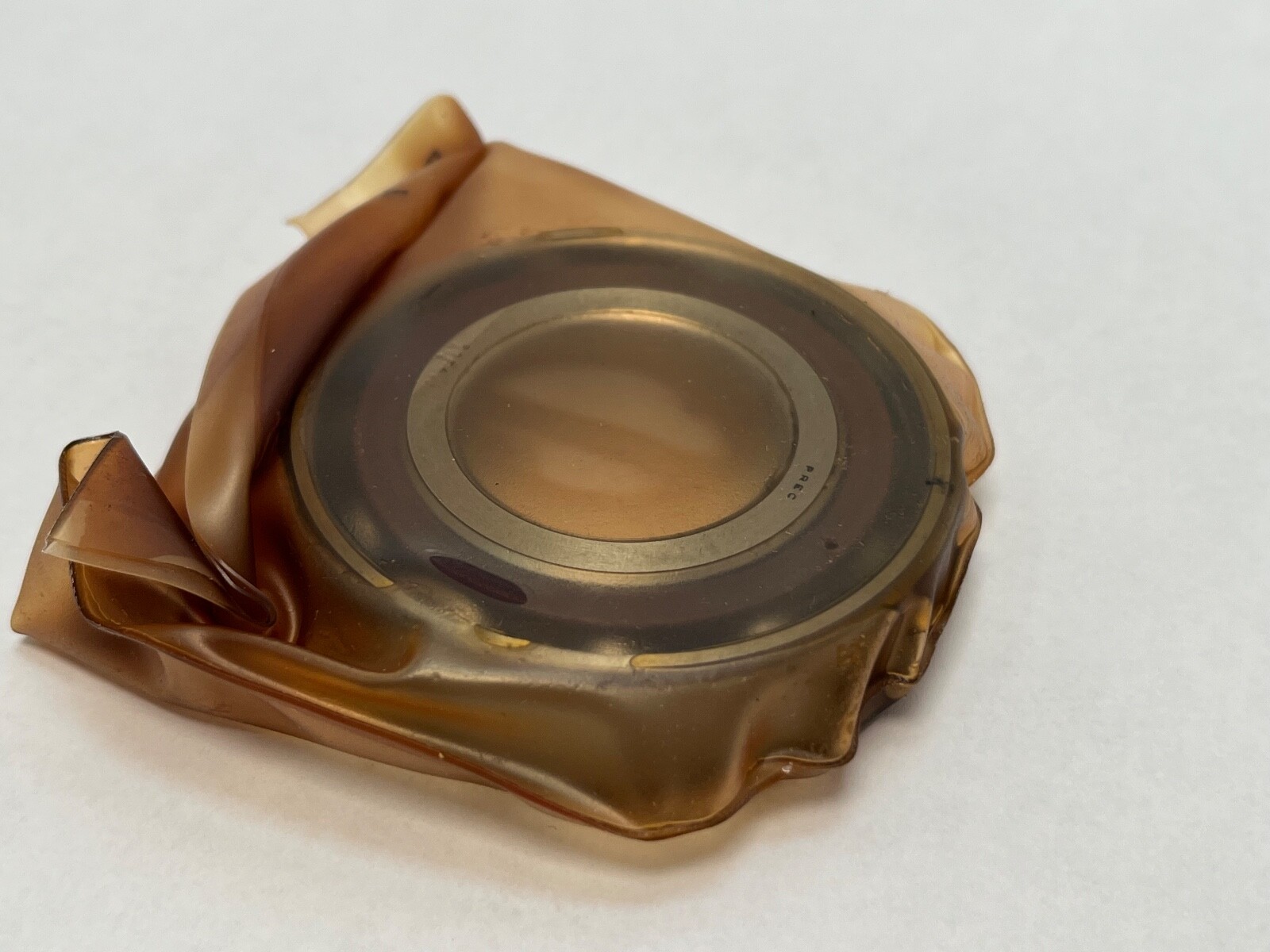

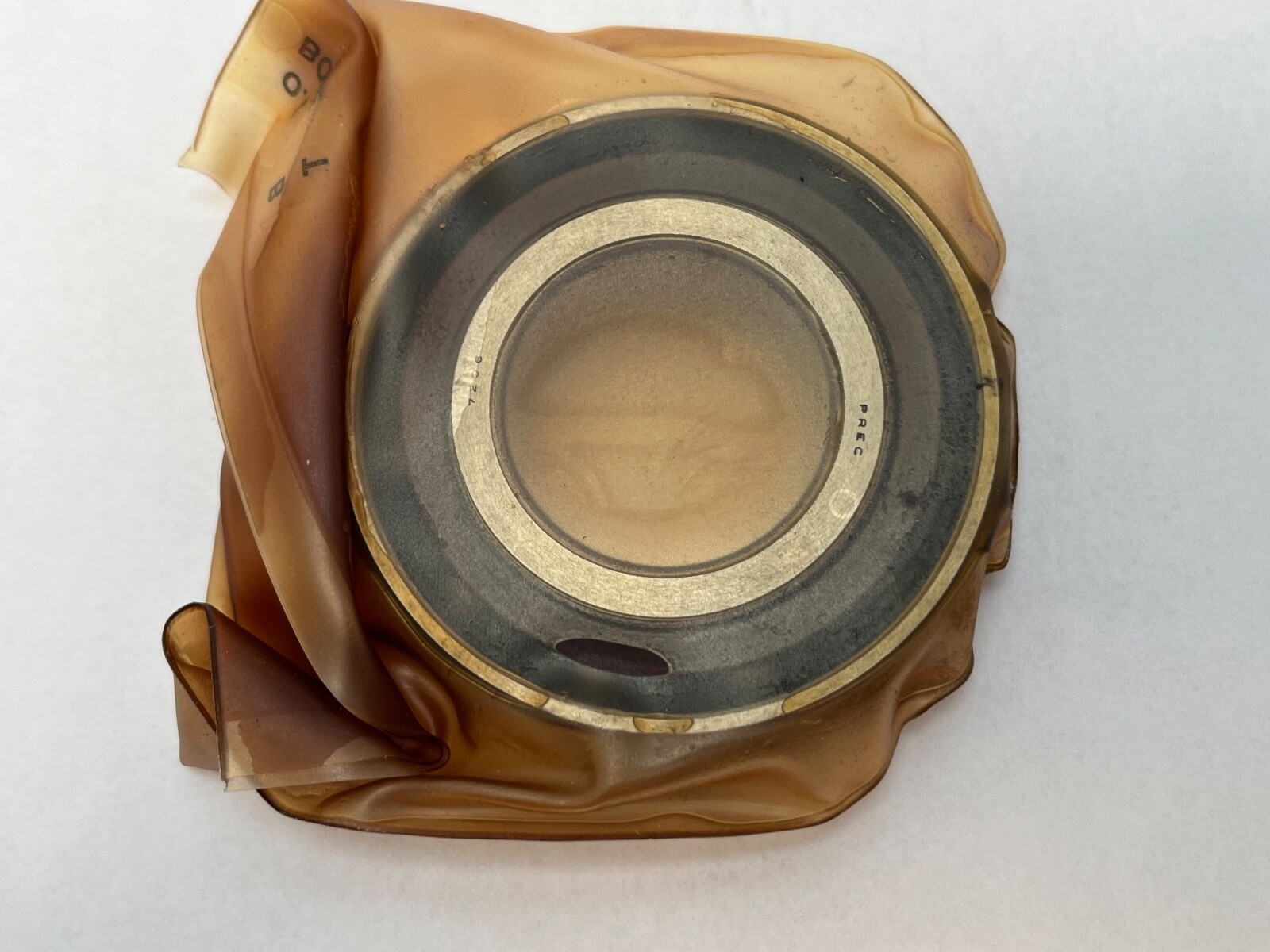

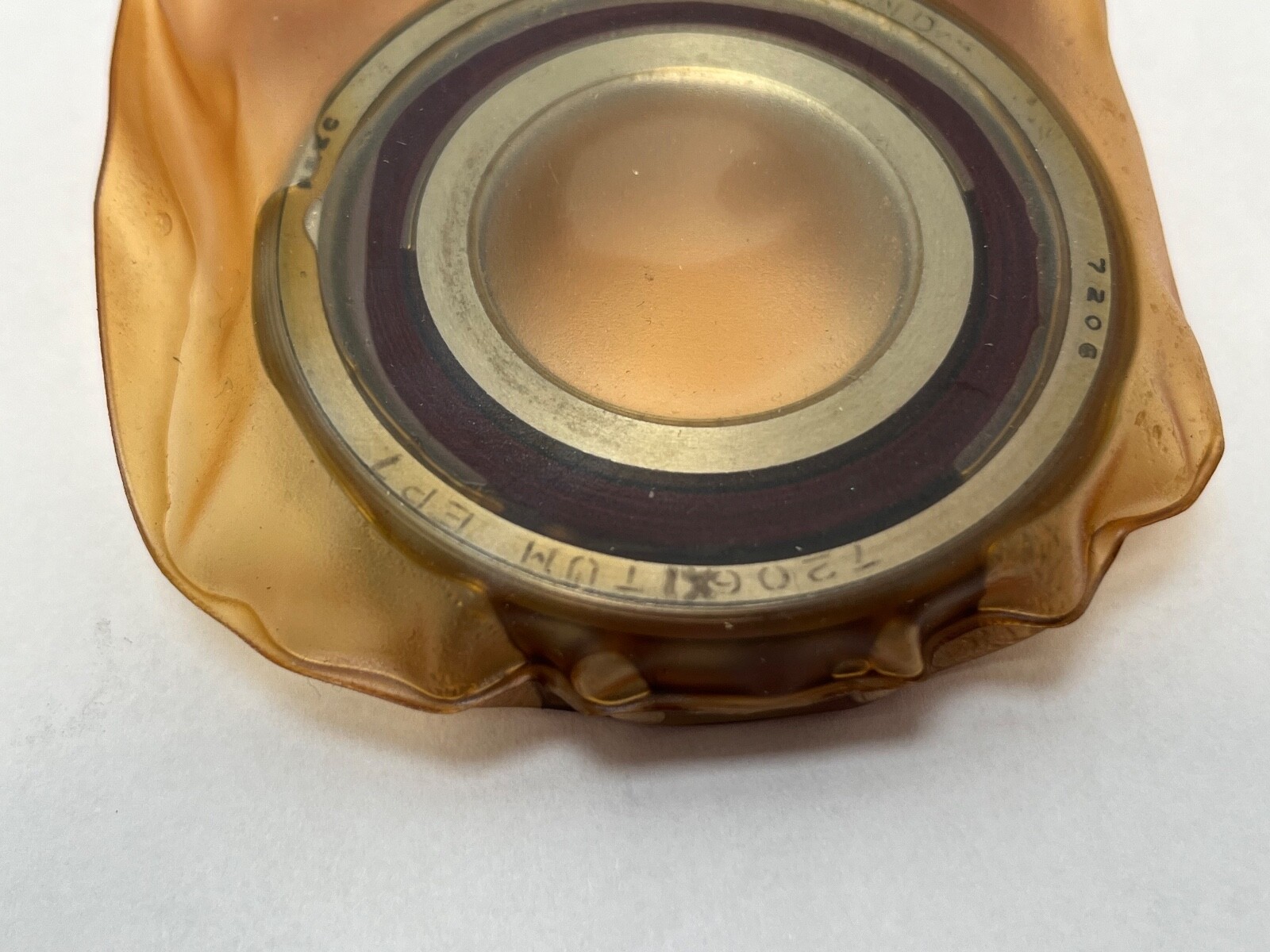

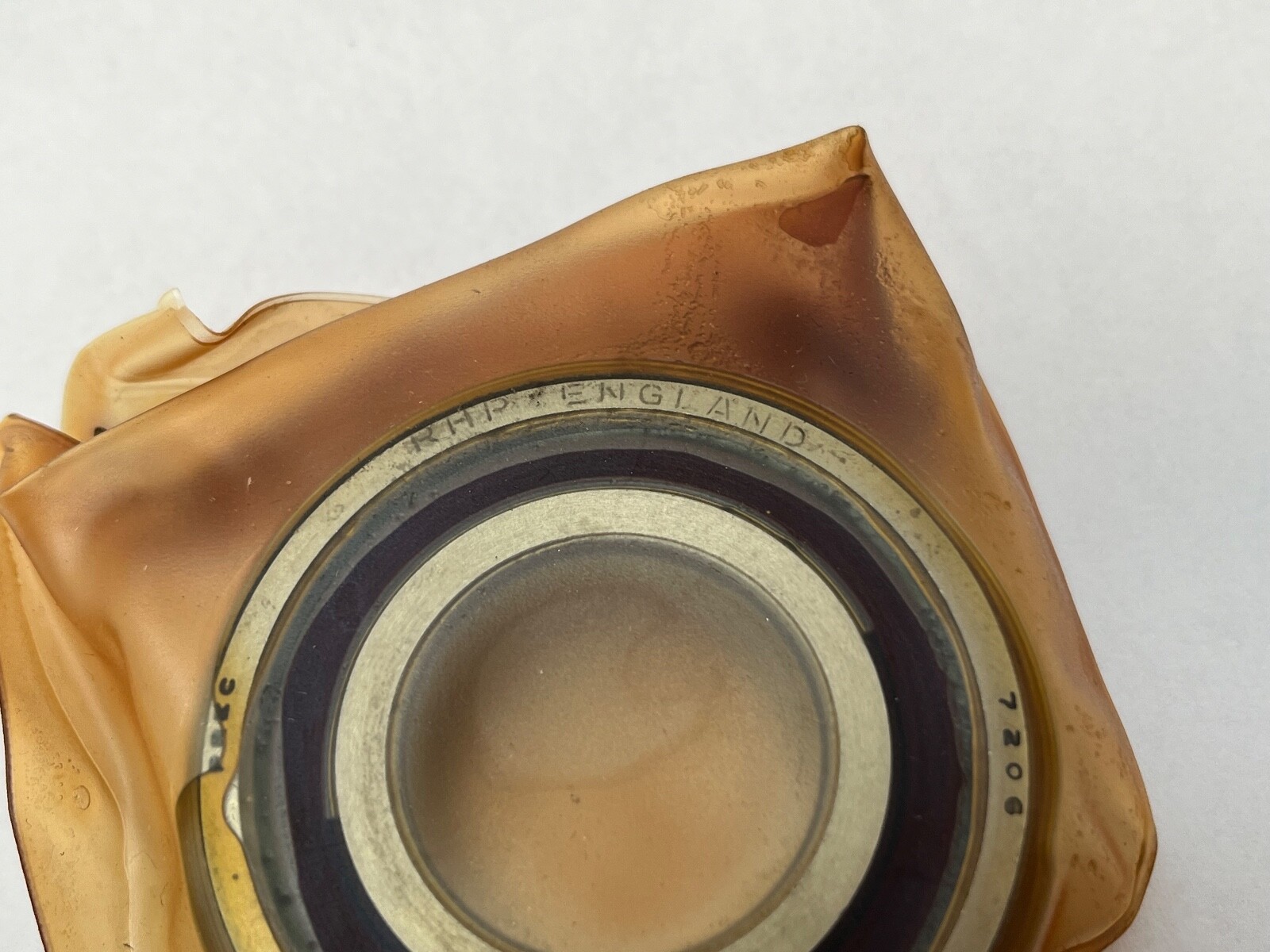

RHP 7206X1TDUMEP7-1/2PR angular contact ball bearing, 7200 series, single row, 30 mm bore by 62 mm outside diameter by 16 mm width. Bore: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm. Bore Type: Straight. Number of Rows: 1. Rolling Elements: Balls. Closure Type: Open. Design Units: Metric. Series: 7200. Country of Origin: United Kingdom.

Decoding the designation

Precision Class: EP7, equivalent to ABEC 7 and P4. Preload: Medium. Cage Material: Phenolic. Cage Type: Outer ring guided. Internal Clearance: N/A. Mounting Arrangement: Duplex universally ground, medium preload. Searchable forms of the part number include 7206X1TDUMEP7, 7206-X1-T-DUM-EP7, 7206 X1 T DUM EP7 and 7206X1TDUMEP7-1/2PR.

What these specs mean in practice

EP7 is RHP’s ABEC 7 precision class: tighter running accuracy, lower radial and axial runout, and closer shaft location than a standard-tolerance bearing. Medium preload sets a defined axial stiffness in a mounted pair, sitting between the light class, which favours speed and low heat, and the heavy class, which favours rigidity. The phenolic outer-ring-guided cage is light and holds a stable rotation at high speed.

Quantity and configuration

Unit Quantity: 1 Pc. The -1/2PR marking is one bearing out of a factory-matched pair, universally ground so it mounts back-to-back, face-to-face or in tandem against another bearing of the same designation and preload class.

Interchange guidance

The 30 x 62 x 16 mm envelope is the ISO 7206 boundary size, shared with 7206-series angular contact bearings from other makers. Harmonization Code: 8482.10.50.
