Angular contact ball bearing, 70 x 110 x 20 mm, 15° contact angle, machined phenolic cage, open both faces, ground to standard single-bearing width.
List Price
$128.33
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing - 70 mm ID, 110 mm OD, 20 mm Width, 15 Degree Contact Angle, Phenolic Cage, Light Preload, Universal Face Control$93.97
Single-Row Angular Contact Ball Bearing 70 x 110 x 20 mm, 15° Contact Angle, Open$71.57
Angular Contact Ball Bearing - 70 mm ID, 110 mm OD, 20 mm Width, 15° Contact Angle, Medium Preload, ABEC 7 / P4$228.71
Angular Contact Ball Bearing - Straight Bore, 70 mm ID, 110 mm OD, 20 mm Width, Open, 15° Contact Angle, Single Row$78.67| MFR / Brand | RHP |
|---|---|
| MPN | 7014CTP0 |
| Model | 7014 C T P0 / B7014X2 TA EP1 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 110 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil/air or grease |
| Base Number | 7014 |
| Industry Terms | angular contact ball bearing, spindle bearing, 70-series angular contact, phenolic cage bearing |
| Common Misspellings | RHP 7014CTPO, 7014 CT P0, 7014CTP, RPH 7014C |
| Application Types | Machine tool shafts, pumps, gearboxes, screw drives, fan and blower shafts |
| Bore Shaft Size | 70 mm (2.7559 in) |
| Mpn Variants | 7014CTP0, 7014-C-T-P0, 7014 C T P0, 7014C, 7014-C, B7014X2TAEP1, B7014X2 TA EP1 |
| Precision Class | P0 (ISO Normal tolerance class); RHP class code EP1 |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 47.0 kN (47,000 N) |
| Static Load Rating | 43.0 kN (43,000 N) |
| Precision Rating | P0 (ISO Normal tolerance class); RHP class code EP1 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.606 kg (1.336 lb) |
| Cage Material | Laminated phenolic resin |
| Limiting Speed | 19,300 rpm oil/air; 11,900 rpm grease |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Design Units | Metric |
| Bearing Class | P0 (ISO normal class) |
| Bearing Material | Carbon chrome bearing steel |
| Part Number | 7014CTP0 |
| Cross Reference 1 | B7014X2TAEP1 |
|---|

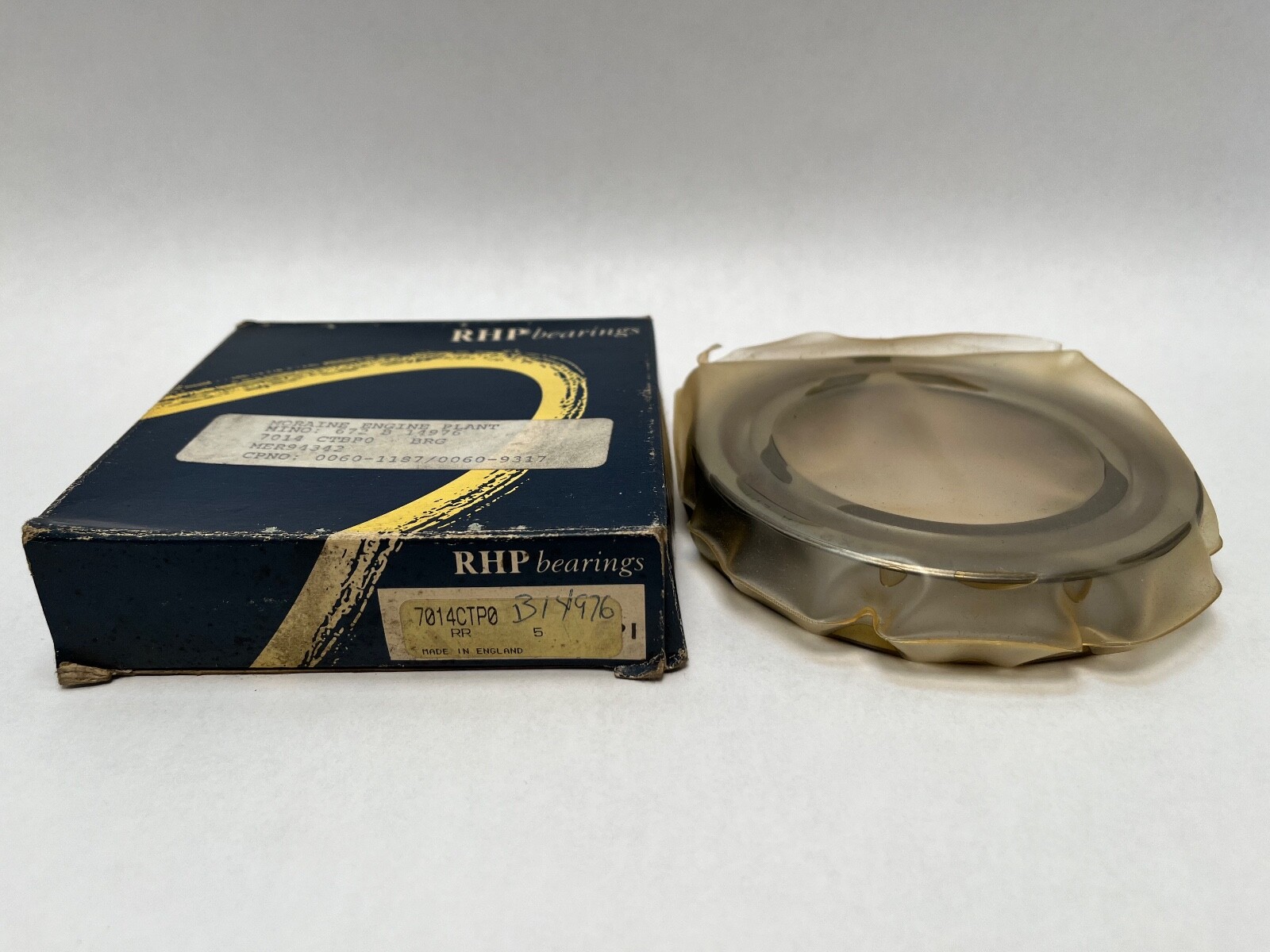

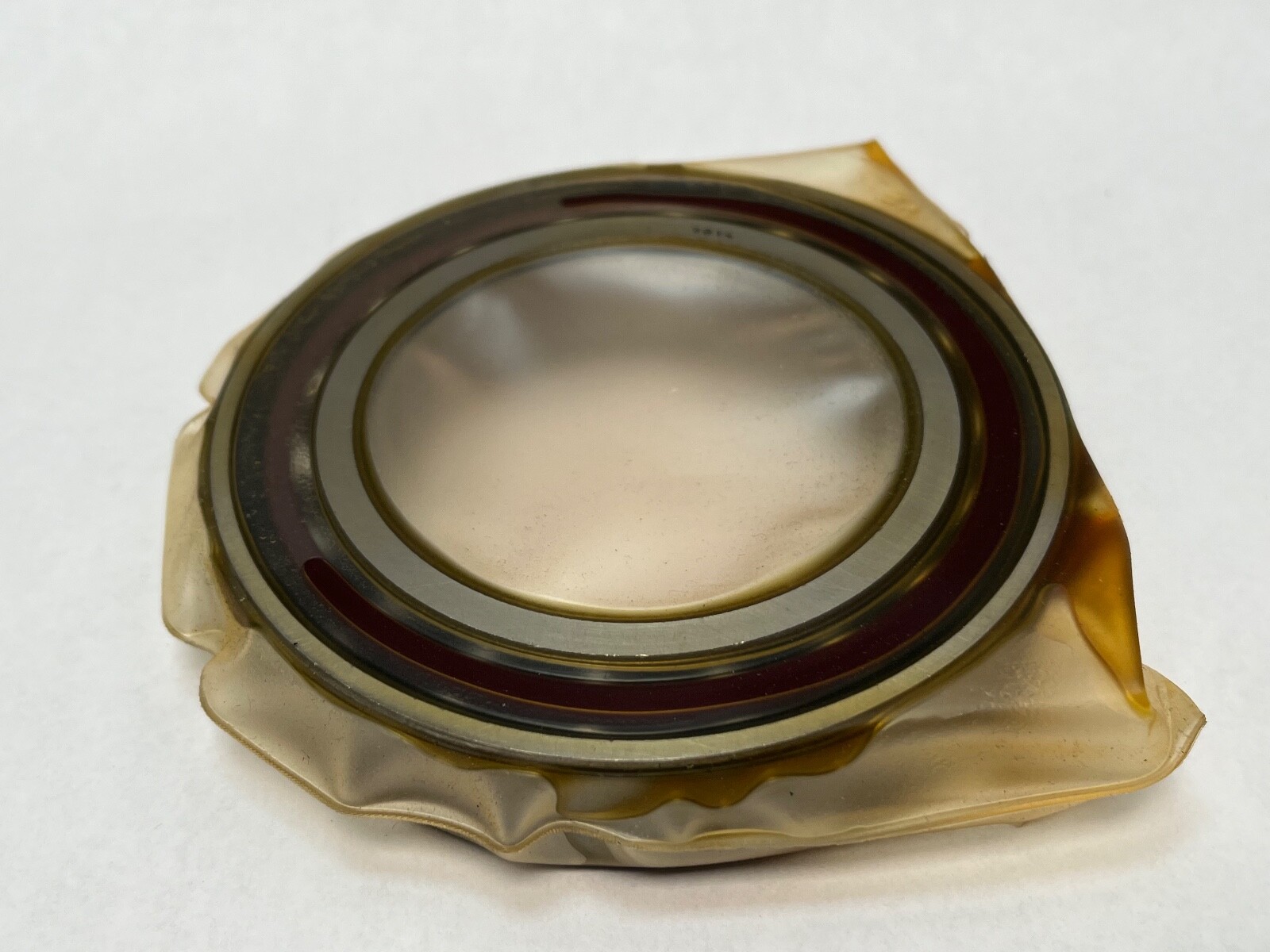

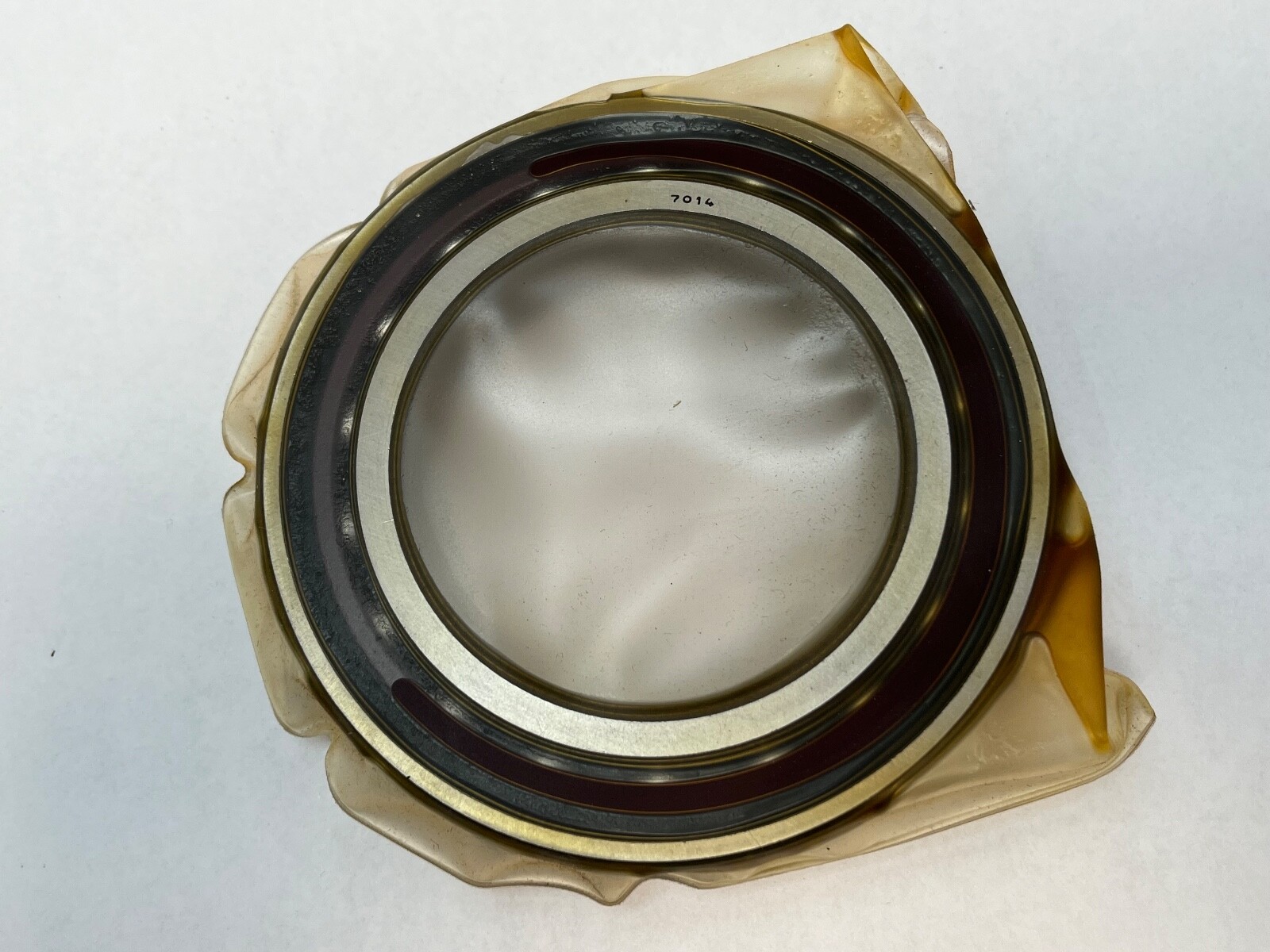

RHP 7014CTP0 single-row angular contact ball bearing. Bore: 70 mm. Outside Diameter: 110 mm. Overall Width: 20 mm. Contact Angle: 15°. Precision Class: P0 (ISO Normal tolerance class); RHP class code EP1. Cage Material: laminated phenolic resin. Cage Type: machined, outer-ring guided. Closure Type: open on both faces. Snap Ring Included: No. Bore Type: straight. Rolling Elements: carbon chrome bearing steel balls. Bearing Material: carbon chrome bearing steel, BS970 534A99/535A99 or SAE 52100. Series: RHP 70, ISO dimension series 10. Number Of Rows: 1.
Type 7: single-row angular contact ball bearing. Dimension series 0: ISO series 10. Bore code 14: 70 mm bore. Contact angle C: 15°. Cage T: laminated phenolic resin, outer ring guided. Precision grade P0: ISO Normal tolerance class, RHP class code EP1. The designation carries no grouping code and no preload letter, so the faces are ground to standard single-bearing dimensions. The carton alternate is B7014X2TAEP1, X2 being 15°, TA the outer-ring-guided phenolic cage and EP1 the Normal class.
Dynamic Load Rating (Cr): 47.0 kN (47,000 N). Static Load Rating (C0r): 43.0 kN (43,000 N). Limiting Speed: 19,300 rpm oil/air; 11,900 rpm grease. Lubricant: oil/air or grease. Maximum Operating Temperature: 120 °C.
The 15° contact angle favours speed over thrust, carrying higher surface speed and greater radial load than the 25° execution of the same envelope, and less axial load.
The laminated phenolic resin cage is light, quiet and holds an oil film well against the balls, which suits oil/air and grease service.
A single-row angular contact ball bearing carries thrust in one direction, taken on the back face of the outer ring. Axial load in the opposite direction is taken by a second bearing opposing this one, or by another element in the shaft stack.
Unit Quantity: 1 Pc. Design Units: metric. Harmonization Code: 8482.10.50.68.
Inner Ring Abutment Diameter, d1 min: 77 mm. Outer Ring Abutment Diameters: D1 max 103 mm, D2 max 105 mm. Fillet Radii: r min 1.1 mm, r1 min 0.6 mm. Effective Load Centre (a): 22.1 mm. Internal Free Volume: 26.3 cm³. PCD Of Lubrication Jets: 83.7 mm. Item Weight: 0.606 kg (1.336 lb).
7014C is the ISO base designation for a 15° angular contact bearing on this envelope, and the RHP carton alternate is B7014X2TAEP1. Same-envelope bearings with a different contact angle or tolerance class — the 7014A5 at 25° and the tighter tolerance classes — are related sizes rather than equivalents, since angle and running accuracy differ.
