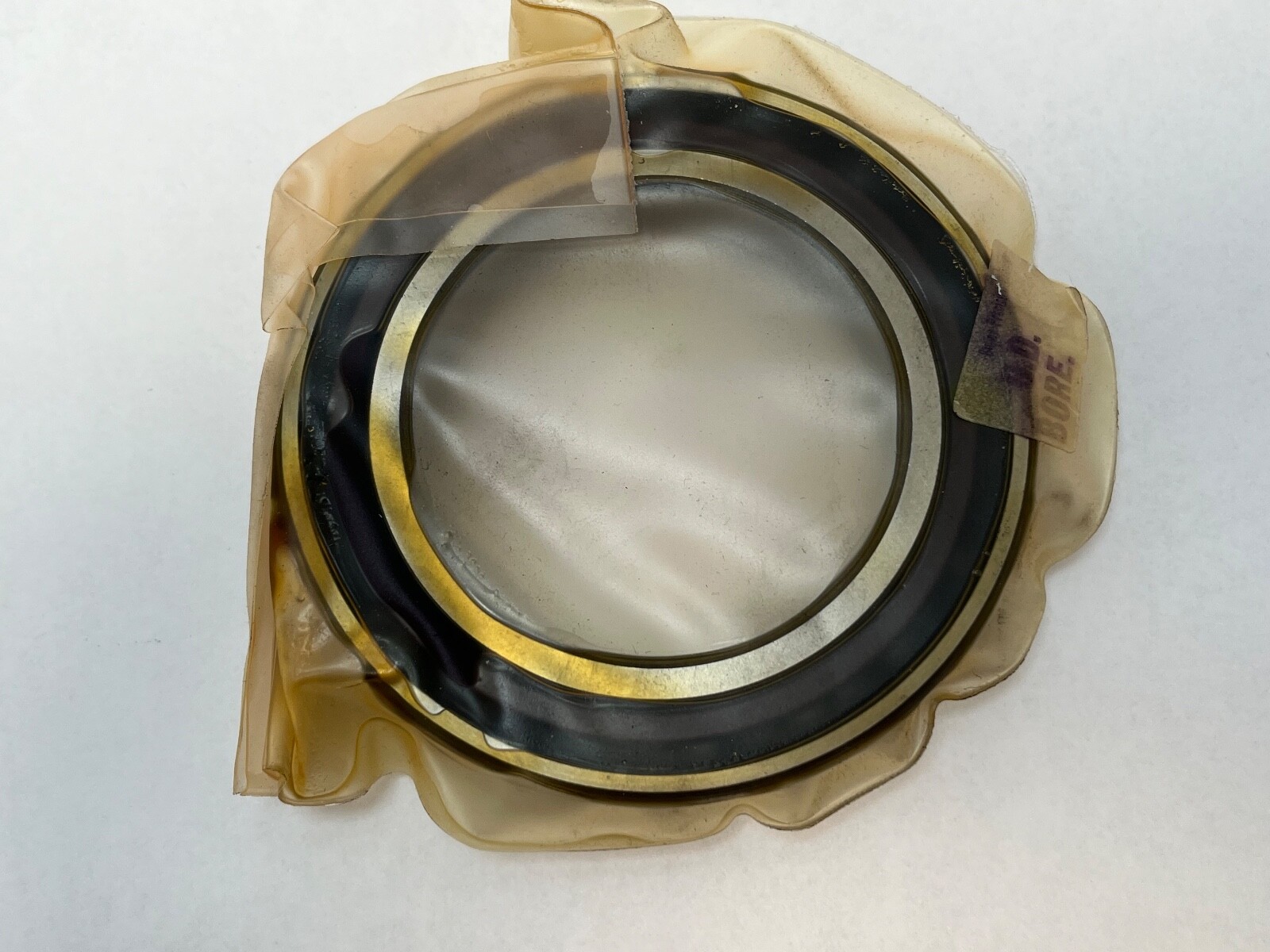

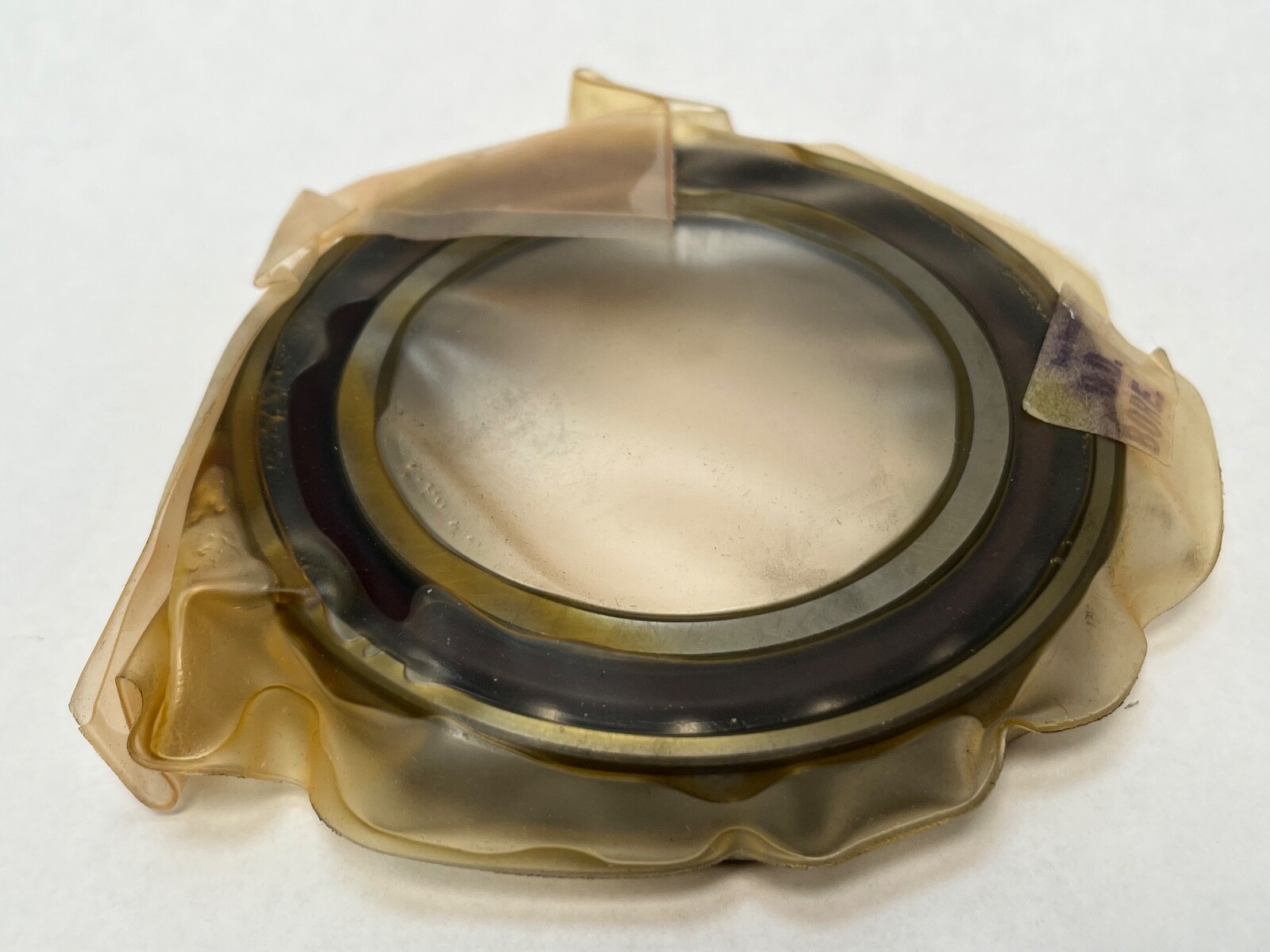

RHP7013CTSULP0Angular Contact Ball Bearing – 65 mm Bore, 100 mm OD, 18 mm Width, 15° Contact Angle, Phenolic Cage, Light Preload

Product Description

What this part is

RHP 7013CTSULP0 is a single-row angular contact ball bearing in the ISO 10 dimension series, universally faced and set to light preload. Bore Diameter: 65 mm. Outside Diameter: 100 mm. Overall Width: 18 mm. Contact Angle: 15°. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Preload: Light. Precision Class: ABEC 1 / P0 (RHP EP1). Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome steel to BS970 534A99 / SAE 52100, through hardened. Lubricant: Grease or oil. Item Weight: 0.435 kg (0.96 lb). Series: 70. Base Number: 7013. Unit Quantity: 1 Pc.

Decoding the designation

7013 — single-row angular contact ball bearing, ISO dimension series 10, bore code 13 for 65 mm: 65 x 100 x 18 mm.

C — 15° contact angle.

T — laminated phenolic cage.

SU — single bearing, universal face control.

L — light preload.

P0 — RHP EP1 precision grade.

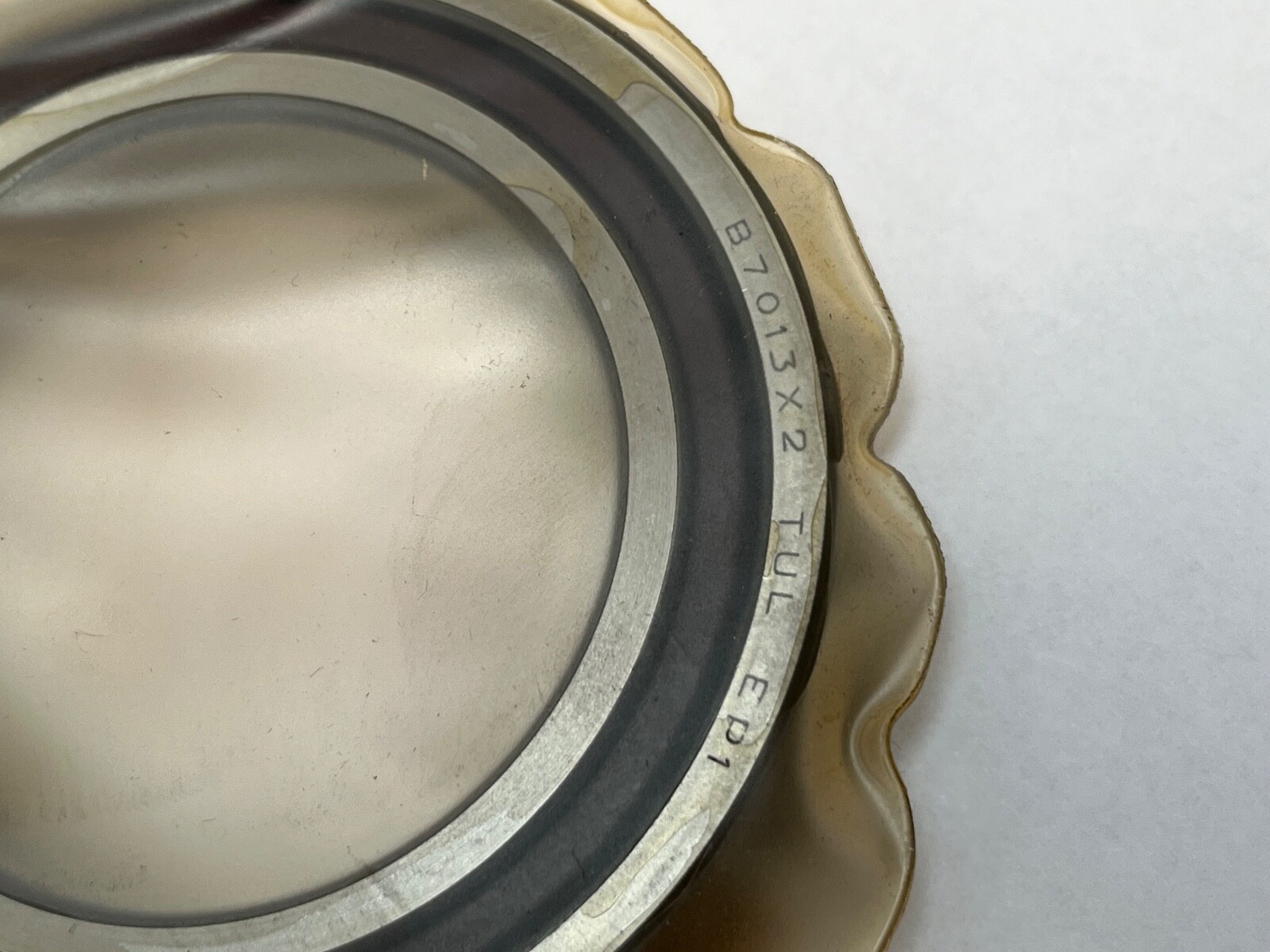

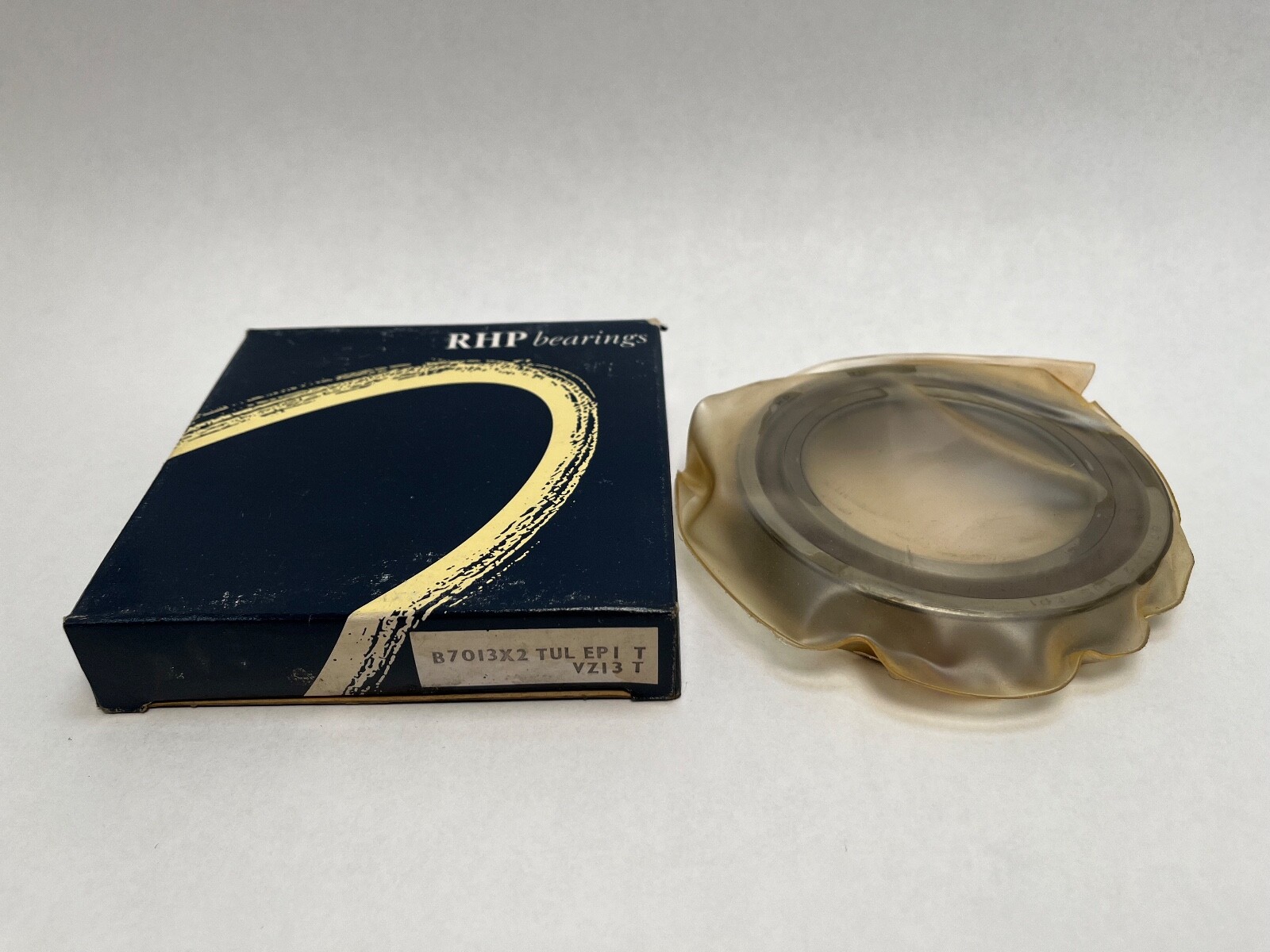

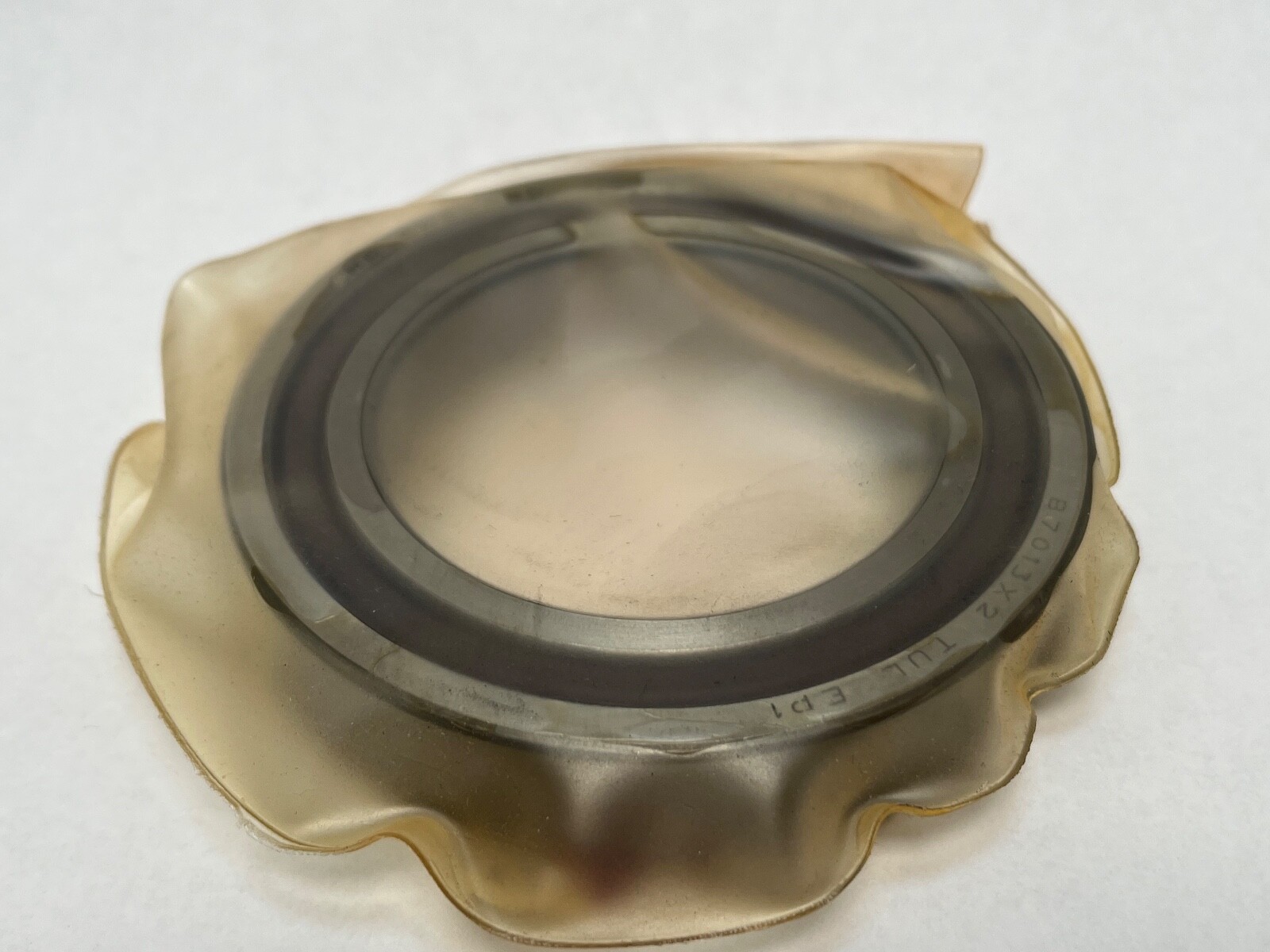

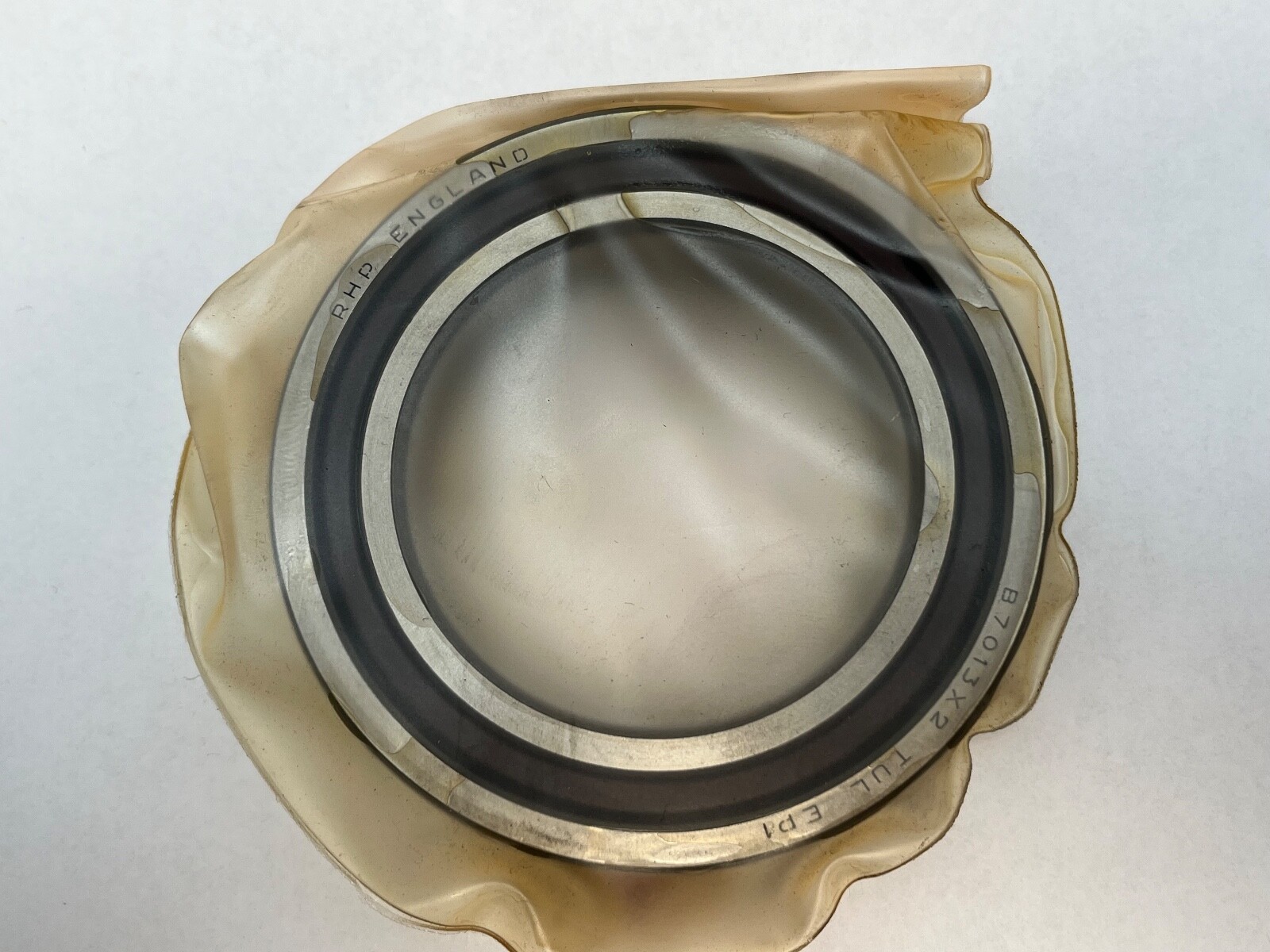

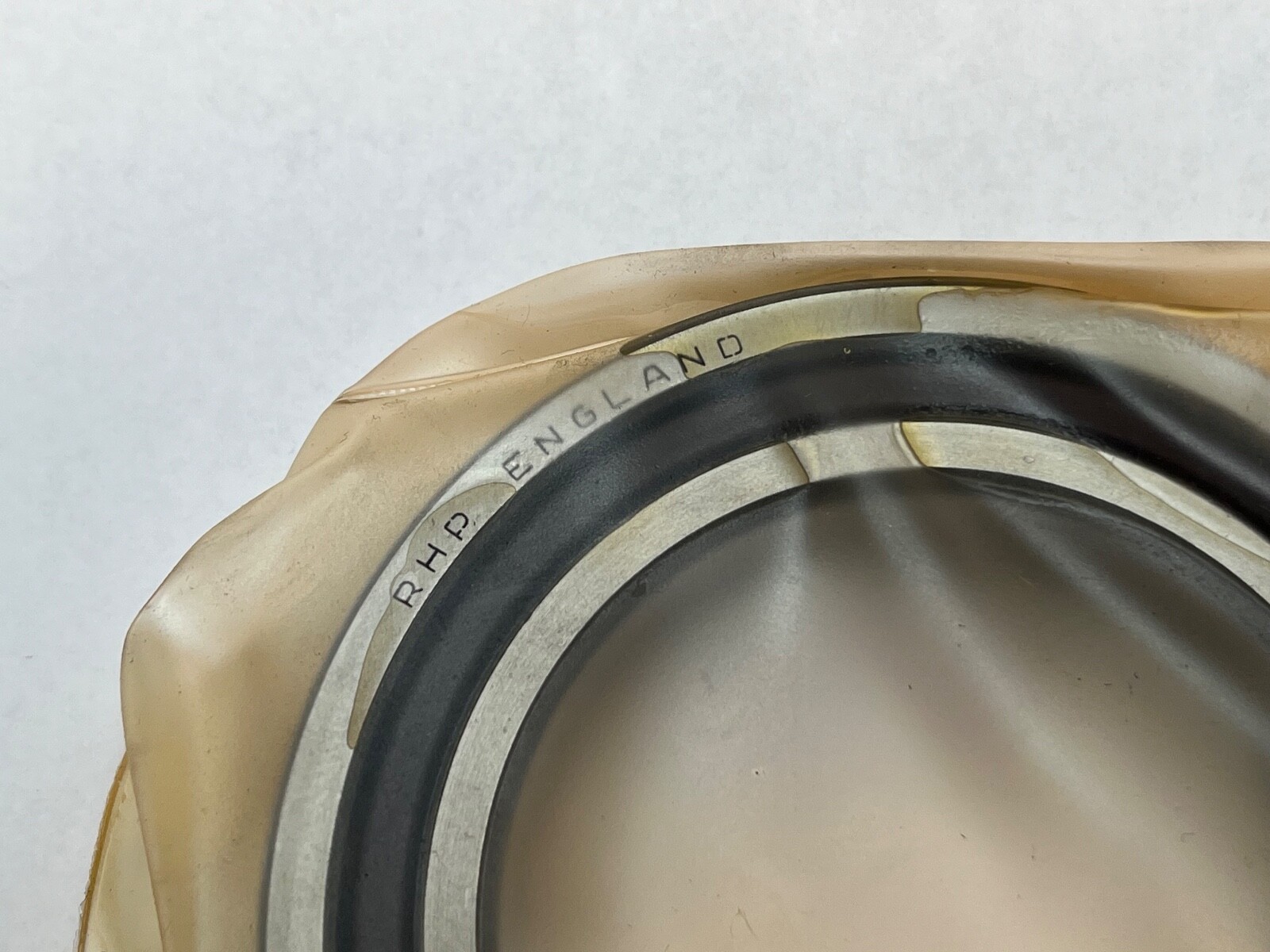

X2 — the RHP B-series form of the same 15° contact angle, carried on the carton as B7013X2TULEP1.

What these specs mean in practice

Dynamic Load Rating: 37,000 N. Static Load Rating: 34,500 N. Internal volume 19.0 cm³, which sets the grease charge — 30 per cent fill for low and medium speeds, 20 per cent above that. The 10 series is the light section of the angular contact range: a 100 mm outside diameter on a 65 mm bore gives a thin, stiff ring set that suits a spindle nose. A 15° contact angle keeps the ball path close to the radial plane and favours speed and radial stiffness over axial capacity.

Mounting data

Effective load centre (a): 20.0 mm. Shaft abutment diameter (d1 min): 72 mm. Housing abutment diameter (D1 max): 93 mm. Second housing abutment diameter (D2 max): 95 mm. Chamfer (r min): 1.1 mm. Chamfer (r1 min): 0.6 mm. Lubrication jet pitch circle diameter (dT): 77.5 mm.

Quantity and configuration

Unit Quantity: 1 Pc. Universal face control means the inner and outer rings are the same width and the face steps are pre-adjusted, so two of these clamp up to the light preload value back-to-back or face-to-face, and share load equally in tandem, without ground spacers.

Interchange guidance

The same bearing is written 7013CTSULP0, 7013-C, 7013-C-T-SUL-P0 and B7013X2TULEP1.

Cross-Reference 1: RHP B7013X2TULEP1. Cross-Reference 2: SKF 7013 CD/P4A (related, P4A super-precision). Cross-Reference 3: FAG B7013-C-T-P4S-UL (related, P4S). Cross-Reference 4: NSK 7013C. Cross-Reference 5: NTN 7013C. Cross-Reference 6: Koyo 7013C. Cross-Reference 7: NTN-SNR 7013C. Cross-Reference 8: Fafnir 2MM9113WI (related, P4S). Cross-Reference 9: Nachi 7013C.

Every number above shares the 65 x 100 x 18 mm envelope and the 15° contact angle. Where a class is stated in brackets the part is built to a tighter precision grade than this one, so it is a related size rather than a like-for-like interchange. The 7013A5 execution shares the same envelope at 25°; it fits the same shaft and housing and moves the load split between radial and axial.
