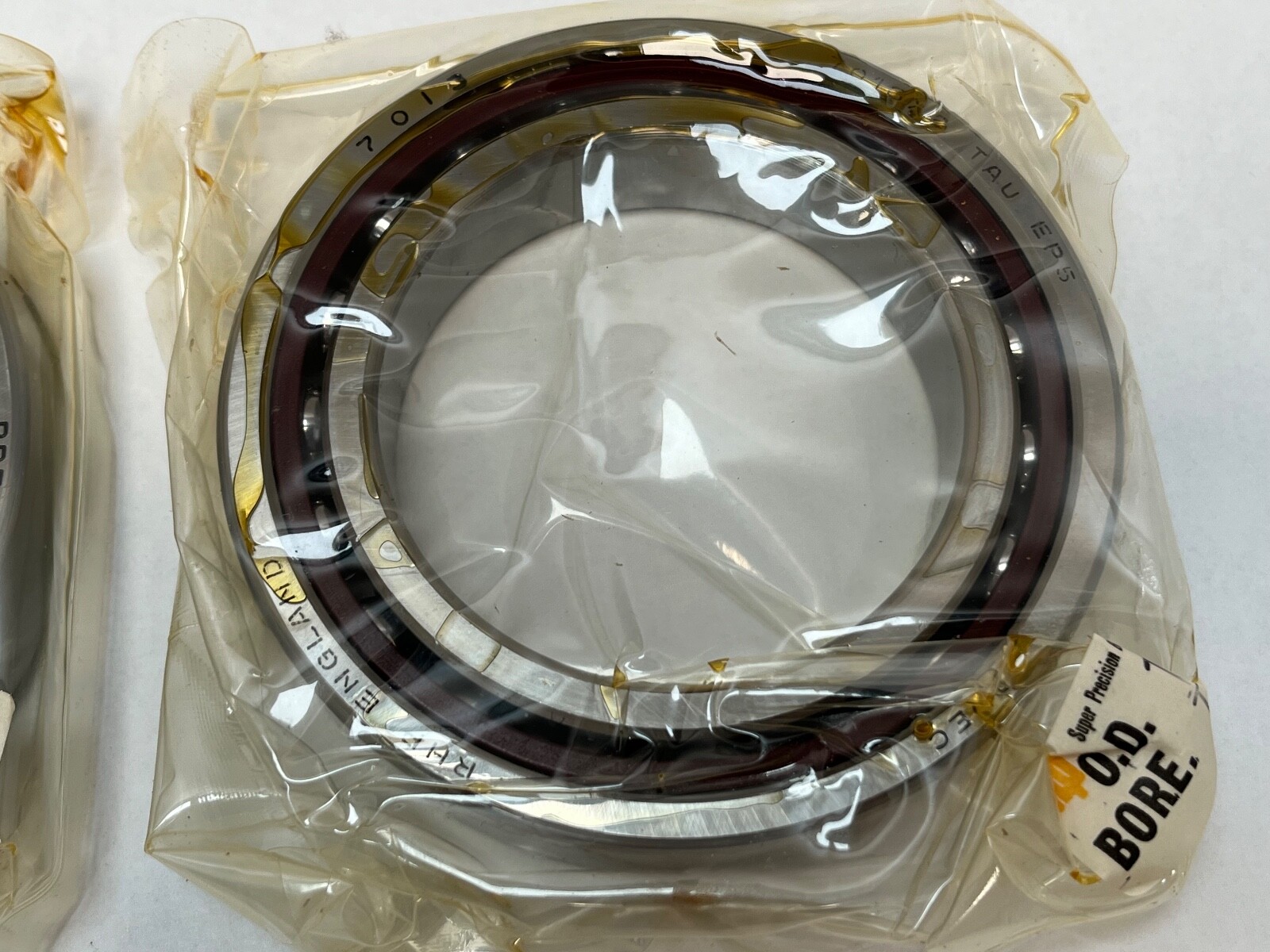

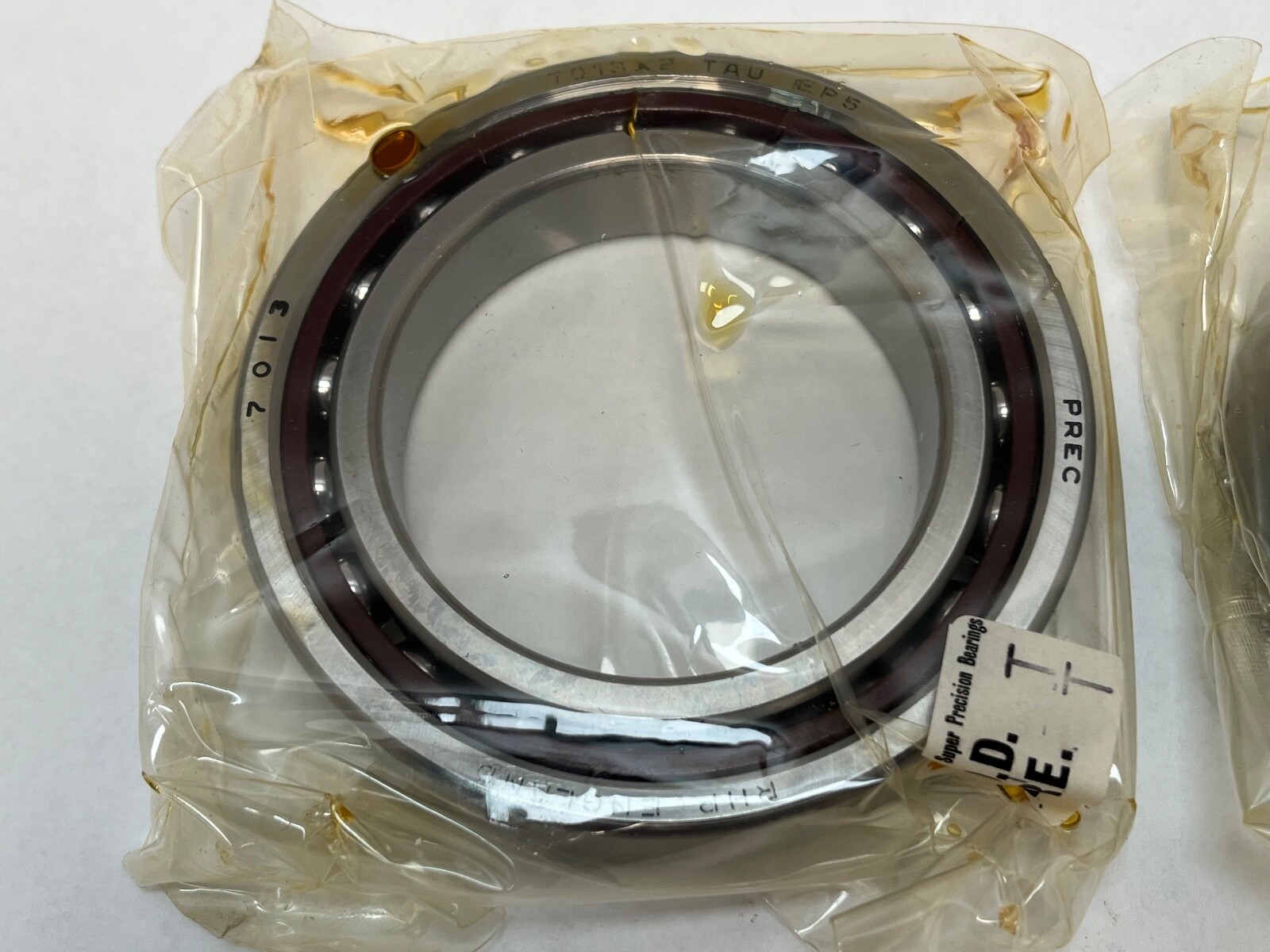

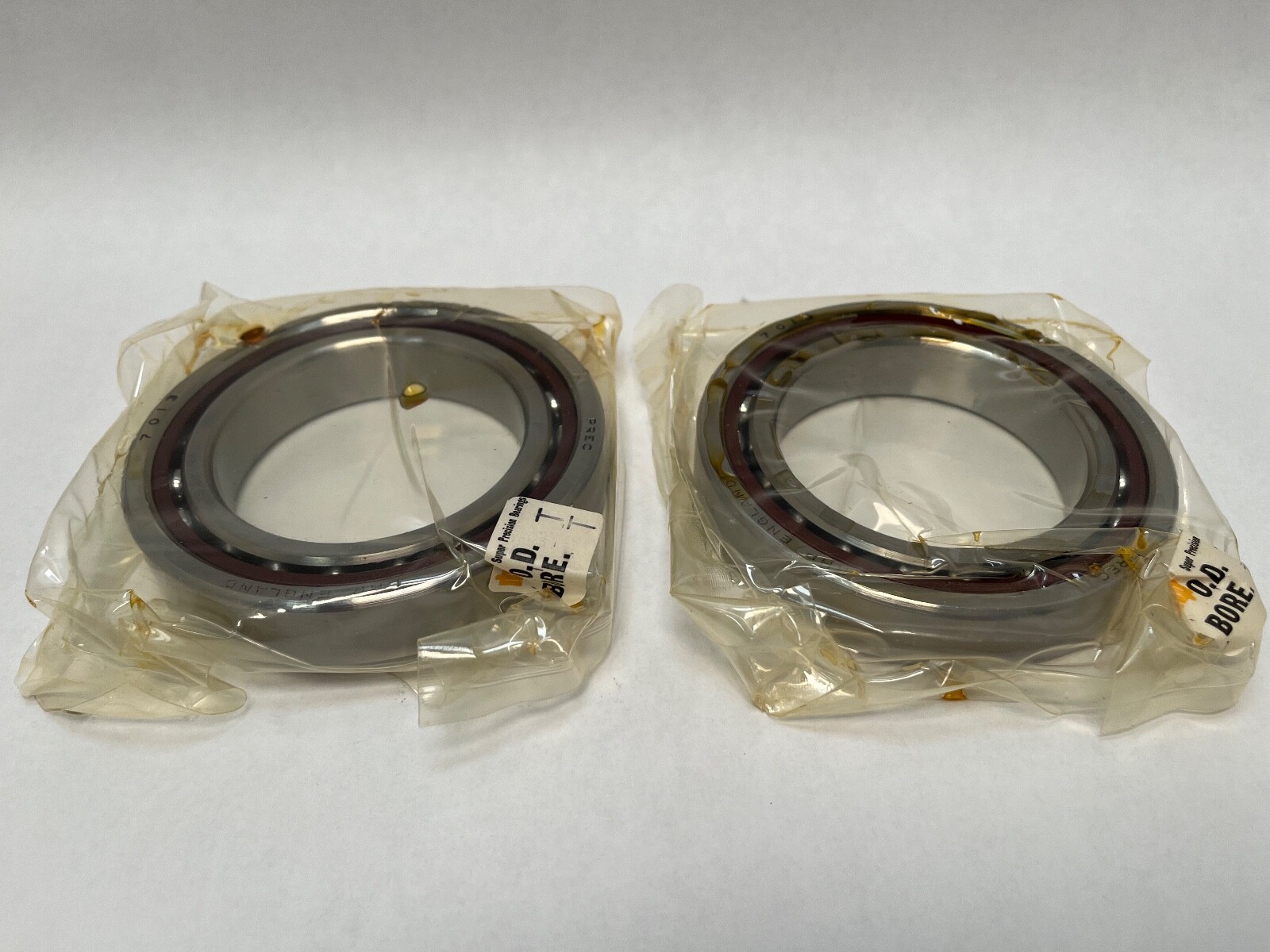

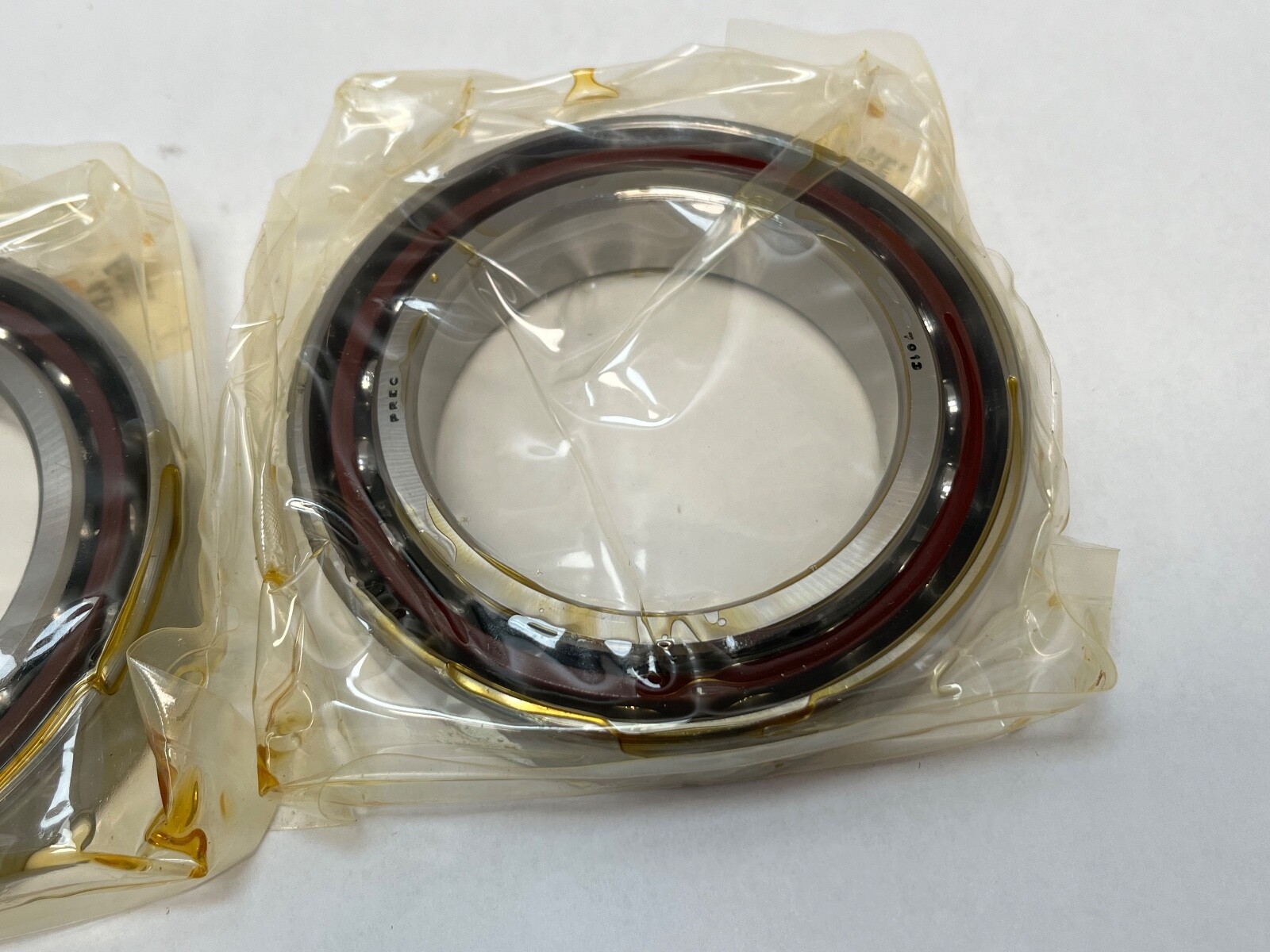

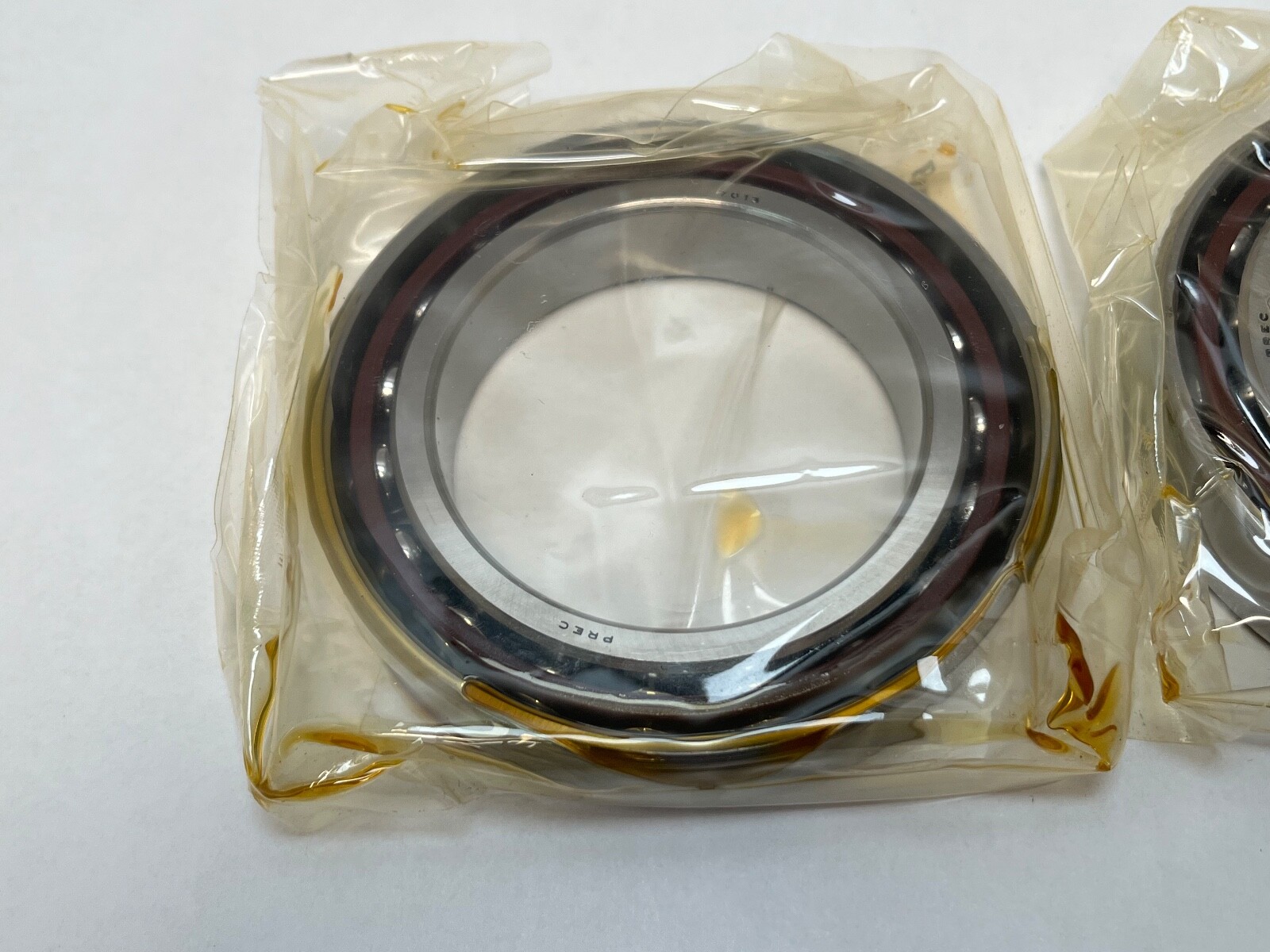

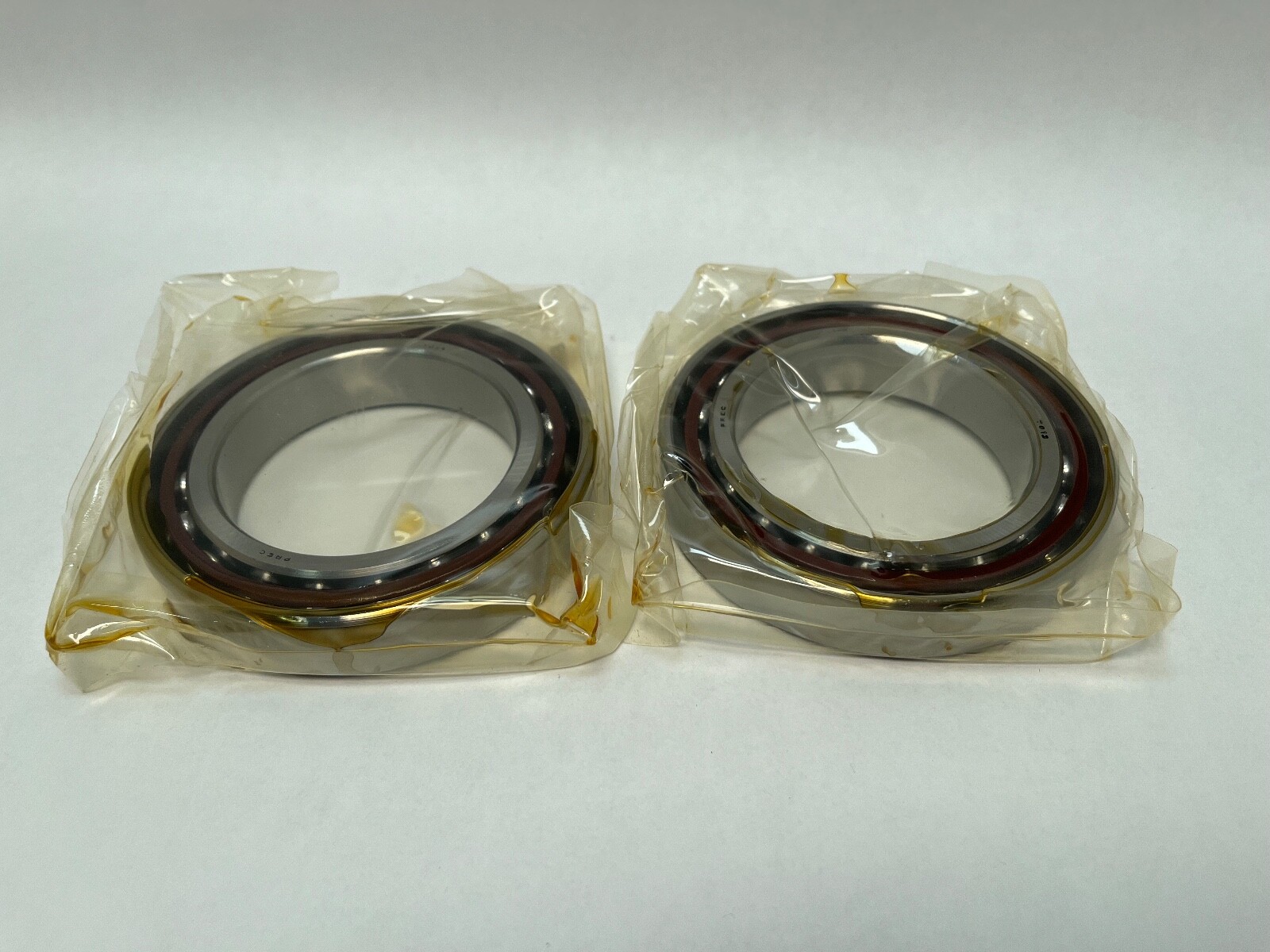

Matched duplex pair of angular contact ball bearings, 65 x 100 x 18 mm each, 15° contact angle, P5 class. Phenolic cage, universally ground, open.
List Price
$267.73
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Matched Duplex Pair Angular Contact Ball Bearings 65x100x18 mm 15° Light Preload ABEC 7$295.54
Super-Precision Angular Contact Spindle Bearing, 65x100x18 mm, 15° Contact Angle, Universally Ground, Medium Preload, ABEC 7 (P4), Half of a Duplex Pair$147.77
Super-Precision Angular Contact Ball Bearing - 65 mm ID, 100 mm OD, 18 mm Width, Open, Phenolic Outer-Land-Riding Cage, Light Preload, ABEC 7$73.69
Super Precision Angular Contact Ball Bearing 65x100x18 mm, 15° Contact Angle, Light Preload, ABEC 7$147.77| MFR / Brand | RHP |
|---|---|
| MPN | 7013CTDULP5 |
| Model | 7013 C T DUL P5 / B 7013 X2 TA DUL EP5 / 2M9113WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 100 mm |
| Width | 18 mm |
| Base Number | 7013 |
|---|---|
| Industry Terms | Matched pair spindle bearings; Duplex angular contact set; Machine tool spindle bearing; Universally ground angular contact bearing |
| Common Misspellings | 7013 CT DUL P5; 7013CTDULP-5; 7013CDULP5; 2M9113WI CR DUL; 7013CTDUL P5 |
| Application Types | Machine tool spindles; Grinding spindles; Milling and turning spindles; Precision gearboxes |
| Total Width | 36 mm |
| Mpn Variants | 7013CTDULP5; 7013-C-T-DUL-P5; 7013C; B7013X2TADULEP5; 2MM9113WICRDUL |
| Precision Class | ABEC 5 / P5 |
| Additional Attributes | Effective load centre a: 20.0 mm per bearing; shaft abutment d1 min 72 mm; abutment D1 max 93 mm; abutment D2 max 95 mm; chamfer r min 1.1 mm; chamfer r1 min 0.6 mm; mass per bearing 0.435 kg |
| Material | Bearing steel (SAE 52100 equivalent) |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 37,000 N |
| Static Load Rating | 34,500 N |
| Series | 7000 |
| Rolling Elements | Ball |
| Item Weight | 0.870 kg (1.92 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Matched duplex pair, universally ground |
| Bearing Material | Bearing steel (SAE 52100 equivalent) |
| Cross Reference 1 | SKF 7013 CD |
|---|---|
| Cross Reference 2 | FAG B7013-C-T |
| Cross Reference 3 | NSK 7013CTRDUL |
| Cross Reference 4 | NTN 7013C |
| Cross Reference 5 | Koyo 7013C |
| Cross Reference 6 | Timken/Fafnir 2MM9113WICRDUL |
| Cross Reference 7 | SNR 7013CV |
RHP 7013CTDULP5 matched duplex pair of single-row angular contact ball bearings. Bore Diameter: 65 mm. Outside Diameter: 100 mm. Overall Width: 18 mm per bearing. Total Width: 36 mm for the pair. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Series: 7000. Base Number: 7013.
7 — single-row angular contact ball bearing.
0 — RHP dimension series 0, ISO series 10.
13 — bore code 13, a 65 mm bore.
C — 15° contact angle. The carton’s B-series code X2 and the Fafnir-scheme number 2MM9113WI both state the same 15°.
T — machined cage in laminated phenolic resin, outer-ring guided.
DU — duplex universal. Two bearings ground as a matched set with the bores and outside diameters size-graded to share load evenly when mounted close together.
P5 — RHP precision grade P5. Precision Class: ABEC 5 / P5.
Dynamic Load Rating: 37,000 N per bearing. Static Load Rating: 34,500 N per bearing. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Bearing Material: Bearing steel, SAE 52100 equivalent, through hardened and heat treated for dimensional stability. Lubricant: Grease or oil.
Universal face control means the inner and outer rings of each bearing are the same width and the face steps are pre-adjusted at manufacture. The pair mounts back-to-back, face-to-face or in tandem without custom-ground spacers, and in tandem the two share load equally.
Shaft abutment diameter d1: 72 mm minimum. Abutment diameter D1: 93 mm maximum. Abutment diameter D2: 95 mm maximum. Chamfer dimension r: 1.1 mm minimum. Chamfer dimension r1: 0.6 mm minimum. Effective load centre a: 20.0 mm per bearing. Item Weight: 0.870 kg (1.92 lb) for the pair, 0.435 kg (0.96 lb) per bearing.
Unit Quantity: 2 Pcs. Mounting Arrangement: matched duplex pair, universally face-ground. Each ring is marked at the high point of radial runout by a burnished spot on the inner ring face and a V line on the outer ring outside diameter, and the deviation from nominal bore and outside diameter is marked in microns on the ring face.

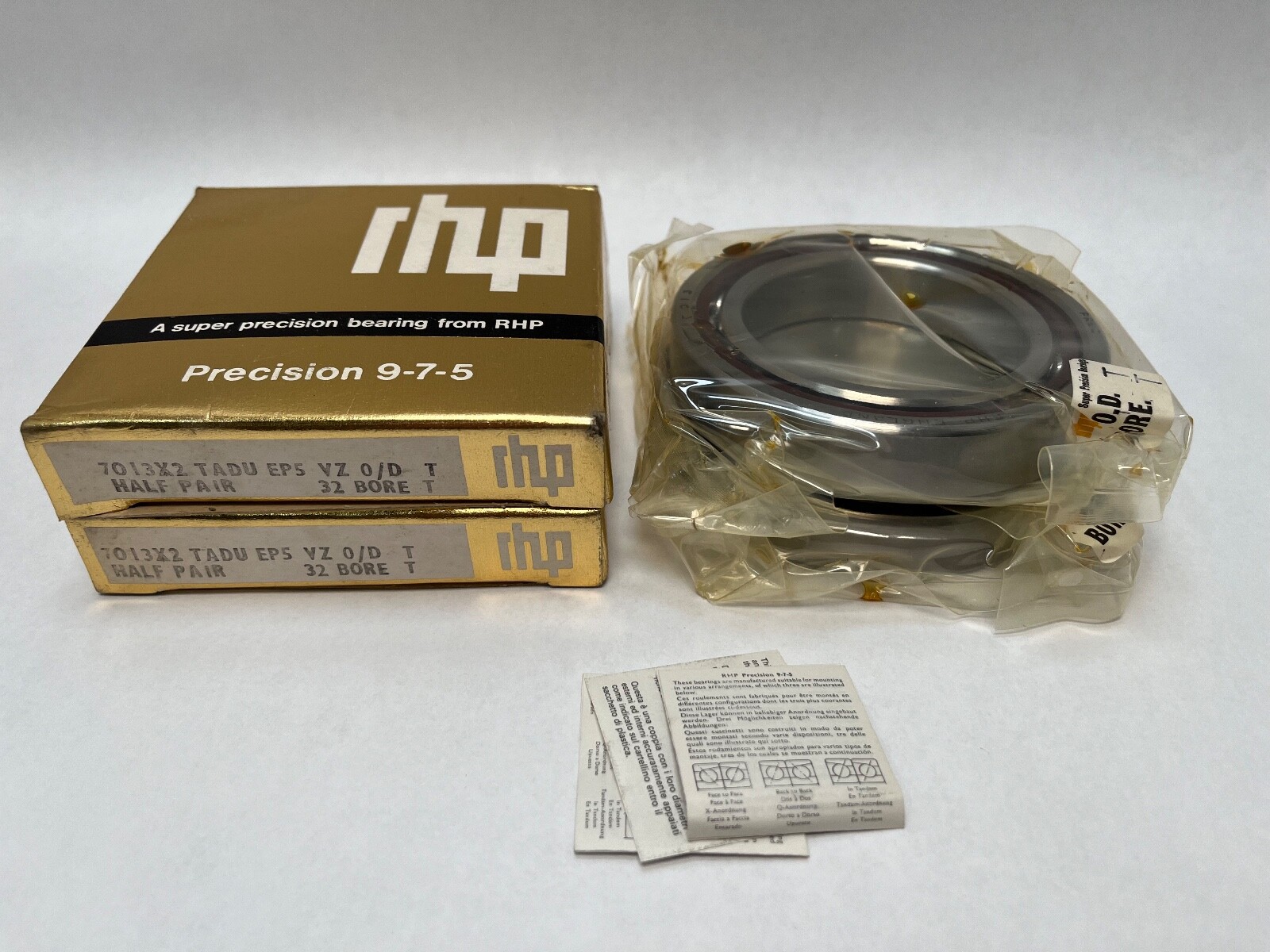

Same envelope and same 15° contact angle: SKF 7013 CD, FAG B7013-C-T, NSK 7013CTRDUL, NTN 7013C, Koyo 7013C, Timken/Fafnir 2MM9113WICRDUL, SNR 7013CV. The carton also carries the RHP B-series marking B7013X2TADULEP5 for the same pair.
