RHP7011CTP0Angular Contact Ball Bearing – 55 mm ID, 90 mm OD, 18 mm Width, Open, 15° Contact Angle, Phenolic Cage, EP1 Class

Product Description

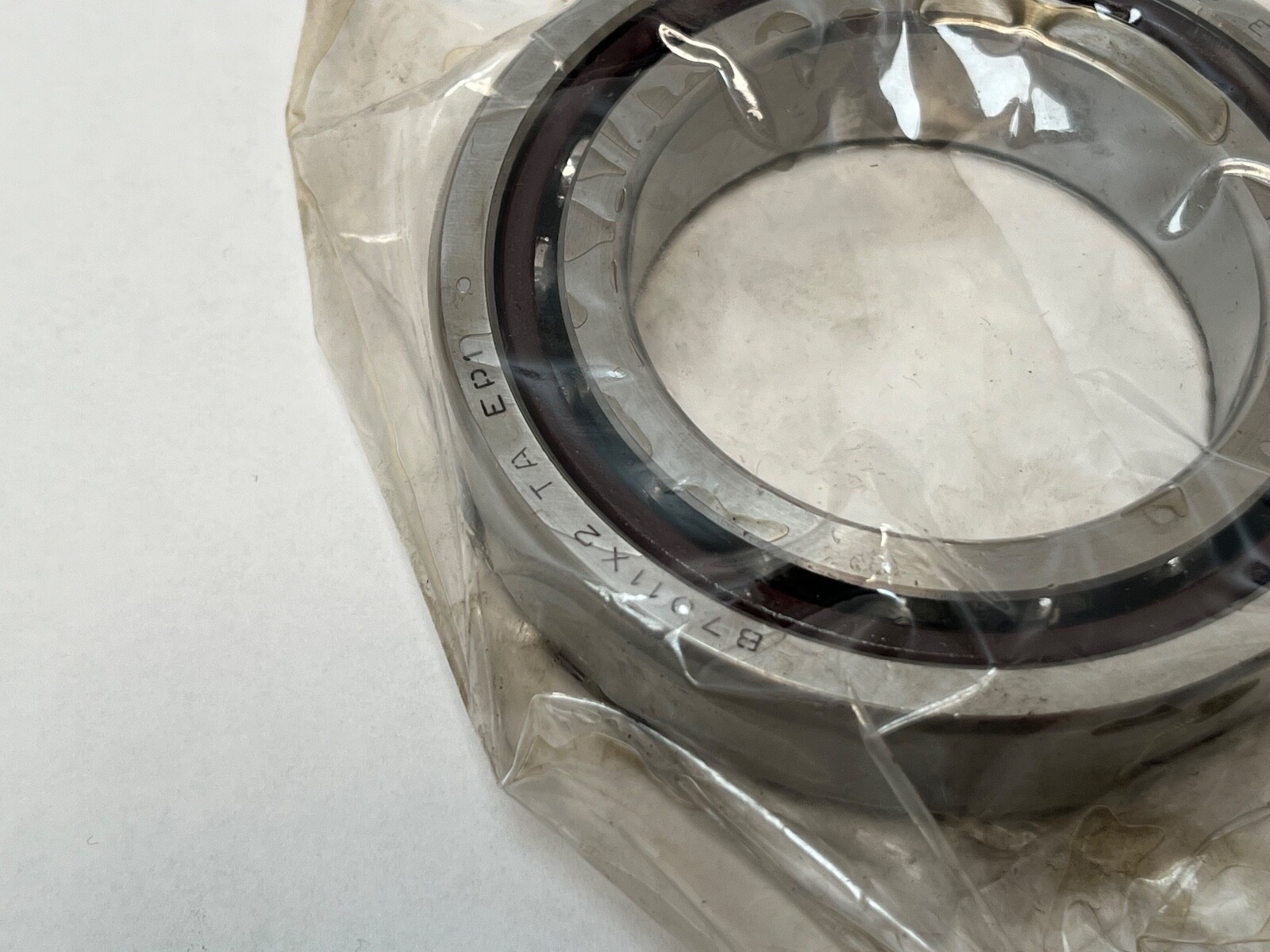

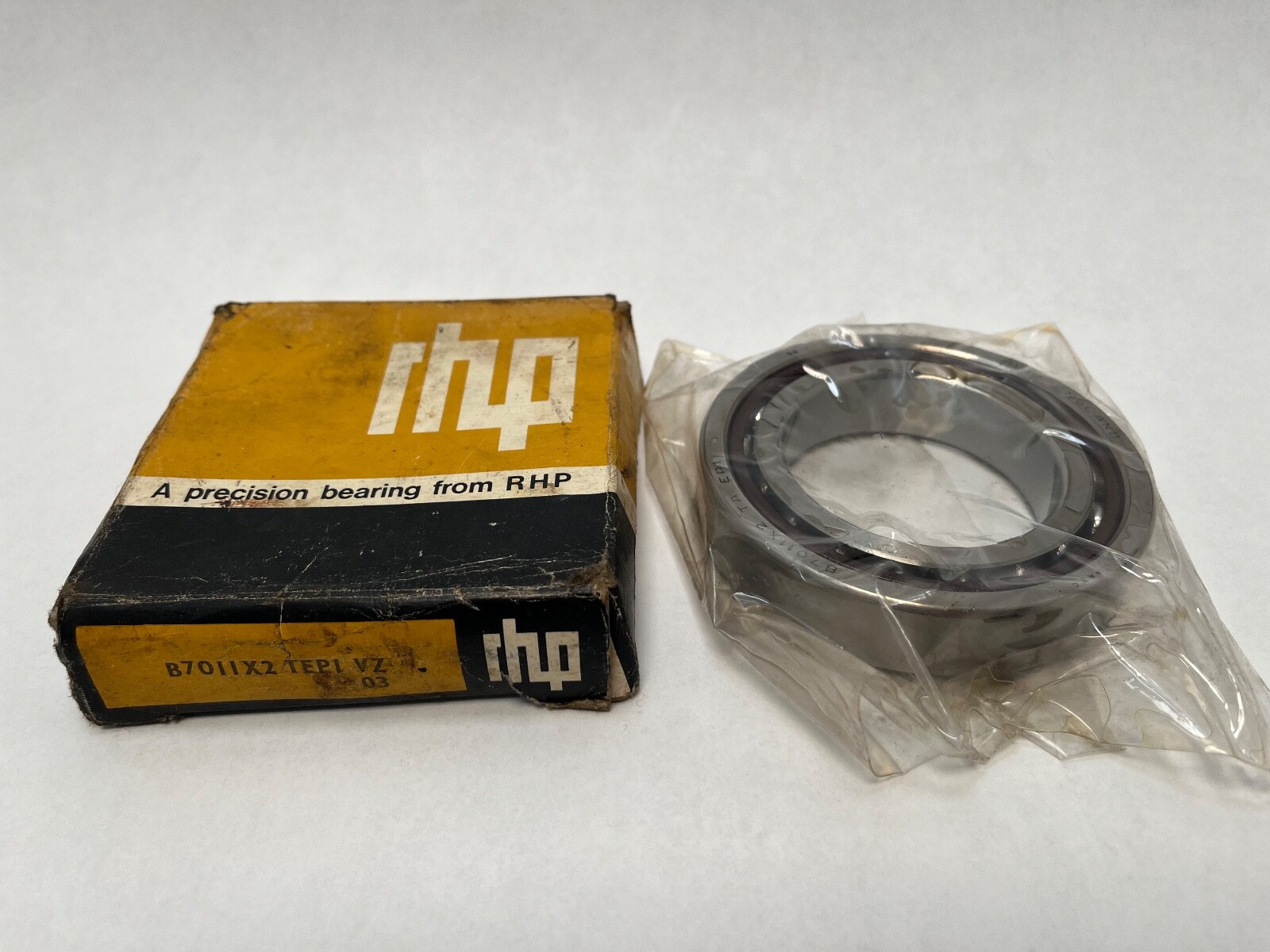

What this part is: RHP 7011CTP0 single-row angular contact ball bearing. Series: 70. Bore: 55 mm. Outside diameter: 90 mm. Width: 18 mm. Contact angle: 15°. Closure: open. Cage: machined laminated phenolic, outer-ring land riding. Precision class: P0, RHP EP1, ABEC 1. Decoding the designation: 7011: 70-series angular contact ball bearing, 55 mm bore. C: 15° contact angle. T: machined laminated phenolic cage, outer-ring guided, rated to 120 °C. P0: RHP EP1 precision, ABEC 1. The carton also carries the RHP B-series form B7011X2TAEP1, where X2 is the same 15° contact angle and EP1 the same precision class. Load ratings: Basic dynamic load rating Cr: 43.0 kN. Basic static load rating C0r: 28.6 kN. Permissible axial load Pa: 18.9 kN. Effective load centre a: 18.7 mm. Calculation factor f0: 15.5. Mass: 0.380 kg. Recommended grease quantity: 2.2 g. What these specs mean in practice: A 15° contact angle is the high-speed, lower-thrust end of the angular contact range: it accepts higher speeds and less axial load than a 25° or 40° bearing on the same 55 x 90 x 18 mm envelope. The phenolic cage rides on the outer ring land, which keeps the cage centred by the raceway rather than the balls and cuts cage-to-ball friction at speed. Phenolic runs to 120 °C and absorbs oil, so it carries lubricant into the ball track. Fitting notes: Shaft abutment diameter da: 62 mm minimum. Housing abutment diameter Da: 83 mm maximum, Db: 85 mm maximum. Chamfer dimensions r 1.1 mm minimum, r1 0.6 mm minimum. Permissible shaft or housing fillet radius ra: 1 mm maximum, rb: 0.6 mm maximum. Preload and rigidity figures published for the 7011C section in a DB or DF pair: EL 95 N / 51 N per µm, L 200 N / 69 N per µm, M 479 N / 102 N per µm, H 971 N / 144 N per µm. Quantity and configuration: One bearing. Country of origin: United Kingdom. Interchange guidance: SKF 7011 CE and FAG 7011-C-TVP are 15° equivalents at this envelope. Searchable forms: 7011CTP0, 7011 C T P0, 7011-C-T-P0, 7011C, B7011X2TAEP1, B-7011-X2-TA-EP1.
