Angular contact ball bearing, 50 x 80 x 16 mm, 15° contact angle, ABEC 1 / P0 class. Open, machined phenolic cage, bearing steel rings and balls.
List Price
$90.83
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super-Precision Angular Contact Ball Bearing Pair – 50 mm Bore, 90 mm OD, 20 mm Width, 25°, Light Preload$52.76
Super-Precision Angular Contact Ball Bearing Pair – 50 mm Bore, 80 mm OD, 16 mm Width, 25°, Light Preload$53.54
Angular Contact Ball Bearing - 50 mm ID, 80 mm OD, 16 mm Width, 15° Contact Angle, ABEC 9, Heavy Preload, Back-to-Back Pair$263.89
Super Precision Angular Contact Ball Bearing - Straight Bore, 50 mm ID, 80 mm OD, 16 mm Width, Open, 15° Contact Angle, Light Preload, Matched Duplex Pair$99.43| MFR / Brand | RHP |
|---|---|
| MPN | 7010CTP0 |
| Model | 7010 C T P0 / 2-9110 WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 7010 |
| Industry Terms | Spindle bearing; Precision angular contact ball bearing; Machine tool spindle bearing; Phenolic cage ball bearing |
| Common Misspellings | 7010 CT P0; 7010CTPO; 7010CTP-0; 2-9110WICRSUL; B7010X2TEP-1 |
| Application Types | Machine tool spindles; Grinding spindles; Precision gearboxes; High-speed pumps |
| Mpn Variants | 7010CTP0; 7010-C-T-P0; B7010X2TEP1; B-7010-X2-T-EP1; 2MM9110WI |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | Effective load centre a: 16.7 mm; shaft abutment d1 min 56 mm; abutment D1 max 74 mm; abutment D2 max 75 mm; chamfer r min 1.0 mm; chamfer r1 min 0.6 mm |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 26,000 N |
| Static Load Rating | 21,900 N |
| Series | 7000 |
| Rolling Elements | Ball |
| Item Weight | 0.259 kg (0.57 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Single bearing |
| Bearing Material | Bearing steel (SAE 52100 equivalent) |
| Cross Reference 1 | SKF 7010 CD |
|---|---|
| Cross Reference 2 | FAG B7010-C-T |
| Cross Reference 3 | NSK 7010C |
| Cross Reference 4 | NTN 7010C |
| Cross Reference 5 | Koyo 7010C |
| Cross Reference 6 | Timken/Fafnir 2MM9110WI |
| Cross Reference 7 | SNR 7010CV |

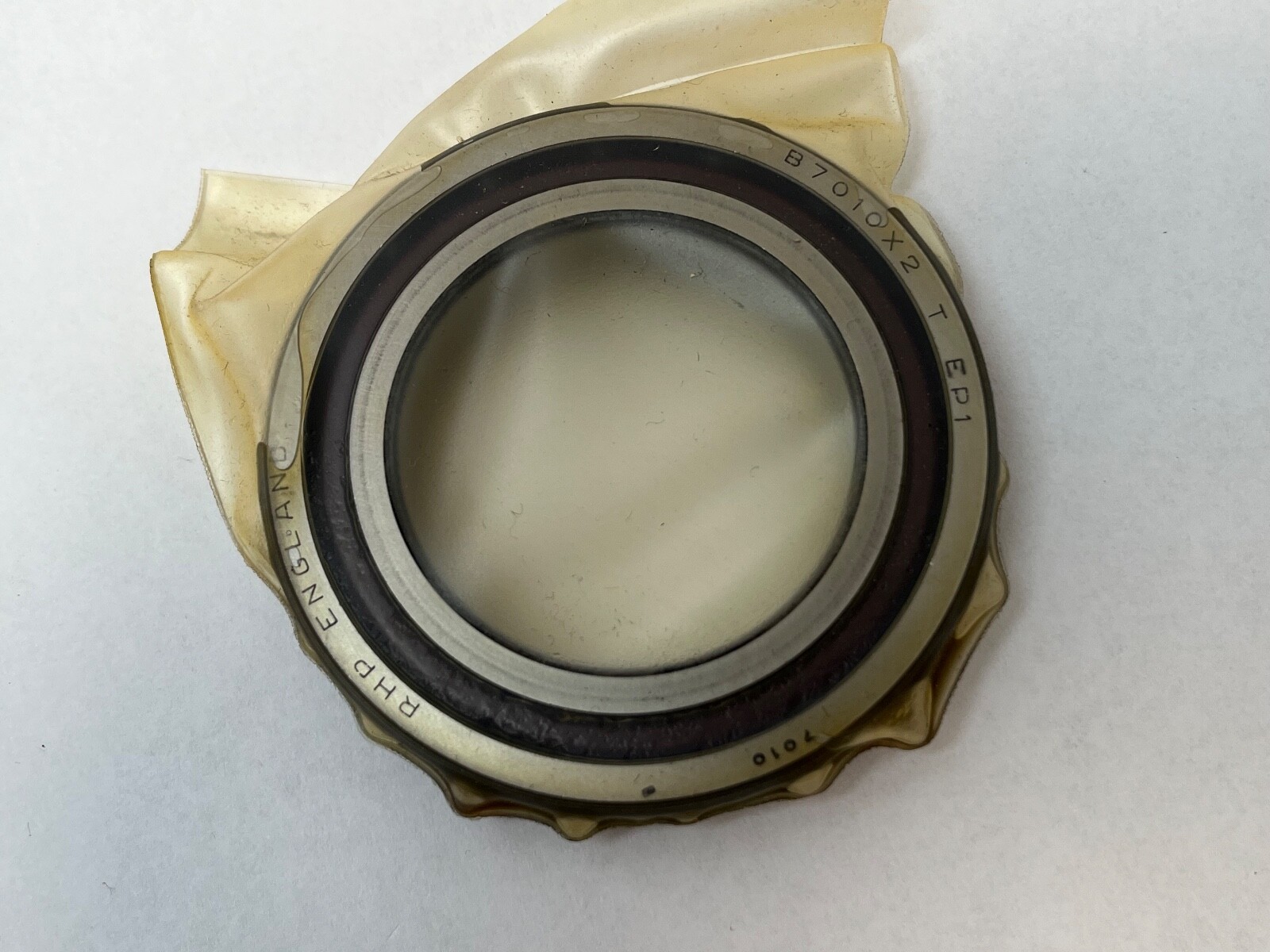

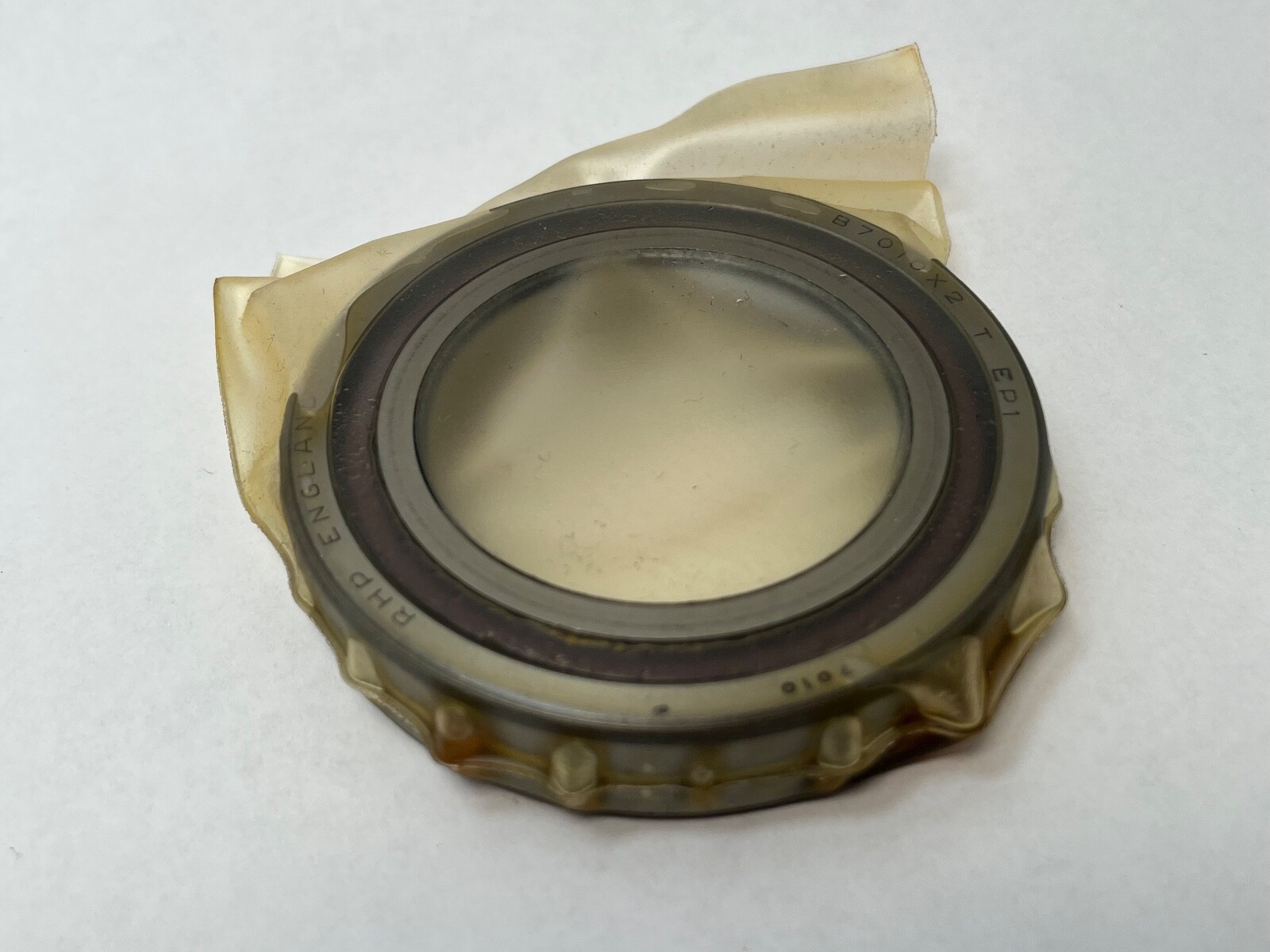

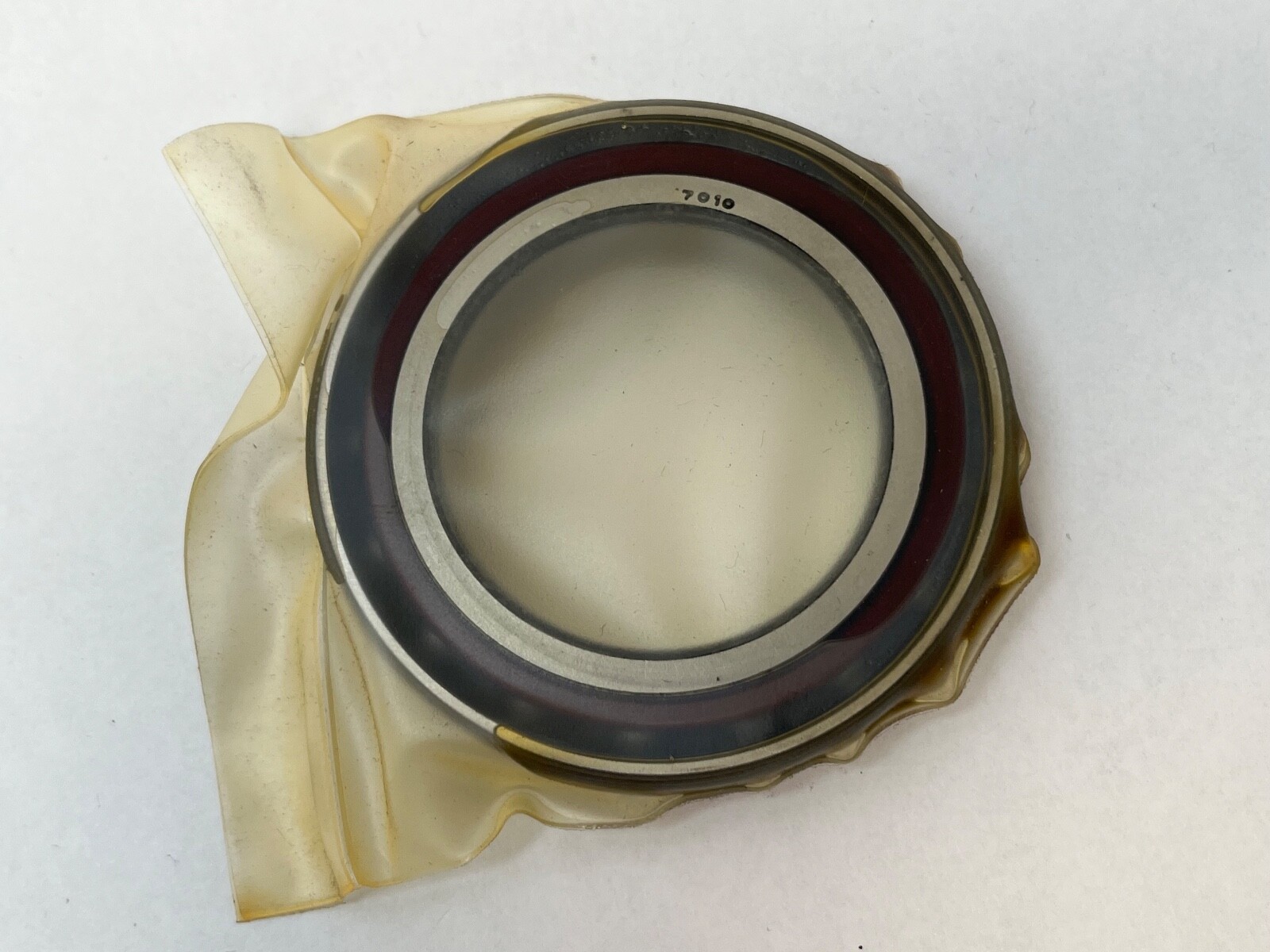

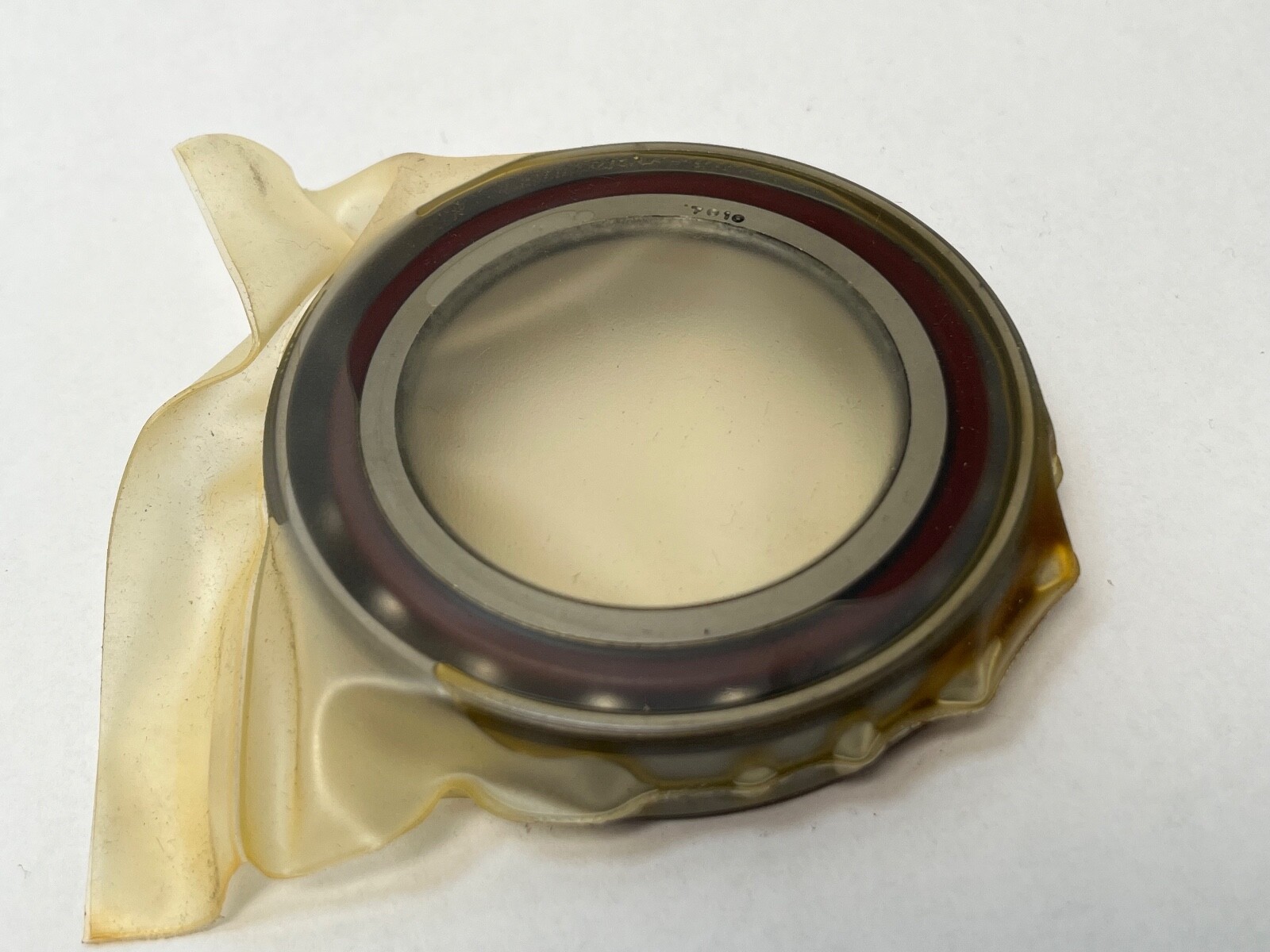

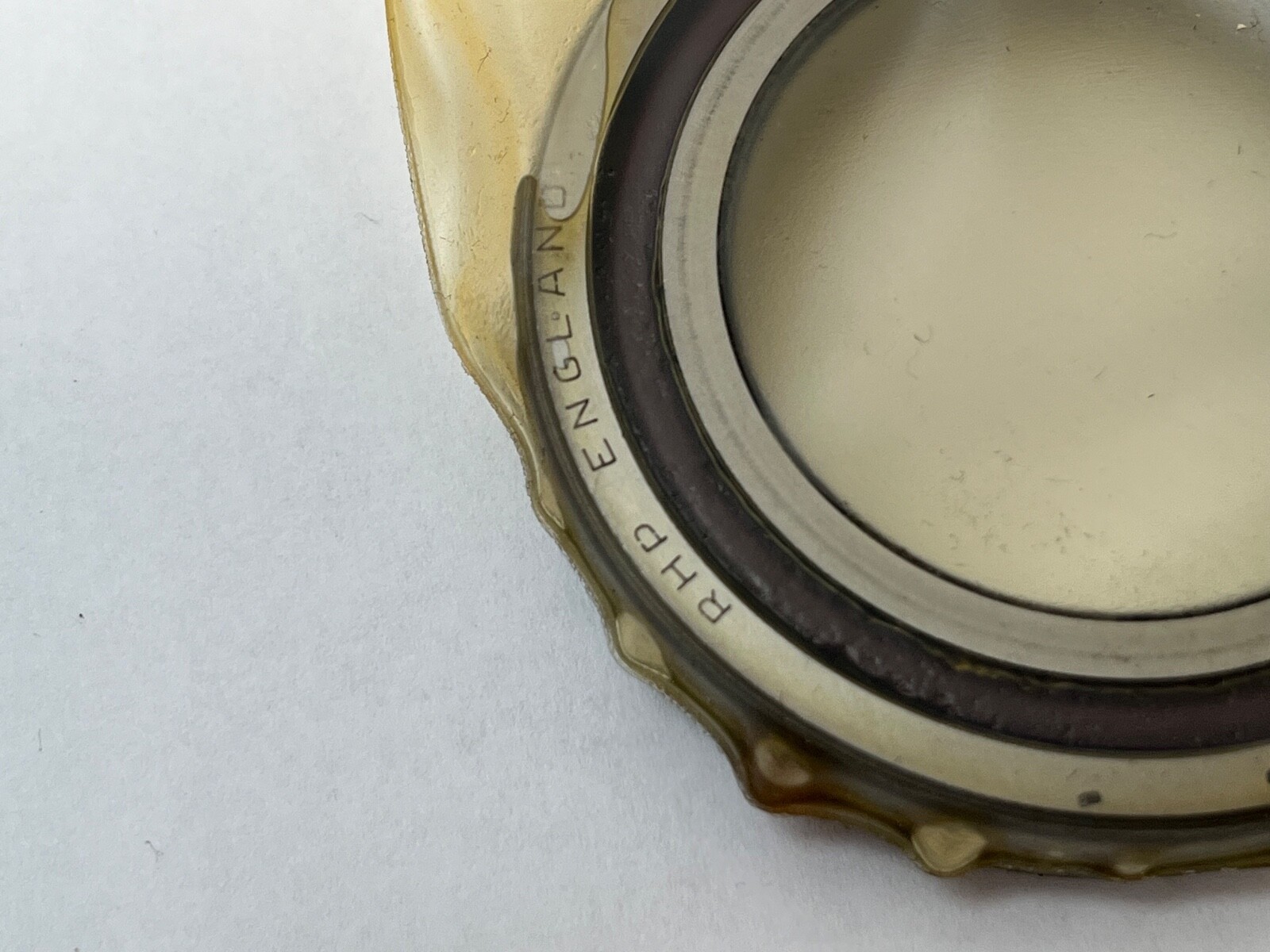

RHP 7010CTP0 single-row angular contact ball bearing. Bore Diameter: 50 mm. Outside Diameter: 80 mm. Overall Width: 16 mm. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Series: 7000. Base Number: 7010.
7 — single-row angular contact ball bearing.
0 — RHP dimension series 0, ISO series 10.
10 — bore code 10, a 50 mm bore.
C — 15° contact angle. The carton’s B-series code X2 and the leading 2 of the Fafnir number 2MM9110WI both state the same 15°.
T — machined cage in laminated phenolic resin, outer-ring guided.
P0 — RHP precision grade P0. Precision Class: ABEC 1 / P0. The carton’s EP1 marking is the British Standards form of the same grade.
Dynamic Load Rating: 26,000 N. Static Load Rating: 21,900 N. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Bearing Material: Bearing steel, SAE 52100 equivalent, through hardened and heat treated for dimensional stability. Lubricant: Grease or oil.
The 15° contact angle carries radial load with an axial component in one direction, so the bearing runs opposed against a second bearing or within a larger set. The laminated phenolic cage is light and runs quietly against the ring land.
Shaft abutment diameter d1: 56 mm minimum. Abutment diameter D1: 74 mm maximum. Abutment diameter D2: 75 mm maximum. Chamfer dimension r: 1.0 mm minimum. Chamfer dimension r1: 0.6 mm minimum. Effective load centre a: 16.7 mm. Item Weight: 0.259 kg (0.57 lb).
Unit Quantity: 1 Pc. Mounting Arrangement: single bearing. The ring is marked at the high point of radial runout by a burnished spot on the inner ring face and a V line on the outer ring outside diameter, and the V line points in the direction of the contact angle.

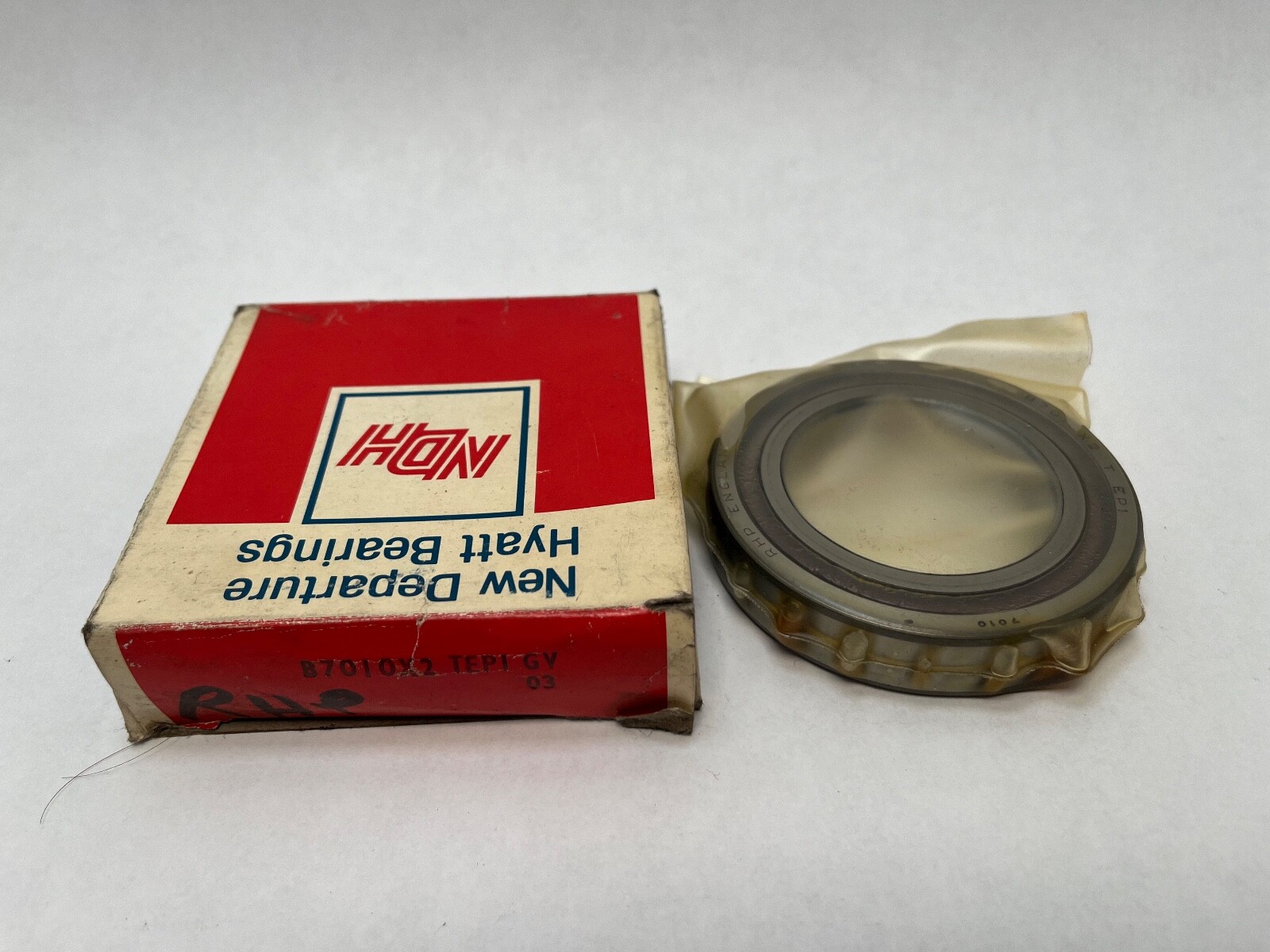

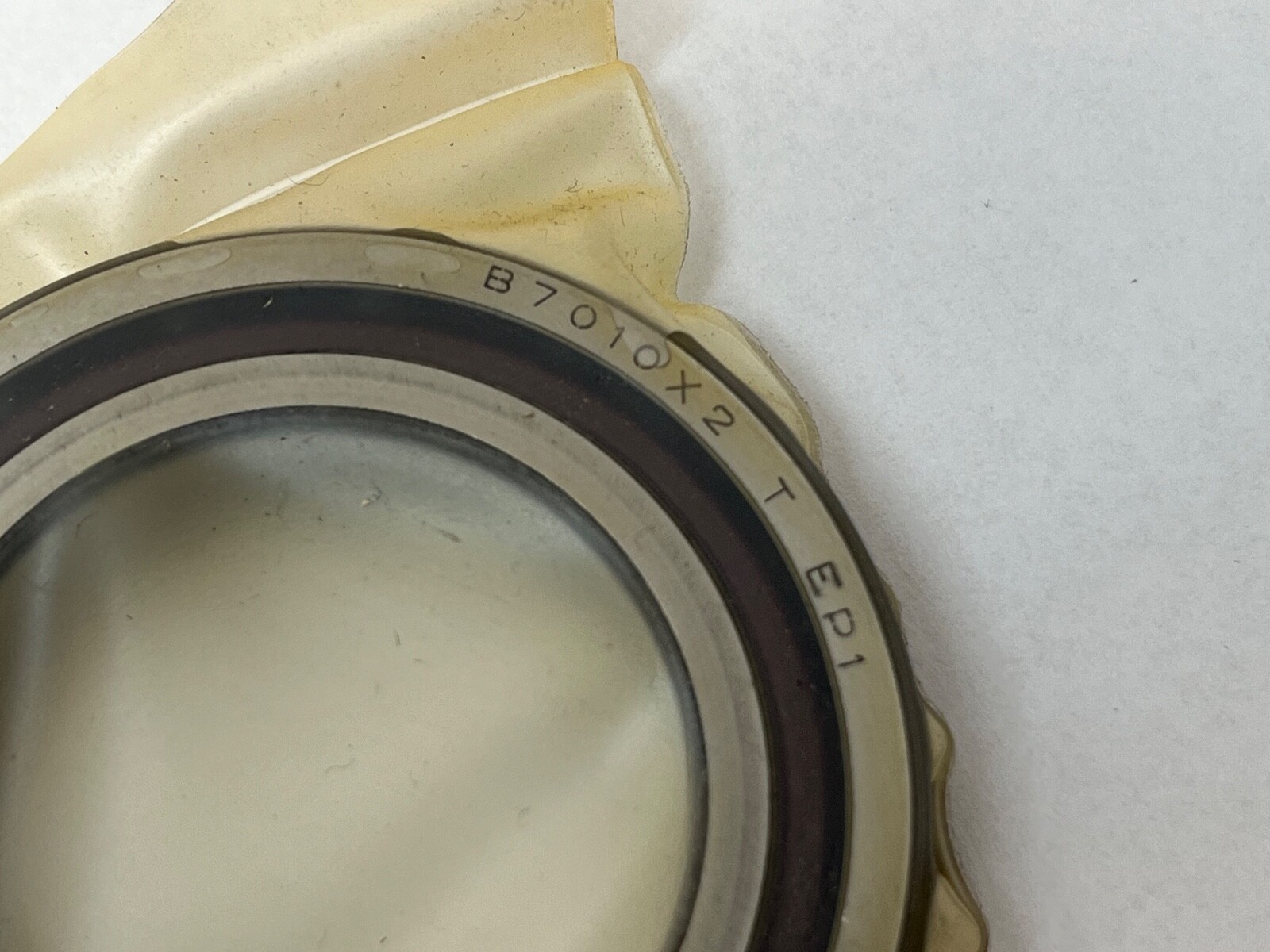

Same envelope and same 15° contact angle: SKF 7010 CD, FAG B7010-C-T, NSK 7010C, NTN 7010C, Koyo 7010C, Timken/Fafnir 2MM9110WI, SNR 7010CV. The carton also carries the RHP B-series marking B7010X2TEP1 for the same bearing.
